USER MANUAL Firebr Blumfeldt

Note: The device is only suitable for outdoor use.

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with three leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

10029717 10037731 10037732

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 12

operation 14

Cleaning and Care 15

Disposal Considerations 15

Manufacturer & Importer (UK) 15

TECHNICAL DATA

Item number	10029717, 10037731, 10037732
Power supply	220-240 V ~ 50/60 Hz
Power consumption	650-2000 W

SAFETY INSTRUCTIONS

• Do not leave this unit unattended when in use.
• This heater will get hot when in use. Do not touch hot surfaces.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given when children and vulnerable people are present.

• Do not move the unit when in use. Wait until the heater is completely cool before moving and check that it has been unplugged from the power supply.
• Position the unit at least 1.5 m away from highly combustible materials such as furniture, trees, leaves, dry grass and bushes.
• The heater must not face with the heating element pointing upwards towards a ceiling. The heater element must be facing the area it is to heat.

Note: In order to avoid overheating do not cover the heater. It is not for drying clothes.

• Keep children and pets at a safe distance from the unit.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Do not operate the heater if any signs of damage or malfunction manifest themselves.
• Do not attempt to repair or adjust any electrical or mechanical functions on this unit. The unit does not contain any user serviceable parts. Only a qualified electrician should perform servicing or repairs.
• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not handle the element with bare hands. If it is inadvertently touched, remove finger marks with a soft cloth and methylated spirits or alcohol, otherwise the marks will burn into the element causing premature heater failure.

• Do not replace or attempt to replace the element in this product.

• Do not use this heater in the immediate surroundings of a bath, shower or swimming pool.
• This product must not be left outdoors exposed to the elements for long periods of time.
• Do not touch the plug with wet or damp hands.
• Do not run the power cable under carpeting. Do not cover the power cable with rugs, runner, or similar coverings. Arrange the power cable away from foot traffic and where it will not be tripped over.
• Do not wind the power cable around the unit.
• Do not insert or allow foreign objects to enter any ventilation or opening on the heater, as this may result in electric shock, fire, or damage to the heater.
• To prevent a possible fire, do not block the air vents.
• A heater has hot and arcing or sparking parts inside. Do not use in areas where petrol, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
• Where possible, avoid the use of an extension cable as this may overheat and cause a fire. However, if you have to use an extension cable, ensure it is suitable for the purpose, has been tested for outdoor use and preferably has an RCD device fitted or attached.
• Always ensure the heater is plugged into a suitable socket, one that is tested for outdoor use.
• Always unplug the unit and ensure the unit is completely cold before moving, cleaning or storing.
• This heater is intended for domestic use only and should not be used commercially for contract purposes. Any alternative use, not recommended by the manufacturer, may result in fire, electric shock, or injury to persons.
• The use of attachments on the heater is not recommended.
• Do not use this heater with a programmer, timer, separate remote control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

Important note on transport safety

Transport safeguards made of foam are located between the grids of the heater. Completely remove the transport safeguards before operating the device, otherwise there will be a risk of fire.

OPERATION

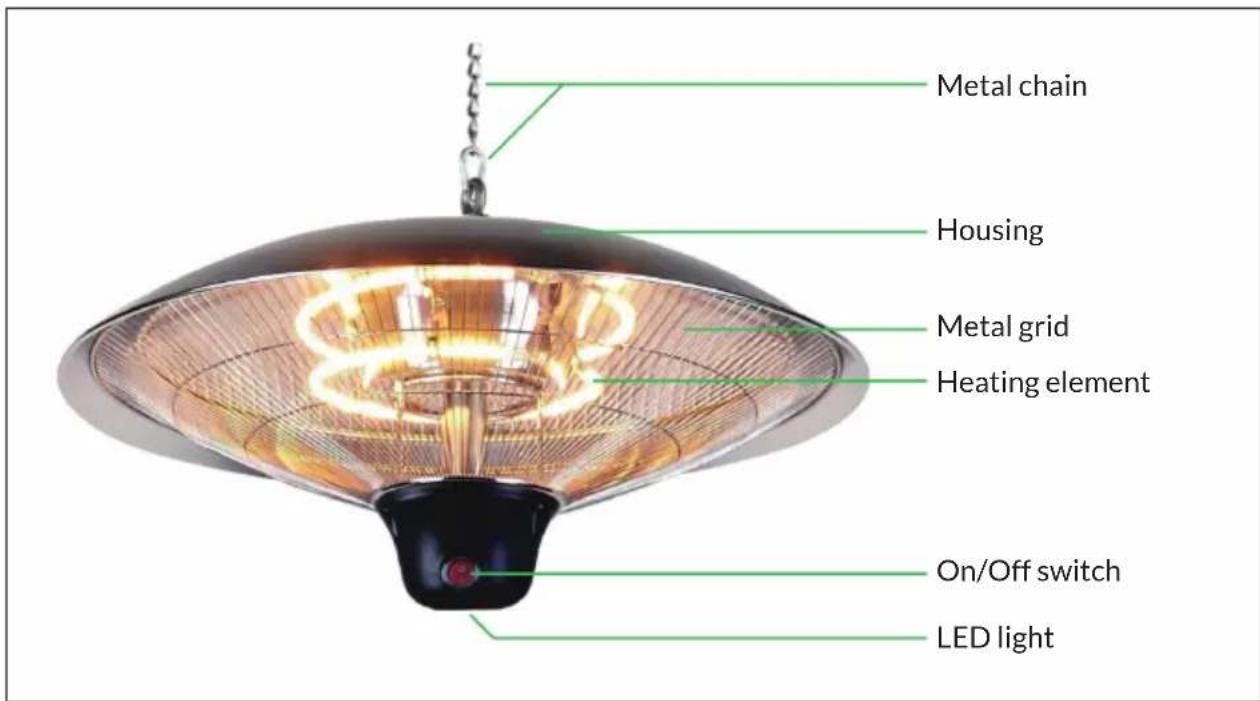

Metal chain Housing Metal grid Heating element On/Off switch LED light

• Attach this heater to a suitable ceiling. The appliance must hang at least 1.8 m over the floor and must have a minimum distance of 0.5m to the ceiling.
• Make sure that the hook is able to undertake a weight 3 or 4 times that of the Patio Heater itself.
• Note: Installation may only be carried out by suitably trained personnel.
• Use the RC to switch the device on/off and select the desired power stage (650W - 1350W - 2000W) or to switch the integrated LED light on or off. Press (to switch the device off.
• Point the RC towards the device.

CLEANING AND CARE

• Before cleaning, remove the plug from the socket and allow the unit to cool completely.
• Do not use scouring agents or solvents for cleaning and never immerse the unit in water.
• Clean the outside with a soft, damp cloth.
• The device contains parts that are not accessible to the user. Repairs may only be carried out by qualified specialists.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
