USER MANUAL CMESTHOS912 Craftsman

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

PANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Fig. A

A 6 2 1 5 3 7 8 4 12 9 11 10 WARNING: Excluence of transatlucers

1 On/Off trigger switch
2 Mode selection switch
3 Cord retainer
4 Power cord plug
5 Main handle
6 Auxiliary handle

7 Height adjustment locking clamp
8 Motor housing
9 Guard
10 Spool
11 Wire edge guide
12 Blower output

WARNING: Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

8.5 Amp String Trimmer / Edger with Built in Blower CMESTHOS912

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

To reduce risk of injury:

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently.

WARNING:

When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

1. Avoid Dangerous Environment – Don't use appliances in damp or wet locations.

2. Don't Use In Rain.

3. Keep Children Away – All visitors should be kept at a distance from work area.

4. Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering to contain long hair.

5. Use Safety Glasses – Always use face or dust mask if operation is dusty.

6. Use Right Appliance – Do not use appliance for any job except that for which it is intended.

7. This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.

8. Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the gardening appliance. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.

9. Warning – To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A. or SJTOW-A.

10. Extension Cord – Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating. Minimum Gauge for Cord Sets, shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. To reduce the risk of disconnection of appliance cord from the extension cord during operating:

i) Make a knot as shown in Figure B; or

ii) Use one of the plug-receptacle retaining straps or connectors described in this manual.

OR

iii) Secure the extension cord to the appliance plug as shown or described in Assembly and Adjustments.

Fig. B

Line drawing of a medical or laboratory device with coiled wires and a central connector (no text or symbols)

1. Avoid Unintentional Starting – Don't carry plugged-in appliance with finger on switch. Be sure switch is off when plugging in.
2. Don't Abuse Cord – Never carry appliance by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
3. Don't grasp the exposed cutting blades or cutting edges when picking up or holding the appliance.
4. Don't Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.
5. Don't Overreach – Keep proper footing and balance at all times.
6. Stay Alert – Watch what you are doing. Use common sense. Do not operate appliance when you are tired.
7. Disconnect Appliance – Disconnect the appliance from the power supply when not in use, before servicing, when changing accessories such as blades, and the like.
8. Store Idle Appliances Indoors – When not in use, appliances should be stored indoors in dry, and high or locked-up place – out of reach of children.
9. Maintain Appliance With Care – Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow instructions for lubricating and changing accessories. Inspect appliance power source periodically, and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.
10. Check Damaged Parts – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated elsewhere in this manual.

Additional Safety Warnings

To reduce the risk of

rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc.

When replacing the line, use

CRAFTSMAN replacement part CMZST080. Other diameters or shapes may degrade performance or cause damage to the trimmer. Do not use materials such as metal wire.

• GUARD – Do not use this appliance without guard attached.
• DRESS PROPERLY – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Don't operate the appliance when barefoot or wearing open sandals. Wear heavy long pants to protect your legs. Wear protective hair covering to contain long hair.
• KEEP FACE, HANDS AND FEET CLEAR OF ROTATING NYLON LINE AT ALL TIMES. The rotating line performs a cutting function use care when trimming around screens and desirable plantings.
• KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children. MAKE SURE that other persons and pets are at least 100' (30 m) away.
• USE GREAT CARE when working close to solid objects and where necessary, do trimming by hand.
• AVOID ACCIDENTALLY STARTING – Don't carry with finger on trigger when tool is plugged in.
• DAMAGE TO UNIT – If you strike or become entangled with a foreign object, stop appliance immediately, disconnect the appliance from the power supply and check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken hub or spool.
• DO NOT OPERATE portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
• STAY ALERT – Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication.
• DO NOT immerse appliance in water or squirt it with a hose.
• DO NOT allow any liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.
  • DO NOT clean with a pressure washer.
• DO NOT store the appliance on or adjacent to fertilizers or chemicals.

Do not use appliance if the switch trigger does not turn the appliance on or off. Any appliance that can not be controlled with the switch trigger is dangerous and must be repaired.

Additional Safety Information

Never modify the power tool or any part of it. Damage or personal injury could result.

Do not remove guard. The guard myust be attached during use.

ALWAYS use safety glasses.

Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

Some dust contains

chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber.

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

Always wear proper

personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the

ENGLISH

total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12	16 16 14 12
12 16	14 12 Not Recommended

Servicing of Double Insulated Appliances

Your appliance is double-insulated to give you added safety. In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace. A double insulated appliance is marked with the words double insulated or "double insulation". The symbol (square within a square) may also be marked on the appliance.

Safety Rules and Instructions: Extension Cords

Double insulated tools have 2-wire cords and can be used with 2-wire or 3-wire extension cords. Only round jacketed extension cords should be used, and we recommend that they be listed by Underwriters Laboratories (U.L.) (C.S.A. in Canada). If the extension will be used outside, the cord must be suitable for outdoor use. Any cord marked as outdoor can also be used for indoor work.

Before using an extension cord, inspect it for loose or exposed wires, damaged insulation, and defective fittings. Make any needed repairs or replace the cord if necessary.

Safety Rules and Instructions: Polarized Plug

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz ......hertz

min......minutes

- - - or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

⚠️ ......safety alert symbol

△......visible radiation

avoid staring at light

......wearrespiratory protection

weareye

protection

O....wearhearing protection

readall documentation

IPXX......IPsymbol

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

Intended Use

This appliance is designed for residential outdoor trimming applications.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Unplug the trimmer before attempting to attach the guard, edge guide or handle. Never operate tool without guard firmly in place. The guard must always be on the tool to protect the user.

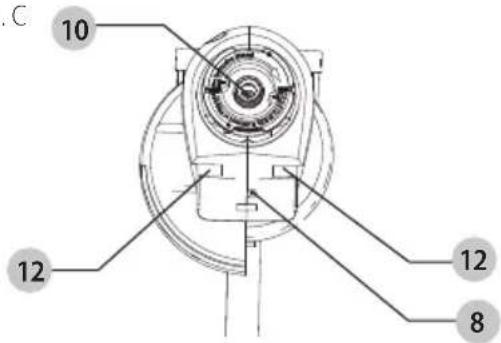

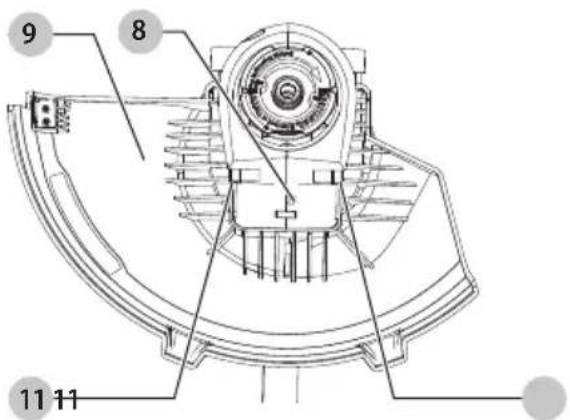

Attaching the Guard (Fig. C, D)

WARNING: NEVER OPERATE TRIMMER WITHOUT GUARD FIRMLY IN PLACE.

1. Turn the trimmer upside down so that you are looking down at the spool 10.
2. Remove the screw from the guard with a crosshead screwdriver.
3. Turn the guard 9 upside down and slide it fully onto the motor housing 8. Make sure the tabs 11 on the guard engage the ribs 12 on the motor housing as shown in Fig. C. The locking tab should have snapped into the housing slot.
4. Continue to slide the guard on until you hear it "snap" into place.
5. Insert the guard screw as shown in Fig. D to complete the guard assembly.
6. Once the guard is installed, remove the covering from the line cut-off blade, located on the edge of the guard.

Fig. C

C 10 12 12 8

Fig. D

9 8 11 11

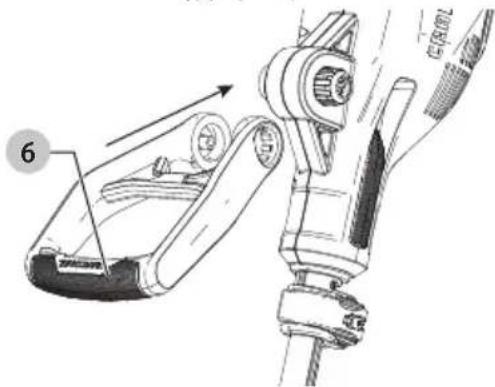

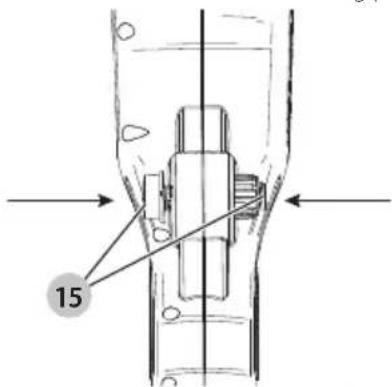

Attaching the Auxiliary Handle (Fig. E, F, G)

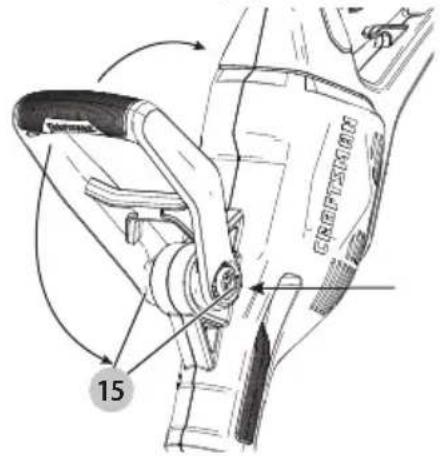

1. To attach the handle 6, press in on the buttons 15 on both sides of the upper housing as shown in Fig. E.
2. Position the handle as shown in Fig. F, matching up the grooved side of the handle with the grooved button. Partially push the handle on so that it will hold the buttons in when you release them with your hand.
3. Push the handle completely onto the housing and position it slightly until it "snaps" into place.
4. To adjust the handle up or down, press in on the button and raise or lower the handle as shown in Fig. G.
5. The handle should be adjusted so that your front arm is straight when the trimmer is in the working position.

Fig. E

15

Fig. F

Technical illustration of a robotic arm with labeled parts and motion arrows (no text or symbols)

Fig. G

Technical diagram of a car's side panel with labeled components and directional arrows indicating motion or movement.

English

Height Adjustment (Fig. A)

Adjust the length of the trimmer

to obtain proper working positions.

This appliance has a telescopic mechanism, allowing you to set it to a comfortable height.

1. Release the height adjust locking clamp 7.
2. Gently pull the tube up or down to the desired height.
3. Close the height adjust locking clamp.

Attaching Extension Cord (Fig. A)

An extension cord retainer 3 is built into the switch handle that prevents the cord from coming unplugged.

1. To use this feature, simply double the extension cord about 8" (203 mm) from the end, and loop it around the cord retainer 3. Gently tug on the cord to insure that it is firmly retained in the trimmer's handle.
2. Plug the receptacle end of the extension cord into the power cord plug 4 in the trimmer.

Releasing the Cutting Line

For shipping purposes, the cutting line is taped to the spool housing.

1. Remove the tape holding the cutting line to the spool housing.
2. See Replacing the Spool for instructions for removing the spool.

OPERATION

To reduce the risk of

serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Always use proper eye

protection that conforms to ANSI Z87.1 (CAN/CSA Z94.3) while operating this appliance.

Before you begin trimming, only

use the appropriate type of cutting line.

Inspect area to be trimmed and remove any wire, cord, or string-like objects which could become entangled in the rotating line or spool. Be particularly careful to avoid any wire which might be bent outwardly into the path of the trimmer, such as barbs at the base of a chain link fence.

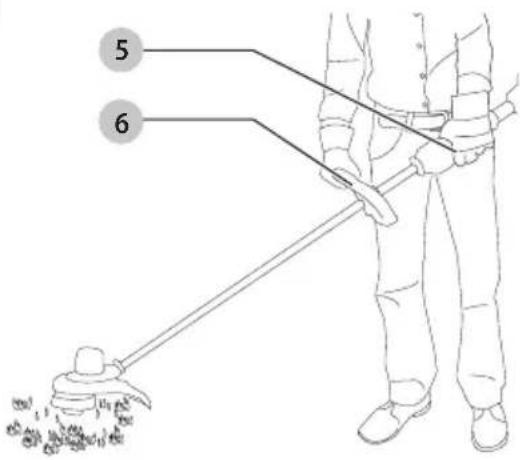

Proper Hand Position (Fig. H)

To reduce the risk of serious

personal injury, ALWAYS use proper hand position as shown.

To reduce the risk of serious

personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle 5 and one hand on the auxiliary handle 6.

Fig. H

5 6

Switching On and Off (Fig. A)

To switch the trimmer on, squeeze the trigger switch 1. To switch the trimmer off, release the trigger switch.

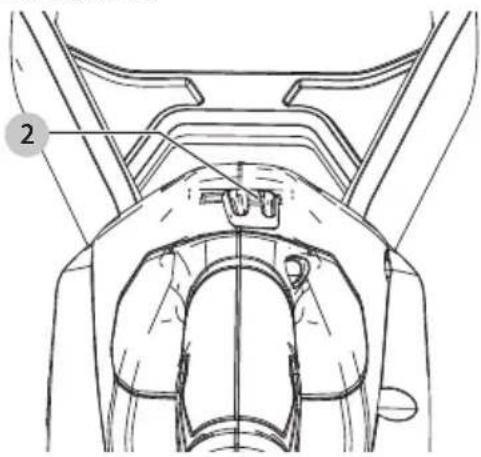

Convert to Blower Mode (Fig. I)

To convert to blower mode, toggle the mode selector switch to blowing mode.

To convert to trimming mode, toggle the mode selector switch to trimming mode.

Fig.1

Technical line drawing of a mechanical component with no visible text or symbols

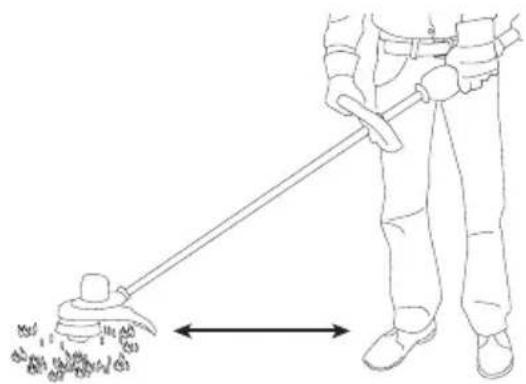

Operating the Trimmer (Fig. A, J–L)

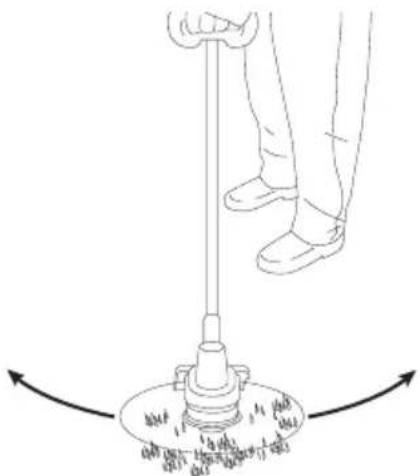

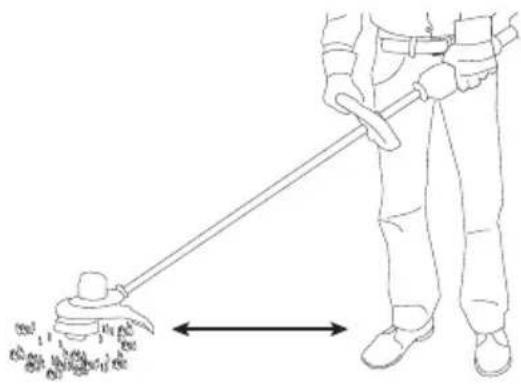

With the trimmer on, angle it and swing side to side as shown in Figure J.

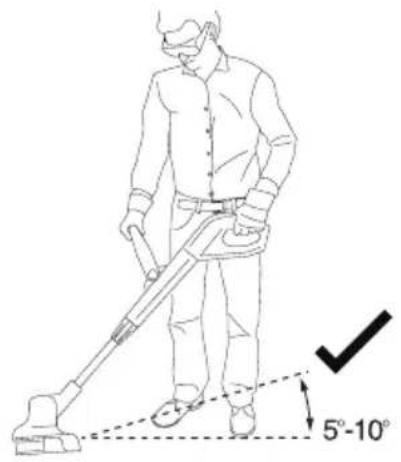

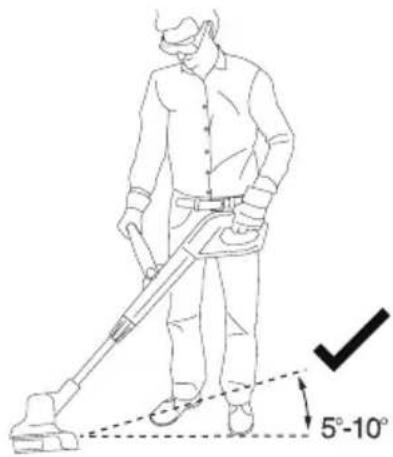

Maintain a cutting angle of 5^ to 10^ as shown in Figure K. Do not exceed 10^ (Figure K). Cut with the tip of the line.

Maintain a minimum distance of 24" (610 mm) between the guard and your feet as shown in Figure L.

English

Fig. J

Diagram showing foot positioning with labeled angles and directional arrows indicating motion or movement

Fig. K

5°-10°

Fig. L

Line drawing of a person using a broom to clean debris, with no text or symbols present

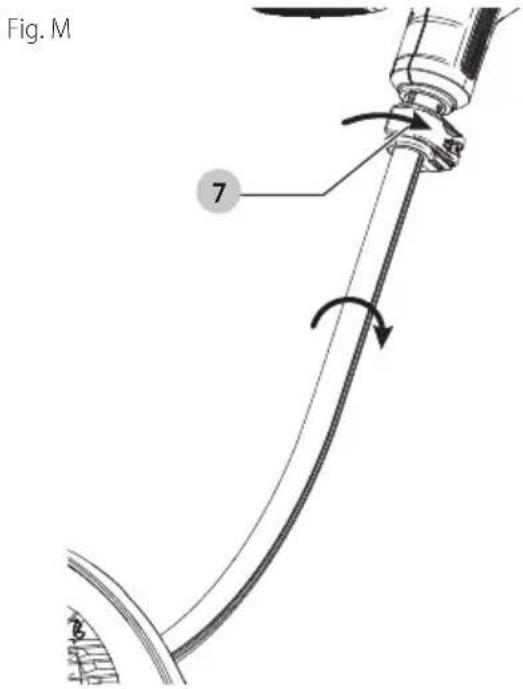

Convert to Edging Mode (Fig. M)

The trimmer can be used in trimming mode or edging mode to trim overhanging grass along lawn edges and flower beds.

WARNING: Disconnect the plug from the power source before making any adjustments.

WARNING: When being used as an edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The trimmer and guard are designed to reduce the danger. However, MAKE SURE that other persons and pets are at least 100' (30 m) away.

1. To operate as a maintenance edger, release the height adjust locking clamp 7.

2. Hold the trimmer with one hand on the auxiliary handle and one hand on the tube near the trimmer head. Then rotate the tube and head counterclockwise.

3. Close the height adjust locking clamp.

NOTE: The tube and head will only rotate in one direction. NOTE: The Auto Feed System may not operate correctly if wire edge guide 11 is not used.

1. To return to the trimming position, release the height adjustment locking clamp. Rotate the tube and head clockwise. Close the height adjustment locking clamp.

Fig. M 7

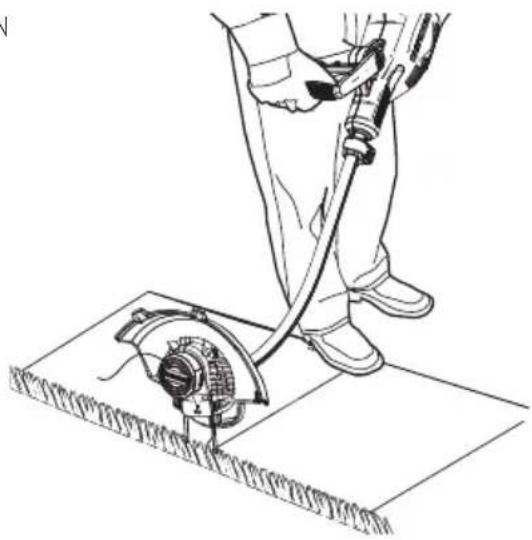

Edging (Fig. A, N)

Optimum cutting results are achieved on edges deeper than 2" (50 mm). Do not use this trimmer to create trenches.

1. To make a closer cut, slightly tilt the trimmer.
2. Return to the trimming position by loosening the lock collar and rotating the lower housing back 180°. The tool will lock in the trimmer position.

Fig. N

Line drawing of a person using a handheld tool on a workbench (no text or symbols)

English

Cutting Line / Line Feeding

During use, the tips of the lines will become frayed and worn and the special self feeding spool will automatically feed and trim a fresh length of line. Cutting line will wear faster and require more feeding if the cutting or edging is done along sidewalks or other abrasive surfaces or heavier weeds are being cut. The advanced automatic line feeding mechanism senses when more cutting line is needed and feeds and trims the correct length of line whenever it's required. Do not bump unit on ground in attempt to feed line or for any other purposes.

Helpful Cutting Tips

• Use the tip of the string to do the cutting; do not force string head into uncut grass.
• Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs, and wood may wear string rapidly.
• Do not allow spool cap to drag on ground or other surfaces.
• In long growth, cut from the top down and do not exceed 12" (304.8 mm) high.
• Keep trimmer tilted toward the area being cut; this is the best cutting area.
• The trimmer cuts when passing the unit from the left to right. This will avoid throwing debris at the operator.
• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the string.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

1. Keep the air intake slots clean to avoid overheating.
2. Your trimmer line can dry out over time. To keep your line in top condition, store spare pre-wound spools or bulk line in a plastic, sealable bag with a tablespoon of water.
3. Plastic parts may be cleaned by using a mild soap and a damp rag.
4. The line cutter on the edge of the guard can dull over time. It is recommended you periodically touch-up the sharpness of the blade with a file.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

When replacing line, use only CRAFTSMAN replacement spool no. CMZST080. Use of other lines or spools may cause damage to the trimmer or improper line feeding, which may result in user injury.

Other replacement parts (guards, spool caps, etc.) are available through CRAFTSMAN service centers. To find your local service location call: 888-331-4569 or visit www.CRAFTSMAN.com.

Replacing the Spool (Fig. 0–Q)

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

1. Unplug trimmer.

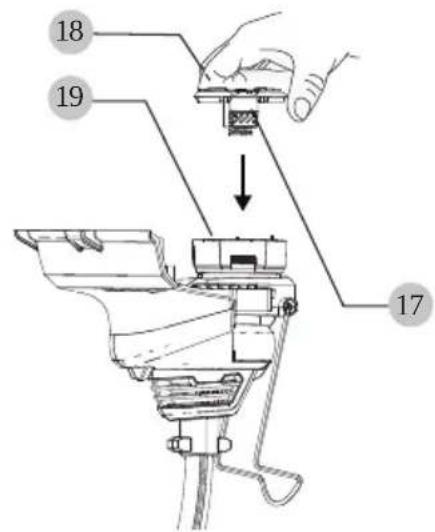

2. Depress the tabs 17 and remove the spool cap 18 from the spool housing 19 in the trimmer head (Fig. O).
3. For best results, replace spool with CRAFTSMAN model no. CMZST080.
4. Grasp empty spool with one hand and spool housing with other hand and pull spool out.

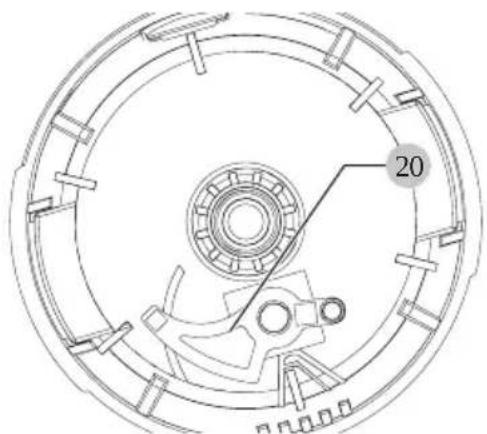

5. If lever 20 (Fig. P) in base of housing becomes dislodged, replace in correct position before inserting new spool into housing.
6. Remove any dirt and grass from the spool and housing.

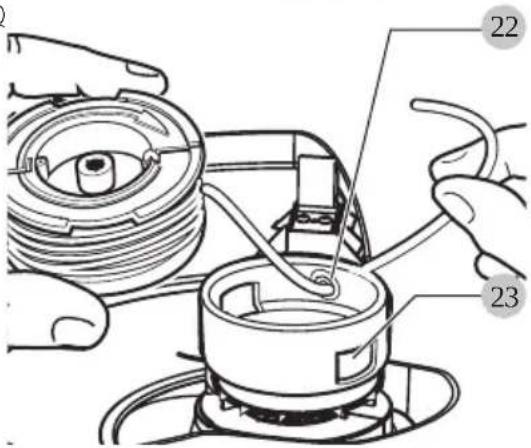

7. Unfasten the end of the cutting line and guide the line into the eyelet 22 Fig. Q.
8. Take the new spool and push it onto the boss in the housing. Rotate the spool slightly until it is seated. The line should protrude approximately 5-3/8" (136 mm) from the housing.

9. Align the tabs on the spool cap with the slots 23 in the housing (Fig. Q).

10. Push the cap onto the housing until it snaps securely into place.

CAUTION: To avoid trimmer damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

Fig. O

18 19 ↓ 17

Fig. P

Technical line drawing of a circular mechanical component with internal gear and mounting holes (no text or symbols)

Fig. Q

Technical diagram showing hands operating a mechanical device with labeled parts 22 and 23

Repairs

WARNING: To assure product SAFETY

and RELIABILITY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call

1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warn labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

Versatrack™ (Fig. R)

To reduce the risk of

serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing

attachments or accessories. An accidental start-up can cause injury.

To reduce the risk of serious use a damaged Versatrack™ Versatrack™ Trackwall.

A damaged Versatrack ^™ integral hang hook or Versatrack ^™ Trackwall will not support the weight of the tool.

To reduce the risk of serious

personal injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hang hook.

The Versatrack™ integral

hang hook is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any other surface.

The Versatrack™ integral

hang hook is not a belt hook.

When hanging objects on a

Versatrack™ Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linear foot.

Before using the tool make

sure that the Versatrack ^™ integral hang hook is returned to its original position

iIMPORTAnT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwall system.

1. Turn tool off, disconnect it from power source and remove accessories.

Any product with exposedve them covered securely if it isk™ Trackwall.

1. Mount the integral hang hook 24 to the Versatrack™ Trackwall.

NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. Fig. R

24

Simple line drawing of a bulb with wires, no text or symbols present

fabrication classe II (double isolation)

.../min......parminute

○ protection auditive

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

Fig. G

15

Technical line drawing of a mechanical component with no visible text or symbols

Diagram showing foot positioning with labeled motion vectors and a central mechanical device

Fig. K

5°-10°

Fig. L

Line drawing of a person using a manual lever to lift a bucket, with no text or symbols present.

Line drawing of a person using a handheld device on a flat surface, no text or symbols present

visitez www.CRAFTSMAN.com.

Simple line drawing of a plug with wires, no text or symbols present

Technical line drawing of a mechanical device with labeled parts (no readable text or symbols)

Fig. G

15

Ajuste de altura (Fig. A)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a person's legs using a manual pushper on a circular base, with directional arrows indicating motion (no text or symbols)

Fig. K

5°-10°

Fig. L

Line drawing of a person using a broom to clean debris, with no text or symbols present

Line drawing of a person using a handheld tool on a floor-mounted device (no text or symbols)

Technical diagram showing hands operating a mechanical device with labeled parts 22 and 23

Reparaciones

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP
