USER MANUAL CMESTA900 Craftsman

Thank you for choosing CRAFTSMAN!

PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your CRAFTSMAN purchase, go to www.craftsman.com

If you can't find the answer or do not have access to the Internet, call 888-331-4569 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

To register your new product, visit www.craftsman.com/registration

English

English (original instructions)	1
Français (traduction de la notice d'instructions originale)	10
Español (traducido de las instrucciones originales)	19

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

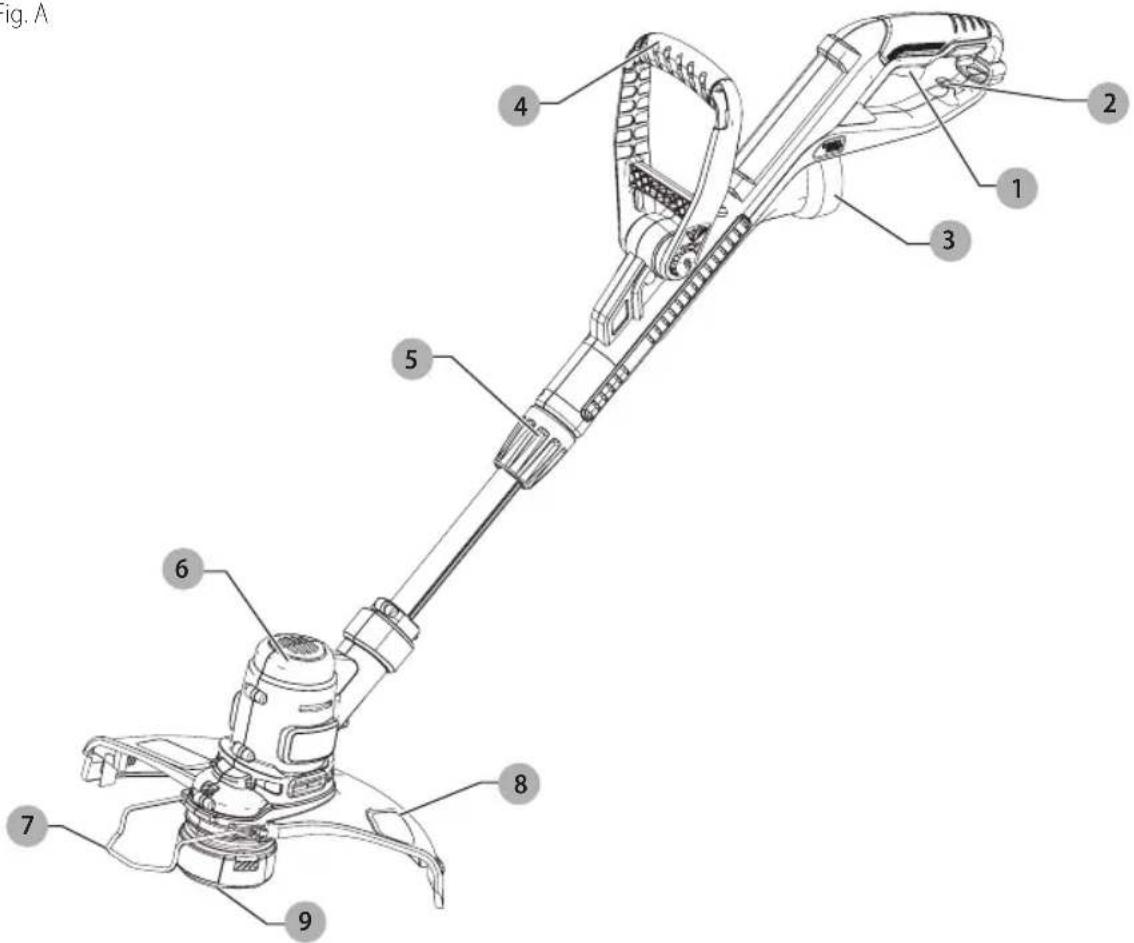

Fig. A

Fig. A 1 2 3 4 5 6 7 8 9

1 On/Off Trigger Switch
2 Cord Retainer
3 Power Cord Plug
4 Auxiliary Handle
5 Collar

6 Motor Housing
7 Edge Guide
8 Guard
9 Spool cap

WARNING! Read all safety warnings

and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

English

KEY INFORMATION YOU SHOULD KNOW

WARNING:

Do not remove guard. The guard must be attached when trimming. Operating this trimmer without the guard will violate the product warranty.

AUTION:

When replacing the line, use only 0.065 inch (1.65 mm) diameter round line. Other diameters or shapes may degrade performance or cause damage to the trimmer.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT THIS OR ANY CRAFTSMAN appliance, CALL US TOLL FREE AT:

1-888-331-4569.

IMPORTANT SAFETY WARNINGS

WARNING:

When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

READ ALL INSTRUCTIONS

• ALWAYS WEAR EYE PROTECTION – Wear safety spectacles or goggles at all times when this trimmer is plugged in. These items are available for purchase.
• GUARD – Do not use this appliance without guard attached.
• DRESS PROPERLY – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Don't operate the appliance when barefoot or wearing open sandals. Wear heavy long pants to protect your legs. Wear protective hair covering to contain long hair.
• NYLON LINE – Keep face, hands and feet clear of rotating nylon line at all times.
  • THE ROTATING LINE PERFORMS A CUTTING
  FUNCTION – Use care when trimming around screens and desirable plantings.
• KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children.
• IMPORTANT WARNING – When being used as an Edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The appliance and guard are designed to reduce the danger. However, the following special precautions should be taken: MAKE SURE that other persons and pets are at least 100 feet (30m) away.
  • TO REDUCE THE RISK of rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc. Use great care when working close to solid objects and where necessary, do trimming by hand.
• AVOID ACCIDENTALLY STARTING – Don't carry with finger on trigger.
• USE THE RIGHT APPLIANCE – Do not use this appliance for any job except that for which it is intended.

- DON'T OVERREACH – Keep proper footing and balance at all times.

- DON'T FORCE APPLIANCE – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed

- DAMAGE TO UNIT – If you strike or become entangled with a foreign object, stop appliance immediately, unplug, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken hub or spool.

- DAMAGE TO CORD – Keep power cord away from rotating line. If you damage the cord, unplug it from the power supply before moving the tool or examining the damage. A damaged cord must be replaced before further use.

- SECURE EXTENSION CORD using the cord retainer shown in this manual.

- DISCONNECT TRIMMER – when not in use, when replacing line, or prior to cleaning.

- AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do not use electric appliances in damp or wet locations. Follow all instructions in this Instruction Manual for proper operation of your appliance. Don't use the appliance in the rain.

- DO NOT OPERATE portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.

- STORE IDLE APPLIANCES INDOORS – When not in use, appliances should be stored indoors in a dry, locked-up place out of reach of children.

- STAY ALERT – Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication.

- MAINTAIN APPLIANCES WITH CARE – Follow instructions in maintenance section. Keep handles dry, clean and free from oil and grease.

- GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the trimmer. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.

- DON'T ABUSE CORD – Never carry trimmer by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.

- CHECK DAMAGED PARTS – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this manual.

- DO NOT immerse appliance in water or squirt it with a hose. DO NOT allow any liquid to get inside it. If appliance does get wet, allow to dry for a minimum of 48 hours.

- DO NOT store the appliance on or adjacent to fertilizers or chemicals.

• DO NOT clean with a pressure washer.

• KEEP GUARDS in place and in working order.
• KEEP HANDS AND FEET away from cutting area.

WARNING:

Do not use appliance if the

switch trigger does not turn the appliance on or off. Any appliance that can not be controlled with the switch trigger is dangerous and must be repaired.

WARNING:

Some dust created by this

product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers
• compounds in insecticides, herbicides and pesticides
• arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz hertz

min ...... minutes

or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

± earthing terminal

⚠️......safety alert symbol

▲......visible radiation

E....wearrespiratory protection

weareye

protection

O....wearhearing

protection

readall

documentation

SAFETY WARNINGS AND INSTRUCTIONS: POLARIZED PLUGS

CAUTION:

To reduce the risk of electric

shock, this equipment has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The trimmer plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet,

reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.

SAFETY WARNINGS AND INSTRUCTIONS: EXTENSION CORDS

WARNING:

To reduce the risk of electric

shock, use only with an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A. or SJTOW-A.

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. If the extension will be used outside, the cord must be suitable for outdoor work. The letters "WA" on the cord jacket indicate that the cord is suitable for outdoor use.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
06 18	16 16 14
6 10	18 16 14 12
10 12	16 16 14 12
12 16	14 12	Not Recommended

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING:

Never modify the power

tool or any part of it. Damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components. INTENDED USE

This string trimmer is designed for residential trimming applications. DO NOT use under wet conditions or in presence of flammable liquids or gases.

This string trimmer is a residential appliance. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this appliance.

English

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Assembly tools required

• Phillips Screwdriver (not supplied)

Installing the guard (Fig. A, C, D)

WARNING: NEVER OPERATE

APPLIANCE WITHOUT GUARD FIRMLY IN PLACE.

The guard must always be properly attached on the appliance to protect the user.

1. Remove the screw from the guard.
2. Turn the trimmer upside down so that you are looking down at the spool cap 9.
3. Turn the guard 8 upside down and slide it fully onto the motor housing 6. Make sure the tabs 11 on the guard engage the ribs 12 on the trimmer head as shown.
4. Continue to slide the guard on until you hear it "snap" into place. The locking tab 13 should snap into the housing slot 14 (Figure C).

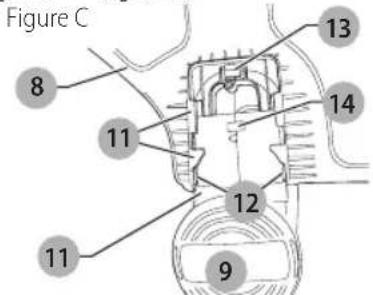

Figure C 8 11 12 13 14 9 11

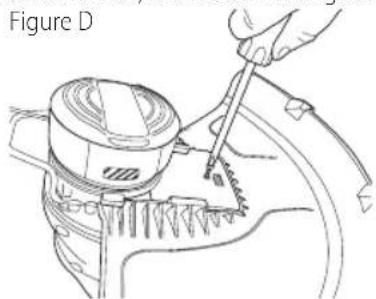

1. Using a Phillips screwdriver, insert the guard screw and tighten securely as shown in Figure D to complete the guard assembly.

2. Once the guard is installed, remove the covering from the line cut-off blade, located on the edge of the guard

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Attaching the auxiliary handle

(Fig. A, E, F, G)

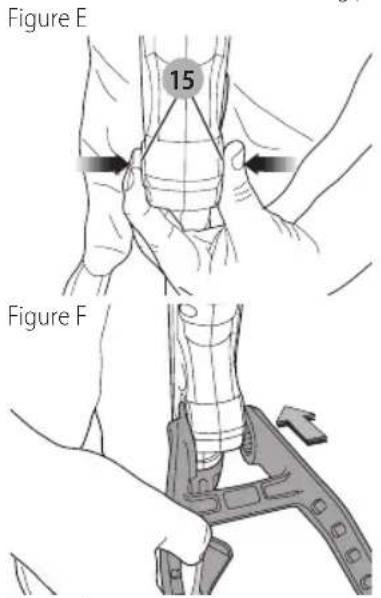

1. To attach the handle 4, press in on the buttons 15 on both sides of the upper housing as shown in Figure E.

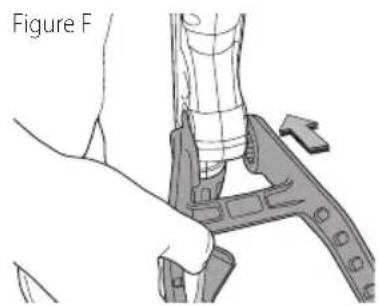

2. Position the handle as shown in Figure F, matching up the grooved side of the handle with the grooved button.

Partially push the handle on so that it will hold the buttons in when you release them with your hand.

1. Push the handle completely onto the housing and position it slightly until it "snaps" into place.

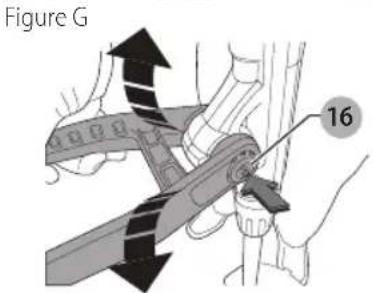

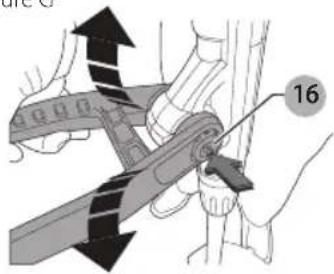

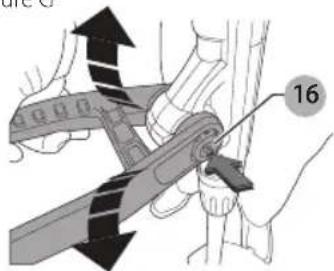

2. To adjust the handle up or down, press in on the button 16 and raise or lower the handle (Figure G).
3. The handle should be adjusted so that your front arm is straight when the trimmer is in the working position.

Figure E 15 Figure F

Figure G 16

Height adjustment (Fig. H)

AUTION: Adjust the length of the trimmer to obtain proper working positions as shown in Figures K and L.

• The overall height of the trimmer can be adjusted by loosening the collar 5 and rotating it in the direction of the arrow shown in Figure H.
• Move the upper housing straight up or down. When the desired height is achieved, tighten the collar by rotating it opposite of the direction shown in Figure H.

Figure H

5

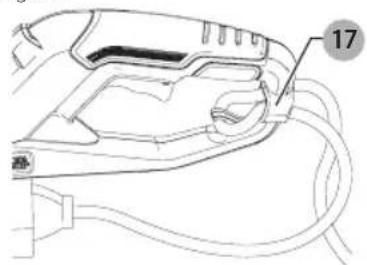

Attaching extension cord (Fig. A, I)

- An extension cord retainer 2 is built into the switch handle that prevents the cord from coming unplugged. To use this feature, simply double the extension cord about 8 inches (203 mm) from the end, and insert it into the slot 17 in the end of the handle area as shown in Figure I. Hook the loop formed by doubling the cord over the tab 2. Gently tug on the cord to insure that it is firmly retained in the trimmer's handle. Plug the receptacle end of the extension cord into the power cord plug 3 in the trimmer.

Figure I

Line drawing of a car interior with hoses and a numbered label (17), no readable text or symbols present.

Releasing the cutting line

For shipping purposes, the cutting line is taped to the spool housing.

- Remove the tape holding the cutting line to the spool housing.

• See Replacing the Spool for instructions for removing the spool

Setting trimming or edging mode (Fig. H, J)

WARNING: Disconnect the plug from the power source before making any adjustments.

The trimmer can be used in trimming mode or edging mode to trim overhanging grass along lawn edges and flower beds.

WARNING: When being used as an Edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The trimmer and guard are designed to reduce the danger. However, MAKE SURE that other persons and pets are at least 100 feet (30 m) away.

• To operate as a maintenance edger, turn the collar 5 as shown in Figure H.

- Hold the metal shaft and rotate the lower housing 180^ as shown in Figure J.

• Turn the collar back until tight.

NOTE: The metal shaft and housing will only rotate in one direction.

- To return to the trimming position, loosen the lock collar and rotate the lower housing back 180^ and retightening the collar 5.

Figure J 5

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Always use proper eye protection that conforms to ANSI Z87.1 (CAN/CSA Z94.3) while operating this appliance.

AUTION: Before you begin trimming, only use the appropriate type of cutting line- 080 inch (1.65 mm) diameter, ROUND nylon line.

CAUTION: Inspect area to be trimmed and remove any wire, cord, or string-like objects which could become entangled in the rotating line or spool. Be particularly careful to avoid any wire which might be bent outwardly into the path of the appliance, such as barbs at the base of a chain link fence.

Proper Hand Position (Fig. A)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle and one hand on the auxiliary handle 4.

Switching on and off (Fig. A)

• To switch the trimmer on, squeeze the trigger switch 1.

• To switch the trimmer off, release the trigger switch.

©

1. For best results, replace spool with Craftsman model no. CMZO98030.
2. Grasp empty spool with one hand and spool housing with other hand and pull spool out.

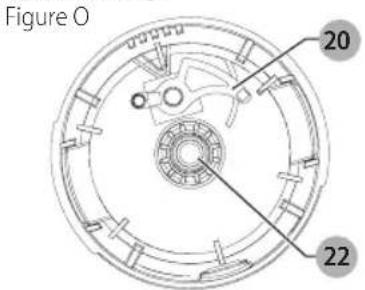

3. If lever 20 (Figure O) in base of housing becomes dislodged, replace in correct position before inserting new spool into housing.

Figure O 20 22

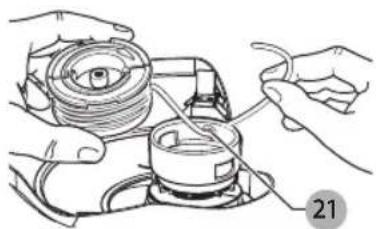

1. Remove any dirt and grass from the spool and housing.

2. Unfasten the end of the cutting line and guide the line into the eyelet 21 Figure P.

Figure P

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Take the new spool and push it onto the boss 22 in the housing. Rotate the spool slightly until it is seated. The line should protrude approximately 5-3/8 inches (136 mm) from the housing.
2. Align the tabs on the spool cap with the slots 23 in the housing (Figure Q).
3. Push the cap onto the housing until it snaps securely into place.

Figure Q 23

CAUTION: To avoid appliance damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

NOTE: Call the Craftsman help line at: 888-331-4569 replacement parts for replacement parts (guards, spool caps, etc.).

WARNING: The use of any accessory not recommended by Craftsman for use with this appliance could be hazardous.

Rewinding spool from bulk line (use only .065 in. round diameter line) (Fig. R, S, T)

Do not use square, star or other shaped line or larger diameter. These may cause feeding issues or overload the motor. Bulk line is also available for purchase from your local retailer.

NOTE: Hand wound spools from bulk line are likely to become tangled more frequently than Craftsman factory wound spools. For best results, factory wound spools are recommended.

To install bulk line, follow the steps below:

1. Unplug trimmer.
2. Remove the empty spool from the trimmer as described in Replacing the Spool.
3. Remove any remaining cutting line from the spool.

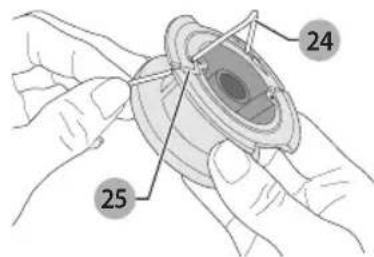

4. Make a fold at the end of the cutting line at about 3/4 inch (19mm) 24. Feed the cutting line into one of the line anchoring slots 25 as shown in Figure R.
   Figure R

24 25

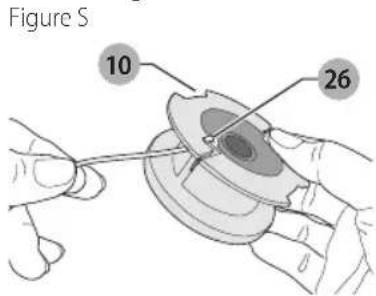

1. Insert the 3/4 inch (19mm) end of the bulk line into the hole 26 in the spool adjacent to the slot as shown in Figure S. Make sure the line is pulled tight against the spool as shown in Figure S.

Figure S 10 26

1. Wind the cutting line onto the spool in the direction of the arrow on the spool. Make sure to wind the line on neatly and in layers. Do not crisscross (Figure T).

2. When the wound cutting line reaches the recesses 10, cut the line. (Figure S).

- Fit the spool onto the trimmer as described in Replacing the Spool.

English

CAUTION: Before you begin trimming, only use the appropriate type of cutting line.

Figure T

Diagram showing two labeled diagrams: a vertical bar with checkmark and a wavy line with cross, both marked with check and X symbols respectively.

MAINTENANCE

WARNING: To avoid serious

injury, unplug the appliance before performing any maintenance.

• Keep the air intake slots clean to avoid overheating.
• Your trimmer line can dry out over time. To keep your line in top condition, store spare pre-wound spools or bulk line in a plastic, sealable bag with a tablespoon of water.
• Plastic parts may be cleaned by using a mild soap and a damp rag.
• The line cutter on the edge of the guard can dull over time. It is recommended you periodically touch-up the sharpness of the blade with a file.

iIMPORTAnT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by qualified service organizations, always using identical replacement parts..

Automatic line feed does not work

• Unplug the trimmer.
• Remove the spool cap.
• Make sure you are using 0.065 inch (1.65 mm) diameter ROUND line.
• Check to see if the lever is in place and pivots freely.
• Pull the cutting line until it protrudes approximately 5-3/8 inches (136 mm) from the spool. If insufficient cutting line is left on the spool, install a new spool of cutting line.
• Ensure that the line is not crisscrossed on the spool as detailed in Figure T. If it is, unwind the cutting line, then wind it back on the spool neatly so that the lines do not cross.
• Ensure the beginning of the cutting line is pulled tight against the spool as shown in Figure S.
• Align the tabs on the spool cap with the cut outs in the housing.
• Push the spool cap onto the housing until it snaps securely into place.

• If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade. If the automatic line feed still does not work or the spool is jammed, try the following suggestions:

• Carefully clean the spool and housing.

• Remove the spool and check if the lever in the spool housing can move freely.
• Remove the spool and unwind the cutting line, then wind it on neatly again. Replace the spool into the housing.

TWO-YEAR LIMITED WARRANTY

Craftsman (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than qualified service organizations. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge:

Return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information.

Imported by

Craftsman,

701 East Joppa Rd.

Towson, MD 21286 U.S.A.

Accessories

WARNING: Since accessories, other than those offered by Craftsman, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only Craftsman recommended accessories should be used with this product.

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 888-331-4569.

TROUBLESHOOTING

For assistance with your product, visit our website www.craftsman.com for the location of the service center nearest you or call the Craftsmanhelp line at: 888-331-4569.

PROBLEMSOLUTION

Trimmer runs slowly. Unplug trimmer.
	Check that the spool housing can rotate freely. Carefully clean it if necessary.Check that the cutting line does not protrude more than approximately 4-13/16 inches (122 mm) from the spool. If it does, cut it off so that it just reaches the line trimmingblade.
Trimmer will not start. Plug trimmer into a working outlet.	Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and call the Craftsman help line at 888-331-4569.)Call the Craftsman help line at 888-331-4569 to have cord or switch replaced.
Overfeeding	Make sure you are using 0.065 inch (1.65 mm) diameter ROUND line.Ensure you are cutting with the tip of the line (7 inches (177.8 mm) from the spool).Use the edge guide if needed to ensure proper space is maintained.Ensure you are not exceeding a 10^ angle.

Line unravels when cap or spool is removed. Make sure to park the lines in holding slots (Figure S) before removing.

fabrication classe II (double isolation)

Illustration of a hand using a tool to adjust or install a mechanical component, labeled 'Figure F' (no text or symbols on the diagram itself)

Figure G

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force

Line drawing of a device's internal components with no visible text or symbols

Line drawing of a person using a handheld tool on a circular base (no text or symbols)

Figure L

Line drawing of a person using a vacuum cleaner (no text or symbols present)

(610 mm) 24 PO

Line drawing of a person using a tool to lift a piece of material on a flat surface (no text or symbols)

Figure N 9 18 19

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Figure Q 23

FRAnÇAis

Figure R 24 25

Diagram showing two labeled containers with check and cross symbols indicating selection or rejection conditions.

ENTRETIEN

WARNING:

Technical line drawing of a mechanical component with a hand using a tool (no text or symbols)

Figure E 15

EsPAÑOI

Illustration of a hand using a tool to adjust or install a mechanical component, labeled 'Figure F' (no text or symbols on the diagram itself)

Figure G

Diagram illustrating a mechanical assembly with labeled parts and directional arrows indicating motion or force

Ajuste de altura (Fig. H)

Line drawing of a device's internal components with no visible text or symbols

Line drawing of a person using a handheld tool to lift a cylindrical device (no text or symbols visible)

Figure L

Line drawing of a person using a vacuum cleaner to lift a machine (no text or symbols present)

Line drawing of a sewing machine needle stitching fabric (no text or symbols)

Figure N 9 18 19

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Figure Q 23

Diagram showing two labeled scenarios: a vertical bar with checkmark and a wavy bar with X, indicating different experimental or measurement conditions.

MANTENIMIENTO

Date of purchase · Fecha de compra Invoice No. · No. de factura

701 East Joppa Road, Towson, MD 21286

Part No. N557606

CMESTA900

OCT17
