USER MANUAL Moody Blumfeldt

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

ZUSAMMENBAU

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Assembly 10

Installation and Charging 10

Operating Elements 11

Using the remote control 11

Hints on Disposal 12

TECHNICAL DATA

Item number	10034843
Power supply	220-240 V ~ 50/60 Hz

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

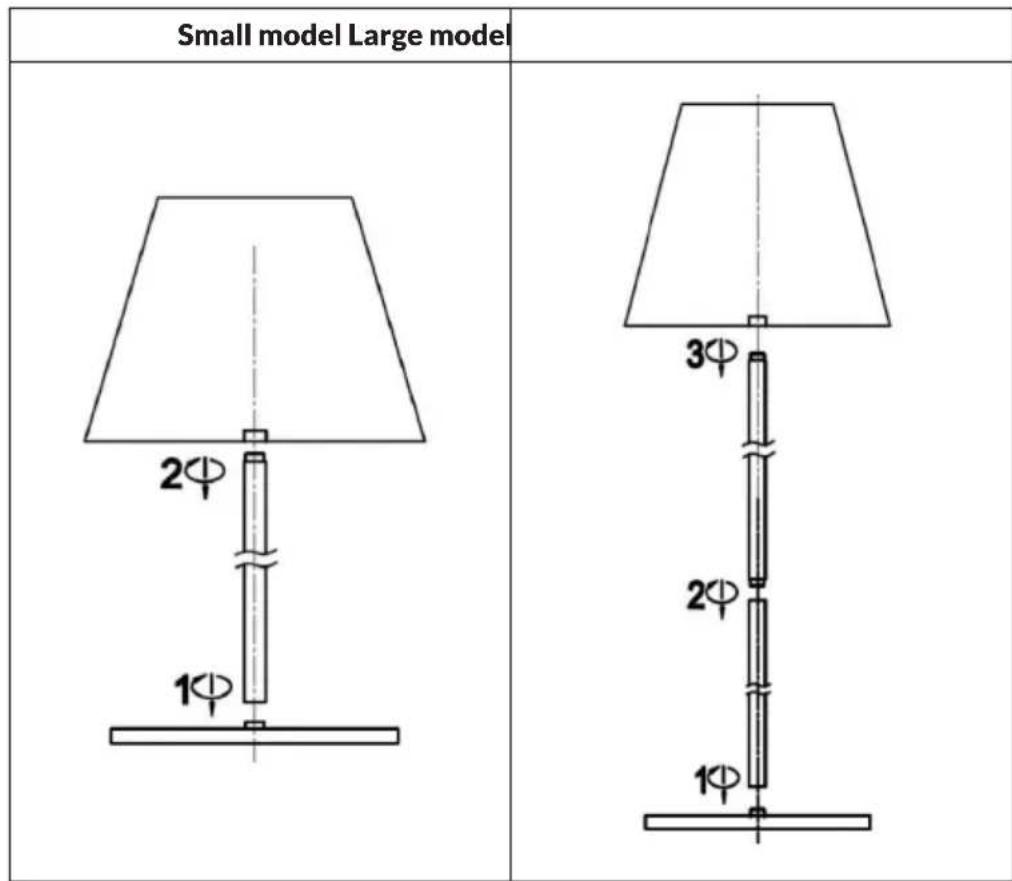

ASSEMBLY

INSTALLATION AND CHARGING

Note: This device contains rechargeable batteries. You can also charge the device independently of the solar panel. Use the supplied charging cable. Connect one end of the charging cable to the lamp and the other end to a USB power source (PC or USB charger).

• Leave the solar cells in a sunny place to charge sufficiently by daylight (not in the shade). In darkness, the LEDs are automatically switched on by a light sensor and remain lit until the batteries are discharged.
• The next day the batteries will automatically recharge in daylight.
• The function depends on the weather: on very sunny days, the luminosity is stronger and longer than on overcast days.

OPERATING ELEMENTS

Toggle switch

O	If the toggle switch is set to [O], the twilight sensor is not active. In this case, the lamp can be operated using the function button and the remote control, regardless of the brightness.
I	If the toggle switch is set to [I], the twilight sensor is active. The lamp turns on automatically when it is dark and turns off again automatically when it becomes light. The lamp will not turn on in bright conditions. During this time the batteries are charging.

Function key

Short press Switch on device and change light colour

Long press Switch off device.

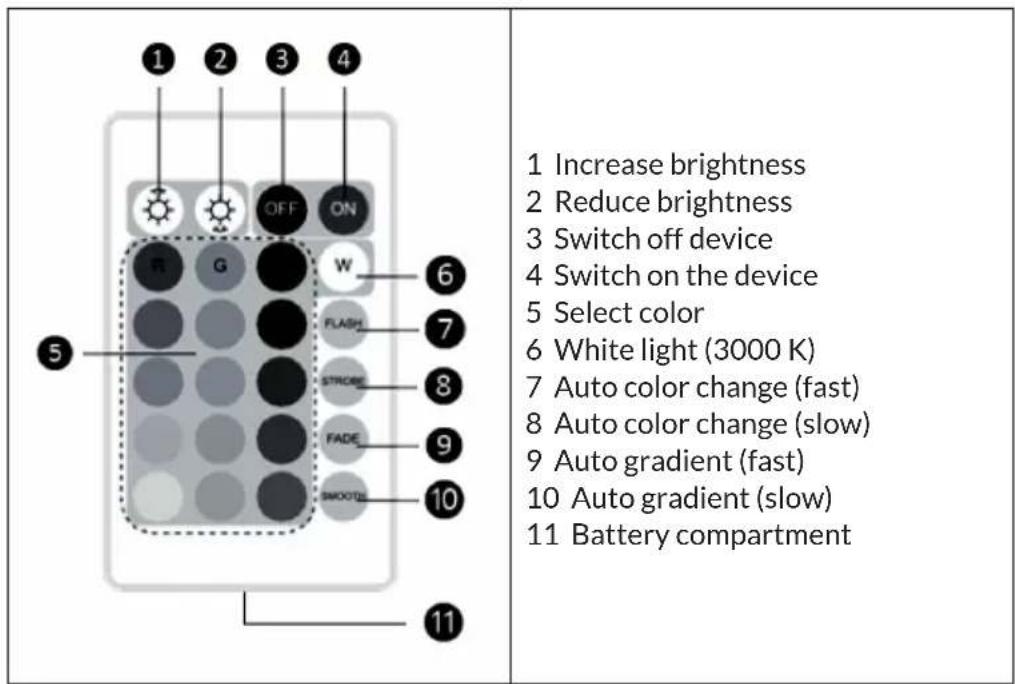

USING THE REMOTE CONTROL

Key functions

How to change the batteries

1234

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

Estimado cliente,

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

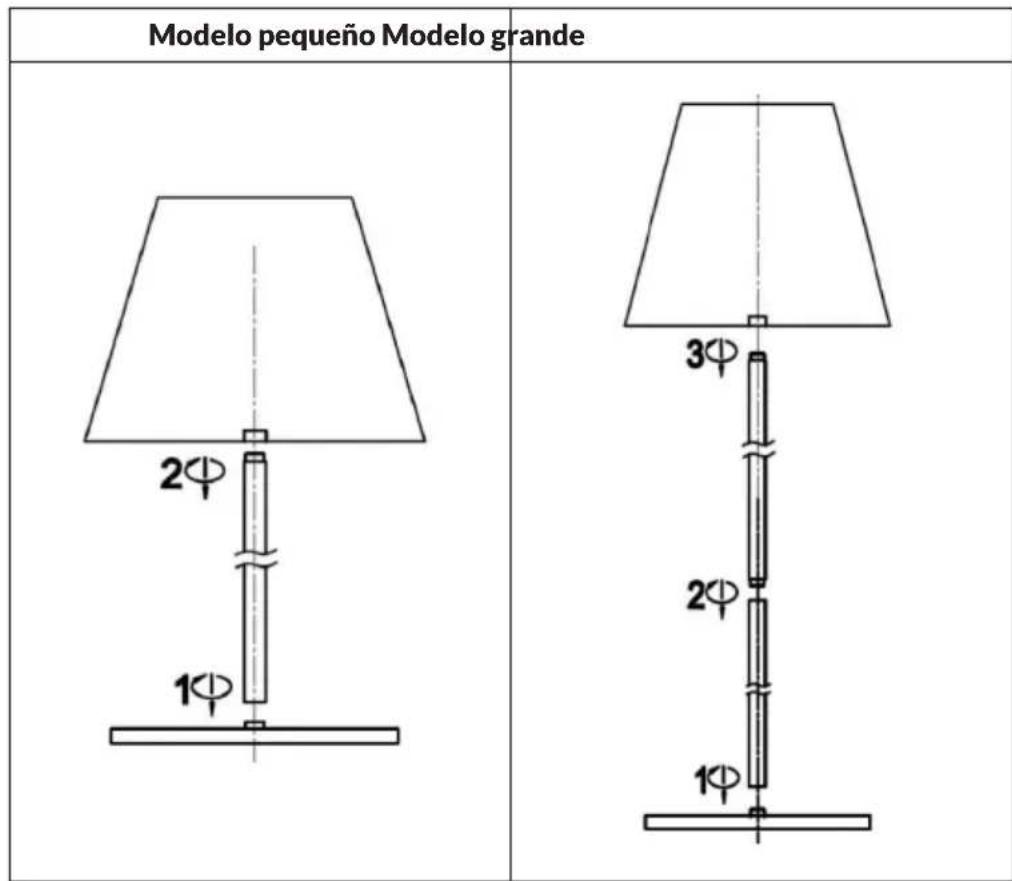

ASAMBLEA

INSTALLACION Y CARGA

Chere cliente, cher client,

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

ASSEMBLAGE

INSTALLATION ET CHARGEMENT

PRODUTTORE IMPORTATORE (UK)

Produxtore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

MONTAGGIO
