Loomy L - Lighting Blumfeldt - Free user manual and instructions

Brand	Blumfeldt
Model	Loomy L
Product type	Cubic LED lamp with light sphere
Article number	10033731
Power supply	220-240 V ~ 50/60 Hz
Battery type	Li-Ion, 2400 mAh
Remote control range	3 m
Number of colors	16
Lighting modes	Flash, Strobe, Fade, Smooth
Main functions	On/off, color change, brightness adjustment, IR remote control
Use	Indoor, away from water
Care and cleaning	Clean with a soft dry cloth. Do not use abrasive cleaning products.
Safety	Do not expose to water (remote control). Do not place on flammable materials. Recharge the battery as soon as it is empty.
Spare parts and repairability	Remote control and USB cable available. For any repairs, contact customer service.
Package contents	Loomy L lamp, remote control, USB cable, instruction manual

Frequently Asked Questions - Loomy L Blumfeldt

How to charge the Loomy L?

Plug the USB cable into the port at the bottom of the device. The indicator turns red during charging and changes to light blue when charging is complete.

How to turn the lamp on and off?

Briefly press the button at the bottom of the device to turn it on. Hold it down for two seconds to turn it off.

How to change the color?

Briefly press the button at the bottom of the device to change color. You can also use the remote control to select from 16 colors.

The remote control does not work, what to do?

Remove the battery protective film from the remote control at first use. Make sure the remote control is within 3 meters and pointed towards the lamp's IR receiver.

Is the Loomy L waterproof?

No, the lamp and remote control are not waterproof. Keep them away from water and moisture.

What is the battery life?

The 2400 mAh Li-Ion battery provides approximately 8 to 12 hours of use depending on usage. Recharge the battery as soon as it is empty to extend its lifespan.

What lighting modes are available?

The modes are: Flash (slow blinking), Strobe (fast blinking), Fade (soft blinking), and Smooth (gradual color change).

Can I use the lamp while charging?

Yes, you can use the lamp while it is plugged in. However, it is recommended to charge it fully before first use.

How to clean the Loomy L?

Use a soft dry cloth to clean the surface. Do not use abrasive cleaners or solvents.

Where to find spare parts?

Contact Blumfeldt customer service to obtain replacement parts such as the remote control or USB cable.

USER MANUAL Loomy L Blumfeldt

Loomy L/XL & Shinecube

LED Seat Cube and Light Ball

Puff y esfera luminosa LED

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green leaf-like graphic design with two curved leaves forming a triangular shape (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Circular mechanical component with mounting holes and a rectangular slot, no text or symbols present

Am Gerät

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 8

Operation 8

Hints on Disposal 10

TECHNICAL DATA

Item number 10033731: Blumfeldt Loomy L	10033730: Blumfeldt Loomy XL10033732: Blumfeldt Shinecube
Capacity (Li-Ion battery) 2400 mAh
Remote control range 3 m

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• The remote control is not waterproof. Keep these devices away from water.
• You will increase the life of the battery if you recharge it immediately when it is empty.
• Do not place the unit near or on top of flammable materials.

OPERATION

Before the first operation

Note: Fully charge the batteries before using the unit for the first time.

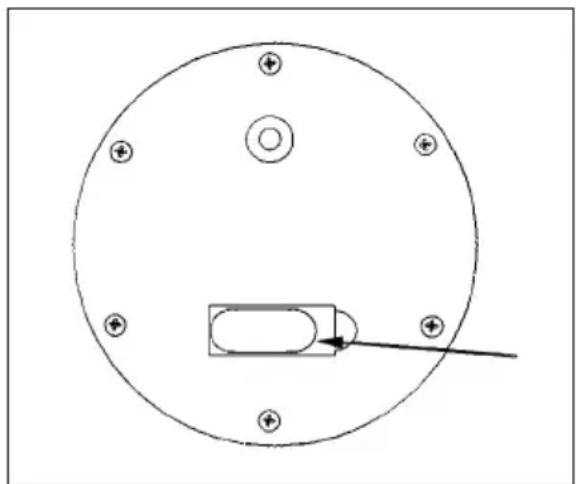

Connect the USB charging cable to the connector on the bottom of the device (see picture). The indicator light will turn red during charging. As soon as the device is fully charged, the control lamp lights up light blue.

Simple line drawing of a circular component with six bolt holes and a rectangular slot, no text or symbols present.

On the unit

• Turn it on: Briefly press the button on the bottom of the unit to turn on the light.
• Change color: Briefly press the button on the bottom of the unit to change color.
• Turn it off: Press and hold the button on the bottom of the unit for two seconds to turn off the light.

With the remote control

Note: If you are using the remote control for the first time, remove the protective film from the battery.

IR transmitter
Brightness adjustment	On/Off
Colour adjustment	Modes
Button Function
ON Turn on the lights.
OFF Switch off the light.
Colour Select the desired colour from 16 colours.
FLASH The light flashes slowly.
STROBE The light flashes quickly.
FADE The light flashes gently.
SMOOTH The colours change smoothly.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be dis-posed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

Circular mechanical component with mounting holes and a rectangular housing, no text or symbols present

En el aparato

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

DÉCLARATION DE CONFORMITÉ

CE

Fabricant :

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Allemagne.

Circular mechanical component with bolt holes and a rectangular housing, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

QR code image containing encoded data, no visible human-readable text

INDICE

Circular mechanical component with bolt holes and a rectangular housing, no text or symbols present

Sul dispositivo:

Symbol of a trash bin crossed with a diagonal line, no text or labels present
