USER MANUAL Vaporetto SV620 Style POLTI

REPLACEMENT ANTI-CALC FILTER

WINDOW CLEANING ACCESSORY

CARPET AND RUG ACCESSORY

SOCKETTE FOR WINDOW CLEANING ACCESSORY

KIT 4 SOCKETTES FOR WINDOW CLEANING ACCESSORY

SET MIT 2 BODENTÜCHERN

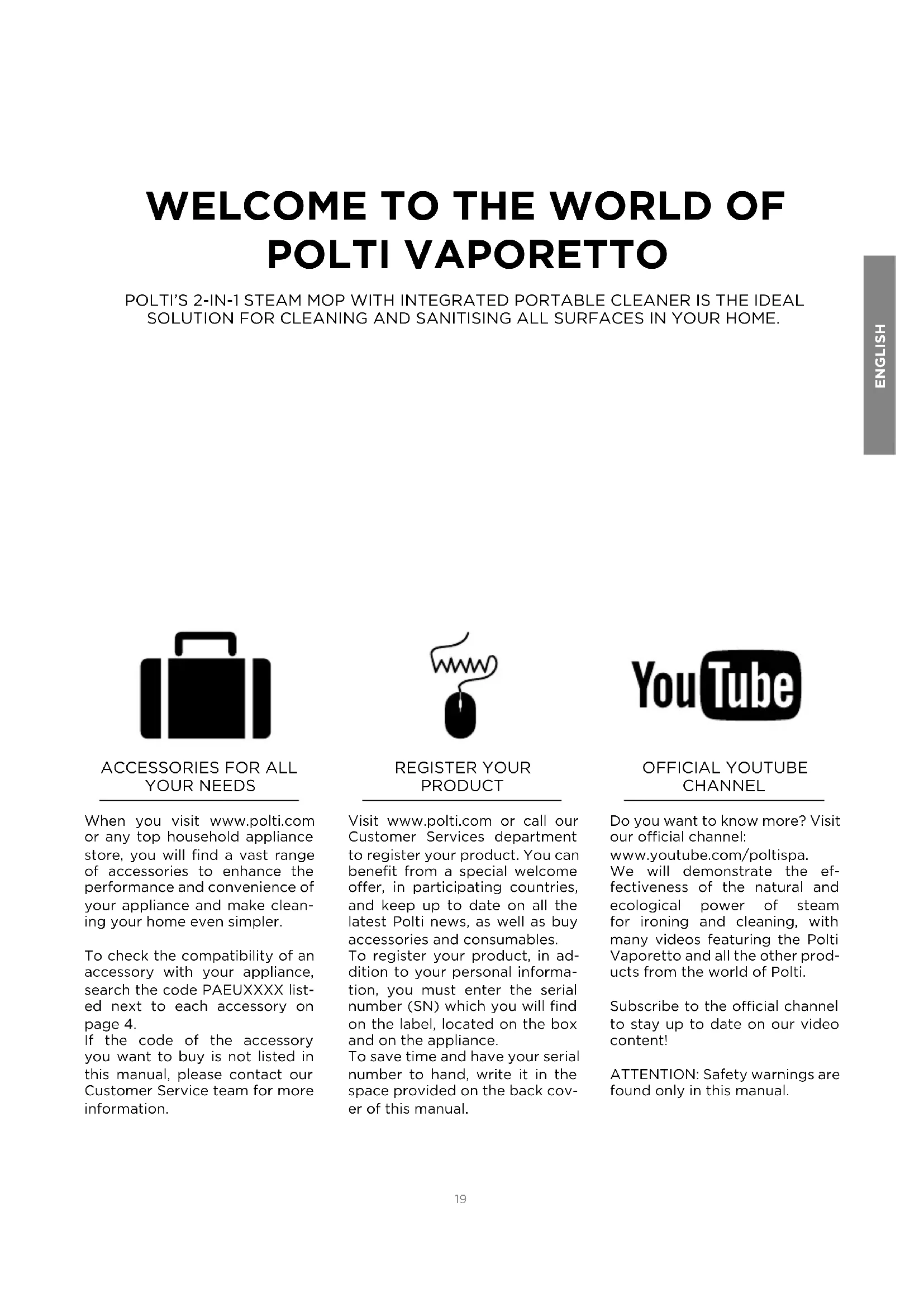

YOUR NEEDS When you visit www.polti.com or any top household appliance store, you will find a vast range of accessories to enhance the performance and convenience of your appliance and make clean- ing your home even simpler. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX list- ed next to each accessory on page 4. If the code of the accessory you want to buy is not listed in this manual, please contact our Customer Service team for more information. OFFICIAL YOUTUBE CHANNEL Do you want to know more? Visit our ocial channel: www.youtube.com/poltispa. We will demonstrate the ef- fectiveness of the natural and ecological power of steam for ironing and cleaning, with many videos featuring the Polti Vaporetto and all the other prod- ucts from the world of Polti. Subscribe to the ocial channel to stay up to date on our video content! ATTENTION: Safety warnings are found only in this manual. REGISTER YOUR PRODUCT Visit www.polti.com or call our Customer Services department to register your product. You can benefit from a special welcome oer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and consumables. To register your product, in ad- dition to your personal informa- tion, you must enter the serial number (SN) which you will find on the label, located on the box and on the appliance. To save time and have your serial number to hand, write it in the space provided on the back cov- er of this manual.20 ENGLISH SAFETY WARNINGS

FULLY READ ALL THE INSTRUCTIONS AND WARN- INGS IN THIS MANUAL, AND ON THE APPLIANCE IT- SELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Only usage as detailed in this instruction manual constitutes correct usage. Any use which does not comply with these instructions will in- validate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the appliance can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try and repair the appliance yourself. In- correct use or non-observance of the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• The plug must be removed from the socket before the tank/21 ENGLISH boiler is filled with water.

• Always unplug the appliance when it is not in use and before any preparation, maintenance or cleaning.

• The appliance may be used by people with diminished phys- ical, sensory or mental abilities, or by people with no experi- ence or without the necessary knowledge, provided that they are supervised or after they have received instructions on the safe use of the appliance and on understanding the inherent dangers. Children should be supervised to ensure that they do not play with the appliance.

• Keep the appliance out of reach of children when it is on and until it has completely cooled down.

• Keep all the parts of the packaging out of the reach of chil- dren. They are not toys. Keep the plastic bag out of the reach of children: danger of suocation.

• The appliance must not be left unattended if plugged in to the mains.

• The steam must not be directed towards appliances that con- tain electrical components, such as inside ovens.

• This appliance is intended exclusively for indoor household use.

• In order to reduce the risk of accidents, including fires, elec- trocution, personal injury and scalding during use and dur- ing preparation, maintenance and storage, always take the fundamental precautions listed in this manual. RISKS RELATED TO POWER SUPPLY - ELECTROCUTION

• The earthing system and highly sensitive residual-current cir- cuit breaker, complete with magnetothermic cut-out for your household system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical sys- tem to which the appliance is connected complies with cur- rent laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload the sockets with adaptors and/or transform- ers. Only connect the product to a single socket with current22 ENGLISH that is compatible with the supplied plug.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and possibly lead to short-circuiting, fire, power outage or dam- age to the equipment. Only use certified extension leads of appropriate size which are earthed and support at least 16A.

• Always turn the appliance o and unplug it.

• To remove the plug from the socket, do not pull the power cord. Hold the plug itself to prevent damage to the plug and the cord.

• Fully unwind the cord from the cord winder (if present) before connecting the appliance to the mains and before use. Always use the product with the cord completely unwound.

• Do not pull or jerk the cord or expose it to tensions (twisting, crushing or stretching). Keep the cord away from hot and/or sharp surfaces and elements. Avoid crushing the cord in doors and windows. Do not pull the cord tight around corners. Avoid treading on the cord. Do not wind the power cord around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cord, this can be dangerous.

• Do not change the plug on the power cord.

• If the power cord is damaged, it must be replaced by the man- ufacturer or a service agent in order to prevent all possible hazards. Do not turn on or use the product if the power cord is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use in pools containing water. Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Do not immerse the appliance, including the power cord and plug, in water or other liquids. RISKS WHILE USING THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a dan- ger of explosions or in the presence of toxic substances.

• Do not pour toxic substances, acids, solvents, detergents, cor- rosive substances and/or explosives or perfumes into the tank.23 ENGLISH

• Only pour water or the water mix indicated in the “WHICH WATER TO USE” Chapter into the tank.

• Do not aim the steam jet at toxic substances, acids, solvents, detergents or corrosive substances.

• Do not aim the steam jet at explosive powders or liquids, hy- drocarbons, flames and/or incandescent objects.

• Handle and remove dangerous substances according to the indications provided by their manufacturers.

• Do not position the product near sources of heat such as fire- places, stoves and ovens.

• Do not position the product near electromagnetic fields such as the induction plate.

• Re-wind the cord when the appliance is not in use.

• Do not obstruct the openings and grills on the product.

• Do not attempt to use the steam jet on any part of a human or animal's body.

• Do not direct the steam jet on clothes while they are being worn.

• Cloths and rags and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Wait a few minutes and check that they have cooled before han- dling them. Therefore, avoid contact with the skin if they have just been steamed.

• Before steam treating surfaces (wood or laminate floors, car- pets, rugs, leather and fabrics and any surfaces especially those that are delicate or treated), consult the surface man- ufacturer’s or the supplier/installer’s instructions and always perform a test on a section that is out of view or on a sample. Allow the steamed surface to dry to ensure that there is no deterioration, change of colour or deformation and that the surface stands up to the temperature of the steam.24 ENGLISH

CORRECT USE OF THE PRODUCT

Polti Vaporetto STYLE is a steam cleaner in- tended for indoor household use to clean and sanitise various surfaces. Please read these instructions carefully and keep them. If this manual is lost, it can be viewed and/or down- loaded from www.polti.com. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. Therefore, Polti Vaporetto may already contain some residual water in the tank. Only usage as detailed in this instruction man- ual constitutes correct usage. Any other use may damage the appliance and invalidate the warranty.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an ocial collec- tion facility. This appliance complies with EU Directive 2011/65/EU The crossed-out bin symbol on the appli- ance indicates that, at the end of its use- ful lifespan, the product must be dis- posed of separately from other waste. Therefore, at the end of its life, the user should handover the appliance to an appropriate col- lection centre for electric and electronic waste or, in accordance with current national regula- tions, leave the used appliance with the distrib- utor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and envi- ronmentally compatible disposal of the appli- ance helps to prevent negative eects on the environment and human health and promotes recycling of the materials the product is made of. Unlawful disposal by the owner involves the application of the administrative penalties as required by current legislation.

Polti Vaporetto STYLE was designed to func- tion with normal medium-hardness tap water between 8° and 20°f. If the tap water contains a lot of calcium carbonate, use a mix com- posed of 50% tap water and 50% widely avail- able demineralised water.

Warning: check the hardness of the water at

the technical oce of your local council or the local water supplier. Periodically replace the limescale filter as shown in Chapter 18. Never use distilled water, rain water or water containing additives (e.g. starch, perfumes), or water produced by other domestic appli- ances, water softeners and filter jugs. Do not add chemicals, natural, detergent, or limescale removing substances, etc. POLTI VAPORETTO STYLE: 2PRODUCTS IN1 Polti Vaporetto STYLE is a practical appliance which includes two products in one because it can be used as a steam mop/floor cleaner and as a portable steam cleaner. It makes it possible to perform multiple cleaning functions and treat lots of dier- ent surfaces: floors with dierent finishes (tile, stoneware, marble, parquet), rugs and carpet, kitchen work surfaces, hood filters, bathrooms, taps, grout, windows and mir- rors, upholstery (sofas, armchairs, mattress- es, cushions, car interiors), interior doors and cabinet doors, radiators and rolling shutters, curtains and clothing, green plants.

1.1 Remove the appliance from the packag-

ing, checking that the product is intact and that all the parts are present.

1.2 Remove the water tank from the appli-

ance by pressing the upper button and pulling it upwards (1-2). Open the cap of the tank by pulling it outward (3), then fill the tank with water. Do not add other substances or additives to the tank. Close the cap on the tank and reattach the tank to the appliance. Always do this with the power cord discon- nected from the mains.

1.3 The appliance is ready in Portable Steam

2.1 Connect the Portable Steam Cleaner to

the brush by fitting the pin on the brush to the hole on the appliance (4).

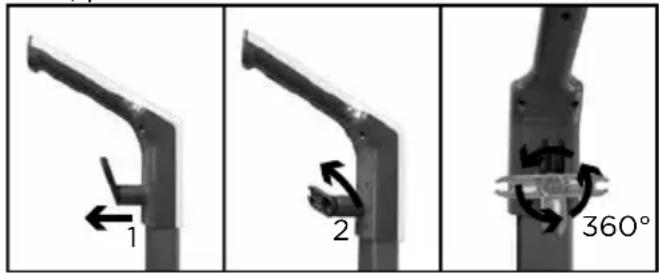

2.2 Insert the metal tube with the handle

into the rectangular opening on the appliance until you hear a click (5). To remove it, press the button on the back of the tube (5) and25 ENGLISH pull upwards. Before using the appliance again, remember to unwind the power cord completely. The up- per hook rotates 360°. To unwind the power cord, pull the hook and turn it.

has a dispenser located in the floor brush, to be used exclusively with Polti Frescovapor, the natural deodoriser that, besides leaving a pleasant fragrance, captures bad odours. Polti Frescovapor sold separately. To use Polti Fres- covapor, proceed as described in Chapter 14.

2.4 Unwind the power cord completely and

connect it to an appropriate socket (6) which is earthed. Always use the product with the cord com- pletely unwound. The four LEDs on the control panel will light up alternately (7). Wait until the "steam ready" indicator light comes on (around 20sec., steady light). At this point, the appli- ance is ready. Before starting the steam cleaning, it is good practice to have previously swept or vacu- umed the floor or the surface to be cleaned.

WARNING: When the tube with handle

is taken out, the appliance automatically switches OFF

3. USING THE ACCESSORIES

Accessories can be connected directly to the Portable Steam Cleaner or to the flexible hose for greater freedom of movement.

To attach the flexible hose to the portable cleaner, just connect them together (8). To re- move the flexible hose, press the unlock but- ton and pull outwards (8).

3.2 To connect the accessories directly to

the Portable Steam Cleaner or to the flexible hose, just insert them on the point and turn them until they lock (9).

There are 3 pre-set steam flow programs available. Simply press the central Steam Reg- ulation button on the control panel (7) until the corresponding indicator light for the de- sired program lights up.

• MIN (lowest level): to clean parquet and laminate, delicate fabrics, upholstery, sofas and mattresses, etc. and to steam plants.

• MED (medium level): to clean windows and ceramic or porcelain tile floors, and to clean and refresh rugs and carpets;

• MAX (highest level): to remove build-up, stains, grease and to clean marble floors;

WARNING: Before steam treating surfac-

es (wood or laminate floors, carpets, rugs, leather and fabrics and any surfaces espe- cially those that are delicate or treated), consult the surface manufacturer’s or the supplier/installer’s instructions and always perform a test on a section that is out of view or on a sample. Allow the steamed surface to dry to ensure that there is no de- terioration, change of colour or deforma- tion and that the surface stands up to the temperature of the steam. Before using the appliance on delicate sur- faces, ensure that the part in contact with the surface is free from foreign bodies that could cause scratches. It is good practice to sweep or vacuum the floor first before steam cleaning it. Ensure that the points in Chapters 1 and 2 have been performed.

5.1 Attach the cloth provided to the floor

brush. To make it easier to attach, the cloth has an easy lock/release system to avoid hav- ing to bend over and use your hands. Just place the cleaning side of the cloth on the floor and set the brush on top (10).

5.2 Unlock the appliance brush by tilting it

backward and using your foot.

5.3 Select the program type (7). For this type

of surface, we recommend medium (MED). The appliance will start producing steam (the tank will light up to indicate that the appliance is producing steam). It is then possible to start cleaning by moving the mop back and forth. To stop producing steam, press the central Steam Regulation button several times on the control panel (7) until the light turns on or hold it down for more than 2 seconds.

5.4 The brush has a flexible joint that makes

it easy to also clean corners and edges of fur- niture and walls. During cleaning, it is possible to insert the power cord into the upper hook to prevent it possibly getting in the way (11).26 ENGLISH The brush has bristles built into the rear side (12), ideal for removing the most stubborn dirt. To use, return the handle to the vertical position, locking the brush, then tilt until the brushes are touching the floor and scrape o the dirt.

5.5 When you have finished cleaning, turn

o the appliance and remove the cloth. Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool. After which, rest a foot on the relative symbol of the cloth tab and pull the steam mop upward.

WARNING: Do not use the brush without

6. CLEANING RUGS AND

WARNING: Before steam treating surfac-

es (wood or laminate floors, carpets, rugs, leather and fabrics and any surfaces espe- cially those that are delicate or treated), consult the surface manufacturer’s or the supplier/installer’s instructions and always perform a test on a section that is out of view or on a sample. Allow the steamed surface to dry to ensure that there is no de- terioration, change of colour or deforma- tion and that the surface stands up to the temperature of the steam. Be sure to first follow the steps in Chapters 1 and 2.

6.1 Insert the brush with the cloth attached

into the special frame so that it can slide on the surface (13).

6.2 Release the appliance brush by tilting it

backward and using your foot.

6.3 Select the type of program (7): for this

type of surface we recommend the medium level (MED). The appliance will start producing steam (the tank will light up to indicate that the appliance is producing steam). It is then possi- ble to start cleaning by moving the mop back and forth. To stop producing steam, press the central Steam Regulation button several times on the control panel (7) until the light turns on or hold it down for more than 2 seconds. During cleaning, it is possible to insert the power cord into the upper hook to prevent it possibly getting in the way (11).

6.4 To remove the frame, just rest a foot on

the symbol and pull the steam mop up- ward.

7. CLEANING GLASS AND

WARNING: To clean glass surfaces during

cold weather, preheat the windows starting by vacuuming from a distance of about 50 cm from the surface. Use only the Portable Steam Cleaner. Ensure that Chapter 1 has been followed. Turn on the appliance following the instruc- tions listed in Point 2.4 and connect the ac- cessories as shown in Chapter 3.

7.1 Adjust the intensity of the steam (7). For

this type of surface, we recommend lowest level (MIN).

7.2 To produce steam, press and release the

steam trigger located under the handle of the portable unit (14) (the tank will light up to in- dicate that the appliance is producing steam).

7.3 To clean windows and mirrors, connect

the window cleaning accessory to the Porta- ble Cleaner or to the flexible hose for hard- to-reach areas, steam the surface thoroughly to dissolve the dirt and then wipe the surface again without steam to remove the dirt. The brush has a sponge, ideal for removing dirt and absorbing excess moisture.

7.4 To stop producing steam, press and re-

lease the steam trigger located under the han- dle of the portable unit (14).

8. CLEANING TILED WALLS,

INTERIOR DOORS AND CABINET

DOORS Use only the Portable Steam Cleaner. Ensure that Chapter 1 has been followed. Turn on the appliance following the instruc- tions listed in Point 2.4 and connect the ac- cessories as shown in Chapter 3.

8.1 Adjust the intensity of the steam (7) for

this type of surface we recommend the medi- um level (MED).

8.2 To dispense steam, press and release the

steam trigger located under the handle of the portable unit (14) (the tank will light up to in- dicate that the appliance is dispensing steam).

8.3 Connect the flexible steam hose to the

portable cleaner and attach the triangular brush with the cloth on it (only for Polti Va- poretto SV660/650_STYLE models) and go over the surface, releasing the steam by press- ing the steam trigger of the Portable clean- er, to remove the dirt. For the Polti Vaporetto SV620/610_STYLE models, it is possible to attach the window cleaning accessory with sockette (15A) to the portable hose and go27 ENGLISH over the surface.

8.4 To stop dispensing steam, press and re-

lease the steam trigger located under the han- dle of the portable unit (14).

9. CLEANING SHUTTERS, RADIA-

TORS AND REFRESHING FABRICS

Use only the Portable Steam Cleaner. Ensure that Chapter 1 has been followed. Turn on the appliance following the instruc- tions listed in Point 2.4 and connect the ac- cessories as shown in Chapter 3.

9.1 To refresh fabrics and clothing, attach

the flexible hose to the portable cleaner and attach the flat lance with the special sockette (15B) or the window cleaning accessory with the sockette on it (15A).

9.2 To clean shutters, radiators or all narrow

spaces, attach the flexible hose to the porta- ble cleaner and attach the flat lance with the special sockette (15B).

9.3 Regulate the intensity of the steam (7).

For fabrics, for shutters, radiators or narrow spaces, we recommend the medium level (MED).

9.4 To dispense steam, press and release the

steam trigger located under the handle of the portable unit (14) (the tank will light up to in- dicate that the appliance is dispensing steam).

9.5 To stop dispensing steam, press and re-

lease the steam trigger located under the han- dle of the portable unit (14).

10. CLEANING UPHOLSTERY,

WARNING: Before steam treating surfac-

es (wood or laminate floors, carpets, rugs, leather and fabrics and any surfaces espe- cially those that are delicate or treated), consult the surface manufacturer’s or the supplier/installer’s instructions and always perform a test on a section that is out of view or on a sample. Allow the steamed surface to dry to ensure that there is no de- terioration, change of colour or deforma- tion and that the surface stands up to the temperature of the steam. Use only the Portable Steam Cleaner. Ensure that Chapter 1 has been followed. Turn on the appliance following the instruc- tions listed in Point 2.4 and connect the ac- cessories as shown in Chapter 3.

10.1 Connect the window cleaning accessory

to the Portable Cleaner or to the flexible hose for better freedom of movement.

10.2 Put the sockette on the accessory (15A).

10.3 Adjust the intensity of the steam (7) for

this type of surface we recommend the lowest level (MIN).

10.4 To dispense steam, press and release the

steam trigger located under the handle of the portable unit (14) (the tank will light up to in- dicate that the appliance is dispensing steam).

10.5 To stop dispensing steam, press and re-

lease the steam trigger located under the han- dle of the portable unit (14).

11. CLEANING BATHROOM

FIXTURES, GROUT AND KITCHEN

WORKTOPS, TAPS, BARBECUES

Use only the Portable Steam Cleaner. Ensure that Chapter 1 has been followed. Turn on the appliance following the instruc- tions listed in Point 2.4 and connect the ac- cessories as shown in Chapter 3.

11.1 Connect the accessory to the Portable

Cleaner or to the flexible hose for hard-to- reach places or for greater convenience.

11.2 Connect the most appropriate accessory

• small black round brush for removing en- crusted dirt;

• round brush with rounded bristles suita- ble for cleaning rounded surfaces of sinks, bathtubs, bidets, drains;

• triangular brush with bristles for cleaning in corners and removing encrusted dirt;

• rectangular brush for cleaning the grout be- tween the tiles.

11.3 Adjust the intensity of the steam (7). For

this type of surface we recommend the high- est level (MAX).

11.4 To produce steam, press the steam trig-

ger located under the handle of the portable unit (14) (the tank will light up to indicate that the appliance is producing steam).

11.5 To stop dispensing steam, press and re-

lease the steam trigger located under the han- dle of the portable unit (14).28 ENGLISH

WARNING: Before steam treating surfac-

es (wood or laminate floors, carpets, rugs, leather and fabrics and any surfaces espe- cially those that are delicate or treated), consult the surface manufacturer’s or the supplier/installer’s instructions and always perform a test on a section that is out of view or on a sample. Allow the steamed surface to dry to ensure that there is no de- terioration, change of colour or deforma- tion and that the surface stands up to the temperature of the steam. Use only the Portable Steam Cleaner. Ensure that Chapter 1 has been followed. Turn on the appliance following the instruc- tions listed in Point 2.4 and connect the ac- cessories as shown in Chapter 3.

12.1 Connect the flexible steam hose to the

portable cleaner and attach the triangular brush with the cloth on it.

12.2 Adjust the intensity of the steam (7). For

this type of surface we recommend the lowest level (MIN).

12.3 To produce steam, press the steam trig-

ger located under the handle of the portable unit (14) (the tank will light up to indicate that the appliance is producing steam) and direct the jet onto a cloth.

WARNING: Do not direct the steam jet di-

rectly onto surfaces.

12.4 Use the cloth previously steamed to

clean the surface, avoiding prolonged use on the same spot.

13. OTHER GENERAL USES

WARNING: Before cleaning the surface,

always do a test on a hidden part and see how it reacts to the application of steam.

Mites and dust can be removed from curtains and drapes by steaming the fabric directly from the Portable Cleaner. The steam is able to remove odours and brighten up colours, al- lowing the fabric to be washed less frequently. For this surface, set the steam to the lowest level (MIN).

13.2 REMOVING STAINS FROM CARPETS

AND UPHOLSTERY ATTENTION: Steam. Risk of scalding! Direct the steam directly onto the mark with the greatest possible angle (never vertically to the surface to be treated) and position a cloth beyond the stain, in order to collect up the dirt that has been "blown" away by the steam pressure. For this surface, set the steam to the lowest level. (MIN).

13.3 TAKING CARE OF PLANTS AND HUMID-

IFYING ROOMS To care for your house plants, remove the dust from the leaves using the steam. Use the Portable Steam Cleaner with the flexible hose attached to easily direct the jet (to attach it see Chapter 3). Steam the surface at a mini- mum distance of 50 cm. Adjust the steam to the lowest level (MIN). Plants breathe better and will be cleaner and brighter. The steam can also be used to refresh spaces, especially those frequented by smokers: steam the room by directing the jet towards the ceiling and distributing evenly.

14. POLTI FRESCOVAPOR only for

Polti Vaporetto SV660/650/620_ STYLE models (product sold separately)

WARNING: Never put Polti Frescovapor

into the water tank. Polti Frescovapor is a deodoriser with natu- ral substances. Designed to mix with steam it releases a fresh perfume in every space and, thanks to its special composition, it is able to eliminate bad odours. To use Polti Frescovapor, proceed as follows: - Push the selector located on the brush to the OFF position (18). - Lift the Deo dispenser door on the floor brush and fill it with the Polti Frescovapor fra- grance (17). - Close the door carefully. - Push the selector located on the brush again to bring it back to the start position. - When steam is activated, the deodoriser will mix with the steam and will be released. - To stop dispensing the fragrance, push the selector located on the brush to the OFF po- sition (18).29 ENGLISH When dispensing the deodoriser, the sur- faces may feel slightly damper because Polti Frescovapor mixes with the steam being dispensed. To stop dispensing Polti Frescovapor, move the selector located on the brush to the OFF position. The selector only controls dispensing of the deodoriser that mixes with the steam. It does not regulate the quantity of steam. To adjust the amount of steam, use the cen- tral steam regulation button - STEAM REG- ULATION (7). Contains one 200-ml bottle of Polti Fresco- vapor

on upholstery, leather, special fabrics and wood surfaces, consult the manufacturer's instructions and always carry out a test on a hidden part or sample of the material. Al- low the steamed part to dry to make sure that no changes in colour or deformations have occurred.

15. EXTRA STEAM FUNCTION

Use only the Portable Steam Cleaner. The Extra steam function can be activated for quicker and easier cleaning. To activate, press the steam trigger for 3 seconds. You will pro- duce more steam for 5 seconds. This function can be reactivated approximately one minute after the previous activation.

16. AUTOMATIC SHUT-DOWN

FUNCTION After 10 minutes of inactivity (calculated from the last operation carried out on the appli- ance in both modes: Steam Mop and Porta- ble Steam Cleaner) the appliance will shut o automatically and the OFF light will flash. To reactivate the appliance, press the Steam Regulation button.

The water level is always visible thanks to the transparent tank. When the water inside the tank has been used up, steam will stop coming out. Just refill the water tank, as described in Chapter 1, to begin steaming again.

WARNING: This operation must always be

done after having disconnected the appli- ance from the mains.

18. REPLACEMENT OF THE

LIMESCALE FILTER Polti Vaporetto STYLE has a filter containing special resins capable of stopping limescale and extending the life of your product. We recommend changing the filter 3 times per year.

18.1 Unplug from the mains electricity.

18.2 Remove the water tank from the appli-

ance by pressing the upper button and pulling it upwards (1-2).

18.3 Gently lift the hook tab and remove the

18.4 Position the new filter, push gently and

make sure that it is perfectly inserted, then re- place the water tank. For more information on limescale filters visit www.polti.com. The first time it is used or when replacing the limescale filter, it will be necessary to activate steam delivery and wait until the li- mescale filter fills with water and the prod- uct produces steam again.

19. GENERAL MAINTENANCE

Ensure that the appliance is switched o and disconnected from the mains. To clean the outside of the appliance, use a damp cloth and tap water only. All accessories can be cleaned using running water, ensuring they are completely dry be- fore the next use. After using the brushes, let the bristles cool down in their natural position in order to prevent any deformation. Do not use detergents of any kind. The cloths provided can be washed by follow- ing the instructions included on the label.30 ENGLISH

20.1 Turn o the appliance and unplug it from

the mains electricity.

20.2 Completely empty the water tank to

20.3 Before detaching the cloth from the

brush, wait a few minutes to allow it to cool.

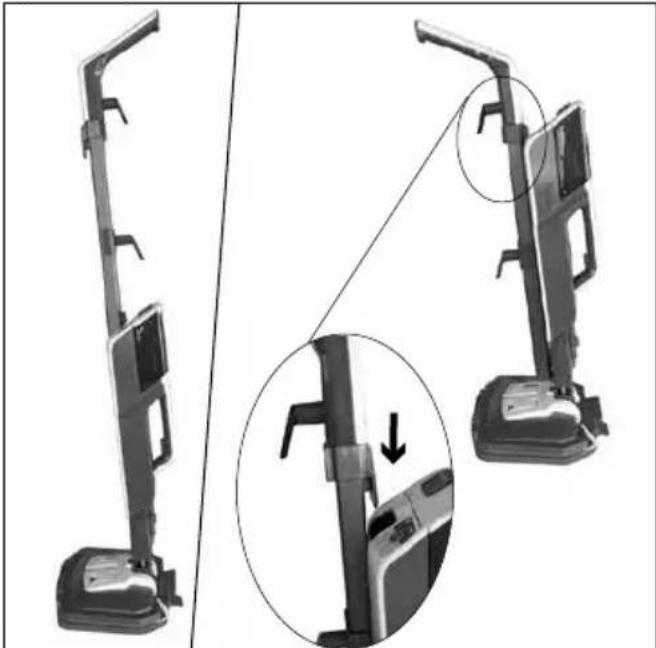

20.4 Polti Vaporetto STYLE can also be stored

by inserting the tube with the parking clip into the portable unit. This way, the mop will take up less space.

20.5 Wind the power cord around the special

cord-winder hooks (20). Before using the appliance again, remember to unwind the power cord completely.

WARNING: Do not keep the appliance con-

nected to the power supply with the cord wound up.31 ENGLISH

PROBLEM POSSIBLE CAUSE SOLUTION

The appliance does not turn on. No power. Check that Polti Vaporetto has been connected to the mains as shown in Chapter 1. No steam is coming out. Out of water. Disconnect the appliance from the mains, fill the water tank and wait about 15 sec- onds, then use the appliance. Appliance turned o. Check that the appliance has been disconnected from the mains, as indicated in Sec- tion1. In steam mop setting the ap- pliance doesn’t work. The metal tube is not proper- ly in-serted. Insert the metal tube into the rectangular opening until you hear the coupling “click”. The appliance releases too much water on the floor Steam output control set to the maximum. Reduce the steam intensity to the minimum. If necessary, momentarily stop the steam supply while continuing to rub the surface. The metallic tube cannot be pulled out. The power cord not unwound. Check that the power cord has been unwound from the special cord-winder hooks. Polti Frescovapor deodoriser is not released when using steam. (only for Polti Vaporetto SV660/650/620_STYLE models) Deodoriser selector in OFF position. Push the selector. Deo Dispenser door open. Carefully close the Deo Dis- penser door. Check the Polti Frescovapor level. Fill the dispenser with Polti Frescovapor. Steam too damp using Polti Frescovapor. (only for Polti Vaporetto SV660/650/620_STYLE models) The steam is mixing with Polti Frescovapor. Stop the Polti Frescovapor supply as desired to reduce the humidity of the steam. Should the problem persist or if it is not in the table, contact an Authorised Polti Service Cen- tre (see www.polti.com for the up-to-date list) or Customer Services.32 ENGLISH WARRANTY This appliance is for household use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over. The date of purchase must be proven via a proof of pur- chase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompa- nied by proof of purchase. This warranty does not aect the consum- er rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold with respect to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warran- ties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials. In case of irreparable defects, Polti may re- place the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Cen- tres with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect;

• Any fault due to improper use or use other than that indicated in the instruction book- let, an integral part of the product sales contract;

• Any defect resulting from force majeure (fires, short circuits) or caused by third par- ties (tampering);

• Damage caused by the use of non-original Polti parts and repairs or modifications per- formed by sta or service centres not au- thorised by Polti;

• Damage caused by the customer;

• Parts (filters, brushes, hoses, etc.) damaged by use (consumable goods) or normal wear and tear;

• Any damage caused by limescale;

• Defects resulting from lack of maintenance/ cleaning according to the manufacturer's instructions;

• Attachment of non-original Polti accesso- ries or accessories which have been modi- fied or are unsuitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this man- ual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instruc- tions indicated in this instruction booklet, re- garding warnings for use and product main- tenance. To see the up-to-date list of the Polti Author- ised Service Centres, visit www.polti.com.33 FRANÇAIS
