IAN 362250 - Bathroom accessory Livarno Lux - Free user manual and instructions

USER MANUAL IAN 362250 Livarno Lux

PDF ONLINE www.lidl-service.com

EDELSTAHL-DUSCHSPINNE

FOLDABLE STAINLESS STEEL SHOWER CURTAIN HOLDER BARRE ÉVENTAIL POUR RIDEAU DE DOUCHE EN ACIER INOXYDABLE

DE AT CH

EDELSTAHL-DUSCHSPINNE

Gebrauchsanweisung

FR BE

BARRE ÉVENTAIL POUR RIDEAU DE DOUCHE EN ACIER INOXYDABLE

Instructions for use

NL BE

EDELSTALEN DOUCHESPIN

Gebruiksaanwijzing

CZ

SPRCHOVÝ PAVOUK Z NEREZOVÉ OCELI

Návod k použití

ES

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x bracket (incl. 12 shower arms)

4 x wall plug

4 x screw

1 x instructions for use

1 x quick start guide

Technical data

Dimensions:

Shower arm: approx. 80cm long

Dimensions: approx. 11.5 x 8 x 5cm

(W × H × D)

Weight: approx. 1.3kg

Maximum load: 1kg

Date of manufacture (month/year): 04/2021

Intended use

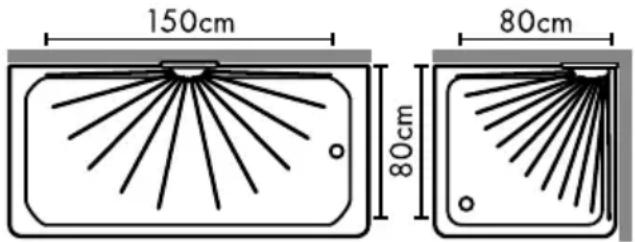

The product serves to hold commercially available shower curtains with 12 eyelets and a maximum width of 180cm. The product is intended for private use. Can be attached to the wall above a bathtub with a width of 150cm, or a shower enclosure with a width of 80cm.

150cm 80cm 80cm

Safety information

Important: read these instructions for use carefully and keep them in a safe place!

Life-threatening hazard!

- Never leave children unattended with the packaging materials. There is a risk of suffocation.

Risk of injury!

- There is a risk that the product may not be able to withstand the stated loads due to changes in the material, and therefore poses a risk of injury.

- Keep the product away from children.

• The product is not a toy.

- Use the product only for its intended purpose.

- Check the product for damage or wear before each use. Only use the product if it is in perfect condition!

- It is essential to check that the product has been hung up correctly before use.

- Before mounting the product, make sure that the selected wall is suitable. Consult a specialist store if necessary.

- Make sure that the product has been mounted properly and in accordance with these instructions for use. Improper mounting can lead to injuries and impair the product's safety and functionality.

- Check whether the wall is suitable for mounting the product on. Injuries can occur if the wall is unsuitable.

- Do not pull or hang on the product.

Preventing damage to the product!

- Make sure that the shower arms are drawn apart from each other after each use so that the product can dry completely.

Assembly

Before mounting the product, check for sufficient stability and firmness in order to avoid the risk of injury.

1. Use a centred tile spacer when mounting the product over a bathtub, and a corner tile spacer when mounting the product over a shower enclosure.
2. Check the characteristics of the wall at the point where you want to mount the product.

Note: make sure that you select a point no higher than 160cm from the edge of the bathtub, or 170cm from the edge of the shower enclosure.

1. Draw the individual shower arms (1a) out of the fixtures (1b) of the bracket (1) (Fig. C).
2. Hold the bracket against the desired position over a tile spacer and mark the holes with a pencil (not included in the package contents) (Fig. B/step 1).

Note: hold the bracket on the tile spacer so that the fixtures for the shower arms are facing upwards.

1. Remove the bracket from the tile spacer and, using a drill with a diameter of 6mm, carefully drill the marked holes (Fig. B/step 2).
2. Insert one wall plug (2) into each hole (Fig. B/step 3).
3. Hold the bracket with the holes over the wall plugs and attach it with the screws (3) (Fig. B/step 4).
4. Fasten the screws with a suitable cross-head screwdriver (not included in the package contents).
5. Insert the shower arms back into the bracket fixtures (Fig. C).
6. Thread each of the ends of the shower arms through one eyelet of the shower curtain (not included in the package contents) (Fig. D).

Use

Use the shower curtain in order to avoid splashing water around.

1. Draw the shower curtain to the side and step into the bathtub or shower enclosure.
2. Draw the shower curtain closed and turn the water on.

Note: draw out the shower curtain after each use, otherwise it will accumulate moisture and mould could form.

Storage, cleaning

Draw out the shower curtain after each use so that it can dry completely. There is a risk of mould.

Always store the product clean and dry in a temperature-controlled room.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol

- which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under continuous quality control. DELTA-SPORT HANDELSKONTOR GmbH gives private end customers a three-year guarantee on this product from the date of purchase (guarantee period) in accordance with the following provisions. The guarantee is only valid for material and manufacturing defects. The guarantee does not cover parts subject to normal wear and tear that are thus considered wear parts (e.g. batteries) or fragile parts such as switches, rechargeable batteries, or parts made of glass.

Claims under this guarantee are excluded if the product has been used incorrectly, improperly, or contrary to the intended purpose, or if the provisions in the instructions for use were not observed, unless the end customer proves that a material or manufacturing defect exists that was not caused by one of the aforementioned circumstances.

Claims under the guarantee can only be made within the guarantee period by presenting the original sales receipt. Please therefore keep the original sales receipt. The guarantee period is not extended by any repairs carried out under the guarantee, under statutory guarantees, or as a gesture of goodwill. This also applies to replaced and repaired parts.

If you wish to make a claim please first contact the service hotline mentioned below or contact us by e-mail. If there is a guarantee case, then the product will be repaired or replaced free of charge to you or the purchase price will be refunded, depending on our choice.

Your legal rights, in particular guarantee claims against the respective seller, are not limited by this guarantee.

IAN: 362250_2010

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]
