USER MANUAL BG5350 BRAUN

Line drawing of a BHAUN electric toothbrush with no text or symbols on the device itself

www.braun.com

Braun Infolines

Deutsch 8

English 13

Français 19

Español 24

Português 29

Italiano 34

Nederlands 39

Dansk 44

Norsk 48

Svenska 52

Suomi 56

Ελληνικά 60

DE / AT 00 800 27 28 64 63

00 800 BRAUNINFOLINE

CH 08 44 - 88 40 10

UK 0800 783 7010

IE 1 800 509 448

FR 0 800 944 802

(service & appel gratuits)

BE 0 800 14 592

ES 900 814 208

PT 808 20 00 33

IT 800 440 017

NL 0 800-445 53 88

DK 70 15 00 13

NO 22 63 00 93

SE 020 - 21 33 21

FI 020 377 877

Type 5544

GR 800 801 3458

HK (852) 2986 9886

(DKSH Consumer Service Centre)

Braun GmbH

3D rendered object with a cylindrical top and a small protrusion labeled '7*' (no text or symbols beyond the number)

* not with all models

Two identical mechanical components with internal features, labeled 1a/1b (no text or symbols on the parts themselves)

Close-up of hands using a tool to trim a piece of hair (no text or symbols visible)

Close-up of a hairpin with arrows indicating direction (no text or symbols)

Hand pressing a button on a device (no text or symbols visible)

Close-up of a hand pressing down on a textured surface (no text or symbols visible)

Safety warning illustration showing hand valve and no-smoking symbol with upward arrow

Illustration of a hand using a tool to cut a person's ear (no text or symbols visible)

Two black plastic meshers with threaded surfaces, labeled 1 and 2 (no text or symbols on the shapes themselves)

Close-up of a hairbrush with a black arrow pointing to the base (no text or symbols visible)

Close-up of a mechanical component with an arrow pointing upward, next to a textured surface (no text or symbols visible)

Prohibition symbol with a diagonal line crossing over a building silhouette (no text or numbers present)

Close-up of a hairbrush with serrated edge and textured grip (no text or symbols visible)

Prohibition sign showing a person crossed out with a diagonal line (no text or symbols)

Illustration of a person using a hairpin to apply or examine something (no text or symbols visible)

off

Close-up of a hand holding a connector with an arrow indicating direction (no text or symbols visible)

2a+2g BODY sensitive

Silhouette of a human figure with no text or symbols

click!

Illustration of a hairbrush with spiral bristles (no text or symbols)

3D rendered image of a conical object with a pointed tip and base, labeled '2b' in the top-left corner (no other text or symbols)

Illustration showing three-step steps of a device being adjusted, with arrows indicating the process (no text or symbols present)

off

3D rendered image of a mechanical device with a textured top and base (no visible text or symbols)

Illustration showing two steps of a hand holding a device, one with a black arrow indicating the process (no text or symbols present)

Illustration of a portable stove with a gridded top and three legs (no text or symbols)

Medical illustration showing a person with a no-smoking symbol, hand holding a device, and hand spraying particles with an arrow indicating motion.

2f+2g 500X sensitive

click!

Simple line drawing of a showerhead and faucet (no text or symbols)

off

Diagram illustrating oil injection process with labeled components and droplet behavior

Three-step illustration showing hair cleaning process: opening, pouring liquid into a wash bottle, and finally adding a brush (no text or symbols)

Three-step illustration showing a hairbrush cleaning a drain, with the rightmost view showing the blade being removed (no text or symbols present)

Illustration showing two steps of a mechanical device: one being cut with arrows indicating motion, the other being inserted into a housing (no text or symbols present)

Illustration showing two different water spray mechanisms: one with a drain pipe and another with a hand holding a device, both without any text or symbols.

click! click! oil

Three-step illustration showing a hand holding a device, a tool inserted into a connector, and a close-up of the device being handled (no text or symbols present)

Illustration showing three-step steps of a hairdryer tool: adding liquid, no oxygen, and applying oil.

Deutsch

Read these instructions completely, they contain safety information. Keep them for future reference.

Warnings

This appliance is suitable for use in a bathtub or shower. For safety reasons this appliance can only be operated cordless.

The appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is a risk of electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked D-492-C, you can use it with any Braun power supply 492-XXXX.

Never use the appliance with any damaged accessory like trimmers, combs or special cord set.

Do not open the appliance!

This appliance can be used by children aged from 8 years and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

If the appliance is provided with a hair clipping attachment, it can be used for hair clipping purpose by children aged from 3 years under supervision.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Description

1a Sliding beard comb (3–11 mm in 2 mm steps)*

1b Sliding hair comb (13–21 mm in 2 mm steps)*

1c Release button sliding combs

1d Fix comb 1 (1 mm)*/**

1e Fix comb 2 (2 mm)*/**

2a Trimmer head*/**

2b Ear & nose trimmer head*

2c Detailed trimmer head*

2d Body groomer head*

2e Mini foil shaver head*

2f Body trimmer head*

2g Sensitive comb*

3 On/off button

4 Charging indicator

5 Power socket

6 Special cord set**

7 Charging stand*

* not with all models

** design can differ

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

- Connect the appliance (switched off) via the special cord set (6) to an electrical outlet.

- A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.

- Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity.

Charging indicator (4)

- The charging indicator blinks green when the appliance is being charged.

- It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.

- The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains.

Usage

Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button (3).

Travel lock

Press the on/off button (3) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains.

Beard Trimming / Hair Clipping

Sliding combs (1a, 1b): Place one of the combs over the trimmer head (2a). Press the release button (1c) and slide the comb to your desired length.

Fixed combs (1d, 1e): Click one of the combs onto the trimmer head (2a).

• Trim against hair growth by guiding the flat comb part over the skin.
• Do not force the appliance through the hair faster than it can be cut.
• Avoid clogging the comb with hair. Remove and clean it from time to time.

Precision and Contour Trimming

Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2c) or the mini foil shaver (2e) for shaping sideburns, moustaches and partial short beards.

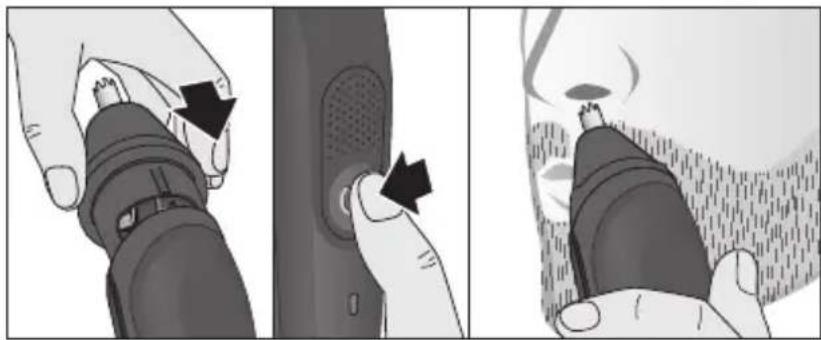

Ear/Nose Trimming

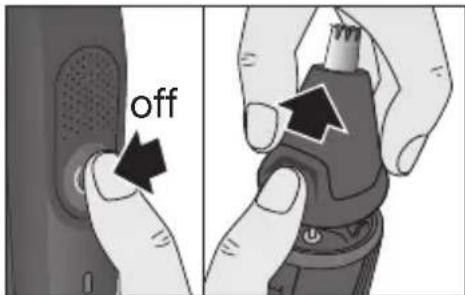

• Remove any head and click the ear & nose trimmer head (2b) onto the handle of the appliance.

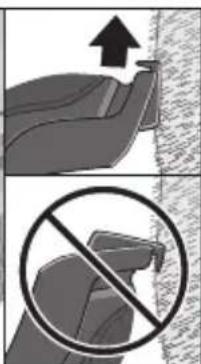

• Carefully guide the appliance to the hair to be trimmed so that they reach into the cutting cage. Avoid introducing the trimmer more than 5 mm (1/4") into nose or ear.

Body grooming

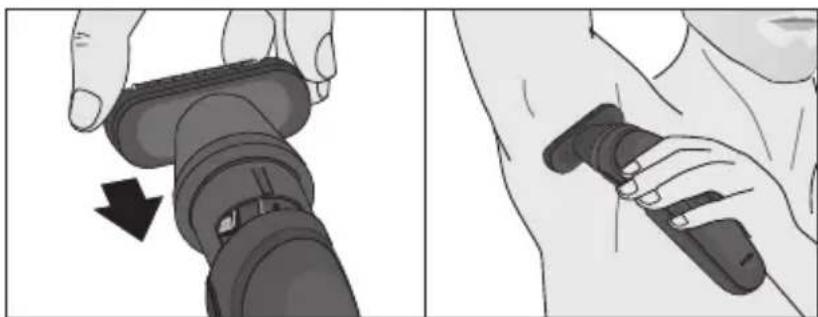

Remove any head and click the body groomer head (2d) or one of the trimmer heads (2a, 2f) onto the handle.

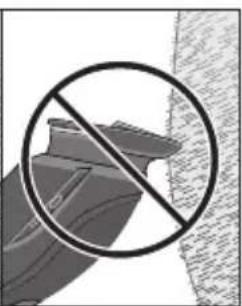

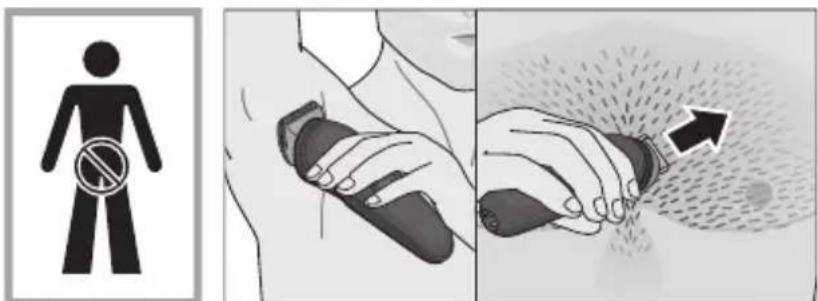

Use the body groomer head on dry skin only. Do not use it in delicate areas.

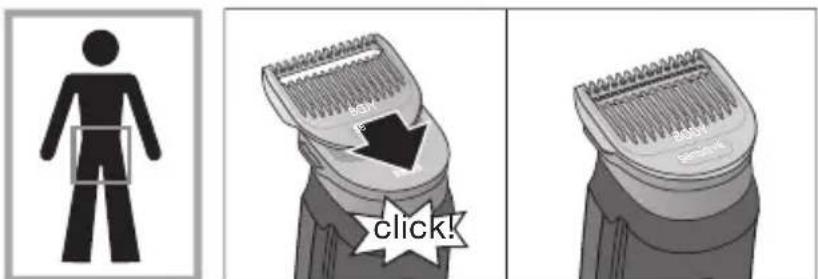

Use the trimmer head (2a) only with the sensitive comb attached for body grooming.

For delicate areas use the trimmer heads only with the sensitive comb attached.

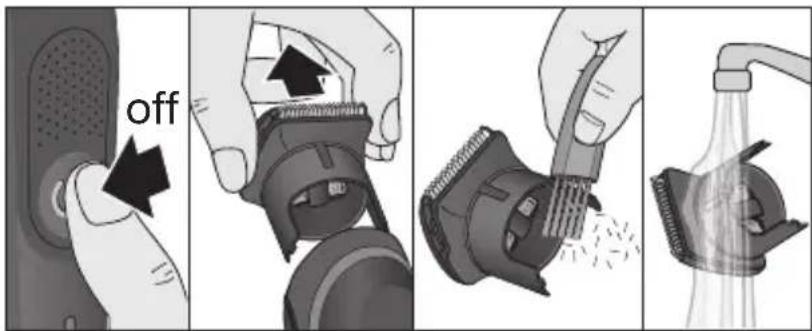

Cleaning and maintenance

• Switch off the appliance.
  • Take off any head and comb.

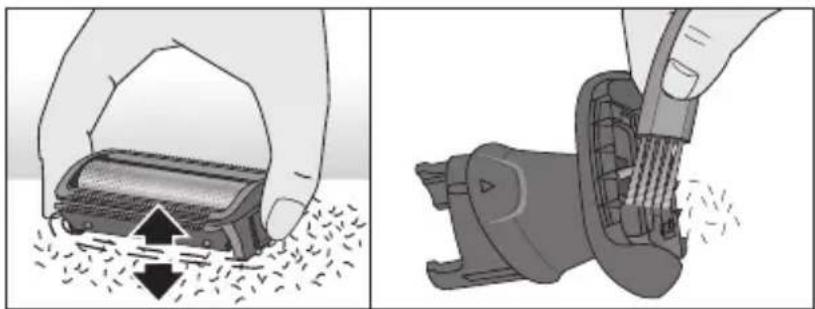

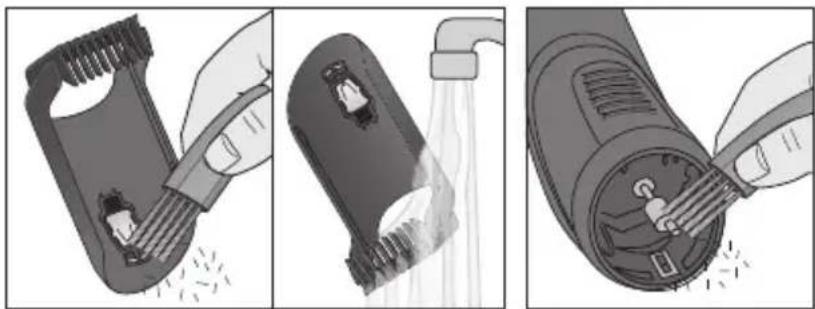

• Use the brush to clean the heads, combs and the appliance. Do not clean the foil of the body groomer head and mini foil shaver head with the brush as this may damage it.

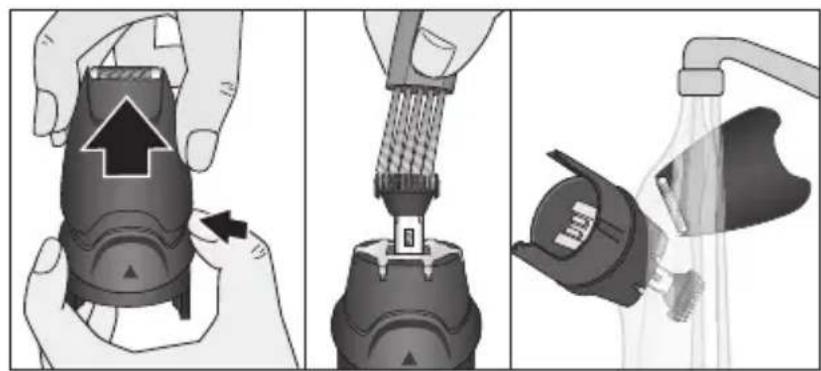

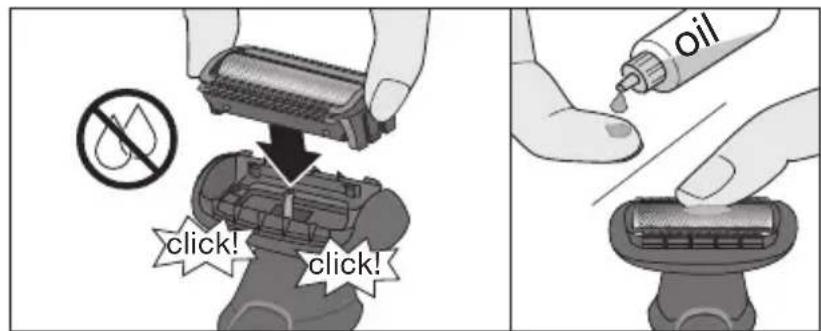

• The mini foil shaver head can be disassembled for proper cleaning. In case the foil frame is pulled out, it can just be clicked into the housing again.

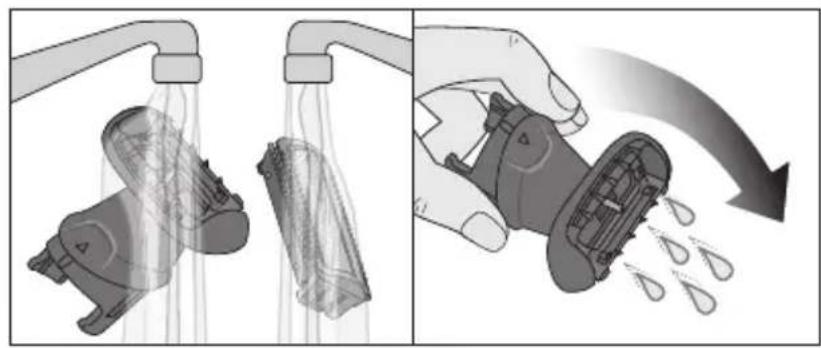

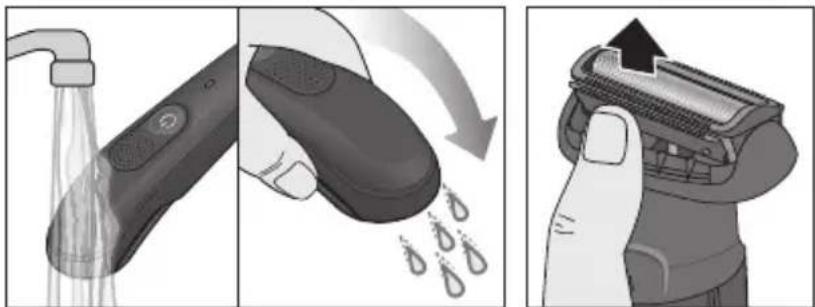

• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them.

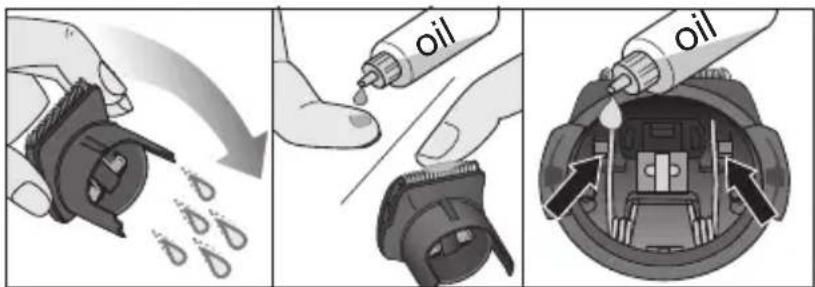

• To keep the attachments working properly, oil the trimmer and the foils with a drop of light machine oil (not included) regularly.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

16

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

For Australia & New Zealand only:

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The benefits given by this warranty are in addition to other rights and remedies of the consumer law.

For warranty claims please contact:

Procter & Gamble Australia Pty Ltd

Level 4, 1 Innovation Road

Macquarie Park, NSW 2113

Telephone (AU): 1 800 641 820

Telephone (NZ): 0 800 108 909

Email (AU and NZ): Visit link

https://pgconsumersupport.secure.force.com/ContactUs/emailus

Our Warranty

This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty).

Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations.

Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase.

Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with

this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance.

Our Warranty does not cover:

A. Damage arising from improper use or operation on incorrect voltages.
B. Breakages to shaver foils, glass jars, etc.
C. Normal wear due to moving parts.
D. Repairs undertaken by unauthorised service personnel or use of non-genuine parts.
E. Appliances that are outside the warranty period or are not faulty.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture.

To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute.

Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers).

If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us.

Repairs and service

If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. Should your Braun product require service, please call (free call) for Australia 1800 641 820 or New Zealand 0800 108 909 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com.
