Suracon VM 7002 - Vacuum Cleaner AMICA - Free user manual and instructions

Product type	Canister vacuum cleaner with cord
Brand	Amica
Model	Suracon VM 7002
Power supply	220-240 V / 50 Hz
Rated power	700 W
Maximum power	720 W
Net weight	7.7 kg (depending on variant up to 8.2 kg)
Radio frequency	433.050-434.790 MHz
Maximum radio power	< -35 dBm
Filter type	Pre-motor filter (washable) + exhaust filter (washable)
Bag capacity	Dust bag (standard, replace when indicator is red)
Included accessories	Turbo brush, telescopic tube, hose, parquet brush, 2in1 universal brush, upholstery nozzle, fabric nozzle, crevice tool, accessory holder
Main functions	Electronic power adjustment, bag full indicator, cable winder, wireless handle connection via AAA batteries
Remote control power	2 AAA batteries (not included)
Maintenance	Dust bag replacement, filter cleaning (warm water), turbo brush cleaning
Protection class	II (double insulation)
Intended use	Domestic, indoor
Cable length	Approximately 5 m (common estimate)

Frequently Asked Questions - Suracon VM 7002 AMICA

How to plug in and turn on the Amica Suracon VM 7002 vacuum cleaner?

Plug the power cord into a 220-240 V socket. Press the on/off button on the main body of the device. A display screen should light up. If the handle is equipped with batteries, you can also use the buttons on the hose.

What to do if the red bag full indicator lights up?

The red indicator shows that the bag is full or the airflow is blocked. First check that there is no clog in the brush, hose or tube. If not, replace the dust bag. To replace, open the cover, remove the holder with the old bag, insert a new bag and close.

How to clean the vacuum cleaner filters?

The pre-motor filter should be cleaned with every bag change: take it out of the guides, wash it with warm water and mild detergent, dry it completely before reassembling. The exhaust filter is cleaned similarly: remove the air outlet cover, take out the filter, wash it in warm water (no harsh chemicals), dry it well before reinstalling. It is recommended to clean the filter once a month and replace it every 6 months.

How to maintain the turbo brush?

First unplug the vacuum. Open the roller lock, carefully clean the area and the roller. The roller should not be washed in water. If hair has accumulated, gently remove it with scissors.

Which batteries to use for the hose remote control?

The hose control panel requires 2 AAA (1.5 V) batteries. They are not included. Open the cover on the hose holder, insert the batteries respecting polarity. The vacuum can also be operated directly from the main body without batteries.

The vacuum does not turn on, what to check?

First check the power supply: is the socket live? Is the circuit breaker in good condition? Make sure the cord is not damaged. If everything is OK, contact a qualified technician.

Can the vacuum be used without a bag?

No, the vacuum must always be used with a dust bag and filters in place. Using without a bag can damage the appliance and reduce suction performance.

What are the dangers associated with use?

Do not vacuum flammable substances (gasoline, etc.), do not use outdoors, do not immerse in water, keep children away, do not pull on the cord, do not insert objects into openings. If the cord is damaged, have it replaced by a professional.

How to store the vacuum after use?

Unplug the appliance from the outlet. To wind the cord, hold the plug and press the winding button. Store the vacuum in a dry place, away from heat and out of reach of children.

Where to find the EU Declaration of Conformity?

The full text of the EU Declaration of Conformity is available on the Amica website: www.amica.pl. The device complies with Directive 2014/53/EU regarding radio equipment.

USER MANUAL Suracon VM 7002 AMICA

White vacuum cleaner with control panel and brand logo (no visible text or symbols on body)

PL INSTRUKCJA OBSŁUGI 2

EN USER MANUAL 6

CS NÁVOD K OBSLUZE 10

SK NÁVOD NA OBSLUHU 14

Labeled diagram of a vacuum cleaner with numbered parts for identification

OBSŁUGA:

Close-up of a white robotic vacuum cleaner's front panel and its control panel with red circular annotations (no visible text or symbols)

Close-up of a black handheld device with a red circular button on the left side (no visible text or symbols)

Close-up of a black electronic device handle with a red circular annotation highlighting a button (no text or symbols present)

Złożenie urządzenia

Close-up of a mechanical component with a red arrow pointing to a circular feature (no text or symbols visible)

Close-up of a white electronic device with a metallic screw and red directional arrows indicating motion or force (no text or symbols)

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black vacuum cleaner's head with red arrows indicating movement or force, no visible text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet and a cleaning board with water droplets (no text or symbols)

• If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Do not allow children to clean and maintain the appliance unless they are 8 years or older and are supervised by a competent person.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• Do not expose the appliance to rain or humidity, and do not

use it outdoors. Do not operate the appliance with wet hands.

• This appliance is not intended for use at altitude greater than 2000 metres above sea level
• If you want to turn off the appliance completely, pull the plug out of the wall outlet.

In accordance with European Directive 2012/19/EU and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used. The user

is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes. Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

Carefully read this instruction before using the appliance.

This appliance is for household use only.

Note! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.

Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.

If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.

When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.

Do not attempt to remove any parts of the housing.

Using attachments that were not supplied with the product may cause damage to the appliance.

Never place the appliance on hot surfaces.

Do not place the cord over sharp edges or near hot surfaces.

Before you put the plug into the wall outlet, make sure your hands are dry.

Do not put any objects inside the appliance.

Make sure that the voltage indicated on the nameplate corresponds to that of your home electrical mains. Alternating current must be used, typically marked \~.

This appliance is intended for use at home or in facilities, such as kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities.

Pull the plug from the wall outlet before replacing accessories.

Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, do not place the cord over sharp edges or near hot surfaces. Be careful not to move the vacuum cleaner on the cord.

Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow. Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.

Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.

If the appliance has a winder, hold the plug while winding up the cord. Do not let the plug was left loose during retracting.

Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.

Do not use the vacuum cleaner without a dust bag and/or filters. If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately turn off the vacuum cleaner Before restarting the vacuum cleaner, first remove the blocking item.

Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.

Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag.

Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.

Make sure that extension tube is fully withdrawn before you put away your vacuum cleaner either in vertical or horizontal position. Amica S.A. hereby declares that the type of radio emitting equipment, vacuum cleaner, models VM 7001/VM 7002/VM 7003/VM 7004 comply with Directive 2014/53/EU. The full text of the EU declaration of conformity is available on our website at: www.amica.pl.

Frequency bands 433.050-434.790MHz The maximum power of a radio signal transmitted in a frequency band <-35dBm

SPECIFICATION:

Power specification: AC 220-240V / 50Hz
Nominal power: 700W
Maximum power: 720W
Net weight: 7.7 kg / 8.0 kg / 8.2 kg*

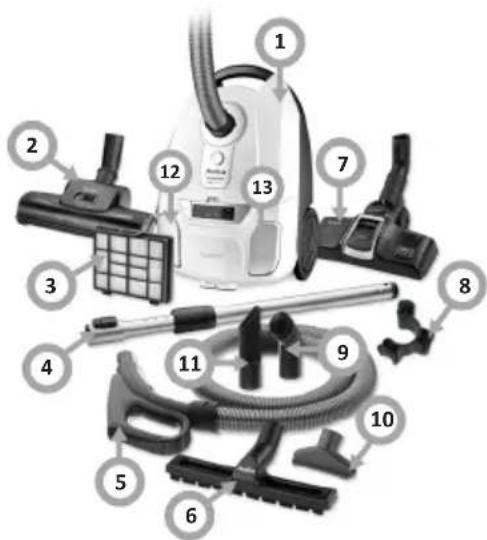

YOUR APPLIANCE:\*

1. Motor unit
2. Turbo brush
3. Exhaust filter
4. Telescopic tube
5. Hose with a handle
6. Parquet brush
7. Universal 2-in-1 brush
8. Accessory holder
9. Bookshelf suction attachment
10. Upholstery nozzle
11. Crevice nozzle
12. On / off button
13. Power cord retract button

Labeled diagram of a vacuum cleaner with numbered parts for identification

OPERATE THE APPLIANCE:

Pair the hose with the vacuum cleaner

1. Insert the plug of the power cord into the power socket, press the ON/OFF button to turn on the appliance, then simultaneously press and hold the plus and minus buttons until the display flashes.

Close-up of a white robotic vacuum cleaner's front panel and its control panel with red circular annotations (no visible text or symbols)

1. Then take the hose (ensure that batteries are installed in the vacuum tube handle) and press the ON/OFF switch. If the appliance turns off, pairing is successful.

Close-up of a black handheld device with a red button and control knob (no visible text or symbols)

1. After successful pairing, use the handle to make sure that it operates properly. Press the ON/OFF switch to turn off the appliance.

Close-up of a black mechanical component with two circular red annotations highlighting specific points (no text or symbols present)

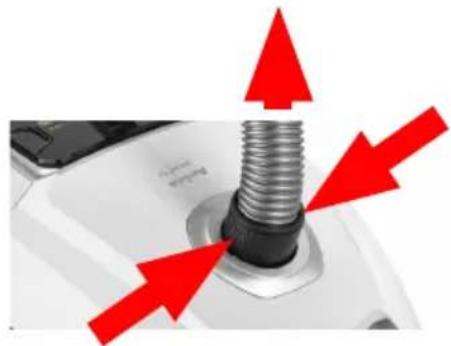

Assemble the appliance

- Insert the hose into to the vacuum cleaner body.

Note! Figures are for illustrative purposes only Individual models may vary.

Close-up of a mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

- To pull the hose out of the vacuum cleaner body, press the two tabs on both sides and pull out the hose.

Close-up of a white mechanical component with a metallic threaded bolt and red arrows pointing outward (no text or symbols)

- Extend the telescopic tube to the desired length.

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

- Connect the telescopic tube to the hose handle. Insert the brush into the other end of the hose.

Close-up of a black mechanical component with red arrows pointing to a vertical pipe or tube, labeled 'Amica' (no text on the object itself)

Install or replace the handle batteries

- The handle control panel is powered by batteries. Open the cover and insert the batteries according to the markings. The handle control panel is powered by 2 AAA batteries. The appliance is delivered without batteries, so you need to purchase the batteries. You do not need to use the control panel on the hose handle to operate the appliance as you can also use the buttons on the body.

Operate the appliance

• Press the ON/OFF button to turn the appliance on or off.
• After use, disconnect the appliance from the power supply and wind up the cord using the appropriate button.
• When winding up the power cord hold the plug so that it does

Note! Figures are for illustrative purposes only Individual models may vary.

not swing around or hit the furniture or the vacuum cleaner.

Appliance indicators

1. Dust bag full indicator: When the suction power of the vacuum cleaner significantly decreases, the red dust bag full indicator will light up. You need to replace the dust bag. If the dust bag full indicator goes on, check whether the suction brush, hose or tube is blocked with large items stopping the air flow. After removing the items, if present, restart the vacuum cleaner - if the dust bag full indicator is still red, replace the dust bag with a new one.
2. Each time you change the speed, another symbol appears on the control panel: curtains -> sofa -> carpet -> parquet.

CLEANING AND CARE

Replace the dust bag

• Open the appliance lid and pull out the handle together with the full bag.
• Slide the new bag into the holder and replace it in its original place. If the bag is not installed correctly, the lid will not close.

Technical line drawing of a mechanical component with no visible text or symbols

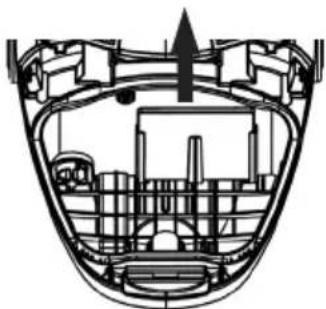

Clean the dust bag cavity filter

• Clean the dust bag cavity filter when replacing the dust bag.
• Slide the filter out of the guides and clean it. You can wash the filter in warm water with a mild detergent.
• Reinstall the filter when it is completely dry.

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Clean the turbo brush

• Before cleaning the turbo brush, disconnect it from the appliance.
• Open the roller lock and thoroughly clean the seat and the roller itself. Do not rinse the roller with water. If there is a lot of hair on the roller, remove the hair carefully with scissors.

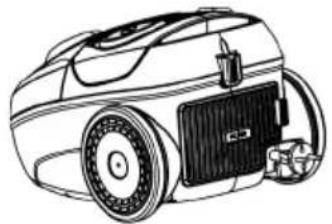

Clean the exhaust filter

• Before cleaning the filter, remove the power cord plug from the wall outlet.
• Clean the filter when it is clearly soiled. Shake dirt off the filter and then brush it with a soft bristle brush. Then rinse the filter in lukewarm water and do not use any detergent. Do not direct strong jet of water onto the filter. Use it only when completely dry. If the filter is too dirty or damaged replace the filter with a new one.
• Depending on the intensity of use, it is recommended that you clean the filter once a month and replace it with a new one every six months.
  • Always use the vacuum cleaner with a filter in place.

• It is recommended that you only use original Amica filters for your vacuum cleaner.

• Open the air exhaust cover.

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

1. Remove the filter, clean it or replace it with a new one.

2. Close the air exhaust cover.

Cleaning filters.

Rinse the filter with warm water and let dry completely.

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

In the event of any fault:

- Turn off the appliance:

• Unplug the appliance from power

- By following the instructions given in the table below, you can correct some minor issues. Please check all points in the table before you refer the repair to customer service.

Problem Reason Remedy

1. The appliance does not work	No power Check the circuit breaker, reset if tripped, replace a blown fuse
2. Reduced suction power of the vacuum cleaner	Dust bag full indicator	You need to replace the dust bag
	Vacuum cleaner hose clogged	Remove dust, hair, and other obstructions that may reduce airflow.

If the problem is not solved, unplug the appliance from power and report the fault to the nearest service centre. Note! All repairs must be performed by qualified service technicians.

Labeled diagram of a vacuum cleaner with numbered parts for identification

OBSLUHA:

Close-up of a white robotic vacuum cleaner's front panel and side view showing its control buttons (no text or symbols visible)

Close-up of a black handheld device with a circular button and control knob (no visible text or symbols)

Close-up of a black mechanical component with circular red annotations highlighting specific points (no text or symbols visible)

Sestavení zařízení

Close-up of a mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white electronic device with a metallic threaded component and three red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical pipe or tube, labeled 'Anica' at bottom left (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

POUŽÍVANIE:

Front view of a white robotic vacuum cleaner with digital display and control buttons (no visible text or symbols)

Close-up of a black handheld device with a red circular button on the handle (no visible text or symbols)

Close-up of a black electronic device handle with a red circular button and a small circular mark (no visible text or symbols)

Close-up of a black handheld device with a red circular button and control panel (no visible text or symbols)

Zloženie zariadenia

- Zastrčte jeden koniec trubice do otvoru v korpuse.

Close-up of a mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white electronic device with a metallic threaded component and three red arrows pointing outward (no text or symbols)

- Roztiahnite teleskopickú trubicu na požadovanú dížku.

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical pipe or tube, labeled 'Amica' (no text on the object itself)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Čistenie filtra pred motorom

- Filter pred motorom čistite vždy pri každej výmene vrecka na prach.

Cross-sectional diagram of a mechanical or architectural component (no text or symbols visible)

Čistenie turbokefy

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

HANDHABUNG:

Front view of a white robotic vacuum cleaner with control buttons and digital display (no visible text or symbols)

Close-up of a black electronic device with a control knob (no visible text or symbols)

Close-up of a black electronic device with a circular button and red circle highlighting a specific area (no text or symbols visible)

Close-up of a black handheld device with a circular button and control knob (no visible text or symbols)

Close-up of a metallic mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a mechanical component with red arrows pointing to three threaded pins (no text or symbols visible)

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical cylindrical feature, labeled 'Amica' at bottom left (no other text or symbols)

Cross-sectional diagram of a vehicle head and dashboard showing internal components (no text or labels)

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawing of a robotic vacuum cleaner with attached device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet spraying water onto a surface and a hanging sheet of water with droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

FONCTIONNEMENT :

Close-up of a white robotic vacuum cleaner's front panel and its control panel with red circular annotations (no visible text or symbols)

Close-up of a black handheld device with a red circular button on the left side (no visible text or symbols)

Close-up of a black mechanical component with two circular red annotations highlighting features (no text or symbols present)

Close-up of a metallic mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white mechanical component with a metallic threaded bolt and red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black mechanical device with red arrows pointing to a vertical cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or electrical component (no text or symbols visible)

Nettoyage de la brosse turbo

Line drawing of a robotic vacuum cleaner with visible battery and wheels (no text or symbols)

Line drawing of a robotic vacuum cleaner with wheels and mounting bracket (no text or symbols)

Illustration of a faucet spraying water onto a surface and a hanging sheet with raindrops falling (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

USO:

Front view of a white robotic vacuum cleaner with control buttons and a digital display (no visible text or symbols)

Close-up of a black handheld device with a circular button and control knob (no visible text or symbols)

Close-up of a black electronic device with a red circular mark on the side (no visible text or symbols)

Close-up of a black handheld device with a red circular button and control knob (no visible text or symbols)

Close-up of a mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white electronic device with a metallic threaded component and three red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red arrows indicating motion or force direction (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical tube or connector (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet and a hanging plate with water droplets, no text or symbols present

Labeled diagram of a vacuum cleaner with numbered parts for identification

ОБСЛУЖВАНЕ:

Front view of a white robotic vacuum cleaner with control buttons and a digital display (no visible text or symbols)

Close-up of a black electronic device with a red button and control knob (no visible text or symbols)

Close-up of a black electronic device with a red circular mark on the side (no visible text or symbols)

Close-up of a black electronic device with a control knob (no visible text or symbols)

Close-up of a metallic mechanical component with a red arrow pointing to a circular hole (no text or symbols visible)

Close-up of a white mechanical component with a metallic threaded bolt and red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black mechanical device with red arrows pointing to a vertical cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawing of a robotic vacuum cleaner with attached device (no text or symbols)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Illustration of a faucet and a hanging sheet with water droplets, no text or symbols present

Close-up of a mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white electronic device with a metallic threaded component and three red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red arrows indicating motion or force direction (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical pipe or tube, labeled 'Amica' (no text on the object itself)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawing of a robotic vacuum cleaner with visible battery and wheels (no text or symbols)

Line drawing of a robotic vacuum cleaner with a mounted device (no text or symbols)

Illustration of a faucet and a hanging plate with water droplets (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

ЕКСПЛУАТАЦИЯ:

Close-up of a white robotic vacuum cleaner's front panel and its internal touchscreen display (no visible text or symbols)

Close-up of a black handheld device with a circular button and red indicator lights (no visible text or symbols)

Close-up of a black mechanical component with red circular annotations highlighting specific points (no text or symbols present)

Збірка пристрою

Close-up of a metallic mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white mechanical component with a metallic threaded bolt and red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red directional arrows indicating motion or force (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical cylindrical feature, labeled 'Amica' at bottom left (no other text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Очищення турбощітки

Line drawing of a robotic vacuum cleaner with visible battery and wheels (no text or symbols)

Line drawing of a robotic vacuum cleaner with attached mechanical components (no text or symbols)

Illustration of a faucet spraying water onto a surface and another panel with liquid droplets falling (no text or symbols)

Labeled diagram of a vacuum cleaner with numbered parts for identification

OPERARE:

Close-up of a white robotic vacuum cleaner's front panel and its control panel with red circular annotations (no visible text or symbols)

Close-up of a black handheld device with a circular button and control knob (no visible text or symbols)

Close-up of a black mechanical component with red circular annotations highlighting specific points (no text or symbols visible)

Close-up of a metallic mechanical component with a red arrow pointing to a circular opening (no text or symbols visible)

Close-up of a white mechanical component with a metallic threaded bolt and red arrows pointing outward (no text or symbols)

Close-up of a metallic cylindrical device with red arrows indicating motion or force direction (no text or symbols)

Close-up of a black mechanical component with red arrows pointing to a vertical tube or connector (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Cross-sectional diagram of a mechanical or architectural structure with internal components (no text or labels)

Line drawings of a robotic vacuum cleaner with visible battery and mechanical components (no text or symbols)

Illustration of a faucet spraying water onto a surface and a hanging sheet with raindrops (no text or symbols)
