FY3259.3DFBX - Fridge AMICA - Free user manual and instructions

Product type	Fridge-freezer
Brand	Amica
Model	FY3259.3DFBX
Climate class	SN, N, ST, T (10 °C to 43 °C)
Power supply	220-240 V ~ 50 Hz
Refrigerant	R600a (isobutane)
Freezer star rating	4 stars (****): freezing and storage at -18 °C
Main functions	Quick freezing, Quick cooling, Holiday function, Smart ECO, NanoFresh, VitControl Plus, Open door alarm, Child lock
Defrosting	Automatic (No Frost) for fridge and freezer
Humidity control	Yes (VitControl Plus with slider for fruits/vegetables)
Touch screen	Electronic control panel with display
High temperature alarm	Yes
Settings retention after power failure	Yes (up to 5 minutes)
Child lock (parental control)	Yes (automatic activation after 3 minutes)
Activated carbon filter (NanoFresh)	Yes, for air purification and odor absorption
Spare parts	Available for 7 to 10 years depending on type
Built-in troubleshooting guide	Error codes (E0, E1, E2, EF, EH, EC)
Energy consumption	Not specified (refer to energy label)
Installation	Non-built-in appliance, requires ventilation space

Frequently Asked Questions - FY3259.3DFBX AMICA

How to set the temperature of the refrigerator and freezer?

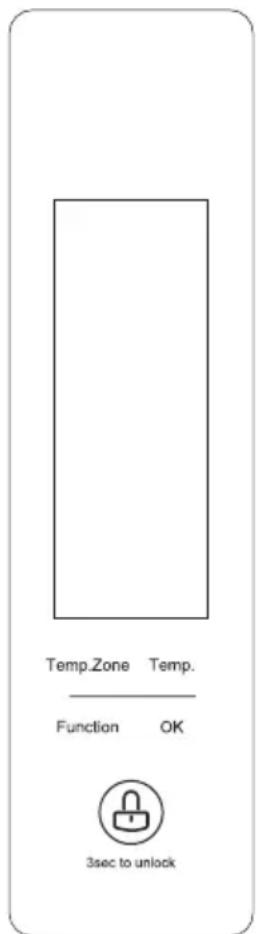

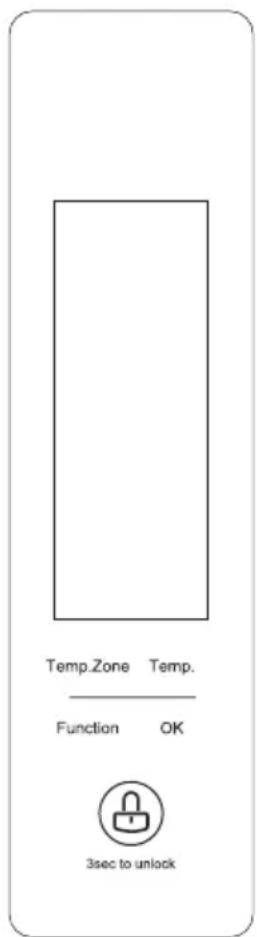

Use the "Temp. Zone" button to select the compartment (refrigerator or freezer), then press "Temp." multiple times to change the value. Confirm with "OK" or wait 5 seconds. Available temperatures: refrigerator from 2°C to 8°C (or OFF to turn off), freezer from -16°C to -24°C.

How to activate the quick freezing function?

Press the "Function" button several times until the quick freeze icon flashes, then press "OK" to confirm. The function lasts 26 hours and brings the temperature to -32°C, then automatically returns to the previous setting.

What to do if the door is left open for too long?

An audible alarm sounds after 3 minutes. To temporarily disable it, press any button. The alarm reactivates after an additional 3 minutes if the door is not closed.

How to use the Holiday function?

Press "Function" until the Holiday icon flashes, then confirm with "OK". This raises the refrigerator temperature to +14°C to save energy. Make sure the compartment is empty before activating this function. The freezer continues to operate normally.

How to clean the appliance?

First disconnect the appliance. Use a soft cloth and warm water with a mild detergent. Never use solvents, powders, or abrasive sponges. Clean the door seal and shelves regularly. For defrosting, follow the instructions in the manual.

How to defrost the freezer?

Turn off and unplug the appliance. Remove the food and place a container under the drainage channel. Leave the door open to speed up the process. You can place a container of hot water (not boiling) inside. After defrosting, clean and dry, then restart.

What do the stars on the freezer mean?

The stars indicate freezing and storage capacity: one star (-6°C) for 2-3 days, two stars (-12°C) for 1 month, three stars (-18°C) for storage but not freezing, four stars (****) for freezing and long-term storage at -18°C or below. Your model has 4 stars.

How to adjust humidity in the vegetable drawer?

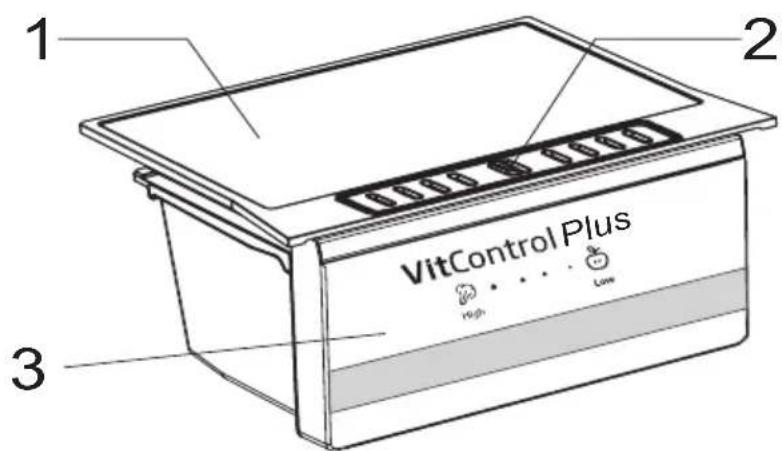

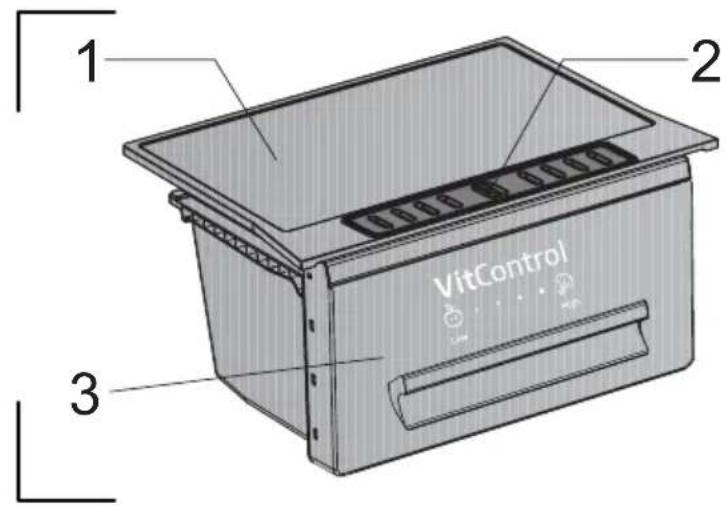

The VitControl Plus container has a slider on the lid. For fruits (less humidity), close the slider. For vegetables (more humidity), open it. The level of closure depends on your preference.

What to do if an error code appears (E0, E1, etc.)?

Error codes indicate an electronic failure. Note the code and contact authorized after-sales service. Do not attempt to repair yourself, as this could void the warranty.

How to lock the control panel?

Parental lock activates automatically 3 minutes after the last use. To unlock, press and hold the "OK" button for 3 seconds. This function prevents accidental changes to settings.

USER MANUAL FY3259.3DFBX AMICA

Chladnička-mraznička / Chladnička s mrazničkou

FY3269.6DFBX / FY3279.6GDFB

EN- Table of contents

GUIDELINES CONCERNING THE SAFETY OF USE 13

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 19

INSTALLATION BEFORE USING THE APPLIANCE FOR THE FIRST TIME 19

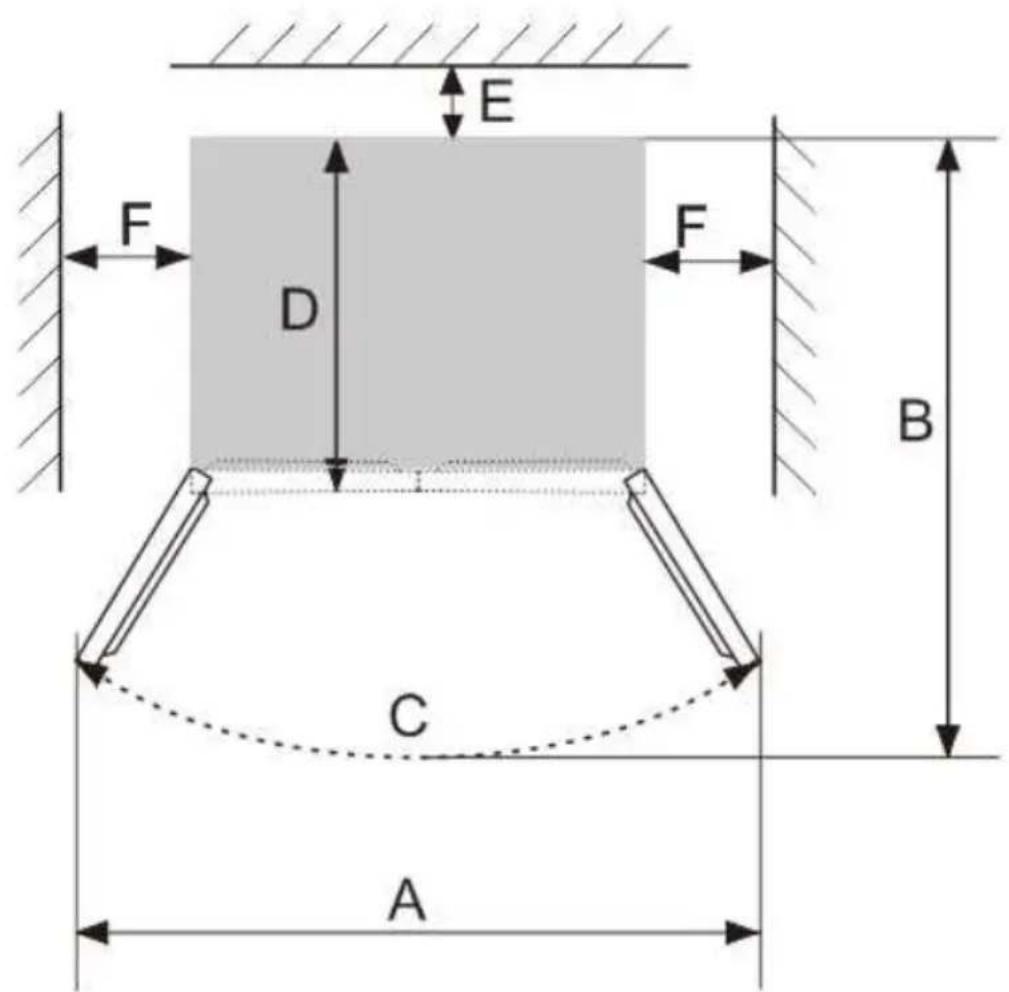

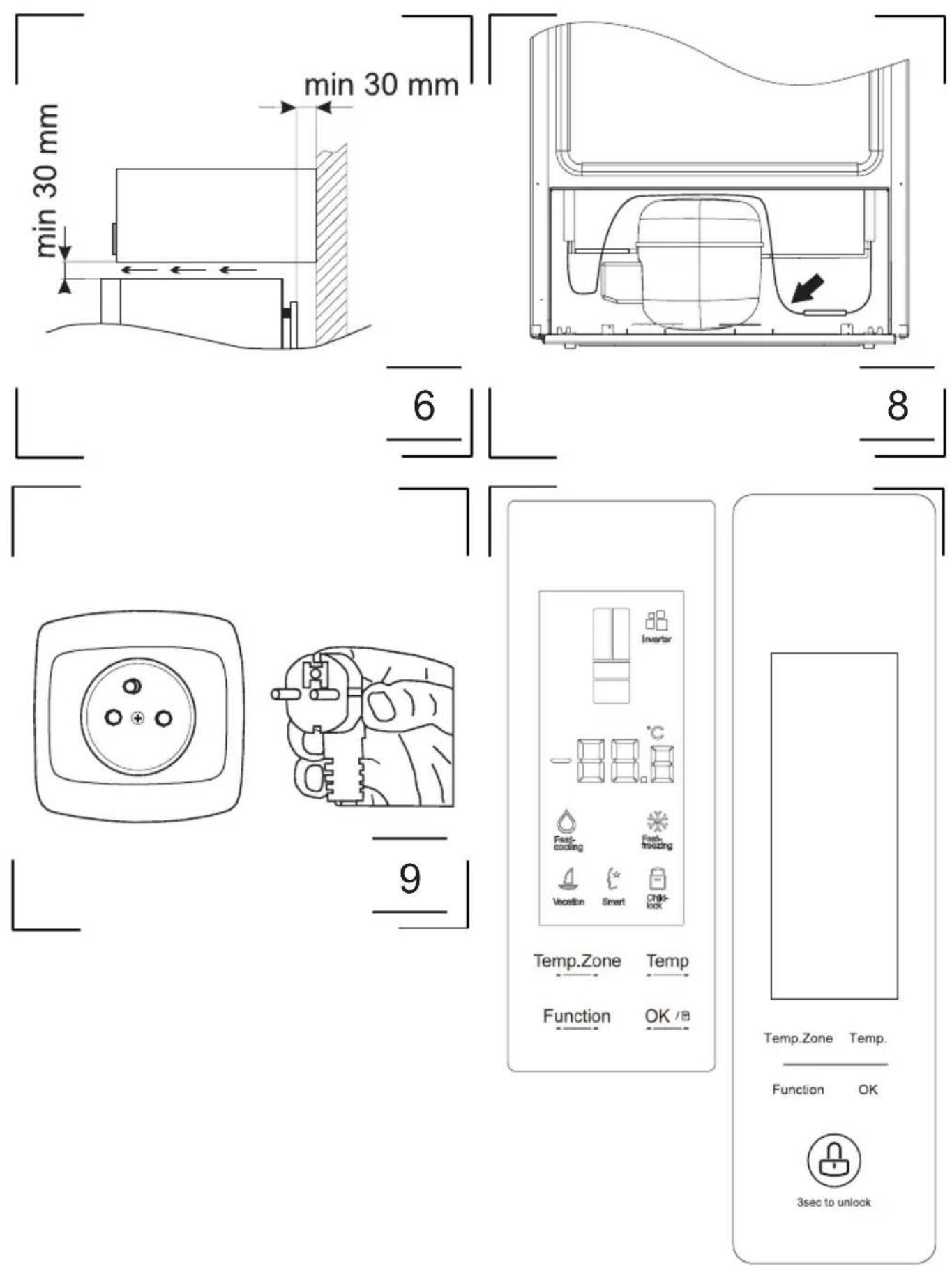

MINIMUM DISTANCES FROM THE HEAT SOURCES 19

MAINS CONNECTION 20

DISCONNECTING THE MAINS 20

CLIMATE RANGE 20

UNPACKING 21

DISPOSAL OF OLD APPLIANCE 22

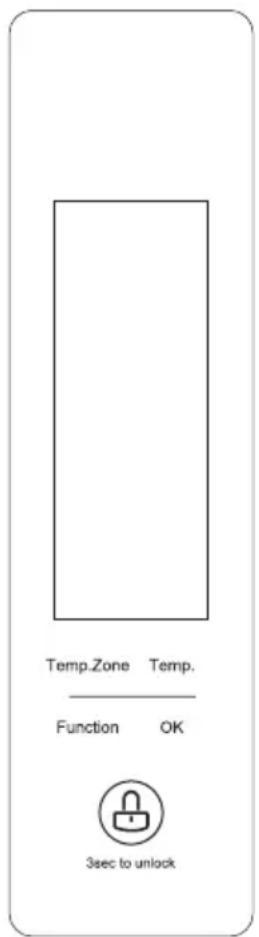

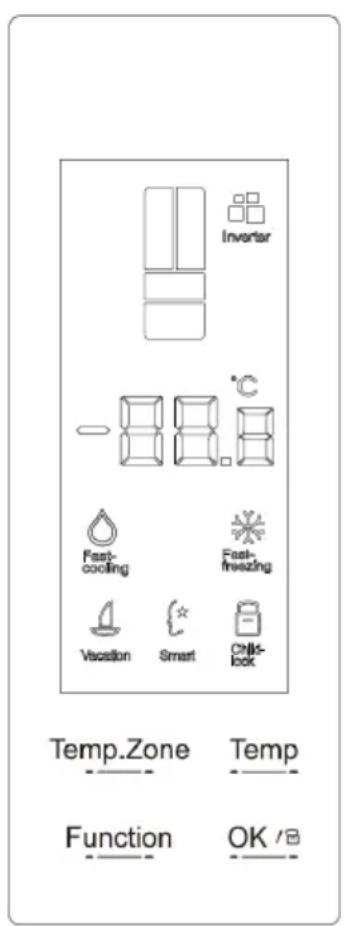

CONTROLS 23

APPLIANCE CONTROLS 23

ADJUST THE TEMPERATURE 23

FAST FREEZING 24

HOLIDAY* 24

SUPER COOL* 24

SMART ECO 24

OPEN DOOR ALARM 24

NON-VOLATILE APPLIANCE SETTINGS AND COMPRESSOR PROTECTION 25

ELEVATED TEMPERATURE ALARM 25

ERROR CODES 25

CHILD LOCK 25

NANOFRESH* 25

VITCONTROL PLUS 26

VITCONTROL / VITCONTROL PLUS BOX 26

WASHING THE FRIDGE AND FREEZER CHAMBERS MANUALLY**** 32

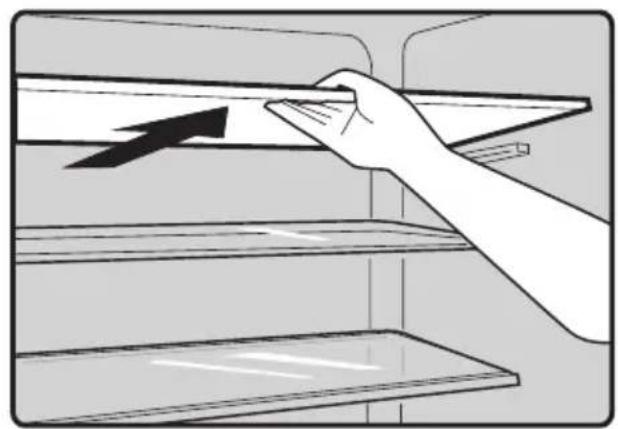

TAKING OUT AND PUTTING IN THE SHELVES***** 32

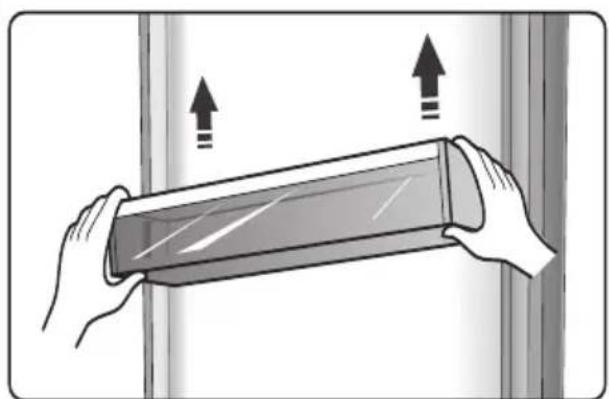

TAKING OUT AND PUTTING IN THE DOOR SHELF***** 32

TROUBLE-SHOOTING 33

WARRANTY AND AFTER SALES SERVICE 35

WARRANTY 35

GARANTIE, NACHVERKAUF-SERVICE 58

GARANTIE 58

CS- Obsah

POKYNY TÝKAJÍCÍ SE BĘZPEČNOSTI POUŽÍVÁNÍ 60 INSTALACE A PROVOZNI PODMINKY SPOTREBICE 65

INSTALACE PŘED PRVNÍM SPUŠTĚNÍM 65

MINIMÁLNÍ VZDÁLENOSTI OD TEPELNÝCH ZDROJŮ 65

PŘIPOJENÍ NAPÁJENÍ 66

ODPOJENÍ OD NAPÁJENÍ 66

KLIMATICKÁ TRÍDA 66

VYBALENI

LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ 68 OVLÁDÁNÍ 69

OVLÁDÁNÍ ZAŘÍZENÍ 69

ZMĚNA TEPLOTY UVNITŘ KOMOR 69

FUNKCE RYCHLÉHO ZAMRAŽENÍ 70

PRAZDNINOVÝ REŽIM* 70

FUNKCE RYCHLÉHO CHLAZENÍ* 70

FUNKCE SMART ECO 70

ALARM OTEVŘENÝCH DVÍŘEK 71

UDRŽENÍ PARAMETRŮ A ZABEZPEČENÍ KOMPRESORU 71

ALARM ZVÝŠENÍ TEPLOTY 71

CHYBOVÉ KÓDY 71

RODIČOVSKÁ BLOKÁDA 71

NANOFRESH* 71

ZÁSOBNÍKU VITCONTROL PLUS

ZÁSOBNÍKU VITCONTROL PLUS 72

REGULACE HLADINY VLHKOSTI UVNITŘ ZÁSOBNÍKU VITCONTROL PLUS 72

OBSLUHA A FUNKCE

UCHOVÁVÁNÍ POTRAVIN V CHLADNIČCE A MRAZNIČCE 73

ZMRAZOVÁNÍ VÝROBKŮ** 73

JAK EKONOMICKY POUŽÍVAT CHLADNIČKU

PRAKTICKÉ PORADY 75

CO ZNAMENAJÍ HVĚZDIČKY? 75

ZÓNY V CHLADNIČCE 76

PRODUKTY, KTERÉ BY NEMELY BYT PRECHOVÁVANÉ V CHLADNIČCE 76

ODMRAZOVÁNÍ, MYTÍ A ÚDRŽBA

ODMRAZOVÁNÍ CHLADNIČKY*** 77

ODMRAZOVÁNÍ MRAZNIČKY** 77

PRO ODMRAZENÍ MRAZICÍHO PROSTORU MRAZNIČKY JE TŘEBA** 78

AUTOMATICKÉ ODMRAZOVÁNÍ CHLADNIČKY**** 78

AUTOMATICKÉ ODMRAZOVÁNÍ MRAZNIČKY**** 78

RUČNÍ MYTÍ MRAZICÍHO PROSTORU CHLADNIČKY A MRAZNIČKY**** 78

VYTAHOVÁNÍ A VKLÁDÁNÍ POLIC ***** 78

VYTAHOVÁNÍ A VKLÁDÁNÍ DVERNÍHO REGÁLU ***** 78

URČOVÁNÍ ZÁVAD

ZÁRUKA, POPRODEJNÍ SERVIS 81

ZÁRUKA 81

SK- Obsah

DÔLEŽITÉ BEZPEČNOSTNÉ PQKYNY 83

INSTALÁCIA A PREVÁDZKOVÉ PODMIENKY SPOTREBIČA 88

INSTALÁCIA PRED PRVÝM SPUSTENÍM 88

MINIMÁLNE VZDIALENOSTI OD TEPELNÝCH ZDROJOV 88

PRIPOJENIE NAPÁJANIA 89

ODPOJENIE OD NAPÁJANIA 89

KLIMATICKÁ TRIEDA 89

ROZBALENIE

LIKVIDÁCIA ZARIADENÍ 91

OVLÁDANIE 92

OVLÁDANIE ZARIADENIA 92

ZMENA TEPLOTY V KOMORÁCH 92

FUNKCIA RÝCHLEHO ZMRAZENIA 93

FUNKCIA DOVOLENKA* 93

FUNKCIA RÝCHLEHO CHLADENIA* 93

FUNKCIA SMART ECO 93

ALARM OTVORENÝCH DVIEROK 93

UDRŽIAVANIE PARAMETROV A OCHRANA KOMPRESORA 94

POPLACH ZVÝŠENEJ TEPLOTY 94

KÓDY CHÝB 94

DETSKÁ ZÁMKA 94

NANOFRESH* 94

ZÁSOBNÍKA VITCONTROL PLUS

ZÁSOBNÍKA VITCONTROL PLUS 95

REGULÁCIA HLADINY VLHKOSTI VO VNÚTRI ZÁSOBNÍKA VITCONTROL PLUS 95

OBSLUHA A FUNKCIE

UCHOVÁVANIE POTRAVÍN V CHLADNIČKE A MRAZNIČKE 96

ZMRAZOVANIE VÝROBKOV** 96

AKO EKONOMICKY POUŽIVAŤ CHLADNIČKU

PRAKTICKÉ RADY 98

ČO ZNAMENAJÚ HVIEZDIČKY? 98

ZÓNY V CHLADNIČKE 99

PRODUKTY, KTORÉ BY NEMALI BYŤ PRECHOVÁVANÉ V CHLADNIČKE 99

ODMRAZOVANIE, UMÝVANIE A ÚDRŽBA

ODMRAZOVANIE CHLADNIČKY*** 100

ODMRAZOVANIE MRAZNIČKY** 100

PRE ODMRAZENIE MRAZIACEHO PRIESTORU MRAZNIČKY JE POTREBA** 101

AUTOMATICKÉ ODMRAZOVANIE CHLADNIČKY**** 101

AUTOMATICKÉ ODMRAZOVANIE MRAZNIČKY**** 101

RUČNÉ UMÝVANIE KOMORY CHLADNIČKY A MRAZNIČKY**** 101

VYŤAHOVANIE A VKLADANIE POLÍC***** 101

VYTAHOVANIE A_VKLADANIE PRIEHRADKY***** 101

LQKALIZÁCIA ZÁVAD

ZÁRUKA, POPREDAJNÝ SERVIS 104

ZÁRUKA 104

UPORABA I FUNKCIJE 165

POHRANJIVANJE NAMIRNICA U HLADNJAKU I ZAMRZIVAČU 165

ZAMRZAVANJE NAMIRNICA** 165

EKONOMICNA UPORABA HLADNJAKA 167

PRAKTIČNI SAVJETI 167

ALARM POVIŠANE TEMPERATURE 186

KODE NAPAK 186

STARŠEVSKA BLOKADA 186

NANOFRESH* 186

PREDALA VITCONTROL

PREDALA VITCONTROL 187

REGULACIJA NIVOJA VLAŽNOSTI ZNOTRAJ PREDALA VITCONTROL 187

UPORABA IN FUNKCIJE

SHRANJEVANJE IZDELKOV V HLADILNIKU IN ZAMRZOVALNIKU 188

ZAMRZOVANJE IZDELKOV** 188

KAKO HLADILNIK UPORABLJAMO EKONOMIČNO

PRAKTIČNI NASVETI 190

KAJ POMENIJO ZVEZDICE? 190

TEMPERATURNE CONE V HLADILNIKU 191

IZDELKI, KI JIH NE SMETE SHRANJEVATI V HLADILNIKU 191

ODMRZOVANJE, CISCENJE IN VZDRZEVANJE

ODMRZOVANJE IN UMIVANJE HLADILNIKA *** 192

ODMRZOVANJE IN UMIVANJE ZAMRZOVALNIKA** 192

DA ODMRZNEMO KOMORO ZAMRZOVALNIKA, JE POTREBNO**: 193

AVTOMATIČNO ODMRZOVANJE HLADILNIKA**** 193

AVTOMATIČNO ODMRZOVANJE HLADILNIKA**** 193

ROČNO UMIVANJE NOTRANJOSTI HLADILNIKA IN ZAMRZOVALNIKA.**** 193

ODSTRANJEVANJE IN NAMEŠČANJE POLIC***** 193

ODSTRANJEVANJE IN NAMEŠČANJE BALKONOV***** 193

ZAZNAVA OKVARE

GARANCIJA, POPRODAJNE STORITVE

GARANCIJA 196

PL - Spis treści

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA 198 INSTALACJA I WARUNKI PRACY URZĄDZENIA 203

INSTALACJA PRZED PIERWSZYM URUCHOMIENIEM 203

MINIMALNE ODLEGŁOŚCI OD ŻRÓDEŁ CIEPŁA 203

PODŁĄCZENIE ZASILANIA 204

ODŁĄCZENIE OD ZASILANIA 204

KLASA KLIMATYCZNA 204

ROZPAKOWANIE 205 USUWANIE ZUŻYTYCH URZĄ DZEŃ 206 STEROWANIE 207

STEROWANIE URZĄDZENIEM 207

ZMIANA TEMPERATURY WEWNĄTRZ KOMÓR 207

FUNKCJA SZYBKIEGO ZAMRAŻANIA 208

FUNKCJA WAKACJE* 208

FUNKCJA SZYBKIEGO CHŁODZENIA* 208

FUNKCJA SMART ECO 208

ALARM OTWARTYCH DRZWI 208

PODTRZYMANIE PARAMETRÓW I ZABEZPIECZENIE KOMPRESORA 209

ALARM PODWYŻSZONEJ TEMPERATURY 209

KODY BŁĘDÓW 209

BLOKADA RODZICIELSKA 209

FILTR WĘGLOWY NANOFRESH* 209

VITCONTROL PLUS / VITCONTROL 210

POJEMNIK VITCONTROL 210

REGULACJA POZIOMU WILGOTNOŚCI WEWNĄTRZ POJEMNIKA VITCONTROL PLUS /

VITCONTROL 210

OBSŁUGA I FUNKCJE 211

PRZECHOWYWANIE PRODUKTÓW W CHŁODZIARCE I ZAMRAŻARCE 211

ZAMRAŻANIE PRODUKTÓW** 211

JAK EKONOMICZNIE UŻYTKOWAĆ LODÓWKĘ 213

From now on, your daily housework will be easier than ever before. Your appliance Air*optionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

GUIDELINES CONCERNING THE SAFETY OF USE

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments

• Farm houses and by clients in hotels, motels and other residential type environments
• Bed and breakfast type environments

• Catering and similar non-retail applications

• The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

• Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer)
• The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
• Keep this manual for future reference, or to pass it over to the next user.
• This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.
• Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.
• The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.

• When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

• When transporting, moving or positioning the fridge-freezer do not tilt it by more than 40° from the vertical position. Should such a situation occur, the appliance should be switched on after minimum 2 hours from its replacement in the right position (fig.2).

• Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

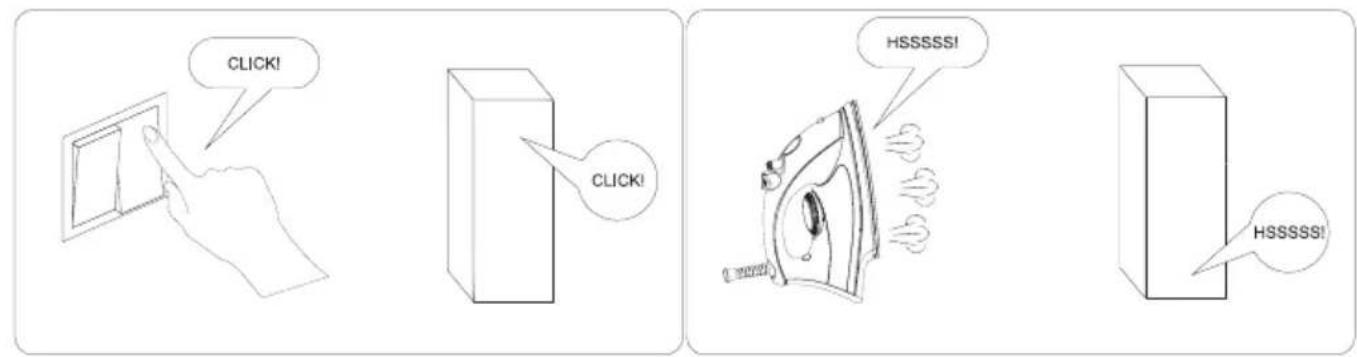

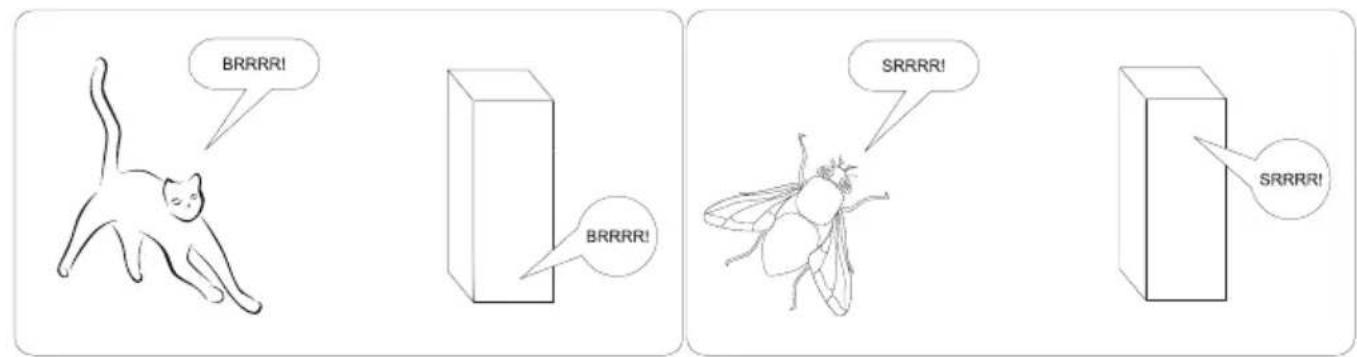

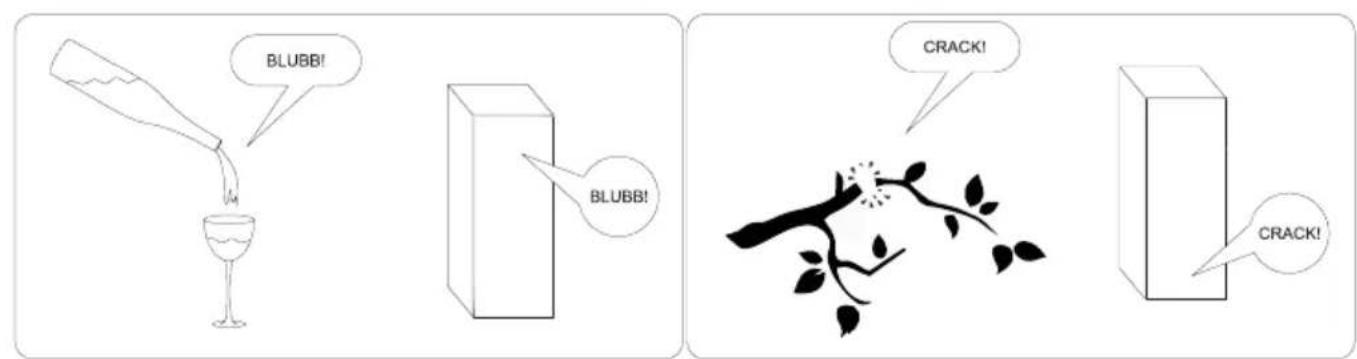

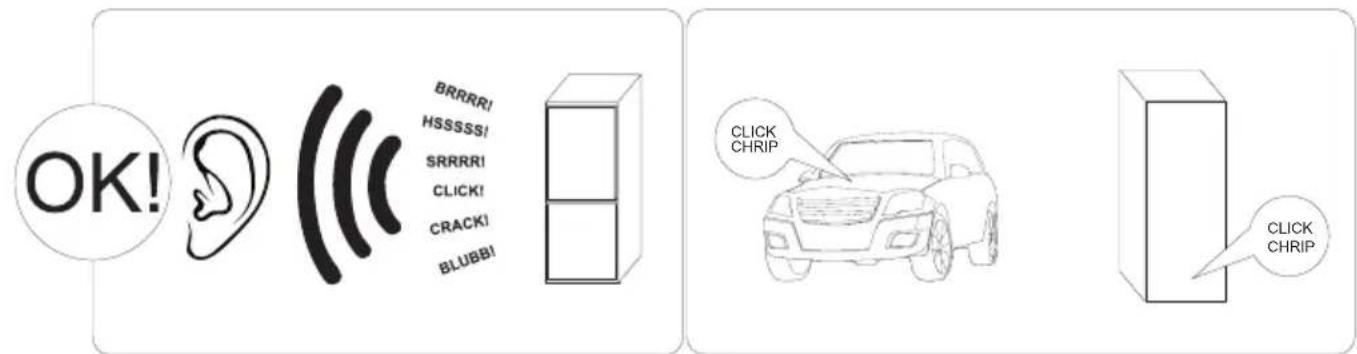

• The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.
• For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.
• Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m^3 ) to avoid damage to the cooling system.
• Do not refreeze partly thawed products.
• Do not store beverages in bottles and cans, especially carbonated beverages, in the freezer chamber. The cans and the bottles may explode.
• Do not put frozen products, taken out directly from the freezer (lollies, ice cubes, etc.) into your mouth, their low temperature may cause severe frostbite.
• Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• This appliance is intended for food storage, do not use it for other purposes.
• When performing activities, such as cleaning, maintenance or moving, the appliance must be completely

disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• In order to obtain more space in the freezer, you can remove the drawers and place the food directly on the shelves. This has no effect on the product mechanical properties and cooling performance. Declared freezer capacity was calculated with the drawers removed.
• WARNING: Do not damage the refrigerant circuit.
• This appliance is not intended for use at altitudes exceeding 2000 m.

WARNING: Risk of fire / flammable materials

• Children aged from 3 to 8 years are allowed to load

and unload refrigerating appliances.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer

	Compartments TYPE	Target storage temp.[°C]	Appropriate food
1	Fridge +2≤+8		Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	Freezer ***	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	Freezer **	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food
5	Freezer *	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star compartment	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill 2≤+3		Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0°C)
8	Fresh Food 0≤+4		Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days)
9	Wine +5≤+20 red	wine,white wine,	sparkling wine etc.

• Note: please store different foods according to the compartments or target storage temperature of your purchased products.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Water dispenser cleaning (special for water dispenser products): Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Pursuant to Commission Regulation (EU) 2019/2019, the minimum availability period for spare parts necessary to repair the appliance is 7 or 10 years depending on the type and purpose of the spare part.
• The list of spare parts and the ordering procedure are available on the websites of the manufacturer, importer or an authorized representative.

- For more information about the product, please refer to the EU EPREL Product Database at https://eprel.ec.europa.eu. For more information, please use your mobile device to scan the QR code on the energy label or enter the product model listed on the energy label in the EPREL search engine https://eprel.ec.europa.eu/

INSTALLATION AND OPER- ATING CONDITIONS OF THE APPLIANCE

This refrigeration appliance is not intended for use as a built-in appliance.

Installation before using the appliance for the first time

• Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Do not throw away the polystyrene elements of the packaging. If it is necessary to transport the fridge-freezer, pack it in the polystyrene elements and film as well as protecting it with scotch tape
• Clean the interior surface of the fridge-freezer and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the fridge-freezer on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.

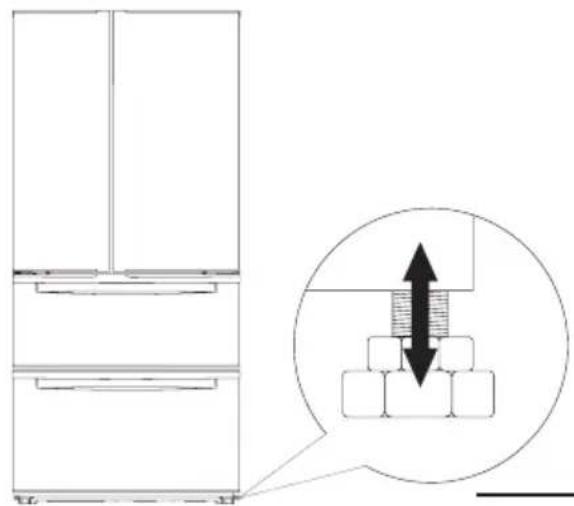

• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 3)
• To ensure that the door opens freely, the distance between the side of the appliance (on door hinges side) and the wall is shown on figure 5.*
• Ensure adequate ventilation of the room and free air circulation from all sides of the appliance (fig. 6).*

Minimum distances from the heat sources

• from the electric gas and other ovens - 30 mm,
• from oil or coal fired ovens - 300 mm,
• from built-in ovens - 50 mm

If there is no possibility of ensuring the above-mentioned distances, provide an appropriate insulation board.

Warning:

• The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system must not contact other elements, which may damage them, (e.g. central heating pipes and the water supply pipes).
• It is forbidden to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound.
• If the capillary tube is damaged by the user the guarantee will be void (fig. 8).
• In some models the handle is put into the appliance, You should screw it with Your own screwdriver,
• Do not damage the refrigerant circuit

Mains connection

• Prior to connection, it is recommended to set the temperature control knob to an „OFF" or other position that disconnects the appliance from the power supply (See page with the control description).
• This appliance should be connected to AC 220-240V '50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• See the type plate at the lower part of the internal wall of the appliance for detailed specifications**.

Disconnecting the mains

Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off (fig. 9).

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate class Allowable ambient temperature

SN Extended Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 10°C and 32°C
N Temperate	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 32°C
ST Subtropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 38 °C
T Tropical	This refrigeration appliance is intended for use at an ambient temperature ranging between 16 °C and 43 °C

UNPACKING

Simple line drawing of a three chasing recycling symbol (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROLS

Appliance controls

The control panel is shown in figure 10. It is also shown below for your reference:

When you plug in the appliance to power, all indicators light up for 2 seconds.

When you close the door, the display remains backlit for about 3 minutes and then backlight turns off. To activate the display, open the door or touch any of the touch sensors.

Adjust the temperature

To adjust the temperature in the refrigerator or freezer compartment - touch the "Temp.Zone" sensor and the one of the compartment symbol will flickering. Now touch the Temp. sensor repeatedly to cycle through available temperature settings:

Fridge: 5->6->7->8->OF->2->3->4->5

OF (OFF) means that the compartment is completely turned off.

Freezer: -18->-17->-16->-24->-23->-22->-21->-20->-19->-18

Touch "OK" to confirm the set temperature or wait 5 seconds.

Fast Freezing

When Fast Freezing is active, the temperature in the freezer compartment will be reduced to -32^ . To enable or disable Fast Freezing, touch the "Function" sensor repeatedly to cycle through available functions. When the Fast Freezing icon flashes, touch "OK" to confirm.

Note: If you do not touch "OK" within 5 seconds, the function will not be activated. The Fast Freezing function turns off after 26 hours and the previous temperature setting is restored.

Holiday\*

When the Holiday function is active, the temperature in the refrigerator compartment will be set to +14°C. Use the Holiday function when you not use the appliance for an extended period of time. The refrigerator power consumption will be reduced. The refrigerator compartment will be free of unpleasant odours. To enable or disable the Holiday function, touch the "Function" sensor repeatedly to cycle through available functions. When the Holiday icon flashes, touch "OK" to confirm.

Note: If you do not touch "OK" within 5 seconds, the function will not be activated. Before activating the Holiday function, make sure that there is no perishable food in the refrigerator compartment. This Holiday function is only available for the refrigerator compartment. When the Holiday function is enabled, the freezer compartment operates normally.

Super Cool\*

This function lowers the temperature inside the freezer compartment to 2°C. Use this function after placing a lot of fresh food in the refrigerator compartment. To activate the Super Cool function, press repeatedly until the indicator comes on and then press to confirm. To deactivate the function, touch repeatedly until flashes, then press to confirm.

Smart ECO

When Smart ECO is enabled the temperature is set to +5°C in the refrigerator compartment and to -18°C in the freezer compartment. These are optimal temperature settings. To enable or disable Smart ECO, touch the "Function" sensor repeatedly to cycle through available functions. When the Smart ECO icon flashes, touch "OK" to confirm.

Note: If you do not touch "OK" within 5 seconds, the function will not be activated. Smart ECO will be deactivated when you enable the Holiday or Fast Freezing function.

Open door alarm

If the door remains open for more than 3 minutes, you will hear beeping. Touch any sensor on the control panel to mute the beeping. After another 3 minutes, you will hear beeping again. Beeps will continue until you close the door.

Non-volatile appliance settings and compressor protection

In the event of a power outage, the appliance settings will not be reset. When the power is restored, the appliance will operate with the same settings as before the power outage. If the power is restored within less than 5 minutes, the compressor will start with a delay. This prevents damage to the compressor.

Elevated temperature alarm

If the temperature inside the freezer compartment is higher than -10^ when you plug in the appliance to power, the freezer compartment temperature will flash on the display. The temperature will stop flashing after a few seconds or when you touch any sensor on the control panel.

Error Codes

Contact the service centre when E0, E1, E2, EH, EF or EC appears on the display.

Child Lock

The appliance features a child lock safety device. The Child Lock function is especially useful when cleaning. The Child Lock function is activated automatically 3 minutes after you last used the control panel or opened or closed the door. Touch and hold the sensor for 3 seconds to deactivate the Child Lock

NanoFresh\*

Products stored in the refrigerator will stay fresh longer. This is how the special carbon filter works.. The air in the refrigerator compartment flowing through the NanoFresh filter, is continuously cleaned of compounds that accelerate the decomposition of food. Additionally, the activated carbon contained in the filter absorbs unpleasant odors. The function is still active.

VITCONTROL PLUS\*

VitControl / VitControl Plus box

The VitControl Plus box is shown in figure 19. For reference it is also shown below:

Adjust the humidity level inside the VitControl / VitControl Plus box

Various products, such as fruit or vegetables, require a suitable level of humidity in order to stay fresh longer. VitControl box is equipped with a slider (Fig. 19), so the box can be supplied with more air, which will change the humidity level inside the box.

1. Box cover
2. Air supply adjusting slider
3. Vegetable box front

Fruits require lower humidity level, therefore air supply must be closed with a slider. With vegetables it is the other way round, to keep them fresh longer, you should open the air flow with a slider. The exact slider position depends on your own preferences.

OPERATION AND FUNCTIONS

Storage of food in the fridge-freezer

• The products should be placed on plates, in containers or packed in food wrap. Distribute them evenly over the shelves.
• If the food contacts the rear wall, it may cause frosting or wetting of the products.
• Do not put dishes with hot food into the fridge
• Products which absorb flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
• The storage of vegetables containing significant quantities of water will cause the deposition of condensation on the vegetable containers, it does not impact on the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.

• It is recommended to place the products in freezer drawers 1, 2, 3* up to natural loading capacity (Fig. 11a / 11b).**

• Packed products

• Shelf
• Natural loading capacity

• * * * *

• Stacking of products on the freezer shelves is acceptable.*

• It is acceptable to place products beyond the natural loading capacity by 20-30 mm.**
• In order to increase the loading capacity of the freezer chamber and allow the stacking of products on the freezer evaporator wire shelves up to maximum height it is possible to remove drawers 1 and 2.*

Freezing food\*\*

• Practically all the food products, except for vegetables consumed raw, such as lettuce can be frozen.
• Only food products of the highest quality, divided into small portions for single use, should be frozen.
• Products should be packed in materials that are odourless, resistant to air and moisture penetration, and not susceptible to fat. Plastic bags, polyethylene and aluminium sheets are the best wrapping materials.
• The packaging should be tight and should stick to the frozen products. Do not use glass containers.
• Keep fresh and warm foodstuff at ambient temperature away from the products, which have already been frozen.

• We advise you not to place more of fresh food at a time to the freezer per day (see table witch technical specification).

• In order to maintain optimum quality of the frozen food, reorganise the food that is in the middle of the freezer, so that it does not touch the products that are not yet frozen.

• It is recommended that you move the already frozen products to one side and place the fresh products that are to be frozen on the opposite side, as close to the rear and side walls as possible.
  • To freezing products, use space marked * * * *.
• Bear in mind that the temperature in the freezer is affected by several factors, including the ambient temperature and the quantity of food products in the chamber, the frequency of opening the door, the amount of frost in the freezer, and the thermostat setting.
• If you cannot open the freezer door immediately after closing it, allow 1-2 minutes for the negative pressure to compensate, and try again to open the door.

The storage time for frozen products depends on their quality before freezing when fresh, and on the storage temperature. The following storage periods are recommended when the temperature of -18^ or lower is maintained:

Products Months

Beef 6-8
Veal 3-6
Giblets 1-2
Pork 3-6
Poultry 6-8
Eggs 3-6
Fish 3-6
Vegetables	10-12
Fruit 10-12

Do not store frozen food in rapid cooling chamber. Ice cubes can be prepared and stored in this chamber.

Note: If the appliance does not have a freezer compartment ( ^ ^** ), it is not suitable for freezing foodstuffs.

USING THE REFRIGERATOR EFFICIENTLY

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
• Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food each contains and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it does not warm up too much.
• Wipe the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Do not allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it will not shut properly. Always replace broken seals.

Understanding the stars

Temperature is at least -6^ ; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.

Food can be stored at -12^ C or below for 1-2 weeks without losing its taste. Not suitable for freezing food.

This rating is mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.

This appliance is suitable for storing foods at -18^ C or below and freezing larger quantities of fresh foods.

Practical tips

Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber.

• The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.:
• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4^ C.
• The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

- Not all food is suitable for storing in the refrigerator, particularly:

- Fruit and vegetables which are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cucumbers.

- Fruit which is not yet ripe

- Potatoes

Warning:

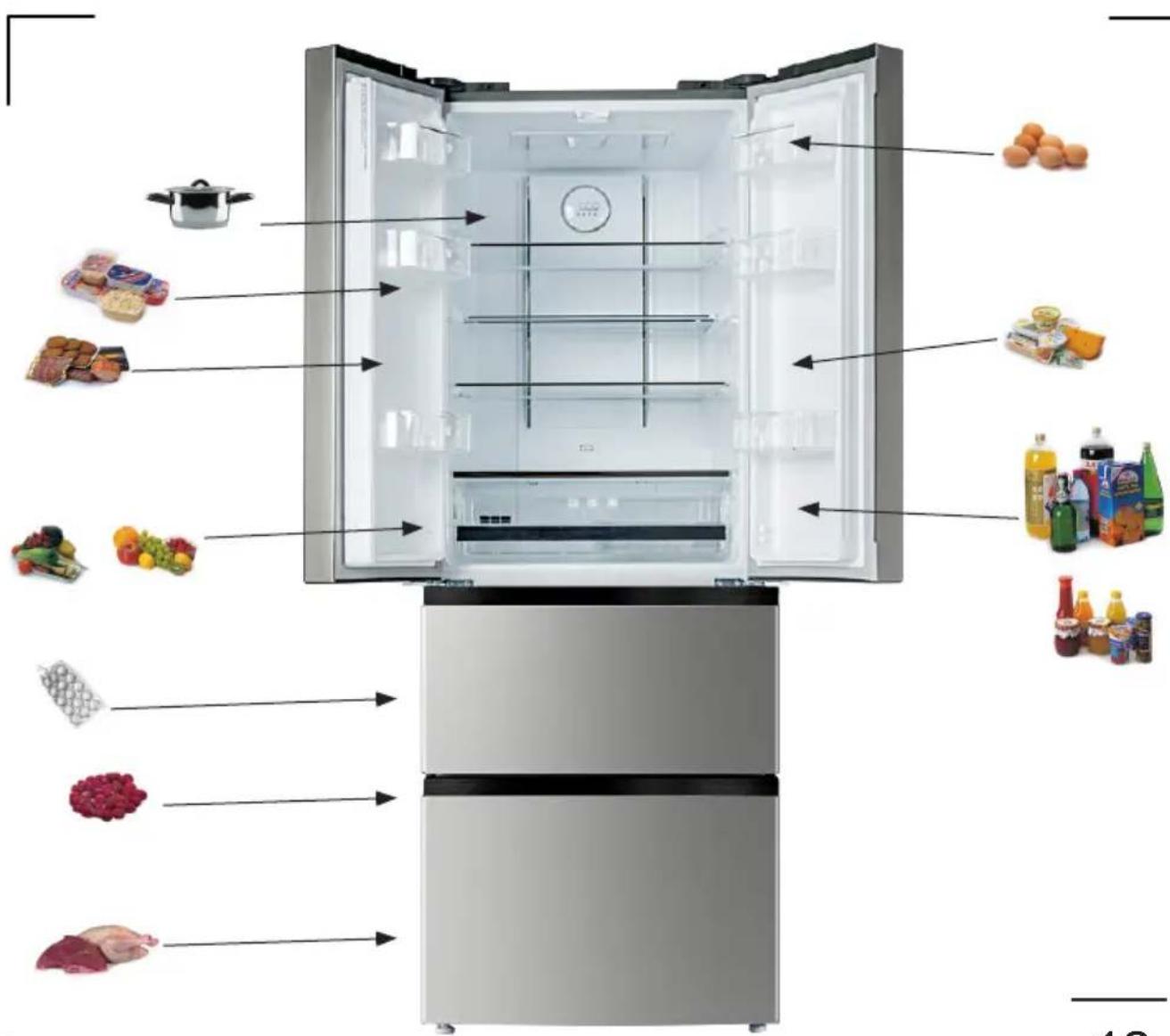

Example of storing the food - see figure 12.

To achieve the most effective food preservation for the longest possible time and to avoid wasting any food, position the products as shown in Figure 12. In addition, this figure illustrates the layout of drawers, baskets and shelves, which allows the most efficient use of energy.

Optimal temperature and storage conditions will extend product shelf life and optimize electricity consumption. Optimal storage temperature range should be stated on the food product packaging.

DEFROSTING, WASHING AND MAINTENANCE

Never clean the product's casing or plastic parts using solvents or strong, abrasive detergents (e.g. washing powders or creams)! Use mild liquid detergents and soft cloths only. Do not use sponges.

External surfaces made of plastic should be cleaned with a microfiber cloth, otherwise irreversible micro scratches will appear.

Defrosting the fridge\*\*\*

• Frost settles on the rear wall of the fridge chamber. It is removed automatically. During the defrosting, the condensate, which contains contaminants may clog the opening in the through. Should it occur, carefully unclog the opening with the cleaning plug (fig. 13).
• The appliance operates in cycles: it refrigerates (then the frost settles on the rear wall), and defrosts (water flows down the rear wall)
• Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.
• Do not use defrosting aerosols. They may cause the formation of an explosive mixture, or contain solvents which may damage the plastic components of the appliance and even be harmful to health.
• Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.
• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than thode recommended by the manufacturer

Defrosting the freezer\*\*

• It is recommended to combine defrosting the appliance with washing it.
• Excessive accumulation of ice on the freezing areas impairs the appliance's freezing capacity and increases the energy consumption.
• Defrost the appliance at least once or twice a year. In case of a higher ice build-up, defrosting must be carried out more frequently.
• If there is food in the freezer, set the knob to the max. position about 4 hours before the planned defrosting. This will ensure the possibility of storing the food at the ambient temperature for a longer time.
• After taking the food out of the freezer, put it in a container, wrap it with several layers of paper, a blanket and store it at a cool place.
• The defrosting operation should last as short as possible. Long storage of food at the ambient temperature shortens their shelf life.

Defrost the freezer chamber following steps:\*\*

• Switch of the appliance using the control panel and pull the plug out from the socket..
• Open the door and remove the food from the freezer.
• Depending on the model, pull out the drainage tube located in the bottom of the freezer compartment and place a suitable vessel underneath.
• Leave the door open, this will speed up the defrost process. Additionally, a pot with hot water (not boiling) may be placed inside the freezer compartment.
• Wash the interior of the freezer and wipe it dry.
• Switch on the appliance as per the relevant point in the manual.

Automatic fridge defrosting\*\*\*\*

The fridge chamber has been equipped with an automatic defrosting function. However, frost may settle on the rear wall of the fridge chamber. This happens usually, when large quantities of fresh food products are stored in the fridge.

Automatic fridge defrosting\*\*\*\*

The freezer chamber has been equipped with an automatic defrosting function (no-frost). The food is frozen in the cooled circulation air, and the moisture from the freezer chamber is discharged outside. As a result, no ice and frost is produced in the freezer and the products do not freeze on each other.

Washing the fridge and freezer chambers manually\*\*\*\*

It is recommended to wash the fridge and freezer chambers at least once a year. This prevents the formation of bacteria and bad odours. Switch off the appliance, using button (1), remove the food from the chambers and wash them using water with a mild detergent. Then, wipe the chambers dry with a cloth.

Taking out and putting in the shelves\*\*\*\*\*

Slide the shelf out, then slide it in as much as possible so that its clamp could fit the guide groove (fig. 15).

Taking out and putting in the door shelf\*\*\*\*\*

Lift the door shelf, remove it and put it back from the top into its required position (fig. 16).

WARNING! You must not put an electric heater, a heating fan or a hair dryer into the freezer by any means.

TROUBLE-SHOOTING

Problems Possible causes Remedies

The appliance does not work	The electric circuit is disrupted	- check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
The lighting inside the chamber does not work	The bulb is loose or fused (only appliances with bulb lightning type)	- fit the bulb correctly or replace it (see section above "Replacing the interior light bulb)
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged (depending on the model)	- clean the discharge opening (see the operating manual - chapter entitled "Defrosting the fridge")
	Internal air circulation obstructed	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance is touching furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Problems Possible causes Remedies

	Incorrect setting of the adjustment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the climate range from table with technical specification	- the appliance is adapted to operation in the climate range from table with technical specification.
	The appliance is located in a sunlit place or near heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freezes) and the required temperature is reached inside the chamber
	Internal air circulation obstructed	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is obstructed	- move the appliance min. 30 mm away from the wall
	The door of the fridge/freezer is opened too often and/or remains open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than climate class
	Door gasket inserted incorrectly	- press the gasket in

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
• sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
• The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility (EMC) Directive 2014/30/EU
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EU

and has thus been marked with the and symbol and been issued with a declaration of compliance made available to market regulators.

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

GARANTIE, NACHVERKAUFSERVICE

Garantie

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with two crossed lines, representing waste or discharge (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

WAARSCHUWING: Brandgevaar / brandbare materialen

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

VAŽNE SIGURNOSNE INFOR- MACIJE

UPOZORENJE: Opasnost od požara / za-paljivi materijali

Simple line drawing of a three chasing recycling symbol (no text or labels)

Uređaj je za vrijeme transporta za- štićen od oštećenja. Nakon vađenja uređaja iz pakiranja molimo Vas da elemente ambalaže uklonite na način koji ne ugrožava okoliš.

Svi materijali korišteni za pakiranje nisu štetni za okoliš, 100% materijala

je prikladno za recikliranje, stoga šu označeni odgovarajućim simbolom.

Pozor! Elemente pakiranja (polietilenske vrećice, komadići stiropora itd.) prilikom uklanjanja ambalaže držati daleko od djece.

ZBRINJAVANJE POTROŠENIH UREĐAJA

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Ovaj uređaj je označen u skladu s europskom uredbom 2012/19/EU. Ujedno je označen simbolom prekriženog spremnika za otpatke. Oznaka na proizvodu pokazuje da ovaj proizvod nakon njegovog životnog vijeka ne može biti tretiran kao obični kućanski otpad.

Regulacija razine vlage unutar spremnika VitControl

EKONOMIČNA UPORABA HLADNJAKA

Praktični savjeti

OPOZORILO: Nevarnost požara / vnetlji- vi materiali

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Regulacija nivoja vlažnosti znotraj predala VitControl

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Technical line drawing of a staircase with an 40-degree angle标注 (no text or symbols beyond the angle marker)

Diagram showing a refrigerator with a magnified inset illustrating the internal structure of a refrigerator (no text or symbols present)

3

D A B C(°) E F
717 1054 935 125±5 50 100

Simple geometric shapes: a rounded rectangle and a horizontal line on white background (no text or symbols)

12

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

15

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

16

19

Amica S.A.

ul . Mickiewicza 52 / 64-510 Wronki tel. [phone] / fax [phone]

www.amica.pl

Amica International GmbH

Lüdinghauser Str. 52

D-59387 Ascheberg

Tel: 0 25 93 - 95 67-0

www.amica-group.de
