USER MANUAL FRZ455UBLXTT BERTAZZONI

1) Shopping Freezer.

Bottle Cooler? On Off

APPLIANCE SWITCHING ON AND OFF

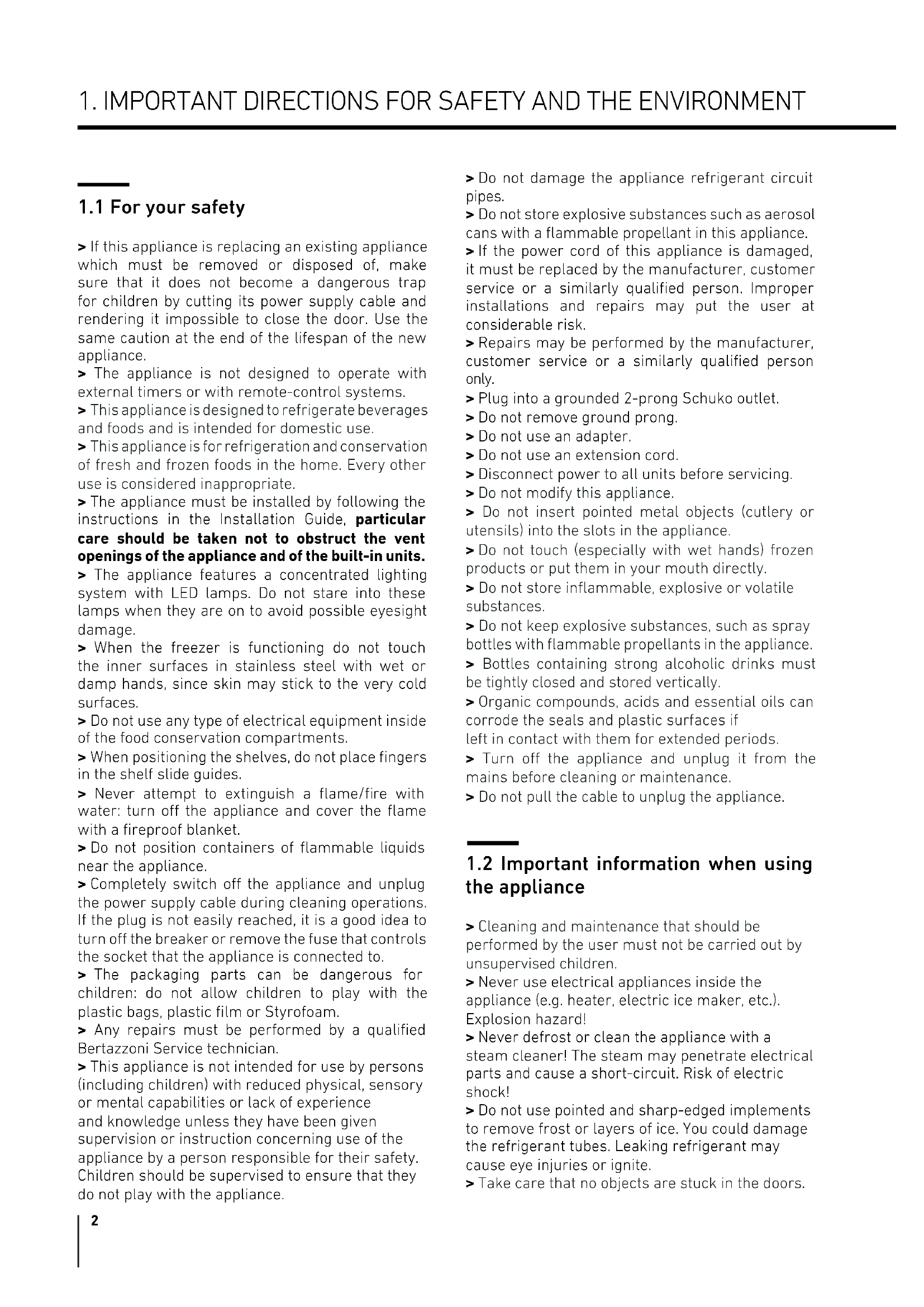

> If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance. > The appliance is not designed to operate with external timers or with remote-control systems. > This appliance is designed to refrigerate beverages and foods and is intended for domestic use. > This appliance is for refrigeration and conservation of fresh and frozen foods in the home. Every other use is considered inappropriate. > The appliance must be installed by following the instructions in the Installation Guide, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units. > The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. > When the freezer is functioning do not touch the inner surfaces in stainless steel with wet or damp hands, since skin may stick to the very cold surfaces. > Do not use any type of electrical equipment inside of the food conservation compartments. > When positioning the shelves, do not place fingers in the shelf slide guides. > Never attempt to extinguish a flame/fire with water: turn o the appliance and cover the flame with a fireproof blanket. > Do not position containers of flammable liquids near the appliance. > Completely switch o the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn o the breaker or remove the fuse that controls the socket that the appliance is connected to. > The packaging parts can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam. > Any repairs must be performed by a qualified Bertazzoni Service technician. > This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. > Do not damage the appliance refrigerant circuit pipes. > Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. > If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk. > Repairs may be performed by the manufacturer, customer service or a similarly qualified person only. > Plug into a grounded 2-prong Schuko outlet. > Do not remove ground prong. > Do not use an adapter. > Do not use an extension cord. > Disconnect power to all units before servicing. > Do not modify this appliance. > Do not insert pointed metal objects (cutlery or utensils) into the slots in the appliance. > Do not touch (especially with wet hands) frozen products or put them in your mouth directly. > Do not store inflammable, explosive or volatile substances. > Do not keep explosive substances, such as spray bottles with flammable propellants in the appliance. > Bottles containing strong alcoholic drinks must be tightly closed and stored vertically. > Organic compounds, acids and essential oils can corrode the seals and plastic surfaces if left in contact with them for extended periods. > Turn o the appliance and unplug it from the mains before cleaning or maintenance. > Do not pull the cable to unplug the appliance.

1.2 Important information when using

the appliance > Cleaning and maintenance that should be performed by the user must not be carried out by unsupervised children. > Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard! > Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock! > Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite. > Take care that no objects are stuck in the doors.

> Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard! > Do not stand on or lean heavily against base of appliance, drawers or doors, etc. > Before cleaning the appliance, pull out the power cord plug or switch o the fuse. Do not pull out the power cord plug by tugging on the power cord. > Store high-percentage alcohol tightly closed and standing up. > Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. > Never cover or block the ventilation openings of the appliance. > According to current regulations, children between 3 and 8 years of age can take or load food from the appliance, but it is highly discouraged to allow children under 8 years of age to perform these operations and in general to use the appliance. > Keep children under the age of eight at a safe distance unless they are constantly supervised and make sure that they do not play with the appliance. > Do not use mechanical, electrical, chemical devices other than those recommended by the manufacturer to speed up the defrosting process. > Do not damage the cooling circuit (if it can be accessed). > Do not use electrical appliances inside food storage compartments unless these are of the type recommended by the manufacturer. >In the event of damage to the cooling circuit, avoid the use of naked flames and ventilate the area properly. > Do not use the appliance or parts of it in ways other than those specified in this manual. > Opening the door for long periods can cause the temperature in the appliance compartments to rise considerably. > Clean surfaces that may come into contact with food and accessible drainage systems regularly. > Store raw meat and fish in suitable containers in the freezer, so that it does not come into contact with other food or drip on it. > If the appliance is left empty for long periods of time, switch it o, thaw it, clean it, dry it and leave the door open to prevent the development of mould inside. > Never rest sharp metal objects such as knives, forks, spoons and lids on the appliance during use. > Do not use abrasive or corrosive detergents (e.g. scouring powders, stain removers and metallic sponges) on glass parts. > Do not sit on the appliance. > Do not sit or lean on the door or any open drawers. > Do not prize the door or handle to move the appliance. > Do not use electrical appliances (e.g. hair dryers) or sprays for defrosting, the plastic parts could be damaged. > Do not use the appliance to cool rooms for any reason. > Always unplug the appliance in the event of a fault or when performing cleaning or maintenance. > Do not keep liquids in tins or glass containers in the freezer. > Do not place heavy objects on the top of the appliance. Symbols used in the Guide: Note Recommendations for correct use of the appliance Important Directions for avoiding appliance damage Warning Indications for avoiding injury to people4

1.3 Caring for the environment

> This appliance conforms to the WEEE European directive (2012/19/EU) and must be disposed of separately from other waste at the end of its service life. > The appliance does not contain substances in quantities sucient to be considered hazardous to health and the environment, in accordance with current European directives. > Pay special attention to correct disposal procedure for all the packaging materials. Power voltage Danger of electrocution Disconnect the mains power supply. Unplug the appliance. > The appliance must not be disposed of with urban waste. Contact local waste disposal centres for how to dispose of recyclable waste. > Prior to disposal, cut the power supply cord and make it impossible to close the door. > During disposal, avoid damage to the refrigeration circuit. > The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the refrigeration circuit nor in the insulation. > Our appliances are packaged in non-polluting and recyclable materials. > Deliver the packing materials to the appropriate recycling centre. Plastic packaging Danger of suffocation Do not leave the packaging or any part of it unattended. Do not let children play with the plastic bags.

1.4 Cleaning, sanitization and

maintenance of the ice and/or water dispenser (if present) Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the water dispensed. > When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the “Manual Cleaning” and discard the ice produced in the first 24 hours. > If the water dispenser has not been used for more than 4/5 days, it is advisable to clean the circuit and run o the first litre of water. > Reposition the removable water dispenser (if present), ensuring your hands are hygienically clean. > Clean the ice bucket or drawer regularly by using only drinking water. > The filter must be changed when indicated on the control panel or when the ice/water dispenser has not been used for more than 30 days. > With each filter replacement, sanitise the ice and/ or water distribution system using a food grade disinfectant (with sodium hypochlorite), which does not alter the characteristics of the materials. Rinse with at least 2 litres of water before use. > Only original spare parts supplied by the manufacturer should be used when replacing components in the ice and water dispenser. > Any work on the appliance must be carried out by a qualified technician or the After-sales Service.

Warning To avoid contamination of food, please respect the following instructions: > Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. > Clean regularly surfaces that can come in contact with food and accessible drainage systems. > Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. > Store raw meat and fish in suitable containers in the freezer, so that it is not in contact with or drip onto other food. >Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making icecream and making ice cubes. > One-, two- and three-star compartments are not suitable for the freezing of fresh food. > If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.5 Information for control bodies

> For EcoDesign checks, the installation and preparation of the appliance must comply with EN 62552 standard. > Ventilation requirements, dimensions and minimum space from the rear wall are indicated in the "Installation" chapter of this manual. > Contact the manufacturer for more information.

> Correct use of the appliance, correct packaging of foodstus, a constant temperature and food hygiene have eects on the quality of storage. > Reduce the number of times that the doors are opened and the length of time they remain open to prevent the compartments from heating up excessively. > Clean the condenser (if it can be accessed) at the rear of the appliance periodically to prevent the appliance from losing eciency. > Defrost frozen food in the refrigerator compartment in order to make use of the cold stored in the frozen foods.6

Make sure that installation is performed correctly, adhering to all directions in the specific installation manual provided with the appliance. Warning Always connect the water before the power.

2.2 Connection to the water system

The models provided with Ice Maker require a con- nection to the domestic water supply system. This can be executed only through the provided new wa- ter hose with 1/4” threading. The system pressure must be between 0.05 MPa and 0.5 MPa (between 0.5 bar and 5 bar). Dierents pressures can cause malfunctions or leaks in the water system. The appliance should be supplied only with drinkable water. Warning The appliance should be supplied only with drinkable water. Warning Make sure that installation is performed correctly, according to all of the direc- tions in the specific installation manual provided with the appliance. Warning Do not attempt to use a locally sourced garden hose threaded adapter or braid- ed supply line. It will strip the threads on the appliance water connection solenoid.

2.3 Connection to the electrical power

supply The appliance is equipped with a Schuko type 16A plug and must be connected to the electrical power supply through a corresponding Schuko socket. Do not use extension cords and/or multiple adapt- ers for the power supply connection. Important Do not use extension cords and/or mul- tiple adapters for the power supply con- nection. Warning If energy is supplied through an alter- native energy power source (solar, geo- thermal, etc..) or if home automation systems are installed, it is necessary to install the Alternative Energy Kit to inte- grate the unit into the power grid.

The refrigerant isobutane (R600a) is contained with- in the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. > During transportation and installation of the ap- pliance, be certain that none of the components of the refrigerant circuit become damaged. > If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition; – thoroughly ventilate the room in which the appli- ance is situated. ISO 7010 W021 Caution: risk of fire / flammable materials. Important Carry out transportation, installation and/or clearing with extra care so that no damage occours to the refrigeration circuit.7 BERTAZZONI SPAVIA PALAZZINA, 842016 GUSTALLA (RE) - ITALYFROST FREEFREEZER FRZ605UBLXTT I-G 599 F20210601000007 MODEL TYPE SER.NO./N° SERIEGross capacity (l)Net capacity Fridge (l)Net capacity Freezer(l)Freezing Capacity (kg/12h)Refrigerant Fridge/Fresco (gr)Refrigerant Freezer (gr)Refrigerant TypeClimatic ClassDefrost Heater (W)Total Absorbed Current (A)Voltage (V~)Frequenzy (Hz)Lighting Neon/Led (W)Temperature Rise TimeMADE IN ITALY

Position of the serial number inside the compartment.

3.1 Know your appliance

Congratulations for having purchased your new appliance: from now on you can use our innovative conservation system, which will allow you to keep any kind of beverage in the best way possible. This manual will answer most of your questions about the product’s features. Should you require fur- ther information or technical assistance, please refer to your dealer or visit our website: in Italy https://it.bertazzoni.com/altro/assistenza- e-manutenzione in the UK https://uk.bertazzoni.com/more/care- service in France https://fr.bertazzoni.com/customer-care in Spain https://universal.bertazzoni.com/more/ care-service in the Netherlands https://nl.bertazzoni.com/zorg- en-service in Sweden https://se.bertazzoni.com/more/care- service in Denmark https://dk.bertazzoni.com/more/care- service Before calling, write down the model type and serial number which are available on the rating plate, and any messages which may have appeared on the display. The rating plate is located into the appliance, on side cabinet, close to the shelves. Before calling, please make sure to have the fol- lowing information ready: - Date of Purchase; - Name of dealer where product was purchased. Model . Type. Serial Number . Features .8 Freezer

1) Prepainted white aluminium

6) LED illuminations.

7) Drawers in painted

8) Removable toe kick.

3.4 Main control panel

3.3 Eletronic Control

The innovative electronic control system designed by Bertazzoni maintains constant temperature in the entire compartment and visualizes it on the control panel display. It also allows user interaction mak- ing it possible to personalize settings of the various functions and to receive sound and/or visual mes- sages should any malfunction occur in the appliance. Home Touch the Home icon for going back to the main display screen. Alarm Touch the icon to view the alarm tone functions and to deactivate them. Back Touch the arrow icon for going back to the previous display screen. On/Off Touch the icon to turn the unit on or off.10 FunctionsSettings

FunctionsSettingsInitial test… Are you sure you want to power off this unit? Yes No Are you sure? Yes No

4. APPLIANCE SWITCHING ON AND OFF

4.1 Turning the appliance on and o

First time starting the unit Touch the button . The display shows the following launch screens:

When the appliance is first switched on it is recomended to wait at least 12 hours without opening the doors and before placing any food inside the unit.During such period deactivate any error message by pressing the Alarm button.

- Freezer compartment -18°C (0°F)

When the freezer is o there are no warning signs that prove that the freezer is plugged to a socket.

shutdown by touching the Yes icon.

3) The display shows the main screen with the

envirorment temperature measured from the freezer inside the compartments. Automatically the unit starts to cool down until reaching the set temperatures. Shutdown

off. Switching off for longer periods During long absence periods it is recommended to switch off the freezer by pressing the Unit button for three seconds and disconnecting the electrical plug or the breaker controlling the socket. Completely empty the freezer, clean and dry it and leave the doors and drawers partially open to prevent unpleasant odors. If at the first startup the Standby message does not appear, but another message appears, it means that the appliance has already started the cooling process. During the first startup, it will not be possible to use the Menu to modify the factory settings until the preset temperature has been reached. Each time the appliance is switched on it goes through a self-diagnosis procedure lasting three minutes before completely starting up.11

4.2 How to adjust the temperature for

dierent requirements Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption. Usually, it is not necessary to modify the settings. How it looks to the home screen: Freezer compartment Preset temperature Modify the temperatures compartment How to modify the freezer compartment temperature.

1) Home screen. Touch

the icon of freezer compartement.

croll up/down to select the desided temperature. freezer from -15° C to -22° C (from 5° F to -7° F).

3) Touch the Ok icon

to confirm the desi- red temperature. The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods. 6 to 12 hours are necessary to reach the selected temperature. Padlock icon The padlock icon shows up when the temperatures are set up. The padlock open/close shows that the compartment's temperatures can or can not be modified by the user. Usually a yellow padlock will show open, in that case you can scroll up or down with a finger on the display, select the desired temperature and press OK to confirm. Whereas a closed padlock will be seen if the user has activated a function that modifies the settings of the freezer and prevents the user from changing the temperature of the compartment.12 - 16 °C

4. APPLIANCE SWITCHING ON AND OFF

If the icon function is touched and a specific function is set (for example holiday, ect...), the yellow padlock will be seen closed and it won't be possible to change the temperature of the compartments as long as the function won't be completed or if it is manually deactivated as long as the function is active.

4.3 Information signals of warning

messages on the display An integrated control system will give information through messages you will see on the display. There is an alarm tone that occurs with some error messages which can be turned off by touching the alarm button on the main control panel. You can find the list of the error messages at the end of this manual.13 Shopping Mode Freezer (up to 24 hours) On Off FunctionsSettings

INFORMATION FOR THE USE OF THE DISPLAY It is possible to personalize the operation of your Bertazzoni unit in order to adapt it to the different ways you might want to use it. After touching the icon Functions on the home screen , the icons for the following functions will be shown.

1) Shopping Mode Freezer.

6) Circuit cleaning.

The function works at the maximum power level, without any break, from a minimum of 1 to a maxi- mum of 12 hours, depending on time set, permit- ting more rapid freezing of food that has just been placed in the freezer. Once the time set is expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a timed activation of the function. After a prolonged interruption of power supply, it is necessary to reactivate the function. Functions Settings

This function can be activated when it is necessary to cool o beverages quickly, by placing them inside the freezer compartment. It is possible to select a duration of 1 to 45 minutes. A sound signal will indicated when the optimal temperature has been reached. After removing the beverages, deactivate the sound signal by pressing the Alarm button

Mode This function (recommended in case of prolonged absences since it allows considerable energy savings) brings the freezer compartment temperature to -18° C (-0° F). It is possible to program the duration, or it can be manually deactivated upon return after a period of absence. This function remains active even if during the period of absence there is a prolonged interruption of electrical power. It is possible to program a period from 1 to 90 days. C) Touch the button On to activate the function. B) Touch the Vacation Mode icon. D) Scroll up / down to set the desired time (in days) and then press Ok. It is possible to program a period from 1 to 90 days. A) Home screen. Touch the Functions icon. C) Touch the button On to activate the function. B) Touch the Rapid Bottle Cooler icon. D) Scroll up / down to set the desired time (in minutes) and then press Ok. A) Home screen. Touch the Functions icon.

A pre-rinse of the water circuit should be performed before activating the Ice Maker for the first time. After a few minutes the Ice Maker can be activated. Important Do not activate the Ice Maker unless the appliance is connected to the water line. B) Scrol l twice right and then touch the Ice Maker icon. C) Touch the button Yes to activate the ice maker. A) Home screen. Touch the Functions icon. 4a) Set Ice cube Size - SuperIce The IceMaker function permits selecting the size of the ice cubes, by choosing between Large (base setting) or Medium, and activation of the SuperIce function, which increases the quantity of produced ice. The SuperIce function deactivates automatically after 24 hours. B) Scroll twice right and then touch the icon Ice Maker. D) Touch the Medium/Large icon to choose the desired Set Cube Size. C) Touch the Set Cube Size icon. The default cube size is "medium". E) If you would like to increase the production of ice, touch the Superice icon, this will enable the freezer to produce more ice, up to 1,3kg a day. A) Home screen. Touch the Functions icon. F) Confirm the function or not by touching the On or Off button.16 FunctionsSettings

Next Reminder…Left Xxx Days Off Reset Water Filter Are you sure?

The water filter is essential for the purification of the water used for making ice, for cleaning the circuit or for supplying water for the freezer compartment. The display permits visualizing the time left before the filter needs to be replaced. The water filter Remider has to be activated by the user. B) Scroll once right and then touch the Water filter icon. A) Home screen. Touch the Functions icon. E) Indicates the remaining days before the replacement due date of the filter. Touch the home button . D) Confirm the function by touching the Yes button. D) Confirm the function by touching the Yes button. C) Push Off to deactivate Water Filter Reminder. B) Scroll once right and then touch the Water filter icon. A) Home screen. Touch the Functions icon. 5a) Water Filter Deactivation To deactivate an active filter reminder follow these steps:

Ice Maker Water Filter Water System Purge Enter Start Cleaning Manual Clean Manual Clean Please wait... Cleaning running Manual Clean Ice Maker Water Dispender Water Filter Water System Flush

Push Home button to go back to the main screen or push "Yes" to deactivate filter reminder. C) Touch the Reset button. D) Touch the Yes button to proceed. E) The countdown to the next water filter cartridge replacement will be indicated. A) Home screen. Touch the Functions icon. B) Scroll once right and then touch the Water Filter icon. 5b) Reset Filter The Reset Filter function sets to zero the time left before the filter needs to be replaced. It is necessary to set the reminder function to zero each time the cartridge is replaced. C) Touch the Yes icon to activate the manual cleaning. B) Touch the Water System Purge icon. E) Touch the Enter icon to start the cleaning. F) Cleaning running... D) Please wait...

6) Manual Clean, Water Filter

If ice production has been disabled or unused for a long period it is recommended to perform a Manual Clean function. Before proceeding it is important to turn o the ice maker. A) Home screen. Touch the Functions icon.18 SabbathReset Demo SabbathReset Demo SabbathReset Demo Maintenance ServiceInfo System Maintenance ServiceInfo System Date Time°c / °f Language Date Time°c / °f Language Date Time°c / °f Language Date Time°c / °f Language Maintenance ServiceInfo System Empty water from ice bin. Replace ice bin and press OK.

Cleaning completed Please wait... Cleaning completed

5. CUSTOMIZE FUNCTIONS AND SETTINGS

It is possible to personalize the settings of your Bertazzoni freezer for adapting it to the different ways you might want to use it.

G) At the end of the cleaning, press Ok and empty water from ice bin. H) Wait a few seconds for the main menu screen to appear. Place a water container or vessel under the ice tray to capture any water then close the drawer. Repeat the cleaning steps until the water in the freezer tray is clean. Bypass filter The included filtration system can be bypassed when excellent water qualty is available from the home water system. You can simply remove the water filter from the adapter and the system will automatically bypass the cartridge.19 Date Time°c / °f Language 9Month

The display will show the date in the format (day:month:year). By touching the display you can modify the settings. C) Scroll up or down until the desired year appears and press Ok. D) Scroll up or down until the desired month appears and press Ok. B) Touch the Date icon. A) Home screen. Touch the Settings icon. E) Scroll up or down until the desires date appears and press Ok. C) Touch the desired method which you want the time to display: 12 hour or 24 hours. B) Touch the Time icon.

It gives the possibility to restore the base settings that were set in the factory, cancelling all the changes that has been made from there onward.

The function makes it possible to comply to certain religious observances requiring the operation of the appliance to not be aected by the opening or closing of the doors. The thermostatic control, inner lighting and ice maker are deactivated. C) Touch the Yes button to confirm the selection of the resetting of factory default settings. D) Touch the Yes button. E) The reset has been performed. The freezer's factory settings have been restored. A) Home screen. Touch the Settings icon. B) Scroll right twice and touch Reset icon. A) Home screen. Touch the Settings icon. B) Scroll right twice and touch the Sabbath icon. C) Touch the Yes button to activate the function. D) Touch the Yes button to activate the function. E) The freezer will work accordingly to this configuration.22 FunctionsSettings

It is possbile to simulate the functioning of the freezer, for showroom display or for trade shows.

8) Maintenance (through alarm sign)

For the entire unit to function as designed, it is important to periodically clean the access toe-kick cover and the condenser. The default setting of the unit is"Warning disabled". The required cleaning every 6 months is denoted by an audible and visual message on the display. For details see following pages. D) Insert the

The service function is reserved for the authorized Bertazzoni after sales service technician. If you want to disable the reminder, at step

touch Off, then touch Yes as below. Maintenance Service Info System24

6.1 Internal Layout (positioning,

adjustment, removal) Ice Tray Located in the upper drawer of the freezer compartment. > after removal, make sure to reposition it correctly. Warning Do not place hands or fingers near the Icemaker when in function. Shelves The shelves are sliding and can be easily re- positioned by the user as follows: > hold the shelf at the sides and push it upwards to detach from the side rails, then pull it outwards. > lift or lower the shelf to the desired position. > to remove a shelf it is necessary to slide it up to the top.

Door bins The d oor bins can be easily removed for cleaning: > Hold the door bin at the sides and push it upwards to detach from the side rails, then pull it outwards. > Reverse the procedure to reinstall.25 Ice Maker Water FilterWater System Purge Ice Maker On/Off Set Cube SizeSuperice Ice Maker On/Off Set Cube SizeSuperice Ice Maker Water Filter Water System Purge Rapid Bottle Cooler Vacation Mode Shopping Mode Freezer Ice Maker Water Filter Water System Purge Ice Maker Water Filter Water System PurgeIce Maker Water FilterWater System Purge

7.1 Activation and use of the Ice Maker

Note > If the ice is not used frequently is advisable to empty the ice bin once every 8-10 days. It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, and will have a strange flavour and become smaller. > The Icemaker automatically deactivates if the Vacation function is activated. When the Icemaker is started for the first time, it is recommended to dispose of the first full bin of ice. > If the equipment has been switched o for a month or more, it is recommended to perform a water and filter cleaning cycle. Warning The ice maker will continue to operate even when the ice bin is not in position To activate the Ice Maker after installation of the appliance touch the function icon and then and then the ice maker icon from the functions . Please note that 12 to 24 hours are necessary before ice production may begin. The production is of 10 cubes per cycle in approximately 10 cycles in 24 hours. The yield depends on the temperature set in the freezer, the room temperature and the frequency of door opening. If the appliance is operating without being connected to the water system, make sure that the Icemaker is deactivated by toch the icon . The Ice Maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached. With the SuperIce function, it is possible to increase the quantity of ice produced within 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.

7. ACTIVATION AND USE OF THE ICE MAKER

Do the ice cubes have an unusual odour? Ice is a porous material which can absorb odours from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odours, stick together and slowly become smaller. We recommend that old ice cubes not be used. Other means of preventing odors: > The ice cube container should be cleaned occasionally with warm water. Make sure that you switch o the ice maker before clearing the container. Rinse out and wipe dry. > Check the contents of the freezer for spoiled or out- of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors. > The water filter may have to be replaced in some models. > In some cases the quality of the water connection in the house should be checked. Operating noises Quite normal noises > Grumbling: the appliance unit is running. Fan in the recirculating air system is running. > Bubbling, humming or gurgling noises: refrigerant is flowing through the tubes. > Clicking: motor is switching on or o. Solenoid valve on the water connection is opening/closing. > Rumbling: ice cubes are falling into the ice cube container. Warning Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.

7.2 Water filter for freezer column

Ice Maker Freezer columns equipped with automatic ice- makers include an externally mounted water filter kit. The water filter manifold and waterline connections must be installed in conjunction with the freezer as the waterline connecting the back of the appliance to the filter kit must be in place before installing the unit.26 Ice Maker Water Filter Water System Purge The filter kit should be installed in an accessible location (such as an adjacent cabinet) to allow for the water filter cartridge to be changed annually. If you choose not to use the water filter (such as connecting the appliance to an already filtered water source) then it is suggested to also set the function Water Filter throught the icon ,touch the icon reset and disable the warning to avoid receiving reminders to change the filter (that you are not using).

To provide optimum interior lighting, LED strips illuminate the freezer compartment from the side and sets of LED lights directly illuminate dierent areas of the compartment. In case of malfunction and/or wearing out of the lighting system, the repair should be carried out by a qualified Bertazzoni Service technician.

9.1 General directions

Your appliance is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments. Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent appliance. It is also necessary to know the rules for correct food preservation. Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels. It is therefore recommended to follow the directions presented below which will permit using your freezer in the most eective and safe manner to keep your foods in the best way for as long as possible. Periodically check that all foods are in a perfect state of preservation. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness. When in doubt, throw the food away.28

9.2 How to best preserve food quality

When buying groceries Always take the following precautions: > Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods. > Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips. > Check the production dates and “best before” times on foods to be sure that they are fresh. > Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period. When placing foods in > To keep food in the freezer is a good idea to use freezer containers. > Label and date the packages. > Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment. Warning After a prolonged interruption of electrical power, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items. After one minute the display will resume normal operation, while the Alarm button will continue to blink. Press the Alarm button to display the highest recorded temperatures.

9.3 Conservation Tips

Temperatures The appliance working temperatures are set at the recommended degrees of -18°C for the freezer. Freezer compartment >The type of food, quantity and date of freezing should be marked on the container/packaging. > Use small containers, if possible already cold. >The quantity of fresh foods which can be frozen at the same time is listed on the nameplate inside the freezer compartment. > Use suitable freezer bags, tinfoil, cling-film for use with food, and freezer containers. > Do not use paper bags, cellophane for nonfood use, shopping bags or pre-used freezer bags. > Avoid frozen food coming into contact with fresh food to be frozen. > Keep bagged frozen vegetables, ice, ice cream etc.

Beef, veal, lamb and goat meat Freezer Compartment (steaks) 6-12 months Beef, veal, lamb and goat meat Freezer Compartment (Meat with bone) 4-6 months Ground beef Freezer Compartment 1-2 months Pork Freezer Compartment (Without bones) 4-6 months Pork Freezer Compartment (With bones) 2-3 months Ground pork Freezer Compartment 1-2 months Meat leftovers Freezer Compartment 2-3 months30

FROZEN FOODS PRESERVATION AREA TIME

Whole chicken and turkey Freezer Compartment 8-12 months Goose, duck and pheasant Freezer Compartment 4-8 months Fish Freezer Compartment 1-2 months Shellfish Freezer Compartment 2-3 months Cooked food Freezer Compartment 1-2 months Vegetables Freezer Compartment 8-12 months Fruit Freezer Compartment 6-12 months Desserts and cakes Freezer Compartment 2-3 months

10.1 Care and Cleaning

To clean the parts made of steel use a microfiber cloth and the sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel’s satin finish. Every now and then, to polish the steel, wipe with a slightly damp microfiber cloth. Do not use the sponge on aluminium parts, such as the handles and the profiles of the glass shelves. You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions. Carefully follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently. Before performing any sort of cleaning, disconnect the appliance from the electrical power supply. Make sure you do not damage the refrigerant circuit in any way. Warning Do not use chlorine-based detergents or cleaning agents.

10.2 Internal cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent. Rinse and dry right away. Do not use mechanical devices or other methods to speed up defrosting. Warning Do not use water on the electrical parts, lights and control panel. Warning The use of chlorine-based detergents or similar that contains it should be avoided (bleach, hypochlorite, etc). Do not bring cold glass parts into contact with boiling water. Do not wash any parts of the appliance in a dishwashing machine since this could damage or irreparably deform the parts.

10.3 Cleaning of the toe kick cover, filter

and condenser It is recommended to perform the following cleaning steps very 6 months. An audio and visual message on the display will serve as a reminder. It is possible to disable the warning signal and see the time left before the next cleaning has to be done. Behind the frontal toe kick cover there is the condenser. To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In case of a significant dust build up, the toe kick cover can be removed to allow a more accurate cleaning of the filter. On the mantenience settings, after the installation of the unit and after it has been turned on, you can set the condenser cleaning warning. In the case the warning sign is enabled, there will be an audible signal every 6 months, alerting that it is time to clean the condenser. After cleaning it, touch the reset icon in order to reactivate the warning signal in 6 months. If you do not want the cleaning signal alert for the condenser, touch the O icon.

10. CARE AND CLEANING

Lower condenser. For cleaning the condenser follow the instructions: > Switch o the appliance by pressing the Unit button on the main control panel for approx 3 seconds. > Wait approx 30 minutes, until the finned condenser cools down to room temperature. > Remove the removable grille under the door. > Clean it thoroughly from any dust build up as shown in the picture, taking care not to damage it. > Restart the unit again, pressing on the unit button for three second. Warning The edges of the condenser are sharp, therefore use adequate protection for hands and arms when cleaning the condenser.

11.1 Troubleshooting Guide

If you notice malfunctions in your appliance, use this guide before calling for service: this guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and eective repair. Display message and audible alarms. A malfunction is usually indicated by the display. Problems that cannot be solved by the user are reported through a fault code. Keep in mind, however, that in messages or alarms they may appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by pressing the Alarm button and leave the appliance running and limit the opening of the doors to the maximum for about 10-12 hours. The freezer does not work. Is the appliance connected to the electrical power supply? Is electrical power available at the electricity socket? Is the Unit button activated? Is the unit in ‘Demo’ Mode? The freezer is warmer than usual. Does the display show a malfunction code? Is the temperature adjusted correctly? Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted? Is the unit in ‘Demo’ Mode? The appliance remains in function for a long time period. Bear in mind that during very hot weather and with very high temperatures in the room it is normal that the compressor remains on for prolonged periods of time. Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted? Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door. Is one or more compartments in Shopping Mode? If you hear unusual noises. It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase. Noise could be more noticed depending on the position of the appliance and the surrounding environment.33 Ice Maker Water Filter Water System Purge

ndensation inside and outside of the freezer. If the climate is very humid, the formation of condensation is normal.Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation. In any case, make sure that the doors are always completely closed. Ice or frost build up inside the freezer. Did you leave the doors open for a long period of time? Do the doors close completely? If the doors do not close completely, contact your installer. The doors are dicult to open. The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door. Appliance is cooling but lights and display are not working. Check to see if the appliance was accidently placed into Sabbath Mode. The Ice Maker does not work. Make sure that the Ice Maker is on (icon ). To switch on the Ice Maker press the button. Make sure that the appliance is connected to the water supply. The Ice Maker does not produce sucient amounts of ice. On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours. The ice cubes freeze into one block. If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again. The ice has an unusual flavour or colour. When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes. If the freezer was switched o for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge. Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply. If the unit you purchased was used as a showroom model it may be in a special energy-saving mode called Demo Mode where the appliance appears to be operating (lights work and false temperatures are displayed) but no cooling actually takes place. If you suspect your appliance is in Demo Mode please contact your point of purchase for assistance with disabling this feature.34

11. TROUBLESHOOTING GUIDE

> In case of errors, touch the button Alarm and the display will show the error message with its error number code. > The message will be shown for 3 seconds, then it will go back to the home screen. > For blocking the message on the screen, press on the display, the button info ( ). The message will be on the screen for 30 seconds, then it will go back to the home screen. > In the case there is more than one error message, the dispay will show in time sequence the dierent error messages.

11.2 Error messages appearing on the display

Display message Malfunction description Power Failure!! Prolonged interruption of electrical power the appliance resumes work automatically, the display shows the warmest temperatures achieved. Door Unit OPEN Unit door open the message appears after few minutes from the door opening. Replace filter Replace filter cartridge message appears when only 30% of filter capacity is left. Error Code... Functional problems call Customer Care who may help you to solve the problem or put you in contact with the nearest Service Agent may help you solve the problem. Check condenser Check Condenser Every 6 months the display shows the message “Check Cond”, clean the condenser and follow the instructions above about how to clean the condenser. Vuoi attivarela modalità COOLER BOTTIGLIE? Sì No1
