USER MANUAL NE63A8711QN SAMSUNG

Electric Range User manual NE63*871*** / NE63**871*****2 English WARNING To reduce the risk of tipping the range, the range must be secured by a properly installed Anti-Tip device. AFTER THE RANGE HAS BEEN INSTALLED, CONFIRM THAT THE ANTI-TIP DEVICE HAS BEEN PROPERLY INSTALLED AND VERIFY THAT THE ANTI-TIP DEVICE IS PROPERLY ENGAGED. Refer to the installation manual for instructions. a) If the Anti-Tip device is not installed, a child or adult can tip the range and be killed. b) Verify that the Anti-Tip device has been properly installed and engaged at the rear right (or rear left) of the range bottom. c) If you move the range and then move it back into place, ensure the Anti-Tip device is re-engaged at the right or left rear of the range bottom. d) Do not operate the range without the Anti-Tip device in place and engaged. e) Failure to do so can result in death or serious burns to children or adults. WARNING Do not step, lean, or sit on the doors of the range. You can cause the range to tip, resulting in burns or serious injuries. Conrm that the Anti-Tip device is installed properly. Then, to verify that the Anti-Tip device is engaged, grasp the top rear edge of the range and carefully attempt to tilt it forward. The Anti-Tip device should prevent the range from tilting forward more than a few inches. If you pull the range out from the wall for any reason, make sure the Anti-Tip device is properly engaged when you push the range back against the wall. If it is not, there is a risk of the range tipping over and causing injury if you or a child stand, sit, or lean on the open door. Never completely remove the leveling legs. If you remove the leveling legs, the range will not be secured to the Anti-Tip device properly. Anti-tip deviceEnglish 3 Regulatory Notice FCC STATEMENT: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorienting or relocating the receiving antenna

• Increasing the separation between the equipment and receiver

• Connecting the equipment to an outlet that is on a different circuit than the radio or TV.

• Consulting the dealer or an experienced radio/TV technician for help.

CAUTION FCC CAUTION: Any changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of FCC Rules. Operation is Subject to following two conditions:

1) This device may not cause harmful interference, and

2) This device must accept any interference received including

interference that cause undesired operation. For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any other channels.4 English Regulatory Notice IC RADIATION EXPOSURE STATEMENT: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter. FCC RADIATION EXPOSURE STATEMENT: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated so there is at least 8 inches (20 cm) between the radiator and your body. This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter.

The term “IC” before the radio certication number only signies that Industry Canada technical specications were met. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. For products sold in the US and Canadian markets, only channels 1–11 are available. You cannot select any other channels.English 5 Contents Contents Important safety instructions 6 Introducing your new range 21 Overview 21 What’s included with your range 21 Before you begin 22 Energy saving tips 22 Surface cooking 22 About surface cooking 22 How to set the appliance for surface cooking 24 Using the proper cookware 26 Choosing the proper cookware 27 Protecting the cooktop 27 Operating the oven 28 The oven control panel 28 How to use dial knob 28 Display mode 29 Turning the oven light on and off 29 Clock 29 Oven cooking 30 Cooking mode 30 Using the oven racks 31 Recipe guide 33 Temperature probe 37 Cooking options 39 Special features 40 More functions 41 System Settings 43 Smart control 45 Voice control 46 Maintaining your appliance 48 Self-cleaning 48 Steam-cleaning 49 Care and cleaning of the oven 50 Care and cleaning of the glass cooktop 52 Removing and reinstalling the oven door 54 Removing and reinstalling the storage drawer 56 Changing the oven light 56 Troubleshooting 57 Troubleshooting 57 Information codes 61 Warranty (U.S.A) 63 Warranty (CANADA) 64

Open Source Announcement 666 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

CAUTION To reduce the risk of re, explosion, electric shock, or personal injury when using your range, follow these basic safety precautions. Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call a Samsung service center for help. Note These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

CALIFORNIA PROPOSITION 65 WARNING

WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov Important safety instructions Read and follow all instructions before using your range to prevent the risk of re, electric shock, personal injury, or damage when using the range. This guide does not cover all possible conditions that may occur. Always contact your service agent or the manufacturer about problems that you do not understand.

WHAT YOU NEED TO KNOW ABOUT

SAFETY INSTRUCTIONS Warnings and Important safety instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your oven. Important safety symbols and precautions What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.English 7 Important safety instructions

SAVE THESE INSTRUCTIONS

When using electrical appliances, you should follow basic safety precautions, including the following: CAUTION

• Use this appliance only for its intended purpose as described in this Owner’s Manual.

• Potentially hot surfaces include the cooktop, areas facing the cooktop, the oven vent opening, surfaces near the opening, and crevices around the oven door. Be sure your appliance is properly installed and grounded by a qualied technician. User servicing - Do not repair or replace any part of the appliance unless specically recommended in this manual. All other servicing should be referred to a qualied technician. Always disconnect the power to the appliance before servicing by removing the fuse or switching off the circuit breaker.

• Do not enter the oven.

• Do not store items of interest to children in cabinets above the range or on the back guard of the range. Children climbing on the range to reach items could be seriously injured.

• Do not leave children alone. Never leave children alone or unattended in an area where this appliance is in use. They should never be allowed to sit or stand on any part of the appliance.

• Never use your appliance for warming or heating the room.

• Do not use water on grease res. Turn off the oven to avoid spreading the ames. Smother the re or ames by closing the door or use a dry chemical, baking soda, or foam-type extinguisher.

• Avoid scratching or striking the glass doors, the cooktop, or the control panel. Doing so may lead to glass breakage. Do not cook on a product with broken glass. Shock, re, or cuts may occur.8 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

• Use only dry potholders. Placing moist or damp potholders on hot surfaces may result in burns from steam. Do not let the potholder touch hot heating elements. Do not use a towel or other bulky cloth.

• Teach children not to play with the controls or any other part of the range.

• For your safety, do not use high-pressure water cleaners or steam jet cleaners to clean any part of the range.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualied persons to avoid creating a hazard.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not lean on the range as you may turn the control knobs inattentively.

• If there is a re in the oven during self-cleaning, turn the oven off and wait for the re to go out. Do not force the door open. The introduction of fresh air at self-cleaning temperatures may lead to a burst of ame from the oven. Failure to follow these instructions may result in severe burns.

• If the oven is heavily soiled with oil, self-clean the oven before using the oven again. Leaving the oil in place creates a risk of re.

• Wipe up heavy soil on the oven bottom with a paper towel or rag before self-cleaning. Self-cleaning the oven when there is heavy soil on the oven bottom requires longer cleaning cycles and produces more smoke.

• Storage in or on the appliance. Do not store ammable materials in the oven or near the surface units. Be sure all packing materials are removed from the appliance before operating it. Keep plastics, clothes, and paper away from parts of the appliance that may become hot.

• Wear proper apparel. Never wear loose-tting or hanging garments while using the appliance. Important safety instructionsEnglish 9 Important safety instructions

SAVE THESE INSTRUCTIONS

• Be careful when placing spoons or other stirring utensils on the glass cooktop surface when it is in use. They may become hot and could cause burns.

• Use proper pan sizes. This appliance is equipped with surface units of different size. Select pots and pans that have at bottoms large enough to cover the surface area of the heating element. Using undersized cookware will expose a portion of the heating element to direct contact and may result in the ignition of clothing. Matching the size of the pot or pan to the burner will also improve efciency.

• Cookware Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units – To reduce the risk of burns, ignition of ammable materials, or spillage due to unintentional contact with cookware, position cookware handles so that they are turned inward and do not extend over adjacent surface units.

• Glazed cookware. Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed cookware can be used for rangetop service without breaking due to sudden changes in temperature.

• Cleaning. Read and follow all instructions and warnings on the cleaning cream labels.

SURFACE COOKING UNITS

• Never leave surface units unattended at high heat settings. Boilovers cause smoking and greasy spillovers that may ignite.

• Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock or re.

• To avoid oil spillover and re, use a minimum amount of oil when shallow pan-frying and avoid cooking frozen foods that have excessive amounts of ice.

• Do not lift the cooktop. Lifting the cooktop can damage the range and cause the range to malfunction.

• Do not operate the cooktop without cookware. If the cooktop operates without cookware, the control knobs will become hot.

• Never use the glass cooktop surface as a cutting board.

• Use care when touching the cooktop. The glass surface of the cooktop will retain heat after the controls have been turned off.

• Do not move the container and bowl in a horizontal position on cooktop surface.10 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

• Flush-mounted appliances may be operated only after they have been installed in cabinets and workplaces that conform to the relevant standards. This ensures that the appliances are installed in compliance with the appropriate safety standards.

• If your appliance malfunctions or if fractures, cracks, or splits appear: - switch off all cooking zones - unplug the range from the AC wall outlet - contact your local Samsung service center. WARNING If the surface is cracked, switch off and unplug the appliance to avoid the possibility of electrical shock. Do not use your cooktop until the glass surface has been replaced. WARNING

• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

• The range should not be placed on a base.

• Be sure you know which control knob operates each surface unit. Make sure you turned on the correct surface unit.

• Always turn the surface units off before removing cookware.

• When preparing aming foods under the hood, turn the fan on.

• Keep an eye on foods being fried at high or medium high heat settings.

• Do not store heavy items above the cooktop surface that could fall and damage it.

• Do not use decorative surface element covers – If an element is accidentally turned on, the decorative cover will become hot and possibly melt. Burns will occur if the hot covers are touched. Damage may also be done to the cooktop. ELECTRICAL SAFETY

• Proper Installation - Be sure your appliance is properly installed and grounded by a qualied technician.

• The appliance should be serviced only by qualied service personnel. Repairs carried out by unqualied individuals may cause injury or a serious malfunction. If your appliance is in need of repair, contact a Samsung authorized service center. Failure to follow these instructions may result in damage and void the warranty. Important safety instructionsEnglish 11 Important safety instructions

SAVE THESE INSTRUCTIONS

• DO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN. Heating elements may be hot even though they are dark in color. Interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch or let clothing or other ammable materials contact the heating elements or interior surfaces of the oven until they have had sufcient time to cool. Other surfaces of the appliance may become hot enough to cause burns. Among these surfaces are oven vent openings and surfaces near these openings, the oven door, and the window of the oven door.

• Do not heat unopened food containers. The build-up of pressure may cause the container to burst and result in injury.

• Do not use the oven to dry newspapers. If overheated, newspapers can catch on re.

• Do not use the oven for a storage area. Items stored in an oven can ignite. CHILD SAFETY WARNING

• This appliance is not intended for use by young children or inrm persons without the adequate supervision of a responsible adult.

• Young children should be supervised to ensure that they do not play with the appliance.

• Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their ngers in the door.

• The cooking zones will become hot when you cook. To keep small children from being burned, always keep them away from the appliance while you are cooking.

• During self-cleaning, the surfaces may get hotter than usual. Keep small children away from the range when it is in the self- cleaning mode. WARNING Accessible parts may become hot during use. To avoid burns, young children should be kept away.12 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

CAUTION Do not attempt to operate the oven during a power failure. If the power fails, always turn the oven off. If the oven is not turned off and the power returns, the oven may begin to operate again. Food left unattended could catch re or spoil. REMOTE OPERATION This appliance is congurable to allow remote operation at any time.

• Do not store any ammable materials or temperature sensitive items inside, on top or near surface units of the appliance.

• Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven.

• Protective liners. Do not use aluminum foil to line the oven bottoms, except as suggested in the manual. Improper installation of these liners may result in a risk of electric shock or re.

• Keep oven vent ducts unobstructed. The oven vent is located above the right rear surface unit. This area could become hot during oven use. Never block this vent or place plastic or heat-sensitive items on it.

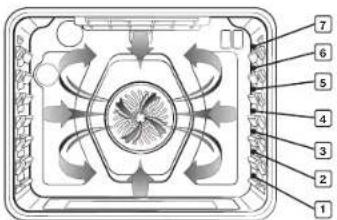

• Placement of oven racks. Always place oven racks in the desired location while the oven is cool. If the rack must be moved while the oven is hot, use potholders. Do not let the potholders come in contact with the hot heating element in the oven.

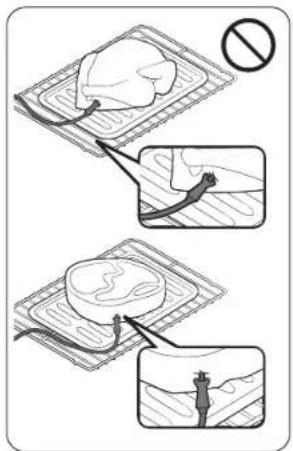

• Do not allow aluminum foil or a meat probe to contact the heating elements.

• During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass. They can scratch the surface, which may result in the glass shattering. Important safety instructionsEnglish 13 Important safety instructions

SAVE THESE INSTRUCTIONS

• Clean only the parts listed in this manual in the self-clean cycle. Before self-cleaning the oven, remove the partition, rack, utensils, and any food.

• Before operating the self-clean cycle, wipe grease and food soils from the oven. Excessive amounts of grease may ignite, leading to smoke damage to your home.

• Do not use any commercial oven cleaner or oven liner protective coating of any kind in or on the outside of the oven.

• Remove the nickel oven shelves from the oven before you begin the self-cleaning cycle or they may discolor.

• If the self-cleaning mode malfunctions, turn the oven off and disconnect the power supply. Have it serviced by a qualied technician.

• Excess spillage must be removed before you run the self- cleaning cycle. VENTILATING HOOD

• Clean ventilating hoods frequently. Do not let grease accumulate on the hood or lter.

• When aming foods under the hood, turn the fan on. SELFCLEANING OVENS Do not clean the door gasket. The door gasket is essential for a good seal. Care should be taken not to rub, damage, or move the gasket.

• Never keep pet birds in the kitchen. Birds are extremely sensitive to the fumes released during an oven self-clean cycle. Fumes may be harmful or fatal to birds. Move birds to a well-ventilated room.14 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

• This appliance must be installed by a qualied technician or service company. - Failing to have a qualied technician install the range may result in electric shock, re, an explosion, problems with the product, or injury.

• Unpack the oven, remove all packaging material and examine the oven for any damage, such as dents on the interior or exterior of the oven, broken door latches, cracks in the door, or a door that is not lined up correctly. If there is any damage, do not operate the oven and notify your dealer immediately.

• Plug the power cord into a properly grounded outlet with the proper conguration. Your oven should be the only item connected to this circuit.

• Keep all packaging materials out of the reach of children. Children may use them for play and injure themselves.

• Install your appliance on a hard, level oor that can support its weight. - Failing to do so may result in abnormal vibrations, noise, or problems with the product.

GLASS/CERAMIC COOKING SURFACES

• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even though they are dark in color. Areas near surface units may become hot enough to cause burns. During and after use, do not touch, or let clothing or other ammable materials contact the surface units or areas near the units until they have had sufcient time to cool. Among these areas are the cooktop and the facing of the cooktop.

• Do not cook on a broken cooktop. If the cooktop should break, cleaning solutions and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact a qualied technician immediately. Clean the cooktop with caution. If a wet sponge or cloth is used to wipe spills on a hot cooking area, be careful to avoid steam burns. Some cleaners can produce noxious fumes if applied to a hot surface. Important safety instructionsEnglish 15 Important safety instructions

SAVE THESE INSTRUCTIONS

• If the appliance is ooded by any liquid, please contact your nearest Samsung service center. Failing to do so may result in electric shock or re.

• If the appliance produces a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest Samsung service center. - Failing to do so may result in electric shock or re

• In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not touch the power cord. Do not touch the appliance. - A spark may result in an explosion or re.

• This appliance must be properly grounded.

• Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line. - This may result in electric shock, re, an explosion, or problems with the product.

• Do not cut or remove the ground prong from the power cord under any circumstances.

• Connect the oven to a circuit that provides the correct amperage.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or water (rain drops). - This may result in electric shock or re.

• Do not use a damaged power cord or loose wall socket. - This may result in electric shock or re.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, or insert the power cord between objects. - This may result in electric shock or re. If the power cord is damaged, contact your nearest Samsung service center.16 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

• Do not attempt to repair, disassemble, or modify the appliance yourself. - Since a high voltage current enters the product chassis, it may result in electric shock or re. - When a repair is needed, contact your nearest Samsung service center.

• If any foreign substance, such as water has entered the appliance, contact your nearest Samsung service center. - Failing to do so may result in electric shock or re.

• Do not touch the power cord with wet hands. - This may result in electric shock.

• Do not turn the appliance off while an operation is in progress. - This may cause a spark and result in electric shock or re.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a plastic bag over its head, the child can suffocate.

• Take care not to contact the oven door, heating elements, or any of the other hot parts with your body while cooking or just after cooking. - Failing to do so may result in burns.

• If materials inside the oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the re may spread.

• Always observe safety precautions when using your oven. Never try to repair the oven on your own - there is dangerous voltage inside. If the oven needs to be repaired, contact an authorized Samsung service center near you.

• If you use the appliance when it is contaminated by foreign substance, such as food waste, it may result in a problem with the appliance.

• Take care when removing the wrapping from food taken out of the appliance. - If the food is hot, hot steam may be emitted abruptly when you remove the wrapping and this may result in burns. Important safety instructionsEnglish 17 Important safety instructions

SAVE THESE INSTRUCTIONS

• Do not store or use the oven outdoors.

• Never use this appliance for purposes other than cooking. - Using the appliance for any purpose other than cooking may result in re.

• Open the cap or stopper of sealed containers (herb tonic tea bottle, baby bottle, milk bottle and so on) before heating them. Make a hole in food items that have shells (eggs, chestnuts, etc) with a knife before cooking them. - Failing to do so may result in burns or injury.

• Never heat plastic or paper containers and do not use them for cooking. - Failing to do so may result in re.

• Do not heat food wrapped in paper from magazines, newspapers, etc. - This may result in re.

• Do not open the door when the food in the oven is burning. - If you open the door, it causes an inow of oxygen and may cause the food to ignite.

• Do not let children or any person with reduced physical, sensory, or mental capabilities use this appliance unsupervised.

• Make sure that the appliance’s controls and cooking areas are out of the reach of children. - Failing to do so may result in electric shock, burns, or injury.

• Do not touch the inside of the appliance immediately after cooking. The inside of the appliance will be hot. - Failing to do so may result in burns.

• Do not use or place ammable sprays or objects near the oven. - Flammable items or sprays can cause res or an explosion.

• Do not insert ngers, foreign substances, or metal objects, such as pins or needles into inlets, outlets, or holes. If foreign substances are inserted into any of these holes, contact your product provider or nearest Samsung service center.

• Do not tamper with or make any adjustments or repairs to the door. Under no circumstances should you remove the door or outer shell of the oven.18 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

USAGE CAUTIONS CAUTION

• If the surface is cracked, turn the appliance off. - Failing to do so may result in electric shock.

• Dishes and containers can become hot. Handle with care.

• Hot foods and steam can cause burns. Carefully remove container coverings, directing the steam away your hands and face.

• Remove lids from baby food jars before heating. After heating baby food, stir well to distribute the heat evenly. Always test the temperature by tasting before feeding the baby. The glass jar or the surface of the food may appear to be cooler than the interior, which can be hot enough to burn an infant’s mouth.

• Take care as beverages or food may be very hot after heating. - Especially when feeding a child. Check that it has cooled sufciently.

• Do not apply excessive pressure to the door or the inside of the appliance. Do not strike the door or the inside or the appliance. - Hanging on to the door may result in the product falling and cause serious injury. - If the door is damaged, do not use the appliance. Contact a Samsung service center.

• Do not hold food in your bare hands during or immediately after cooking. - Use cooking gloves. The food may be very hot and you could burn yourself. - As the handle and oven surfaces may be hot enough to cause burns after cooking, use cooking gloves to protect your hands from burns. Important safety instructionsEnglish 19 Important safety instructions

SAVE THESE INSTRUCTIONS

• Do not put your face or body close to the appliance while cooking or when opening the door just after cooking. - Take care that children do not come too close to the appliance. - Failing to do so may result in children burning themselves.

• Do not place food or heavy objects over the edge of the oven door. - If you open the door, the food or object may fall and this may result in burns or injury.

• Do not abruptly cool the door, the inside of the appliance, or a dish by pouring water over it during or just after cooking. - This may result in damage to the appliance. The steam or water spray may result in burns or injury.

• Do not operate while empty except for self-cleaning.

• Do not defrost frozen beverages in narrow-necked bottles. The bottles can break.

• Do not scratch the glass of the oven door with a sharp object. - This may result in the glass being damaged or broken.

• Do not store anything directly on top of the appliance when it is in operation.

• Take care when heating liquids, such as water or other beverages. - Make sure to stir during or after cooking. - Avoid using a slippery container with a narrow neck. - Wait at least 30 seconds after heating before removing the heated liquid. - Failing to do so may result in an abrupt overow of the contents and cause burns.

• Do not stand on top of the appliance or place objects (such as laundry, an oven cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - Items, such as a cloth, may get caught in the door. - This may result in electric shock, re, problems with the product, or injury.

• Do not operate the appliance with wet hands. - This may result in electric shock.

• Do not spray volatile substances, such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in electric shock, re, or problems with the product.20 English Important safety instructions Important safety instructions

SAVE THESE INSTRUCTIONS

• Do not use sealed containers. Remove seals and lids before cooking. Sealed containers can explode due to the build up of pressure even after the oven has been turned off.

• Take care that food you are cooking in the oven does not come into contact with the heating element. - This may result in re.

• Do not overheat food. - Overheating food may result in re.

CRITICAL CLEANING WARNINGS

• Do not clean the appliance by spraying water directly on to it.

• Do not use benzene, thinner, or alcohol to clean the appliance. - This may result in discoloration, deformation, damage, electric shock, or re.

• Take care not to hurt yourself when cleaning the appliance (externally or internally). - You may hurt yourself on the sharp edges of the appliance.

• Do not clean the appliance with a steam cleaner. - This may result in corrosion.

• Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or oor can cause paint damage and reduce the efciency of the oven. Important safety instructionsEnglish 21 Introducing your new range What’s included with your range Wire racks (2) * Air fry tray (1) * Temperature probe (1) * Cleaner & cleaning pad (1) NOTE If you need an accessory marked with a *, you can buy it from the Samsung Contact Center (1-800-726-7864). Introducing your new range Overview

• Do not use the glass cooktop surface as a cutting board.

• Do not place or store items that can melt or catch re on the glass cooktop, even when it is not being used.

• Turn the surface units on only after placing cookware on them.

• Do not store heavy items above the cooktop surface. They could fall and damage it. CAUTION DURING COOKING

• Do not place aluminum foil or plastic items, such as salt and pepper shakers, spoon holders, or plastic wrappings on the range when it is in use. The hot air from the vent could melt plastics or ignite ammable items.

• Make sure the correct surface unit is turned on.

• Never cook directly on the glass. Always use cookware.

• Always place the pan in the center of the surface unit you are cooking on.

• Never leave surface units unattended while using a high heat setting. Boilovers cause smoking and greasy spillovers that may catch on re.

• Turn the surface units off before removing cookware.

• Do not use plastic wrap to cover food. Plastic may melt onto the surface and be very difcult to remove.

• The cooling fan can be operated during cooktop cooking. Before you begin Clean the oven thoroughly before using it for the rst time. Then, remove the accessories, set the oven to bake, and then run the oven at 400 °F for 1 hour. There will be a distinctive odor. This is normal. Ensure your kitchen is well ventilated during this conditioning period. Energy saving tips

• During cooking, the oven door should remain closed except when you turn food over. Do not open the door frequently during cooking to maintain the oven temperature and to save energy.

• If cooking time is more than 30 minutes, you can switch the oven off 5-10 minutes before the end of the cooking time to save energy. The residual heat will complete the cooking process.

• To save energy and reduce the time needed for reheating the oven, plan oven use to avoid turning the oven off between cooking one item and the next.

• Whenever possible, cook more than one item at a time.English 23 Surface cooking CAUTION AFTER COOKING

• Do not touch the surface units until they have cooled down.

• The surface may still be hot and burns may occur if you touch the glass surface before it has cooled down sufciently.

• Immediately clean spills on the cooking area to prevent a tough cleaning chore later.

• If cabinet storage is provided directly above the cooking surface, make sure that the items are infrequently used and can be safely stored in an area subjected to heat. Temperatures may be unsafe for items, such as volatile liquids, cleaners, or aerosol sprays. About the radiant surface elements The temperature rises gradually and evenly. As the temperature rises, the radiant element will glow red. To maintain the selected setting, the element will cycle on and off. The heating element retains enough heat to provide a uniform and consistent heat during the off cycle. For efcient cooking, turn off the element several minutes before cooking is complete. This will allow residual heat to complete the cooking process. NOTE Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI setting. This helps to prevent damage to the ceramic cooktop. Cycling at the HI setting is normal and can occur if the cookware is too small for the radiant element or if the cookware bottom is not at. NOTE When you operate the knob, beep sounds once. Location of the radiant surface elements and controls The radiant control knobs operate the radiant surface elements on the cooktop as shown below. When reassembling the knobs after cleaning, check the knob print and assemble them in the correct position before using cooktop.

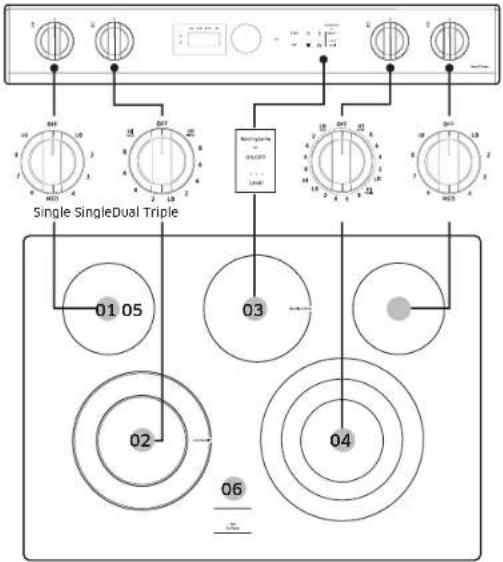

Single SingleDual Triple 01 Left Rear: 6", 1200 W 02 Left Front: 6"/9", 3600 W 03 Warming Center: 100 W 04 Right Front: 6"/9"/12", 3000 W 05 Right Rear: 6", 1200 W 06 Hot surface indicator NOTE The knob illumination around the knob turns on when the knob is turned on.24 English Surface cooking Surface cooking Hot surface indicator

• Comes on when the unit is turned on or hot to the touch.

• Stays on even after the unit is turned off.

• Glows until the unit is cooled to approximately 150 °F. Cooking areas

• The cooking areas on your range are identied by permanent circles on the glass cooking surface. For the most efcient cooking, t the pan size to the element size.

• Pans should not extend more than ½˝ to 1˝ beyond the cooking area.

• When a control is turned on, you can see a glow through the glass cooking surface. The element will cycle on and off to maintain the preset heat setting, even at high settings.

• For more information on selecting proper types of cookware, refer to the section "Using the proper cookware" on page 26. How to set the appliance for surface cooking CAUTION

• The surface elements may be hot even when off and burns can occur. Do not touch the surface elements until they have cooled down sufciently.

• At high or medium-high settings, never leave food unattended. Boilovers cause smoking and greasy spillovers may catch on re.

• Be sure you turn the control knob to OFF when you nish cooking. Single surface unit control knob (Left Rear, Right Rear)

1. Push the knob in.

2. Turn in either direction to the setting

• At both the off and high settings, the knob clicks into position. Dual surface unit control knob (Left Front)

1. Push the knob in.

2. Turn in either direction to the setting

• To use the large surface unit, turn the control knob to the large burner (A) setting.

• To use the middle surface unit, turn the control knob to the middle burner (B) setting.English 25 Surface cooking Triple surface unit control knob (Right Front) The triple surface unit has 3 cooking sizes to select from so you can match the size of the cooking area to the size of the cookware you are using.

1. Push the knob in.

2. Turn in either direction to the setting

• To use the large surface unit, turn the control knob to the large burner (A) settings.

• To use the middle surface unit, turn the control knob to the middle burner (B) settings.

• To use the small surface unit, turn the control knob to the small burner (C) settings. NOTE If you remove the knob for cleaning, make sure to reattach it in the correct orientation. (Refer to the illustration above.) CAUTION

• Please note, operation of lighting knob may not synchronize with the actual operation of the radiant heater when there is a problem with the product.

• The area on the knob between the high and off settings is not appropriate for cooking. Recommended settings

SETTING TYPE OF COOKING

HIGH Starting most foods, bringing water to a boil, pan broiling MEDIUM HIGH Continuing a rapid boil, frying, deep fat frying MEDIUM Maintaining a slow boil, thickening sauces and gravies, steaming vegetables MEDIUM LOW Keeping foods cooking, poaching, stewing LOW Keeping foods warm, melting, simmering Using the warming center The warming center, located in the back center of the glass surface, will keep hot, cooked food at serving temperature. NOTE The surface warmer will not glow red like the cooking elements. CAUTION

• Do not warm food on the warming center for more than two hours.

• Use only cookware and dishes recommended as safe for oven and cooktop use.

• Always use potholders or oven mitts when removing food from the warming center as cookware and plates will be hot.

• When warming pastries and breads, use covers that have an opening to allow moisture to escape.

• Do not use plastic wrap to cover foods. Plastic may melt onto the surface and be very difcult to clean off.

• Food should be kept in its container and covered with a lid or aluminum foil to maintain food quality.

• Always start with hot food. Eating uncooked or cold food placed on the warming center could result in illness.26 English Surface cooking Surface cooking

1. To turn the warming center on, press the Warming Center On/Off pad.

2. Select the power setting you want. Press the Warming Center Level pad once

for Low, twice for Medium, or three times for High.

3. To turn the warming center off, press the Warming Center On/Off pad.

• Pressing OFF does not turn the warming center off.

• For best results, all foods on the warming center should be covered with a lid or aluminum foil. When warming pastries or breads, the lid or foil should be vented to allow moisture to escape. Recommended settings

Low Breads/pastries, casseroles, gravies, eggs Medium Dinner plate with foods, soups (cream), vegetables, sauces, stews, meats High Fried foods, soups (liquid), hot beverages Using the proper cookware Using the right cookware can prevent many problems, such as uneven cooking or extended cooking times. Using the proper pots and pans will reduce cooking times and cook food more evenly. Check for atness by rotating a ruler across the bottom of the cookware. CORRECT INCORRECT Flat bottom and straight sides.

• Weight of handle does not tilt pan.

• Pan is well balanced.

• Pan size matches the amount of food to be prepared and the size of the surface element.

• Made of a material that conducts heat well. Always match pot diameter to element surface diameter. Curved and warped pan bottoms. Pan overhangs element by more than one-half inch. Pan is smaller than element. Heavy handle tilts pan.English 27 Surface cooking Protecting the cooktop Cleaning

• Clean the cooktop before using it for the rst time.

• Clean your cooktop daily or after each use. This will keep your cooktop looking good and can prevent damage.

• If a spillover occurs while you are cooking, immediately clean the spill from the cooking area while it is hot to prevent a tough cleaning chore later. Using extreme care, wipe the spill with a clean, dry towel.

• Do not allow spills to remain on the cooking area or the cooktop trim for a long period of time.

• Do not use abrasive cleansing powders or scouring pads, which will scratch the cooktop.

• Do not use chlorine bleach, ammonia, or other cleansers not specically recommended for use on a glass-ceramic surface. Preventing marks and scratches

• Do not use glass cookware. It may scratch the cooktop.

• Do not place a trivet or wok ring between the cooktop and the pan. These items can mark or scratch the cooktop.

• Make sure the cooktop and the pan bottom are clean.

• Do not slide metal pans across the cooktop. Preventing stains

• Do not use a soiled dish cloth or sponge to clean the cooktop surface. A lm will remain, which may cause stains on the cooking surface after the area is heated.

• Continuously cooking on a soiled surface can result in a permanent stain. Preventing other damage

• Do not allow plastic, sugar, or foods with high sugar content to melt onto the hot cooktop. Should this happen, clean immediately.

• Do not let a pan boil dry as this will damage the cooktop and the pan.

• Do not use the cooktop as a work surface or cutting board.

• Do not cook food directly on the cooktop. Always use the proper cookware. Choosing the proper cookware What your cookware is made of determines how evenly and quickly heat is transferred from the surface element to the pan bottom.

• ALUMINUM - Excellent heat conductor. Some types of food will cause the aluminum to darken. (Anodized aluminum cookware resists staining & pitting). If aluminum pans are slid across the ceramic cooktop, they may leave metal marks that resemble scratches. Remove these marks as soon as the cooktop cools down.

• COPPER - Excellent heat conductor but discolors easily. May leave metal marks on ceramic glass (to remove, see above.)

• STAINLESS STEEL - Slow heat conductor with uneven cooking results. Is durable, easy to clean, and resists staining.

• CAST IRON - A poor conductor; retains heat very well. Cooks evenly once cooking temperature is reached. Not recommended for use on ceramic cooktops.

• ENAMELWARE - Heating characteristics will vary depending on the base material. Porcelain enamel coating must be smooth to avoid scratching ceramic cooktops.

• GLASS - Slow heat conductor. Not recommended for ceramic cooktop surfaces because it may scratch the surface.28 English Operating the oven Operating the oven How to use dial knob PushingPushing TurningTurning The dial knob can be used in the following ways:

• Turning the dial knob clockwise or counterclockwise will show next or previous mode when selecting the cooking mode.

• Turning the dial knob clockwise or counterclockwise will increase or decrease the value when selecting the cooking temperature or time.

By pushing the dial knob, current value will be entered. NOTE Dial knob cannot be disassembled. Do not pull it forcibly. Operating the oven The oven control panel

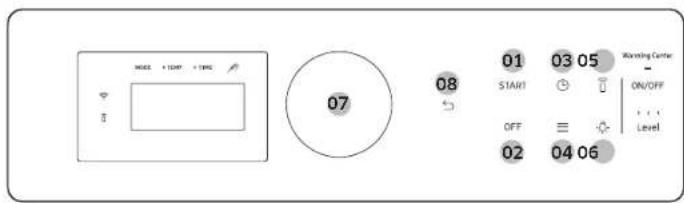

01 START: Press to start oven operation. 02 OFF: Delete all information entered, return to the rst step. Stop the oven operation. 03 Time Option: Go to set time options. (Cook time, Delay start) 04 Options: Go to set options. (Timer, Cleaning, Favorite, My mode list, Lock, Screen timeout, Set time, Time format, 12hr energy saving, Sound, Sabbath, System settings) 05 Smart Control: Set Smart Control function On/Off. 06 Light: Tap to turn oven light On/Off. 07 Dial Knob: Turn Clockwise - Move focus to next / increase value. Turn Counterclockwise - Move focus to previous / decrease value. Push - Select the current value. 08 Back: Go to upper depth, previous page, etc.English 29 Operating the oven Display mode Sleep mode The control panel enters Sleep mode if the oven is not used for a while. In Sleep mode, the control panel is inactive, displaying only the time, until it is reactivated by the user. NOTE You can adjust the control panel timeout. (See more information on page 43.) Wake-Up To activate the control panel, turn or Push the Dial Knob. User preferences are available in this mode including the timer, oven light, and/or control lock. Turning the oven light on and off

• The oven light turns on automatically when the door is opened.

• The oven light turns off automatically when the door is closed.

• You can turn the oven light on and off manually by pressing the pad. Clock You must set the clock correctly to ensure the automatic features work properly. This product supports two time formats: 12-hour (default) and 24-hour. Set time 12:00PM

To set the clock time

3. Enter the current time using the dial

4. Push the dial knob to conrm the

settings. Set Date Dec 31, 2020

3. Enter the current Date using the dial

4. Push the dial knob to conrm the

4. Push the dial knob to save the changes.

NOTE You can set/change the clock or the kitchen timer before you start a cooking mode or while most cooking modes are operating. However, you cannot set or change the time if a time based function is operating (Time Bake, for example) or the Sabbath feature is enabled.30 English Operating the oven Operating the oven Oven cooking STEP 1 Put all ingredients in a heat-safe container. STEP 2 Select a cooking mode, and then start preheating. STEP 3 Place the container on a rack. STEP 4 Close the door and start cooking. NOTE The cooling fan automatically runs for a certain amount of time after cooking is complete. Cooking mode

• Make sure to close the door before you start cooking.

• If you leave the door open for about 2 minutes while the oven is in convection baking/roasting, baking, or broiling modes, the oven burner shuts off. To restart the burner, close the door.

1. Use the Dial Knob to select a mode (Bake, Convection Bake, Convection Roast,

the oven to any temperature.

3. Push the dial knob, if necessary, you can set the Cook Time and Delay Start

when the "Start" Message displays. Tap START or push the dial knob.

• The oven preheats until it reaches the temperature you set.

• It beeps several times when it reaches the set temperature.

• When preheating is complete, place the food in the oven, and then close the door.

4. When cooking is complete, off the oven and then take out the food.English 31

Operating the oven Mode Temperature range (°F) Default temperature (°F) Temp. Probe Set Cook Time Delay Start Bake 175-550 350 O O O Broil Hi-Lo Hi X X X Convection Bake 175-550 325 O O O Convection Roast 175-550 325 O O O Air Fry 350-500 425 X O O Dehydrate 100-225 150 X O O Keep Warm - 175 X X X Bread Proof - 95 X X X NOTE To change the temperature during cooking, repeat steps 1 through 3 above. NOTE If the 12hr energy saving feature is disabled, those modes will operate until canceled. (12hr energy saving's default setting : on) See page 22 for more information. Using the oven racks Your oven range comes with 2 racks and 7 rack positions. The rack positions are delineated by rack guides which support the racks. Each rack guide has a stop that prevents the rack from loosening during the oven's operation. Each rack has stoppers that need to be placed correctly on the rack guides. The stoppers prevent the racks from accidently coming out of the oven completely when you pull the racks out.

Type of food Rack position Broiling hamburgers 7 Broiling meats or small cuts of poultry, sh 4-6 Bundt cakes, Pound cakes, Frozen pies, Casseroles 3 or 4 Angel food cakes, Small roats, Fresh and Frozen pizza

Turkey, Large roasts, Hams

This table is for reference only. CAUTION

• Do not cover an oven rack with aluminum foil. This will hamper heat circulation, resulting in poor baking.

• Do not place aluminum foil on the oven bottom. The aluminum can melt and damage the oven.

• Arrange the oven racks only when the oven is cool.

• When placing an oven rack in the top-most rack position (position 7), make sure the rack is situated stably on the embossed stop.32 English Operating the oven Operating the oven Inserting and removing an oven rack To insert an oven rack

1. Place the rear end of the rack on a rack

2. Slide the rack into the rack guide while

holding the front end of the rack. To remove an oven rack

1. Pull out the rack until it stops.

2. Pull up the front end of the rack and

remove it from the rack guide. Rack and Pan placement

Single Oven Rack Centering the baking pans in the oven as much as possible will produce better results. If baking with more than one pan, place the pans so each has at least 1˝ to 1½˝ of air space around it. When baking on a single oven rack, place the oven rack in position 3 or 4. See the gure on the left.

Cakes place the oven racks in positions 3 and 5, Cookies place the racks in positions 2 and 5. Using Multiple Oven Racks Type of Baking Rack Positions Cookies 2 and 5 Cakes 3 and 5English 33 Operating the oven Before using the racks The oven has two racks. Each rack has stops that need to be placed correctly on the supports. These stops will keep the rack from coming completely out.

1. Pull the rack straight out until it stops.

2. Lift up the front of the rack, and then pull it out.

1. Place the end of the rack on the support.

2. Tilt the front end up and push the rack in.

• Do not cover a rack with aluminum foil or place aluminum foil on the oven bottom. This will hamper heat circulation, resulting in poor baking, and may damage the oven bottom.

• Arrange the oven racks only when the oven is cool. Recipe guide CAUTION Always use this cooking mode with the oven door closed. Use care when opening the door. Let hot air or steam escape before you remove food from or put food into the oven. Baking Bake is used to cook cakes, cookies, and casseroles. Always preheat the oven rst. Baking temperatures and times will vary depending on the ingredients and the size and shape of the baking pan used. Dark or nonstick coatings may cook faster with more browning. NOTE

• Place food in the oven after preheating if the recipe calls for it.

• Preheating is very important for good results when baking cakes, cookies, pastry, and breads. After the oven has reached the desired temperature, the oven will beep several times.

• If you are using an oven thermometer in the oven cavity, the temperature registered by the thermometer may differ from the actual set oven temperature.

• For performance reasons, the convection fan may be turned on or off during the operation.34 English Operating the oven Operating the oven Convection cooking The convection fan at the back of the oven circulates hot air evenly throughout the oven cavities so that food is evenly cooked and browned in less time than with regular heat.

• The convection oven fan shuts off when the oven door is opened.

• DO NOT leave the door open for long periods of time while using convection cooking or you may shorten the life of the convection heating element. NOTE

• When using convection cooking, always preheat the oven for the best results.

• If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.

• When you have nished cooking, the cooling fan will continue to run until the oven has cooled down.

• For performance reasons, the convection fan may be turned on or off during the operation. Convection baking • Ideal for foods being cooked using multiple racks.

• Good for large quantities of food.

• Provides the best performance for cookies, biscuits, brownies, cupcakes, cream puffs, sweet rolls, angel food cake, and bread. Convection baking • Cookies bake best when cooked on at cookie sheets.

• When convection baking using a single rack, place the rack in rack position 3 or 4. (In Twin mode, position A or 1.)

• When convection baking using two racks, place the racks in positions 3 and 5 (Cakes, Cookies).

• The oven automatically adjusts the temperature for convection baking. Convection roasting • Good for larger, tender cuts of meat, uncovered.

• For best performance, place a broiler pan and grid under the meat or poultry. The pan catches grease spills and the grid prevents grease spatters.

• Heated air circulates over, under, and around the food. Meat and poultry are browned on all sides as if they were cooked on a rotisserie. Broiling Broiling uses the oven broil burner at the top of the oven to cook and brown food. Meat or sh must be put on a broiling grid in a broiling pan. Preheating for 4 minutes before broiling is recommended. NOTE

• This oven is designed for closed door broiling. While broiling, keep the door closed. Only open the door to put food in, turn food over, or take food out.

• Use the Broil Rack for the best results.

• Use the Broil LO for poultry or thick cuts of meat to prevent overbroiling.

• Use caution when you open the oven door to turn over the food. The air escaping from the oven will be very hot.

• If you leave the oven door open for more than 2 minutes when the oven is on, all heating elements will shut off automatically.

• When you have nished cooking, the cooling fan will continue to run until the oven has cooled down.English 35 Operating the oven Broiling guide NOTE

• This is for reference only.

• Preheating for 4 minutes before broiling is recommended.

• The size, weight, thickness, starting temperature, and your doneness preference will affect broiling times.

• This guide is based on meats at refrigerator temperature. Food Doneness Size Thickness Broil setting Rack position Cooking time 1st side 2nd side Hamburgers Medium 9 patties 1" HI 7 3:20-3:40 2:20-2:40 Beef steak Medium - 1" HI 5 7:00-8:00 6:00-7:00 Medium - ¾" HI 5 6:00-7:00 5:00-6:00 Chicken pieces Well done 2-2½ lbs. ¾"-1" HI 4 15:00-16:00 13:00-14:00 Pork chops Well done 1 lb. ½" LO 5 15:00-16:00 13:00-14:00 Lamb chops Well done 1 lb. ¾"-1" HI 5 5:00-6:00 4:00-5:00 Salmon steak Well done 3 pcs. ¾"-1" HI 5 4:00-7:00 3:00-6:00 CAUTION Make sure to close the door after turning over the food. Air fry This feature uses hot air for crispier and healthier frozen or fresh foods without or less oil than normal convection modes. For best results, use this mode on a single oven rack and place the Air fry tray on the position 3. The temperature can be set between 350 °F and 500 °F. Preheating is not necessary for this mode. Follow recipe or package directions for set temperature, time or quantity. How to set the oven for Air fry mode

1. Place the tray on rack position 3.

2. Select Air fry mode using the dial knob.

3. Use the dial knob to change the default temperature. Enter the suggested

temperature for your food as recommended cooking guide. The default temperature is 425 °F.

6. When cooking is complete, tap OFF and take out the food.

Tray or Baking sheetTray or Baking sheet Air fry trayAir fry tray Air Fry Tray recommended placement NOTE

• Place a baking sheet or tray on the rack below the Air fry tray for getting any drippings. This will help to reduce splatter and smoke.

• Before using a baking sheet, check the maximum allowable temperature of baking sheet.

• Air fry is designed for a single oven rack. Place food on rack position 3 for best results.

• For cooking fresh or homemade foods, spread the oil over a larger area more evenly, crisping up the food more effectively.36 English Operating the oven Operating the oven Air fry cooking guide Item Amount Temperature Time Potatoes Frozen French Fries 30-35 oz 425 °F-450 °F 25-30 min Frozen French Fries, Seasoned 25-30 oz 425 °F-450 °F 20-25 min Frozen Tater Tots 40-45 oz 450 °F 20-25 min Frozen Hash Brown 25-30 oz 425 °F-450 °F 20-25 min Frozen Potato Wedges 30-35 oz 425 °F-450 °F 20-25 min Homemade French Fries 25-30 oz 400 °F-425 °F 25-30 min Homemade Potato Wedges 40-45 oz 425 °F-450 °F 25-30 min Frozen Frozen Chicken Nuggets 24-28 oz 400 °F-425 °F 15-25 min Frozen Chicken Wings 30-35 oz 425 °F-450 °F 20-30 min Frozen Onion Rings 20-25 oz 400 °F-425 °F 15-20 min Frozen Fish Fingers 20-25 oz 425 °F 18-22 min Frozen Chicken Strips 25-30 oz 425 °F-450 °F 20-30 min Frozen Churros 20-25 oz 425 °F 18-22 min Item Amount Temperature Time Poultry Fresh Drumsticks 40-45 oz 425 °F-450 °F 30-35 min Fresh Chicken Wings 30-35 oz 425 °F-450 °F 27-32 min Chicken Breasts, Breaded 25-30 oz 450 °F 25-30 min Vegetables Asparagus, Breaded 15-20 oz 425 °F 20-25 min Egg Plants, Breaded 20-25 oz 425 °F 20-25 min Mushroom, Breaded 18-22 oz 425 °F 20-25 min Onions, Breaded 18-22 oz 425 °F 20-25 min Cauliowers, Breaded 40-45 oz 400 °F-425 °F 20-25 min Vegetable Mix, Breaded 30-35 oz 425 °F 20-25 minEnglish 37 Operating the oven Dehydrate Dehydrate dries food or removes moisture from food via heat circulation. After drying the food, keep it in a cool and dry place. For fruit, adding lemon (or pineapple) juice or sprinkling sugar on the fruit helps the fruit retain sweetness. NOTE

• There is no preheating before dehydrating.

• Place the rack in rack position 3 or 4. Bread Proof The Bread Proof function automatically provides the optimum temperature for the bread proof process and, therefore does not have a temperature adjustment. If you press Bread Proof when the oven temperature is above 95 °F, Hot will appear in the display. Because these functions produce the best results when started while the oven is cool, we recommend that you wait until the oven has cooled down and Hot disappears from the display. NOTE

• There is no preheating before bread proof.

• Place the rack in rack position 3. Keep Warm Keeps cooked food warm at a low temperature up to 3 hours. NOTE

• Place the rack in rack position 3 or 4.

• If turn off the 12hr energy saving feature, this modes will operate until canceled. (12hr energy saving's default setting : on) See page 43 for more information. CAUTION You should not use this feature to reheat cold food. Temperature probe The temperature probe lets you cook roasts and poultry to the exact internal temperature you want, taking the guess work out of determining whether a piece of meat is done or not. You can use the temperature probe with the oven set to Bake, Convection Bake, or Convection Roast. When you use the temperature probe, the internal temperature is shown on the display when it reaches 100 °F.

1. Push the temperature probe into the

meat so that the tip of the probe reaches the center of the meat.

• When you insert the temperature probe, make sure it does not contact bone, fat, or gristle.

• For bone-in meats, insert the probe into the center of the lowest and thickest portion of the piece.

• For whole poultry (turkey, large chickens, etc.), insert the probe into the thickest part of the inner thigh, parallel to the leg.

• If you remove the temperature probe while cooking is in process, the oven shuts off in 60 seconds.

• The temperature probe may not function properly if inserted into frozen food. (The temperature probe icon doesn’t appear.)38 English Operating the oven Operating the oven

2. Insert the temperature probe plug into

the socket on the top side wall of the oven.

3. Select the cooking operation

(Convection Bake, Convection Roast, or Bake) and the temperature.

4. Set the internal temperature between

6. Tap START. When the food reaches the set internal temperature, the oven

automatically shuts off, and then beeps. NOTE Temperature probe operation will shut off either :

• When cooking time is over.

• When the temperature reaches the temperature you set. Temperature table Type of Food Internal temperature (°F) Beef / Lamb Rare 140-150 Medium 160-170 Well done 170-180 Pork 170-180 Poultry 165-185 CAUTION

• To protect the temperature probe, be careful not to insert the probe so that it comes out of the meat. Make sure that the probe is inserted around the center of the meat.

• Do not store the probe in the oven.

• Do not leave the probe inside the oven during the Self-Cleaning or Broiling cycle. This will cause permanent damage to the probe.

• To avoid damage to the probe, defrost food in advance.

• Do not use tongs when inserting or removing the probe. Tongs can damage the probe.

• Use the temperature probe only for the applicable cooking operations. NOTE If you have covered the meat with aluminum foil and you let it stand covered for 10 minutes after cooking is complete, the internal temperature increases by 5-10 °F degrees.English 39 Operating the oven Cooking options CAUTION Food that can easily spoil, such as milk, eggs, sh, poultry, and meat, should be chilled in a refrigerator before they are placed in the oven. Even when chilled, they should not stand for more than 1 hour before cooking begins and should be removed promptly when cooking is completed. Cook Time Timed cooking sets the oven to cook foods at a set temperature for a set length of time. The oven automatically turns off when it nishes. Mode: Bake / Convection Bake / Convection Roast / Air Fry / Dehydrate

1. Start a desired cooking mode, such as Bake.

4. Set the cooking time between 1 minute and 9 hours and 59 minutes (9:59)

using the dial knob.

5. Use the dial knob to select one of the following options you want to run at the

• Oven Off: The oven turns off at the end of cooking. (Default setting)

• Keep temp: Keep running the oven at the current cooking temperature at the end of cooking.

• Keep warm: Activate Keep warm function at the end of cooking.

6. Tap "Start". The oven will automatically turn on and start preheating. The

temperature will increase until it reaches the temperature you set. The oven starts cooking for the amount of time you set.

7. When preheating is complete, put the container with the food on a rack, and

then close the door.

8. When the cooking time has elapsed, the oven will automatically shut off and

then beep. NOTE To change the programmed cooking time, press the or use the dial knob. Delay Start The Delay Start function lets you use the kitchen timer to automatically start and stop another cooking program. You can set Delay Start so that it delays the automatic start of a cooking operation you select by up to 12 hours. Mode: Bake / Convection Bake / Convection Roast / Air Fry / Dehydrate / Self-clean

1. Place the container with the food on a rack, and then close the door.

2. Start a desired cooking mode, such as Bake.

7. The oven starts cooking at the set time.

NOTE To change the starting time, press the , or use the dial knob.40 English Operating the oven Operating the oven Special features The Sabbath feature

(For use on the Jewish Sabbath and Holidays) Use this option only for baking on the Jewish Sabbath and Holidays. For more information, visit the website at http://www.star-k.org With the Sabbath feature

• The oven temperature can be set higher or lower after you have set this option.

• The display doesn’t change and no beep sounds when you change the temperature.

• Once the oven is properly set for baking with the Sabbath feature active, the oven will remain continuously on until the Sabbath feature is cancelled. This will override the factory preset 12 hour energy saving feature.

• If the oven light is needed during the Sabbath, press the pad before activating the Sabbath feature. Once the oven light is turned on and the Sabbath feature is active, the oven light will remain on until the Sabbath feature is turned off.

• If you want the oven light off, be sure to turn it off before activating the Sabbath feature.

• Do not use the surface cooktop when the Sabbath feature is on. To enable the Sabbath feature

2. Tap , and select the Sabbath feature.

3. Turn the dial knob to select On/Off.

4. Push the dial knob to save the changes.

• You can change the oven temperature once baking starts, but the display will not change or beep. After changing the temperature, it takes 15 seconds before the oven recognizes the change.

• You can turn off the oven at any time by tapping OFF. However, this doesn’t deactivate the Sabbath feature.

• To deactivate the Sabbath feature, hold down for 3 seconds.

• You can set the cooking time before activating the Sabbath feature.

• After a power failure, the oven will not resume operation automatically. “Sabbath” will appear in the control panel, but the oven will not go back on. Food can be safely removed from the oven, but you should not turn off the Sabbath feature and turn the oven back on until after the Sabbath/Holidays.

• After the Sabbath observance, turn off the Sabbath feature by pressing and holding for at least 3 seconds. CAUTION

• Do not attempt to activate any other functions except for Bake when the Sabbath feature is on. Only the following functions will function properly: Bake, Oven Start/Set, and Oven Off.

• Do not open the oven door or change the oven temperature for about 30 minutes after you have started the Sabbath feature. Let the oven reach the set temperature. The oven fan operates only when the oven temperature increases.English 41 Operating the oven More functions Tap the button on the control panel, and then turn the dial knob to change various settings for your oven. Please refer to the following table for detailed descriptions. The Options menu is available only when the oven is off.

Setting Description Timer Set the timer. Cleaning Burn off leftover grease and residue completely or reduce them. NOTE See page 48. Favorite Save the cooking mode and value frequently used. My Mode List Edit cooking mode list. Lock Lock the control panel and the door. Auto Conversion Automatically lower the temperature by 25 °F (15 °C) when using Convection Bake. Setting Description Screen Timeout Adjust the display timeout. Set time Set the clock to display the current time. NOTE See page 29. Set Date Set the clock to display the current date. NOTE See page 29. Time format Set the clock to display the time in the 12-hour or 24-hour format. NOTE See page 29. 12hr energy saving Automatically turns off the oven 12 hours after baking starts or 3 hours after broiling starts. Sound Turn the oven's sound (beeps) on or off. Sabbath Setting Sabbath mode. ON/Off. NOTE See page 40.42 English Operating the oven Operating the oven Timer The timer gives you an extra timer you can use to time cooking tasks, such as boiling eggs. It does not, however, start or stop any cooking operation. You can set the timer from 1 minute to 9 hours and 59 minutes.

5. When the set time elapses, the oven beeps and displays the “Time is up.”

message. Count up timer starts after nishing Timer, it lasts for only 10 mins. Push the dial knob, count up timer will be disappeared. Favorite You can add up to 10 frequently used cook settings to the Favorites list to easily apply them in the future. Adding the new cook settings to the Favorites

1. Tap , and select Favorite using the dial knob.

2. Set the cook setting (Mode, Temperature, Cook Time, Probe Temp).

3. If necessary, select option (Cook Time and Probe Temp).

NOTE Alternatively, you can simply tap Add to Favorite that appears when the oven completes cooking. Editing the favorite cook settings

3. Change the cook settings. Items appear on the list may change upon what you

select. (Cook mode, temperature, Cook Time, etc.) Deleting the favorite cook settings

3. Select the favorite cook setting you want to delete.

Using the favorite cook settings

1. To select Favorite Mode using the dial knob.

2. Select the favorite cook setting you want to start.

My Mode List You can edit the mode lists.

1. Tap , and select My Mode List using the dial knob.

2. Turn the dial knob to select or unselect modes.

3. Select Save to save the changes.

Lock Lock the control panel and the door to prevent accidental operations or product tipping. Tap , and select Lock using the dial knob to lock both the control panel and the door. When the Oven Lock is on, the oven panel does not operate and the oven door is locked and cannot be opened. Tap and hold for 3 sec to unlock the oven. Auto Conversion Auto Conversion automatically converts regular baking temperatures to convection baking temperatures. For example, if you enter a regular recipe temperature of 350 °F and tap START, the oven displays the converted temperature of 325 °F.

1. Tap , and select Auto Conversion using the dial knob.

2. Turn the dial knob to select On/Off. (Default setting is “Off”.)

3. Push the dial knob to save the changes.English 43

Operating the oven Screen Timeout You can set the length of time before the screen saver turns on.

1. Tap , and select Screen Timeout using the dial knob.

2. Turn the dial knob to select setting time.

3. Push the dial knob to save the changes.

NOTE Energy consumption may increase depending on your setting. When the timeout setting is set to "Always on", the brightness of the LCD automatically changes to level 2 if there is no action for 3 minutes. 12hr energy saving This will automatically turn off the oven 12 hours after baking starts or 3 hours after broiling starts.

1. Tap , and select 12hr energy saving using the dial knob.

2. Turn the dial knob to select On/Off.

3. Push the dial knob to save the changes.

2. Turn the dial knob to select On/Off.

3. Push the dial knob to save the changes.

System Settings Tap and hold for 3 sec, on the control panel, and then Turn the dial knob to change various settings for your oven. Please refer to the following table for detailed descriptions. System Setting Description Wi-Fi Set the WI-FI mode to On/Off. NOTE See page 46. Language Select a preferred language from English, French, or Spanish. Temp. Unit Set the oven control to display temperatures in Fahrenheit or Centigrade. Calibrate Temp Recalibrate the oven temperature. My Pattern This function remembers and stores the cook settings. Welcome Lighting Set the Welcome Lighting mode to On/Off. Demo mode Used by retailers for display purposes only. Reset Reset the your setting. (More Functions, Systerm settings) Language Select a preferred language from English, French, or Spanish. You can not change the language during cooking.

1. Tap and hold for 3 sec.

2. Select the Language using the dial knob.

3. Turn the dial knob to select the Language and push to save the changes.44 English

Operating the oven Operating the oven Temp. Unit (°F / °C) Change the temperature format of the oven to Fahrenheit or Centigrade. The default is Fahrenheit.

1. Tap and hold for 3 sec.

2. Select Temp. Unit using the dial knob.

3. Turn the dial knob to select unit and push to save the changes.

Calibrate Temp The oven temperature has been calibrated at the factory. When rst using the oven, follow the recommended recipe times and temperatures. If it appears that the oven is too hot or too cool, you can recalibrate the oven temperature. Before recalibrating, test a recipe by using a temperature setting that is higher or lower than recommended. The baking results should help you decide how much of an adjustment is needed. The oven temperature can be adjusted by ±35 °F (±19 °C).

1. Tap and hold for 3 sec.

4. Push the dial knob to save the changes.

NOTE This adjustment does not affect the broiling or the self-cleaning temperature, and is retained in memory after a power failure. My Pattern This function remembers and stores the cook settings frequently used by the user.

1. Tap and hold for 3 sec.

2. Select My Pattern using the dial knob.

3. Turn the dial knob to select On/Off and push to save the changes.

Welcome Lighting When you wake up the oven (such as using the dial knob, using the touch pad, open the door), the knob lights blink each to welcome you. Set the Welcome Lighting mode to On/Off. The default is on.

1. Tap and hold for 3 sec.

2. Select Welcome Lighting using the dial knob.

3. Turn the dial knob to select On/Off and push to save the changes.

NOTE Welcome light only comes on when waking up from completely blank display in sleep mode. Demo mode This is used by retailers for display purposes only. In this mode, the heating element does not operate.

1. Tap and hold for 3 sec.

2. Select Demo mode using the dial knob.

3. Turn the dial knob to select On/Off and push to save the changes.

Reset You can reset your oven setting(More functions, System settings).

1. Tap and hold for 3 sec.

CAUTION Before reset the oven settings, turn off all oven and cooktop functions.English 45 Operating the oven Smart control How to connect the oven

1. Download and open the SmartThings app on your smart device.

2. Follow the app's on-screen instructions to connect your range.

3. Once the process is complete, the connected icon located on your range

displays and the app will conrm you are connected.

4. If the connection icon does not turn on, follow the instruction on the app to

To control the oven remotely

1. Press Smart Control appears in the display. The oven can now be controlled

remotely with a connected remote device.

2. Select the oven icon on the SmartThings app to open the Oven Control app.

When the app is connected to the oven, you can perform the following functions through the application: Oven remote control using the SmartThings app Oven/ Cooktop Monitoring

• Check the status of the oven

• Monitor the on/off status of each cooktop burner. Oven Remote Control • Set or adjust oven settings remotely. My Cooking

• Turn the oven off remotely.

• Once cooking starts, change the set cooking time and temperature remotely. Error Check • Automatically recognize errors. Temp. Probe

• Monitor the current temperature and reset the probe setting.

• If is not shown in the display, you are still able to monitor the oven and cooktop status and turn the oven off.46 English Operating the oven Operating the oven WI-FI On/Off If you set the WI-FI mode to Off, mobile devices cannot connect to the range.

1. Tap and hold for 3 sec.

2. Select Wi-Fi mode using the dial knob.

3. Turn the dial knob to select On/Off and push to save the changes.

• Pressing Smart Control will delete from the display and prevent most of the remote functions from operating.

• When oven cooking is nished or cancelled, is removed from the display.

• For safety reasons, you must specify the cooking time to enable remote control.

• The oven continues operating even if the Wi-Fi connection is lost.

• Smart Control will not work properly if the Wi-Fi Connection is unstable.

• See the SmartThings app manual for detailed information. Voice control To use the Range’s Voice Control function, you need Bixby / Amazon Alexa App / Google Assistant App on your mobile device. Refer to the table below for all available functions. Bixby Start conversation with Bixby on SAMSUNG mobile by saying “Hi Bixby” or by pressing the side key. Function “Hi Bixby” Start/Preheat

• Preheat the range(oven).

• Start the range(oven) in convection bake mode[Mode] at 325 degrees[Temp] for 1 hour[Time].

• Convection bake[Mode] in the range[Device Name] at 325 degrees[Temp]. Turn Off/Stop

• What is the temperature of the range(oven)?

• Check the range(oven) temperature. Check Time

• Check the remaining time of the range(oven).

• How much range(oven) time is left on the timer?

• How much time is left on the range timer? Check Mode (States)

• Set the temperature of the range(oven) to 300.

• Increase the temp of the range(oven) by 20.

• Decrease the temp of the range(oven) by 20.

• Turn on the oven light (lamp).

• Turn on the range oven light.

• Turn off the oven light (lamp).

• Turn off the range oven light. Oven Timer (Cook Time)

• Set the timer on the range(oven) to 1 hour.English 47 Operating the oven Amazon Alexa & Google Assistant Samsung smart home appliances are supported by SmartThings skill in Alexa & action in Google Assistant. Installation Guide Here’s how to link SmartThings account into Amazon Alexa or Google Assistant. SmartThings App and Alexa App(or Google Assistant App) Should be installed on your phone.

1. Setup the supported devices to SmartThings.

2. After device setup, tap + button on the screen.

3. Tap ‘Voice assistant’ and link your Samsung account to Amazon Alexa.

(or Google Assistant)

4. Check the devices are visible on Amazon Alexa app. Then account linking is

complete. (Check the devices are visible and set the location(home&room) of devices in Google home app. Then account linking is complete.) Function “Alexa” “Ok Google” Start/Preheat

• Set the oven[Device name] to bake [Mode].

• Set the oven[Device name] to bake [Mode] for 1hour [Time] at 350 degrees[Temp].

• Set the oven[Device name] to bake [Mode] at 350 degrees[Temp].

• Set the oven[Device name] to bake [Mode] for 1hour [time].

• Set the oven[Device name] to bake [Mode]. Turn Off/Stop

• What is the temperature of the oven[Device name]?

• What is the temperature of the oven[Device name]? Check Time

• What time is left on the oven[Device name]? Check Mode (States)

• Is the oven[Device name] running?

• Is the oven[Device name] on?

• Is the oven[Device name] running?

• What mode is the oven[Device name] set to? Temp Control

• Add 10 minutes/hours[Time] to the oven[Device name]. NOTE On/Off spec of smart control is same as guided in SmartThings app.48 English Maintaining your appliance Maintaining your appliance Self-cleaning This self-cleaning oven uses high temperatures (well above cooking temperatures) to burn off leftover grease and residue completely or reduce them to a nely powdered ash that you can wipe away with a damp cloth. CAUTION

• During the self-cleaning cycle, the outside of the range will become very hot to the touch. Do not leave small children unattended near the appliance.

• Some birds are extremely sensitive to the fumes given off during the self- cleaning cycle of any range. Move birds to another well-ventilated room.

• Do not line the oven walls, racks, bottom, or any other part of the range with aluminum foil. Doing so will result in poor heat distribution, poor baking results, and cause permanent damage to the oven interior. Aluminum foil will melt and adhere to the interior surface of the oven.

• Do not force the oven door open. This can damage the automatic door locking system. Use care when opening the oven door after the self-cleaning cycle is complete. Stand to the side of the oven when opening the door to allow hot air or steam to escape. The oven may still be VERY HOT.

• Wear the glove during cleaning. Before a self-cleaning cycle Fig. 1Fig. 1 Fig. 2Fig. 2 Don’t hand Don’t hand clean the clean the oven door oven door gasket.gasket. You may You may hand clean hand clean the door.the door.

• We recommend venting your kitchen with an open window or using a ventilation fan or hood during the self- cleaning cycle.

• Remove the wire rack, broil pan, broil pan insert, all cookware, and any aluminum foil from the oven.

• Wipe up debris from the oven bottom. (Fig. 1)

• Residue on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-lled steel-wool pads, or cleansers, such as Soft Scrub. Rinse well with clean water and dry.

• Do not clean the gasket. The berglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, have it replaced. (Fig. 2)

• Make sure the oven light bulb cover is in place and the oven light is off. NOTE Remove oven racks and accessories before starting the self-clean mode.English 49 Maintaining your appliance How to run a self-cleaning cycle

1. Make sure the oven door is closed completely and unlocked. And turn off all

oven and cooktop function.

2. Tap , and select Cleaning > Self Clean using the dial knob.

Then, select the cleaning time. (2 hour / 3 hour / 5 hour)

The oven door is locked automatically and the oven begins to heat up. NOTE

• You will not be able to start a self-cleaning cycle if the oven lock feature is activated or if the oven’s temperature is too hot.

• The oven door locks automatically. The display will show the cleaning time remaining. It is not be possible to open the oven door until the temperature drops to a safe/cool temperature.

• The self-cleaning feature will not operate when the warming center is on.

4. When the self-cleaning cycle is done, End will appear in the display and the

range will beep several times. How to delay the start of self-cleaning

1. Repeat steps 1 and 2 on 'How to run a self-cleaning cycle'.

2. Select Set Delay Start.

3. Set the time you want the oven to start self-cleaning using the dial knob.

The oven will start self-cleaning at your specied time. How to turn off the self-cleaning feature You may nd it necessary to stop or interrupt a self-cleaning cycle due to smoke in the oven.

2. You will be able to open the oven door once the oven has cooled down for

approximately 1 hour. After a self-cleaning cycle

• You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools. (If white spots remain, remove them with a soap-lled steel wool pad and rinse thoroughly with a vinegar and water mixture.)

• If the oven is not clean after one cycle, repeat the cycle.

• You cannot set the oven for cooking until the oven is cool enough for the door to unlock. Steam-cleaning How to set the oven for steam-cleaning For light cleaning, the steam-cleaning function saves time and energy. For heavier- duty cleaning, use the self-cleaning function.

1. Remove all accessories from the oven.

2. Pour approximately 10 oz. (300 ml) of

water onto the bottom of the empty oven and then close the oven door. Use normal water only, not distilled water.

3. Tap , and select Cleaning > Steam

The oven door is locked automatically and the oven begins to heat up. When the operation is complete, the display will blink and a beep will sound.

There will be a signicant amount of water remaining on the bottom of the oven after a steam-cleaning cycle. Remove the residual water with a sponge or soft dry cloth.50 English Maintaining your appliance Maintaining your appliance Care and cleaning of the oven WARNING

• Be sure all controls are OFF and all surfaces are COOL before cleaning any part of the range.

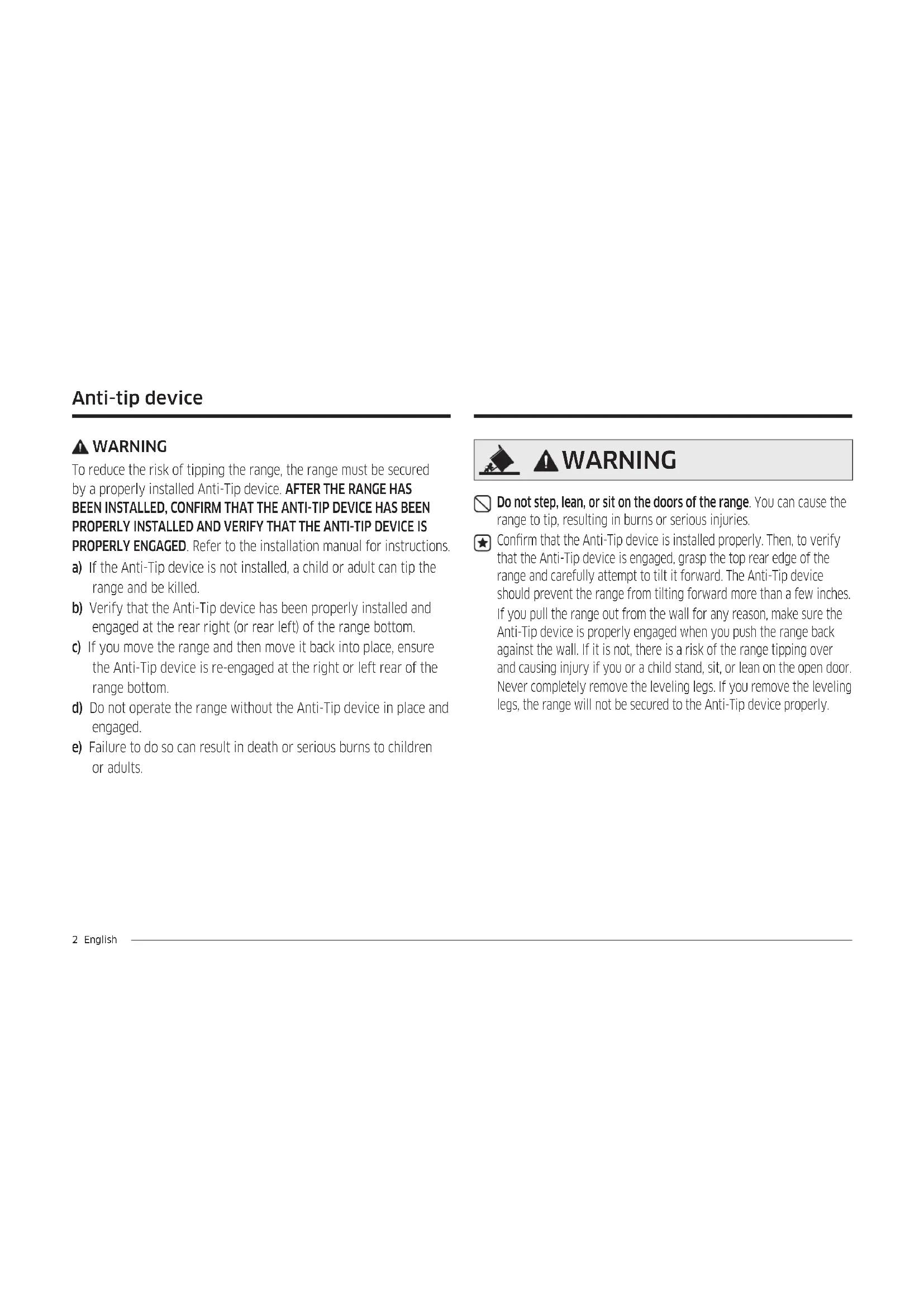

• If your range is moved for cleaning, servicing, or any reason, be sure the Anti-Tip device is re-engaged properly when the range is replaced. If you fail to re- engage the Anti-Tip device, the range could tip and cause serious injury. Vent VentVent

• The cooling vents are located at the back of the oven range.

• This area could become hot during oven use.

• It is normal for steam to come out of the vent.

• The vent is important for proper air circulation. Never block this vent. Cleaning painted parts and decorative trim

• For general cleaning, use a cloth with hot, soapy water.

• For more difcult residue and built-up grease, apply a liquid detergent directly onto the area and leave for 30 to 60 minutes. Wipe with a damp cloth and dry. Do not use abrasive cleaners on any of these surfaces. They can scratch. NOTE When steam-cleaning, use exactly 10 oz. of water since this produces the best results. NOTE If you press Steam Clean when the oven temperature is above 100˚F, Hot will appear in the display. Because this function produces the best results when started while the oven is cool, we recommend that you wait until the oven has cooled down and Hot disappears from the display. CAUTION Wear the glove during cleaning. After a steam-cleaning cycle

• Take care when opening the door before a steam-cleaning procedure has ended. The water on the bottom is hot.

• Open the oven door and remove the remaining water with a sponge. Do not leave the residual water in the oven for any length of time. Wipe the oven clean and dry with a soft cloth. Do not forget to wipe under the oven door seal.

• Use a detergent-soaked sponge, a soft brush, or a nylon scrubber to wipe the oven interior. Remove stubborn residue with a nylon scourer. You can remove lime deposits with a cloth soaked in vinegar.

• If the oven remains dirty, you can repeat the procedure once the oven has cooled.

• For heavy residue, such as grease left over from roasting, we recommend that you rub detergent into the residue before activating the steam-cleaning function.

• After cleaning, leave the oven door ajar at a 15° angle to allow the interior enamel surface to dry thoroughly.English 51 Maintaining your appliance Cleaning stainless steel surfaces

1. Shake the bottle of Stainless Steel Appliance Cleaner or Polish well.

2. Place a small amount of stainless steel appliance cleaner or polish on a damp

cloth or damp paper towel.

3. Clean a small area, rubbing with the grain of the stainless steel if applicable.

4. Dry and buff with a clean, dry paper towel or soft cloth.

5. Repeat as necessary.

• Do not use a steel-wool pad. It will scratch the surface.

• If a mineral oil-based stainless steel appliance cleaner has been used before to clean the appliance, wash the surface with dishwashing liquid and water prior to using the Stainless Steel Appliance Cleaner or Polish. Oven racks

• If the racks are left in the oven during a self-cleaning cycle, their color will turn slightly blue and the nish will be dull. After the self-cleaning cycle is complete and the oven has cooled, rub the sides of the racks with wax paper or a cloth containing a small amount of oil. This will help the racks glide more easily on their tracks.

• Gliding racks may be cleaned by hand with an abrasive cleaner or steel wool. During cleaning, be careful not to allow water or cleaner to enter the slides on the sides of rack. NOTE

• Do not clean in a dishwasher.

• If the rack becomes hard to remove or replace, lightly wipe the oven rack guides with cooking oil. Do not wipe cooking oil on the slides.

• If the rack becomes difcult to slide, the rack may need to be lubricated using a graphite lubricant. Air fry tray To keep the Air fry tray clean, remove them from the cavity, and soak them in Lukewarm soapy water. Then, scour soil off of the Air fry tray using a plastic scouring pad. NOTE The air fry tray is dishwasher-safe. CAUTION Do not leave the air fry tray in the oven during the self-cleaning cycle. The extreme heat generated in this cycle can permanently peel off the air fry coating, their color will turn slightly blue and nish will be dull. NOTE

• To order graphite lubricant., call Samsung customer care at 1-800-SAMSUNG (726-7864) or visit our homepage (www.samsung.com/us/support, www. samsung.com/ca/support, or www.samsung.com/ca_fr/support) and reference part number DG81-01629A.

• If you want to buy directly, connect to http://www.samsungparts.com/Default. aspx.52 English Maintaining your appliance Maintaining your appliance Care and cleaning of the glass cooktop Normal daily use cleaning Use only a ceramic cooktop cleaner. Other creams may not be as effective. By following these steps, you can maintain and protect the surface of your glass cooktop.

1. Before using the cooktop for the rst time, clean it with a ceramic cooktop

cleaner. This helps protect the top and makes cleanup easier.

2. Daily use of a ceramic cooktop cleaner will help keep the cooktop looking new.

3. Shake the cleaning cream well. Apply a few drops of cleaner directly to the

4. Use a paper towel or a cleaning pad for ceramic cooktops to clean the entire

5. Use a dry cloth or paper towel to remove all cleaning residue. No need to

rinse. WARNING DAMAGE to your glass surface may occur if you use scrub pads other than those recommended. Oven door Don’t hand Don’t hand clean the clean the oven door oven door gasket.gasket. You may You may hand clean hand clean the door.the door.

• Use soap and water to thoroughly clean the top, sides, and front of the oven door. Rinse well. You may use a glass cleaner on the outside glass of the oven door. DO NOT immerse the door in water. DO NOT spray or allow water or the glass cleaner to enter the door vents. DO NOT use oven cleaners, cleaning powders, or any harsh abrasive cleaning materials on the outside of the oven door.

• DO NOT clean the oven door gasket. The oven door gasket is made of a woven material which is essential for a good seal. Care should be taken not to rub, damage, or remove this gasket.English 53 Maintaining your appliance Removing burned-on residue

1. Allow the cooktop to cool.

2. Spread a few drops of ceramic cooktop

cleaner on the entire burned residue area.

3. Using a cleaning pad for ceramic

cooktops, rub the residue area, applying pressure as needed.

4. If any residue remains, repeat the steps

listed above as needed.

5. For additional protection, after all

residue has been removed, polish the entire surface by applying ceramic cooktop cleaner with a paper towel. Removing heavy, burned-on residue

1. Allow the cooktop to cool.

2. Use a single-edge razor-blade scraper

at approximately a 45° angle against the glass surface and scrape the soil. It will be necessary to apply pressure to remove the residue.

3. After scraping with the razor scraper,

spread a few drops of ceramic cooktop cleaner on the entire burned residue area. Use a cleaning pad to remove any remaining residue. (Do not scrape the seal.)

4. For additional protection, after all

residue has been removed, polish the entire surface by applying ceramic cooktop cleaner with a paper towel. Removing metal marks and scratches

1. Be careful not to slide pots and pans across your cooktop. It will leave marks

on the cooktop surface. You can remove these marks by applying ceramic cooktop cleaner with a cleaning pad for ceramic cooktops.

2. If pots with a thin overlay of aluminum or copper are allowed to boil dry, the

overlay may leave black discoloration on the cooktop. You should remove this discoloration immediately or it may become permanent. WARNING Carefully check the bottoms of pans for roughness that may scratch the cooktop.54 English Maintaining your appliance Maintaining your appliance Removing and reinstalling the oven door How to remove the door CAUTION

• The door is very heavy. Be careful when removing and lifting the door. Do not lift the door by the handle.

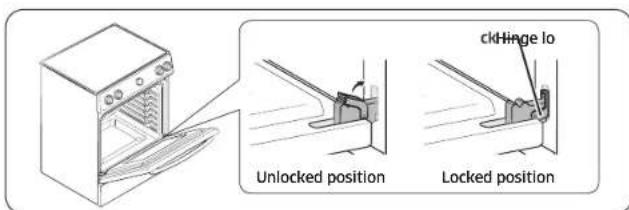

• Turn the power OFF before removing the door. Hinge lockHinge lock Locked positionLocked position Unlocked positionUnlocked position

1. Open the door completely.

2. Pull the hinge locks down toward the door frame to the unlocked position.

about 5°about 5° Fig. 1

3. Firmly grasp both sides of the door at

4. Close the door to the door removal

position, which is approximately 5 degrees from vertical (Fig. 1). Cleaning the cooktop seal To clean the seal around the edges of the glass, lay a wet cloth on it for a few minutes, then wipe clean with a nonabrasive cleaner. Potential for permanent damage to the glass surface

• Sugary spillovers (such as jellies, fudge, candy, syrups) or melted plastics can cause pitting of the surface of your cooktop. This is not covered under the warranty. You should clean the spill while it is still hot. Take special care when removing hot substances. Refer to the section below.

• When using a scraper, be sure it is new and the razor blade is still sharp. Do not use a dull or nicked blade. Cleaning sugary spills and melted plastic

1. Turn off all surface units. Remove hot pans.

2. Wearing an oven mitt, use a single-edge razor-blade scraper to move the spill

to a cool area of the cooktop. Remove the spill with paper towels.

3. Any remaining spillover should be left until the surface of the cooktop has

4. Don’t use the surface units again until all of the residue has been completely

removed. NOTE If pitting or indentations in the glass surface have already occurred, the cooktop glass will have to be replaced. In this case, service will be necessary.English 55 Maintaining your appliance Fig. 2

5. Lift door up and out until the hinge arm

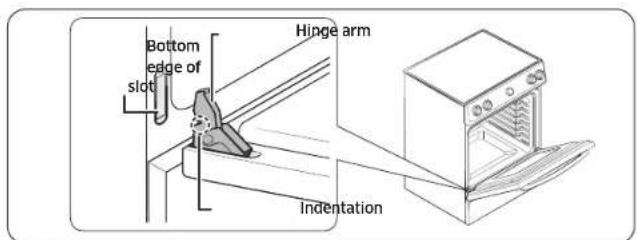

is clear of the slot (Fig. 2). How to re-install the door Hinge armHinge arm Bottom Bottom edge of edge of slotslot IndentationIndentation

1. Firmly grasp both sides of the door at the top.

2. With the door at the same angle as the removal position, slide the indentation

of the hinge arm into the bottom edge of the hinge slot. The notch in the hinge arm must be fully inserted into the bottom of the slot. Hinge lockHinge lock Locked positionLocked positionUnlocked positionUnlocked position

3. Open the door fully. If the door will not open fully, the indentation is not

inserted correctly in the bottom edge of the slot.

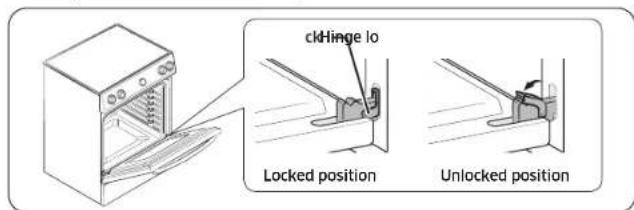

4. Push the hinge locks up against the front frame of the oven cavity to the

5. Close the oven door.56 English

Maintaining your appliance Maintaining your appliance Changing the oven light The oven light is a standard 40-watt appliance bulb. It will come on when the oven door is open. When the oven door is closed, press the pad to turn it on or off. It will not work during a self-cleaning cycle. RemoveRemove Glass bulb coverGlass bulb cover BulbBulb ReplaceReplace

1. Make sure the oven and the bulb are

2. Unplug the range or disconnect the

3. Turn the glass bulb cover in the back of

the oven counterclockwise to remove.

4. Turn the bulb counterclockwise to

remove it from its socket.

5. Insert a new 40-watt appliance bulb,

and then turn it clockwise to tighten. Replace the bulb cover by turning clockwise.

6. Plug in the range or reconnect the

power. CAUTION Before changing your oven light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel. Make sure the oven and the bulb are cool. Removing and reinstalling the storage drawer

1. Slide open the drawer until it stops.

2. Locate the roller guide clips on either

side. Using both hands, pull down the left clip while lifting the right clip, and then remove the drawer.

3. Clean the drawer in warm, soapy water

using a cloth or soft brush. Then, rinse and dry it thoroughly.

4. Put the drawer in the roller guides on

either side, and then snap the clips into place.English 57 Troubleshooting Troubleshooting Troubleshooting Samsung works hard to ensure that you don’t have problems with your new electric range. If you run into unexpected trouble, look rst for a solution in the tables below. If you’re still having trouble after trying the suggested solution, call Samsung at 1-800-SAMSUNG (1-800-726-7864). Installation Problem Possible cause Solution The range is not level. The appliance has been installed improperly.

• Place the oven rack in the center of the oven. Place a level on the oven rack. Adjust the leveling legs at the base of the range until the oven rack is level.

• Insure the oor is level and strong and stable enough to adequately support the range. The oor is sagging or sloping. Contact a carpenter to correct the situation. The kitchen cabinets are not properly aligned and make the range appear to be not level. Insure the cabinets are square and provide sufcient room for installation. The appliance must be accessed for servicing and cannot be moved easily. The kitchen cabinets are not square and too close to the appliance. Contact a builder or installer to make the appliance accessible. Carpet is interfering with movement of the range. Provide sufcient space so the range can be lifted over the carpet. CONTROL DISPLAY Problem Possible cause Solution The display goes blank. A fuse in your home may be blown or the circuit breaker tripped. Replace the fuse or reset the circuit breaker. The display ashes. There was a power failure. Reset the clock. COOKTOP Problem Possible cause Solution The surface units will not maintain a rolling boil or will not cook fast enough. You may be using inappropriate cookware. Use pans that are at and match the diameter of the surface unit selected. In some areas, the power (voltage) may be low. Cover the pan with a lid until the desired heat is obtained. The surface units will not turn on. A fuse in your home may be blown or a circuit breaker may have tripped. Replace the fuse or reset the circuit breaker. The cooktop controls are set improperly. Check if the correct control is set for the surface unit you are using. Areas of discoloration on the cooktop. Food spillover was not cleaned. Refer to the section on the care and cleaning of the glass cooktop on page 52. The surface is hot and the model features a light- colored cooktop. This is normal. The surface may appear discolored when it is hot. This is temporary and will disappear as the glass cools.58 English Troubleshooting Troubleshooting Problem Possible cause Solution The surface unit frequently cycles on and off. The element will cycle on and off to maintain the power setting. This is normal operation, and not a system failure. Use the range as usual. The surface unit stops glowing when changed to a lower setting. This is normal. The unit is still on and hot. Scratches or abrasions on the cooktop surface. The cooktop is being cleaned improperly. Scratches are not removable. Tiny scratches will become less visible in time as a result of cleaning. Use ceramic glass top cleaning cream. Do not use chemical or corrosive agents. These agents may damage the surface of the product. Cookware with rough bottoms was used on the cooktop or there were coarse particles (e.g., salt or sand) present between the cookware and the surface of the cooktop. To avoid scratches, follow the recommended cleaning procedures. Make sure cookware bottoms are clean before use, and use cookware with smooth bottoms. Cookware has been slid across the cooktop surface. Problem Possible cause Solution Brown streaks or specks. Boilovers have been cooked onto the surface.

• Wait until the surface cools down. Then, use a single-edge razor-blade scraper at approximately a 45° angle against the glass surface to remove the soil.

• See the section on the care and cleaning of the glass cooktop on page 52. Areas of discoloration with metallic sheen. Mineral deposits from water and food have been left on the surface of the cooktop.

• Remove using a ceramic-glass cooktop cleaning cream.

• Use cookware with clean, dry bottoms. Clean the cooktop with a ceramic cleaning agent regularly every week. "Cracking" or "popping" sound. This is the sound of the metal heating and cooling during both the cooking and self-cleaning functions. This is normal operation, and not a system failure. Use the range as usual.English 59 Troubleshooting OVEN Problem Possible cause Solution The oven will not turn on. The range is not completely plugged into the electrical outlet. Make sure the electrical plug is inserted into a live, properly grounded outlet. A fuse in your home may be blown or a circuit breaker may have tripped. Replace the fuse or reset the circuit breaker. The oven controls have been set improperly. See the chapter on operating the oven starting on page 28. The oven is too hot. Allow the oven to cool. Incomplete service wiring. Call for service. Power outage. Check to see if the house lights will turn on. If necessary, call your local electric company for service. The oven light will not turn on. The light bulb is loose or defective. Tighten or replace the bulb. The switch operating the light is broken. Call for service. The appliance will not turn on. The appliance is not completely plugged into the electrical outlet or a fuse in your home may be blown or a circuit breaker may have tripped. Make sure the power cord is plugged into a live, properly grounded outlet. Check the fuse and circuit breakers. Incomplete service wiring. Call for service. Power outage. Check to see if the house lights will turn on. If necessary, call your local electric company for service. Problem Possible cause Solution The oven smokes excessively during broiling. The oven controls have not been set properly. Refer to the section on using the broiler starting on page

The meat has been placed too close to the element. Reposition the rack to provide proper clearance between the meat and the element. Preheat the broil element for searing. The meat has not been properly prepared. Remove the excess fat from the meat. Cut away fatty edges that may curl, leaving the lean intact. Grease has built up on oven surfaces. Regular cleaning is necessary when broiling frequently. Food does not bake or roast properly. The oven controls have not been set correctly. See the chapter on operating the oven starting on page 28. The oven rack has been positioned incorrectly or is not level. See the section on using the oven racks on page 31. Incorrect cookware or cookware of improper size is being used. The oven sensor needs to be adjusted. See the section on adjusting the thermostat on page 44.60 English Troubleshooting Troubleshooting Problem Possible cause Solution Food does not broil properly. The serving size may not be appropriate. Refer to the cooking guide for serving sizes on page 35, and then try again. The rack has not been properly positioned. See the broiling recommendation guide on page 35. The cookware is not suited for broiling. Use suitable cookware. In some areas, the power (voltage) may be low.

• Preheat the broil element for 10 minutes.

• See the broiling recommendation guide on page 35. The oven temperature is too hot or too cold. The oven sensor needs to be adjusted. See the section on adjusting the thermostat on page 44. The oven will not self-clean. The oven temperature is too high to start a self-clean operation. Allow the range to cool and then reset the controls. The oven controls have been set incorrectly. See the section on self- cleaning on page 48. A self-cleaning cycle cannot be started if the oven lock feature has been activated or if a radiant surface element is on. Deactivate the oven lock (see page 42). Make sure all surface elements are turned off. Problem Possible cause Solution Excessive smoking during a self-cleaning cycle. There is excessive soiling in the oven. Press OFF. Open the windows to rid the room of smoke. Wait until the self-cleaning cycle is cancelled. Wipe up the excessive soil and then start the self-cleaning cycle again. The oven door will not open after a self- cleaning cycle. The oven is too hot. Allow the oven to cool. The oven is not clean after a self-cleaning cycle. The oven controls were not set correctly. See the section on self- cleaning on page 48. The oven was heavily soiled. Wipe up heavy spillovers before starting the self- cleaning cycle. Heavily soiled ovens may need to be self- cleaned again or for a longer period of time. Steam is coming out of the vent. When using the convection feature, it is normal to see steam coming out of the oven vent. This is normal operation and not a system failure. Use the range as usual. As the number of racks or amount of food being cooked increases, the amount of visible steam will increase. A burning or oily odor is coming from the vent. This is normal in a new oven and will disappear in time.

• To speed the process, set a self-cleaning cycle for a minimum of 3 hours.

• See the section on self- cleaning on page 48.English 61 Troubleshooting Problem Possible cause Solution Strong odor. An odor coming from the insulation around the inside of the oven is normal for the rst few times the oven is used. Operate the oven empty on the bake setting at 400 °F for 1 hour. Fan noise. A convection fan may automatically turn on and off. This is not a system failure but normal operation. Oven racks are difcult to slide. The shiny, silver-colored racks were cleaned in a self- cleaning cycle. Apply a small amount of vegetable oil to a paper towel, and then wipe the edges of the oven racks with the paper towel. DRAWER Problem Possible cause Solution The drawer does not slide smoothly or drags. The drawer is out of alignment. Fully extend the drawer and push it all the way in. See page 56. The drawer is overloaded or the load is unbalanced. Reduce weight. Redistribute drawer contents. Excessive condensation in the drawer. There is liquid present in the drawer. Remove the liquid. Uncovered foods. Cover food with a lid. Information codes OVEN Displayed code Possible cause Solution C-d0 There is a short in the control key. Press OFF, and then restart the oven. If the problem persists, disconnect all power to the range for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service. C-d1 The door lock is misaligned. C-F0 This code occurs if communication between the Main and Sub PBA is interrupted. C-F2 This code occurs if communication between the Main and Touch is interrupted. C-20 The oven sensor is open when the oven is operating. There is a short in the Oven sensor. C-21 This code occurs if the internal temperature rises abnormally high.62 English Troubleshooting Troubleshooting Displayed code Possible cause Solution C-22 The sub PCB sensor is open when the oven is operating. Press OFF, and then restart the oven. If the problem persists, disconnect all power to the range for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service. There is a short in the sub PCB sensor. C-23 The temperature probe sensor is short when the oven is operating. C-30 The main PCB sensor is open when the oven is operating. There is a short in the main PCB sensor. C-31 This code occurs if the PCB temperature rises abnormally high. Call for service -dC- This code appears if the divider is inserted or removed while the oven is operating. Make sure the divider is inserted properly, and then restart the oven. If the problem persists, disconnect all power to the range for at least 30 seconds and then reconnect the power. If this does not solve the problem, call for service. Displayed code Possible cause Solution Bad line This error message appears if the power cord is installed improperly. If the power connection is plugged in improperly, that code appears on the display. Reconnect the power connection properly, and the message disappears. C-A2 This code occurs if the sub PCB temperature rises abnormanlly high. Press OFF. Check the oven vent and cooling vent. If the vent is closed, never block the vent by anything. After cooling the oven, restart the oven. If this does not solve the problem, call for service.English 63 Warranty (U.S.A) Warranty (U.S.A) PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN THE

LIMITED WARRANTY TO ORIGINAL PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period, starting from the date of original purchase, of: One (1) Year Parts and Labor This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modication or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s nishes; damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). In addition, damage to the glass cooktop caused by (i) use of cleaners other than the recommended cleaners and pads or (ii) hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered by this limited warranty. The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty.Please contact SAMSUNG at the number below for assistance with any of these issues.64 English Warranty (U.S.A) Warranty (U.S.A)

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state.

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME WAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) and www.samsung.com/us/support Warranty (CANADA) PLEASE DO NOT DISCARD. THIS PAGE REPLACES THE WARRANTY PAGE IN THE

This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) Year Parts and Labor, One (1) Year Parts Warranty For Glass Cooktop and Radiant Heater This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the CANADA. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung will provide in-home service during the warranty period at no charge subject to availability within the contiguous CANADA. In home service is not available in all areas. To receive in home service product must be unobstructed and accessible to the service agent. If service is not available Samsung may elect to provide transportation of the product to and from an authorized service center.English 65 Warranty (CANADA) EXCEPT AS SET FORTH HEREIN THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada 1-800-SAMSUNG (726-7864) and www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specied above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior nish; accidents, abuse, neglect, re, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG which damage this product or result in service problems; incorrect electrical line voltage, uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations, and overheating or overcooking by user. This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or xing installation errors. Furthermore, damage to the glass cooktop caused by the use of cleaners other than the recommended cleaners and pads, damage to the glass cook top caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the directions in the use and care guide are not covered. SAMSUNG does not warrant uninterrupted or error-free operation of the product.66 English Appendix AppendixAppendix Open Source Announcement The software included in this product contains open source software. The following URL http://opensource.samsung.com/opensource/SMART_TP2_0/ seq/0 leads to open source license information as related to this product. MemoMemoPlease be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT U.S.A Consumer Electronics 1-800-SAMSUNG (726-7864) www.samsung.com/us/support CANADA 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French) DG68-01209A-07 Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows
