USER MANUAL Multipoint BeamZ

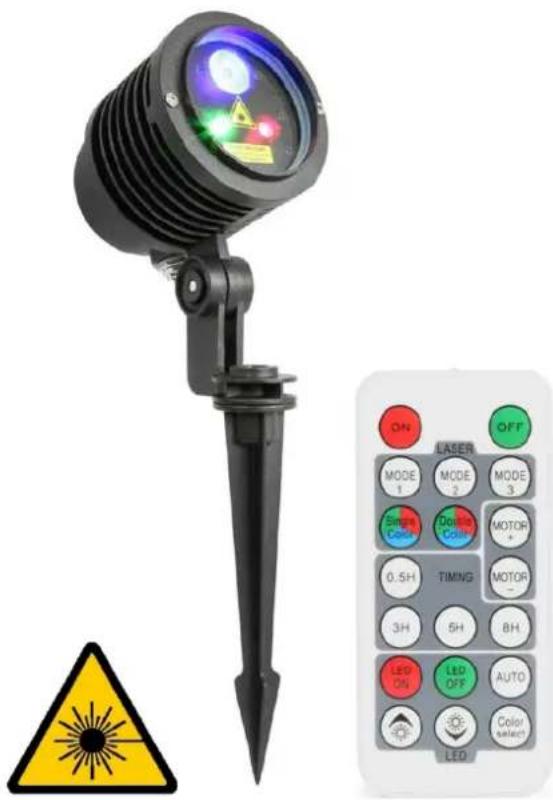

IP65 Outdoor Multipoint RG 3W RGB LED Ref. nr.: 152.795

MANUEL D'INSTRUCTIONS

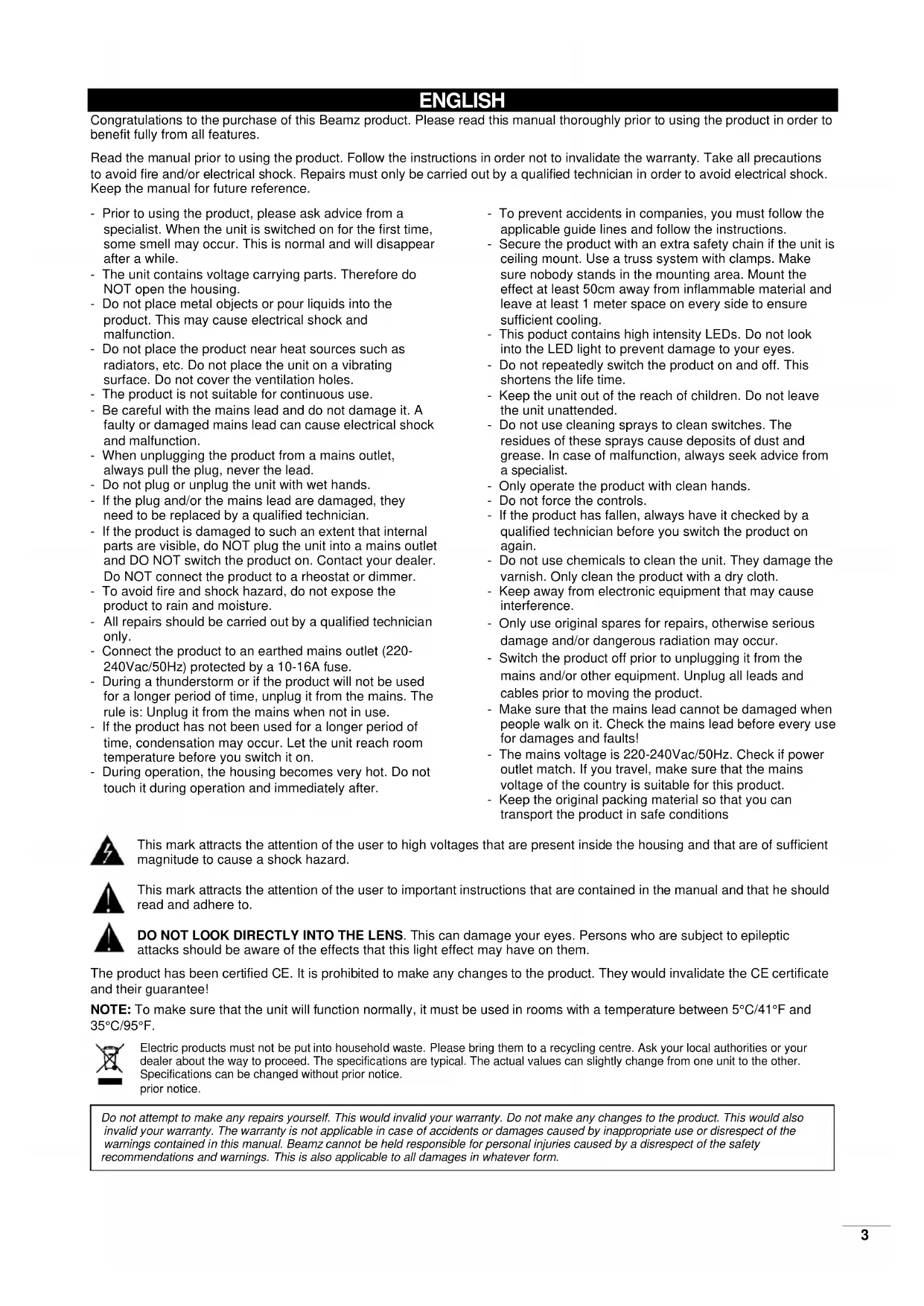

V1.023 ENGLISH Congratulations to the purchase of this Beamz product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features. Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference. - Prior to using the product, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while. - The unit contains voltage carrying parts. Therefore do NOT open the housing. - Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction. - Do not place the product near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes. - The product is not suitable for continuous use. - Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction. - When unplugging the product from a mains outlet, always pull the plug, never the lead. - Do not plug or unplug the unit with wet hands. - If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician. - If the product is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the product on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer. - To avoid fire and shock hazard, do not expose the product to rain and moisture. - All repairs should be carried out by a qualified technician only. - Connect the product to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse. - During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use. - If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. - During operation, the housing becomes very hot. Do not touch it during operation and immediately after. - To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions. - Secure the product with an extra safety chain if the unit is ceiling mount. Use a truss system with clamps. Make sure nobody stands in the mounting area. Mount the effect at least 50cm away from inflammable material and leave at least 1 meter space on every side to ensure sufficient cooling. - This poduct contains high intensity LEDs. Do not look into the LED light to prevent damage to your eyes. - Do not repeatedly switch the product on and off. This shortens the life time. - Keep the unit out of the reach of children. Do not leave the unit unattended. - Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist. - Only operate the product with clean hands. - Do not force the controls. - If the product has fallen, always have it checked by a qualified technician before you switch the product on again. - Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth. - Keep away from electronic equipment that may cause interference. - Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur. - Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product. - Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults! - The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product. - Keep the original packing material so that you can transport the product in safe conditions This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. DO NOT LOOK DIRECTLY INTO THE LENS. This can damage your eyes. Persons who are subject to epileptic attacks should be aware of the effects that this light effect may have on them. The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. prior notice. Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Beamz cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.4 UNPACKING INSTRUCTION CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing. If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. Content:

• 1pcs IP65 Outdoor Laser

• 1pcs Grounding adapter

Laser Light is different from any other light source with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. This concentration of light power can cause instant eye injuries, primarily by burning the retina (the light sensitive portion at the back of the eye). Even if you cannot feel “heat” from a laser beam, it can still potentially injure or blind you or your audience. Even very small amounts of laser light are potentially hazardous even at long distances. Laser eye injuries can happen quicker than you can blink. It is wrong to assume that a single beam of a bundle of hundreds by the laser beams made, it cannot cause injury. It is also incorrect to assume that it is safe to look at a moving beam. In the laser safety regulation, it is not legal to aim Class 3/4 lasers in areas which people can get exposed also on a dance floor. Caution:

• Do not point lasers at people or animals.

• Never look into the laser aperture or laser beams, this can potentially cause instant eye injury or blindness if laser light directly strikes the eyes.

• Do not point lasers in areas in which people can potentially get exposed, such as uncontrolled balconies, etc.

• Install the laser units such that laser beams above the audience move See section later in this manual.

• Test the laser units always first before the public is present.

• Do not point lasers into the public or at highly reflective surfaces such as windows, mirrors and shiny metal. Even laser reflections can be hazardous.

• Never point a laser at aircraft or into the sky, this is a federal offense.

• Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Do not expose the output optic (aperture) to cleaning chemicals.

• The operation of a laser is only allowed if the show is controlled by a skilled and well-trained operator familiar with the requirements that are needed.

• Do not use laser if housing is damaged or open, or if optics appear damaged in any way.

• Never leave this device running unattended.

• Always use appropriate lighting safety cables when hanging lights and effects overhead. The legal requirements for using laser entertainment products vary from country to country. The user is responsible for the leg al requirements at the location/country of use. This unit contains laser components with high power, live parts and parts that emit radiation. Therefore, DO NOT OPEN the housing, THIS CAN BE FATAL. It can also cause blindness, skin burns and fires.

Eye damage occurs faster than you can blink your eyes. Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from “www.laserinstitute.org”. Many local governments, corporations, agencies, military and others, require all lasers to be used under the guidelines of ANSI Z136.1. Laser Display guidance can be obtained via the International Laser Display Association, www.laserist.org.

Read for the commissioning of the laser all safety instructions and technical data of this manual carefully and thoroughly.5 POWERSUPPLY On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply. Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire. INSTALLATION

Follow the installation steps below:

1. Install the grounding adapter to the laser with the screw and tighten.

2. Insert the grounding adapter into the ground.

3. Adjust the angle and then fix the screw.

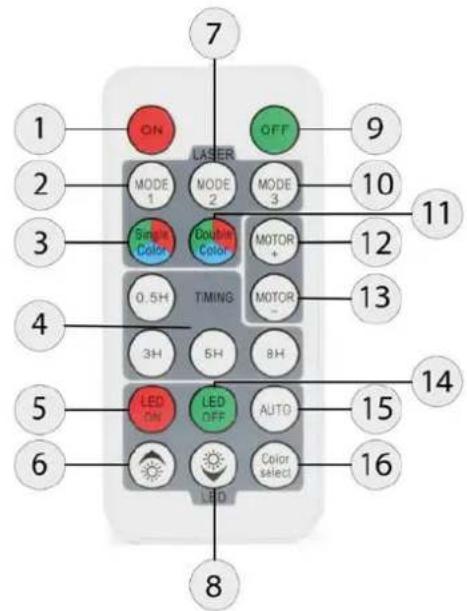

4. Timing function choose between 0.5H, 3H, 5H or 8H

6. Dimming of the LED +

8. Dimming of the LED -

10. Mode 3 Steady and strobe alternately

11. Double colour chooses RG two laser colours

12. Motor speed of the motor faster

16. Colour select of the LED

Note: Remote controller receiving range 5-10 meter

Laser : Red 125mW / Green 75mW Laser Class : 3R Dimensions per unit : 150 x 105 x 180mm Weight (per unit) : 1 kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

ENGLISH : Attention! The use in France is only allowed to the professional user and not to the enduser. See decision: www.legifrance.gouv.fr
