USER MANUAL NT 752 Tact² Me Kärcher

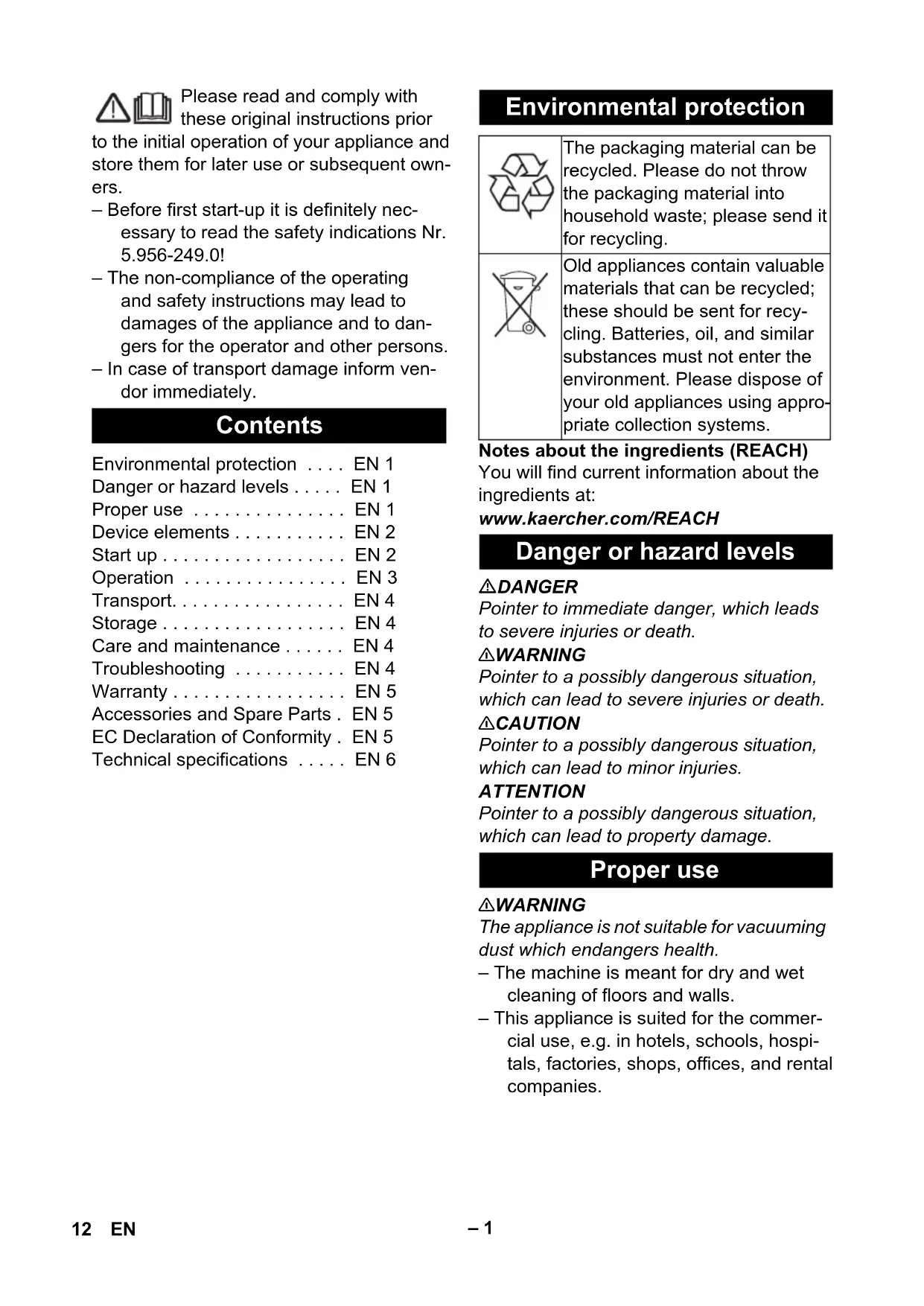

Teile-Nr. Kabellänge EU 6.649-915.0 10 m GB 6.650-151.0 10 m CH 6.650-292.0 10 m AU 6.650-166.0 10 m 11DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. – Before first start-up it is definitely nec- essary to read the safety indications Nr. 5.956-249.0! – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. 몇 WARNING The appliance is not suitable for vacuuming dust which endangers health. – The machine is meant for dry and wet cleaning of floors and walls. – This appliance is suited for the commer- cial use, e.g. in hotels, schools, hospi- tals, factories, shops, offices, and rental companies. Contents Environmental protection ... EN 1 Danger or hazard levels ... EN 1 Proper use ... EN 1 Device elements ... EN 2 Start up ... EN 2 Operation ... EN 3 Transport... EN 4 Storage ... EN 4 Care and maintenance ... EN 4 Troubleshooting ... EN 4 Warranty ... EN 5 Accessories and Spare Parts . EN 5 EC Declaration of Conformity . EN 5 Technical specifications ... EN 6 Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Danger or hazard levels Proper use 12 EN– 2 1 Electrodes 2 Suction hose 3 Pushing handle, adjustable 4 Suction head lock 5 Dirt receptacle 6 Suction head 7 Steering roller 8 Chassis 9 Suction support 10 Chassis handle 11 Floor nozzle 12 Suction tube 13 Carrying handle 14 Hose and cable hook 15 Filter cover 16 Bender 17 Rotating knob 18 Storage for floor nozzle 19 Tilt lever 20 Nameplate 21 Drain hose 22 Holder for suction pipes 23 Power cord 24 Fastening screw for slider 25 Flat fold filter 26 Filter dedusting – The operating elements for the cleaning process are yellow. – The controls for the maintenance and service are light gray. ATTENTION The flat pleated filter must always be in place while vacuuming. – To vacuum fine dust, you can also use an additional paper filter bag, a fleece filter bag (option) or a membrane filter (option). Illustration Release and remove the suction head. Insert the paper filter bag, fleece filter bag (option) or membrane filter (option). Insert and lock the suction head. ATTENTION Please note the following when switch- ing from wet to dry vacuum cleaning: If you vacuum dry dust while the filter ele- ment is still wet the filter will become ob- structed and may be damaged beyond re- pair. Dry the wet filter properly before use or replace it with a dry one. Change the filter, if required, according to instructions under the section "Main- tenance and Care". Note: For permanent wet vacuum cleaning it is advisable to use a PES flat pleated filter (see filter systems). Illustration Remove the brush strips. Install the rubber lips. Note: The structured side of the rubber lips must point outwards. – If the appliance is used to vacuum wet dirt, the paper filter bag, the fleece filter bag (option) or the membrane filter (op- tion) must always be removed. – It is recommended to use a special filter bag (wet) (see Filter systems). Device elements Colour coding Start up Dry vacuum cleaning Installing the paper filter bag/fleece filter bag Changeover from wet to dry vacuum cleaning Wet vacuum cleaning Inserting the rubber lips Remove the paper filter bag/fleece filter bag 13EN– 3 몇 CAUTION Please observe the local provisions regard- ing the wastewater treatment. Appliance with metal container: Illustration Appliance with plastic container: Illustration Drain off dirty water through the drain- age hose. – If wet dirt is vacuumed with the uphol- stery or crevice nozzle, or if water is sucked up from a container, it is recom- mended to deactivate the "automatic fil- ter cleaning" function. – If the maximum liquid level is reached the appliance will turn off automatically. – In case of non-conductive liquids (such as emulsion drilling fluids, oils, and greases) the appliance is not turned off when the container is full. The filling level must be continu- ously monitored and the container must be emptied in time. – After the wet vacuuming: Clean the flat folded filter with the filter cleaning. Clean the electrodes with a brush. Clean the container with a damp rag and dry it. Illustration The suction hose is equipped with a clip system. All C-40/C-DN-40 accessories can be connected. Plug in the mains plug. Switch on the appliance at the rotating knob. The appliance has an innovative dual filter cleaning system that is particularly effective with fine dust. The flat pleated filter is auto- matically cleaned every 7.5 seconds through an air jet (pulsating sound). Switch off the appliance at the rotating knob. Pull out the mains plug. Empty the container. Vacuum and wipe the appliance inside and outside with a damp cloth. Loosen the fastening screws of the pushing handle and adjust the pushing handle. Illustration Store the suction hose and the mains cable as shown in the illustration. Place the appliance in a dry room and secure it from unauthorized use. Drain off dirt water General Clip connection Operation Rotating knob – Appliance ON – Filter dedusting OFF – Appliance OFF – Appliance ON – Filter dedusting ON Turning on the Appliance Automatic filter cleaning Turn off the appliance After each operation Fold the push handle in/out Storing the Appliance 14 EN– 4 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. Remove the suction pipe with the floor nozzle from the holder. Hold the appli- ance at the handle and at the suction pipe to transport it. Hold the appliance at the chassis han- dle and at the pushing handle when you want to transport it. Pull the device behind you at the carry- ing handle for transporting it over longer distances When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Open filter door. Replace the flat pleated filter. Close the filter door, it must lock into place. Release and remove the suction head. Clean the electrodes with a brush. Insert and lock the suction head. DANGER First pull out the plug from the mains before carrying out any tasks on the machine. Check the receptacle and the fuse of the power supply. Check the power cable, the power plug and electrodes of the device. Turn on the appliance. Empty the container. Turn off the appliance and wait for 5 seconds, turn it on again after 5 sec- onds. Clean the electrodes as well as the space between the electrodes with a brush. Remove blockages in the suction noz- zle, suction tube, suction hose, or flat pleated filter. Exchange the paper filter bag. Exchange the fleece filter bag (option). Ensure the filter cover properly locks into place. Clean or replace the membrane filter (special accessory) under running wa- ter. Replace the flat pleated filter. Check drain pipe for leaks. Check for proper installation of the flat pleated filter.

Replace the flat pleated filter. Clean the electrodes as well as the space between the electrodes with a brush. Continuously check the filling level in case of non-conductive liquid. Transport Storage Care and maintenance Exchanging the flat pleated filter Cleaning the electrodes Troubleshooting Suction turbine does not run Suction turbine turns off Suction turbine does not start again after the container has been emptied Suction capacity decreases Dust comes out while vacuuming Automatic shut-off (wet vacuum cleaning) does not react 15EN– 5 Suction hose is not connected. Inform Customer Service. Inform Customer Service. If malfunction can not be fixed, the de- vice must be checked by customer ser- vice. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.957-701 The undersigned act on behalf and under the power of attorney of the company man- agement. Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2016/01/01 Automatic filter cleaning is not working Automatic filter cleaning cannot be switched off Automatic filter cleaning cannot be switched on Customer Service Warranty Accessories and Spare Parts EC Declaration of Conformity Product: Wet and dry vacuum cleaner Type: 1.667-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Applied harmonized standards EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 1997+A1: 2001+A2: 2008 EN 60335–1 EN 60335–2–69 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 EN 50581 Applied national standards

www.kaercher.com/REACH

[mm] 174http://www.kaercher.com/dealersearch
