WPS 857 - Food Warmers Rommelsbacher - Free user manual and instructions

Product type	Heat accumulating food warmer
Brand	Rommelsbacher
Model	WPS 857
Nominal voltage	230 V~
Frequency	50 Hz
Heating time	Approx. 8 minutes
Heat retention autonomy	Up to 1 hour
Maximum temperature	120 °C
Surface material	High-quality stainless steel
Heating indicator	Pilot light
Control type	Automatic thermostat with overheat protection
Protection	Integrated thermal cut-out
Power cable	Detachable, with grounded safety plug
Intended use	Domestic and similar (office kitchens, hotels, etc.)
Recommended cookware	Flat bottoms for good thermal contact
Cleaning	Damp cloth and mild dish soap; do not immerse
Safety	Hot surfaces – use oven mitts; do not use as a work surface
Storage conditions	Dry indoor area, out of reach of children
Country of manufacture	Germany
Delivery contents	Appliance, power cable, instruction manual

Frequently Asked Questions - WPS 857 Rommelsbacher

How to use the WPS 857 food warmer?

Plug the power cable into the appliance and then into a grounded outlet. Let it heat for about 8 minutes until the pilot light turns off. Then unplug the cable: the appliance is now autonomous and can keep your dishes warm for up to 1 hour.

How long does it take for the plate to reach its maximum temperature?

The heating time is approximately 8 minutes. The pilot light goes out when the maximum temperature of 120 °C is reached.

What is the heat retention duration after unplugging?

After unplugging the appliance, the accumulated heat keeps food warm for about 1 hour.

Can I leave the appliance plugged in continuously?

Yes, you can leave it plugged in. The built-in thermostat regulates the temperature and acts as overheat protection, automatically turning off the heating element when the maximum temperature is reached and turning it back on if it drops.

What type of cookware can I use?

Preferably use containers with flat bottoms to ensure good thermal contact. Avoid too high edges that would cause heat loss. Cover food for better heat retention.

How to clean the food warmer?

Always unplug the appliance before cleaning. Clean the surface with a damp cloth and a little mild dish soap, then dry. Never immerse the appliance, cable, or plug in water. Do not use a steam cleaner, abrasives, or sharp objects.

What to do if the pilot light does not turn on?

Check that the appliance is properly plugged in and the outlet is powered. If the light still does not turn on, unplug the appliance and have it checked by a specialist. Do not use the appliance if it is damaged.

Is the appliance safe to use around children?

Children under 8 years old must be kept away from the appliance and cord. Children aged 8 and older may use it under supervision and after receiving instructions about the risks. Cleaning must not be done by children unless they are at least 8 years old and supervised.

Can I heat flammable liquids?

No, never use the appliance to heat flammable liquids or easily flammable substances. This poses a fire risk.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. According to the WEEE directive (2012/19/EU), return it free of charge to a municipal collection point or a recycling center for electrical and electronic equipment. You can also donate a working appliance to a charity.

USER MANUAL WPS 857 Rommelsbacher

Abstract geometric pattern with interlocking vertical lines within a circular frame (no text or symbols)

ROMMELSBACHER

Black and white electronic device with a flat top and rounded base, labeled 'BOMMELSBACHER NASCIN-GERMANT' (no additional text or symbols visible)

WPS 857

Wärmespeicherplatte

Heat-storing warming tray

Group of adults and children gathered around a table with food items, engaged in a festive activity (no visible text or symbols)

KOCHEN & BACKEN

GRILLS, RACLETTE & CO

Tischgrill, CERAN® Grills, Kontaktgrills, Sandwich Maker, Raclette Grills und Fondue Set

Black-and-white photo of skewers and meat cuts on a bamboo mat (no text or symbols visible)

Black-and-white photo of assorted fresh foods including milk, cheese, tomatoes, and vegetables (no text or labels visible)

Black and white photo of a heart-shaped coffee cup on a saucer with a spoon, placed on a wooden surface (no text or symbols visible)

Black-and-white photo of various food containers and utensils on a table, including bowls and spoons (no visible text or labels)

KONSERVIEREN

Black-and-white photo of a woman and child cooking together with a blender in the background (no visible text or symbols)

Black-and-white photo of hands holding a bowl of creamy soup with a spoon, placed on a wooden surface (no text or symbols visible)

Black-and-white photo of two children wearing chef hats and aprons, clapping hands in a kitchen setting (no text or symbols visible)

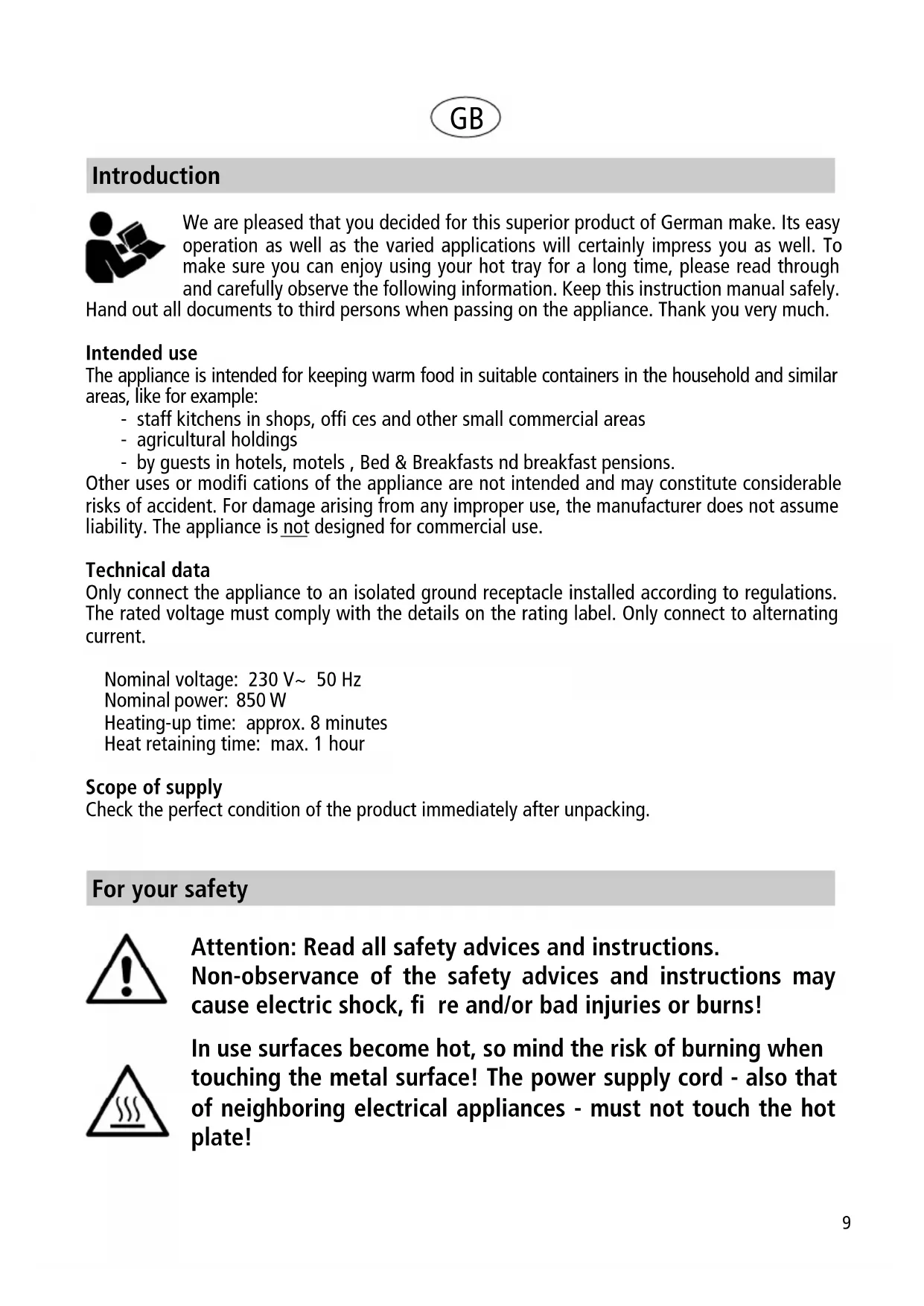

We are pleased that you decided for this superior product of German make. Its easy operation as well as the varied applications will certainly impress you as well. To make sure you can enjoy using your hot tray for a long time, please read through and carefully observe the following information. Keep this instruction manual safely.

Hand out all documents to third persons when passing on the appliance. Thank you very much.

Intended use

The appliance is intended for keeping warm food in suitable containers in the household and similar areas, like for example:

• staff kitchens in shops, offices and other small commercial areas
• agricultural holdings
• by guests in hotels, motels, Bed & Breakfasts nd breakfast pensions.

Other uses or modifications of the appliance are not intended and may constitute considerable risks of accident. For damage arising from any improper use, the manufacturer does not assume liability. The appliance is not designed for commercial use.

Technical data

Only connect the appliance to an isolated ground receptacle installed according to regulations. The rated voltage must comply with the details on the rating label. Only connect to alternating current.

Nominal voltage: 230 V\~ 50 Hz

Nominal power: 850 W

Heating-up time: approx. 8 minutes

Heat retaining time: max. 1 hour

Scope of supply

Check the perfect condition of the product immediately after unpacking.

For your safety

Attention: Read all safety advices and instructions.

Non-observance of the safety advices and instructions may cause electric shock, fi re and/or bad injuries or burns!

In use surfaces become hot, so mind the risk of burning when touching the metal surface! The power supply cord - also that of neighboring electrical appliances - must not touch the hot plate!

General safety advices

• Always keep children under 8 away from the product and the power cord.
• The appliance may be operated by children from the age of 8 years and by persons with handicaps of physical, sensorial or mental nature, who lack knowledge or experience in handling the appliance, if they are supervised or instructed in the safe use of the appliance considered any risks, resulting from it.

- Never leave the appliance unattended during operation.

- Cleaning and maintenance by means of the user must not be carried out by children, unless they are older than 8 years and supervised.

• Children must not play with this appliance.

- Never leave the appliance unattended when operating it. Use it only for the purpose described in this instruction manual.

- Packing material like e. g. foil bags should be kept away from children.

- Put it on a heat-resistant surface and ensure free air circulation.

- Prior to each use, check the appliance and the accessories for soundness. Do not operate it if it has been dropped or shows visible damage. In these cases, disconnect the power supply and have the appliance be checked by a specialist.

- When laying the power cord, make sure that nobody can get entangled or stumble over it so that accidentally pulling the appliance down can be avoided.

- Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.

- For disconnecting the cord from the mains and from the appliance, only pull the plug, never the cord.

- Never immerse appliance, power cord or plug in water for cleaning.

- Do not store the appliance outside or in damp rooms.

- This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be executed by authorized specialist shops only. Improper repairs may result in considerable dangers for the user.

- Do not at all operate this unit with an external timer or a separate tele control system.

- Do not use the appliance's upper side as depositing rack or working top, as it will get hot when operating the appliance! As protection against fire, do generally not put objects made of paper, plastic, fabric or other inflammable material on hot surfaces.

- Improper use and non-observance of the instruction manual will void warranty.

- If the power cord of this appliance is damaged, it must be replaced with a special connection cable available from the manufacturer or its customer service.

Safety advices for using the appliance

Warning: Hazard of injury and burns!

Casing surfaces, placed containers with food and other accessory parts become hot during use and fi rstly stay hot after switch-off! Do not splash cold water on the hot glass surface!

Thus, act with caution:

• We recommend using pot cloths.
• Do not use the appliance's upper side as depositing rack or working top as it will get hot when operating the appliance! As protection against fire, do generally not put objects made of paper, plastic, fabric or other infl ammable material on hot surfaces.
• Do not transport the hot appliance. Appliance and accessories must have cooled completely before cleaning or moving them.
• Observe the following when setting up the appliance:

o Place the appliance on a heat-resistant, stable and even surface (no varnished surfaces, no table cloths etc.).

o Place it beyond children's reach.

o Leave an appropriate ventilation distance to all sides to avoid damage by heat or fat splatters and to grant an unobstructed work area. Unhindered air supply has to be ensured.

o Do not operate the appliance in the vicinity of sources of heat (oven, gas flame etc.) or in explosive environments, where infl ammable liquids or gases are located.

Attention! Hazard of fi re! The freestanding hot tray is not qualified for installation!

• Do not use the appliance as space heater.
• Only use the original detachable power cord.
• Do not use the appliance to heat fl ammable or highly volatile liquids or similar substances.

Pull the power plug after each use for safe switch-off.

Initial use and operation

Attention: Hot surface!

• The heat storing warming tray has a special configuration, which means that the stainless steel tray heats up less in the peripheral zones than in the middle of the surface. This feature prevents an overheating of the gripping areas and minimizes the risk of burns.
• The appliance has a high-quality decorative surface. Please take care to put kitchenware cautiously onto the plate and not to slide it on. Hard china may cause scratches.
• In order to avoid damage, make sure to exclusively use the attached power supply cord.
• Connect the plug for the appliance with the warming tray's power inlet.
• Then plug the safety plug into an earthed socket.
• The warming tray reaches its maximum temperature of about 120^ within approx. 8 minutes.
• The pilot lamp goes out.
• The plug for the appliance can be removed now.
• The appliance is now independent of power supplies and can be used for a great variety of purposes. The cumulated heat will be stored for up to one hour.
• It is possible to keep the appliance connected to the mains for a longer period. The integrated thermostat also serves as a thermal shut-off to prevent overheating. It switches off the heating element automatically as soon as the maximum temperature has been reached. When the temperature drops, the thermostat will start again all by itself and will re-heat the warming tray to maximum temperature. You can see that the thermostat adjusts itself to maintain the temperature by the pilot lamp's going on and off.
• Unplug the appliance after usage!
• Kitchenware with a level bottom, which provides good contact to the surface of the warming tray, is particularly suitable for keeping dishes warm.
• Bottom stand should not be too high since otherwise considerable loss in heat will occur.
• Covering the dishes will increase efficiency of keeping them warm.

Cleaning and maintenance

Always unplug and let cool down the appliance before cleaning! Never immerse appliance, power cord or plug in water for cleaning! Make sure no water or steam may infi Itrate the appliance from below!

• Clean the appliance with a damp cloth and some dishwashing detergent.
• Dry it thoroughly.
• Treat the surfaces with suitable care products from time to time.
• Never use abrasives, solvents, steel wool or pointed objects!
• Never treat the appliance with a steam cleaner!

Disposal/recycling

Packaging material

Do not simply throw the packaging material away but recycle it.

Deliver paper, cardboard and corrugated cardboard to waste paper collection points.

Also put plastic packaging material and foils into the specific collection containers.

The printed or embossed markings indicate the materials which were used: PE stands for polyethylene (code 02 means high-density PE, 04 stands for low-density PE), PS stands for polystyrene and CPE for chlorinated polyethylene. PAP 20 means corrugated cardboard and PAP 21 other cardboard. All plastics are thermoplastics which are very easy and efficient to produce. They are also very easy to recycle and therefore can even have a smaller ecological footprint than comparable cardboard packaging.

NOTE: It is not always possible or reasonable to avoid using plastic packaging. These often have great advantages compared to cardboard because less material has to be used which saves weight which in turn reduces CO_2 consumption. The protective effect in case of impacts or shocks is usually better.

Disposal information

According to the Waste Electrical and Electronic Equipment Directive (2012/19/EU), this product may not be disposed of with other household waste at the end of its service life. Therefore please submit it e.g. at a municipal collection point (e.g. recycling center) according to the laws of your country of residence for the recycling of electrical and electronic appliances. Your municipality or city administration will inform you about the disposal options.

Tip: Give appliances that are no longer required but still functional to a charitable purpose (e.g. as a donation). This does not only improve the environmental balance and ensures more sustainability, but also testifi es to a welcome social commitment.

Rommelsbacher ElektroHausgeräte GmbH is a member of the German "Elektro-Altgeräte Register" (EAR) foundation, which is responsible for ensuring that the German electrical and electronic equipment law is implemented. The foundation is entrusted by the German Federal Environment Agency with the task of ensuring that

old appliances are properly recycled and negative effects on the environment are avoided. Better environmental compatibility through professional disposal and recycling of valuable resources is also part of the focus - this underlines our commitment for extensive sustainability.

Introduction

Elimination/recyclage

QR code image containing encoded data, no visible human-readable text

R2510
