| Product type | Food warmer (heat accumulator plate) |
| Brand | Rommelsbacher |
| Model | WPR 307E |
| Rated voltage | 220-240 V~, 50/60 Hz |
| Rated power | 275-325 W |
| Adjustable temperature range | Approx. 30 °C to 105 °C |
| Usable area | 53 × 32.5 cm (1/1 GN format) |
| Surface material | Thermally tempered float glass |
| Operation indicator | Indicator light integrated into switch |
| Recommended preheating | 15 to 20 minutes |
| Main use | Keeping dishes warm |
| Cleaning | Damp cloth with dish soap, do not immerse |
| Maintenance | Occasionally treat with suitable care product |
| Safety | Never pour cold water on hot glass; use oven mitts |
| Overheating protection | Not specified but built-in thermostat |
| Plug type | Schuko with ground |
| Power cord | Detachable, original only |
| Approximate dimensions | 54 × 33 × 6 cm (estimate) |
| Approximate weight | 4.5 kg (estimate) |
| Repairability | Repairs by qualified professional only |
| Disposal | Do not dispose with household waste – take to recycling center |
Frequently Asked Questions - WPR 307E Rommelsbacher
User questions about WPR 307E Rommelsbacher
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Food Warmers in PDF format for free! Find your manual WPR 307E - Rommelsbacher and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WPR 307E by Rommelsbacher.

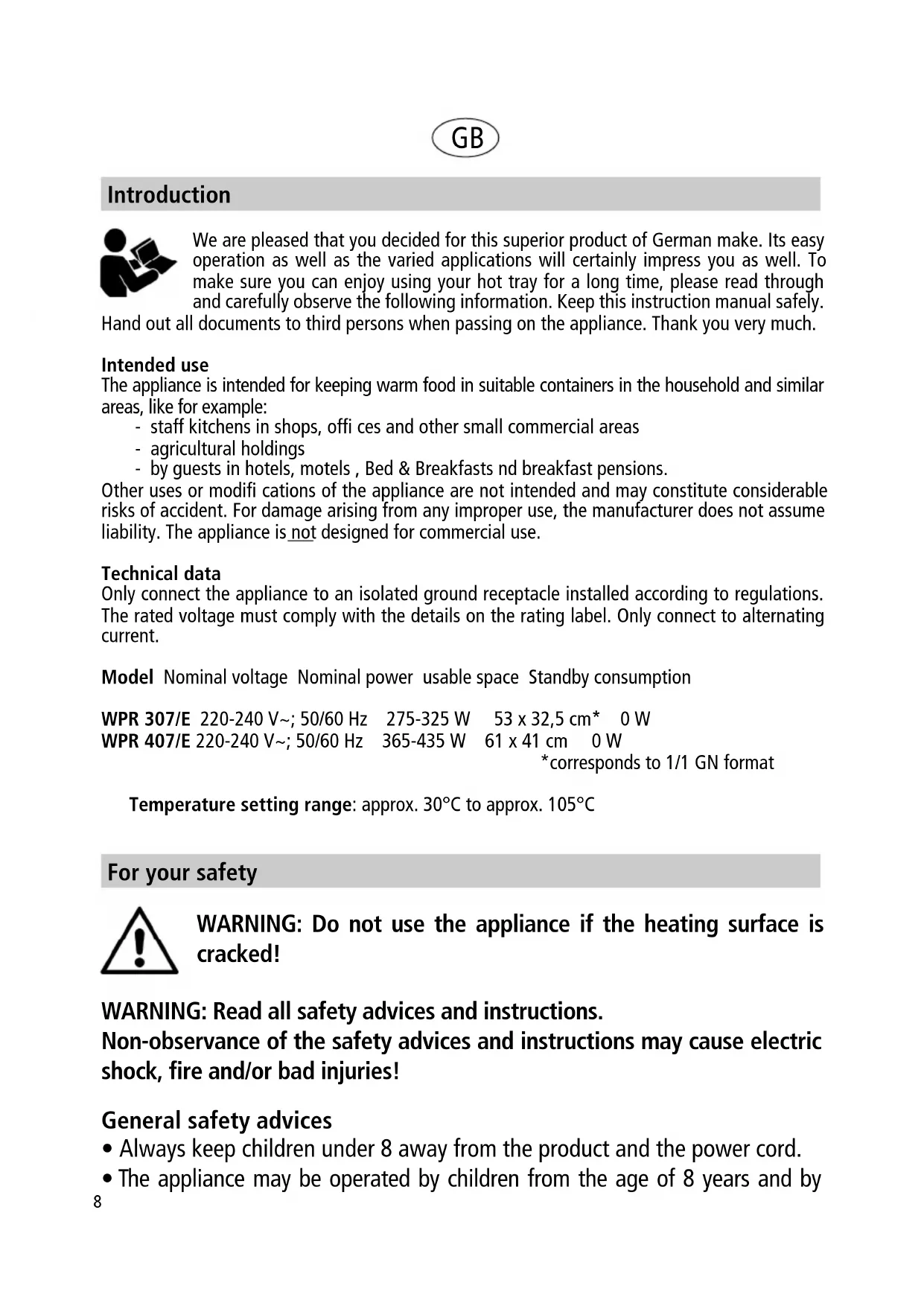

USER MANUAL WPR 307E Rommelsbacher
We are pleased that you decided for this superior product of German make. Its easy operation as well as the varied applications will certainly impress you as well. To make sure you can enjoy using your hot tray for a long time, please read through and carefully observe the following information. Keep this instruction manual safely.
Hand out all documents to third persons when passing on the appliance. Thank you very much.
Intended use
The appliance is intended for keeping warm food in suitable containers in the household and similar areas, like for example:
- staff kitchens in shops, offices and other small commercial areas
- agricultural holdings
- by guests in hotels, motels, Bed & Breakfasts nd breakfast pensions.
Other uses or modifications of the appliance are not intended and may constitute considerable risks of accident. For damage arising from any improper use, the manufacturer does not assume liability. The appliance is not designed for commercial use.
Technical data
Only connect the appliance to an isolated ground receptacle installed according to regulations. The rated voltage must comply with the details on the rating label. Only connect to alternating current.
Model Nominal voltage Nominal power usable space Standby consumption
WPR 307/E 220-240 V~; 50/60 Hz 275-325 W 53 × 32.5 cm^* 0 W
WPR 407/E 220-240 V~; 50/60 Hz 365-435 W 61 x 41 cm 0 W
*corresponds to 1/1 GN format
Temperature setting range: approx. 30^ to approx. 105^
For your safety
WARNING: Do not use the appliance if the heating surface is cracked!
WARNING: Read all safety advices and instructions.
Non-observation of the safety advices and instructions may cause electric shock, fire and/or bad injuries!
General safety advices
- Always keep children under 8 away from the product and the power cord.
- The appliance may be operated by children from the age of 8 years and by
persons with handicaps of physical, sensorial or mental nature, who lack knowledge or experience in handling the appliance, if they are supervised or instructed in the safe use of the appliance considered any risks, resulting from it.
- Never leave the appliance unattended during operation.
- Cleaning and maintenance by means of the user must not be carried out by children, unless they are older than 8 years and supervised.
Children must not play with the appliance. - Packing material like e.g. foil bags should be kept away from children.
- Do not operate this unit with an external timer or a separate tele-control system.
- Prior to each use, check the appliance and the attachments for soundness, it must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by a specialist.
- When laying the power cord, make sure that no one can get entangled or stumble over it in order to avoid that the appliance is pulled down accidentally.
- Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.
- Do not misuse the power cord for unplugging the appliance!
- Never immerse the appliance, power cord and power plug in water for cleaning.
- Do not store the appliance outside or in wet rooms.
- This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be effected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.
- Improper use and disregard of the instruction manual void all warranty claims.
Safety advices for using the appliance
Warning: Hazard of injury and burns!
Casing surfaces, placed containers with food and other accessory parts become hot during use and firstly stay hot after switch-off! Do not splash cold water on the hot glass surface!
Thus, act with caution:
- We recommend using pot cloths.
- Do not use the appliance's upper side as depositing rack or working top as it will get hot when operating the appliance! As protection against fire, do generally not put objects made of paper, plastic, fabric or other inflammable material on hot surfaces.
- Do not transport the hot appliance. Appliance and accessories must have cooled completely before cleaning or moving them.
- Observe the following when setting up the appliance:
o Place the appliance on a heat-resistant, stable and even surface (no varnished surfaces, no table cloths etc.).
o Place it beyond children's reach.
o Leave an appropriate ventilation distance to all sides to avoid damage by heat or fat splatters and to grant an unobstructed work area. Unhindered air supply has to be ensured.
o Do not operate the appliance in the vicinity of sources of heat (oven, gas flame etc.) or in explosive environments, where infl ammable liquids or gases are located.
Attention! Hazard of fire! The freestanding hot tray is not qualified for installation!
- Do not use the appliance as space heater.
- Only use the original detachable power cord.
- Do not use the appliance to heat flammable or highly volatile liquids or similar substances.
Pull the power plug after each use for safe switch-off.
Initial use
Attention: The appliance has a high-quality glass surface made of thermally tempered fl oat glass with integrated heating system. Please be sure to place kitchenware carefully onto the plate and not to slide it on. Hard china may cause scratches.
-
For an effective keeping-warm it is sensible for the hot food to be placed in containers, which have been preheated already. For this purpose, place the heat-resistant containers and trays on the cold hot tray and turn it on.
-
The preheating time should be at least 15 - 20 minutes.
- Ensure not to expose the glass to any excessively heavy temperature flUCTUATIONS. Therefore, put containers with hot foods only on the preheated appliance.
- To keep food warm, kitchenware with bottoms resting well on the surface are particularly suitable. The bigger the surface, the better the heat transfer. The bottom edge at the underside of kitchenware should not be too high, as this will otherwise induce more considerable heat losses. Covering the food allows for it to be kept warm yet more effi cientsly.
- Larger quantities of food in a high container should be stirred and re-shifted time and again in order for the food to be kept warm evenly.
- The appliance is not suited for warming up, defrosting or cooking food.
Operation
- Connect the power cord to the appliance.
- Connect the safety plug to an earthed electrical outlet.
- Then switch the appliance on with the rocker switch. The pilot lamp integrated in the switch will illuminate, indicating that the hot tray is switched on.
- The appliance is equipped with a thermostat, which allows for an infinitely variable temperature setting.
- After use, switch the appliance off and pull the mains plug!
Set the desired temperature with the rotary knob on the side of the appliance:
| 1 approx. 30 °C | 3 approx. 40 °C | 5 approx. 55 °C | 7 approx. 70 °C | 9 approx.85 °C | 12 approx. 105 °C |
Guide values for an empty plate at ambient temperature 23^
Cleaning and maintenance
Always unplug and let cool down the appliance before cleaning. Never immerse appliance, power cord or plug in water for cleaning. Make sure no water or steam may infi ltrate the appliance from below!
- Clean the appliance with a damp cloth and some dishwashing detergent. Dry it thoroughly.
- Treat the surfaces with suitable care products from time to time.
- Never use abrasives, solvents, steel wool or pointed objects!
- Never treat the appliance with a steam cleaner!
Disposal/recycling
Packaging material
Do not simply throw the packaging material away but recycle it.
Deliver paper, cardboard and corrugated cardboard to waste paper collection points.
Also put plastic packaging material and foils into the specific collection containers.
The printed or embossed markings indicate the materials which were used: PE stands for polyethylene (code 02 means high-density PE, 04 stands for low-density PE), PS stands for polystyrene and CPE for chlorinated polyethylene. PAP 20 means corrugated cardboard and PAP 21 other cardboard. All plastics are thermoplastics which are very easy and effi cients to produce. They are also very easy to recycle and therefore can even have a smaller ecological footprint than comparable cardboard packaging.
Disposal information
According to the Waste Electrical and Electronic Equipment Directive (2012/19/EU), this product may not be disposed of with other household waste at the end of its service life. Therefore please submit it e.g. at a municipal collection point (e.g. recycling center) according to the laws of your country of residence for the recycling of electrical and electronic appliances. Your municipality or city administration will inform you about the disposal options.
Tip: Give appliances that are no longer required but still functional to a charitable purpose (e.g. as a donation). This does not only improve the environmental balance and ensures more sustainability, but also testifies to a welcome social commitment.
