USER MANUAL Chateaubriand Klarstein

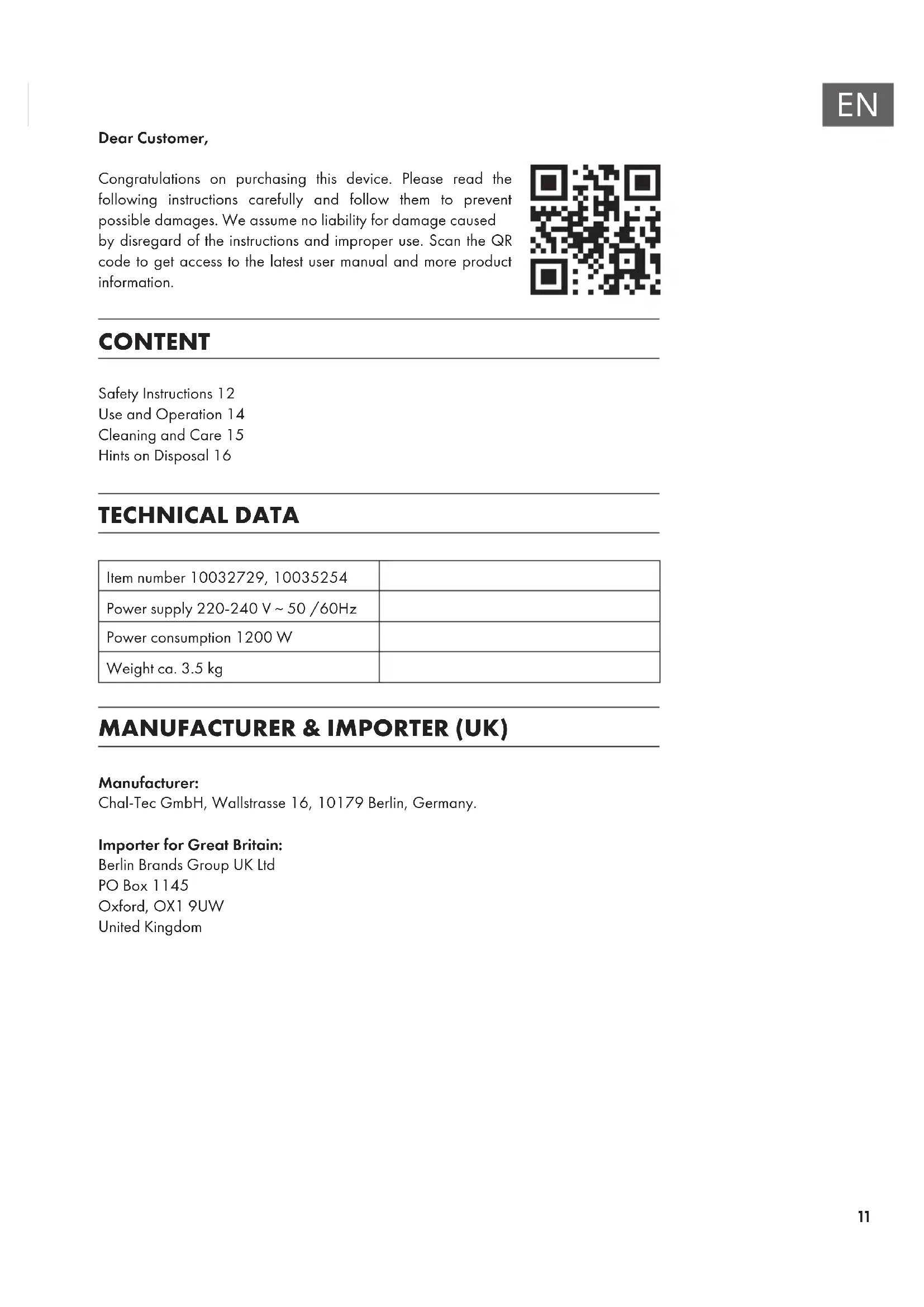

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENT Safety Instructions12 Use and Operation14 Cleaning and Care15 Hints on Disposal16 TECHNICAL DATA Item number 10032729, 10035254 Power supply 220-240 V ~ 50 /60Hz Power consumption 1200 W Weight ca. 3.5 kg MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom12

• Please read these instructions carefully before use in order to avoid damage due to incorrect use and to better understand the functions of this product.

• Please pay particular attention to the safety guide. If you pass the device on to a third party, these Operating Instructions must also be handed over.

• Please keep them for future references.

• Check that your mains voltage corresponds to that stated on the appliance.

• Plug the appliance only into an earthed wall socket.

• Always remove the plug from the wall socket when the appliance is not in use.

• When using an extension lead always make sure that the entire cable is unwound from the reel. Use solely approved extension leads.

• Incorrect operation and improper use can damage the appliance and cause injury to the user.

• The appliance must be used only for its intended purpose. No responsibility can be taken for any possible damage caused by incorrect use or improper handling.

• Never leave the appliance unsupervised when in use.

• Never use this unit near bathtub, shower, wash-hand basins or other containers with water.

• Never use this apparatus near water projections.

• Never use this apparatus with the wet hands.

• If, unfortunately the apparatus is wet, immediately withdraw the cord of the socket- outlet.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

• In order to protect children or frail individuals from the hazards of electrical equipment, Children should be supervised to ensure that they do not play with the appliance. This device is not a toy. Do not allow small children or disabled person to play with it. WARNING DANGER OF SUFFOCATION! Do not allow small children to play with the foil13

• From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly Competent qualied person(*) in order to avoid a hazard.

• Only use the appliance for domestic purposes and household or similar applications such as: - staff kitchen areas, in shops, ofces and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments

• Never immerse the appliance in water or any other liquid for any reason whatsoever.

• Never place it into the dishwasher.

• Never use the appliance near hot surfaces.

• The temperature of accessible surfaces may be very high when the appliance is operating. Never touch these parts, of apparatus, to avoid burning itself.

• Before cleaning, always unplug the appliance from the power supply and let it cool down.

• Never use the appliance outside and always place it in a dry environment.

• Never use accessories, which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.

• Do not wind the cord around the appliance and do not bend it

• Make sure the appliance has cooled down before cleaning and storing it.

• Make sure the appliance never comes into contact with ammable materials, such as curtains, cloth, etc...& the power cord and plug do not come in contact with water.

• Unroll the power cord completely.

• Stand the appliance on a table or at surface.

• Never modify the appliance in anyway. IMPORTANT:

• Never remove the cover to reduce the risk of electric shock. There are no user- serviceable parts inside the unit.

• Never use the unit if the power cord or plug is broken and never attempt to repair the power cord or plug yourself.

• Repairs must always be carried out by the manufacturer, customer service or a qualied person.14

• Before plugging in your new Raclette grill, check to see that the electric circuit is not overloaded with other appliances. This unit should always be operated on a separate 220-240 volt, AC outlet which is able to supply min.16A

• Be certain that your unit is resting level on the countertop. Avoid using pans that are unstable and easily tipped. Place pan under heating element.

• Turn the switch on 1 position. The pilot light will glow indicating the heating element is energized and heating will begin immediately

• The metal surfaces will become hot. Do not touch while is use. When cooking is nished, turn the thermostat back to « O » position.

• The surface is hot when using or before cooled. Never touch the appliance before it’s cooled to avoid scald.

• If the hotplate is not to be in use for a long period of time, it is recommended to unplug unit from the outlet. This helps to prevent accidental burns. Operation

• Plug in the appliance.

• Put the switch at the position “MIN”, the indicator comes on. Pre-heating time is 5 – 8 min for the grill,

• Because the surface is very hot, it is recommended to put the appliance on anti- ame and heat-proof cushion. It is also recommended that the minimal distance between wall or environmentally components is not shorter than 15cm.

• It is possible that slight smoke smell comes out when rst using.

• When rst use, drop some oil on the surface of plate then wipe it with dry cloth.

• In order not to destroy the plating of Teon, when turning or moving food, make sure a wooden shovel is used.

• Don’t put other mini pan which does not match the whole set on the appliance.15

Reasonable care will insure many years of service from your unit. Avoid dropping items on the heating elements.

• Always unplug unit from electrical outlet and allow to cool before cleaning.

• Never immerse in water or other liquid.

• Use damp soapy cloth or sponge to clean surface of hotplate, chrome burner ring, drip pan and base.

• The sponge or cloth should only be damp without water dripping to avoid water leaking into the hotplate.

• Never use harsh abrasives or steel wool pads on any part of unit.

• Any servicing other than cleaning should be performed by an authorized service centre. Important Notes on Cleaning

• A short mains power cable is included to minimize the risk of injury from tripping over or tangled in the cable. If you need a longer cable, you can use an extension cable (not included).

• If you are using an extension cord, make sure the voltage of the cord is at least 16A, 250V or 3000W and place it so that nobody can accidentally trip over it or children can pull the device off the table using the cord.

• The cable must never touch the hot surfaces of the unit. Storage

• Ensure the unit is completely cool and dry.

• Do not wrap the cord around the appliance, as this will cause damage.

• Keep the appliance in a cool, dry place.16

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.17
