Schmelzlette - Grill plate Klarstein - Free user manual and instructions

Product Type	Grill plate / Raclette with grill
Brand	Klarstein
Model	Schmelzlette
Article Number	10032028
Power Supply	220-240 V ~ 50/60 Hz
Power	1500 W
Main Functions	Double-sided grilling (grooved and smooth), stone grill plate, 8 raclette pans, adjustable thermostat
Thermostat	Continuous temperature adjustment, turn fully left to stop
Pan Capacity	8 individual pans
Plate Material	Non-stick coating (not specified in manual, estimate)
Safety	Burn hazard: hot surfaces, do not touch during operation, unplug after use
Care and Cleaning	Pans: warm soapy water; Plates: soft sponge under running water (no dish soap); Base: do not immerse
Removable Parts	Double-sided plate, stone plate, pans
Recommended Preheating	10 minutes
Special Instructions	Lightly grease plates before use, thaw frozen foods before grilling
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
Recycling	Do not dispose of with household waste, deposit at a collection point for electrical appliances

Frequently Asked Questions - Schmelzlette Klarstein

How to use the thermostat of the Klarstein Schmelzlette grill plate?

The thermostat allows you to adjust the temperature. Turn it right to increase heat, left to decrease. To turn off, turn fully left and unplug the device.

How long does it take to preheat the device?

It is recommended to preheat the device for 10 minutes before placing food on it. Turn the thermostat fully right for quick preheating.

How to clean the grill plates and pans?

The pans are cleaned with warm soapy water. The plates are cleaned with a soft sponge under running water, without dish soap. Never immerse the base of the device in water.

Can I use metal utensils on the plates?

It is not recommended to use metal utensils as they may scratch the non-stick coating. Preferably use wooden or silicone utensils.

What to do if the device does not heat up?

Check that the device is plugged in and the thermostat is turned to the right. If the problem persists, contact an authorized professional for repair.

Are the plates and pans dishwasher safe?

No, the plates and pans are not dishwasher safe. Wash them by hand as indicated in the manual to preserve the coating.

What to do in case of excessive smoke during use?

A small amount of smoke may appear during first use; ventilate the room. If smoke persists, reduce the temperature or remove excess grease. Check that the plates are clean.

Can I use frozen foods directly on the grill?

It is recommended to thaw frozen foods before grilling for even cooking and to avoid burns.

How to store the device after use?

Let the device cool completely, clean the plates and pans, then store them in a dry place. Wrap the power cord without bending it.

Is the device safe for children?

The surfaces become very hot. Supervise children and do not leave the device unattended. Children under 8 years old must not use it without supervision.

USER MANUAL Schmelzlette Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

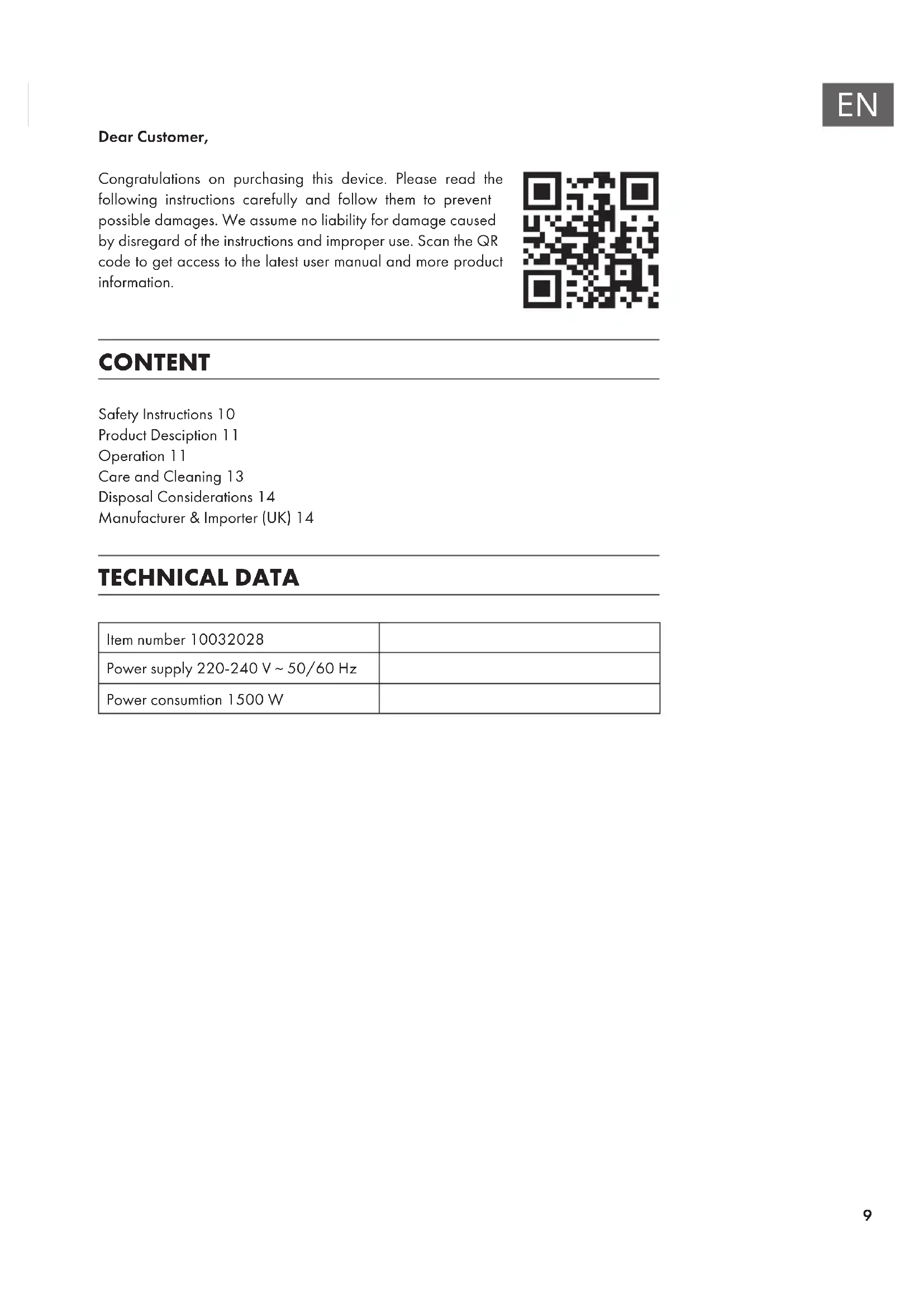

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Product Description 11

Operation 11

Care and Cleaning 13

Disposal Considerations 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Item number 10032028
Power supply 220-240 V ~ 50/60 Hz
Power consumption 1500 W

SAFETYINSTRUCTIONS

• Before the appliance is used, the main body including the power cord as well as any fitted attachment should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

CAUTION

Risk of burns! The surfaces of the appliance, the double-sided grill plate, grill plate and mini-pans become hot during use. Do not touch them.

• Do not leave the appliance unattended while in use.
• This appliance is not intended of use by any person (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Caution: Keep any packaging materials well away from children, as they are a potential source of danger e.g. from suffocation.
• Do not allow the power cord to touch any hot part of the appliance.
• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. When cooking food with a high fat or moisture content, splashes are not always avoidable.
• Do not position the grill next to a wall or corner, and ensure that no infl ammable material is stored near it.
• Before use, the double-sided grill plate and the grill plate must be placed on top of the appliance over the heating element.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always remove the plug from the wall socket: after use, in case of any malfunctions, and before cleaning the appliance.
• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.
• This appliance is intended for domestic use only and not for commercial applications.
• In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.
• If the Supply Cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

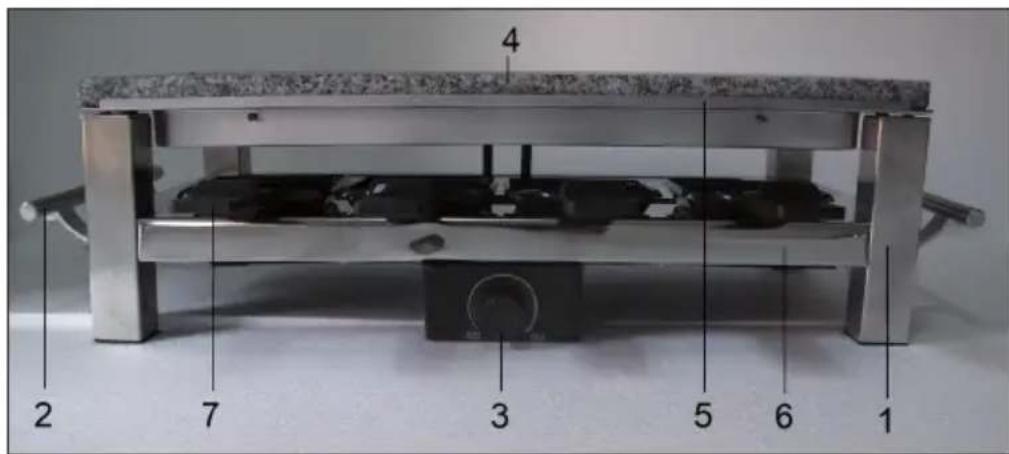

PRODUCT DESCRIPTION

EN

1 Right housing 5 Locating groove on grill	plate
2 Handle 6 Reflecting plate
3 Variable thermostat&Knob 7 Mini pans	(8 pcs)
4 Stone grill plate

OPERATION

Before first use

Remove any packing materials completely. Before using the grill for the first time, clean the double-sided grill plate, grill plate and mini-pans with a damp cloth.

We recommend that you heat up the appliance for about 10 minutes, without any food, to eliminate the smell typically encountered when first switching on a grill. A small amount of smoke may also be noticeable, so the room may have to be ventilated during this period. Before the food is placed on the grill plate, the plate should be lightly greased with a small amount of oil specifically intended for frying, which may be safely heated to high temperatures.

Double-sided grill plate

With the ribbed side facing upwards, the grill plate can be used for grilling in the normal way. The reverse side is suitable for cooking 4 small crepes or pancakes.

Variable thermostat

If the thermostat control is set to its highest setting (hard to right), the heating element will be switched on most of the time. If the thermostat is moved to the lower setting, the heating element will switch off from time to time and then switch on again.

After use, return the thermostat to its lowest setting and unplug the appliance from the mains supply.

Operation

1 Place the grill plate and the double-sided grill plate on the unit, ensuring that the locating groove on the grill plate is properly secured by the corresponding lugs on the holding bracket. For safe operation, the additional ridge on the grill plate must sit securely in front of the lugs on the holding bracket.
2 Insert the plug into a suitable wall socket and push the thermostat all the way to the right.
3 Let the raclette preheat for about 10 minutes before use.
4 If required, place the food to be grilled onto the cooking top.
5 When grilling is finished, unplug the appliance from the mains supply socket.

Important Notes

• Frozen food should always be properly thawed before it is cooked.
• To avoid damage to the coating of grill plate and mini-pans, use only non-abrasive utensils.
• When grilling larger amounts of food, the accumulated fat should be carefully removed from time to time.

CARE AND CLEANING

• Before cleaning the appliance, always make sure that the plug has been removed from the mains supply socket and allow the mains supply socket and allow the appliance to cool down.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use harsh abrasive detergents. Wipe the outer surfaces of the raclette grill with a clean damp cloth. Clean the mini-pans in warm soapy water and dry the thoroughly afterwards.
• Clean the plate with a synthetic sponge under running water without detergent. Wipe thoroughly dry afterwards with a soft cloth. Do not immerse the plate in water.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
