Product Type	Cordless / Corded Electric Inflator
Brand	Craftsman
Model	CMCE520
Power Source	120 V AC, 12 V DC (vehicle adapter) and 20 V max lithium-ion battery (models CMCB201, CMCB202, etc.)
Battery Type	20 V max lithium-ion, compatible with CMCB100, CMCB102, CMCB104 chargers
Display	Digital with PSI, bar, kPa units
Auto Shut-off	Yes, at preset pressure
Inflation Modes	High pressure (tires, balls) and high volume (air mattresses, rafts)
Hoses Included	High-pressure hose and high-volume hose
Accessories Included	Universal valve adapter, inflation needle, brass coupler, standard taper nozzle, taper nozzle for high-volume hose
Usage	Household only
Sleep Mode	Shuts off after 10 minutes of inactivity
AC Cord	120 V with built-in cord wrap
DC Cord	12 V cigarette lighter adapter with cord wrap
Pressure Adjustment Range	Digital display, adjustable (values not specified)
Safety	Overheat protection, auto shut-off, double insulation
Maintenance	Clean with dry compressed air; do not use solvents
Tool Warranty	3 years (material and workmanship defects)
Battery Warranty	2 or 3 years depending on model (CMCB201/2011: 2 years; CMCB202/204: 3 years)
Satisfaction Guarantee	90 days money back guarantee

Frequently Asked Questions - CMCE520 Craftsman

How do I set the auto shut-off pressure?

Press the pressure mode button (5) to select the unit (psi, bar, kPa), then use the + and - buttons (4) to set the desired pressure. After 3 seconds, the screen blinks and returns to 0.0. The device will shut off automatically when the set pressure is reached.

Can I use the device without a battery?

Yes, the inflator can be powered via the 120 V AC cord or the 12 V DC adapter (cigarette lighter). To do so, press the AC/DC power button (1) to select the appropriate source.

How do I switch from high pressure to high volume mode?

Use the power mode button (2): toggle to the side with the tire symbol for high pressure, and to the side with the mattress symbol for high volume. Center position to turn off.

What accessories are included?

Included are: a universal valve adapter (9), an inflation needle (15), a brass coupler (16), a standard taper nozzle (17), and a taper nozzle for the high-volume hose (8). They store on the back of the device.

How do I clean the inflator?

Unplug the device and remove the battery. Use dry compressed air to blow dirt and dust out of the vents. Never use solvents or harsh chemicals. A damp cloth with water and mild soap can be used on exterior surfaces.

What is the battery life?

The 20 V max lithium-ion battery lasts several hundred charge cycles if properly maintained. To optimize its life, charge at room temperature (18-24 °C) and avoid extreme temperatures. Do not leave the battery fully discharged.

What if the screen does not turn on?

First check the power source: charged battery, AC cord plugged in, or 12 V DC adapter connected. If the device is in sleep mode, press the reset/pressure mode button (5) to wake the system. If the problem persists, contact customer service.

Can the inflator be used for car tires?

Yes, the high-pressure mode is designed to inflate car tires, bike tires, etc. Use the high-pressure hose (10) with the universal valve adapter. Set the pressure recommended by the tire manufacturer (usually between 30 and 40 PSI). Do not exceed the maximum pressure indicated on the tire.

How do I store the accessories?

The accessories (needle, coupler, nozzles) store on the back of the device in the designated compartment. The high-pressure hose wraps in its space on the front, the high-volume hose on the side. The AC and DC cords wrap around the built-in cord wraps.

Does the warranty cover the battery?

Yes, the battery is covered by a 2-year warranty for models CMCB201 and CMCB2011, and a 3-year warranty for models CMCB202 and CMCB204. The tool itself has a 3-year warranty. The warranty does not cover normal wear or misuse.

USER MANUAL CMCE520 Craftsman

English (original instructions) 1

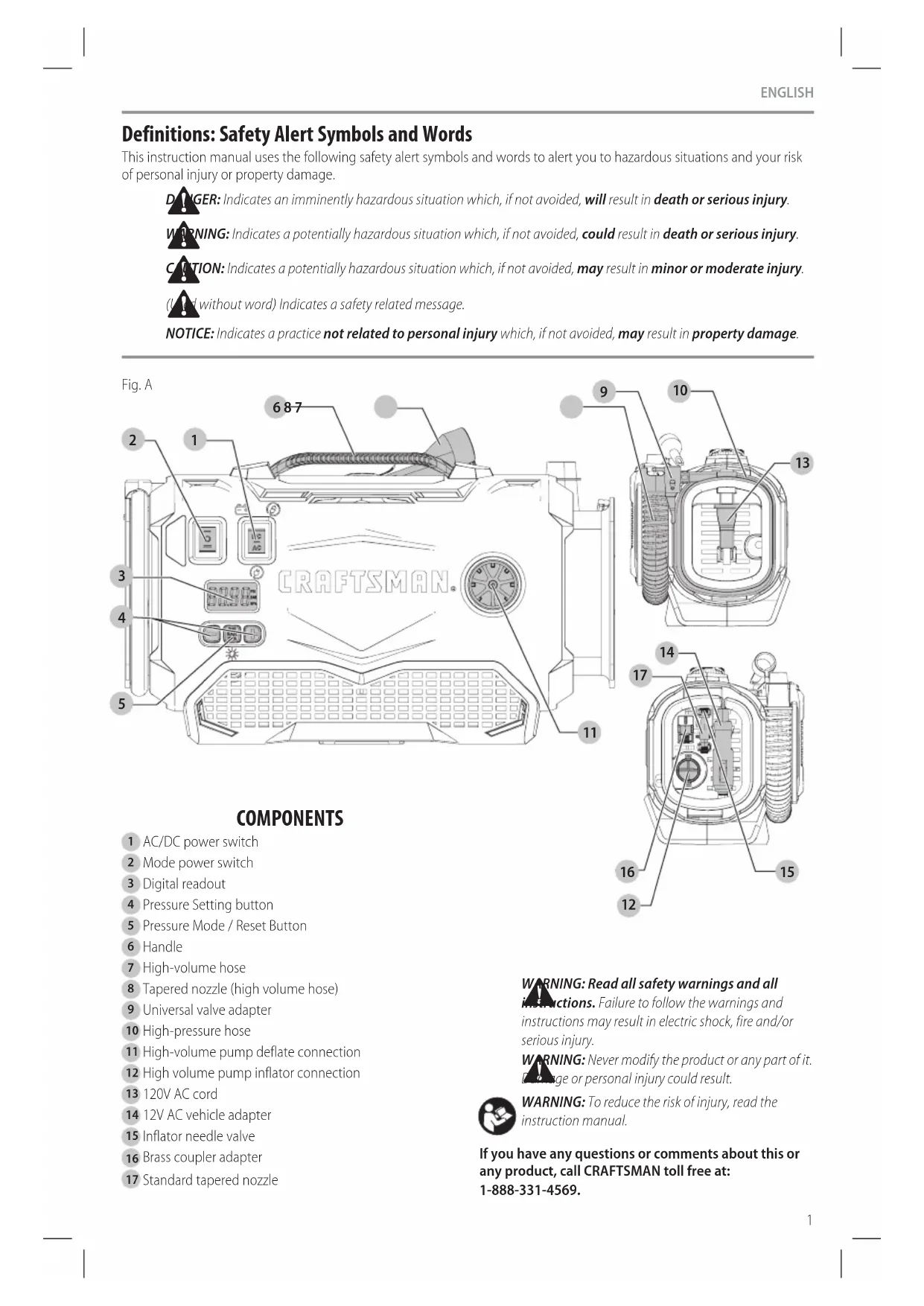

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DAGGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WPNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAITION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

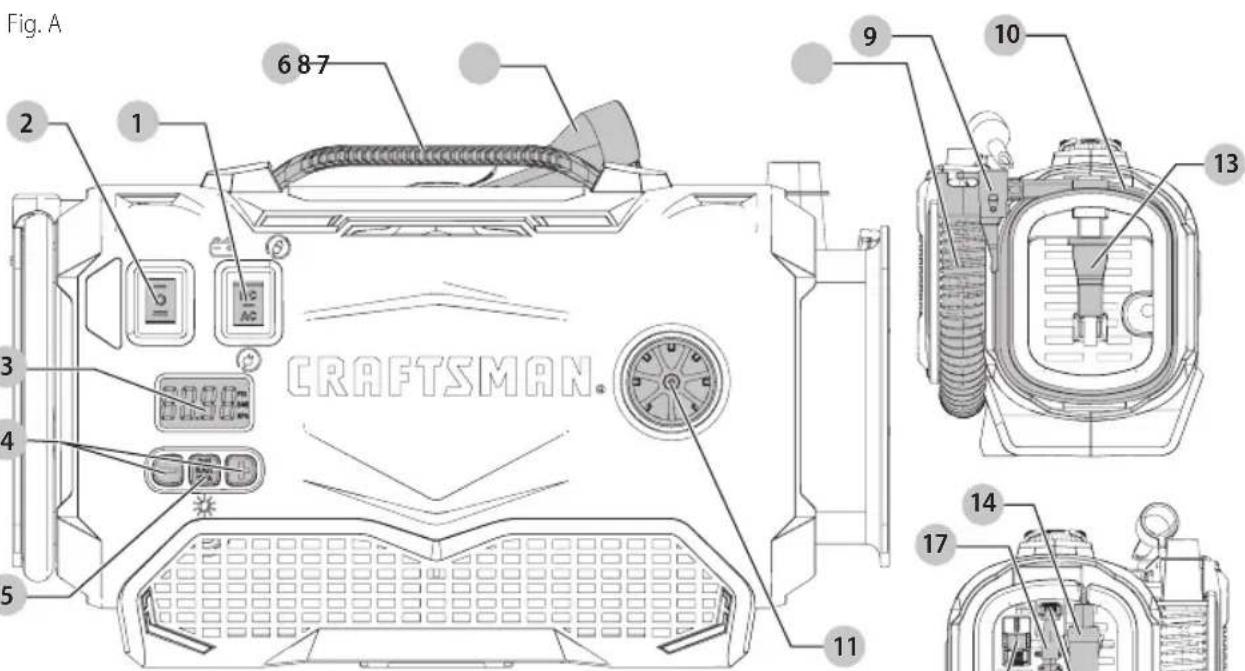

COMPONENTS

1 AC/DC power switch
2 Mode power switch
3 Digital readout
4 Pressure Setting button
5 Pressure Mode/Reset Button
6 Handle
7 High-volume hose
8 Tapered nozzle (high volume hose)
9 Universal valve adapter
10 High-pressure hose
11 High-volume pump deflate connection
12 High volume pump inflator connection
13 120V AC cord
14 12V AC vehicle adapter
15 Inflator needle valve
16 Brass coupler adapter
17 Standard tapered nozzle

WARNING: Read all safety warnings and all

Instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: Never modify the product or any part of it. Damage or personal injury could result.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

20V Max* Inflator CMCE520

IMPORTANT SAFETY INSTRUCTIONS

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE

GER: RISK OF EXPLOSION OR FIRE

What can happen How to prevent it

It is normal for electrical contacts within the motor and pressure switch to spark.	Always operate the unit in a well ventilated area free of combustible materials, gasoline, or solvent vapors.
If electrical sparks from unit come into contact with flammable vapors, they may ignite, causing fire or explosion.	If spraying flammable materials, locate unit at least 20 feet (6.1 m) away from spray area. An additional length of hose may be required.
	Store flammable materials in a secure location away from unit.
Restricting any of the unit ventilation openings will cause serious overheating and could cause a fire.	Never place objects against or on top of unit pump.
	Operate unit in an open area at least 12" (30.5 cm) away from any wall or obstruction that would restrict the flow of fresh air to the ventilation openings.
	Operate unit in a clean, dry well ventilated area. Do not operate unit indoors or in any confined area.
Unattended operation of this product could result in personal injury or property damage. To reduce the risk of fire, do not allow the unit to operate unattended.	Always remain in attendance with the product when it is operating.
	Always turn off and unplug unit when not in use.

ION: RISK FROM NOISE

What can happen How to prevent it

Under some conditions and duration of use, noise from this product may contribute to hearing loss.

Always wear certified safety equipment: ANSI S12.6 (S3.19) hearing protection.

SER: RISK TO BREATHING (xiation)

What can happen How to prevent it

The compressed air directly from your unit is not safe for breathing. The air stream may contain carbon monoxide, toxic vapors, or solid particles from the air tank. Breathing these contaminants can cause serious injury or death.	Air obtained directly from the unit should never be used to supply air for human consumption. In order to use air produced by this unit for breathing, suitable filters and in-line safety equipment must be properly installed. In-line filters and safety equipment used in conjunction with the unit must be capable of treating air to all applicable local and federal codes prior to human consumption.
Exposure to chemicals in dust created by power sanding, sawing, grinding, drilling, and other construction activities may be harmful.	Work in an area with good ventilation. Read and follow the safety instructions provided on the label or safety data sheets for the materials you are spraying. Always use certified safety equipment: OSHA/MSHA/NIOSH respiratory protection designed for use with your specific application.
Sprayed materials such as paint, paint solvents, paint remover, insecticides, weed killers, may contain harmful vapors and poisons.

JING: RISK OF BURSTING

NING: Some dust contains chemicals known

State of California to cause cancer, birth

defects or other reproductive harm such as asbestos and lead in lead based paint.

What can happen How to prevent it

Unauthorized modifications to the inflator, hose or any components which control air pressure..

The inflator is designed to provide specific operating pressures. Never make adjustments or parts substitutions to alter the factory set operation pressures.

Attachments & Accessories:

Exceeding the pressure rating of air tools, spray guns, air operated accessories, tires, and other in fatables can cause them to explode or fly apart, and could result in serious injury.	Follow the equipment manufacturers recommendation and never exceed the maximum allowable pressure rating of attachments.
Tires:
Over inflation of tires could result in serious injury and property damage.	Use a tire pressure gauge to check the tires pressure before each use and while inflating tires; see the tire sidewall for the correct tire pressure. NOTE: Air tanks and inflators can fill small tires very rapidly. Adjust pressure regulator on air supply to no more than the rating of the tire pressure. Add air in small increments and frequently use the tire gauge to prevent over inflation.

WIPING: RISK OF ELECTRICAL SHOCK

WARNING: This appliance has a polarized plug (made is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

What can happen How to prevent it

Your unit is powered by electricity. Like any other electrically powered device, if it is not used properly it may cause an electric shock.	Never operate the unit outdoors when it is raining or in wet conditions.
	Never operate unit with protective covers removed or damaged.
Repairs attempted by unqualified personnel can result in serious injury or death by electrocution.	Any repairs required on this product should be performed by authorized service center personnel.
Electrical Grounding: Failure to provide proper power to this product could result in serious injury or death from electrocution.	Make certain that the electrical circuit to which the unit is connected provides, correct voltage and adequate fuse protection.

WITING: RISK FROM FLYING OBJECTS

What can happen How to prevent it

The compressed air stream can cause soft tissue damage to exposed skin and can propel dirt, chips, loose particles, and small objects at high speed, resulting in property damage or personal injury.	Always wear certified safety equipment: ANSI Z87.1 eye protection (CAN/CSA Z94.3) with side shields when using the unit.
	Never point any nozzle or sprayer toward any part of the body or at other people or animals.
	Always turn the unit off and bleed pressure from the air hose and air tank before attempting maintenance, attaching tools or accessories.

ENGLISH

WARNING: RISK OF HOT SURFACES

What can happen How to prevent it

Touching exposed metal such as the unit head, engine head, engine exhaust or outlet tubes, can result in serious burns.	Never touch any exposed metal parts on unit during or immediately after operation. Unit will remain hot for several minutes after operation.
	Do not reach around protective shrouds or attempt maintenance until unit has been allowed to cool.

WARNING: RISK FROM MOVING PARTS

What can happen How to prevent it

Moving parts such as the pulley, flywheel, and belt can cause serious injury if they come into contact with you or your clothing.	Never operate the unit with guards or covers which are damaged or removed
	Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
	Air vents may cover moving parts and should be avoided as well.
Attempting to operate unit with damaged or missing parts or attempting to repair unit with protective shrouds removed can expose you to moving parts and can result in serious injury.	Any repairs required on this product should be performed by authorized service center personnel.

WIPINING:RISK OF UNSAFE OPERATION

What can happen How to prevent it

Unsafe op er a tion of your air unit could lead to se ri ous in ju ry or death to you or others.	Review and understand all instructions and warnings in this manual.
	Becomefamiliarwiththeoperation and con trols of the air unit.
	Keep operating area clear of all persons, pets, and obstacles.
	Keep chil dren away from the air unit at all times.
	Do not operate the product when fatigued or under the influence of alcohol or drugs. Stay alert at all times.
	Never defeat the safety fea tures of thisproduct.
	Equip area of operation with a fire extinguisher.
	Do not op er ate machine with missing, broken, or unauthorizedparts.
	Never stand on the unit.

What can happen How to prevent it

A portable unit can fall from a table, workbench, or roof causing damage to the unit and could result in serious injury or death to the operator.

Always operate unit in a stable secure position to prevent accidental movement of the unit. Never operate unit on a roof or other elevated position.

WARNING: FOR HOME AND CAR USE ONLY:

Inflate bike tires, balls, rafts, swimming pool floats, air mattresses, and more in and around the home. Recommended maximum continuous duty at 65 p.s.i.g. is 2 minutes on with 5 minutes off.

WIPING: LIQUID CRYSTAL DISPLAY FLUID

If liquid crystal comes in contact with your skin	Wash area off completely with plenty of water. Remove contaminated clothing.
If liquid crystal gets into your eye Flush	the affected eye with clean water and then seek medical attention.
If liquid crystal is swallowed Flush your	ur mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medical attention.

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/ or perse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet(meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
06 18	16 16 14
6 10	18 16 14 12
10 12	16 16 14 12
12 16	14 12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.........volts	.../min...........per minute
Hz..........hertz	BPM..........beats per minute
min..........minutes	IPM..........impacts per minute
=or DC......direct current	RPM..........revolutions per

Class I Construction (grounded)

sfpm	surface feet per minute	./min or .min-1. Revolutionsor Reciprocations per minute
SPM	strokes per minute
OPM	oscillations per minute	2 ~ twophase alternating current
A	amperes	2N ~ twophase alternating current with neutral
W	watts
~ or AC	alternating current
~ or AC/DC	alternating or direct current	3 ~ threephase alternating current
□	Classll Construction (double insulated)	3N ~ threephase alternating current with neutral
no	no load speed	rated current of the appropriate fuse-link in amperes
n	rated speed
±	earthing terminal	time-logminiature fuse-link where X is the symbol for the time/current characteristic, as given in IEC 60127-3
▲	safety alert symbol
▲	visible radiation
▲	avoid staring at light
●	wearrespiratory protection
●	weareye	IPXX IPsymbol
●	protection	PSI Pounds per square inch
●	wearhearing
●	protection	kpa kilopascal
●	readall documentation

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging procedures outlined. When ordering replacement battery packs, be sure to include the catalog number and voltage.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust or fumes.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury.
- Charge the battery packs only in CRAFTSMAN chargers.
DO NOT splash or immerse in water or other liquids.
- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104^ (40^) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, dry location.

NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be harmful if exposed to spark or flame.
WARNING: Fire hazard. Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center for recycling.

Storage Recommendations

1. The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.
2. For long storage, it is recommended to store a fully charged battery pack in a cool dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Battery Pack Cleaning Instructions

1. Dirt and grease may be removed from the exterior of the battery using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

ENGLISH

The RBRC Seal

The RBRC^® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium-ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery

packs) at the end of their useful life have already been paid by CRAFTSMAN. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle program provides an environmentally conscious alternative.

Call 2 Recycle, Inc., in cooperation with CRAFTSMAN and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery.

RBRC is a registered trademark of Call 2 Recycle, Inc..

Transportation

WARNING: Fire hazard. Do not store or carry the heavy pack so that metal objects can contact

exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the

like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ION batteries should not be put in checked baggage.

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN charger and battery pack are specifically designed to work together.
- These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable batteries.

Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose the charger to rain or snow.
• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug and cord.
• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock or electrocution.
• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet(meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
• Do not operate the charger with a damaged cord or plug—have them replaced immediately.
• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized service center.
• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of

electric shock. Removing the battery pack will not reduce this risk.

NEVER attempt to connect 2 chargers together.
- The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

WARNING: Shock hazard. Do not allow any liquid to get inside the charger. Electric shock may result.

WARNING: Burn hazard. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only CRAFTSMAN rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.

Charging a Battery

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.

1. Plug the charger into an appropriate outlet before inserting battery pack.
2. Connect the charger and battery pack, making sure the battery is fully seated. The (charging) light will blink continuously indicating that the charging process has started.
3. The completion of charge will be indicated by the light remaining ON continuously. The battery pack is fully charged and may be removed and used at this time or left in the charger.

NOTE: To remove the battery pack, some chargers require the battery pack release button to be pressed.

Indicators

Charging

Fully Charged

Hot/Cold Pack Delay

A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger.

NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized service center.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack may charge at a slower rate than a warm battery pack.

Important Charging Notes

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ - 75^ (18^ - 24^) . DO NOT charge when the battery pack is below +40^ (+4.5^) or above +104^ (+40^) . This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to the touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance;
b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights;
c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65^ - 75^(18^ - 24^)
d. If charging problems persist, take the tool, battery pack and charger to your local service center.

1. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
2. Foreign materials of a conductive nature such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting to clean.
3. Do not freeze or immerse the charger in water or any other liquid.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

ENGLISH

Wall Mounting

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1^ (25.4 mm) long, with a screw head diameter of 0.28-0.35" (7-9 mm), screwed into wood to an optimal depth leaving approximately 7/32" (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

Versatrack

CRAFTSMAN chargers can be mounted to the wall using CRAFTSMAN Versatrack Trackwall. Hooks and accessories are sold separately. Please refer to the Versatrack Trackwall accessory sheet for further information.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

Intended Use

This inflator is designed for household use.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

THIS PRODUCT USES THE BATTERY AND CHARGER LISTED IN THE CHART BELOW

Description Catalog Number

20V Max* Lithium-Ion Battery CMCB201, CMCB2011

CMCB202, CMCB204,

CMCB205

20V Max* Lithium-Ion Battery Charger CMCB100, CMCB102,

CMCB104

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

Storage (Fig. A)

12V AC Adapter Storage

Wrap the 12V AC cord around the cord retainer located in the side of the inflator and snap the 12V AC connector into its storage location on the cord retainer.

120V AC Cord Storage

Coil the 120V AC cord 13 into its storage location located on the side of the inflator.

Air Hose Storage

The high-pressure hose 10 is located in a storage channel around the face of the unit. Wrap the high-pressure hose inside the channel.

High-Volume Hose Storage

The high-volume hose 7 is located in a storage channel around the side of the unit. Wrap the high-volume hose inside the channel.

Accessories Storage

The accessories 15, 16, and 17 are stored in the back of the unit inside the accessory storage area.

Fitting the Accessories

Universal Valve Adapter (Fig. B)

Your inflator is supplied with the inflator needle valve 15, a brass coupler 16, and the standard tapered nozzle 17, located on the side of the unit.

1. To use the universal valve adapter 9, make sure the lever is in the up position.
2. Place the valve adapter over the stem of the inflator needle valve, brass coupler adapter or standard tapered nozzle.
3. Press the lever 18 on the universal valve adapter down to lock it in place.
4. Place the inflator needle valve, brass coupler adapter or tapered nozzle into the item to be inflated.

NOTE: Always make sure that the lever is in the up position when not in use. Operate your inflator only with the universal valve adapter or with the included nozzles.

NOTE: Make sure the universal valve adapter is firmly locked in place before turning the inflator on.

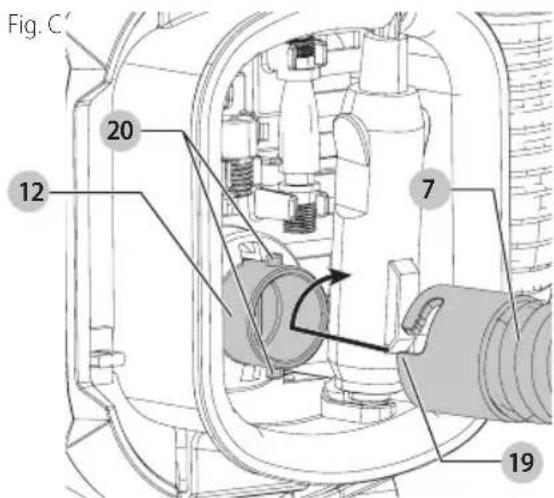

High-Volume Hose (Fig. C)

1. Remove the high-volume hose 7 from the storage location.
2. Line up the notches 19 of the hose with the nubs 20 of the high volume pump inflator connection 12.

Then, slide the hose on and twist counter-clockwise to secure.

1. To remove, twist the hose clockwise and slide hose off.

NOTE: Many inflatable have an internal flap that prevents air loss during inflation, especially air mattresses. Unless this flap is displaced by the nozzle the inflatable will not inflate. Push the nozzle firmly into the valve to make sure that you push this flap out of the way.

WARNING: Risk of Bursting. Excessive air pressure may cause a hazardous risk of bursting or personal injury. Check the manufacturer's maximum pressure rating for items being inflated.

NOTE: If the pressure rating for the item being inflated is above 100 p.s.i.g., note that the maximum run time is 10 minutes, leave to rest for 20 minutes before reusing.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

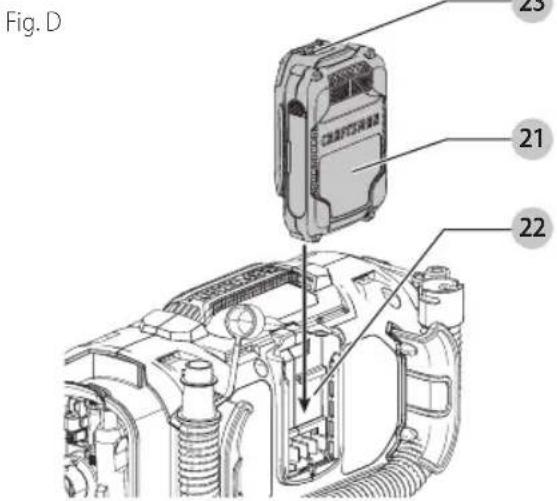

Installing and Removing the Battery Pack (Fig. D)

NOTE: For best results, make sure your battery pack is fully charged.

To install the battery pack 21 into the inflator, align the battery pack with the rails inside inflator's battery port 22 and slide it into the port until the battery pack is firmly seated and ensure that it does not disengage.

To remove the battery pack from the tool, press the release button 23 and firmly pull the battery pack out of the tool handle. Insert it into the charger as described in the charger section of this manual.

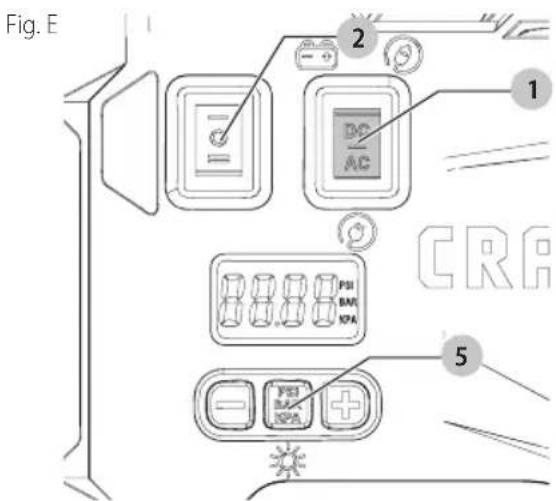

Switching On (Fig. A, E)

WARNING: Risk of Bursting. Do not leave unit running unattended. Overinflation of tires and other items could result in serious injury and property damage.

nOTE: When power is supplied to the inflator by 12V, 20V battery, or 120V AC the digital readout display will remain on for approximately 10 minutes before the display shuts off/goes into sleep mode. This occurs when the unit is not operating. To wake up the system, the user will need to push the pressure mode / reset button 5. At this time the digital readout will turn on and the inflator is ready for use. Before switching your inflator on, decide which power source you will be using; 12V AC adapter, 120V AC plug or a 20V Max* battery pack.

To use the 12V AC adapter, or 20V Max* battery pack press the AC/DC power switch 1 located on the front of the unit to DC.

• If using the 12V AC vehicle adapter 14, always fully extend the 12V AC cord before each use.
• Connect the 12V AC vehicle adapter 14 into your vehicles 12V AC accessory socket.

To use the 120V AC cord, press the AC/DC switch located on the front of the unit to AC.

-If using the 120V AC cord 13, always fully extend the cord before each use.
- Connect the 120V AC cord 13 into either a wall outlet or an appropriate sized extension cord that is plugged into a wall outlet.

English

To Turn on High-Volume

The high-volume hose is meant to be used for objects that hold large amounts of air, such as air mattresses, rafts, and swimming pool floats.

NOTE: The high-volume mode DOES NOT have an auto shut-off feature.

1. Attach the high-volume hose 7 to the high volume pump inflator connection 12 as described in the High Volume Hose section.
2. Insert the high-volume hose 7, or it's tapered nozzle 8 into the object being inflated.
3. Press the high-volume side of the mode power switch 2, indicated by the air mattress symbol.
4. To turn off, push the power switch to the center position.

To Turn on High-Pressure

The high-pressure hose is meant to be used for objects that need more air pressure, such as tires and basketballs.

1. Remove the high-pressure hose 10 from the storage.
2. Attach a nozzle as described in the Universal valve adapter section.
3. Insert the nozzle into the object being inflated.
4. Press the high-pressure side of the mode power switch 2, indicated by the tire symbol.
5. To turn off, push the power switch to the center position.

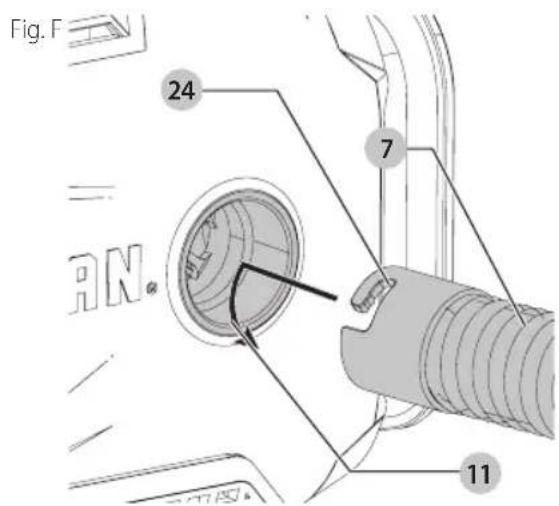

Deflate Using the High-Volume Hose

(Fig. A, F)

WARNING: Beware of objects being ejected. Deflating, large amounts of air will exit the high volume pump inflator connection 12. Ensure the universal valve adapter is not pointed at anyone or anything.

1. Remove the high-volume hose 7 from the storage location.
2. Line up the hose end 24 with the high-volume pump deflate connection 11 . Then, firmly slide in the hose so it is securely in place.

3. Insert the hose, or it's tapered nozzle 8 into the object being deflated.

4. Press the high-volume side of the mode power switch 2, indicated by the air mattress symbol.

5. To turn off, push the power switch to the center position.
6. To remove the hose, twist the hose counterclockwise and slide hose off.

Setting the Automatic Shut-Off Pressure (Fig. A)

nOTE: The digital readout will only show inflation pressures when the inflator is being used. In both inflation and pump mode the unit will show battery status.

1. To switch between the different units (psi, bar or kPa), press the pressure mode-reset button 5 until the required units are displayed.
2. Press the - or + pressure setting buttons 4 until the required pressure is displayed.
3. After 3 seconds the display will flash and return to a reading of "0.0". This is normal.
4. Connect the universal valve adapter 9 and accessories if required, to the item to be inflated, making sure that the lever of the universal valve adapter is in the down position to lock it in place.
5. To start the inflator press the mode power switch 2, towards the side of the tire symbol.
6. When the item to be inflated has reached the preset value the unit will automatically turn off. NOTE: You may notice the actual pressure reading may drop after a couple of seconds. This is normal.
7. To stop the inflator at any time, press the main power button back to the center position.

NOTE: If the AC/DC power switch is turned off, all settings will be lost and will need to be reentered. This is a safety feature to prevent the risk of items OVER INFLATING.

Using the Inflator as a Pressure Gauge

1. Connect the universal valve adapter 9 to the item to be checked.
2. Press the mode power switch 2, on the side of the tire symbol.

3. The digital readout will display the item's pressure.

4. After checking, press the mode power switch 2 back to the center position and return the air hose to the storage location.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and and disconnect it from power source and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start-up can cause injury.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Repairs

The charger and battery pack are not serviceable. There are no servicable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and HACKEY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

In a double-insulated product, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated product, nor should a means for grounding be added to the product. Servicing of a double-insulated product requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement parts for a double-insulated product must be identical to those parts in the product.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
  CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/registration

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDING ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB201, CMCB2011

3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS

CMCB202, CMCB204

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted by law.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund - no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

NOTE: For best results, make sure your battery pack is fully charged.
