PW1522 MKII - Loudspeaker Auna - Free user manual and instructions

Product Type	15" Passive Speaker
Brand	Auna
Model	PW1522 MKII
RMS Power Handling	400 W
Max Power Handling	800 W
Impedance	8 Ω
Frequency Range	30 Hz - 18 kHz
Max SPL	97 dB
Dimensions	47.5 x 52 x 31 cm
Weight	10 kg
Cabinet Material	Wood with scratch-resistant black felt coating
Protective Grille	Solid metal grille
Connectivity	1x speakon input, 1x speakon output, 2x 6.3 mm jack inputs, 1x stereo screw terminal input
Recommended Use	Mobile discos or permanent installation
Cleaning	Soft cloth or cotton with neutral solution
Safety Instructions	Do not overload, protect from moisture, do not open
Recycling	Do not dispose with household waste, take to collection point

Frequently Asked Questions - PW1522 MKII Auna

What is the power rating of the Auna PW1522 MKII speaker?

The speaker has a power handling of 400 W RMS and a max power of 800 W.

What are the dimensions and weight of the speaker?

The dimensions are 47.5 x 52 x 31 cm and the weight is 10 kg.

What types of connections are available?

The speaker has 1 speakon input, 1 speakon output, 2 6.3 mm jack inputs and 1 stereo screw terminal input.

What is the impedance of the speaker?

The impedance is 8 Ω.

What is the frequency response?

The frequency range is 30 Hz to 18 kHz.

How to clean the speaker?

Use a soft cloth or cotton dampened with a neutral solution. Do not use harsh or abrasive products.

Can I use the speaker outdoors?

The speaker is not designed for outdoor use without protection. Avoid exposure to rain or moisture.

Is the speaker suitable for a stand or tripod?

Yes, it has a tripod mounting adapter.

What to do during a thunderstorm or prolonged non-use?

Unplug the power cord to prevent damage from lightning or power surges.

How to recycle the speaker at end of life?

Do not throw it away with household waste. Take it to a collection point for electrical and electronic equipment.

USER MANUAL PW1522 MKII Auna

INHALTSVERZEICHNIS

Three-panel image showing electronic components: a USB plug, a wire with a T-junction, and an electrical socket (no text or symbols visible)

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

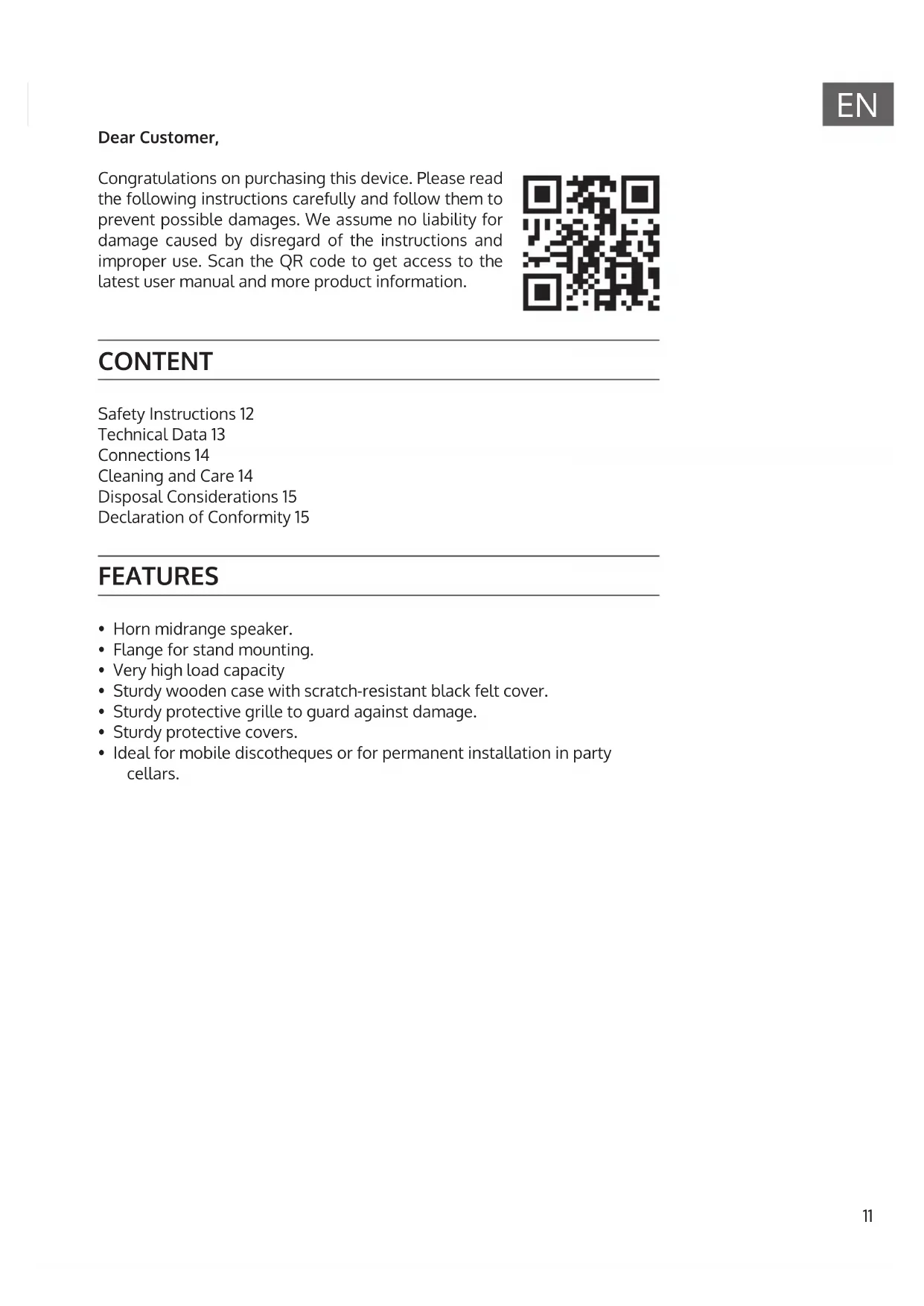

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12

Technical Data 13

Connections 14

Cleaning and Care 14

Disposal Considerations 15

Declaration of Conformity 15

FEATURES

• Horn midrange speaker.
• Flange for stand mounting.
  • Very high load capacity
• Sturdy wooden case with scratch-resistant black felt cover.
• Sturdy protective grille to guard against damage.
  • Sturdy protective covers.
• Ideal for mobile discotheques or for permanent installation in party cellars.

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

- Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

- Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children should be supervised to ensure that they do not play with the appliance.
• Ensure children and babies do not play with plastic bags or any packaging materials.
• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.

TECHNICAL DATA

Item number 10034998	10034999 10035000
Name PW1022 PW1222 PW1522
Power 200 W 300 W 400 W
Power max. 400 W 600 W 800 W
Size Subwoofer 10" 12" 15"
Connections	1x PA input. 1x PA output. 2x 6.3 mm jack input.1x gold plated stereo screw terminal input
Sound pressure max. 95	dB 96 dB	97 dB
Impedance	8 Ω	8 Ω	8 Ω
Frequency range	50 Hz - 18 kHz	30 Hz - 18 kHz	30 Hz - 18 kHz
Dimensions	36 x 46.5 x 31 cm	36 x 52 x 31 cm	47.5 x 52 x 31 cm
Weight	10.2 kg 10 kg	10 kg

CONNECTIONS

Three-panel image showing electronic components: a USB plug, a wire with a T-junction, and an electrical socket (no text or symbols visible)

CLEANING AND CARE

• Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker. Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
• If the speaker is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
• Do not drop small items or a liquid into the speaker.
• In the event that you find small items or a liquid inside the speaker, you see smoke or smell an odour, immediately disconnect the speaker from the power grid. send the speaker to an authorised service centre.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type PW-1022 / PW-1222 / PW-1522 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035000

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type PW-1022 / PW-1222 / PW-1522 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035000
