| Brand | Auna |
| Model | PA220P PA |
| Product type | Passive speaker |
| Item number | 10002679 |
| Rated power handling | 2 x 500 W |
| Maximum power handling | 500 W |
| Speaker size | 2 x 8\" (20.32 cm) subwoofer |
| Impedance | 8 Ohms |
| Frequency response | 50 Hz - 20 kHz |
| Maximum sound pressure | 93 dB |
| Connections | 1 x set of stereo binding posts |
| Dimensions (W x H x D) | 29 x 48 x 25 cm |
| Weight | 12.97 kg |
| Cabinet material | Wood with scratch-resistant black felt coating |
| Protective grille | Yes, sturdy metal grille |
| Tripod adapter | Yes, integrated |
| Recommended use | Mobile DJ setups, permanent installation in basements |
| Care and cleaning | Soft cloth or cotton with neutral solution; avoid harsh chemicals |
| Safety instructions | Disconnect during thunderstorms or prolonged non-use; do not open; have repairs done by a professional |
| Recycling | Do not dispose of with household waste; take to a WEEE collection point |
Frequently Asked Questions - PA220P PA Auna
User questions about PA220P PA Auna
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Loudspeaker in PDF format for free! Find your manual PA220P PA - Auna and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PA220P PA by Auna.
USER MANUAL PA220P PA Auna
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom

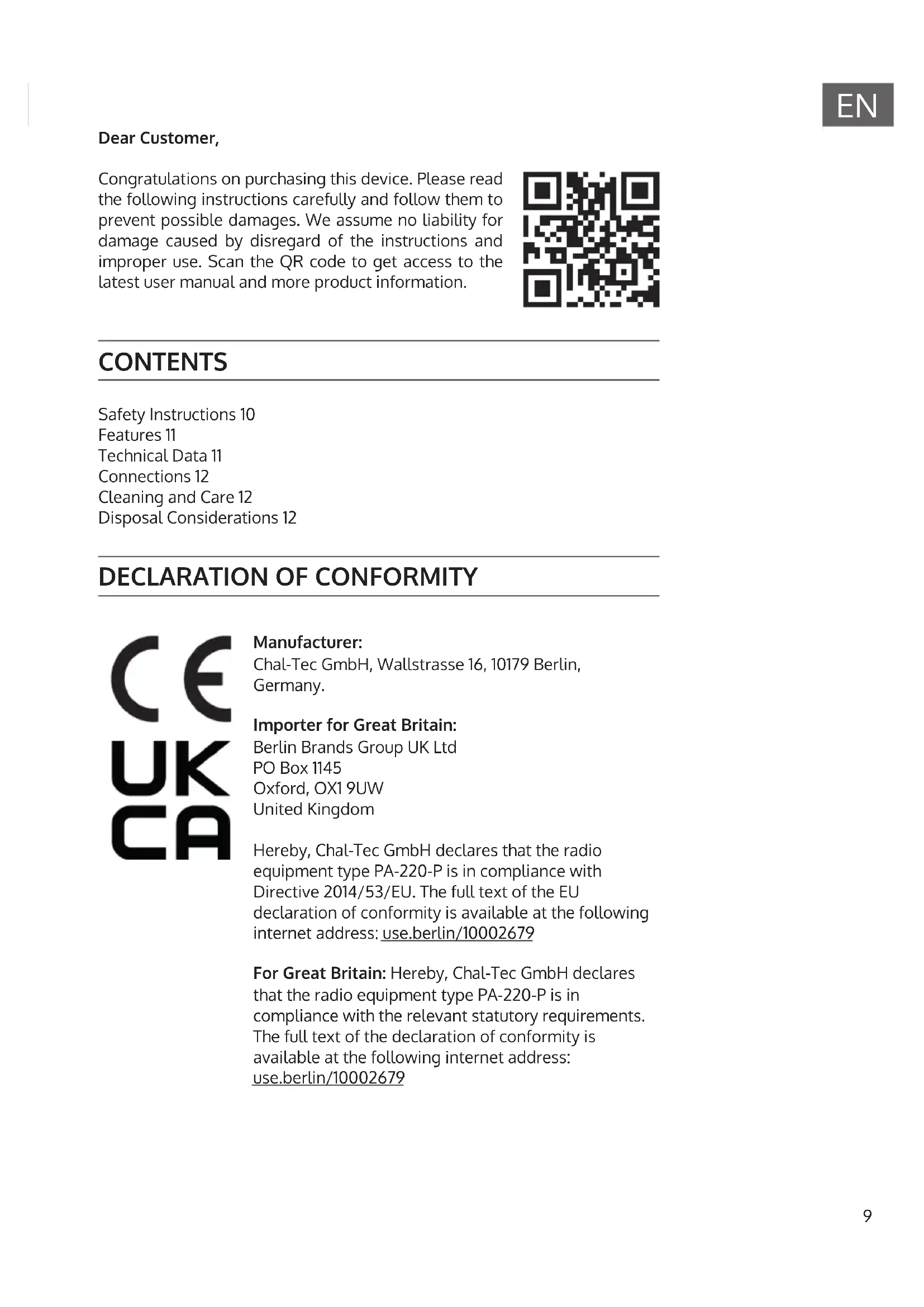

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
CONTENTS
Safety Instructions 10
Features 11
Technical Data 11
Connections 12
Cleaning and Care 12
Disposal Considerations 12
DECLARATION OF CONFORMITY
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Hereby, Chal-Tec GmbH declares that the radio equipment type PA-220-P is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10002679
For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type PA-220-P is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10002679
SAFETY INSTRUCTIONS
General information
- Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
- Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
- Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
- Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
- Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:
a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.
- Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.
- Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).
Special Instructions
- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
Children should be supervised to ensure that they do not play with the appliance. -
Ensure children and babies do not play with plastic bags or any packaging materials.
-
Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
- In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.
FEATURES
- Horn midrange speaker.
- Flange for stand mounting.
- Very high load capacity
- Sturdy wooden case with scratch-resistant black felt cover.
- Sturdy protective grille to guard against damage.
Sturdy protective covers. - Ideal for mobile discotheques or for permanent installation in party cellars.
TECHNICAL DATA
| Item number 10002679 | |
| Designation PA-220-P | |
| Load capacity 2x 500 W | |
| Load capacity max. 500 W | |
| Size Subwoofer 2 x 8" | |
| Connections 1 x set of stereo clamps | |
| Sound pressure max. 93 dB | |
| Impedance 8 Ohm | |
| Frequency range 50 Hz - 20 kHz | |
| Dimensions 29 x 48 x 25 cm | |
| Weight 12.97 kg |

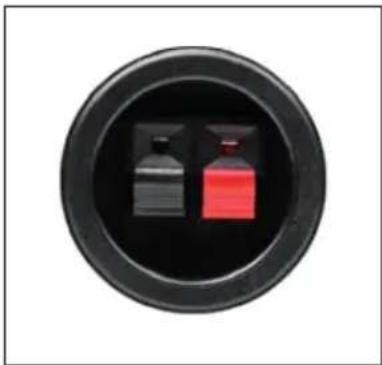

CONNECTIONS
CLEANING AND CARE
- Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker. Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
- If the speaker is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
- Do not drop small items or a liquid into the speaker.
- In the event that you find small items or a liquid inside the speaker, you see smoke or smell an odour, immediately disconnect the speaker from the power grid, send the speaker to an authorised service centre.
DISPOSAL CONSIDERATIONS
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
