PW2222 MKII - Loudspeaker Auna - Free user manual and instructions

Product type	Passive speaker
Model	PW2222 MKII
Brand	Auna
Nominal power	500 W
Maximum power	1000 W
Impedance	8 Ω
Frequency response	30 Hz – 18 kHz
Maximum sound pressure	99 dB
Speakers	2 × 12" (woofer) + piezoelectric horn tweeter (mid/high)
Dimensions (W × H × D)	37.5 × 91 × 36 cm
Weight	19.6 kg
Housing material	Wood with black felt coating
Protection	Solid metal protective grille, protective covers
Connectors	1 speaker input, 1 speaker output, 2 6.3 mm jack inputs, 1 stereo screw terminal input
Tripod mounting	Yes, with included adapter
Recommended use	Mobile disco, fixed installation
Cleaning	Soft cloth with neutral solution, avoid harsh products
Safety instructions	Disconnect during storms, do not overload sockets, avoid liquids
Recycling	Do not dispose with household waste, take to WEEE collection point
Certification	Directive 2014/53/EU (CE), UKCA

Frequently Asked Questions - PW2222 MKII Auna

What is the power of the Auna PW2222 MKII speaker?

The speaker has a nominal power of 500 W and a maximum power of 1000 W at an impedance of 8 Ω.

What are the dimensions and weight of the speaker?

The dimensions are 37.5 × 91 × 36 cm (W × H × D) and the weight is 19.6 kg.

How to connect the PW2222 MKII speaker?

Use the available connectors: 1 speaker input (link), 1 speaker output (parallel), 2 6.3 mm jack inputs and 1 stereo screw terminal input. Make sure the total impedance does not fall below 4 Ω when daisy-chaining.

Can I mount the speaker on a tripod?

Yes, the speaker is equipped with a tripod mounting adapter (standard 35 mm). Use a sturdy tripod that can support the weight.

What is the frequency response of the speaker?

The frequency range is 30 Hz to 18 kHz, covering deep bass and highs. The maximum sound pressure is 99 dB.

How to clean and maintain the speaker?

Use a soft cloth or cotton moistened with a neutral solution. Do not use harsh chemicals. In case of storms, disconnect the speaker from the mains.

What are the important safety instructions?

Do not overload sockets, avoid introducing liquids or objects, and do not attempt to repair the device yourself. Disconnect during storms or prolonged inactivity. Have repairs done by a professional.

Is the speaker suitable for a mobile disco?

Yes, thanks to its solid wood construction with scratch-resistant felt coating, its protective grille, and tripod adapter, it is ideal for mobile use at parties or fixed installation.

How to recycle the speaker at the end of its life?

Do not dispose of the speaker with household waste. Take it to a WEEE collection point (waste electrical and electronic equipment) in accordance with local regulations.

Where to find the declaration of conformity?

The full text of the EU declaration of conformity is available online at use.berlin/10035003. The manufacturer is Chal-Tec GmbH, Berlin.

USER MANUAL PW2222 MKII Auna

Pw22222/PW2522/PW10x22

50

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

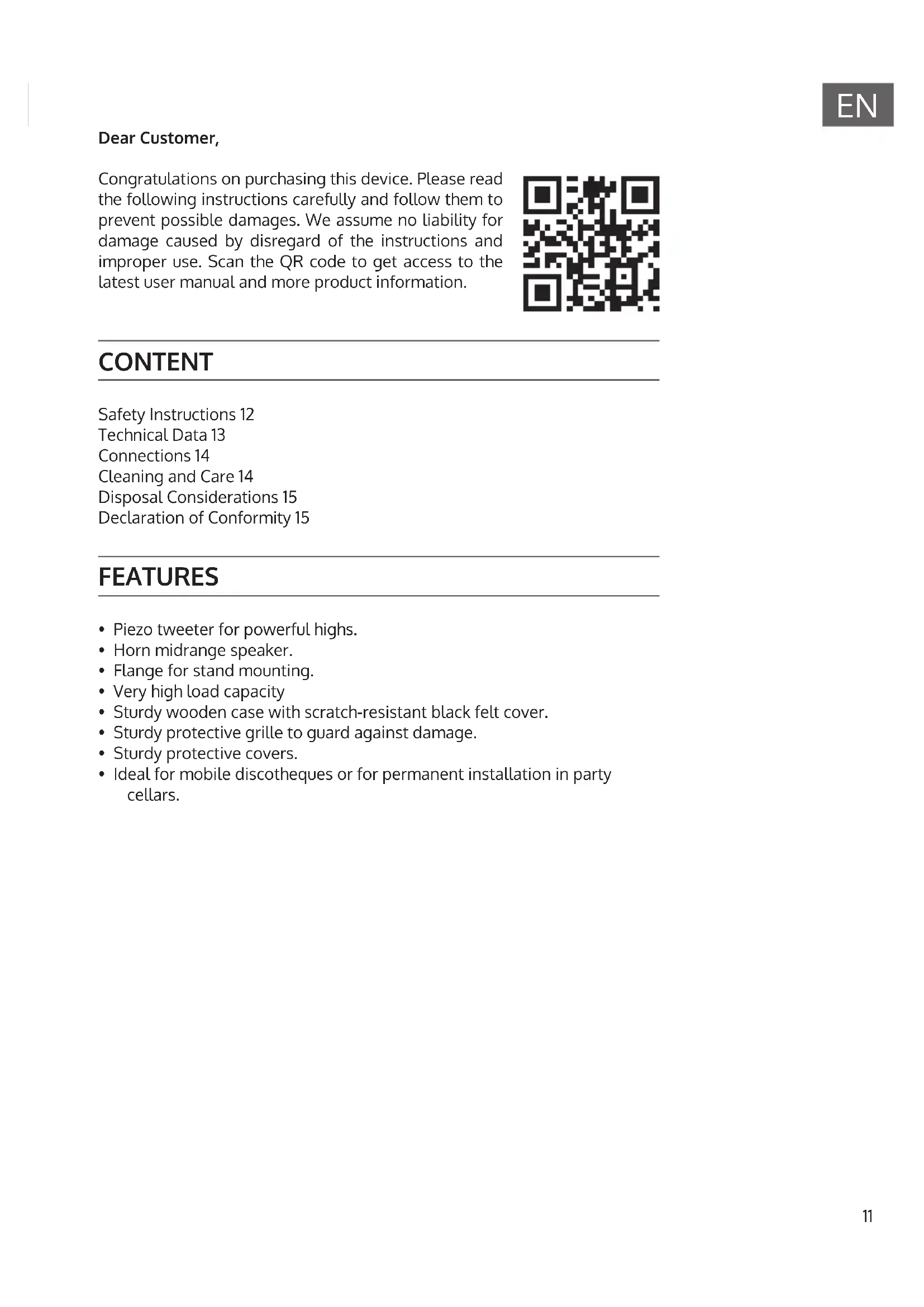

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12
Technical Data 13
Connections 14
Cleaning and Care 14
Disposal Considerations 15
Declaration of Conformity 15

FEATURES

• Piezo tweeter for powerful highs.
• Horn midrange speaker.
• Flange for stand mounting.
• Very high load capacity
• Sturdy wooden case with scratch-resistant black felt cover.
• Sturdy protective grille to guard against damage.
  Sturdy protective covers.
• Ideal for mobile discotheques or for permanent installation in party cellars.

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.
• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children should be supervised to ensure that they do not play with the appliance.
• Ensure children and babies do not play with plastic bags or any packaging materials.
• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.

TECHNICAL DATA

Item number 10035001	0035002	10035003
Name PW-2222 PW-252	PW-10x22
Power 500 W 750 W 450 W
Power max. 1000 W 1500 W 900 W
Size Subwoofer 2 x 12" 2	x 15" 2 x 10"
Connections	1x PA input. 1x PA output. 2x 6.3 mm jack input. 1x gold plated stereo screw terminal input
Sound pressure max. 99	dB	99	dB	92 dB
Impedance	8 Ω	8 Ω	8 Ω
Frequency range	30 Hz - 18 kHz	30 Hz - 18 kHz	65 Hz - 18 kHz
Dimensions	37.5 x 91 x 36 cm	48 x 103 x 36 cm	36 x 77 x 31 cm
Weight	19.6 kg	23 kg	18 kg

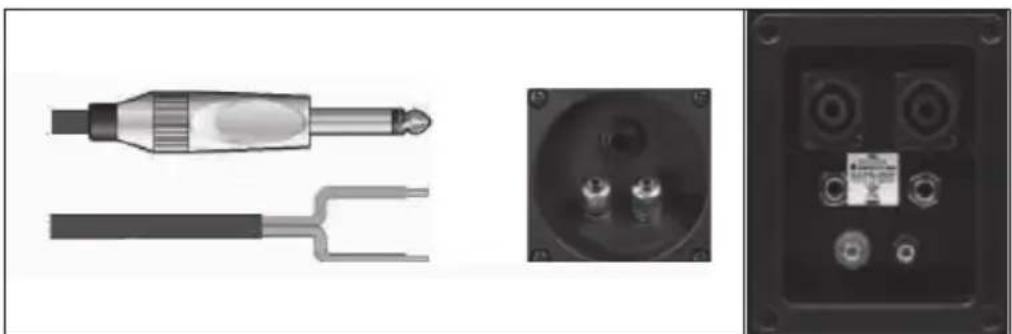

CONNECTIONS

CLEANING AND CARE

• Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker. Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
• If the speaker is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
• Do not drop small items or a liquid into the speaker.
• In the event that you find small items or a liquid inside the speaker, you see smoke or smell an odour, immediately disconnect the speaker from the power grid, send the speaker to an authorised service centre.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin,

Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type PW-2222 / PW-2522 / PW-10x22 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035003

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type PW-2222 / PW-2522 / PW-10x22 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035003
