PW1222 MKII - Loudspeaker Auna - Free user manual and instructions

Product type	Passive 12" speaker
Brand	Auna
Model	PW1222 MKII
Dimensions (W x H x D)	36 x 52 x 31 cm
Weight	10 kg
Nominal power	300 W
Maximum power	600 W
Impedance	8 Ω
Frequency response	30 Hz - 18 kHz
Maximum sound pressure	96 dB
Housing material	Wood with black felt covering
Protective grille	Yes, sturdy
Speaker type	Horn midrange
Connections	1x PA input, 1x PA output, 2x 6.3 mm jacks, 1x stereo binding post
Tripod adapter	Yes
Cleaning	Soft cloth and neutral solution
Safety instructions	Do not open, avoid water and objects, unplug during storms
Spare parts	Use manufacturer-approved parts
Recommended use	Mobile discos or permanent installation
Article code	10034999 / 10035000
Power supply	Passive (requires external amplifier)

Frequently Asked Questions - PW1222 MKII Auna

What is the recommended amplifier power?

For this passive speaker with a nominal 300 W, use an amplifier delivering between 300 and 600 W at 8 ohms for optimal operation without risk of damage.

Can I use this speaker outdoors?

This model is not designed for outdoor use. It must be kept away from rain, humidity, and extreme temperatures. Its wooden cabinet is not waterproof.

How to connect several PW1222 MKII speakers together?

You can connect multiple speakers using the output of one to the input of another. Make sure to respect the total impedance: in parallel, two 8 ohm speakers will give 4 ohms; check that your amplifier supports it.

What type of cable to use for connection?

Use speaker cables of sufficient gauge (at least 1.5 mm²) with 6.3 mm jack plugs or SpeakON connectors. The stereo binding post accepts bare wires or spade connectors.

How to maintain the felt protective grille?

Clean the grille with a slightly damp soft cloth and a neutral detergent. Do not use abrasive products or solvents. Avoid wetting the speaker itself.

Can I mount this speaker on a stand or tripod?

Yes, the PW1222 MKII is equipped with an adapter for tripod mounting. Use a tripod suitable for the weight of 10 kg and ensure it is stable.

What to do if the speaker produces abnormal sound or distortion?

First check the wiring and connections. Reduce the volume to avoid overloading the speaker. If the problem persists, turn off the amplifier and inspect the speaker; a qualified professional should be consulted.

Is it possible to replace a damaged speaker?

Yes, but only use spare parts approved by Auna or with identical specifications. Contact an authorized repair service to avoid any danger.

What is the frequency range and what does it correspond to?

The frequency response is 30 Hz to 18 kHz. This covers bass (low frequencies) to treble, but this speaker is designed for midrange/highs. For bass, pair it with a subwoofer.

Should I unplug the speaker during a thunderstorm?

Yes, to avoid damage from lightning or power surges, unplug the amplifier's power cord and any antenna. This safety instruction is essential.

USER MANUAL PW1222 MKII Auna

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12
Technical Data 13
Connections 14
Cleaning and Care 14
Disposal Considerations 15
Declaration of Conformity 15

FEATURES

• Horn midrange speaker.
• Flange for stand mounting.
• Very high load capacity
• Sturdy wooden case with scratch-resistant black felt cover.
• Sturdy protective grille to guard against damage.
• Sturdy protective covers.
• Ideal for mobile discotheques or for permanent installation in party cellars.

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.

• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.

• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.

• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.

• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
  Children should be supervised to ensure that they do not play with the appliance.
• Ensure children and babies do not play with plastic bags or any packaging materials.
• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.

TECHNICAL DATA

Item number 10034998	0034999 10035000
Name PW1022 PW1222 PW1522
Power 200 W 300 W 400 W
Power max. 400 W 600 W 800 W
Size Subwoofer 10" 12" 15"
Connections	1x PA input. 1x PA output. 2x 6.3 mm jack input. 1x gold plated stereo screw terminal input
Sound pressure max. 95 dB 96 dB		97 dB
Impedance	8 Ω	8 Ω	8 Ω
Frequency range	50 Hz - 18 kHz	30 Hz - 18 kHz	30 Hz - 18 kHz
Dimensions	36 x 46.5 x 31 cm	36 x 52 x 31 cm	47.5 x 52 x 31 cm
Weight	10.2 kg 10 kg	10 kg

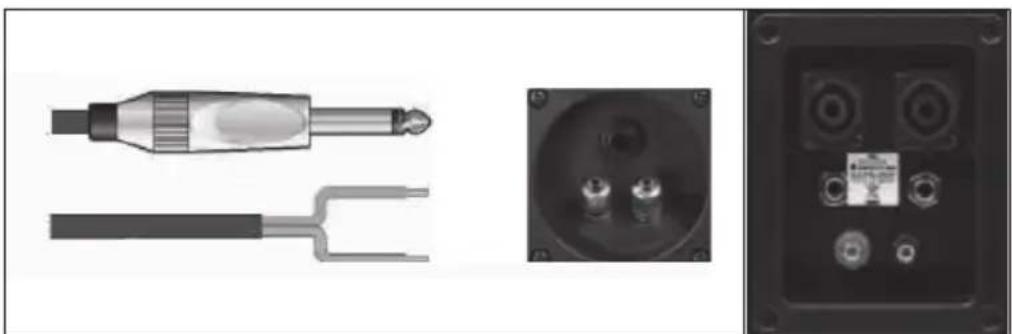

CONNECTIONS

CLEANING AND CARE

• Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker. Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
• If the speaker is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
• Do not drop small items or a liquid into the speaker.
• In the event that you find small items or a liquid inside the speaker, you see smoke or smell an odour, immediately disconnect the speaker from the power grid, send the speaker to an authorised service centre.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin,

Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type PW-1022 / PW-1222 / PW-1522 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035000

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type PW-1022 / PW-1222 / PW-1522 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035000
