PW1022 MKII - Loudspeaker Auna - Free user manual and instructions

Product type	Passive speaker
Brand	Auna
Model	PW1022 MKII
Article number	100349
Dimensions (W x H x D)	36 x 46.5 x 31 cm
Weight	10.2 kg
Load capacity	200 W (RMS), 400 W (max)
Impedance	8 Ω
Frequency range	50 Hz - 18 kHz
Max sound pressure	95 dB
Speaker type	Medium with horn, 10"
Housing material	Wood with black felt covering
Protective grille	Solid protective grille
Connections	1x PA input, 1x PA output, 2x 6.3 mm jacks, 1x plated stereo screw terminal
Mounting	Adapter for tripod mounting
Cleaning	Soft cloth or cotton with neutral solution
Safety	Do not overload, avoid moisture, have repairs done by a professional
Use	Ideal for mobile discos or permanent installation

Frequently Asked Questions - PW1022 MKII Auna

How to connect the PW1022 MKII speaker to an amplifier?

Use a 6.3 mm jack cable or a PA connection (input/output). Connect the speaker input to the amplifier output. Ensure the total impedance matches (8 Ω).

What amplification power is recommended?

Use an amplifier delivering between 200 and 400 W RMS at 8 Ω for optimal performance without risk of damage.

Can I use this speaker outdoors?

Yes, but protect it from moisture and bad weather. The wooden housing is not waterproof; avoid direct rain.

How to clean the speaker?

Use a soft cloth or slightly damp cotton with a neutral solution. Do not use abrasive products or solvents.

Can the speaker be mounted on a stand?

Yes, it is equipped with an adapter for standard tripod mounting (35 mm base).

What to do if the speaker produces no sound?

Check the connections, the amplifier power, and the cable. Test with another source. If the problem persists, consult a professional.

What is the warranty for this product?

The legal warranty of conformity is 2 years. Keep your proof of purchase. The manufacturer Chal-Tec GmbH is responsible.

Can I connect multiple speakers in series or parallel?

Yes, but respect the total impedance: in series, add (e.g., 8+8=16 Ω); in parallel, divide (e.g., 4 Ω). Make sure the amplifier can handle the load.

What accessories are included?

The user manual is included. The tripod adapter may be included depending on the batch; check the packaging.

How to recycle the speaker at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electronic waste (WEEE symbol).

USER MANUAL PW1022 MKII Auna

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 12
Technical Data 13
Connections 14
Cleaning and Care 14
Disposal Considerations 15
Declaration of Conformity 15

FEATURES

• Horn midrange speaker.
• Flange for stand mounting.
• Very high load capacity
• Sturdy wooden case with scratch-resistant black felt cover.
• Sturdy protective grille to guard against damage.
• Sturdy protective covers.
• Ideal for mobile discotheques or for permanent installation in party cellars.

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.

• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.

• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.

• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.

• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
  Children should be supervised to ensure that they do not play with the appliance.
• Ensure children and babies do not play with plastic bags or any packaging materials.
• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.

TECHNICAL DATA

Item number 10034998	0034999 10035000
Name PW1022 PW1222 PW1522
Power 200 W 300 W 400 W
Power max. 400 W 600 W 800 W
Size Subwoofer 10" 12" 15"
Connections	1x PA input. 1x PA output. 2x 6.3 mm jack input. 1x gold plated stereo screw terminal input
Sound pressure max. 95 dB 96 dB		97 dB
Impedance	8 Ω	8 Ω	8 Ω
Frequency range	50 Hz - 18 kHz	30 Hz - 18 kHz	30 Hz - 18 kHz
Dimensions	36 x 46.5 x 31 cm	36 x 52 x 31 cm	47.5 x 52 x 31 cm
Weight	10.2 kg 10 kg	10 kg

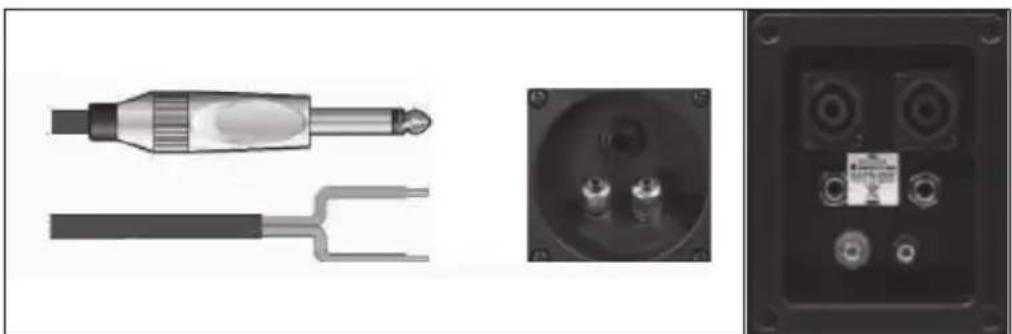

CONNECTIONS

CLEANING AND CARE

• Use a soft cloth or cotton dipped in a neutral solution for cleaning the surface of the speaker. Do not use the type of cloth that you use for washing dishes or aggressive chemical agents.
• If the speaker is not working properly during a storm, please disconnect the plug from the power socket and reinsert it after a minute.
• Do not drop small items or a liquid into the speaker.
• In the event that you find small items or a liquid inside the speaker, you see smoke or smell an odour, immediately disconnect the speaker from the power grid, send the speaker to an authorised service centre.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin,

Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type PW-1022 / PW-1222 / PW-1522 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035000

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type PW-1022 / PW-1222 / PW-1522 is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035000
