PP2212A - Speaker Auna - Free user manual and instructions

USER MANUAL PP2212A Auna

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

POWER 1 2 MIX OUT IN OUT LINE INPUT BAL LINE MIC MIC2 MICI MIC INPUT VOLUME BASS TREBLE ECHO MIC VOLUME MIN MAX -12 +12 -12 +12 MIN MAX MIN MAX 6 7 8

IIOV 220V 9 10 POWER ON 11 OFF AC IIOV 60Hz AC 220V 50Hz 12

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 12

Controls and Control Panel 14

Disposal Considerations 15

Declaration of Conformity 15

SPECIFICATIONS

Item number 10007203, 10007204
Power supply 230 V ~ 50/60 Hz
Measurements 46 x 68.5 x 40.5 cm (BxHxT)
Weight ca. 20 kg
Sensitivity 98 dB
Frequency response 40 Hz - 18 kHz
Impedance 4 ohms
Fuse T2A
Connections	1 x RCA line input, 1 x RCA line output, 2 x 6.3mm jack mic/line inputs (switchable), 1x XLR input, 1 speaker online output (8 ohms)
Scope of delivery	Device, power cable, instruction manual

SAFETY INSTRUCTIONS

• Do not expose this unit to rain.
• Do not place objects filled with liquids, such as vases, on top of this unit.
• Use only the recommended accessories.
• Do not attempt to repair this unit yourself.
• Do not drop metal objects into this unit.
• Do not place heavy objects on top of this unit.
• Do not block the air vents.
• Do not install near any heat sources such as radiators, stoves, ovens, or other apparatus (such as amplifiers) that produce heat.

Power cord / power supply unit - To reduce the risk of fire, electric shock and damage:

• Make sure that the voltage of the power supply corresponds to the value indicated on this device.
• Plug the power supply completely into the power outlet
• Do not pull the cable, bend it or place heavy objects on it.
• Do not touch the plug with wet hands.
• Hold the plug by its body when unplugging.
• Do not use a damaged power plug or outlet.
• Install this product so that the power cord can be unplugged immediately if any interference occurs.

Power adapter: The power adapter can be operated with alternating current of 220 - 240 V. Use a suitable plug adapter if the plug does not fit into the mains socket.

Small objects/packaging parts (plastic bags, cardboard, etc.): Keep small objects (e.g. screws and other assembly materials, memory cards) and packaging parts out of the reach of children so that they cannot be swallowed by them. Do not allow small children to play with foil. There is a danger of suffocation!

Setup

• Place the device on a dry, level, waterproof and heat-resistant surface.
  • Find a location where children cannot reach the appliance.
• The power outlet must be easily accessible so that the appliance can be quickly disconnected from the power supply in an emergency.
• Do not install or position this appliance in a bookshelf, built-in closet or other confined space. Ensure that the unit is well ventilated
• Do not place the unit on top of amplifiers or other equipment that may become hot. This heat could damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity or excessive vibration.

Transport of the device: Please keep the original packaging. To ensure adequate protection when transporting the device, pack the device in its original packaging.

Cleaning the surface: Do not use volatile liquids such as insect sprays. too much pressure when wiping can damage the surfaces. Rubber or plastic parts must not be in contact with the device for a long period of time. Use a dry cloth.

CONTROLS AND CONTROL PANEL

POWER 1 2 MIX OUT IN OUT LINE INPUT BAL LINE MIC MIC2 MICI MIC INPUT VOLUME BASS TREBLE ECHO MIC VOLUME MIN MAX -12 +12 -12 +12 MIN MAX MIN MAX 6 7 8

I/OV 220V 9 10 POWER ON 11 OFF AC I/OV 60Hz AC 220V 50Hz 12

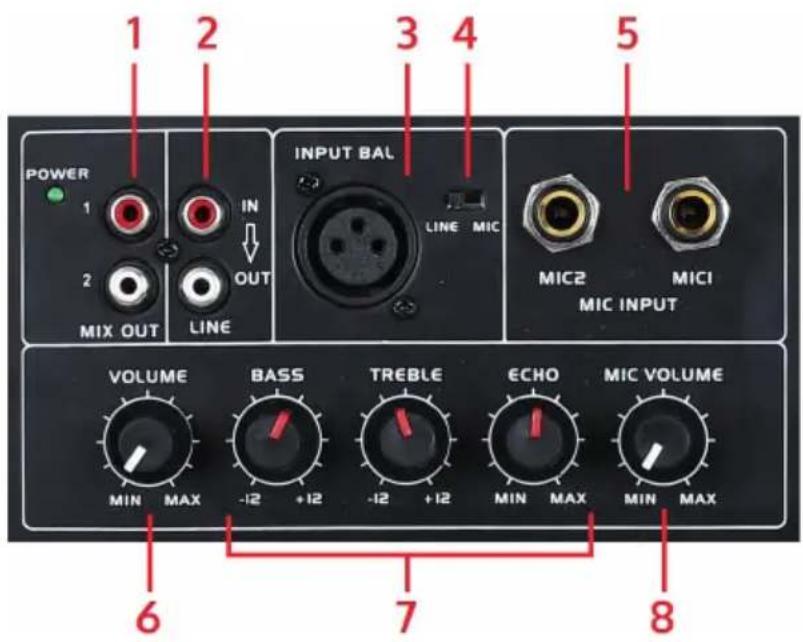

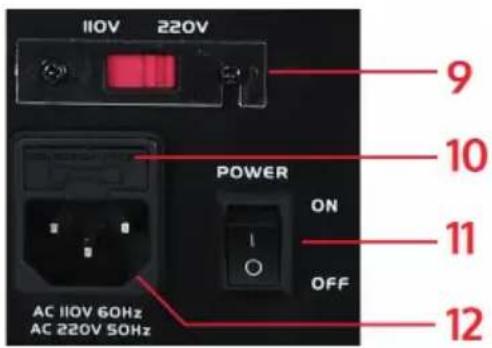

1 Cinch Out (to Mixer)
2 Cinch Line-In (ret), Line-Out (white)
3 Balanced input (XLR)
4 Input gain switch (Line/Mic)
5 Unbalanced Mic Inputs (6.3mm)
6 Master volume
7 EQ (bass, treble) and echo knob
8 Mic volume

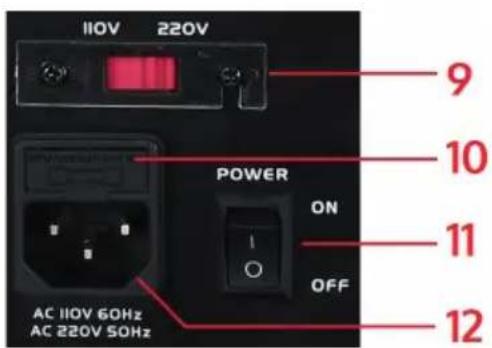

9 AC voltage selector (110/220V)
10 Fuse
11 AC in
12 Power on/off

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type [10007203/10007204] is in compliance with the relevant statutory requirements. The full text of the EU declaration of conformity is available at the following internet address:

https://use.berlin/10007203
