PP2215A - Loudspeaker Auna - Free user manual and instructions

Product type	Active speaker (amplified speaker)
Brand	Auna
Model	PP2215A
Dimensions (W x H x D)	46 x 68.5 x 40.5 cm
Weight	Approximately 20 kg
Power supply	230 V ~ 50/60 Hz (110/220 V selector)
Power consumption	Fuse T2A
Sensitivity	98 dB
Frequency response	40 Hz - 18 kHz
Impedance	4 ohms
Inputs	1x RCA (line), 2x 6.3 mm jack (mic/line), 1x balanced XLR
Outputs	1x RCA (line), 1x Speakon (8 ohms)
Controls	Master volume, microphone volume, equalizer (bass/treble), echo, input level (Line/Mic), power on/off
Package contents	Unit, power cable, instruction manual
Maintenance and cleaning	Use a dry cloth; do not use volatile liquids
Safety instructions	Do not expose to rain, do not place objects filled with water, do not block ventilation openings, do not repair yourself

Frequently Asked Questions - PP2215A Auna

How to connect a microphone to the PP2215A speaker?

Connect your microphone to one of the 6.3 mm jack sockets (No. 5) or to the balanced XLR input (No. 3). Set the input level switch (No. 4) to the 'Mic' position if you are using a dynamic microphone. Adjust the microphone volume (No. 8) and the master volume (No. 6).

Can I connect an audio source like a smartphone?

Yes, use the RCA line input (No. 2) with an appropriate cable (e.g., RCA to 3.5 mm jack). Make sure the level switch (No. 4) is set to 'Line' and adjust the master volume.

How to adjust bass and treble?

Use the EQ potentiometers (No. 7): turn the left one for bass, the right one for treble. Adjust according to your sound preferences.

What to do if the speaker does not turn on?

Check that the power cable is properly connected and that the mains socket works. Check the fuse (No. 10): if it is blown, replace it with a T2A fuse. Also ensure that the voltage selector (No. 9) matches your mains voltage.

Can I use the speaker outdoors?

No, the unit must not be exposed to rain or humidity. Its use is reserved for dry indoor environments.

How to clean the speaker?

Unplug the unit. Use a dry, soft cloth to wipe the external surface. Never use volatile liquids (sprays, solvents) as they could damage the finish.

What does the indicator light or abnormal sound mean?

If you hear background noise or distorted sound, check the connections and reduce the volume. Avoid exceeding the speaker's power limits. If the problem persists, contact a professional.

How to recycle the speaker at the end of its life?

Do not dispose of the unit with household waste. Take it to a collection point for electrical and electronic equipment (WEEE) in accordance with local regulations.

Can I connect multiple PP2215A speakers together?

Yes, use the Speakon output (No. 1) to connect a second passive speaker (8 ohms) or a line RCA output to another active speaker. Consult the manual for connection diagrams.

Where to find the device serial number?

The serial number is usually found on a label at the back or bottom of the speaker. It may be needed for after-sales service.

USER MANUAL PP2215A Auna

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 12
Controls and Control Panel 14
Disposal Considerations 15
Declaration of Conformity 15

SPECIFICATIONS

Item number 10007203, 10007204
Power supply 230 V ~ 50/60 Hz
Measurements 46 x 68.5 x 40.5 cm (BxHxT)
Weight ca. 20 kg
Sensitivity 98 dB
Frequency response 40 Hz - 18 kHz
Impedance 4 ohms
Fuse T2A
Connections	1 x RCA line input, 1 x RCA line output, 2 x 6.3mm jack mic/line inputs (switchable), 1x XLR input, 1 speaker online output (8 ohms)
Scope of delivery	Device, power cable, instruction manual

SAFETY INSTRUCTIONS

• Do not expose this unit to rain.
• Do not place objects filled with liquids, such as vases, on top of this unit.
• Use only the recommended accessories.
• Do not attempt to repair this unit yourself.
• Do not drop metal objects into this unit.
• Do not place heavy objects on top of this unit.
• Do not block the air vents.
• Do not install near any heat sources such as radiators, stoves, ovens, or other apparatus (such as amplifiers) that produce heat.

Power cord / power supply unit - To reduce the risk of fire, electric shock and damage:

• Make sure that the voltage of the power supply corresponds to the value indicated on this device.
• Plug the power supply completely into the power outlet
• Do not pull the cable, bend it or place heavy objects on it.
• Do not touch the plug with wet hands.
• Hold the plug by its body when unplugging.
• Do not use a damaged power plug or outlet.
• Install this product so that the power cord can be unplugged immediately if any interference occurs.

Power adapter: The power adapter can be operated with alternating current of 220 - 240 V. Use a suitable plug adapter if the plug does not fit into the mains socket.

Small objects/packaging parts (plastic bags, cardboard, etc.): Keep small objects (e.g. screws and other assembly materials, memory cards) and packaging parts out of the reach of children so that they cannot be swallowed by them. Do not allow small children to play with foil. There is a danger of suffocation!

Setup

• Place the device on a dry, level, waterproof and heat-resistant surface.
  Find a location where children cannot reach the appliance.
• The power outlet must be easily accessible so that the appliance can be quickly disconnected from the power supply in an emergency.
• Do not install or position this appliance in a bookshelf, built-in closet or other confined space. Ensure that the unit is well ventilated
• Do not place the unit on top of amplifiers or other equipment that may become hot. This heat could damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity or excessive vibration.

Transport of the device: Please keep the original packaging. To ensure adequate protection when transporting the device, pack the device in its original packaging.

Cleaning the surface: Do not use volatile liquids such as insect sprays, too much pressure when wiping can damage the surfaces. Rubber or plastic parts must not be in contact with the device for a long period of time. Use a dry cloth.

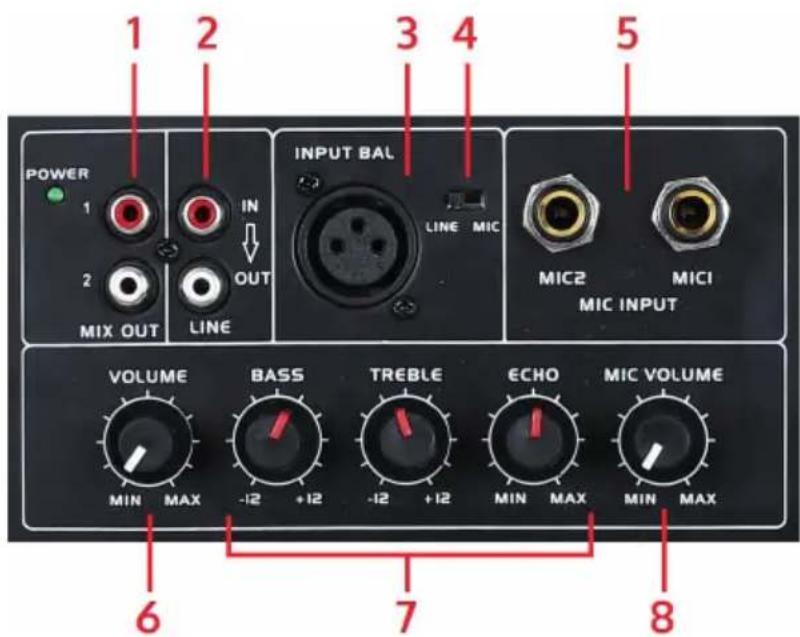

CONTROLS AND CONTROL PANEL

1 Cinch Out (to Mixer)
2 Cinch Line-In (ret), Line-Out (white)
3 Balanced input (XLR)
4 Input gain switch (Line/Mic)
5 Unbalanced Mic Inputs (6.3mm)
6 Master volume
7 EQ (bass, treble) and echo knob
8 Mic volume

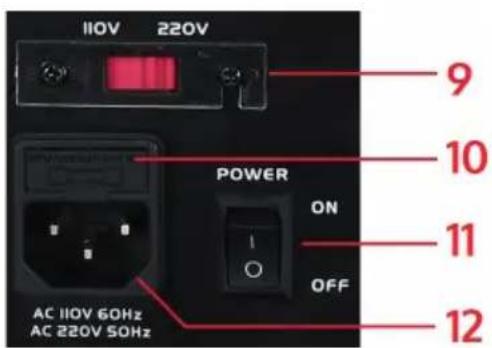

9 AC voltage selector (110/220V)
10 Fuse
11 AC in
12 Power on/off

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

For Great Britain: Hereby, Chal-Tec GmbH declares

that the radio equipment type [10007203/10007204]

is in compliance with the relevant statutory

requirements. The full text of the EU declaration

of conformity is available at the following internet

address:

https://use.berlin/10007203
