USER MANUAL SLK15A Auna

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

TECHNICAL DATA

Item number 10032	271 10032272 10	032273 10032274
Power supply 230 V~ 50 Hz
RMS 800 W 700 W	400 W 300 W

SAFETY INSTRUCTIONS

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac/50Hz.
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the

box.

• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.
• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.
• Route cables so that peoples will not trip over them pulling the speaker over.
• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.
• Only use suitable means of transportation if you want to move the box
• BEWARE OF YOUR BACK !!
• If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
• Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
• Only use the supplied mains lead or another lead recommended by Auna.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

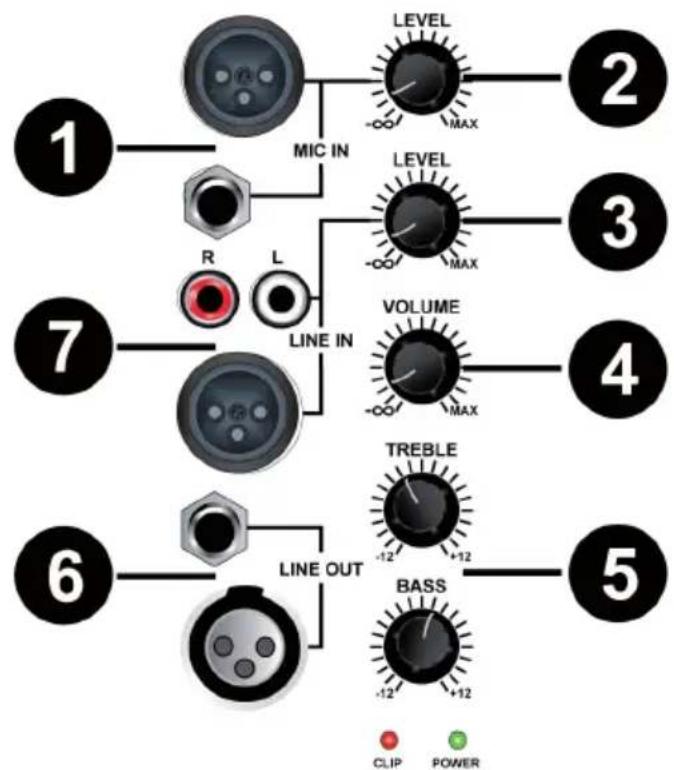

BACKPANEL

1 Input connector for microphones
2 Volume control for the microphone
3 Volume control for the line input
4 Volume control for the output
5 Tone control for the output
6 Output connector to a second box or amplifier (line level)
7 Line input connector for the audio input source e.g. mixer, CD player, etc.

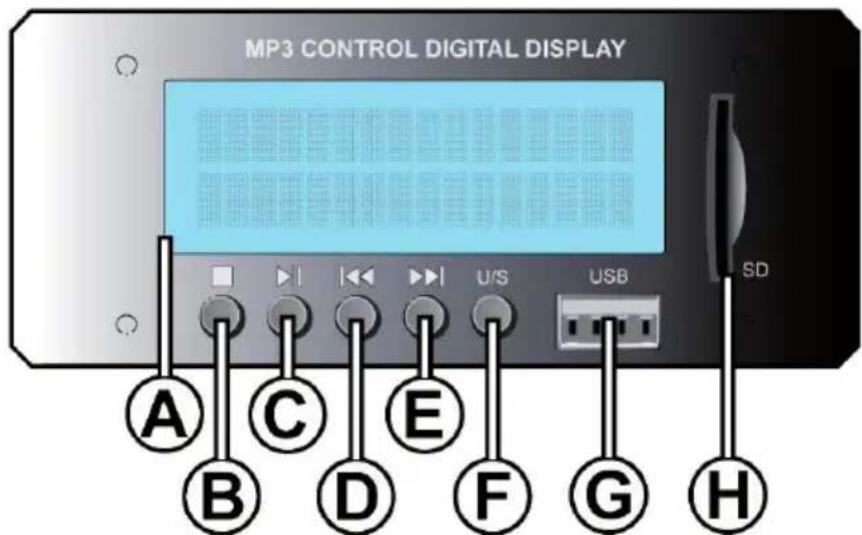

A. DISPLAY

Shows MP3 information

B. STOP

Track stop playing

C. PLAY/PAUSE

Track play or pause mode

D. PREV

Play previous track

E. NEXT

Play next track

F. USB/SD / BLUETOOTH SWITCH

Use switch for playing from USB stick, SD card or Bluetooth

G. USB CONNECTION

For connection of a USB stick with MP3 files

H. SD CARD CONNECTION

For connection of a SD CARD with MP3 files

How to connect with your BT device:

First turn on speaker, then press on "MODE" (F) till you see "AUX". Then use your mobile or computer to search a Bluetooth device. When you find the "AUNA SLK" then connect. The password is: 0000

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the "normally correct speaker" is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

Error Possible cause Check
No output Cables Reset all connectors	Substitute known good cables Check solder joinsInspect cable for damageInspect wire or connector for stray strand that may short
Intermittent Poor connections While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Check the soldering on your connectors
Constant noise, buzzing and/or humming	Faulty electronic device in the signalAny constant noise originates in the amplifier, mixer, signal processing, source device in the signal devices, or line-level wiring. Check and correct system grounding as requiredChain check for noisy sources or electronic components. Check wiring for shielding.
Poor low-frequency output	Improper polarity When two speakers in close proximity to each other are connected out-of-polarity, they can partially cancel each other out, especially at low frequencies. Check your speaker cables to be sure they are all identically wired and connected. Check the balanced line signal cables to be sure they are all correctly wired.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type SLK-8-A 10-A 12-A 15-A is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10032271

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type SLK-8-A 10-A 12-A 15-A is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10032271
