USER MANUAL KTV Auna

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Sendout & Reset Instructions received View Show Load Record Display Open Showout Language & Print Backup & Reset Exercise Core business Developer's business About Service View all manual access from your devices: Internet storage, including • Your Desktop/Smart • System and manage data and settings • Integrated apps • Style • Style • Other user data Reset Access

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

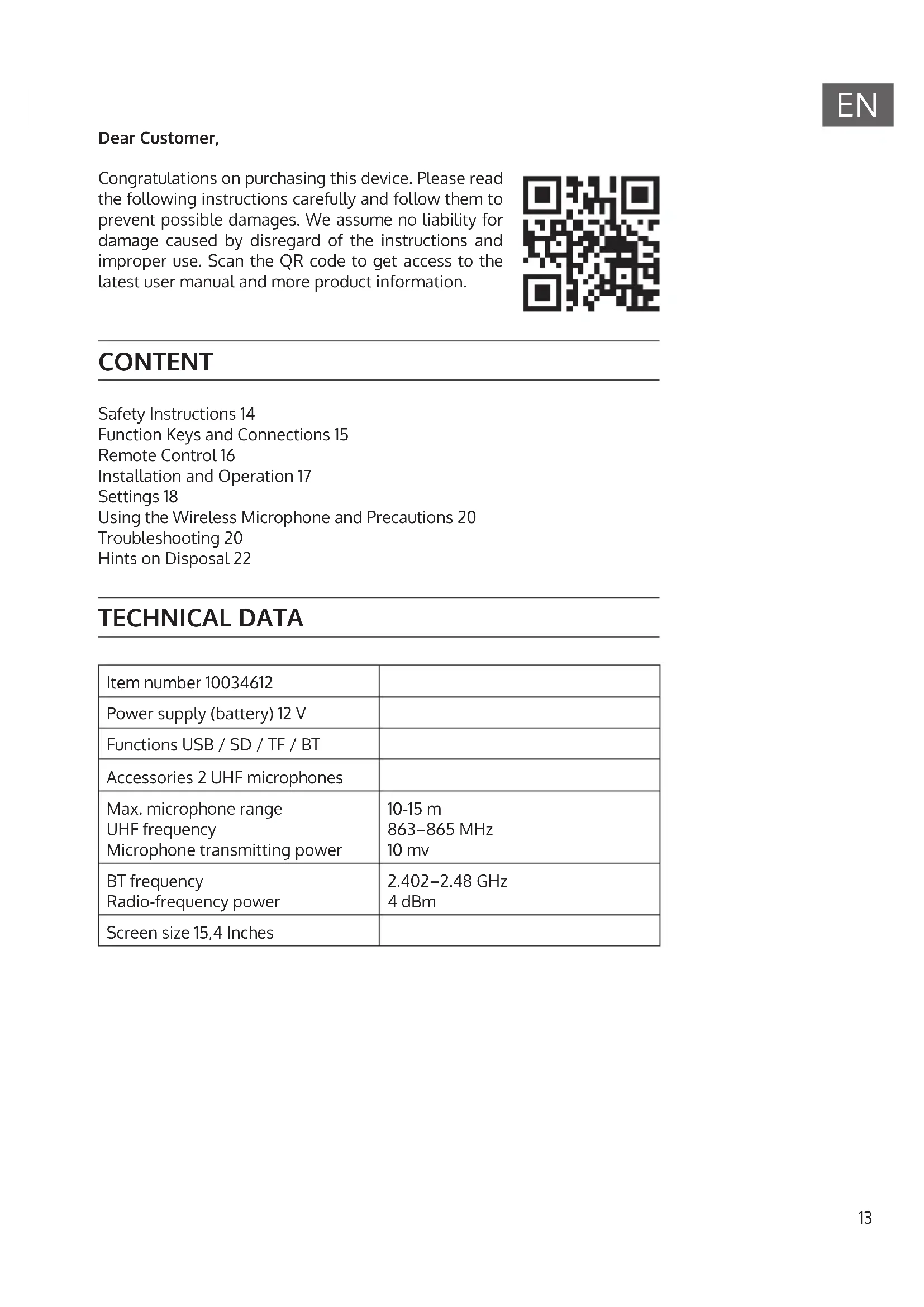

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Function Keys and Connections 15

Remote Control 16

Installation and Operation 17

Settings 18

Using the Wireless Microphone and Precautions 20

Troubleshooting 20

Hints on Disposal 22

TECHNICAL DATA

Item number 10034612
Power supply (battery) 12 V
Functions USB / SD / TF / BT
Accessories 2 UHF microphones
Max. microphone rangeUHF frequencyMicrophone transmitting power	10-15 m863–865 MHz10 mv
BT frequencyRadio-frequency power	2.402–2.48 GHz4 dBm
Screen size 15,4 Inches

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

- Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.

- Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Note: This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.

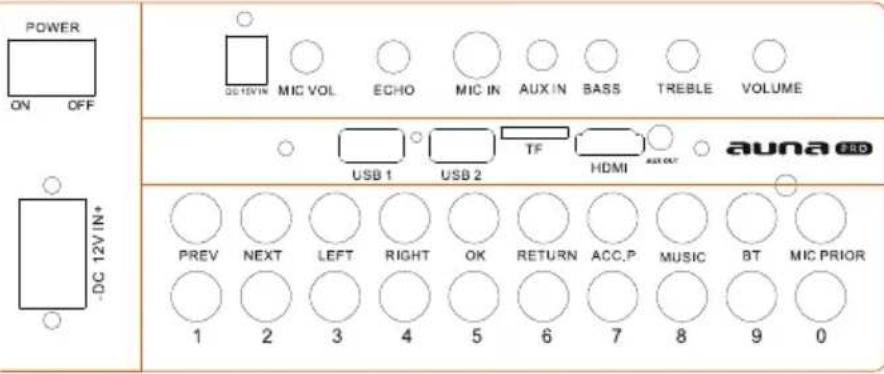

FUNCTION KEYS AND CONNECTIONS

POWER ON/OFF - On/Off button	MIC PRIOR - Microphone fade-out function on/off
DC 12V IN - Extra battery	MIC VOL - Microphone volume control, microphone volume adjustment
PREV - Previous title	ECHO - Microphone reverb, adjusting the microphone hall setting
NEXT - Next title	MIC IN - Microphone connection, cable microphone connection
LEFT/ RIGHT - To the left/right	AUX IN - Audio input for connecting external devices; available on some models
OK - Confirm or open selected option	BASS - Turn clockwise: increase bass; Turn counterclockwise: reduce bass
RETURN - Return to previous page TREBLE	- Treble setting
ACC.P - Music Track function for Vocal accompaniment	VOLUME - Main volume control
MUSIC - Music playback	USB 1 & 2 - USB port; video or audio files can be played back; supports USB media up to 128 GB in NTFS format
BT - Activate the BT mode; a mobile BT device can be connected and the music of the device can be played back via BT	TF - Insert a TF card to play video or audio files; the unit supports TF cards up to 128 GB
DC 15V IN - Adapter input charging interface	HDMI - HDMI connector
0-9 - Number buttons to select a title	AUX OUT - Audio output for connecting external devices

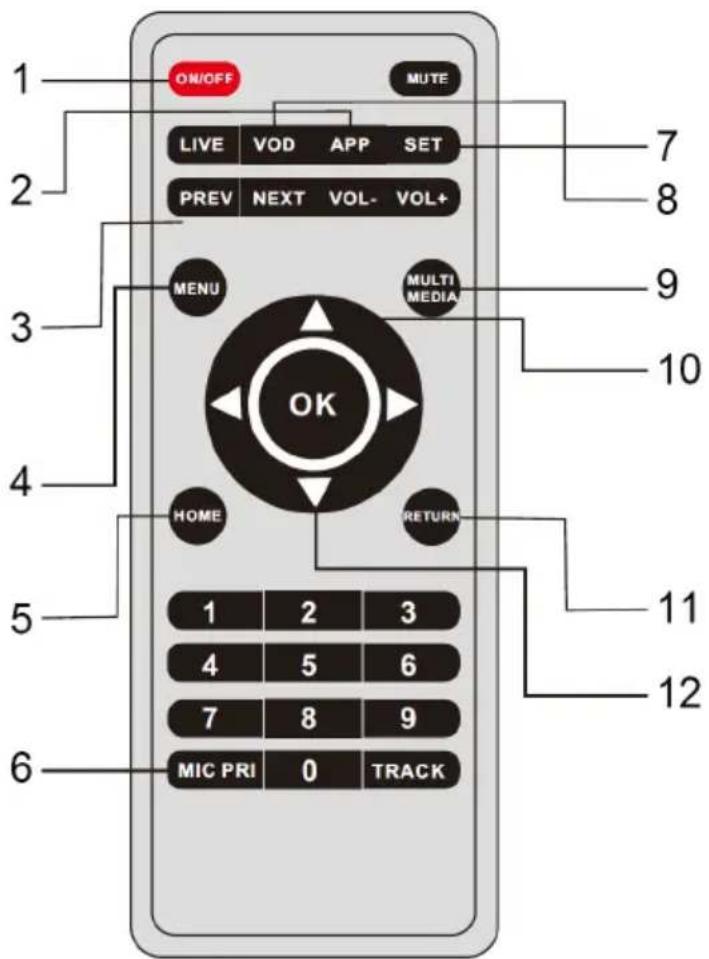

REMOTE CONTROL

ON/OFF MUTE LIVE VOD APP SET PREV NEXT VOL- VOL+ MENU MULTI MEDIA OK HOME RETURN 1 2 3 4 5 6 7 8 9 MIC PRI 0 TRACK 12 11 10 9 8 7

1	ON/OFF - Turn LCD screen on/off (standby)	7 SET - System settings
2	APP - Open multiple application pages	8	VOD - Video on Demand (YouTube)
3	PREV (previous title) / NEXT (next title)	9 MEDIA - Multimedia Player
4 MENU - Menu settings 10 UP - High and previous title
5 HOME - Home page call 11 RETURN - Back
6	MICROPHONE PRIORITY - microphone priority	12 DOWN - Down and next title

INSTALLATION AND OPERATION

WLAN setting

Press the SET button on the remote control. In the network settings, locate the wireless network you want to connect to and then enter the password.

Media Playback

1 For media playback, press the MULTIMEDIA speed dial button on the remote control.
2 Select the playback media: Local memory, USB device, memory card, etc.

Establishing a BT connection

1 Press the BT key to activate the BT mode.
2 Activate BT on the external BT device that you want to connect to your device. Search the device list of the external device for „KTV“ to connect the external BT device to your device. If the connection cannot be established, restart the device or try again.
3 After the BT connection has been successfully established, you can play music on the external device, which will then be played back via the device. To ensure that the connection of the music signal remains stable, make sure that the external device is within the BT range.
4 This device can be used with iPads, iPhone, Samsung, HTC, Huawei, Xiaomi, etc. (2.1*DER version). A2DP stereo playback is supported.
5 The BT range is approximately 10 meters.

SETTINGS

Press the SET button on the remote control. Select the setting screen.

General Settings

• Language selection: Press the OK button to select Chinese or English as the output language.
• Product Information: Displays the current external hard disk capacity.
• Factory Default: Select „Yes“ to reset the unit to factory defaults.
• Exit: Exits the previous menu.

Language import myristics & functions + 20.7% + words + links + Sound + Display + images + categories Language import + Recycle image + words + Email time + Developer info + JavaScript (You are your) to create this tool Add here Add user name Remove instances Remove instances Remove fields Text Textline Textb Insect (instructive) Insect (instructive) Insect (instructive)

Figure 1: Language selection

App Store www.appstore.com Baidu Microsoft USB Search Display App Store Language & Image Backup & New Music & Video Developer's About Email App Store Microsoft C:\Users\Software\Food Search TherapyIconer Music You're a Download

Figure 2: Device information

Sendout & Reset Instructions received View Show Load Record Display Open Showout Language & Print Backup & Reset Exercise Core business Developer's business About Service View all manual access from your devices: Internet storage, including • Your Desktop/Smart • System and manage data and settings • Integrated apps • Style • Style • Other user data Reset Access

Figure 3: Resetting to factory settings

Energy Setting

• Backlight: Press the OK button to adjust the backlight of the screen (note: the brighter the screen, the higher the energy consumption).
• Back: Press the RETURN button to exit the current setting and return to the previous menu item.

USING THE WIRELESS MICROPHONE AND PRECAUTIONS

1 Open the battery compartment, insert the battery and observe the polarity.
2 Set the microphone switch to „ON“. If the battery light does not blink or is permanently on, check that the battery is empty or that the batteries are inserted the wrong way round in the battery compartment.
3 Adjust the microphone volume. While singing, adjust the volume on the microphone volume control for best results.

TROUBLESHOOTING

Problem Possible cause and solution
The next track cannot be played back.	The repeat function is set to repeat only the current track. Set the function to repeat all tracks or activate random playback.
The name of a track is only partially displayed.	This is because unavailable characters are included in the title name.
The unit turns off automatically. The battery is empty and must be charged or replaced.
The remote control does not work. Align the remote control so that the illuminated end of the remote control is facing the receiver on the unit and replace the remote control batteries if necessary.
There's no sound coming from the speakers.	The volume is off or too low, turn it on or turn the volume up.
No sound is heard while pictures are displayed.	The screen sound has been turned off with the remote control. Check that the audio and video output is turned on.
The original voice reproduction cannot be deactivated during karaoke singing.	Press the TRACK button on the remote control to turn off the original voice. The original voice may not be deactivated because the selected video file does not support it.
No sound reproduction via the wireless microphone	Turn on the wireless microphone or replace the wireless microphone batteries.
The name of a title is displayed in characters.	The original title name is traditional Chinese or contains characters from other countries. Only simplified Chinese or English titles can be displayed.
The next track is not played automatically.	The "Play a title" mode has been activated. Deactivate it.
There is no sound during BT playback.	Turn on the unit and set the maximum volume of the external BT unit.
During karaoke singing, only the microphone has sound.	The MICROPHONE PRIORITY function has been activated. Deactivate it.
No connection to the WLAN can be established.	Check the distance between the device and the wireless router and reduce it if necessary or restart the router.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10034612
