BGS21WPOW - Vacuum Cleaner BOSCH - Free user manual and instructions

USER MANUAL BGS21WPOW BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/ welcome

Bagless Vacuum Cleaner

BGC21 BGS21

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratın veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[hu]	Olvassa be a QR-kódot vagy keresse fel a weboldalt a kibővített használati utasítás megnyitásához. Ott ki-egészítő információkat talál a készülékkel vagy tartozékkal kapcsolatban.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[kk]	QR- кодын сканерленіз немесе кенейтілген пайдалану нұсқаулықты ашу үшін веб-сайтқа кірініз. Онда сіз құрылғы немесе керек-жарактар туралы көбірек акпарат таба аласыз.
[bg]	Сканирайте QR кода или посетете уебстраницата, за да отворите разширените указания за използването. Там ще откриете допълнителна информация за Вашия уред или принадлежност.
[az]	İstifadəniz üçün daha geniş göstərişləri açmaqdan ötrü, QR-kodunu skan edin və ya veb səhifəyə daxil olun. Oradan Siz cihazınız və aksessuarınıza dair əlavə məlumat tapa bilərsiniz.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.

QR code image containing encoded data, no visible human-readable text

Labeled diagram of a vacuum cleaner with numbered parts for identification

CLICK

2

CLICK

3

Diagram showing a blue cable being twisted with a black arrow indicating rotational motion (no text or symbols)

4

Diagram of a vacuum cleaner with blue and black arrows indicating rotational motion (no text or symbols)

5

Diagram showing a blue 3D object being inserted into a mechanical component, with arrows indicating direction (no text or symbols present)

6

Diagram showing a blue cylindrical object with a black double-headed arrow indicating vertical displacement (no text or symbols)

7

Diagram of a car's rear wheel assembly with a blue tool and black directional arrow indicating motion (no text or symbols)

8

Diagram of a car gear shift lever with blue component and black arrow indicating direction (no text or symbols)

9

max min

10

Diagram of a washing machine with a blue cover and black circular component, showing internal components (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a blue cable being inserted into a connector with two black arrows indicating direction (no text or symbols)

12

Diagram of a car interior with blue hoses and a numbered component (no text or symbols)

The image is too blurry to recognize any text content.

Diagram of a car's airbag with blue hoses and a numbered component (no text or symbols)

14

Illustration of a car with blue hoses and a checkmark indicating a repair or inspection (no text or symbols present)

The image is too blurry to recognize any text content.

Line drawing of a hand inserting a small electronic component into a cylindrical device (no text or symbols)

16

Diagram of a device being inserted into a blue plastic container with an arrow indicating the process (no text or symbols present)

The image is too blurry to recognize any text content.

Diagram of a device with an open lid and a blue octagonal base, showing internal components and a black arrow indicating rotation (no text or symbols present)

18

Illustration of a hand holding a blue 3D block with motion lines indicating movement (no text or symbols)

Illustration of a blue showerhead spraying water onto a hexagonal base (no text or symbols)

3D diagram of a mechanical device with open lid and blue internal casing (no text or symbols)

Diagram showing a device's open lid and a blue octagonal component, with a 24-hour rotary dial indicator.

20

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Illustration of a hand operating a blue vacuum cleaner with a black upward arrow indicating the process (no text or symbols present)

22

Illustration of a blue showerhead spraying water onto a blue dome-shaped object (no text or symbols)

Diagram of a cleaning or cleaning device with a blue lid and arrow indicating the component (no text or symbols present)

24

Illustration of a hand pouring liquid into a trash bin (no text or symbols)

26

Technical illustration of a blue and white vacuum cleaner with internal components (no text or symbols)

The image is too blurry to recognize any text content.

Diagram of a blue mechanical component with a black arrow pointing to a specific part (no text or symbols present)

28

Diagram of a blue plastic component being inserted into a mechanical housing (no text or symbols visible)

The image is too blurry to recognize any text content.

Diagram showing a mechanical component with labeled parts and an inset view of a device with a highlighted section.

30

Illustration showing a hand pressing a grid on a blue plastic tray and another hand pouring liquid into a container (no text or symbols)

The image is too blurry to recognize any text content.

Blue electronic component with grid pattern and a circular dial showing 24-hour operation (no text or symbols on the component itself)

32

① ② CLICK

The image is too blurry to recognize any text content.

Diagram of a blue automotive component with a black arrow pointing to a grid-like structure (no text or symbols)

34

CLICK

The image is too blurry to recognize any text content.

Technical diagram showing a mechanical component with labeled parts and an inset view of a grid-like structure with arrows.

36

Technical diagram of a mechanical component with an arrow pointing to a blue rectangular block (no text or symbols present)

The image is too blurry to recognize any text content.

Illustration showing a hand cleaning a blue plastic sheet and a showerhead spraying water (no text or symbols)

38

Diagram showing a car engine component with a blue panel and a 24-hour time dial indicator

The image is too blurry to recognize any text content.

① ② CLICK

40

Sicherheit

[e-mail]

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

■ Do not connect the appliance if it has been damaged in transit. Only use this appliance:

■ With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.

■ In private households and in enclosed spaces in a domestic environment at room temperature.

■ Up to an altitude of max. 2000 m above sea level.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

▶ Never operate a damaged appliance.

▶ Never operate an appliance with a cracked or fractured surface.

▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.

▶ Never pull or carry the appliance by the power cord.

▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.

▶ Call customer services.

▶ Only use the appliance in enclosed spaces.

▶ Never expose the appliance to intense heat or humidity.

- Do not use steam- or high-pressure cleaners to clean the appliance.

en

Preventing material damage

▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
▶ Pull out the power cord completely.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- When vacuuming stairs, ensure that there are no persons underneath the appliance.
- When taking a break from vacuuming, switch off the appliance and pull out the mains plug.
▶ Retract the power cord.
- When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.

Overview

→ Fig. 1

1 Adjustable floor nozzle ^1

^1 Depending on the appliance specifications

2	Telescopic tube with adjusting sleeve ^1
3	Handle ^1
4	Power cord
5	Carrying handle
6	Power control and on/off switch
7	Hose holder ^1
8	Storage aid
9	Hose
10	Rear flap

^1 Depending on the appliance specifications

11 Dust container ^1

^1 Depending on the appliance specifications

Operating the appliance

Follow the illustrated instructions.

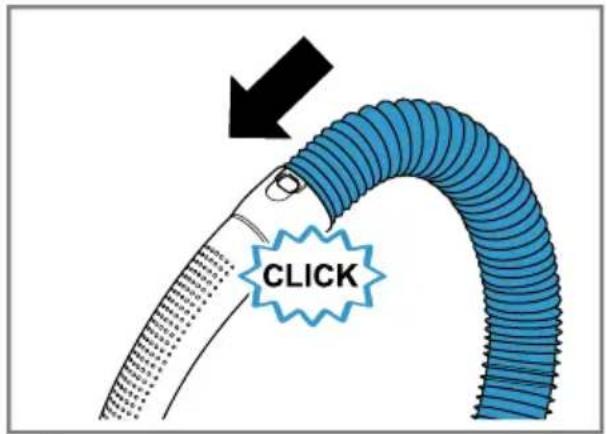

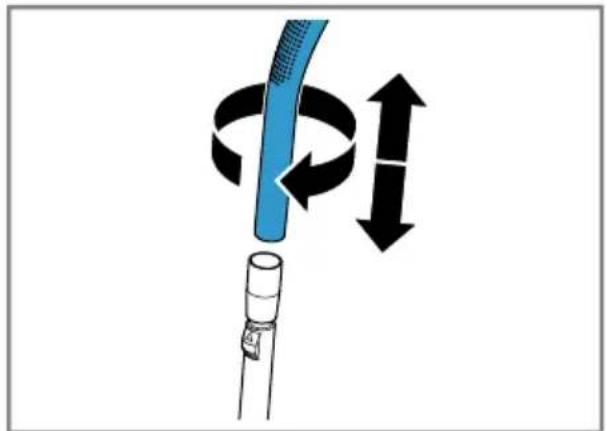

Assembling and disassembling the appliance

→ Fig. 2 - 6

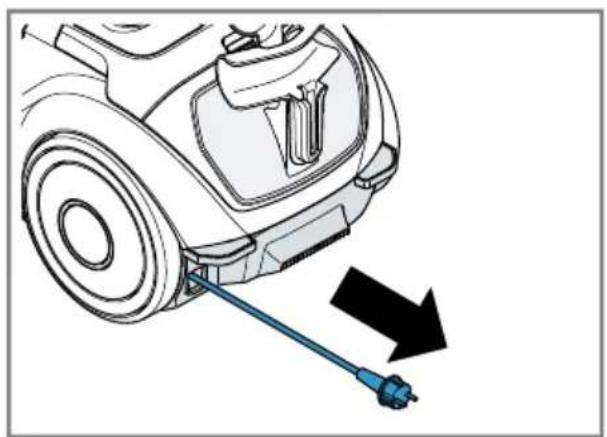

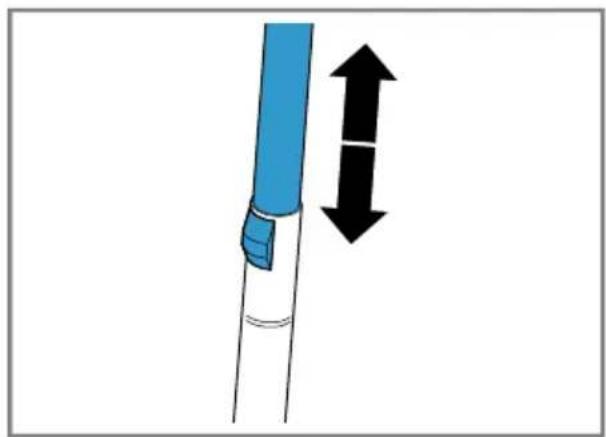

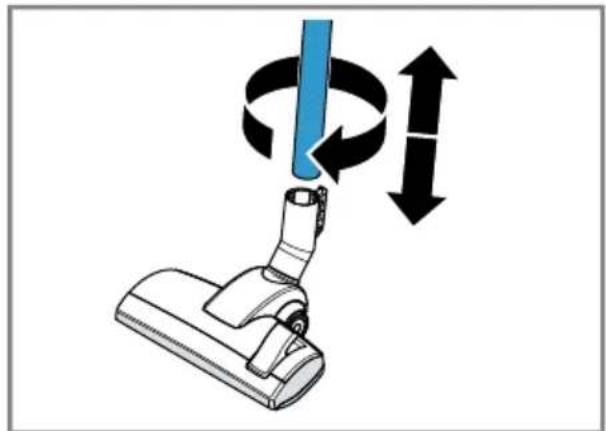

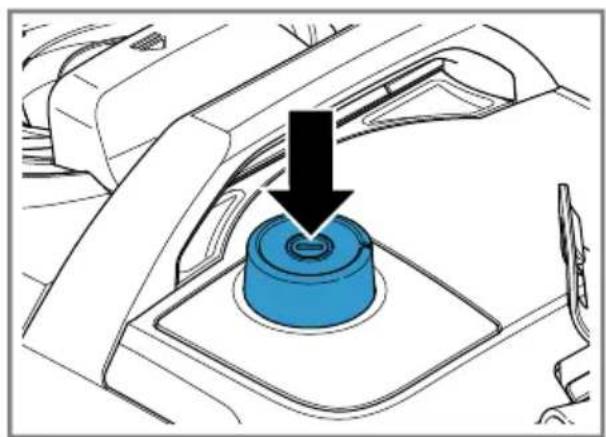

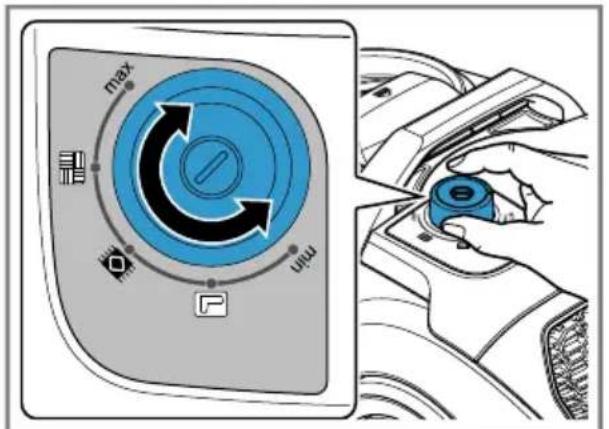

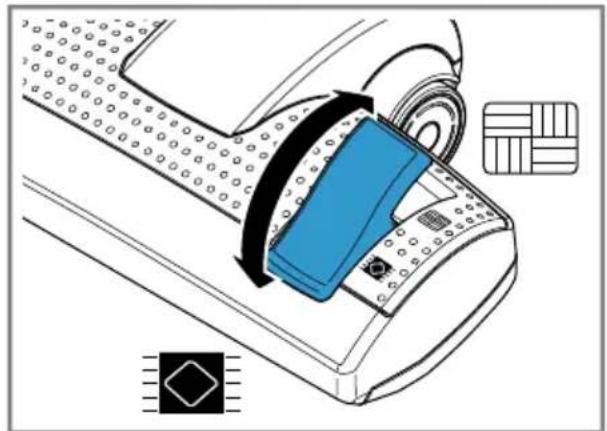

Operating the appliance

→ Fig. 7 - 12

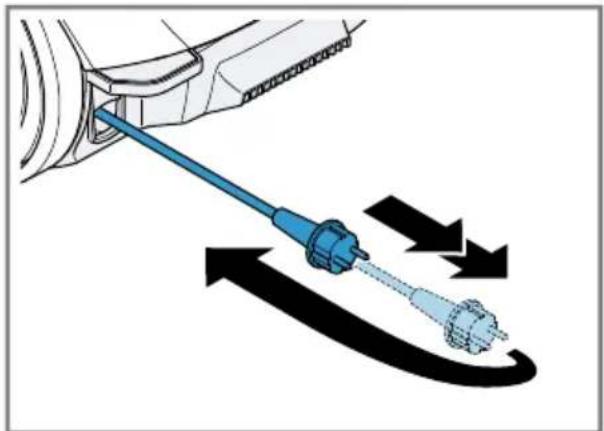

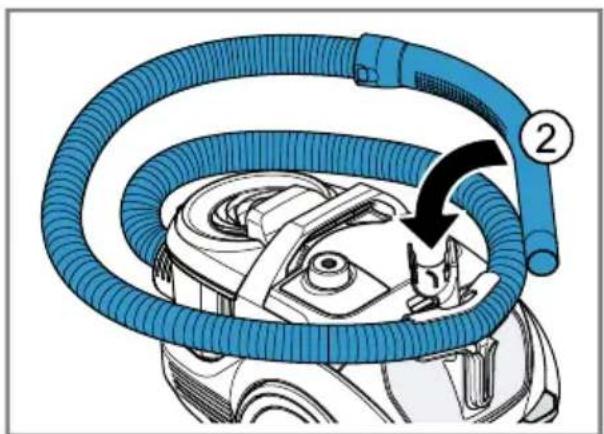

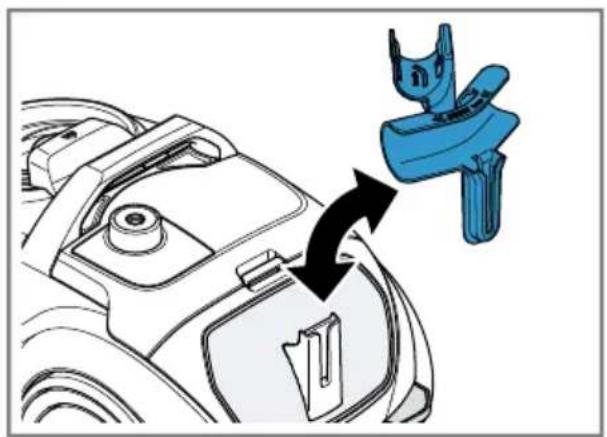

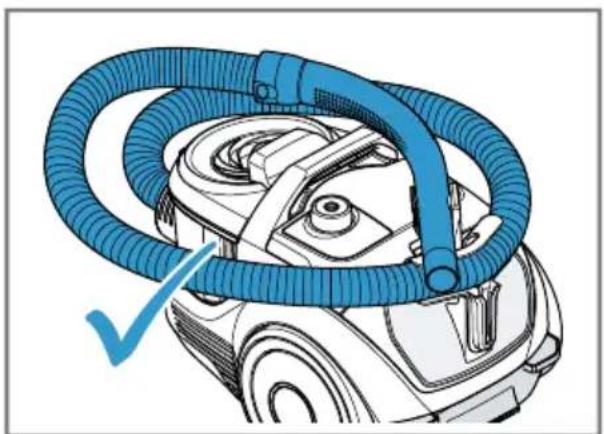

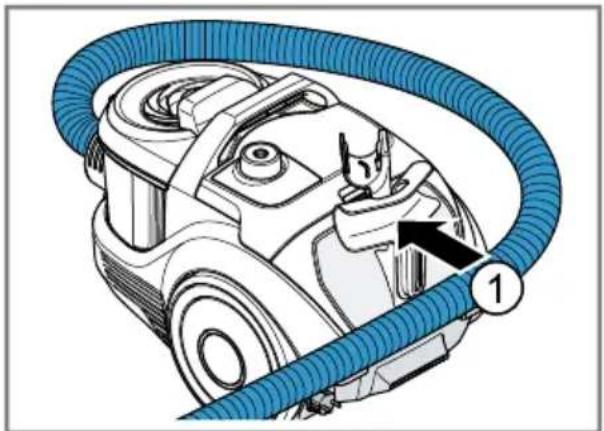

Storing the hose

→ Fig. 13 - 15

Cleaning and servicing

Follow the illustrated instructions.

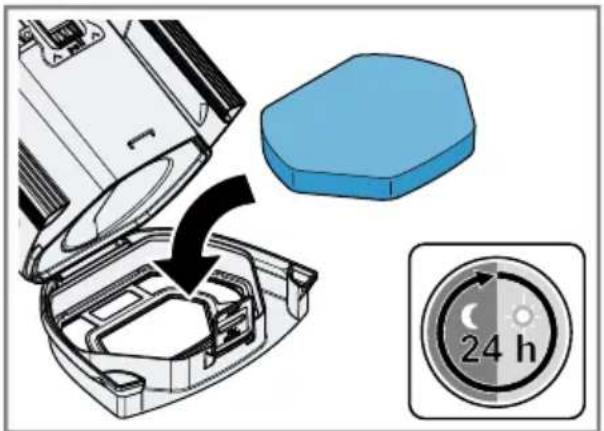

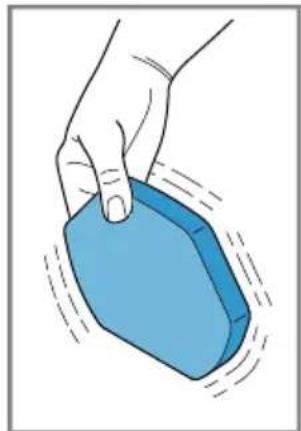

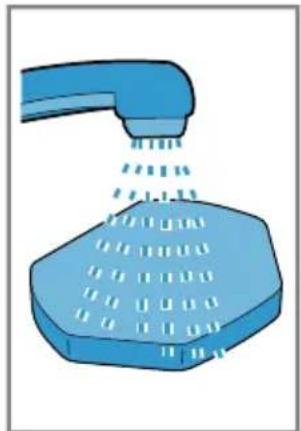

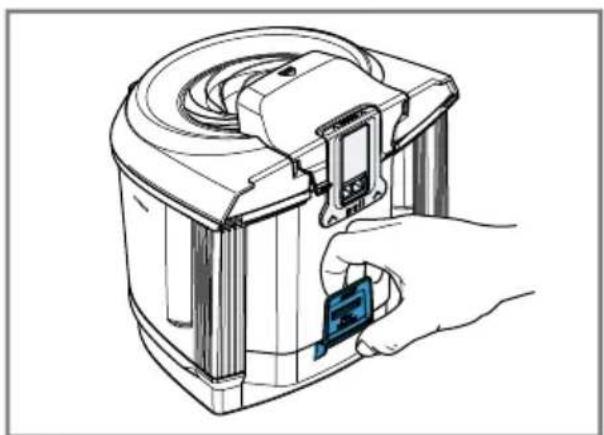

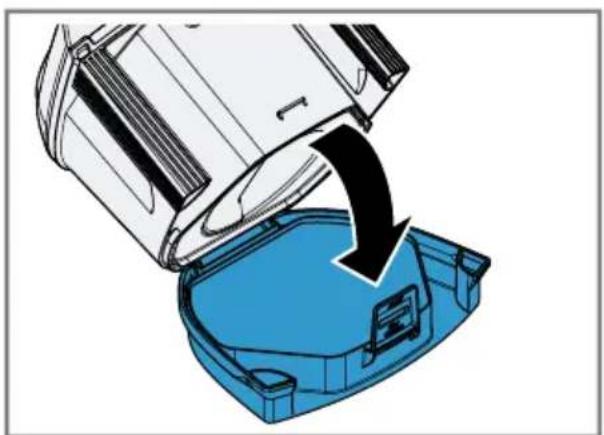

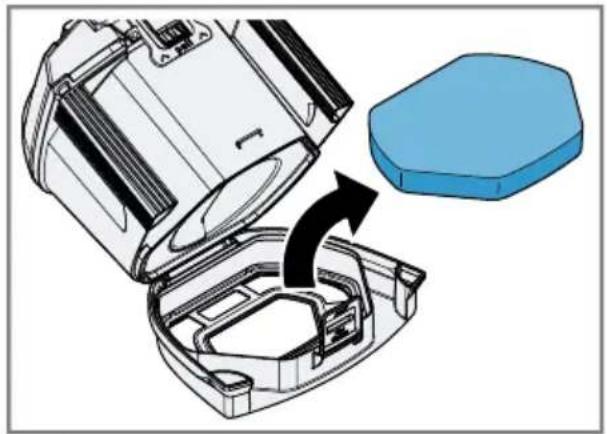

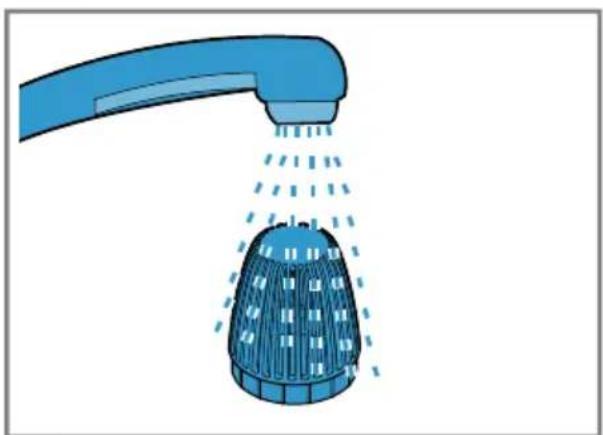

Cleaning the filter in the dust container

→ Fig. 16 - 21

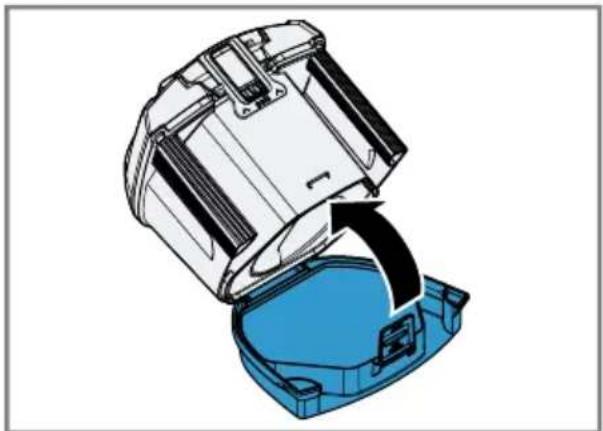

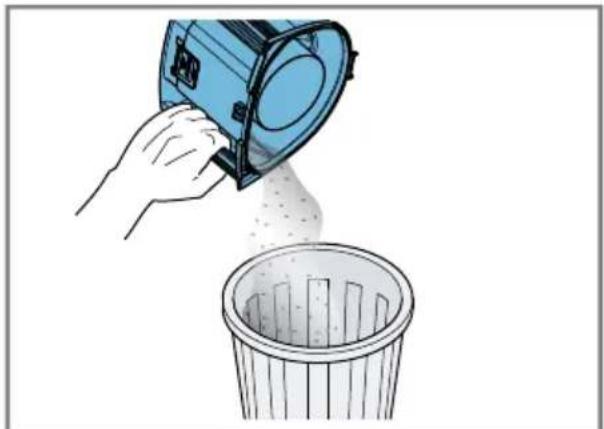

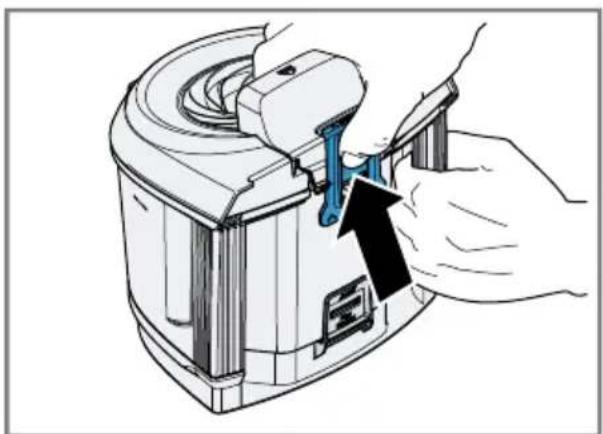

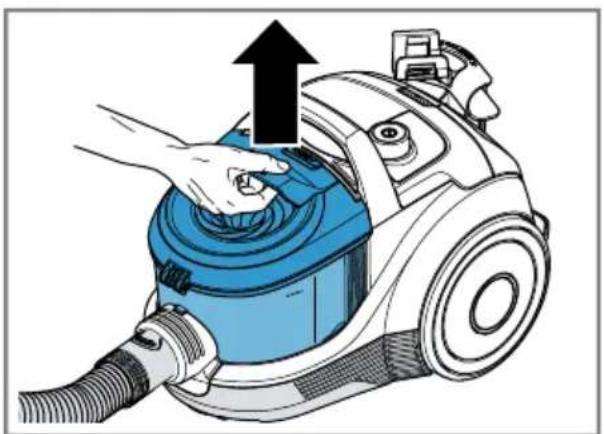

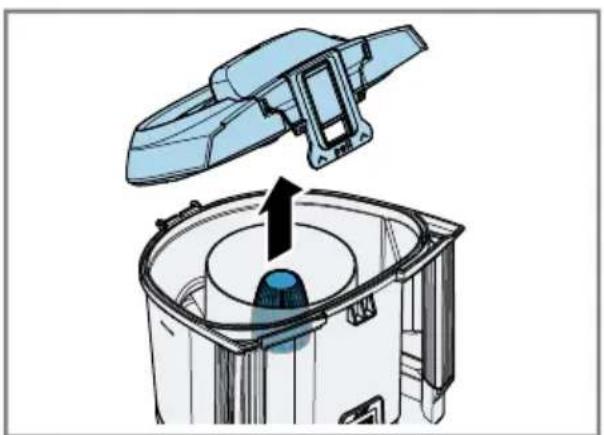

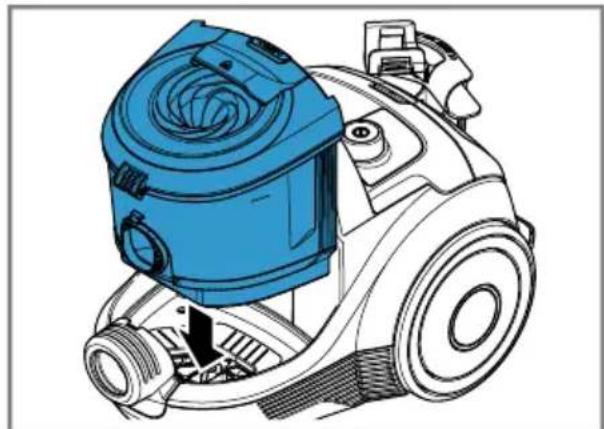

Cleaning the dust container

→ Fig. 22 - 27

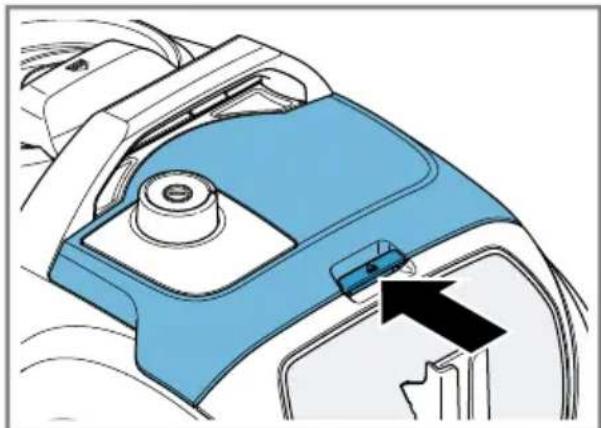

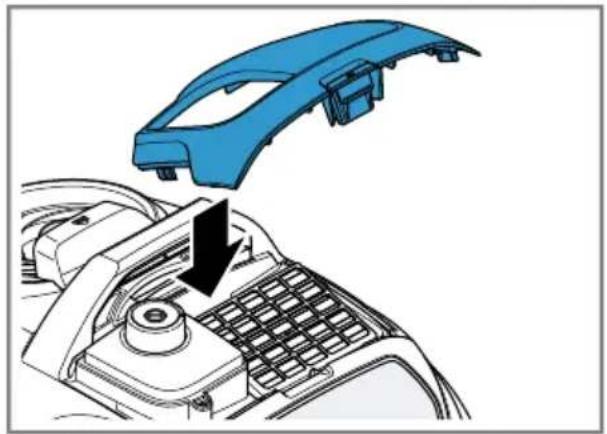

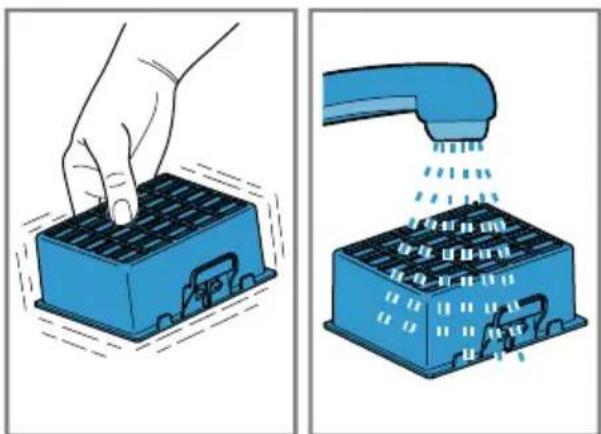

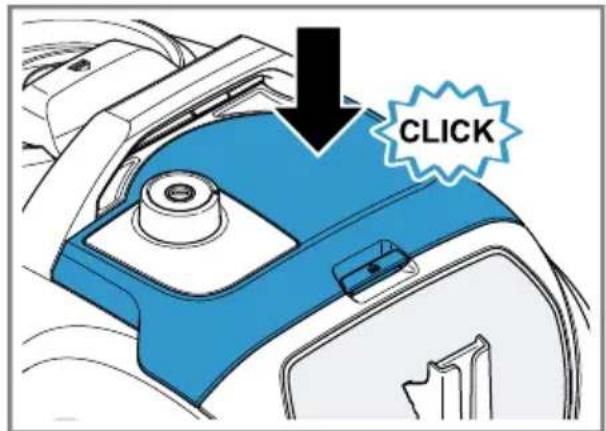

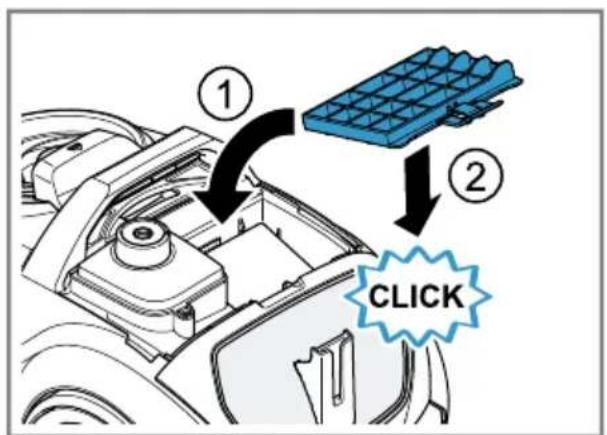

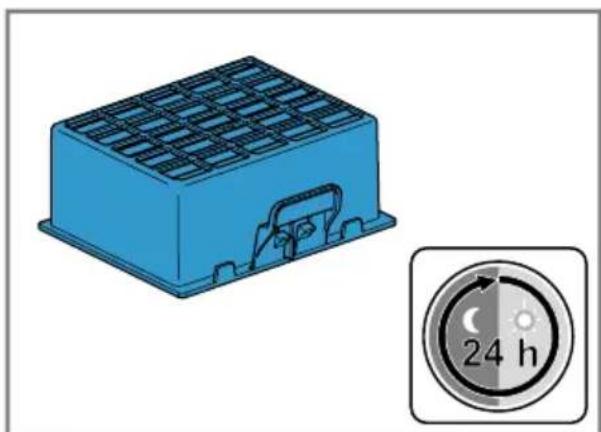

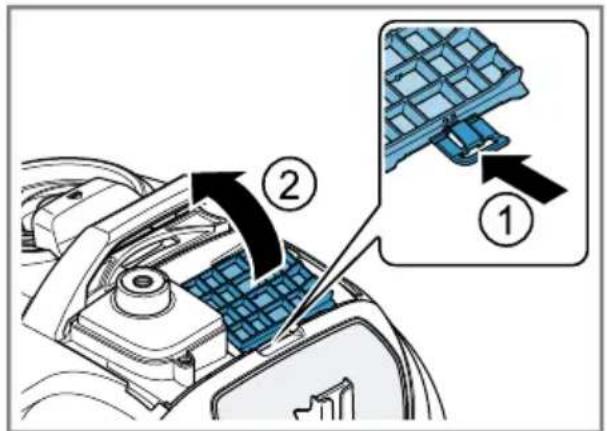

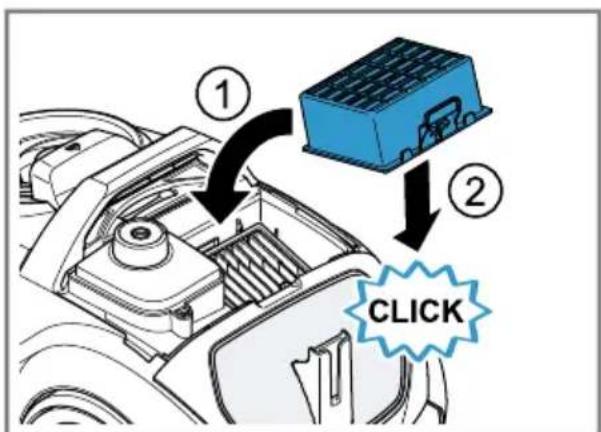

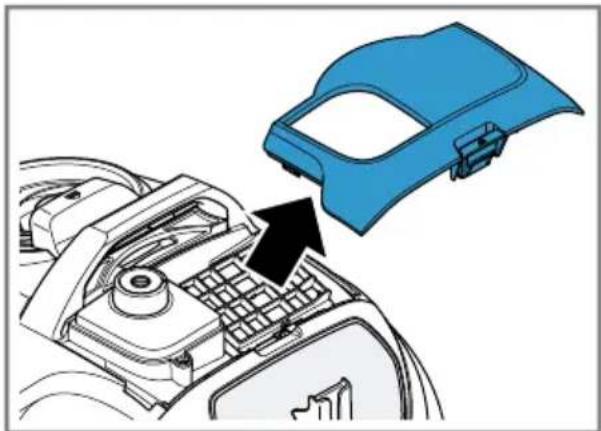

Cleaning the exhaust filter

→ Fig. 28 - 35

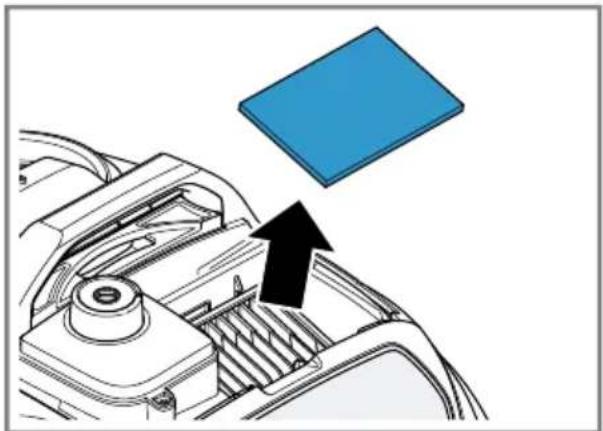

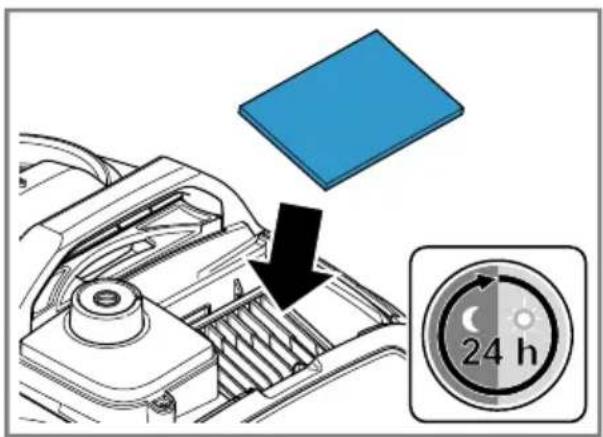

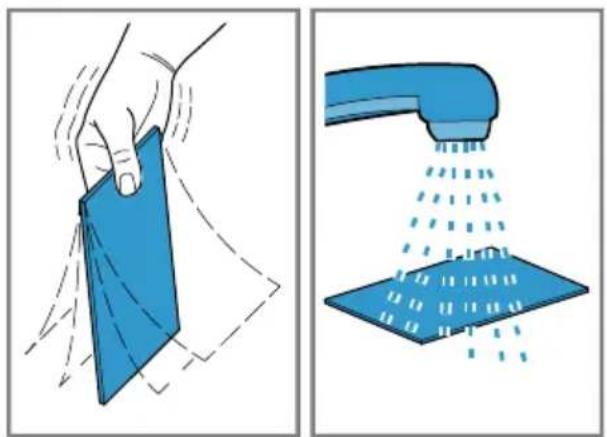

Cleaning the exhaust filter fleece

→ Fig. 28 - 34

Troubleshooting

You can rectify minor faults on your appli-ance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Disposing of old appliance

Valuable raw materials can be reused by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner.

Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Warranty conditions

You can make warranty claims for your appliance under the following conditions.

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
