USER MANUAL FN123106 Emerio

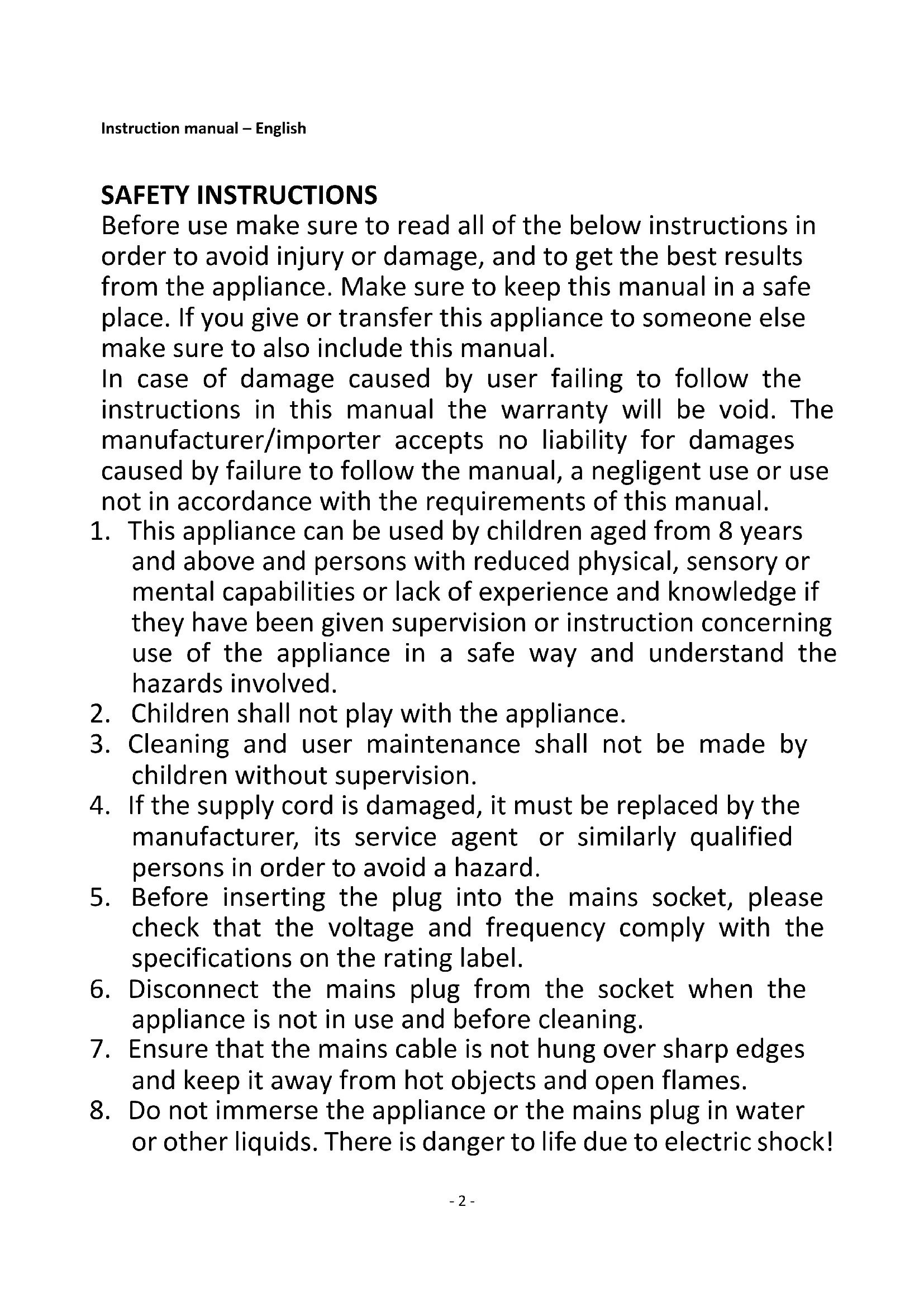

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. Keep the appliance away from damp, and protect from splashes.
18. Use the appliance on a flat, dry and heat resistance surface.
19. Do not store or operate the appliance in the open air.
20. Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
21. Never put fingers or any other objects through the fan guards when the fan is running.
22. Never operate the product without the fan guards in place, as serious personal injury may result.
23. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
24. Do not point the air flow at people for a long time.
25. Ensure that the fan is switched off from the supply mains before removing the guard.

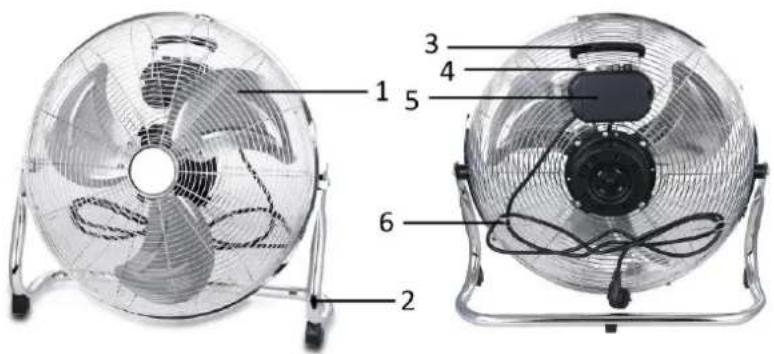

PARTS DESCRIPTION

1. Main body (Fan guard + Fan blade)
2. Tube stand
3. Handle
4. Speed buttons
5. Control box
6. Support for cable storage

OPERATING INSTRUCTIONS:

1. Plug the power cord into a suitable socket.
2. The fan is switched on by using the speed buttons on the control box: 0 = OFF , 1 = Low Speed , 2 = Medium speed , 3 = High speed .
3. Tilting Angles: turn off the fan, then push or pull the guards to adjust the angle of airflow.

CLEANING AND MAINTENANCE

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.
4. Pack the appliance in its original box and place it in a dry, well-ventilated place when it is not to be used for a long period of time.
5. If the appliance is extremely dirty, the front guard can be removed to clean. Unscrew the set screw at the bottom of the fan guard and then open the clips to remove the front guard; wipe the front guard and fan blade with a dry cloth. After cleaning, reassemble the appliance securely.

Note: we recommend that disassembly and installation shall be operated by a professional.

TECHNICAL DATA

Operating voltage: 220 - 240V 50Hz

Power consumption: 100W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]

ERP information (EN)

Declare that the product detailed below:

Information requirements

Information to identify the FN-123106 to which the information relates to [Retro chrome floor fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	122,79	m³/min
Fan power input	P	95,50	W
Service value	SV	1,29	(m³/min)/W
Standby power consumption	PSB	-	W
Fan sound power level	LWA	62,32	dB(A)
Maximum air velocity	c	4,26	meters/sec
Measurement standard for service value	IEC 60879: 1986 (corr. 1992)
Contact details for obtaining more information	Emerio Deutschland GmbH Lerchenweg 3 40789 Monheim am Rhein Deutschland

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

"Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging."

SICHERHEITSHINWEISE

TEXHNUECKNEXAPAKTEPNCTNKN:

Питанne:220-240B\~50Γ

MoUHocTB:100BT

TAPAHTRI N TEXHNUECKOE OBCJYKBAHNE:

IpeepnocTynnenm B npoJau Hauu ycTpoCTBa npoxoJr cTporn KOHTpoJI kAueCTBa.Ecn, HecmotpHa BCE Mepbl npedoctopoKHOCTN, Bbl Bce Jx npno6peHn NobpeJeHHbI np6op, noXaLyIcTa, BepHnte yctpoCTBO npoabuy. B COOTBETCTBn C yCIOBnM rapaHTn Ha npno6peTeHHbI np6op npedeOCTABJIeTcra rapaHTnHoe obcnykubHne Ha 2 roD, Hauhna co dHa npoJau. Ecn Bbl npno6peHn np6op c DeEkeKToM, Bbl MOKeTe He3aMeDInTeJIbHo BepHyIe IOn MeCy TnOKyKN.

Ha defeKtbl, Bo3HnKwne BcIeCTBnE HnpaBnIbHOr nCnoJIb3OBAHn np6op, a TAKKe Ha HeNCpPaBHocTn, npOn3oWeJWne BcIeCTBnE peMOHTa np6opA HecepTuΦuINPOBaHHbIMn ceHTpAm NII TpeTbIMN IuaAM, a TAKKe BCLeDCTBnE yCTaHOBKn HeOpuHaJIbHbIX DeTaleN, daHHa rapaHTnR He pacnpocTaPahReTc.

Bcerda coxpaHnTe yek n rapaHTnHbI TaHO. Be3 HNX Bbl He cMOKeTe IpeTeHDoBaTb Ha Kakyo-Jin6o fOpMy

rapaHTn.

Usep6, BbI3BaHbI Heco6IIODeHnem DaHHoIN HNCTpyKcHn, npINBOHT K TOMy, YTO rapaHTna Ha npINbOp aHHynpyetc. Ipn3BODntelb He Hecet OTBeTCTBeHHocTn 3a NOHeceHHbIe BCJeDCTBne 3TOrO paCXoDbI. Ipn3BODntelb TAKKe He Hecet OTBeTCTBeHHocTn 3a MaTePnAJIbHbI yue6 nII TpaMbI, NOLyeHHbIe BCJeDCTBnE HePpABInbHO rCNOJb3OBaHnra Ipn6opa, Bbl3BaHHoro OTCyTCTBnEM BHNMaHnK daHHoINHCTpyKcHn. Poiomka nII NOpeKdHne akceccayop Be O3Naaet beCcnlathy0 3ameHy Bcero np6opa. B TAKOM clyae, noKaIyIcTa, CBJNTecb C cepBnchbIM ceHTpOM. 3aMeHa pa3bIX CTekOJI nII NOpeKdHHbIX PIACTIKOBbIX DeTalei BCErda Ipn3BODntcR Ha IIaTHOH oCHObe. Poiomka paXoIDhIX MaTePnAIOB nII DeTalei, POnDBepJxEHbIX IN3HOCy, a TaKke OChtKa, TexHnueckoe 06ClyJXBAHnE nII 3aMeHa yKa3aHHbIX qacteH He NOKpbIBaOTcra paoHTne i ONlaunBaOTcOTdeJIbHO.

BE3OJNACHA YTNIN3AUINBA OKPYKAIOUEN CPEDE:

Ipepea60ka oTxoDob - eBponeiCKa InpeKtNbA 2012/19/EU

Данная Маркировka ob03начаert,чTo пибор He noДлжNT yTuInn3aunn c ДугIMN 6bITOBbIMN OTXODamN.ЧТБыnpedOTBpaTntb BO3MOxHbI BpeD OkpykaUoSei cpeE n 3dopOBbU O IIOdei, yTuINn3npyIte 6bITOBbIe пиборы OTBeTCTBeHNo,чTo TaKxe 6ydet CnocobCTBOBaTb yCTOuYNBOMy NOBTOPHOMY INcNoJIb3OBaHnIO MaTePnaJIbHbIX pecypcoB.ДЯ yTuINn3aunn пиборa, noXaJyIcTa,

IcnoJIb3yIte cIcTeMbI BO3BpaTaN C6opa 3JIeKTPoPnp6OpOB Ln6o CBJXHTecb C npOaBcOM. OH yTHIN3HpyeT np6op npabNlbo.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Cnyk6a noDepkKn KIneHTOB

T: [phone]

E: [e-mail]
