USER MANUAL FN110001 Emerio

Instructions for use

Desk fan 25W

Gebruiksaanwijzing

Tafelventilator 25W

Mode d'emploi

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING - When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
6. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.
7. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.
8. Do not operate the appliance if the mains cable or the

mains plug show signs of damage, if the appliance has fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

1. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
2. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
3. Keep the appliance away from damp, and protect from splashes.
4. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
5. Keep the appliance and its cord out of reach of children less than 8 years.
6. Use the appliance on a flat, dry and heat resistance surface.
7. Never leave the appliance unattended during use.
8. Do not store or operate the appliance in the open air.
9. Keep the appliance in a dry place, inaccessible to children (in its packaging).
10. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
11. Do not point the air flow to the people for a long time.

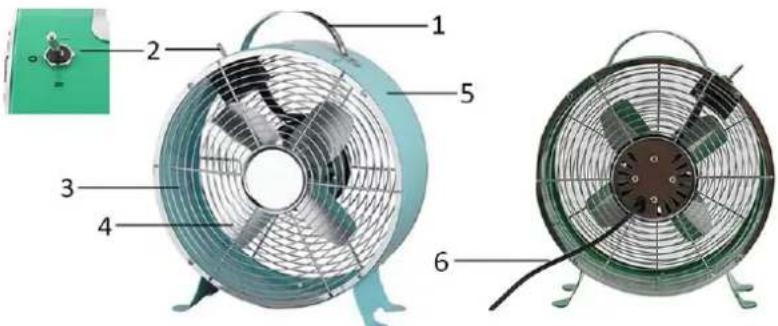

PARTS DESCRIPTION

1. Handle
2. Speed switch
3. Fang guard
4. Fan blade
5. Fan body
6. Power cord

OPERATING INSTRUCTIONS

1. Plug the power cord into a suitable socket.
2. Flip the speed switch to turn on the fan ("l" = low speed, "ll" = high speed).
3. To turn the fan off, flip the switch to the "0" position.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V 50/60Hz

Power consumption: 25W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	11,8 m³/min
Fan power input (P)	16,1 W
Service value (SV)	0,7 (m³/min)/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PSB)	0.0 W
Fan sound power level (LWA)	49dB(A)
Maximum air velocity (c)	1,7 meters/sec
Contact details for obtaining more information	Hema BVPO Box 371101030 AC AmsterdamNetherlands

WARRANTY CONDITIONS

HEMA B.V. fully guarantees the product named on the warranty receipt, against all defects caused by material and manufacturing errors.

For all domestic electrical appliances, the warranty period is 2 years from the date of purchase.

The warranty on this article is invalidated if:

a. the defect occurs through incorrect or improper use, neglect, connection to the wrong power voltage, or if dropped or knocked;

b. you have attempted to repair the article yourself, or have had it repaired by a repair service other than HEMA during the warranty period.

If you wish to make a claim under the warranty terms:

You will need to hand in the article at one of our branches together with the warranty receipt. Under normal circumstances the article will be repaired free of charge within 14 workdays.

Extra certainty for the right choice

If, after purchasing the article, you are dissatisfied (because it is not exactly what you expected or you already have this article), you can return the article within 30 days of purchase, on condition that it is undamaged and in the original packaging.

Remember that you must always bring your sales receipt.

You can either exchange the article or request a refund.

The warranty conditions apply in all countries where there are HEMA branches.

1 November 2010

Hema BV

PO Box 37110

1030 AC Amsterdam

Netherlands

These warranty conditions apply without prejudice to the customer's statutory rights or any other claims by the customer.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19/EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.
