Product Type	Wine Cooler
Brand	Emerio
Model	WC127562
Capacity	28 bottles
Adjustable Temperature Range	5 °C to 18 °C
Display	Digital display (0-37 °C / 32-99 °F)
Power Supply	220-240 V~, 50 Hz, 0.6 A
Refrigerant	R600a (21 g)
Climate Class	N (Temperate, 16-32 °C)
Insulation	Cyclopentane
Electrical Protection	Class I
Main Functions	Temperature adjustment, interior lighting, forced defrost, settings memory
Accessories	Removable shelves, adjustable feet, display shelf
Care and Cleaning	Unplug before cleaning, use mild detergent, clean door gaskets regularly
Safety	Automatic button lock, error code shutdown, do not use extension cord
Usage	Domestic use, wine storage only, not built-in

Frequently Asked Questions - WC127562 Emerio

How to adjust the temperature of my wine cooler?

To adjust the temperature, first unlock the buttons by pressing and holding (2 seconds) the unlock button. Then, use the increase and decrease buttons to select the desired temperature between 5°C and 18°C. The value flashes then displays. The buttons lock automatically after 20 seconds of inactivity.

What does the error code 'EE' on the display mean?

The code 'EE' indicates a problem with the temperature sensor: either a short circuit or a disconnection. In this case, cooling stops. Contact after-sales service to have the sensor checked.

How many bottles can I store?

This wine cooler can hold up to 28 bottles of wine, depending on their size and shelf arrangement.

Can I freeze food in this wine cooler?

No, this appliance is exclusively designed for wine storage. It is not suitable for freezing food items.

Why is my wine cooler making noise?

Sounds of gurgling (refrigerant gas) and cracking (contraction/expansion) are normal. Make sure the appliance is level and not in contact with walls or objects. Normal operating noises are not covered by the warranty.

How to clean the interior of the wine cooler?

First unplug the appliance. Remove the shelves and wash them with warm water and a mild, unscented detergent. Clean the interior walls and door gasket with a soft cloth. Dry thoroughly before restarting.

Do I need to leave space around the appliance?

Yes, leave a minimum spacing of 15 cm between the appliance walls and adjacent walls or furniture for proper ventilation.

Can I use an extension cord?

It is not recommended to use an extension cord or power strip. Plug the appliance directly into a suitable wall outlet to avoid any risk.

What to do if the internal temperature is not low enough?

First check the temperature setting. Make sure the door is properly closed, the appliance is not exposed to sunlight or a heat source, and the ventilation space is sufficient. If the problem persists, contact after-sales service.

What is the ideal temperature for serving wine?

Serving temperature varies by wine type: Champagne at 6-7°C, dry white wine at 10-12°C, red wine at 16-18°C. For optimal results, place bottles in the cooler at least 48 hours before tasting.

USER MANUAL WC127562 Emerio

Exterior view of a black and silver wine refrigerator with glass doors and wooden shelves (no visible text or symbols)

Wine Cooler (EN)

Weinkühler (DE)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read and save these instructions. Attention: pictures in the IM are for reference only.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
6. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
7. WARNING: Do not damage the refrigerant circuit.

8. WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

9. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

10. This appliance is intended to be used in household and similar applications such as

11. staff kitchen areas in shops, offices and other working environments;

12. farm houses and by clients in hotels, motels and other residential type environments;
13. bed and breakfast type environments;

14. catering and similar non-retail applications.

15. WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

16. WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

17. To avoid contamination of food, please respect the following instructions:

18. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

19. Clean regularly surfaces and accessible drainage systems.
20. Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days. (Only applicable to water dispenser and water inlet system)

21. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

22. This refrigerating appliance is not intended to be used as a built-in appliance.

23. Climate class:

24. Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32 °C';

25. Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to

32^' ;

• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C'.

• This appliance is intended to be used exclusively for the storage of wine.

• This refrigerating appliance is not suitable for freezing foodstuffs.

• Make sure to place the plug all the way into socket when connecting your appliance.

• Never use the appliance in place where combustible and inflammable materials are kept.

• For safety reason, be sure to repair or replace parts at an authorized service dealer.

• Ensure the appliance is unplugged before cleaning or if the product is not in use.

• To clean the appliance, use only mild detergents or glass cleaning products. Never use harsh detergents or solvents.

• It is not recommended to use the appliance with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

• Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

• Keep appliance away from any heat source or direct sunlight.

• To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

• Do not place any other appliance on top of the appliance, and do not wet it.

• Do not use outdoors or in wet conditions.

• Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

• Keep the cord away from heated surfaces.

• Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.
• Regarding the information pertaining to the installation, handing, use, servicing, replacement of lamp (if applicable), cleaning and disposal of the appliance, thanks to refer to the below paragraph of the manual.
• Disposal of the appliance: To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. And the disposal should only be done through public collection points.

37.

WARNING! Risk of fire / flammable

materials

Please keep the product far away fire source during using, service and disposal. There are flammable materials at the back of the appliance.

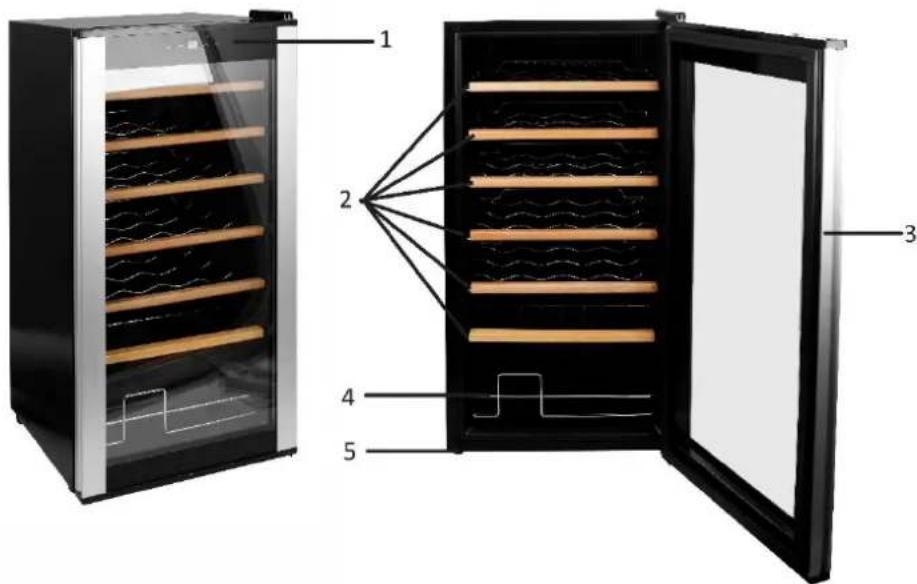

STRUCTURE ILLUSTRATION

1. Control panel
2. Shelves
3. Door
4. Display shelf
5. Adjustable foot

INSTALLATION

Recommendations:

The location you have selected for the appliance must be:

• free and well ventilated;
• far from any source of heat and direct sunlight;
• not be too wet (laundry, pantry, bathroom etc.);
• have a flat floor;
• obtain a reliable and standard electricity supply;

Protect the appliance from heat (above 38°C) and cold (below 16°C), dust, moisture, water and splash water.

Location

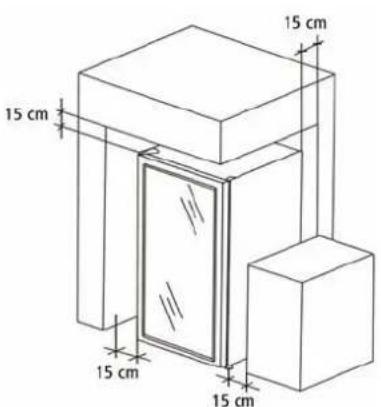

In order to ensure adequate ventilation of the apparatus, observe a minimum spacing of 15 cm between walls of your appliance and the walls nearby (walls or worktop for example) as shown in the illustration below.

Your appliance is equipped with an adjustable foot for facilitate its upgrade.

It is recommended to adjust the front feet to upgrade the appliance. The right setting level and feet will limit vibration and noises that flow from it.

Turn the adjustable foot by hand (be careful of do not hurt your hands).

The appliance needs to be upgraded before loading of your wines, in a place where the soil can support the load.

Ambient temperature

The appliance should be placed in a room with temperature between 16-38°C. If the ambient temperature is above or below the climatic class, the performance of the appliance will be impacted. Cold or warm temperature can cause fluctuating fridge temperatures, the appliance may not reach the set temperature or may stop working.

FIRST USE

IMPORTANT: Wait for 8 hours before starting your appliance.

Meanwhile we recommend that leave your appliance upright, clean it and leave it open to eliminate residual odors.

Recommendations:

• Place the appliance in a cool place away from sunlight and heat sources.
• Certain parameters such as room temperature, door opening time or the number of bottles stored inside could affect the internal temperature of your appliance. We recommend that you check the internal temperature regularly and adjust it if necessary.
• Do not cover the vents.

Operating noise:

To reach the desired temperature, this appliance, like all wine fridges with compressor cooling systems, can produce certain noises, which are normal operating noises.

• Gurgling noise: caused by the refrigerant gas circulating in the refrigeration area of the unit.
• Cracking noise: resulting from the contraction and expansion of the gas to produce the cold.

The perception of noise by the individual is directly related to the environment in which the appliance is located. Noise in normal operation is not a cause of the warranty's application.

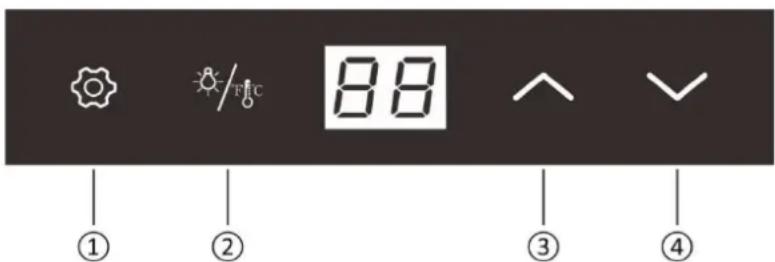

TEMPERATURE CONTROL

1. Unlock button
2. Light button/ Fahrenheit / Celsius button
3. Temperature increase button
4. Temperature decrease button

Unlock button

Long press the unlock button for 2 seconds to unlock the two temperature adjustment buttons.

Temperature increase / decrease button will be locked automatically if no operation of all buttons for 20 seconds.

Light button / Fahrenheit / Celsius button

Short press the button to turn on/off the light. The light will turn off automatically if no operation of all buttons for 10 minutes.

Long press the button to switch between Fahrenheit and Celsius.

Temperature adjustment

Press the temperature increase button / decrease button to adjust the temperature. The set temperature will flash several times in the display, then the display will show the current temperature.

Minimum value: 5°C / 41°F

Maximum value: 18^ C / 64^ F

Display range

Temperature display range: 0\~37°C / 32\~99°F

Display stability

In the Celsius state: When the temperature measured by the temperature probe is within ±1^ C of the set temperature, the temperature display will display the set temperature value

In the Fahrenheit state: When the temperature measured by the temperature probe is within ±2^ F of the set temperature, the temperature display will display the set temperature value

Forced defrosting function

When the compressor works for 12 hours, the compressor will stop and defrost for 40 minutes

Memory function

The control board is re-energized after each power-off, the temperature setting value, Fahrenheit/Celsius state will be the same as before the power-off, and the length of power-off time is not limited.

Tips

• The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances. Your appliance can hold up to 28 bottles.
• When the surrounding temperature is 25^ C and the wine cooler has no bottle loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5^ C to 12^ C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12^ C to 5^ C. The less the temperature span is, the less time it will take.
• The wine cooler is recommended to be designed at 12°C. If the setting temperature is higher than 12°C, the energy consumption will be lower. If the setting temperature is lower than 12°C, the energy consumption will be higher.

Important information about the serving temperature of wine

Your appliance has been designed to allow you to set desired serving temperature of your wine. Each wine varietal is served at a different ideal temperature.

The temperature is adjustable from 5-18 °C. Unless the wine producer recommends a different temperature for your particular wine, champagne should be served at 7°C, white wine should be served at 12°C and red wine should be served at 18°C (see table in “Wine service temperatures”).

Some wines can be served young (2 to 3 years), while others are much better aged (10 years and older). Each wine peaks at a different age. Check the ideal drinking age for your wine with your wine merchant.

Table of service temperatures of wine:

The below table shows the temperature generally recommended for wine tasting concerned.

To bring the wine to the serving temperature, it is recommended to place it in your appliance at least 48 hours before serving.

Wine	Recommended temperature
Champagne, sparkling wine	6°C
White: Sémillon, Sauvignon Blanc	8°C
Vintage champagne	10°C
Dry white: Chardonnay	10°C
Dry white: Gewürztraminer, Riesling, Pinot gris	10 °C
Sweet late harvested white: Sauternes, Barsac, Monbazillac	10°C
Beaujolais	13°C
Sweet white wine: Sauternes ...	14 °C
Vintage Chardonnay White	14 °C
Red Pinot Noir	16 °C
Red Grenache, Syrah	16 °C
Red vintage Pinot Noir	18°C

CLEANING AND MAINTENANCE

Before cleaning or restarting, unplug at the socket.

Never use abrasive products or sponges with scrapers for cleaning inside or outside your device.

• Remove all accessories (e.g., shelves). Wash them with lukewarm water with a mild, odorless detergent (an unscented dish liquid, for example), rinse with water containing bleach and dry thoroughly.
• Wash the interior walls in the same way; take special care of the shelves.
• Wash the door seal without omitting to clean also under the door seal.
• Reconnect the device and get it back into operation.

Important!

When the appliance is not used:

• Unplug the appliance.
• Remove all objects inside.
• Clean and dry the interior space of the appliance per the above instructions.
• Leave the door slightly ajar to avoid mold.

TROUBLESHOOTING

Some issues can be easily resolved. Before using after-sales service or a repairman, please see the following table:

PROBLEM	POSSIBLE CAUSES
The appliance doesn't work.	Is the power on?Is the power supply voltage too low?
The appliance is noisy	Whether the ground is flat or the appliance is placed stably ?If the product in contact with external objects or walls ?
The internal temperature is not low	Improper temperature setting, please select the appropriate temperature.The door is not closed tightly or opened frequently, and the opening time is too long.Is the location exposed to direct sunlight or too close to the furnace and other heat sources?Poor heat dissipation, please check whether there is enough cooling space around the product.
Error code	EE: "EE" is displayed when the temperature probe is short-circuited or disconnected, flashes, and cooling is stopped.LL: When the temperature measured by the temperature probe is lower than 0 degrees Celsius, "LL" is displayed, flashing, and the cooling is stopped.HH: When the temperature measured by the temperature probe is higher than 37 degrees Celsius, "HH" is displayed, flashing, and cooling is stopped.

If your appliance doesn't seem to be working normally, unplug the device for a few minutes, then plug it in again to reset the appliance.

If the problem persists or for any other problems occurring at your device: contact the After-Sale Service.

Any service or repair on the cooling process must be carried out by a licensed professional who will have to carry out an inspection of the refrigeration circuit.

Similarly, any service or repairs on the electrical circuit must be carried out by a qualified electrician.

Note: Any repair by an unlicensed technician will result in cancellation of the warranty.

TECHNICAL SPECIFICATIONS

Rated voltage:	220-240V~
Rated current:	0.6A
Rated frequency:	50Hz
Climate class:	N
Refrigerant:	R600a(21g)
Protection against electrical shock:	I
Insulation blowing gas:	CYCLOPENTANE

Climate class:

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C';
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

The guarantee period of the spare parts is 2 years. If you need replacement, please contact our customer service.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

For professional repair and ordering spare parts, please contact our customer service.

Emerio B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

Customer service:

T: [phone]

E: [e-mail]

Kundeninformation:

T: [phone]

E: [e-mail]

Klantenservice:

T: [phone]

E: [e-mail]
