USER MANUAL TFN114512 Emerio

Nūoded informatssoonile

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING - When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. Read and save these instructions. Attention: pictures in the IM are for reference only.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children shall not play with the appliance.
4. Cleaning and user maintenance shall not be made by children without supervision.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. This appliance is intended to be used in household and similar applications.
7. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.
8. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

9. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.

10. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

11. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.
12. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.
13. Keep the appliance away from damp, and protect from splashes.
14. Keep the appliance away from hot objects (e.g. hotplates) and open flames.
15. Keep the appliance and its cord out of reach of children less than 8 years.
16. Use the appliance on a flat, dry and heat resistance surface.
17. Never leave the appliance unattended during use.
18. Do not store or operate the appliance in the open air.
19. Keep the appliance in a dry place, inaccessible to children (in its packaging).
20. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.
21. Never operate the product without the fan guards in place, as serious personal injury may result.
22. The appliance must be assembled completely before use.
23. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
24. Do not point the air flow to the people for a long time.
25. The rotor guard shall not be disassembled/opened to clean the rotor blades.

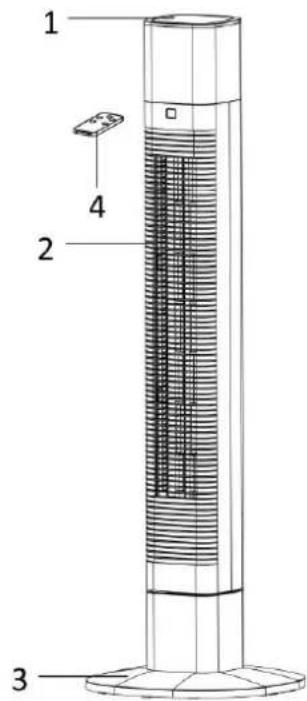

PARTS OF DESCRIPTION

1. Control panel and display panel
2. Air outlet
3. Base
4. Remote control

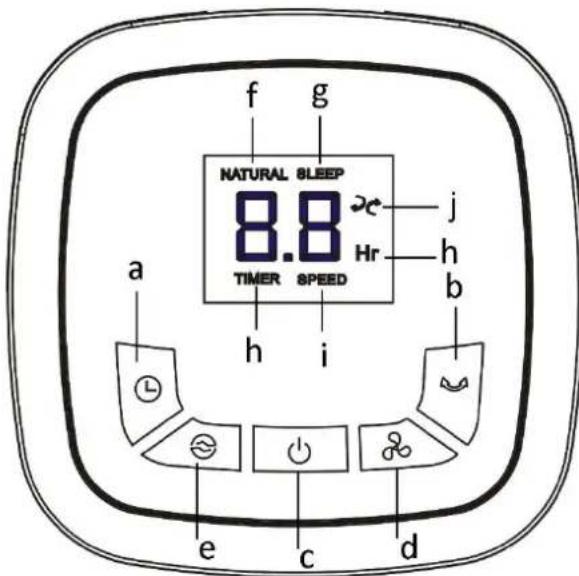

CONTROL PANEL AND DISPLAY PANEL

(1) Control panel
a. Timer button
b. Swing function button
c. On/off button
d. Speed button
e.Mode button
(2) Display panel
f. Natural mode
g. Sleep mode
h. Timer indicator
i. Speed indicator
j. Swing indicator

REMOTE CONTROL

This unit has a remote control. Please use one piece of CR2025 battery for this remote control. Please insert the battery to the remote control tightly (Refer to the instruction behind the remote control). If it is not in use for a long time, please take the battery out of the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel. You can store the remote control in the small slot of the handle.

ASSEMBLY

A

B

C

D

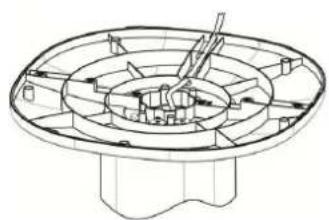

1. Spin 3 screws out from the turnplate (A).
2. Take the power cord out from the turnplate and then pass it through the center hole of the base. (B)
3. Align the base with the turnplate and then spin 3 screws back to fasten them up. (C)
4. Press the power cord into the line deduction. (D)

OPERATION

Connect the appliance to a suitable power source. Then press the control panel or the remote control to choose your desired functions.

1. ON/off: Press "O" to turn the appliance on. It will work with the following presetting: Speed: low / Mode: normal / Timer: off / Swing: off

Press " again to turn off the appliance. The appliance will be in standby mode.

In standby mode, the unit will retain speed setting and swing function of the former settings when turn on the unit again; but if you pull out the plug from the socket, the former settings will all be lost.

1. SPEED: Press "to adjust the speed.

"1": low wind; "2": Medium wind; "3": high wind

1. MODE: Press "~" to choose the mode functions from Normal Natural Sleeping ... (Repeating).

1) Normal: under this mode, the motor works with the preset speed. You can press the speed button to choose speed Low /Mid /High.
2) Natural: under this mode, the display of "NATURAL" is on. The appliance runs according to the natural mode program. Generating softer and more comfort air volume, you feel like the wind from the nature. You can press the speed button to choose Low /Mid /High natural wind.
3) Sleep: under this mode, the display of "SLEEP" is on. The appliance runs according to the sleeping mode program. Air volume will weaken with the decrease of body temperature when you fall asleep, which will protect you from catching cold. You can press the speed button to choose Low /Mid /High sleeping wind.

1. TIMER: Press "L" to set your desired working time from 1h 2h 3h 8h off. When the set time has elapsed, the fan will be off and under standby condition.
2. SWING: Press "to control the oscillation function on or off.

CLEANING

1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.

TECHNICAL DATA

Operating voltage: 220-240V 50Hz

Power consumption: 50W

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device,

please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Used batteries must not be disposed of through household garbage, since they might contain toxic

elements and heavy metals that can be harmful to the environment and human health. Return empty batteries to an appropriate recycling facility.

ERP information (GBR)

Supplier: BAHAG AG

Gutenbergstr. 21

68167 Mannheim

Germany

Declare that the product detailed below:

Information requirements

Information to identify the TFN-114512.1 to which the information relates to [Tower Fan]
Description	Symbol	Value	Unit
Maximum fan flow rate	F	24.8	m³/min
Fan power input	P	37.3	W
Service value	SV	0.66	(m³/min)/W
Standby power consumption	PSB	0.846	W
Fan sound power level	LWA	54.0	dB(A)
Maximum air velocity	c	2.59	meters/sec
Measurement standard for service value	IEC 60879:1986+(corr.1992)
Contact details for obtaining more information	BAHAG AGGutenbergstr. 2168167 MannheimGermany

Satisfies the requirement of the Council Directives:

COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans

Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.

UPUTE ZA UPOTREBU

SIGURNOSNE INFORMACije

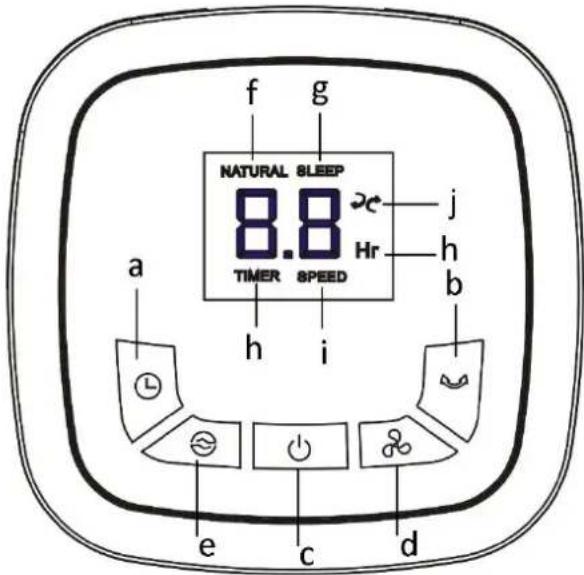

NADZORNA IN ZASLONSKA PLOŠCA
