USER MANUAL UVC121220 Emerio

Black and silver vacuum cleaner with red handle, shown against white background (no text or symbols visible)

Handy vacuum cleaner (EN)

Instruction manual – English ...... - 2 -

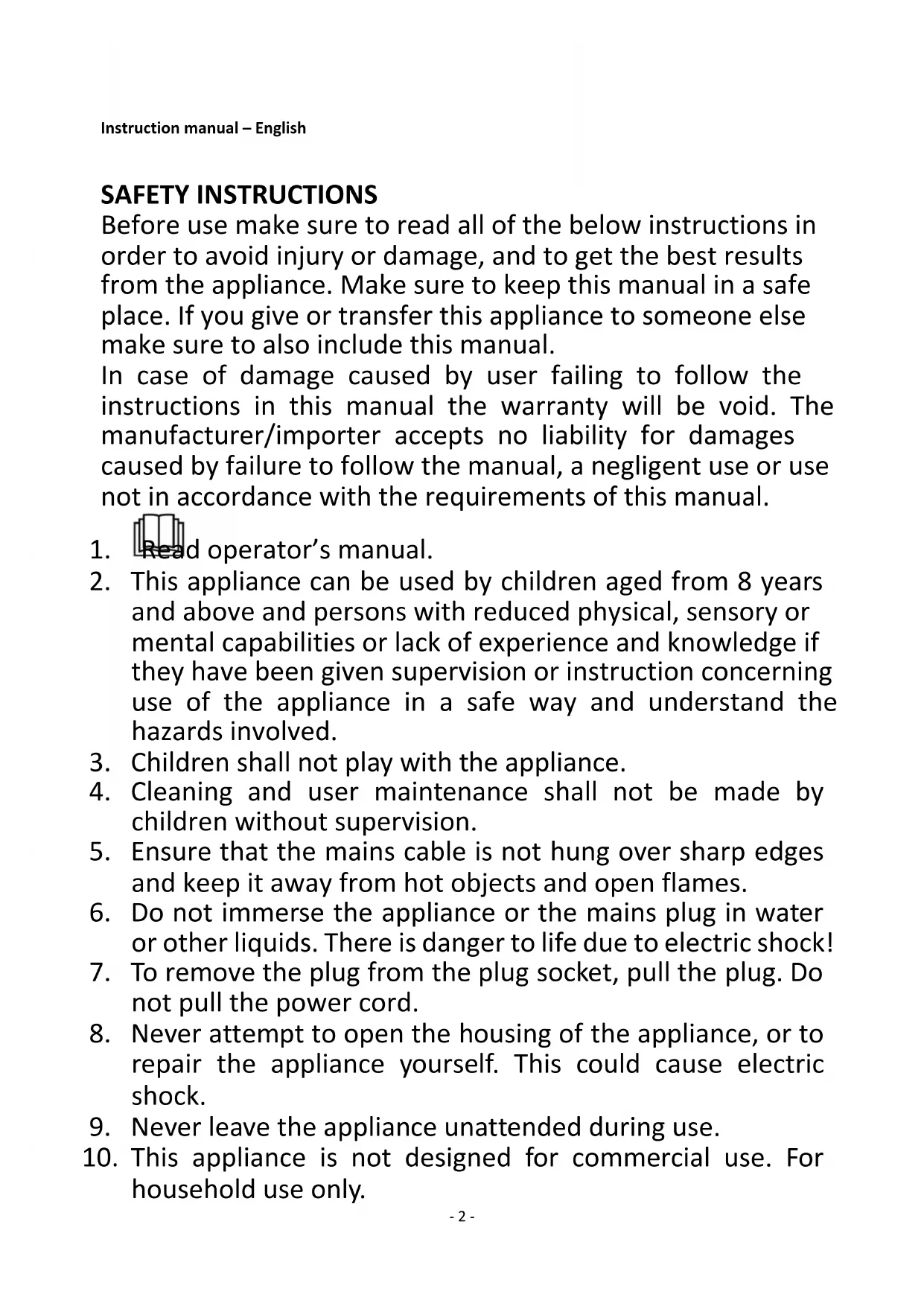

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read operator's manual.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

8. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

9. Never leave the appliance unattended during use.

10. This appliance is not designed for commercial use. For household use only.

11. Do not use the appliance for other than intended use.

12. Do not wind the cord around the charger and do not bend it.
13. Close supervision is necessary for any appliance being used by or near children. Do not leave the system unattended while connected. Keep hair, loose clothing, fingers and all parts of body away from opening and moving parts.
14. Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present.
15. Do not pick up anything that is burning or smoking such as cigarettes, matches or hot ashes.
16. Use extra care when cleaning on stairs.
17. Do not use the appliance without the dust cup filter in place.
18. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
19. Do not put any objects into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything else that may reduce air flow.
20. Use only on dry surfaces.
21. Important: If the suction opening in the unit is blocked, switch off the appliance and remove the blocking substance before you start the unit again.
22. Do not operate the appliance too close to heaters, radiators or cigarette butts.
23. Before you start vacuuming, make sure to remove large or sharp objects that might damage the dust cup filter.
24. The appliance is only to be used with the power supply unit provided with the appliance.
25. The charger must be removed from the socket before removing the battery.
26. Use the included charger to charge the vacuum cleaner and do not use the charger for other purposes.
27. Do not open the charger.
28. Batteries: Never attempt to open for any reason.

Do not expose the battery to water.

Do not expose the battery to heat.

Do not store in locations where the temperature may exceed 40^ C.

1. In an emergency situation contact professional help immediately.

2. Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid that gets on skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations.

3. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.

4. Detachable supply unit WARNING: For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance.

5. This appliance contains batteries that are only replaceable by skilled persons.

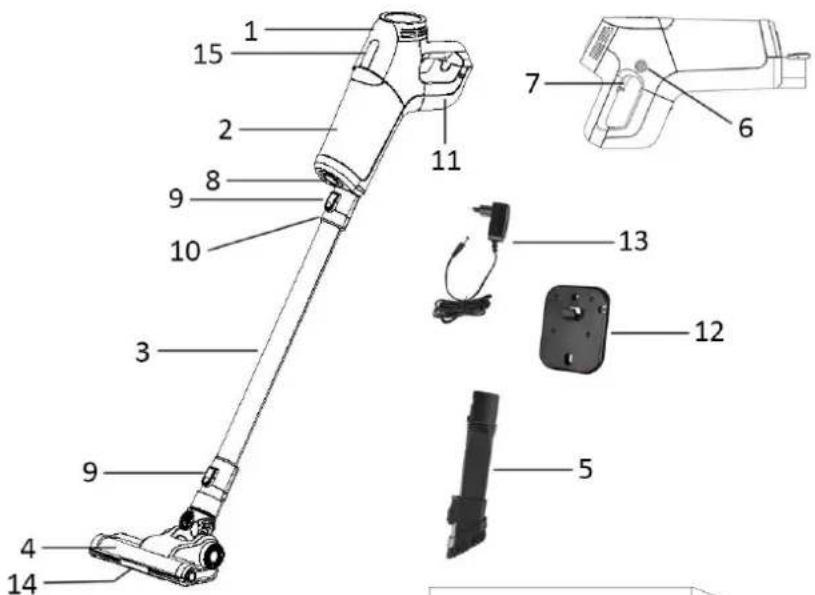

PARTS DESCRIPTION

1. Main unit
2. Dust cup
3. Extension tube
4. Floor brush
5. 2 in 1 nozzle
6. Turbo speed button
7. On/off button
8. Dust cup release button
9. Accessory release button
10. Suction hole opening
11. Battery pack
12. Wall-mounted bracket
13. Charger
14. Floor brush lights
15. Battery pilot lights

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Line drawing of a handheld device inside a transparent cube (no text or symbols)

To use the wall-mounted bracket, just hang the bracket onto the wall and fix it with screws provided. Locate the appliance onto the wall-mounted bracket.

How to detach and attach the battery pack

• To detach the battery pack, switch the battery lock switch (A) to the "unlock" position, then push the battery pack release button (B) to take off the battery pack.
• To attach the battery pack, put the battery pack into the place and switch the battery lock switch (A) to the "lock" position.

A B

OPERATION

1. Insert the extension tube into the suction hole opening; make sure it fits firmly.

Technical line drawing of a mechanical component, showing front and side views (no text or symbols)

1. Attach the floor brush to the other side of the extension tube.
2. If you want to use the attachment 2 in 1 nozzle, attach it to the suction hole opening directly or to the other side of the extension tube instead of the floor brush according to your own desire.

Note: The floor brush can also be attached to the suction hole opening directly.

1. Press the on/off button to turn on the appliance. The appliance will operate with normal speed. The battery pilot lights and floor brush lights will illuminate.
2. Press the turbo speed button, the appliance will switch to turbo speed. Press this button again, the appliance will switch back to normal speed.

Technical line drawing of a vacuum cleaner with a vertical shaft and mechanical component, showing an upward arrow (no text or symbols)

1. After use, press the on/off button to turn off the appliance.

NOTE: During use, please pay attention to the dust capacity and empty the dust cup before the MAX-level indication is reached. This appliance is for dry suction only.

Caution: The suction hole opening must be open and free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.

RECHARGING THE APPLIANCE:

1. When there is only one pilot light blinking in the process of operation, the appliance needs to be recharged.
2. Insert the connector pin into the charger hole (C) of the appliance, and then plug the charger into the power socket. The appliance is in charge.
3. While charging, the pilot light will be blinking to indicate the charger is under working. When the charging operation is finished, the charger will switch off automatically and 4 pilot lights will be on instead of blinking.
4. After charging, unplug the charger first, and then remove the connector pin.

Note:

(1) Do not let the appliance uncharged for a long time, because the inner accumulators may be damaged.
(2) The appliance cannot work during charging.

Pure technical line drawing of a mechanical component with no text or symbols

CLEANING AND MAINTENANCE

1. Except for the main unit and battery, other parts can be cleaned in warm soapy water (<40°C). Rinse and dry them completely before reassembly. Do not immerse the main unit in water or any other liquids.
2. Use only a soft moist cloth to clean the outside of the main unit. Do not allow any kind of liquid to enter the main unit.
3. Do not use aggressive chemicals or abrasives.
4. Do not use the device if the filter is broken or worn out.
5. The unit does not contain parts serviceable by you, do not disassemble it and do not try to repair it yourself.
6. Mount the bracket onto the wall, the appliance can be rested on the bracket after use.

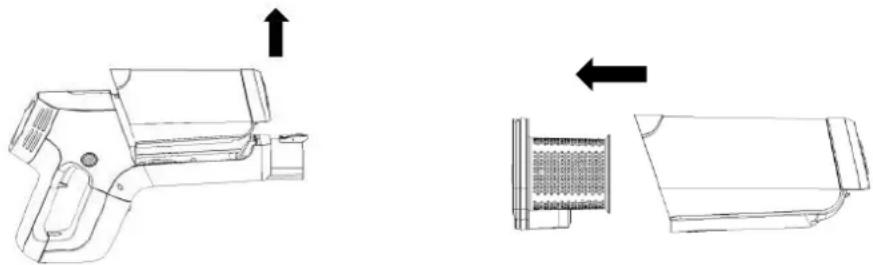

1. How to empty the dust cup:

1) Turn off the appliance. Press the dust cup release button to take out the dust cup.
2) Take out the cyclone.
3) Empty the dust cup.

Technical line drawing of a mechanical device with two views: top shows internal components, bottom shows internal structure (no text or symbols)

2. How to clean the dust cup filter:

1) Note the "lock" and "unlock" logos on the top of the HEPA filter, switch it as arrow points to take the HEPA filter out from the cyclone.
2) Rinse them in water, and then air dry completely before placing them back in the dust cup.

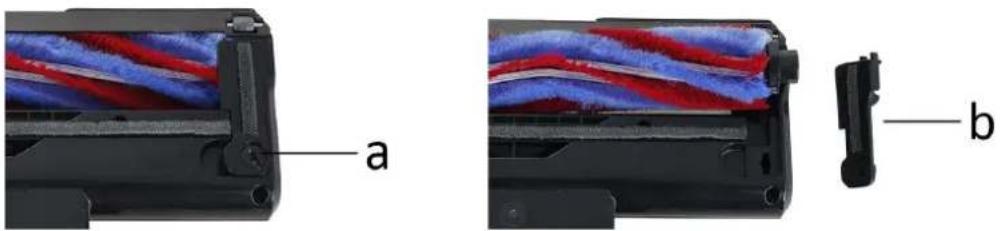

3. How to clean the floor brush

1) There is a lock switch (a) on the bottom of the floor brush. Use a small coin to help switch the lock to the unlocked position. Take off the little cover (b) and take out the rolling brush. Remove any dirt (hair and other fibers) tangled around the roller.
2) Wash the brush under running water with mild detergent. Make sure that it is completely dry before replacing it.

Note: When assembling the rolling brush back, do not forget to put the little cover back in place and switch the lock to the locked position.

Two views of a battery pack showing internal bands and a close-up of the cover (no text or symbols visible)

TECHNICAL DATA:

Battery: 22.2V 2200mAh 48.84Wh

Floor brush: 22.2V =12W

Main unit: 22.2V = 135W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance, replacement of said parts or shipping and transportation costs to and from any place of repair are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

SICHERHEITSHINWEISE

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Line drawing of a handheld device inside a transparent cube (no text or symbols)

Close-up of a black handheld device with red buttons and labeled points A and B (no text or symbols beyond labels)

BETRIEB

Technical line drawing of a mechanical component with two views: top shows a cylindrical shaft, bottom shows a flanged cylindrical part (no text or symbols)

Technical line drawing of a vacuum cleaner with a cylindrical shaft and attached housing, showing an upward arrow (no text or symbols)

Line drawing of a handheld device with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical gear assembly (no text or symbols)

Diagram showing a cylindrical container with a top, a side view of a grid-like structure, and an upward arrow (no text or symbols)

Close-up of a black electronic device with a blue and red patterned screen, labeled 'a' (no text or symbols on the device itself)

Close-up of a black plastic electronic device with red and blue wavy fabric bands (no visible text or symbols)

TECHNISCHE DATEN

Akku: 22.2V 2200mAh 48.84Wh

Bodenbürste: 22.2V W

Zentraleinheit: 22.2V = 135W

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

CONSIGNES DE SÉCURITÉ

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Simple line drawing of a cylindrical device inside a transparent cube, no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an arrow indicating direction (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

NETTOYAGE ET ENTRETIEN

Technical line drawing of a handheld device with an arrow indicating upward motion (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical gear assembly (no text or symbols)

Diagram showing a cylindrical object with a top panel and a grid-like structure, with an upward arrow indicating direction (no text or symbols present)

Close-up of a black electronic device with a blue and red striped pattern on its screen, labeled 'a' (no text or symbols on the device itself)

Close-up of a black plastic electronic component with a coiled red and blue patterned paper (no visible text or symbols)

DONNÉES TECHNIQUES

Batterie: 22.2V 2200mAh 48.84Wh

Brosse de sol: 22.2V =12W

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Simple line drawing of a cylindrical device inside a transparent cube, no text or symbols present

Close-up of a black handheld device with red buttons and labeled points A and B (no text or symbols beyond labels)

UTILIZZO

Technical line drawing of a mechanical component with two views: top shows a cylindrical shaft, bottom shows a flanged housing (no text or symbols)

Simple line drawing of a vertical cylindrical object with two protruding ends (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a handheld device with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a circular mechanical component with concentric rings and central shaft (no text or symbols)

Diagram showing a cylindrical structure with internal components and an upward arrow, no text or symbols present.

Close-up of a mechanical component with a blue and red striped pattern, labeled 'a' (no text or symbols on the object itself)

Close-up of a black plastic bag with a coiled cable wrapped in red and blue wavy patterns (no text or symbols visible)

SPECIFICHE TECNICHE

Batteria: 22,2 V 2200 mAh 48,84 Wh

Emerio Switzerland AG

Oberneuhofstrasse 1

6340 Baar

Switzerland
