USER MANUAL FH110705 Emerio

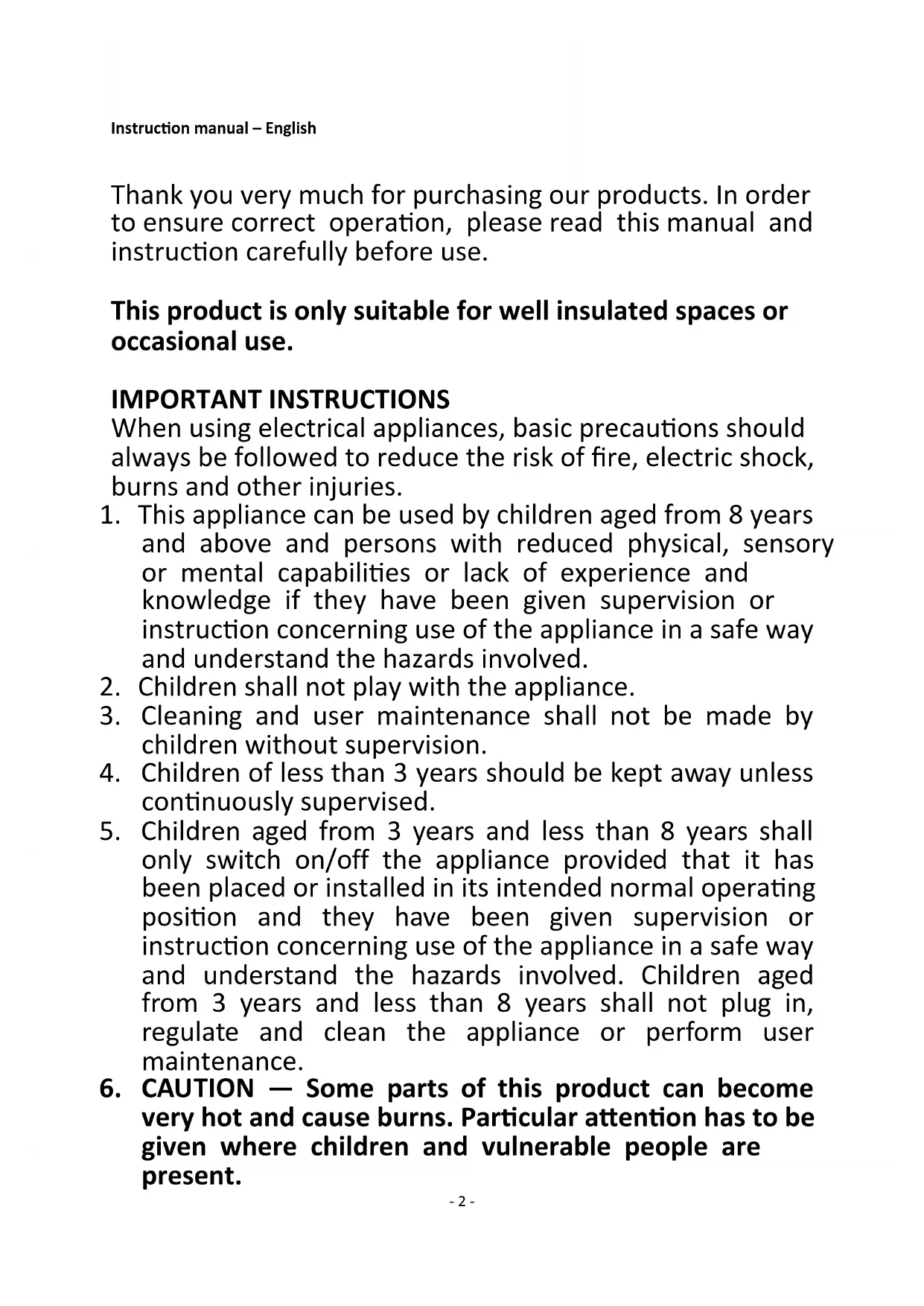

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. Children of less than 3 years should be kept away unless

continuously supervised.

5. Children aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

6. CAUTION — Some parts of this product can become

very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.- 3 -

7. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

8. WARNING: In order to avoid overheating, do not cover

9. The heater must not be located immediately below a

10. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

11. Make sure the appliance is in good condition after

remove it from the package.

12. Check your mains voltage; it must match the

specification of this heater.

13. Check the power cord and plug carefully before use to

ensure that they are not damaged.

14. Be sure the power is turned off before unplugging the

heater. Do not touch the plug with wet hands.

15. Don't cover the heater.

16. Don't allow moisture and dust to enter the appliance.

Don't use this heater in bathrooms or laundries. Store it in dry areas.

17. Don't put the heater on soft surfaces such as beds or

18. Children must not play with or plug in the heater. Keep

children away from the package. Polyethylene bags can be dangerous.

19. Avoid using extension cords, as they may cause a fire

hazard due to overheating.

of a table or counter) or place/run the power cord under rugs, carpeting, or in high-traffic areas where it may be tripped over or pulled.

22. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.- 4 -

23. Do not put any stress on the power cord where it

connects to the appliance, as the power cord could fray and break.

24. Keep the power cord and product always away from

25. Do not insert any other objects into the heater, as it may

cause an electric shock, fire or damage to this appliance.

26. Do not use this appliance to dry or heat clothing, shoes,

pipes or any other items.

27. Use the appliance in a well-ventilated area, this heater is

hot when in use, to avoid burns, do not let bare skin touch a hot surface, if provided, use handle when moving this heater, keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 3 feet ( 0.9 meters) from all sides of the heater.

28. Use this heater only as described in the manual, any

other use not recommended by the manufacturer may cause fire, electric shock or personal injury.

29. Do not operate the heater with a damaged cord or plug.

After the heater malfunctions or has been dropped or damaged in any manner, return the appliance to a service facility for examination, electrical or mechanical adjustment or repair.

30. The appliance should not be operated by means of an

external timer-switch or by means of a separate system with remote control not originally belonging to this appliance.

31. This heating device is not suitable for assembling in

vehicles and machines.

32. The rotor guard shall not be disassembled/opened to

clean the rotor blades.

33. This appliance is not a toy.

34. Do not immerse the unit in water.

36. Any servicing other than cleaning and user maintenance

should be performed by an authorized service representative only.

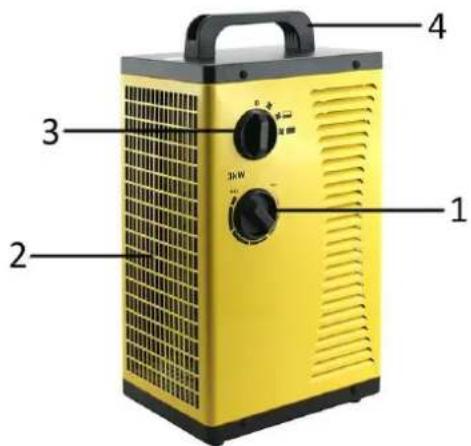

Heat setting: “0” position – OFF – Ventilation – WARM AIR (low heat output) – WARM AIR (high heat output) THERMOSTAT

1. Rotate the switch to choose the suitable setting --- ventilation/ WARM AIR (low heat output)/ WARM

AIR (high heat output).

2. Turn the thermostat knob in a clockwise direction to the max position.

3. Once the room temperature has reached the desired value, turn the thermostat knob slowly in

anti-clockwise direction until you hear a "click" sound; this is the setting temperature.

4. The appliance will automatically maintain the setting temperature. It will switch on when the room

temperature is below the setting, and switch off if it is above the setting. Note: To switch off the appliance, it is recommended to turn the heat switch to ventilation setting for about 15 seconds to cool down. After that, please turn the heat switch to “0” position and then unplug the appliance. This can help prolong the lifespan of the appliance. SAFETY SYSTEM The appliance has a safety system which automatically switches the unit off when overheated. If overheating occurs, switch off the appliance, remove the plug from the socket, and let it cool down for at least 10 minutes. Put the plug in the socket and switch the heater on. This heater is equipped with a tilt protection safety device. For safety reasons, the unit will automatically switch off the power if it is put on unstable or uneven surfaces or if it is tilted accidentally. MAINTENANCE The fan heater only needs regular cleaning on the outside. Before you clean the unit, turn the switch off. Remove the plug form the socket and wait until the fan heater cools down completely. Use a damp cloth to wipe the heater housing. Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.- 7 - TECHNICAL DATA Operating voltage: 220-240V ~ 50Hz Power consumption: 3000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
