TO110593 - Toaster Emerio - Free user manual and instructions

Product type	Toaster
Brand	Emerio
Model	TO110593
Supply voltage	220-240 V, 50/60 Hz
Power	750 W
Dimensions (approx.)	L 27.5 x l 17.5 x H 20 cm
Weight (approx.)	1.1 kg
Number of slots	2 extra wide slots
Browning control	Electronic, 7 settings (1=light, 7=dark)
Functions	Toast, reheat, defrost, cancel
Indicator light	Cancel button lights up during operation
Carriage lever	Yes, with automatic shut-off at end of cycle
Reheat button	Yes, with indicator light
Defrost button	Yes, with indicator light
Cancel button	Yes, to interrupt the cycle
Bun warmer	Yes, foldable
Crumb tray	Yes, removable, easy cleaning
Housing material	Plastic (estimated)
Cable length	Approx. 80 cm (estimate)
Maintenance	Clean exterior with damp cloth; removable crumb tray; do not immerse
Safety	Automatic shut-off, overheat protection, do not insert metal objects
Warranty	2 years (via HEMA)
Repairability	Do not repair yourself; return to HEMA store or authorized service
Intended use	Household and similar (offices, hotels, etc.)

Frequently Asked Questions - TO110593 Emerio

How to adjust the browning level?

Turn the electronic browning control to a setting from 1 (light) to 7 (dark). For first use, we recommend setting no. 3.

What to do if bread gets stuck in the toaster?

Never use a knife or metal object to remove it. Let the appliance cool down, unplug it, then gently remove the bread. Afterwards, empty the crumb tray.

How to use the reheat function?

Place the toasts in the toaster, lower the lever, then press the "Reheat" button. The button lights up and the reheat cycle starts.

How to use the defrost function?

Place frozen bread slices, lower the lever, then press the "Defrost" button. The toasting time is extended to defrost and brown the bread.

The toaster emits an odor during first use, is this normal?

Yes, it's normal. Run the appliance empty at least twice at maximum setting to remove manufacturing residues. Ventilate the room.

How to clean the toaster?

Unplug and let cool. Clean the exterior with a slightly damp cloth. Remove and empty the crumb tray. Shake the appliance over a sink for internal crumbs. Never immerse in water.

Can you toast pastries or rolls?

Yes, use the foldable bun warmer located above the toaster. Do not put bread in the slots when using the bun warmer. Set browning to 1 or 2.

Why doesn't the lever stay down?

The lever only locks if the appliance is plugged in and turned on. Check the power socket and ensure the plug is inserted properly.

What are the power and voltage of the toaster?

The power is 750 W and the operating voltage is 220-240 V ~ 50/60 Hz.

How to benefit from the HEMA warranty?

The warranty is 2 years from the date of purchase. For any claim, return the item and the proof of purchase to a HEMA store. The warranty is void in case of normal wear, external damage, improper use, or unauthorized repair.

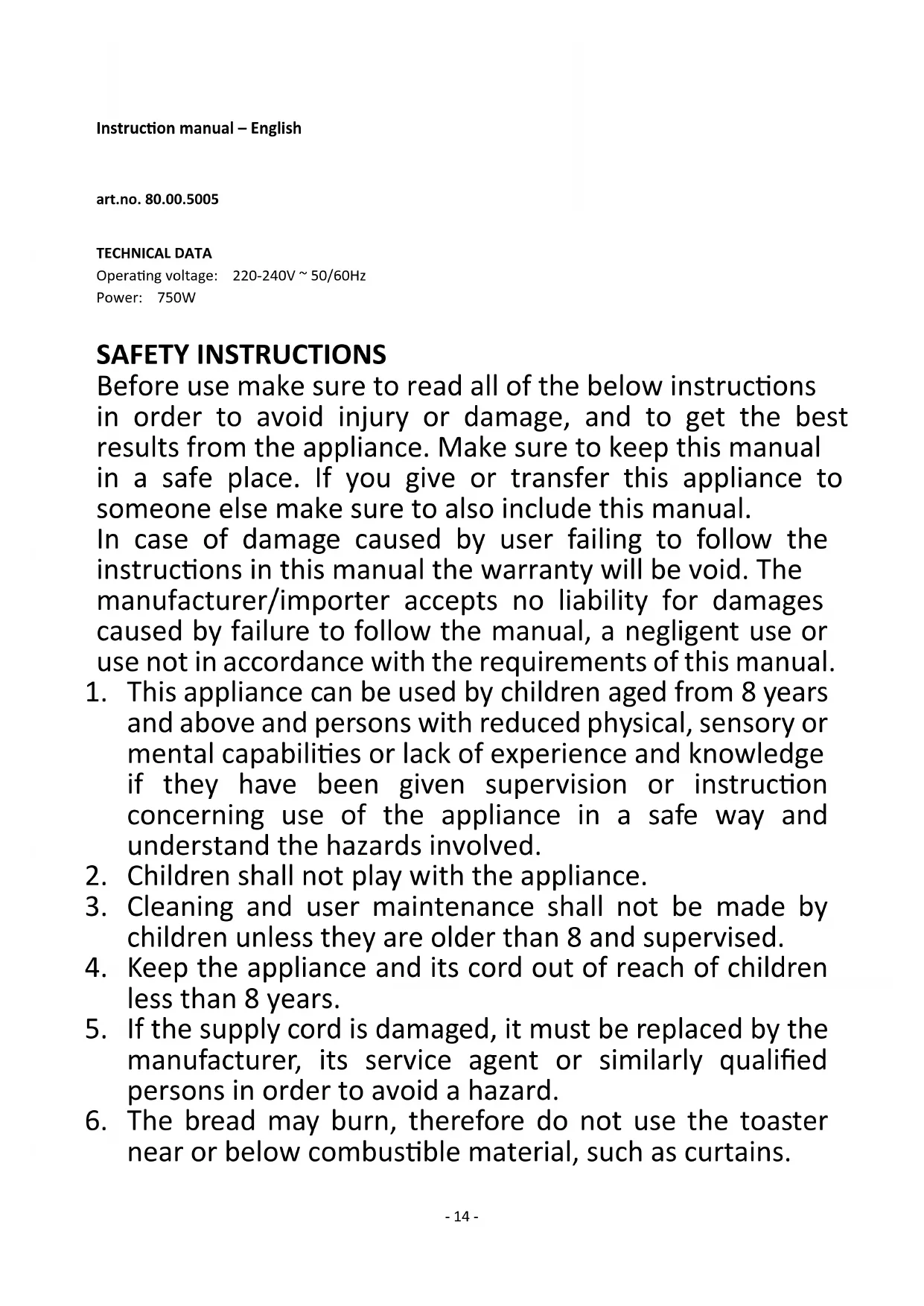

USER MANUAL TO110593 Emerio

Instructions for use

Toaster 750W

Gebrauchsanleitung

Toaster 750W

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

6. The bread may burn, therefore do not use the toaster near or below combustible material, such as curtains.

7. This appliance is not intended to be operated by means of an external timer or separate remote-control system

8. Regarding the instructions for cleaning the surfaces which come in contact with food, please refer to the paragraph "cleaning and maintenance" of the manual.
9. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
10. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
18. Never leave the appliance unattended during use.
19. This appliance is not designed for commercial use.
20. Do not use the appliance for other than intended use.

21. Do not wind the cord around the appliance and do not bend it.

22. Place the appliance at least 5cm off the wall or flammable objects (such as curtains, candles or towels).

23. Warning!! Should any pieces of toast or other items happen to get stuck in the toaster, never try to remove them with a knife or any other object, since contact with live parts can cause an electric shock. Let the appliance cool down and take the plug out of the socket before removing the bread.

24. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

FUNCTIONAL CHARACTERISTICS

1. Extra-wide toast aperture
2. Toasting lever
3. Cancel button
4. Reheat button
5. Defrost button
6. Electric browning control
7. Full-length crumb collector
8. Bun warmer

INSTRUCTIONS FOR USE

Before initial use:

• Before using the toaster for the first time, clean your toaster (see Chapter "CLEANING AND MAINTENANCE"). Operate the toaster at least twice without bread and on the highest setting. Ventilate the room during this period.
  This appliance may emit a characteristic smell when you switch it on for the first time. This is normal, and no harm.

Use:

1. Insert the power plug and cable into the socket and turn on the toaster.
2. Insert up to two slices of bread in the browning slot.
3. Use the browning control switch to select the desired degree of browning between 1 and 7 (1 = lightest; 7 = darkest degree of browning). No. 3 is recommended for first use. The degree of browning chosen depends on the type of bread and individual taste.
4. Press the toasting lever down until it engages. The toasting process starts automatically. The cancel button will illuminate.
5. Please remember that the toasting lever will not engage if the power plug is not inserted in the socket and the toaster is not switched on.
6. The toaster switches itself off automatically and the toasted bread is ejected when the desired degree of browning has been reached. The cancel button can always be used to cancel the browning process. Do not use the toasting lever to stop the process.

NOTE:

(1) Do not place any rolls etc. directly on the toast aperture but place them on the bun warmer.
(2) The bun warmer is foldable. When the bun warmer is needed, pull the rack outward and put it on the toaster. If the bun warmer is not needed, fold up the rack and deposit.
(3) Make sure if toasting on the bun warmer, do not insert bread into the toast aperture. A fire may occur.
(4) The degree of browning for one slice is darker than that for two slices of bread at the same level.
(5) A minimum 30 seconds interval between each toasting can get the same degree of browning for different batch of toasted bread.
(6) Please rotate the browning control switch to 1 or 2 positon for toasting two buns on the bun warmer.
(7) Oversized food, metal foil packages or utensils must not be inserted in the toaster as they may cause fire or electric shock.

Reheat function:

Insert toasts into the appliance. Press down the toasting lever and then press the reheat button. The button will illuminate.

Defrost function:

Press the defrost button to prolong the toasting time of frozen bread. The button will illuminate.

CLEANING AND MAINTENANCE

1. Before cleaning, make sure that you have removed the power plug from the socket. Let the toaster cool down first.
2. Pull the crumbs collector out to clean it up, reset it before using the appliance again.
3. Clean the outside of the toaster with a slightly damp cloth and wipe it dry with a soft cloth. Never dip the toaster in water to clean it!
4. To clean the inside, turn it upside down and shake it over the sink until any crumbs adhering to the inside fall out. Clean the crumb collector regularly to avoid crumbs accumulating inside.

RECYCLING

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

QUALITY

Safety and quality is very important to HEMA. We have our own laboratory, which assesses all equipment in terms of electrical safety and ease of use, before it is included in our range. HEMA also monitors the product quality in collaboration with the manufacturer.

SECURITY

This HEMA item may be fitted with a plastic anti-theft strip. You will find the strip on the bottom of the product. This strip does not influence the quality or the operation of the product and can be removed without a problem.

FAULTS AND REPAIRS

If this device needs to be repaired, you can hand it in at a HEMA branch after packing the product securely. Do not try to repair this product yourself. For repairs that fall within the warranty period, you will need to show a proof of purchase and the warranty document. Regularly check the power cord for damage. If there is any damage to the cord set, please return the item to a HEMA branch for repair. Do not try to replace it yourself. For safety reasons we recommend that you do not carry out any repairs to an electrical device yourself.

WARRANTY

The warranty period is 2 years from the date of purchase.

WARRANTY CONDITIONS

HEMA quality guarantee

HEMA guarantees that the product you have purchased meets the standards our customers are entitled to expect in terms of quality and product properties. These warranty conditions do not affect your statutory or consumer rights and apply in all countries where there are HEMA branches.

Warranty claims

If you wish to make a warranty claim, please return the product with proof of purchase to one of our stores. The store will determine whether to replace the product (with an identical or equivalent product), accept the product for repair within a reasonable period of time or refund the price of the product.

Invalidation of warranty

The warranty on this article is invalidated if the fault or defect is caused by:

a) normal wear and tear
b) external damage (for example, damage caused by exposure to sand or moisture or due to falling of the product, etc.)
c) improper or inappropriate use
d) overdue or incorrect maintenance, including repairs that were not authorised by HEMA

The above list does not exclude other possible reasons for defects not being covered by the warranty.

Added confidence when choosing a HEMA product

You may swap or return the product within 30 days after purchase (provided it is undamaged and you have proof of purchase).

1 November 2019

HEMA BV

PO Box 37110

1030 AC Amsterdam

The Netherlands

These warranty conditions apply without prejudice to the customer's statutory rights or any other claims by the customer.

Art.-Nr.80.00.5005

TECHNISCHE DATEN
