TF103842 - Fan Emerio - Free user manual and instructions

Product type	Pedestal fan
Brand	Emerio
Model	TF103842
Power supply	220-240 V ~ 50/60 Hz
Power consumption	40 W (max)
Maximum airflow	20.09 m3/min
Sound level (LWA)	58.9 dB(A)
Maximum air speed	2.10 m/s
Standby power consumption	0.248 W
Number of speeds	3 (low, medium, high)
Ventilation modes	Normal and natural
Timer	2, 4 or 8 hours
Oscillation	60°, 120° or 180°
Remote control	Yes, with LR41 batteries (2 x 1.5 V)
Remote control battery type	2 LR41 batteries
Housing material	Plastic
Maintenance	Clean with a damp cloth and mild soap, do not immerse
Safety	Child safety for ages ≥8, do not insert objects into the grille
Recycling	Do not dispose of with household waste (WEEE)

Frequently Asked Questions - TF103842 Emerio

How to assemble the Emerio TF103842 fan?

Place the power cord into the hole in the base, secure it with screws (A). Mount the main body onto the base using screws (B). The remote control can be stored in its holder.

How to use the remote control?

Insert two LR41 batteries into the remote control. Use the buttons to turn on/off, adjust speed, wind mode, timer, and oscillation.

What are the available speeds?

Three speeds: low, medium, high. The LED indicates red for low, orange for medium, green for high.

How to set the timer?

Press the timer button to select 2h (red LED), 4h (orange) or 8h (green). To deactivate, press until it turns off.

How to clean the fan?

Always unplug the appliance. Clean the plastic parts with a damp cloth and mild soap. Never immerse the fan in water.

Is it safe for children?

Yes, from age 8 under supervision. Children should not play with it. Keep the cord out of reach of children under 8.

Can I use the fan outdoors?

No, the appliance is designed for indoor use only. Do not expose to moisture or rain.

What to do if the fan does not turn on?

Check the plug and cord. Make sure the plug is fully inserted. If the problem persists, contact a specialist.

How to replace the remote control batteries?

Open the battery compartment of the remote control, insert two LR41 batteries respecting polarity, then close.

What is the power supply voltage?

220-240 V ~ 50/60 Hz. Check that your mains supply matches.

USER MANUAL TF103842 Emerio

Modern vertical air conditioner tower with black and white panels, mounted on a base (no text or symbols visible)

CE

German

GEBRAUCHSANWEISUNG

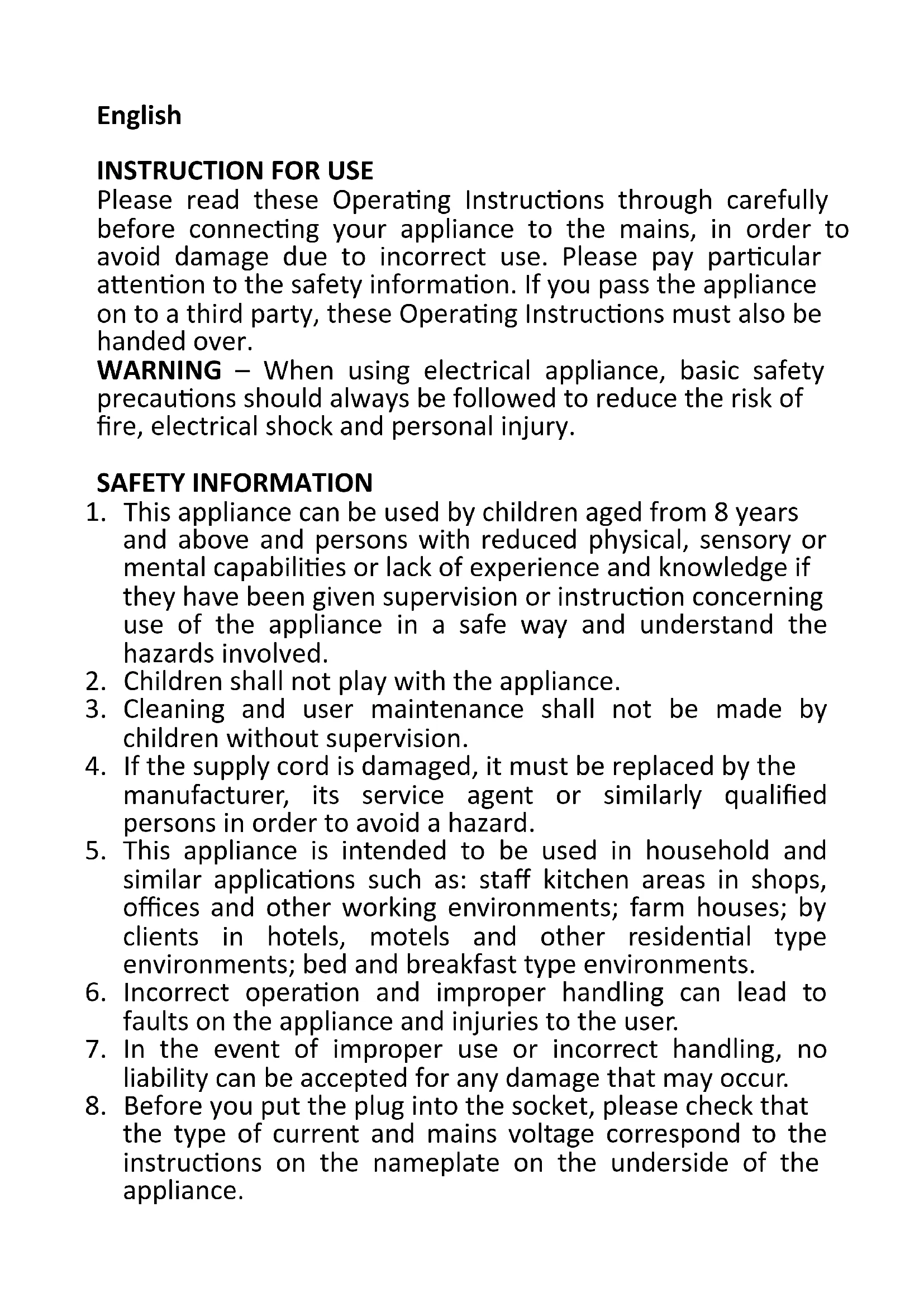

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over.

WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury.

SAFETY INFORMATION

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

6. Incorrect operation and improper handling can lead to faults on the appliance and injuries to the user.

7. In the event of improper use or incorrect handling, no liability can be accepted for any damage that may occur.

8. Before you put the plug into the socket, please check that the type of current and mains voltage correspond to the instructions on the nameplate on the underside of the appliance.

9. Do not immerse the unit or mains plug in water or other liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.

10. Do not operate the appliance if the mains cable or the mains plug show signs of damage, if the appliance has fallen on the floor or has been otherwise damaged. In such cases take the appliance to a specialist for checking and repair if necessary.

11. Never remove the mains plug from the socket by pulling on the mains cable, or with wet hands.

12. Ensure that the mains cable does not hang over sharp edges or allow it to become trapped.

13. Keep the appliance away from damp, and protect from splashes.

14. Keep the appliance away from hot objects (e.g. hotplates) and open flames.

15. Keep the appliance and its cord out of reach of children less than 8 years.

16. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

17. Use the appliance on a flat, dry and heat resistance surface.

18. Never leave the appliance in unattended during use.

19. Do not store or operate the appliance in the open air.

20. Keep the appliance in a dry place, inaccessible to children (in its packaging).

21. Never put fingers or any other objects through the grilles (fan guards) when the fan is running.

22. The appliance must be assembled completely before use.

23. Watch out for long hair! It can be caught in the fan owing to the air turbulence.

24. Do not point the air flow to the people for a long time.

25. The rotor guard shall not be disassembled/opened to clean the rotor blades.

Croatian

UPUTE ZA UPOTREBU

Diagram of a device with a curved top and vertical panel, showing a droplet and an arrow pointing to it (no text or symbols present)

Diagram of a curved structure with internal divisions and a small object on the right (no text or symbols)

GIV AGT: PRODUKTET SKAL ALTID TRÆ KKES UD AF LYSNETKONTAKTEN, INDEN DET RENG∅ RES.

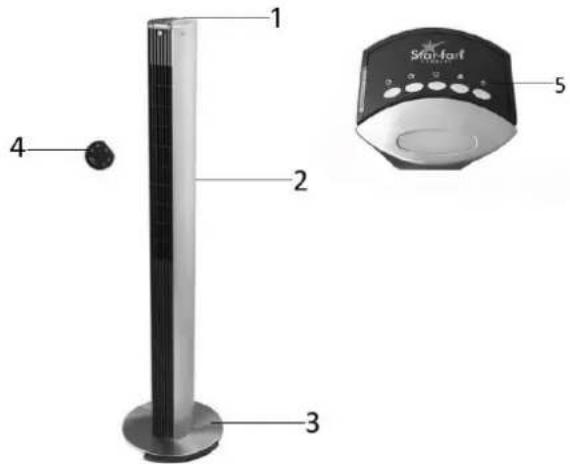

1. Control panel
2. Fan body
3. Base
4. Remote control
5. Switches

ASSEMBLING

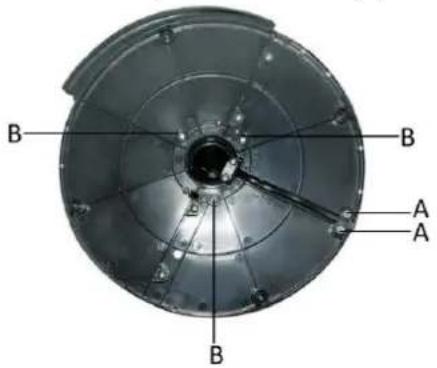

1. Put the power cord through the hole of the base and make sure it will be fitted well into the slot. Then use the two screws (A) to connect the cord clip to the base.
2. Use the provided screws (B) to assemble the main body onto the base.

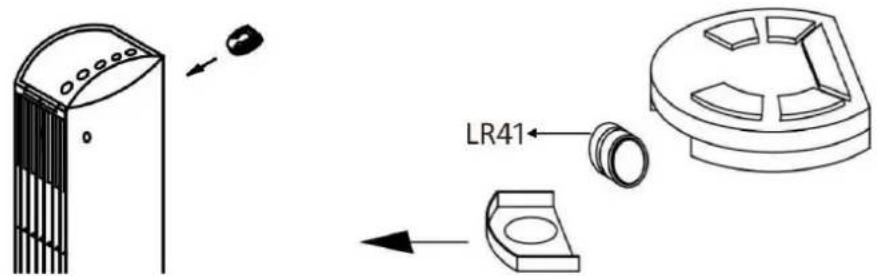

The remote control can be extracted from the remote control storage at top rear of fan body as below.

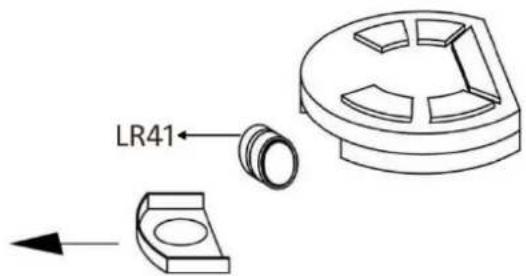

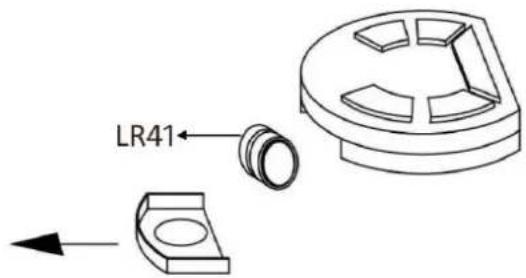

Battery size: two pieces of LR41

Button Function (With LED indicator)

Symbol	Switch	Indicator	Function
	Power	On-GreenOff-Light Off	To start or stop the fan
	Speed	Low speed-RedMediumspeed-OrangeHigh speed-Green	To adjust the speed level:low/ medium/ high
	Wind	On-orangeOff-light off	To set normal wind or natural wind mode
	Timer	2 hours-red4 hours-orange8hours-greenDisable-light off	To set the timer level: 2/4/8 hours
	Oscillation	180 degree-Green120 degree-Orange60 degree-RedDisable-Light Off	To set oscillation angle or stop oscillation

CARE AND CLEANING

CAUTION: ALWAYS UNPLUG THE PRODUCT FROM THE ELECTRICAL OUTLET PRIOR TO CLEANING IT.

1. Do not use the product in oily or dirty areas, as the air vents may become blocked.
2. Clean the plastic parts with a mild soap and a damp cloth or sponge.
3. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and then dry it carefully. Always take out the mains plug first.
4. Periodically check the screws on the product to ensure they are securely tightened.
5. Store the product in a cool, dry place.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50/60Hz

Power consumption: 40W

Eco design requirements
Product information requirements
Maximum fan flow rate (F)	20.09 m^3/min
Fan power input (P)	34.8 W
Service value (SV)	0.58 ( m^3/min )/W
Measurement standard for service value	IEC 60879: 1986 (corr.1992)
Standby power consumption (PSB)	0.248W
Fan sound power level (LWA)	58.9 dB(A)
Maximum air velocity (c)	2.10 meter/sec
Contact details for obtaining more information	BAHAG AGGutenbergstr. 2168167 MannheimGermany

Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the 2012/19-EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the

retailer where the product was purchased. They can take this product for environmental safe recycling.

OPIS DIJELOVA

Diagram of a server unit with ventilation slots and a pointer indicating input (no text or symbols)

Simple line drawing of a door with a curved lid and a small object nearby (no text or symbols)

Vel'kost' batérií: dva ks LR41

Funkcia tlačidla (s indikátorom)

Diagram of a mechanical component with a curved top and internal structure, showing a small circular feature and an arrow pointing to it (no text or symbols present)

Velikost baterije: dve LR41

VARNING: KOPPLA ALLTID UR PRODUKTEN FRÅN ELUTTAGET INNAN RENGÖ RING.
