RG213956 - Fondue, raclette and wok appliance Emerio - Free user manual and instructions

Product type	Multi-function appliance (fondue, raclette and wok)
Brand	Emerio
Model	RG213956
Power supply	220-240 V ~ 50/60 Hz
Power	1200 W
Dimensions (W x D x H)	Approx. 35 x 35 x 15 cm
Weight	Approx. 2.5 kg
Coating material	Non-stick
Functions	Grilling, raclette, fondue and wok
Temperature control	Yes, via continuous rotary knob
Operating indicator	Indicator light (on during heating)
Included accessories	Grill plate, mini pans (x6), wooden spatulas (x2)
Number of persons (raclette)	6 persons
Dishwasher compatibility	Plate and mini pans are dishwasher safe
Cleaning	Appliance: damp cloth; accessories: soapy water or dishwasher
Safety	Short power cord, overheating protection (not specified)
Warranty	2 years (standard)
Customer service	Emerio Holland B.V., Zomervaart 1A, 2033 DA Haarlem, The Netherlands
Environmental information	Recycling according to WEEE Directive 2012/19/EU

Frequently Asked Questions - RG213956 Emerio

How to clean the Emerio RG213956 appliance?

Unplug and let cool down. Do not immerse the appliance. Clean it with a soft damp cloth. The plate and mini pans can be washed in soapy water or in the dishwasher. Do not use abrasive cleaners.

Can I use the grill plate on a stove or induction hob?

No, the grill plate is designed only to be used with the heating base of the appliance. Never place it on a stove or direct heat source.

Can the appliance be used outdoors?

No, this appliance is intended for indoor use only. It must not be exposed to moisture or weather.

What should I do if the appliance smokes during first use?

This is normal. Manufacturing residues burn off during the first few minutes. Ensure good ventilation and let the appliance run empty for 10 minutes before first use.

How many people can the appliance serve?

The appliance comes with 6 mini pans, allowing you to comfortably serve 6 people for raclette. The grill plate allows you to cook large quantities of meat.

Can I put the mini pans in the dishwasher?

Yes, after complete cooling, the grill plate and mini pans can be cleaned in the dishwasher. The appliance itself must not be immersed.

Is the appliance suitable for children?

The appliance can be used by children aged 8 and above under supervision. Children must not play with the appliance. Cleaning must not be carried out by children under 8 without supervision.

What is the power of the appliance?

The appliance has a power of 1200 W and operates at 220-240 V ~ 50/60 Hz.

How do I know when the appliance is ready to use?

The indicator light turns on when the appliance is heating. Once the temperature is reached, the light may turn off and on during use. Allow about 5 to 7 minutes of preheating for the grill plate.

Can I use the appliance without oil?

For raclette, it is recommended to add a little grease to the mini pans before use. For the grill plate, apply a few drops of oil during first use and wipe off the excess. Afterwards, depending on the food, a little oil may be needed to prevent sticking.

USER MANUAL RG213956 Emerio

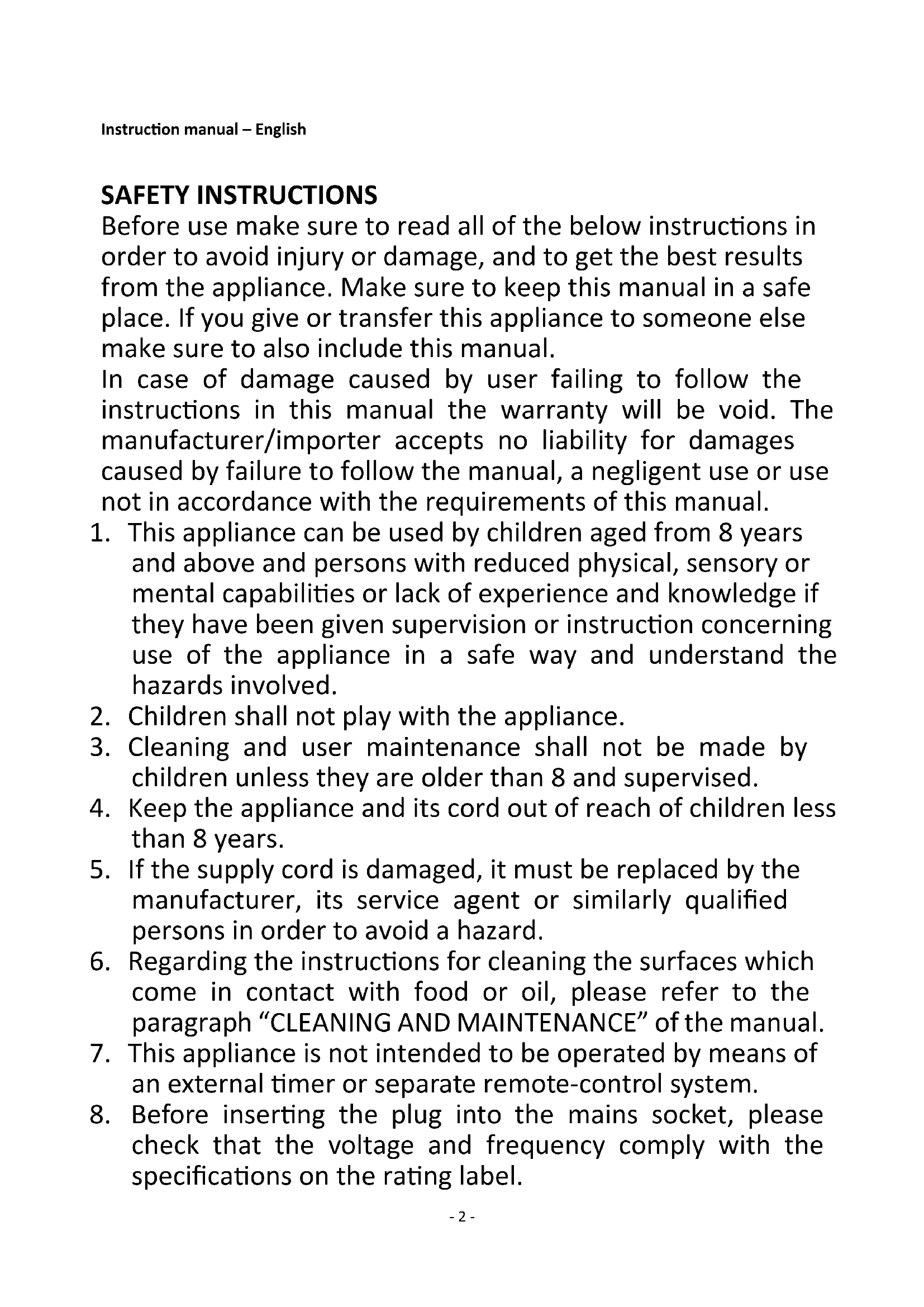

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.

8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

9. Always plug the appliance into an earthed plug socket.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
11. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
12. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
13. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
14. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
15. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
16. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
17. Never leave the appliance unattended during use.
18. This appliance is not designed for commercial use.
19. Do not use the appliance for other than intended use.
20. Do not wind the cord around the appliance and do not bend it.
21. Place the appliance on a stable, level surface from which it cannot fall off.
22. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
23. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.
24. WARNING!!

Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

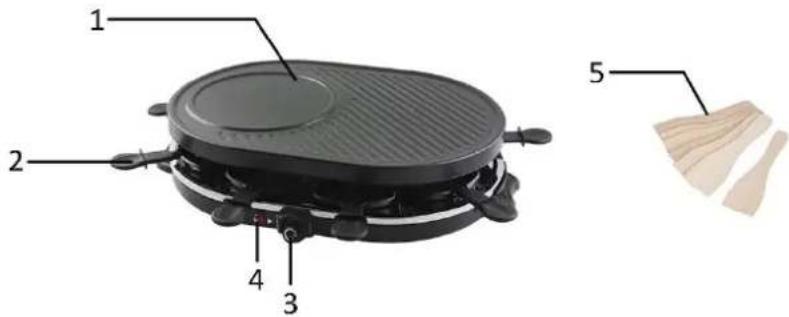

LIST OF COMPONENTS

1. Grill plate
2. Mini pans
3. Temperature switch
4. Indicator light
5. Wooden spatulas

BEFORE USE

1. Make sure that there is enough ventilation around the appliance.
2. The appliance should not be placed on an untreated wood surface. Place the appliance on a level and heat resistant surface.
3. Operate the appliance before first use for approximately 10 minutes in order to burn off production residues. Make sure there is good ventilation. The appliance may emit some smoke and a characteristic smell when you switch it on for the first time. This is normal and will stop soon.

GRILL

1. Place the appliance in the middle of the table.
2. Cut the meat into small pieces. You can thus reduce the cooking time.
3. Turn on the unit by rotating the temperature switch. The indicator light illuminates and the appliance heats up.
   NOTE: When first use, drop some oil on the surface of the plate and then wipe it off with dry cloth.
4. When the grill plate has preheated for about 5-7 minutes, you can put your food on the grill plate to start cooking.
5. You can grill toasts in the raclette pans, fry eggs or potatoes and many other things. Meat can be prepared on the grill plate.
   NOTE: Always remember to add some grease to mini pans before use.
6. To turn off the appliance, turn the temperature switch to position "MIN" and then unplug the appliance.

CLEANING AND MAINTENANCE

1. Always unplug the appliance and allow cooling before moving and/or cleaning.
2. Do not immerse the appliance in water. Clean the heating unit with a soft damp cloth only. Remove debris from the heating elements with a soft brush.
3. The plate and all the pans can be washed in water. If stains still appear, it is recommended to use soapy water. The grill plate and mini pans can be cleaned in a dishwasher after they have completely cooled down.
4. Do not use abrasive cleaners or sharp utensils to clean the appliance.

TECHNICAL DATA

Rated Voltage: 220-240V ~ 50/60Hz

Power: 1200W

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used

device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Holland B.V.

Zomervaart 1A

2033 DA Haarlem

The Netherlands

T: [phone]
