USER MANUAL CMCE001 Craftsman

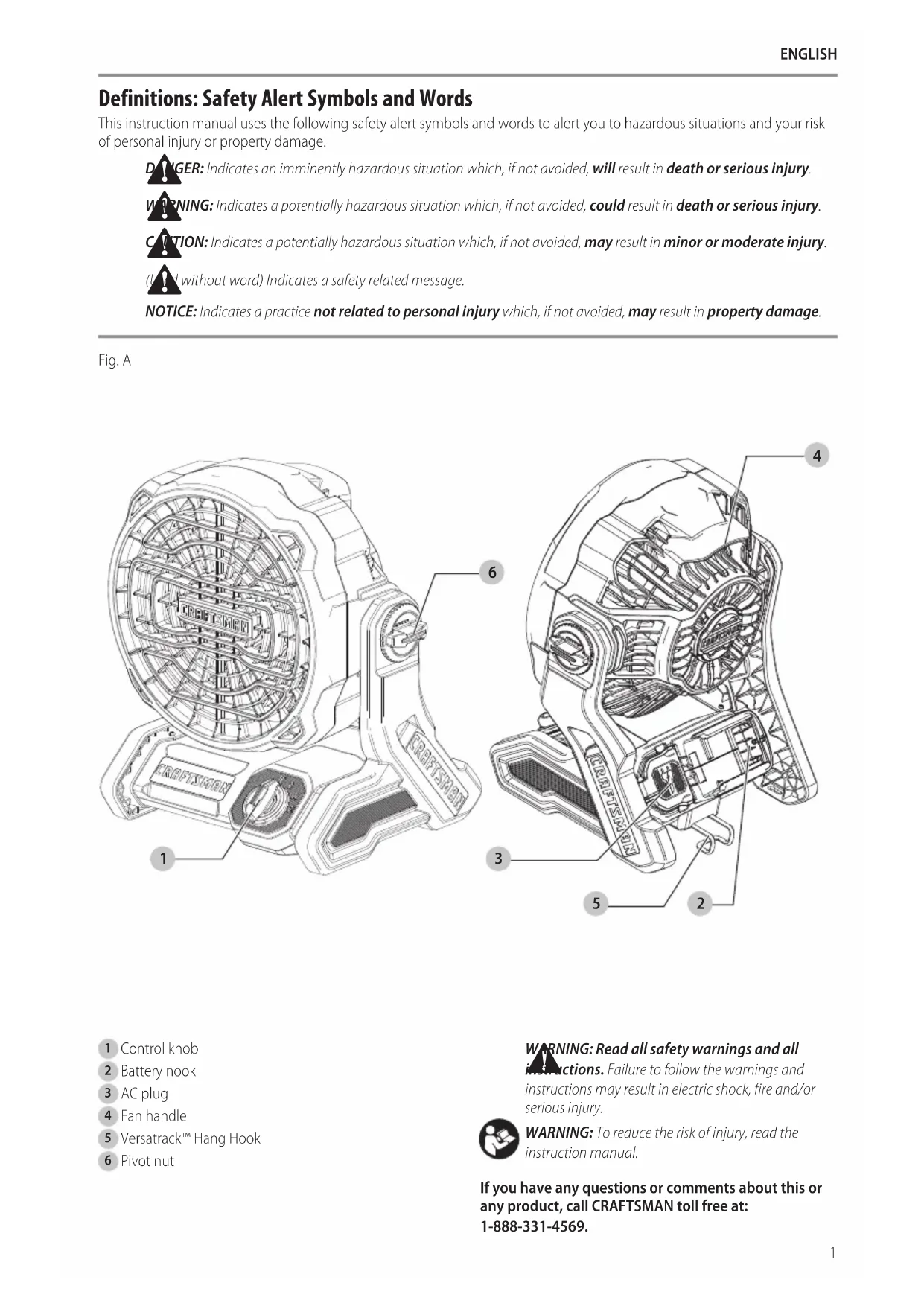

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety related message. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage.

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

Versatrack™ Hang Hook

WARNING: Never modify the power tool or any part of it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:• ANSI Z87.1 eye protection (CAN/CSA Z94.3),• ANSI S12.6 (S3.19) hearing protection,• NIOSH/OSHA/MSHA respiratoryprotection. WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicalsare:• lead from lead-based paints,• crystalline silica from bricks and cement and other masonry products, and• arsenic and chromium from chemically-treatedlumber.Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopicparticles.• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmfulchemicals. WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody. WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss. Specific Safety Rules for Fans

WARNING: Fire hazard. Do not operate fan

near flammable liquids or in gaseous or explosive atmospheres. Internal sparks may ignite fumes causing personalinjury.• Do not operate the fan with a damaged cord.• For indoor use only.• To reduce the risk of serious personal injury, follow the directions in Suspending/Mounting the Fan and Versatrack™ when suspending the fan. • Do not wash fan with water or allow water to get inside the fan. Do not submerge fan in water at anytime.• While fan is in use, do not cover with cloth or other flammable materials due to increased risk offire.• Store the fan indoors when not inuse.• Make sure extension cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage orstress.• Use only a proper extension cord that is necessary to operate the fan on AC power. Use of an improper extension cord could result in risk of fire, electric shock, orelectrocution.• Disconnect the fan from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk. Important Safety Instructions

WARNING! When using the fan, basic precautions should always be followed, including the following:a ) Read all the instructions before using the fan.b ) To reduce the risk of injury, close supervision is necessary when a fan is used nearchildren.c ) Turn the fan off, disconnect from power source and remove the battery packs when not in use and before servicing orcleaning.d ) Do not operate any fan after it malfunctions or is dropped or damaged in any manner. Turn the fan off, disconnect from power source and remove the battery pack. Return fan to the nearest authorized service facility for examination, repair, or electrical or mechanicaladjustment.e ) To reduce the risk of electrical shock, do not put fan in water or other liquid. Do not place or store fan where it can fall or be pulled into a tub orsink.f ) Only use attachments recommended or sold by themanufacturer.

SAVE THESE INSTRUCTIONS

• The fan is designed to operate on 120 Volts, 60 Hz AC or on direct current (DC) through fully charged CRAFTSMAN 20V Max* lithium-ion battery packs. Do not use any othervoltage. WARNING: Do not use the fan with any solid-state speed controldevice.• Use type SJ, SJO, SJT, SJTO, S, SO, ST and STO cord when operating the fan on ACpower.3 English a non-compatible charger as battery pack may rupture causing serious personal injury.Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMAN chargers.

• DO NOT splash or immerse in water or otherliquids.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not expose battery pack or tool/appliance to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs areburned.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

WARNING: Burn hazard. Battery liquid may be

flammable if exposed to spark orflame.

WARNING: Fire hazard. Never attempt to open the

battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations

1. The best storage place is one that is cool and dry, away

from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to store a fully

charged battery pack in a cool dry place out of the charger for optimal results. nOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions.

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: V ......................... volts Hz .......................hertz min ..................... minutes or DC ......direct current ...................... Class I Construction (grounded) …/min ..............per minute BPM .................... beats per minute IPM ..................... impacts per minute RPM .................... revolutions per minute sfpm ................... surface feet per minute SPM .................... strokes per minute OPM .................... oscillations per minute A ......................... amperes W ........................watts or AC ...........alternating current or AC/DC .... alternating or direct current ...................... Class II Construction (double insulated)

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts.English

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings,

instructions, and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable batteries. Any other uses may result in risk of fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier thecord. The RBRC® Seal The RBRC® (Rechargeable Battery Recycling Corporation) Seal on the nickel cadmium, nickel metal hydride or lithium- ion batteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by CRAFTSMAN. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call2Recycle® program provides an environmentally consciousalternative. Call 2 Recycle, Inc., in cooperation with CRAFTSMAN and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized CRAFTSMAN service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle,Inc. Fuel Gauge Battery Packs Some CRAFTSMAN battery packs include a fuel gauge which consists of three LED lights that indicate the level of charge remaining in the batterypack. The fuel gauge is an indication of approximate levels of charge remaining in the battery pack according to the followingindicators: 75–100% charged 51–74% charged < 50% charged Pack needs to be charged To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to berecharged. nOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-userapplication. For more information regarding fuel gauge battery packs, please contact CRAFTSMAN at 1-888-331-4569 or visit our website www.craftsman.com Transportation

WARNING: Fire hazard. Do not store or carry the

battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc. Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes in carry-on baggage UNLESS they are properly protected from short circuits. So when transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE:Li-ion batteries should not be put in checkedbaggage.5 ENGLISH battery pack in the cavity. Unplug the charger before attempting toclean. Charging a Battery NOTE: To ensure maximum performance and life of lithium- ion battery packs, charge the battery pack fully before firstuse.

1. Plug the charger into an appropriate outlet before

inserting batterypack.

2. Connect the charger and battery pack, making sure

the battery is fully seated. The (charging) light will blink continuously indicating that the charging process hasstarted.

3. The completion of charge will be indicated by the light

remaining ON continuously. The battery pack is fully charged and may be removed and used at this time or left in the charger. NOTE: To remove the battery pack, some chargers require the battery pack release button to bepressed. Indicators Charging Fully Charged Hot/Cold Pack Delay A charger will not charge a faulty battery pack. The charger refusing to light could indicate a problem with the charger. NOTE: If the charger refuses to light, take the charger and battery pack to be tested at an authorized servicecenter. Leaving the Battery Pack In the Charger The charger and battery pack can be left connected with the charge indicator showing pack charged. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. Important Charging Notes

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F – 75°F (18° C– 24°C). DO NOT charge when the battery pack is below +40°F (+4.5°C), or above +104°F (+40°C). This is important and will prevent serious damage to the batterypack.

2. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

3. If the battery pack does not charge properly:

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug–have them replaced immediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce thisrisk.

• NEVER attempt to connect 2 chargerstogether.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

WARNING: Shock hazard. Do not allow any liquid to

WARNING: Burn hazard. Do not submerge the

battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

CAUTION: Burn hazard. To reduce the risk of injury, charge only CRAFTSMAN rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and propertydamage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities. Always unplug the charger from the power supply when there is noEnglish

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental can causeinjury. Adjusting the Fan Angle (Fig. A)

WARNING: Keep fingers away from the front and rear

grill of thefan. This fan has a pivot nut

, use at least 2 screws at least 1”(25.4mm) long with a screw head diameter of 0.24”–0.35" (6-9mm), one on each side, screwed into a sturdy surface to an optimal depth leaving approximately 7/32”(5.5mm) of the screwexposed.

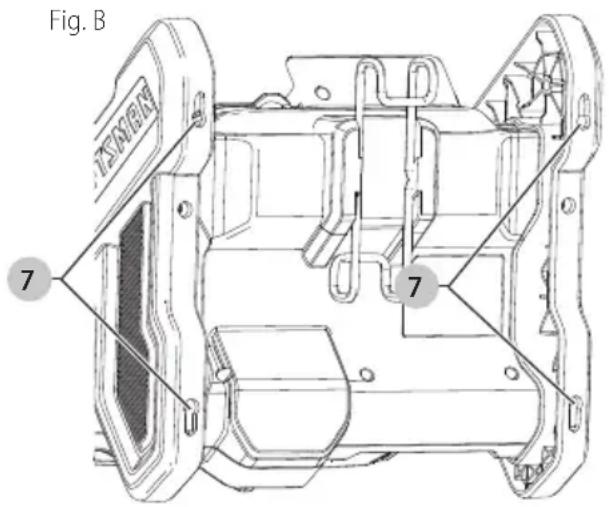

1. Place the wide portion of the keyhole slot over the head

2. Slide the fan down until the screw is inside the narrow

portion of the keyhole and check to be sure the fan issecure.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental can causeinjury. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. Fig.B

Intended Use This fan is intended for household use DO nOT use under wet conditions or in presence of flammable liquids orgases. a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. Move the charger and battery pack to a location where the surrounding air temperature is approximately 65°F – 75°F (18°C – 24°C); d. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

4. The battery pack should be recharged when it fails to

produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the batterypack.

5. Foreign materials of a conductive nature such as, but

not limited to, grinding dust, metal chips, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug the charger before attempting toclean.

6. Do not freeze or immerse the charger in water or any

otherliquid. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaningsolutions. Wall Mounting These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4 mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. Versatrack™ CRAFTSMAN chargers can be mounted to the wall using CRAFTSMAN Versatrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the Versatrack™ Trackwall accessory sheet for furtherinformation.7 English Installing and Removing the Battery Pack (Fig. C) nOTE: For best results, make sure your battery pack is fullycharged. To install the battery pack

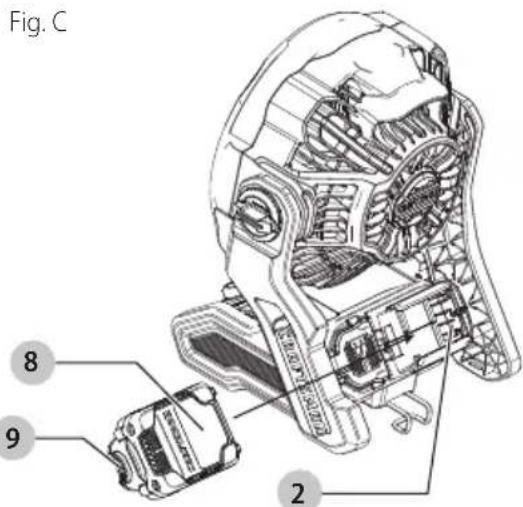

into the fan, align the battery pack with the rails inside the fan's battery nook

and slide it in until the battery pack is firmly seated and ensure that it does notdisengage. To remove the battery pack from the fan, press the release button

and firmly pull the battery pack out of the fan's battery nook. Insert it into the charger as described in the charger section of thismanual. Using the AC Plug (Fig. D) An extension cord can be plugged into the AC plug

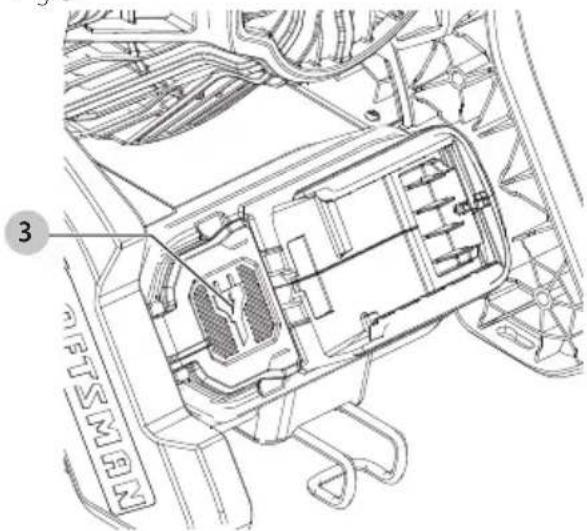

then into a wall outlet to power the fan. Lower the AC plug cover to use. To keep the plug safe from moisture, remove the extension cord then close the AC plug cover securely. Turning the Fan On and Off (Fig. E) To turn the fan ON, rotate the control knob

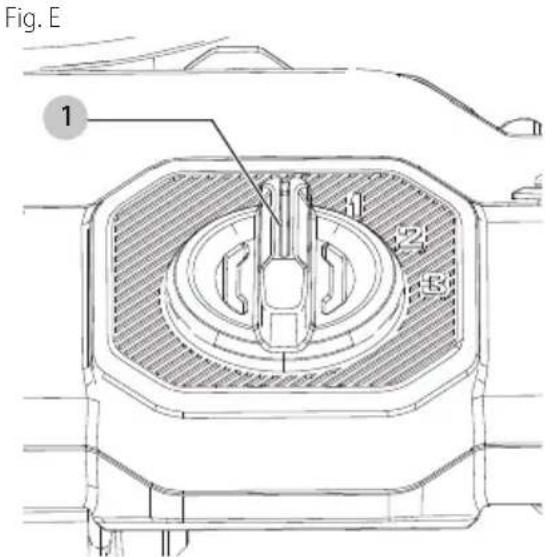

counterclockwise until itclicks. The fan has three speeds and can be adjusted by the controlknob. Repairs

WARNING: To assure product SAFETY and

RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. Accessories

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN 1-888-331-4569. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performingthisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid.

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental can causeinjury.ENGLISH

Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces. 2 YEARS FREE SERVICE ON CRAFTSMAN BATTERY PACKS CMCB201, CMCB2011

3 YEARS FREE SERVICE ON CRAFTSMAN BATTERY

PACKS CMCB202, CMCB204 NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty fraud to the fullest extent permitted bylaw.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questionsasked. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a freereplacement. Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

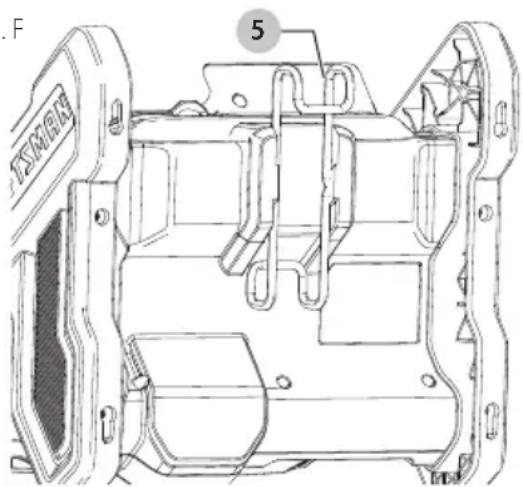

• Register online at www.craftsman.com/registration Versatrack™ (Fig. F)

WARNING: To reduce the risk of serious personal

injury, turn unit off and disconnect it from power source and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can causeinjury.

WARNING: To reduce the risk of serious personal

injury, do not use a damaged Versatrack™ integral hang hook or Versatrack™ Trackwall. A damaged Versatrack™ integral hang hook or Versatrack™ Trackwall will not support the weight of thetool.

WARNING: To reduce the risk of serious personal

injury, DO NOT suspend tool overhead or suspend objects from the integral hang hook. ONLY suspend tool on the Versatrack™ Trackwall using the integral hanghook.

WARNING: The Versatrack™ integral hang hook

is intended to mount the tool onto a Versatrack™ Trackwall rail. Do not use the integral hang hook to mount the tool to any othersurface.

WARNING: The Versatrack™ integral hang hook is

WARNING: When hanging objects on a Versatrack™

Trackwall rail, adequately space the tools in order to not exceed 75 lb (35 kg) per linearfoot.

WARNING: Before using the tool make sure that the

Versatrack™ integral hang hook is returned to its originalposition. IMPORTANT: Versatrack™ accessories mount compatible tools securely to the Versatrack™ Trackwallsystem.

1. Turn tool off, disconnect it from power source and

remove the battery pack and removeaccessories.

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersatrack™Trackwall.

. It clicks when locked intoposition.

3. Mount the integral hang hook to the

Versatrack™Trackwall. NOTE: Versatrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. Fig.F 5FRANÇAIS

ou rail mural Versatrack

WARNING: Use only CRAFTSMAN 20 Volt batteries with this product. Use of any other batteries may create the risk of fire.

• Maximum initial battery voltage (measured without a workload) is 20 volts. Nominal voltage is 18.
