Product Type	Corded Random Orbital Polisher
Brand	Craftsman
Model	CMEE100
Pad Diameter	254 mm (10 in)
Oscillation Frequency (OPM)	2800
Speed Adjustment	Rotary Dial 1 to 4
Rated Voltage	120 V
Rated Frequency	60 Hz
Rated Current	1 A
Current Type	AC (Alternating Current)
Intended Use	Residential vehicle sanding and polishing
Handle System	Perimeter Handle
Switch	Slide On/Off Button
Motion Type	Random Orbital
Cushion Material	Foam
Included Accessories	Wax applicator pad, lamb's wool polishing pad
Scratch-resistant Cap	Flat Top Cap
Limited Warranty	3 years
Money-back Guarantee	90 days
Cleaning	Blow vents with dry compressed air; clean pads with cold water
Recommended Safety Equipment	Safety goggles, hearing protection, dust mask
Repairability	Authorized Craftsman Service Center

Frequently Asked Questions - CMEE100 Craftsman

How to adjust the speed of the polisher?

Turn the speed dial located on the tool. Setting 1 is the slowest and 4 is the fastest. Adjust the speed according to the application.

How to attach the wax applicator pad?

Place the pad on the foam cushion base. Make sure the elastic band at the bottom of the pad is tucked under the cushion for a secure hold.

How to apply wax to the pad?

Use a putty knife to spread a teaspoon of paste wax evenly over the entire pad surface. Do not apply wax directly to the vehicle.

How to wax the vehicle without splatter?

Always start and stop the polisher against the surface to be polished. Place the extension cord over your shoulder to avoid interference. Use large, even strokes.

How much pressure to apply during polishing?

Do not apply excessive pressure. Let the random orbital motion do the work. Excessive pressure slows the motion and reduces effectiveness.

How to clean the pads after use?

The lamb's wool pads and polishing pad can be machine washed in cold water with a mild detergent. Dry on medium heat or air dry to extend their life.

What accessories are recommended for this tool?

Use only accessories recommended by Craftsman, sold separately. For questions, call 1-888-331-4569.

What is the warranty on the Craftsman CMEE100 polisher?

Craftsman offers a 3-year limited warranty against defects in material and workmanship, as well as a 90-day money-back guarantee if not satisfied.

How to store the polisher after use?

Remove the pad from the foam cushion to allow the cushion to dry and maintain its shape. Store the polisher with the cushion facing up.

What safety precautions are essential?

Always wear safety goggles (ANSI Z87.1), hearing protection (ANSI S12.6), and a dust mask. Use an extension cord of adequate gauge and avoid damp or flammable environments.

USER MANUAL CMEE100 Craftsman

English (original instructions) 1

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(### without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

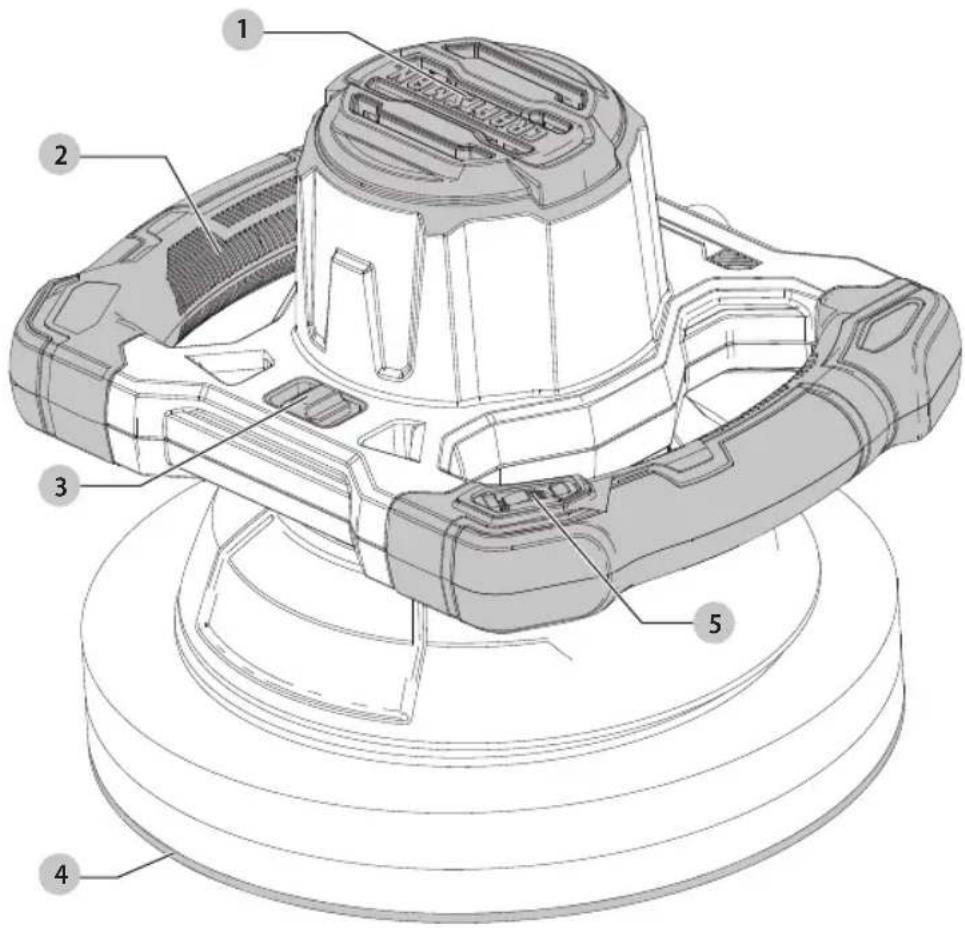

Fig. A

COMPONENTS

1 Non-marring flat top cap
2 Perimeter handle system
3 On/Off slide switch
4 Foam pad base
5 Speed dial

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.

10" (254 mm) Corded Buffer/Polisher CMEE100

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery, pack if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If

damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Safety Warnings

• Hold the power tool by insulated gripping surfaces, because the polishing surface may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk.
• Vehicle should be clean and dry before using your buffer polisher. Remove all road tar, excess grease spots and bug stains.
• ALWAYS make sure the vehicle's surface is cool before washing and using the buffer/polisher.
  • DO NOT apply wax directly on vehicle.
  • To avoid splashing wax, ALWAYS start and stop the buffer/polisher on or against the surface to be polished.
• Place extension cord over your shoulder to keep it safely out of your way.
• DO NOT apply excessive pressure against the work surface with this tool. The random orbital motion feature on this tool will perform better when less pressure is applied. Applying excessive pressure will slow the random orbital motion and reduce the effectiveness of the tool.
  • DO NOT USE ABRASIVE COMPOUNDS WITH THIS TOOL.

Additional Safety Information

WARNING: Never modify the power tool or any of its components as there is a risk of personal injury or property damage.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),

• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by power sanding, sanding, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss..

CAUTION: When not in use, place tool on its suit on a stable surface where it will not cause a tripping or falling hazard. Some tools will stand upright but may be easily knocked over.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240 V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10 18	16 14 12
10 12 16	16 14 12
12 16 14	12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

- - - - or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

IPM....impacts per minute

RPM......revolutionsper minute

sfpm .... surface feet per minute

SPM ...... strokes per minute

OPM....oscillationsper minute

A.....amperes

W.....watts

\~ or AC......alternating current

or AC/DC....alternating or direct current

ClassII

Construction (double insulated)

n_0 no load speed

n......rated speed

⊕ ....earthing terminal

⚠️......safety alert symbol

▲......visible radiation

avoid staring at light

wearrespiratory protection

weareye protection

O....wearhearing protection

readall documentation

IPXX....IPsymbol

SAVE THESE INSTRUCTIONS FOR FUTURE USE

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

Your CRAFTSMAN buffer/polisher has a precision-built electric motor and it should be connected to a 120-volt, 60-Hz AC ONLY power supply (normal household current). DO NOT operate on direct current (DC). The large voltage drop will cause a loss of power and the motor will overheat. If the tool does not operate when plugged into correct 120-volt, 60-Hz AC ONLY outlet, check the power supply. This buffer/polisher has a 2-wire power cord (no adapter needed).

Intended Use

This buffer/polisher is intended solely for residential buffing and polishing.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

SPECIFICATIONS

Pad Diameter 10" (254 mm)

Motor OPM 2800

Rating 120 volts, 60 Hz AC

Amps 1

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Speed Dial (Fig. A)

The speed dial 5 changes the speed of the buffer/polisher. Rotate the dial forward to increase the speed or backward to decrease the speed. 1 is the lowest setting and 4 is the highest setting.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

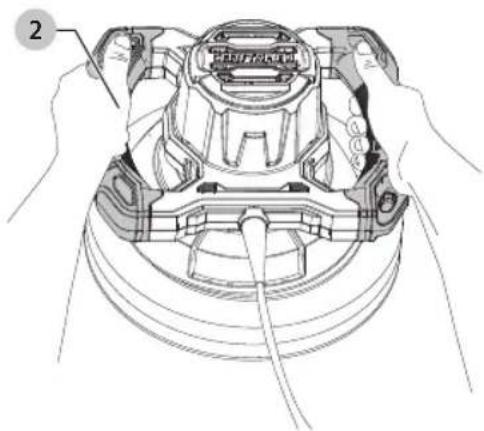

Proper Hand Position (Fig. B)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires both hands on the perimeter handle 2.

Fig. B

Technical line drawing of a mechanical assembly with hands adjusting components (no text or symbols)

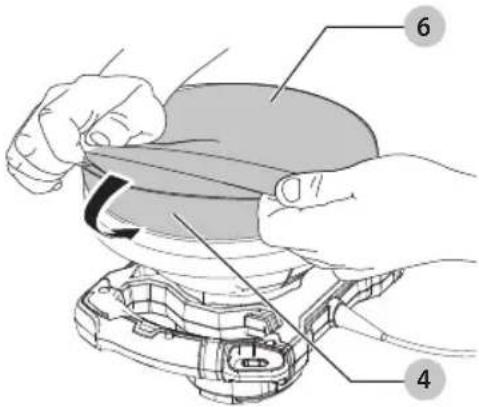

Attaching Wax Applicator Bonnet and Applying Wax (Fig. C, D)

WARNING: If any parts are missing, DO NOT operate this buffer/polisher until the missing

parts are replaced. Failure to do so could result in possible serious personal injury.

1. Attach the wax applicator bonnet 6 to the foam pad base 4 as shown in Figure C. ALWAYS make sure that the elastic strip on the bottom of the bonnet is securely tucked on the underside of the foam pad.
2. Using a putty knife or any other flat object, apply paste wax to the bonnet by spreading a teaspoon of wax evenly over the entire surface of the wax applicator bonnet as shown in Figure D.

iIMPORTAnT: Do not apply wax directly on vehicle.

1. Apply three swirls of wax over applicator bonnet. This should be enough to cover 1/4 of vehicle surface.
2. For the second, third, and fourth applications, only use about one half as much as on first application. The bonnet will not absorb as much wax on these applications.

Fig. C

Fig. D

Line drawing of hands using a tool to press or install a mechanical component (no text or symbols present)

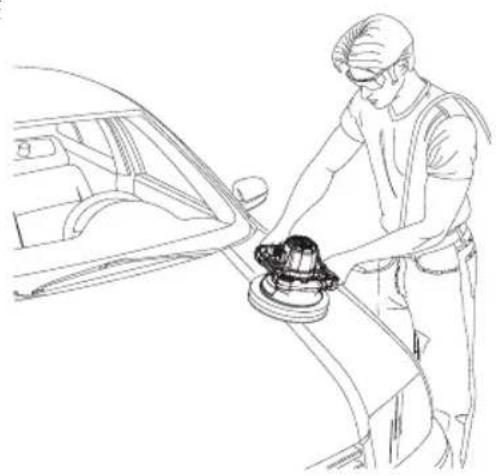

Waxing Vehicle (Fig. A, E)

1. Before you begin to wax, buff and polish your vehicle, remove all road tar, excess grease spots and bug stains with a general-purpose cleaner. Dry your vehicle.
2. After plugging tool into extension cord, place the extension cord over your shoulder to keep it safely out of your way.
3. Place buffer/polisher against vehicle and turn buffer/polisher ON by sliding switch to On position. To avoid splashing wax, ALWAYS start and stop the buffer/polisher against the surface to be polished.
4. Begin buffing at a low speed and then turn up the speed using the speed dial 5.
5. Apply wax in a straight line with either a side-to-side or back and forth motion. ALWAYS use broad, even strokes when applying wax. Apply wax in a thin, even coat. Too much wax does not add any more protection and only makes the wax removal more difficult.
6. Apply wax to the flat surfaces (hood, trunk and roof) first. Wax one section at a time.
7. After flat surfaces are covered, wax the sides. It is easiest to apply the wax to the entire surface before starting the removal phase; however, follow the specific recommendations of the wax or polish being used.
8. When you have finished applying wax with the applicator, bonnet, SHUT OFF the buffer/polisher before removing from the vehicle's surface.

NOTE: DO NOT apply too much wax to the bonnet. Applying too much wax causes the bonnet to become saturated and it will not last as long. THIS MAKES POLISHING MORE DIFFICULT AND IT TAKES LONGER.

NOTE: If the bonnet is continually coming off the pad, you may be using too much wax.

nOTE: If buffing seems difficult, you have used too much wax.

iIMPORTAnT: DO NOT apply excessive pressure against the work surface with this tool. The random orbital motion feature on this tool will perform better when less pressure is applied. Applying excessive pressure will slow the random orbital motion and reduce the effectiveness of the tool.

iIMPORTAnT: Wax applicator bonnets should only be used once, then disposed of properly.

English

Fig. E

Line drawing of a worker cleaning a car dashboard with a power tool (no text or symbols)

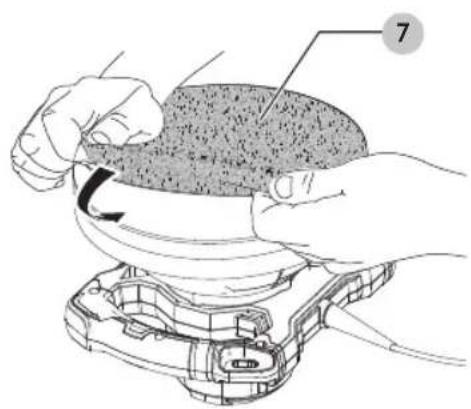

Attaching Polishing Bonnet to Foam Pad (Fig. F)

1. Place the terry bonnet 7 on foam pad as shown in Figure F.
2. ALWAYS make sure that the elastic strip on the bottom of the bonnet is securely tucked on the underside of the foam pad.

Fig. F

Illustration of hands assembling a mechanical component with a numbered label (7), no text or symbols present.

Buffing and Polishing

NOTICE: You should use utmost care when power polishing around or over sharp objects and contours of the car body. It is very important to use the correct pressure while polishing various sections of an automobile body. For example, light pressure should be applied when polishing over sharp edges of body panels, or over edges of the rain gutter along the top.

1. Wait until wax has dried to an even haze on vehicle.
2. Place extension cord over your shoulder.
3. Turn buffer/polisher ON.

iIMPORTAnT: DO NOT apply excessive pressure against the work surface with this tool. The random orbital motion feature on this tool will perform better when less pressure is applied. Applying excessive pressure will slow the random orbital motion and reduce the effectiveness of the tool.

NOTE: For best results, use long, sweeping strokes in a criss-cross pattern when removing wax.

1. Buff and polish the entire surface until all dried wax is removed. Remove the bonnet from time to time and shake out the dried wax residue. A bonnet with excess residue will cause streaking. You may need to replace the bonnet with a new one if you can't get it clean enough to avoid streaking.

Vehicle Care Tips

• Wash and polish the vehicle 3 to 4 times a year to help ensure paint protection.
• Wash the vehicle at least every 2 weeks with a vehicle wash solution which will not harm the finish or strip the wax. AVOID washing with household detergents.
• Wash with a clean sponge and dry with a terry cloth towel to help prevent dirt from scratching the paint. Start on the top and work down.
• Remove bugs, bird droppings, tree sap and tar from the vehicle's surface on a daily basis.
• ALWAYS make sure that the vehicle's surface is cool before washing.
• Avoid parking near sprinklers, because water spots are difficult to remove.
• ALWAYS keep glass cleaner chemicals away from painted surfaces. Spray the cleaner onto a towel, NOT directly on the windows.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN 1-888-331-4569.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Terry cloth bonnets, polishing bonnet and hand applicator pad can all be machine washed in cold water, using a small amount of detergent. Machine dry at medium temperature. HOWEVER, we recommend hand washing and air drying for longer bonnet life.

Repairs

WARNING: To assure product SAFETY and PABILITY, repairs, maintenance and adjustment (including power cord repairs, and brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacement parts.

Storage

Remove the bonnet from the foam pad when the buffer/polisher is not is use, so the pad can dry out and retain its original shape.

To prolong the life of the foam pad, ALWAYS store the buffer/polisher with the pad face up.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.craftsman.com/

Three Year Limited Warranty

CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase. This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call

1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow

limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states or provinces.

90 DAY MONEY BACK GUARANTEE

If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt for a full refund – no questions asked.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

DESCRIPTION

Fig. D

Line drawing of hands using a tool to press or install a mechanical component (no text or symbols present)

Line drawing of a worker cleaning a car wheel, no text or symbols present

Illustration of hands assembling a mechanical component with a textured surface and a labeled part (7), no text or symbols present.

COMPONENTES

Technical line drawing of a mechanical assembly with hands holding parts (no text or symbols)

Fig. D

Line drawing of hands using a tool to press or install a mechanical component (no text or symbols present)

Line drawing of a person cleaning a car window with a power tool (no text or symbols)

Illustration of hands assembling a mechanical component with a labeled part (7), no text or symbols present.

Pulido

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Pure geometric lines forming a symmetrical shape without any text, numbers, or symbols
