USER MANUAL WBT300 H.KOENIG

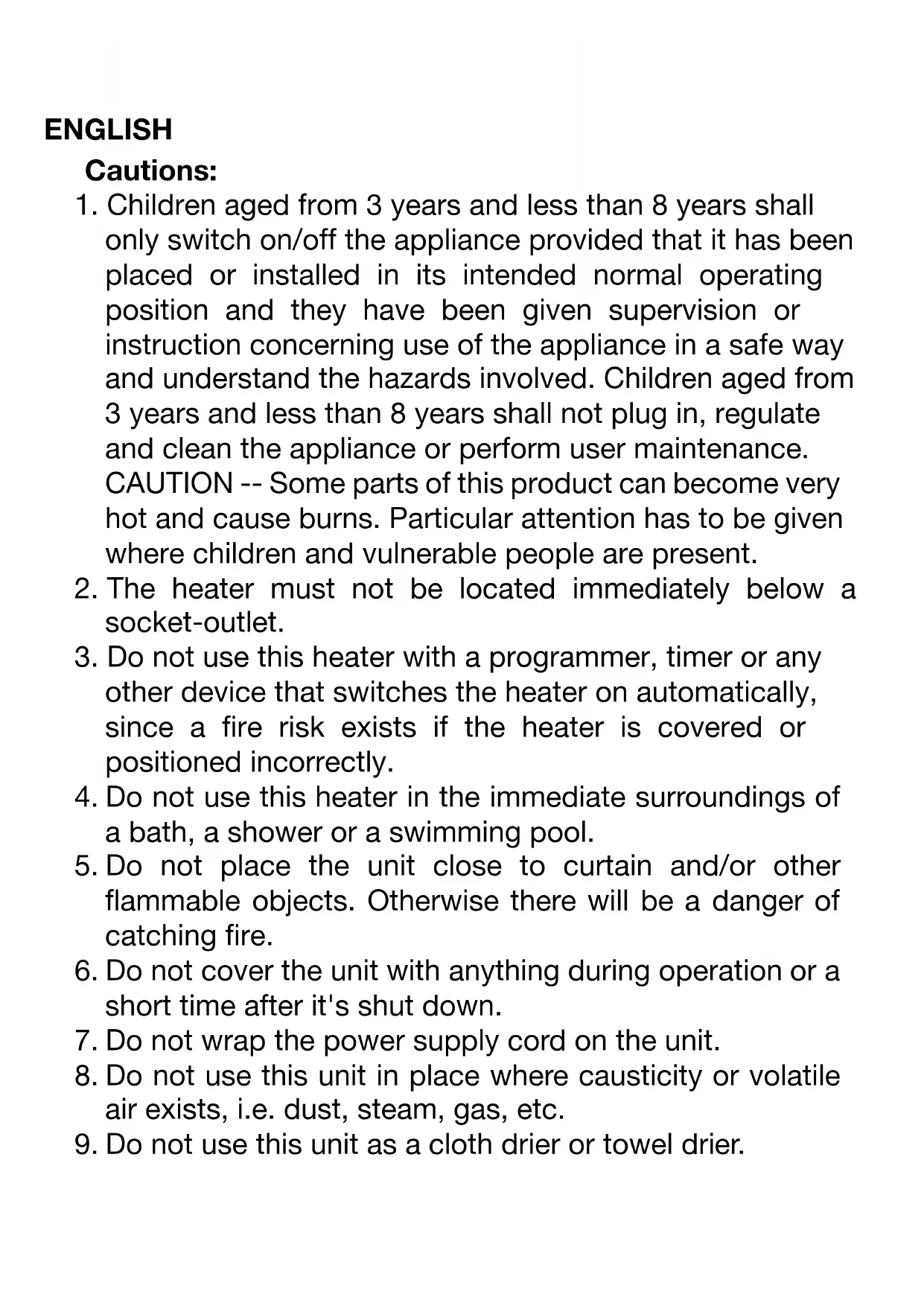

1. Children aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. CAUTION -- Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

2. The heater must not be located immediately below a

3. Do not use this heater with a programmer, timer or any

other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

4. Do not use this heater in the immediate surroundings of

a bath, a shower or a swimming pool.

5. Do not place the unit close to curtain and/or other

flammable objects. Otherwise there will be a danger of catching fire.

6. Do not cover the unit with anything during operation or a

short time after it's shut down.

7. Do not wrap the power supply cord on the unit.

8. Do not use this unit in place where causticity or volatile

air exists, i.e. dust, steam, gas, etc.

9. Do not use this unit as a cloth drier or towel drier.10. Do not use this unit as a sauna heater.

11. Do not use this unit as a room heater of heat storing.

12. Do not use this unit in place of animal propagating and

13. Do not use this unit in heating system of hot air centre.

14. Do not immerse this unit into water for cleaning.

15. The unit must be placed with the clearance of 150cm

at least to the wall.

16. The unit must be securely placed on a horizontal and

17. The unit is at high temperature during operation. It

keeps hot for a period after shut down. Potential danger would occur when touching it during this period.

18. The unit must be handled with care, and avoid of

vibration or hitting.

19. The unit must be securely grounded during operation.

20. When damaged, the unit must be repaired by

professional repairing team.

21. If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

22. When assembling, keep clear from any board or

23. This appliance is not intended for use by persons

(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

24. The unit is for outdoor use only. It's not allowed to use

in building site, greenhouses, barn or stable wherethere's flammable dust.

25. The head of the unit is at high temperature during

operation. Unplug the unit and wait till it's cool before cleaning.

26. The unit should be plugged in a socket, which is easily

visible and reachable. Preparation

• Unpack the carton. Take out the accessories pack from the carton of the heater body. Make sure the accessories listed in the above Accessories Check List are included. If anything missing, ask the retailer immediately to provide it to you.

• Prepare a cross head screw driver.

• Read this instruction manual carefully before installation and use. Keep this instruction manual in a proper and safe place for future use in case needed. Installation:

• Take out all the components form the cartons.

• As shown in figure A, turn over the Base and Base Cover, let Screw M6*12(#7) fix the Wheels(#5) through the small holes on the Base.

• Fix Screw Feet M6*30(#1) onto the Screw Board(#16), and adjust it into the same level as the Wheels.

• Put Spring Washer ø8.5(#23) and Spring Washer ø8.2*ø16(#24) into the Screw M8*120(#4) then get through the Base(#6), Base Cover(#9), S/S Tube(#10). Use the provided Allen Key M8 to fasten the Screw M8*120（#4）with Foot Bracket.

• Turn over the Heater Body. Put the Base on it. Pull out the Power Cord（#14） through the Base Cover（#9） and Base（#6）.

• Let the Base Brackets（#8） match with the holes on the Base Cover(#9)and Base(#6). Then fix the Base Brackets with the Washers(#3) and Screw M6*20 (#2) with the provided Allen Key M6.

• Fix the Power Cord with the Cord Clip(#15).

• Put Table Top on top of the Heater Body. Make sure the screw holes on Table Fixture are matching the holes on Top Steel Board. Fix Table Top onto Heater Body with 4 Screws M6*8 (#20) and Spring Washers ø6.2(#11) Operations:

• Plug in the unit to a socket. Make sure the power supply is same as rated.

• Press Switch(#30) to switch on the power. Heater is shifted to Standby mode. Power Indicator Light starts flashing.

• Press “MODE” button on the control panel or on the remote controller to switch on or to shift it to different power of the heater, Low (Green Light), High (Red light).

• Press “OFF” button to shift the heater to standby mode. The indicator light starts flashing again.

• Press Switch(#30) again to cut off the power totally in case the heater is not to be used for a long time.

This heater is not equipped with a device to control the room temperature. Do not use this heater insmall rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. Cleaning: Unplug the unit before cleaning. It should be wiped with wet cloth. Do not use too much water.

Accessories Pack Check List: Accessory Name Qty Accessory Name QtyWARRANTY The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery. If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com. By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs. If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help. WARRANTY CONDITIONS The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual. Allen Key M8

Parts Descriptions: No. Part Name

Part Name No. Part Name

Screw M6*8This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

- Accessories and wearing parts (*). - Normal maintenance of the device. - All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories. - Damage of external origin: fire, water damage, electrical surge, etc. - Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user). - The products whose serial number would be missing, deteriorated or illegible that would not allow its identification. - The products subjected to leasing, demonstration, or exhibition. (*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty. The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

Disposal of appliances and batteries

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.
