USER MANUAL a One+ JAYS

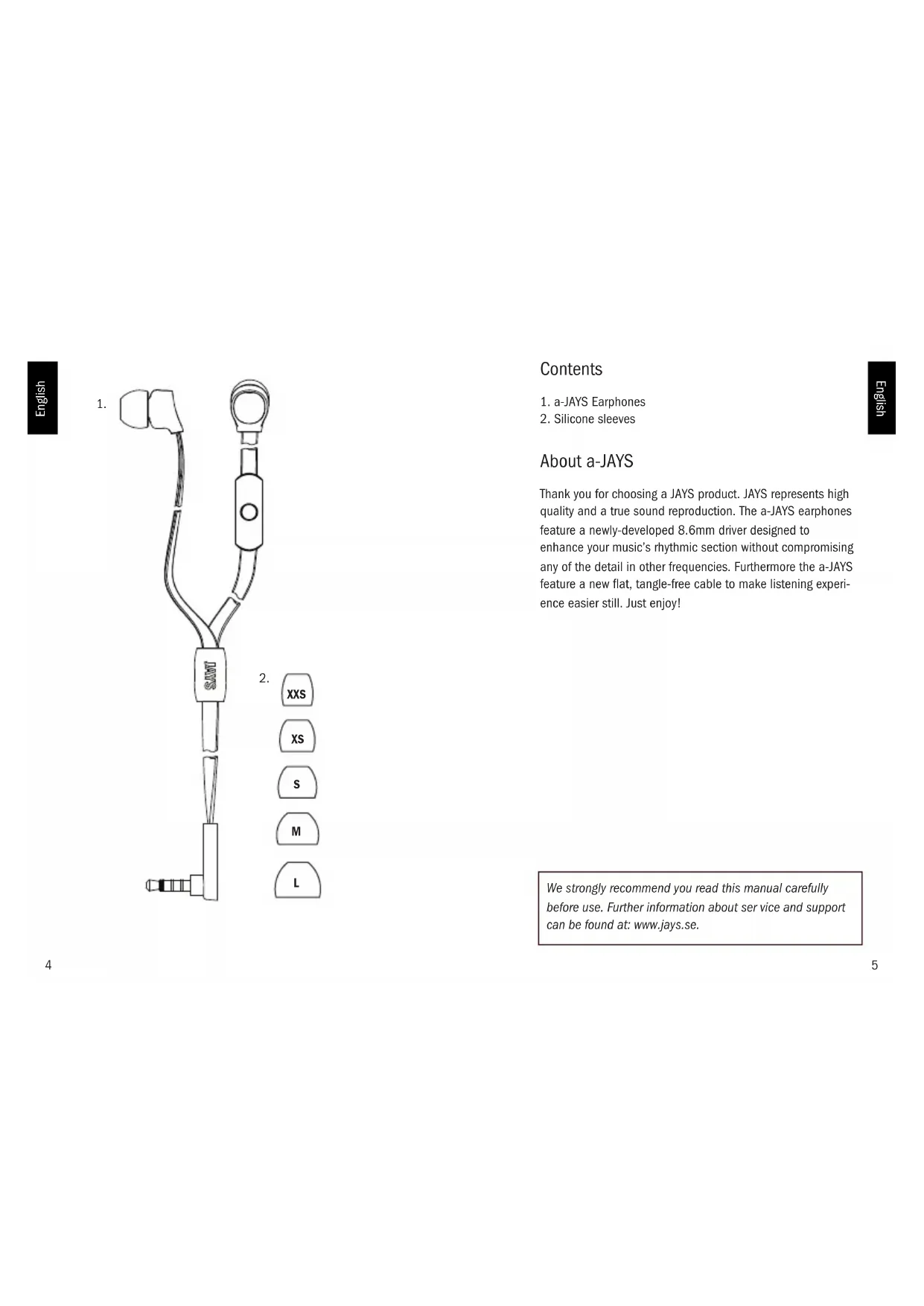

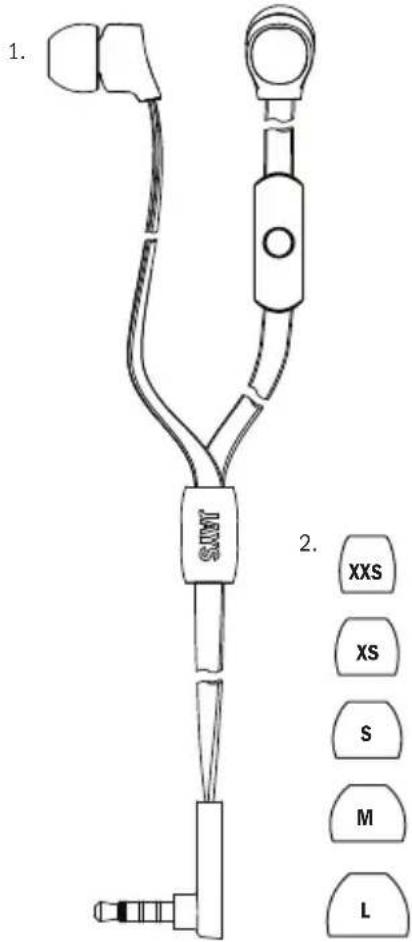

About a-JAYS Thank you for choosing a JAYS product. JAYS represents high quality and a true sound reproduction. The a-JAYS earphones feature a newly-developed 8.6mm driver designed to enhance your music’s rhythmic section without compromising any of the detail in other frequencies. Furthermore the a-JAYS feature a new at, tangle-free cable to make listening experi- ence easier still. Just enjoy! We strongly recommend you read this manual carefully before use. Further information about ser vice and support can be found at: www.jays.se. XXS

English English Understanding the product specication Sound pressure, Decibel and Hz Sound is an invisible vibration composed of frequencies which travel in undulations known as sound waves. The am- plitude of vibration produced by an object such as a speaker driver is proportional to the change of pressure generated as the wave moves through the medium which surrounds it (such as air). Therefore, the amplitude of a sound wave is commonly measured by its pressure level. The decibel is a non-dimensional, logarithmic scale to denote a relative change in the strength of a signal or wave. When placed in the context of sound pressure level; it measures the nominal threshold of human hearing, relative to the quietest sound audible to the human ear. The frequency of instances where a sound wave reaches it peak during a period of time is measured in Hz (hertz). This is the number of complete cycles per second. Human hearing is limited to frequencies between about 20 Hz and 20,000 Hz. Sensitivity and impedance Earphone sensitivity is measured in Sound Pressure Level (SPL). This is essentially a measurement of how loud or easily-driven a pair of earphones is. The sensitivity is also inuenced by the drivers’ coil imped- ance which varies over the frequency range. The higher the SPL and the lower the impedance the more easily driven your earphones will be. Specications Driver: 8,6 mm Dynamic Speaker Isolation: -40 dB @ 2 kHz Sensitivity: 95dB SPL @ 1kHz Impedance: 16 Ohm Frequency response: 20 - 18 000 Hz Cord length: 115 cm (45 in) Weight: 14 grams (0,49 oz) Plug: Silver-Plated 3.5 mm Stereo Plug8 9 English English

• If the bass frequency response seems too feeble or if external noise has not been eliminated, try inserting the earphone deeper into the ear canal to obtain a better seal or try a different sleeve size.

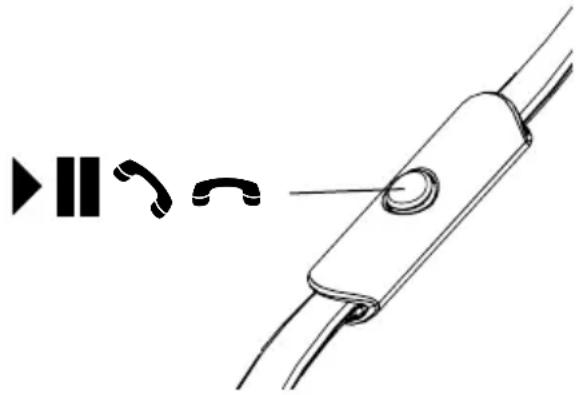

• After use, remove carefully - avoid pulling the cable. How to handle the remote a-JAYS One+ comes with a microphone and remote so you can pick up / hang up calls and play / pause your music. If you are using an android phone you can add even more features by downloading JAYS Headset Control™ app. Read more at www.jays.se/android. Precautions

• Do not use the product in other ways than are described in this manual.

• Handle with care at all times and protect from external damage.

• Do not expose to heat, magnetism or cold, damp environments.

• To clean: use a mild, antiseptic detergent.

• Do not expose the cables and plugs to abnormal wear and tear, e.g. by bending or pulling them.

• Avoid winding the cable too tightly.

• Avoid dropping or strong impact. Always leave the sleeve on for shock protection. Proper use The a-JAYS earphone model is suitable for many different areas of use. It is particularly suited to environments where you are likely to be disturbed by ambient noise, e.g. at airplanes, on trains, on the subway, at the gym or when you are studying. In short, whenever you want. Let nothing come between you and the full enjoyment of your music. Inserting and removing the earphones

• Turn the volume to minimum before insertion.

• For best results, moisten the sleeves before insertion.

• Holding the earphone at the rear, carefully insert the sleeve while pulling up and out on the back of the ear.

• The earphone should seal deeply and comfortably in the ear canal.

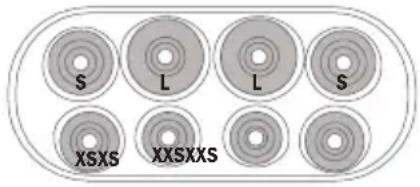

English English For your safety Hearing These earphones are very powerful. Listening at high volumes for prolonged periods can cause permanent hearing damage. Always listen at a low to moderate volume and remember to rest your ears once in a while. If your ears start ringing or aching, remove the earphones immediately in order to rest your ears. Occupational Safety Health Administration (OSHA) has developed below noise exposure graph. Traf c Your a-JAYS effectively isolate external noise. This means you won’t hear what’s going on around you, which can be very hazardous in traf c. Never use your a-JAYS while driving a car, moped, bicycle or similar, or while jogging or walking through traf cated areas. We would like to remind you that listening to music in traf cated environments can lead to accidents. Cleaning Clean your earphones regularly using an antiseptic cloth or wipe. Keep sleeves free of wax and other build-up. Wax and dirt can adversely affect sound quality and can damage your earphones. Furthermore, ensure that no moisture penetrates the nozzle when cleaning as this may damage the delicate dynamic speakers inside the earphones. Changing the sleeves The sleeves can be removed by carefully sliding them off the earphones. When replacing, check that the sleeves’ rubber notches are securely fastened in the locking groove. Cleaning the mesh lter of the sound tube If the mesh lter on the front of the sound tube shows signs of clogging, carefully use a needle to clean it.

8h 4h 2h 1h 30min 15min 7,5min dB Level Max. listening time12 13 English English Manufacturer’s Limited Warranty Your original JAYS AB product is covered by a warranty of twenty-four (24) months from the date of purchase of a brand new, unused JAYS AB product by the original purchaser. JAYS AB guarantees that the product is free from faults in the materials, design and workmanship when it was sold to the purchaser. If you are not able to submit the receipt when making a warranty claim you may be obliged to pay for any repairs carried out. Proof of purchase must clearly state the date of , name of the product and authorised re-sellers details. Limited Warranty Period The product may include different parts and they may have different Warranty Periods. The different Warranty Periods for this product are:

• Twenty-four (24) months on the earphone external shell, remote external shell and internal components

• Twelve (12) months on the cables and connectors

• Six (6) months on accessories The Warranty Period cannot be extended or renewed due to subsequent resale or replacement of the product. This Limited Warranty does not affect your legal rights under your applicable national laws relating to the sale of consumer electronic products. Defective parts replaced within the Limited Warranty Claim shall become the property of JAYS AB. Other Please note that the product and accompanying parts are very small. You should therefore store them safely out of children’s reach. Certications The aim of EU’s Waste Electrical and Electronic Equipment (WEEE) directives 2002/96/EC and the RoHS directive is to reduce waste from electric and electronic products and to recycle as much of the materials as possible. Any remaining waste should be virtually risk free to handle and the risk of hazardous emissions should be minimal. Recycling For detailed information about how to recycle this product, please contact your local recycling centre or store where you purchased the product. Contact At www.jays.se you will nd information and a contact form where you can ask questions about JAYS products.14 15 English English What is not covered by the Limited Warranty?

• Faults caused by wear and tear, accident, dropping, mechanical damage, damp, moisture, chemical prod- ucts, abnormal impact damage or force majeure.

• Modication or repair by you or third party without JAYS AB approval. How to get Warranty Ser vice If you wish to make a Warranty Claim within the Limited Warranty Period, please contact the reseller of your product for further help. (For products sold in the USA please see the distributor details at www.jays.se/retailers/retailers ). You will need to provide bring the proof of purchase and the affected part. Any defective parts covered by the Limited War- ranty will be repaired or replaced free of charge. Replaced or repaired parts provided during the Warranty Period will be warranted for the remainder of the original Warranty Period or for sixty (60) days from the date of repair or replacement, whichever is longer. For FAQ please visit www.jays.se.Français18 19 Français Français Contenu
