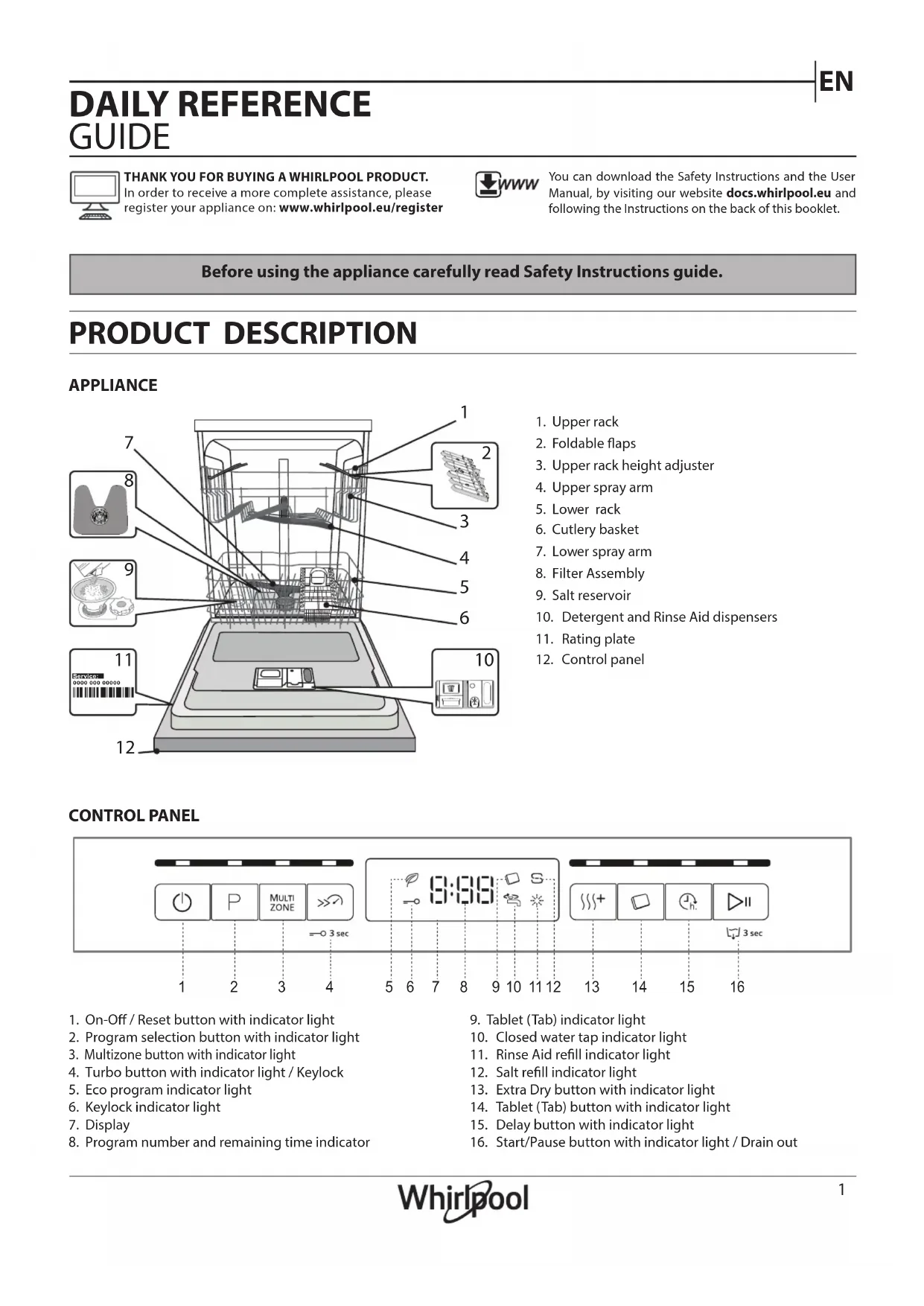

USER MANUAL WFO 3T142 X WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.whirlpool.eu/register

You can download the Safety Instructions and the User Manual, by visiting our website docs.whirlpool.eu and following the Instructions on the back of this booklet.

Before using the appliance carefully read Safety Instructions guide.

PRODUCT DESCRIPTION

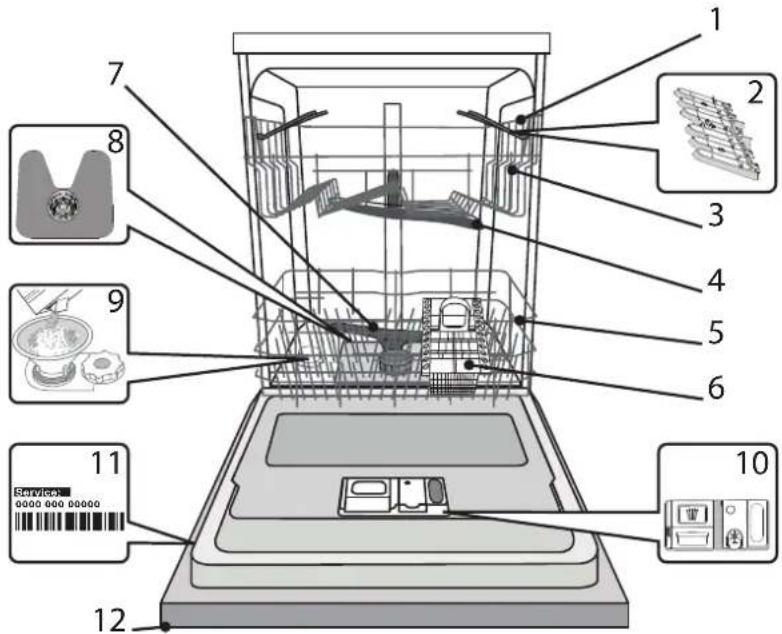

APPLIANCE

1 2 3 4 5 6 7 8 9 10 Service 0000 000 00000 11 12

1. Upper rack

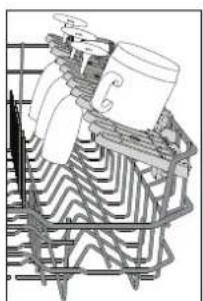

2. Foldable flaps
3. Upper rack height adjuster
4. Upper spray arm

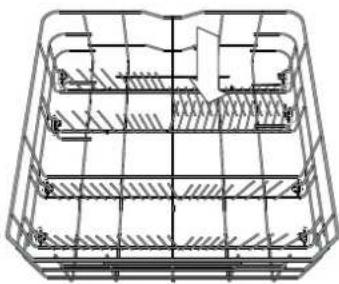

5. Lower rack
6. Cutlery basket
7. Lower spray arm
8. Filter Assembly
9. Salt reservoir
10. Detergent and Rinse Aid dispensers
11. Rating plate
12. Control panel

CONTROL PANEL

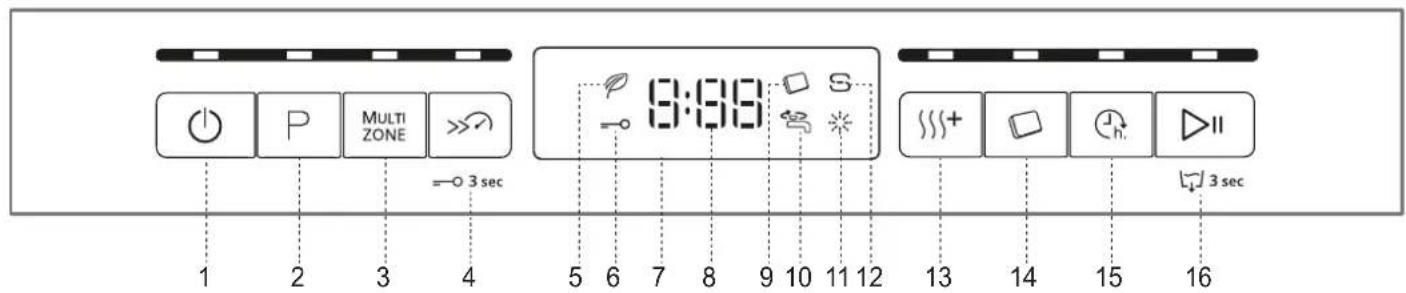

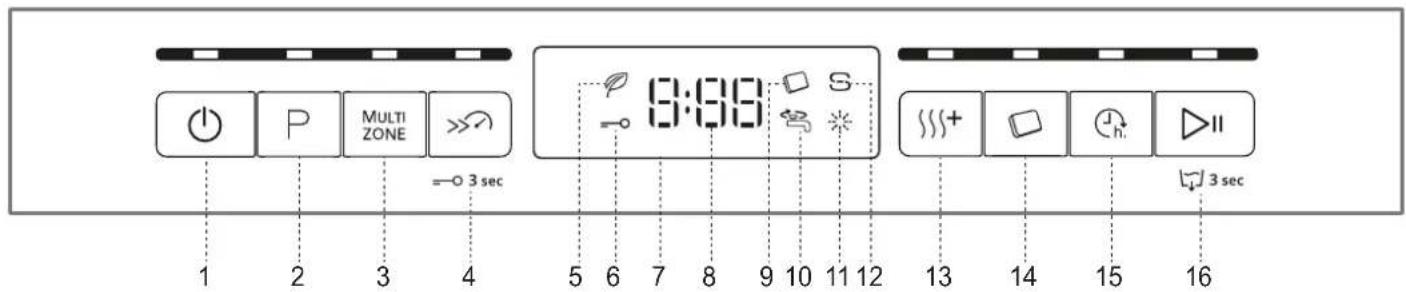

1 2 3 4 MULTI ZONE => 3 sec 5 6 7 8 9 10 11 12 13 14 15 16 8:38 S 3sec

1. On-Off / Reset button with indicator light
2. Program selection button with indicator light
3. Multizone button with indicator light
4. Turbo button with indicator light / Keylock
5. Eco program indicator light
6. Keylock indicator light
7. Display

8. Program number and remaining time indicator

9. Tablet (Tab) indicator light

10. Closed water tap indicator light
11. Rinse Aid refill indicator light
12. Salt refill indicator light
13. Extra Dry button with indicator light
14. Tablet (Tab) button with indicator light
15. Delay button with indicator light
16. Start/Pause button with indicator light / Drain out

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is mandatory that THE SALT RESERVOIR BE NEVER EMPTY.
- It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light in the control panel is lit.

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced fruit (no text or symbols)

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory sets the default value for the water hardness

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button START/Pause for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button.

Setting is complete!

As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation.

Using of Salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL ✦ indicator light in the control panel is lit.

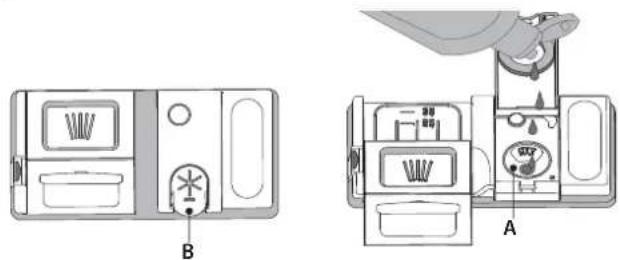

Diagram showing two labeled views (A and B) of a refrigerator interior with icons and labels, likely illustrating a kitchen or appliance layout.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max.110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button START/Pause three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button

Setting is complete!

If the rinse aid level is set to 1 (ECO), no rinse aid will be supplied.
The LOW RINSE AID indicator light will not be lit if you run out of rinse aid. A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow instruction above to check this for your machine.
- If you see bluish streaks on the dishes, set a low number (2-3).
- If there are drops of water or limescale marks on the dishes, set a mid-range number (4-5).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

Diagram of a food processing machine with labeled components and hand actions, including feed, waste, and storage steps.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D there are indications to help the detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program		Drying phase	NaturalDry	Available options*)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco 50°	ECO	√	√		3:10 9.5 0.75
2. 6thSense	[4DSY] 50-60°	√	√	MULTI ZONE >> (((+) ☐) h.	1:25 - 3:00 7.0	-14.0 0.90 - 1.40
3. Intensive 65°		√	√	MULTI ZONE >> (((+) ☐) h.	2:50 14.0 1.50
4. Fast Wash&Dry 50°		√	√	MULTI ZONE	1:25 11.5 1.10
5. Crystals	45°	√	√	MULTI ZONE	1:40 11.5 1.20
6. Rapid 30' 50°		-	-	MULTI ZONE	0:30 9.0 0.50
7. Silent 50°		√	√		3:30 15.0 1.15
8. Sanitizing	65°	√	-		1:40 10.0 1.30
9. Prewash		-	-	MULTI ZONE	0:12 4.5 0.01
10. Self-Clean	65°	-	-		0:50 8.0 0.85

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Note for Test Laboratories:
For information on comparative EN testing conditions, please send an email to the following address: [e-mail]
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
** Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 6 ^th SENSE

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.

3 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

4 FAST WASH&DRY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 CRYSTALS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

6 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

7 SILENT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

8 SANITIZING

Normally or heavily soiled crockery, with additional antibacterial wash.

Can be used to perform maintenance of the dishwasher.

9 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

10 SELF-CLEAN

Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program see PROGRAMS TABLE, the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI MULTIZONE

ZONE If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent. Select the program and then press the MULTIZONE button: the indicator over the button lights up. By default the appliance washes dishes in all racks. To wash only the specific rack, press this button repeatedly:

| _ | shown on the display (only lower rack)

^2 1- -1 shown on the display (only upper rack)

OFF shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. If upper rack is removed, please apply detergent directly to tub instead of detergent dispenser.

TURBO

This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels. After selecting the program, press the TURBO button and the indicator light will switch on. To deselect the option, press the same button again.

KEYLOCK

A long press (for 3 seconds) of TURBO button, will activate the KEYLOCK function. The KEYLOCK function will block the control panel except the ON/OFF button. To deactivate the KEYLOCK, long press again.

WATER TAP CLOSED - Alarm

Flashes when there is no inlet water or water tap is closed.

EXTRA DRY

To improve the drying of the dishes, after selecting the program, press the EXTRA DRY button and the indicator light comes on. A higher temperature during the final rinse and an extended drying phase allow for improving drying. To deselect the option, press the same button again. The EXTRA DRY option results in the lengthening of the wash cycle.

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used. Press the TABLET button (the indicator light will light up, the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose). If you use powder or liquid detergent, this option should be off.

j DELAY h. The start

DELAY

The start of the program may be delayed for a period of time between 0:30 and 24 hours.

1. Select the program and any desired options. Press the DELAY button (repeatedly) to delay the start of the program. Adjustable from 0:30 to 24 hours. With each press of the button, the delay start increases by: 0:30 if selection below 4 hours, 1:00 if selection is below 12 hours, 4 hours if selection is above 12 hours. If 24 hours reached, and the button is pressed, the delayed start is deactivated.
2. Press the START/PAUSE button: the timer will begin counting down;
3. Once this time has elapsed, the indicator light switches off and the program begins automatically.

If at the time of the countdown the START/PAUSE button is pressed again the DELAY option is cancelled and the selected program starts automatically.

The DELAY function cannot be set once a program has been started.

DRAIN OUT

To stop and cancel the active cycle, the Drain Out function can be used.

A long press of START/PAUSE button, will activate the DRAIN OUT function. The active program will be stopped and the water in the dishwasher will be drained out.

NaturalDry

NaturalDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of TURBO is on.

As additional steam protection, special designed protection foil is added together with the dishwasher (depending on the model type - can be the need to buy it). To see how to mount protection foil please refer to (INSTALLATION GUIDE).

NaturalDry functionality could be disabled by the user as follows:

• To DISABLE: Switch On, then switch Off. Keep the P button pressed for 5 sec., at the end of 5 sec the dishwasher plays a short beep. Switch On the machine, the display shows "oOF".
• To ENABLE: Switch On, then switch Off the machine. Keep the P button pressed for 5 sec., at the end of 5 sec the dishwasher plays a short beep. Switch On the machine, the display shows „oOn”.

PŘÍRUČKA

PRO KAŽDODENNÍ POUŽITÍ

Diagram of a refrigerator interior with numbered parts and labeled items including washing machine, refrigerator, and control panel.

Illustration of a hand pouring granular material into a bowl on a stand next to a sliced food item (no text or symbols)

Diagram of a refrigerator interior with labeled parts and a hand holding the lid, showing internal compartments and a dial indicator.

Diagram of a cleaning or cleaning device with labeled parts D, C, and a funnel, showing internal components and tool path.

Diagram of a refrigerator interior with numbered parts and labeled accessories, including a service badge and product images.

Illustration of a hand pouring granular material into a bowl with a side view of a sliced fruit (no text or symbols)

Diagram showing two labeled views of a refrigerator with fan controls and a hand operating the door.

Diagram of a food processing machine with labeled components and hand actions, including feed, funnel, and waste sorting.

MERCI D'AVOIR CHOISI UN PRODUITWHIRLPOOL.

1 2 3 4 5 6 7 8 9 10 Service: 0.00 0.000.0000 11 12

Illustration of a hand pouring granular material into a bowl on a heating scale, with a sliced seed or nut nearby (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with compartments, fixtures, and a hand holding a fan.

Diagram of a cleaning or cleaning device with labeled parts and hand icons for inspection or cleaning.

OPTIONS ET FONCTIONS

Diagram of a refrigerator interior with numbered parts and labeled icons for cleaning or repair.

1. Gornja košara
2. Pomični preklopi
3. Mehanizam za podešavanje gornje košare po visini
4. Gornji nosač prskalica
5. Donja košara
6. Košara za pribor za jelo
7. Donji nosač prskalica
8. Sklop filtra
9. Spremnik za sol
10. Spremnici za deterdžent i sredstvo za ispiranje
11. Natpisna pločica
12. Upravljačka ploča

UPRAVLJAČKA PLOČA

1 2 3 4 MULTI ZONE =0 3 sec 5 6 7 8 9 10 11 12 13 14 15 16 9:00 S 3 sec

Illustration of a hand pouring granular material into a bowl on a stand next to a slice of food (no text or symbols)

Diagram showing two views of a refrigerator with labeled parts A and B, including a hand holding a bag above the refrigerator.

1. Otvorite dozator B tako da pritisnete i povučete jezičac na poklopcu.
2. Pažljivo uvedite sredstvo za ispiranje do referente oznake maksimalne količine (110 ml) prostora za punjenje, pazite da ne dođe do prolijevanja. Ako se to dogodi, suhom krpom odmah očistite proliveno.
3. Pritisnite poklopac dok se ne zatvori uz klik.
   Sredstvo za ispiranje NIKADA ne ulijevajte izravno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste potpuno zadovoljni rezultatima sušenja, možete podesiti količinu upotrijebljenog sredstva za ispiranje.

Diagram of a device with labeled parts and an inset showing hand cleaning steps

1. Prilikom doziranja deterdženta pogledajte ranije navedene informacije kako biste stavili odgovarajuću količinu. Unutar dozatora D nalaze se oznake koje vam pomažu prilikom doziranja.
2. Uklonite ostatke deterdženta s ru- bova spremnika prije no što poklo- pac zatvorite tako da sjedne.
3. Poklopac spremnika za deterdžent zatvorite tako da ga povučete dok se mehanizam za zatvaranje ne učvrsti.

Spremnik za deterdžent automatski se otvara u odgovarajućem trenutku ovisno o programu. Ako se upotrebljava kombinirani deterdžent, preporučujemo upotrebu gumba TABLETE jer on prilagođava program tako da se uvijek ostvaruju najbolju rezultati pranja i sušenja.

Upotreba deterdženta koji nije namijenjen perilicama posuđa može prouzročiti nepravilnosti ili oštećenje uređaja.

TABLICA PROGRAMA

Program			Faza sušenja	NaturalDry	Dostupne opcije *)	Trajanje pro-grama pranja (h:min)***	Potrošnja vode (litara po ciklusu)	Potrošnja energije (kWh po ciklusu)
1. Eko	ECO	50°	√	√	+ h.	3:10 9,5 0,75
2. 6th Sense		50-60°	√	√	MULTI ZONE h.	1:25 - 3:00 7,0 -	14,0 0,90 - 1,40
3. Intenzivno 65°			√	√	MULTI ZONE h.	2:50 14,0 1,50
4. Brzo pranje i sušenje		50°	√	√	MULTI ZONE h.	1:25 11,5 1,10
5. Kristal	[BHAW]	45°	√	√	MULTI ZONE h.	1:40 11,5 1,20
6. Brzo 30' 50°			-	-	MULTI ZONE J h.	0:30 9,0 0,50
7. Tiho 50°			√	√	h.	3:30 15,0 1,15
8. Higijensko		65°	√	-	J h.	1:40 10,0 1,30
9. Pretpranje		-	-	-	MULTI ZONE J h.	0:12 4,5 0,01
10. Samočišćenje		65°	-	-	J h.	0:50 8,0 0,85

Diagram of a refrigerator interior with numbered parts and labeled icons for cleaning or repair.

Illustration of a hand pouring granular material into a bowl on a stand next to a slice of bread (no text or symbols)

Diagram showing two labeled views (A and B) of a refrigerator interior with hand operating controls and a hand holding a fan.

Diagram of a food preparation or processing device with labeled parts D and C, showing internal components and a hand holding a bag.

Diagram of a kitchen appliance with numbered parts and labeled components, including a food item, kitchen utensils, and a service badge.

Illustration of a hand pouring granular material into a bowl with a sliced lid on a stand (no text or symbols)

Diagram of a kitchen appliance with labeled component B (no text or symbols beyond label)

Diagram of a refrigerator interior with labeled parts and a hand holding the lid, showing internal compartments and a dial indicator.

Diagram of a device with labeled parts and annotations, including hand, tool, and control panel

Diagram of a refrigerator interior with numbered components and labeled parts including washing machine, refrigerator, and server.

Illustration of a hand pouring granular material into a bowl on a stand, with a slice of cheese nearby (no text or symbols)

Ko to storite, zaženite program brez posode.

Diagram showing two labeled views (A and B) of a shared air conditioner unit with hand operating controls and fan gauges.

1. Posodo Bodprete tako, da pritisnite na jeziček na pokrovčku in ga povlečete.
2. Tekočino za lesk previdno nalijte do oznake za maksimum (110 ml), pri čemer pazite, da tekočine ne polivate. Če se to vseeno zgodi, razlito tekočino nemudoma pobrišite s suho krpo.
3. Pritisnite na pokrovček, da se slišno zaskoči.
   Tekočine za lesk NE nalivajte neposredno v kad.

NASTAVITEV ODMERJANJA TEKOČINE ZA LESK

Diagram of a device with labeled parts and an inset showing hand cleaning and cleaning steps

Illustration of a hand pouring granular material into a bowl on a stand, with a separate screwdriver nearby (no text or symbols)

1. Uklonite donju korpu i odvrnite poklopac rezervoara (u smeru suprotnom od smera kretanja kazaljki na satu).
2. Samo prvi put kada ovo radite: napunite rezervoar za so vodom.
3. Postavite levak (vidite sliku) i napunite rezervoar za so do ivice (oko 1 kg); nije neu običajeno da malo vode iscuri.
4. Uklonite levak i obrišite ostatke soli sa otvora.

Vodite računa da poklopac bude čvrsto zavijen, tako da deterdžent ne može da uđe u posudu tokom programa pranja (to može da ošeteti omekšivač za vodu tako da se ne može popraviti).

Kad god je potrebno da dodate so, obavezno je da obavite proceduru pre početka ciklusa pranja da bi se izbegla korozija.

PODEŠAVANJE TVRDOĆE VODE

Diagram showing two views of a refrigerator with labeled parts A and B, including a hand holding a bag above the refrigerator.

1. Otvorite posudu B tako što ćete pritisnuti i povući na gore jezičak na poklopcu.
2. Pažljivo sipajte sredstvo za ispiranje do oznake za maksimum (110 ml) na prostoru za punjenje - izbegavajte prosipanje. Ako se to dogodi, odmah obrišite prosuto suvom krpom.
3. Pritisnite poklopac dok se ne začuje zvuk škljocanja. NIKADA ne sipajte sredstvo za ispiranje direktno u kadicu.

PODEŠAVANJE DOZIRANJA SREDSTVA ZA ISPIRANJE

Ako niste u potpunosti zadovoljni rezultatima sušenja, možete da podesite količinu sredstva za ispiranje koja se koristi.

Diagram of a food delivery machine with labeled parts and exploded view, showing hand cleaning and waste disposal steps.

1. Za odmeravanje deterdženta pogledajte prethodno pomenute informacije kako biste sipali odgovarajuću količinu. U posudi D nalaze se oznake koje vam mogu pomoći u doziranju deterdženta.
2. Uklonite ostatke deterdženta sa ivica posuda pre nego što i zatvorite poklo-pac dok se ne začuje zvuk škljocanja.
3. Zatvorite poklopac posude za deterdžent povlačenjem na gore dok uređaj za zatvaranje ne bude čvrsto na mestu.

Top-down technical diagram of a mechanical assembly with multiple components (no text or labels visible)

(primer punjenja gornje korpe)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

SKLOPIVA KRILCA SA PODESIVIM POLOŽAJEM

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

DONJA KORPA

Two technical line drawings of a basket with internal compartments and labeled parts (no text or symbols)

(primer punjenja donje korpe)

KORPA ZA PRIBOR

Ima rešetke pri vrhu za bolje postavljanje pribora. Mora se postaviti samo u prednjem delu donje korpe.

Line drawing of a hand placing a component into a grid-like structure (no text or symbols)

Noževi i drugi pribor oštrih ivica se mora ostaviti u korpu za pribor sa vrhovima okrenutim na dole ili se staviti u horizontalan položaj u odeljak koji se pomera u gornjoj korpi.

SVAKODNEVNA UPOTREBA

1. PROVERITE PRIKLJUČAK NA VODOVODNU MREŽU

Proverite da li je mašina za pranje sudova povezana na dovod vode i da li je slavina otvorena.

2. UKLJUČITE MAŠINU ZA PRANJE SUDOVA

Pritisnite dugme UKLJUČI/ISKLJUČI.

3. NAPUNITE KORPE

(videti PUNJENJE KORPI)

4. PUNJENJE POSUDE ZA DETERDŽENT

5. IZABERITE PROGRAM | PRILAGODITE CIKLUS

Izaberite najprikladniji program u skladu sa vrstom posuđa i nivoom zaprljanosti (videti OPIS PROGRAMA) pritiskom na dugme P. Izaberite željene opcije (videti OPCIJE I FUNKCIJE).

6. POČETAK

NEODGOVARAJUĆE POSUĐE

• Drveno posuđe i pribor.
• Osetljive ukrašene čaše, umetničke rukotvorine i antičko posuđe. Dekoracija na njima nije otporna.
• Delovi od sintetičkog materijala ne podnose visoke temperature.
• Posuđe od bakra i kalaja.
• Posuđe zaprljano pepelom, voskom, mašću za podmazivanje ili mastilom.

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Da biste uklonili gornju prskalicu, okrenite plastični prsten za zaključavanje u smeru kretanja kazaljki na satu. Gornja prskalica se ponovo postavlja tako da strana sa više otvora bude okrenuta na gore.

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

Technical diagram showing electrical connections with labeled components and directional arrows, likely from an engineering or mechanical context.

ZLOŽLJIVA POLIČKA Z NASTAVLJIVIM POLOŽAJEM

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

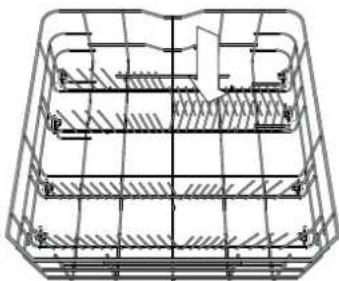

SPODNJA KOŠARA

Diagram of a washing machine with multiple circular components and a central rack (no text or labels)

Technical line drawing of a multi-layered mechanical or architectural component (no text or symbols)

(primer zlaganja posode v spodnjo košaro)

KOŠARICA ZA PRIBOR

Line drawing of a hand placing a patterned object into a wireframe basket (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

SKLÁPACIE KLAPKY S NASTAVITEL'NOU POLOHOU

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

SPODNÝ KÔŠ

Diagram of a shopping basket with plates and a tray, showing interior compartments (no text or symbols)

Technical line drawing of a mechanical assembly with grid lines and hatching (no text or symbols)

Line drawing of a hand placing a card into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols present)

Spodné ostrekovacie rameno možno vybrat potiahnutím nahor.

SYSTÉM NA ZMÄKČOVANIE VODY

Technical line drawing of a mechanical assembly with multiple components and housing (no text or labels)

Pure electrical circuit lines without any symbols

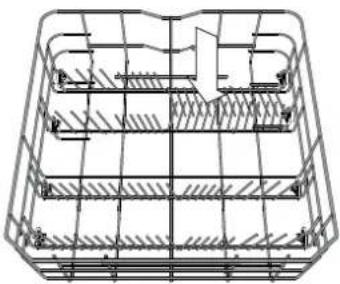

SKŁADANE PÓŁECZKI Z REGULOWANYM POŁOŻENIEM

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a multi-tiered kitchen sink with circular components and a central dish (no text or labels)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a woven basket into a plastic crate (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a stovetop (no text or symbols present)

Technical line drawing of a mechanical assembly with multiple components (no text or labels)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

Košaru NIKADA ne podižite ili spuštajte samo na jednoj strani.

POMIČNI PREKLOPI S PODESIVIM POLOŽAJEM

Line drawing of a mechanical device with gears and a bucket (no text or symbols)

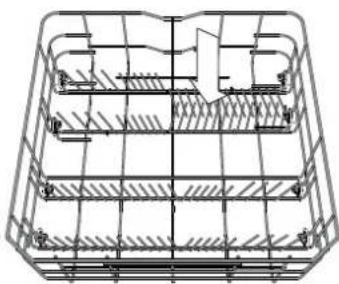

DONJA KOŠARA

Diagram of a multi-tiered kitchen appliance with cutlery and a central fan (no text or symbols)

Technical line drawing of a multi-level mechanical or structural assembly (no text or symbols)

Line drawing of a hand placing a patterned object into a grid-like structure (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and component, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Donji krak mlaznice može se skinuti tako da se povuče prema gore.

SUSTAV OMEKŠAVANJA VODE

Mouth refrigerator Pension & Litter 100% 250mm

400011676828

04/2023 ks - Xerox Fabriano

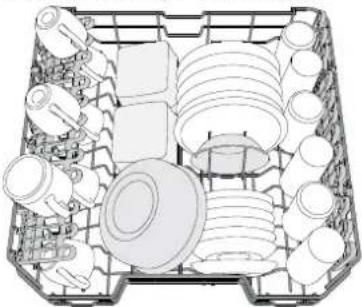

CHARGEMENT DES PANIERS

PANIER SUPÉRIEUR

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

Technical diagram showing a structural assembly with labeled components and directional arrows, likely from an engineering or mechanical drawing.

VOLETS PLIABLES À POSITION RÉGLABLE

Diagram of a mechanical or electrical component with layered structure and no visible text or symbols

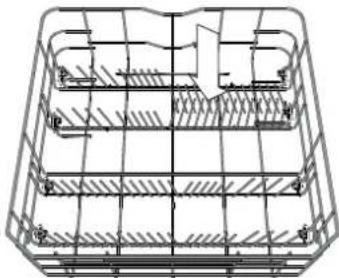

PANIER INFÉRIEUR

Cross-sectional diagram of a shopping basket with coins and a tray, no text or symbols present

Technical line drawing of a mechanical housing or enclosure with internal structural layers (no text or symbols)

Line drawing of a hand placing a plastic basket into a wireframe crate (no text or symbols)

UTILISATION QUOTIDIENNE

1. VÉRIFIER LE BRANCHEMENT DE L'EAU

INTERRUPTIONS IMPRÉVUES

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols visible)

MILK 10000 MILK 10000

FR +

Exploded view diagram of a mechanical assembly (no text or labels)

Technical diagram showing a mechanical or electrical assembly with labeled components and directional arrows

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Technical line drawing of a multi-tiered mechanical assembly with internal components (no text or symbols)

Line drawing of a hand placing a grid-patterned object into a rectangular container (no text or symbols)

Technical line drawing of a mechanical assembly with a hand operating a tool, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a baseplate (no text or symbols present)

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

Technical diagram showing electrical connections with labeled components and a directional arrow indicating flow or movement.

SKLOPNÉ OPĚRKY S NASTAVITELNOU POLOHOU

Illustration of a mechanical device with a cylindrical component and wavy internal structure (no text or symbols)

DOLNÍ KOŠ

Two technical line drawings of a basket with internal compartments and labeled parts (no text or symbols)

Line drawing of a hand placing a small object into a wireframe basket (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and spring scale (no text or symbols)

Technical line drawing of a mechanical assembly with a hand holding a tool, no visible text or symbols

Top-down technical drawing of a mechanical assembly with multiple components (no text or labels visible)

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with a Upper Rack height adjuster (see figure), without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded. NEVER raise or lower the basket on one side only.

Technical diagram showing labeled components or parts with letters A, B, C, D, E and directional arrows indicating flow or movement.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be fold or unfold to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

Depending on the model: - to unfold the flaps there is needed to slide it up and rotate or release it from the snaps and pull it down. - to fold the flaps there is needed to rotate it and slide flaps down or pull it up and attach flaps to the snaps.

Technical line drawing of a mechanical assembly with no visible text or symbols

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

Diagram of a shopping basket with coins, plates, and a tray (no text or symbols)

Technical line drawing of a multi-layered mechanical or architectural structure (no text or symbols)

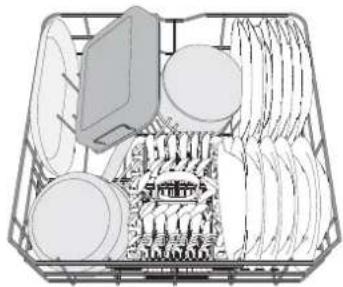

(loading example for the lower rack)

CUTLERY BASKET

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack.

Line drawing of a hand placing a grid-like object into a wireframe basket (no text or symbols)

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack.

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Press the ON/OFF button.

3. LOAD THE RACKS

(see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing the START/Pause button. When the program starts you hear a beep.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and the display shows End. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery - to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: press and hold the ON/OFF button, the machine will switch off. Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options; start the cycle by pressing the START/PAUSE button.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (be ware of HOT steam!) and place the crockery inside the dishwasher. Close the door and press the START/Pause button the cycle will begin from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Once the door has been closed or the electricity supply is restored, to start again the cycle from where it was interrupted, press the START/Pause button.

To disable the DEMO MODE the following actions must be carried out in sequence, without breaks. Switch the machine ON and then switch it OFF again. Press the DELAY button until the buzzer is heard. Switch the machine on again. The "dOF" indicator flashes and then turns OFF.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures.

• Copper and tin crockery.

- Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
• In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in LOADING THE RACKS chapter.
• In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

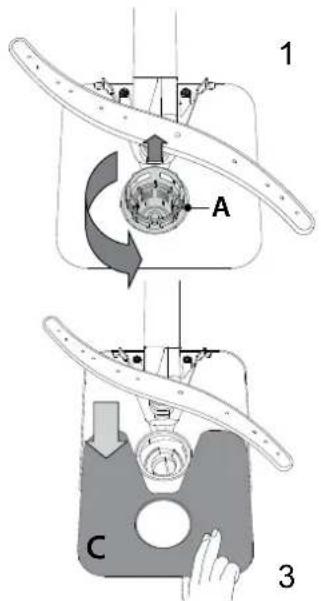

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).

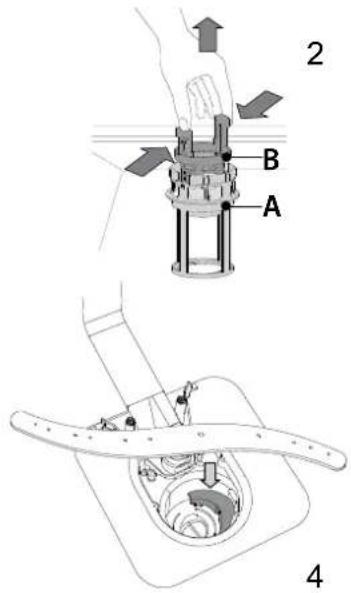

2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

1 A C 3

2 B A 4

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

Technical diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion arrows (no text or labels)

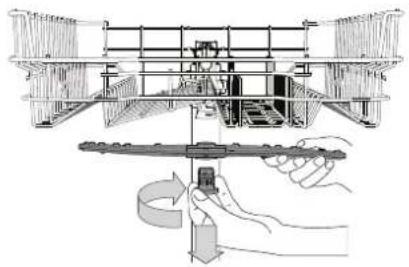

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.
Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.
- Single regeneration consumes: 3.5L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty (after refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness (see table, page 2).
Rinse aid indicator is lit	Rinse aid dispenser is empty (after refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly. Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not restart automatically when power returns. Press the START/Pause button to resume the cycle.
	The dishwasher door is not closed.NaturalDry pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for >4 sec.	Close the door and press START/Pause button.
	It does not respond to commands. Display shows:F9 or F12 and both On/Off and START/Pause LEDs are blinking rapidly.	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain. Display shows: F3 and both On/Off and START/Pause LEDs are blinking rapidly.	The wash cycle has not finished yet. Wait until the wash cycle finishes.
	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each other.	Position the crockery correctly (see LOADING THE RACKS).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart dishwasher by pressing the DRAIN button (see OPTIONS AND FUNCTIONS) and run new program without detergent.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged.	Clean the filter assembly (see CARE AND MAINTENANCE).
	There is no salt.	Fill the salt reservoir (see FILLING THE SALT RESERVOIR).
The dishwasher does not fill the water. Display shows: F6, both On/Off and START/Pause LEDs are blinking rapidly.	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it.	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows: F15 and both On/Off and START/Pause LEDs are blinking rapidly.	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com
• Using QR Code
  • Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu

Diagram of a refrigerator with labeled control panel and indicator lights

400011676828

04/2023 ks - Xerox Fabriano
