Brand	Klarstein
Model	Siena Rossa
Product type	Manual pasta machine
Main material	Stainless steel and aluminum alloy
Dimensions (L x W x H)	Approx. 30 x 20 x 15 cm
Net weight	Approx. 2.5 kg
Power	Manual (crank)
Main functions	Rolling, cutting pasta (fettuccine, tagliatelle, etc.), making ravioli, agnolotti, tortellini, and cookie shapes
Thickness adjustment	Yes, adjustment knob with multiple positions (from 1 to 5 or more)
Included accessories	Crank, clamps, rolling rollers, cutting rollers (wide and thin), ravioli attachment, cutting tool (Pastabike)
Worktop fixing	Yes, via clamps
Recommended use	Domestic use, indoor only
Care and cleaning	Dry brushing, using a small wooden stick for residues, food oil on rollers if necessary. Do not wash in dishwasher.
Safety	Do not insert objects or fingers between rollers. Use on a stable surface. Keep out of reach of children.
Spare parts and repairability	Spare parts available from the manufacturer. Do not attempt to repair yourself.
Warranty	Statutory warranty of conformity (not specified in the manual)

Frequently Asked Questions - Siena Rossa Klarstein

How to fix the machine on the worktop?

Use the provided clamps to securely fix the machine on a flat and stable surface.

How to adjust the thickness of the dough?

Turn the adjustment knob to change the gap between the rollers. Start with the widest setting (about 3 mm), then gradually reduce to achieve the desired thickness.

What to do if the dough sticks to the rollers?

Sprinkle the dough with a little flour before passing it through the rollers. If it is too soft, add flour to the dough itself.

How to clean the machine after use?

Clean the rollers with a brush or a wooden stick. Do not wash parts in the dishwasher. If necessary, apply a little food oil to the cutting rollers.

Can I wash the machine in the dishwasher?

No, not all components are dishwasher safe. Dry cleaning or with a slightly damp cloth is recommended.

How to use the ravioli attachment?

Place the attachment on the machine. Roll out the dough, fold it, and insert it between the rollers. Place the filling with a teaspoon, then turn the crank to form the ravioli.

What types of pasta can I make?

With this machine, you can make fettuccine, tagliatelle, lasagna, ravioli, agnolotti, tortellini, and even cookies with the Pastabike.

How to use the Pastabike cutting tool?

Assemble the tool by removing the central and side parts. Place it on the dough, rotate 180° to cut discs or specific shapes.

What to do if the dough does not cut properly?

Check the consistency of the dough: if too soft, add flour; if too hard, add a little water. Also make sure the cutting rollers are properly in place.

How to dry fresh pasta?

Place the cut pasta on a clean cloth or a pasta drying rack and let it dry for at least one hour before cooking.

USER MANUAL Siena Rossa Klarstein

Row of white icons representing kitchen appliances including blender, toaster, kettle, refrigerator, washing machine, fan, keyboard, microwave, and air conditioner (no text or labels)

Assorted kitchen ingredients including pasta, bread, and vegetables on a woven mat (no text or symbols visible)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Safety Instructions

General

• This device is suitable for private, non-commercial use. Furthermore, it is suitable to be used indoors. Do not place near a heat source, in moisture or in direct sunlight.
• Do not use with wet hands.
  • Repairs to the appliance should only be carried out by an authorized service center. A remodeling or modification of the affected product safety. Risk of injury!
• Use recommended accessories only.
• Keep the device as well as any packaging material away from children.
  This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.
• Do never attempt to put anything apart from dough (fingers, other parts of the body) into the rotating parts.
• Set the appliance on a dry, flat, and stable surface.

Small objects / Packaging Parts: Store small objects (eg screws and other mounting hardware, memory cards) and packaging parts out of the reach of children. Do not let you play with the film. Risk of suffocation!

Transport: Please keep the original packaging. To an adequate protection during transport of the device, pack the unit in its original packaging.

Cleansing: Do not use volatile liquids, such as insecticide spray. Dont clean the surface with strong pressure otherwise it could get damaged. Rubber or plastic should not be in contact with the devive over a longer period. Clean the appliance and the floor using a soft cloth and warm water, if necessary, a soap solution. Never submerge the base in water or any other liquid.

Operation

Preparation

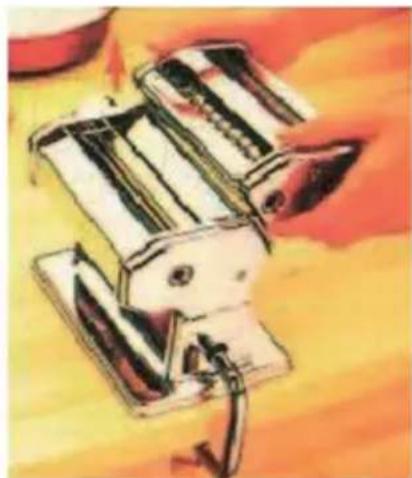

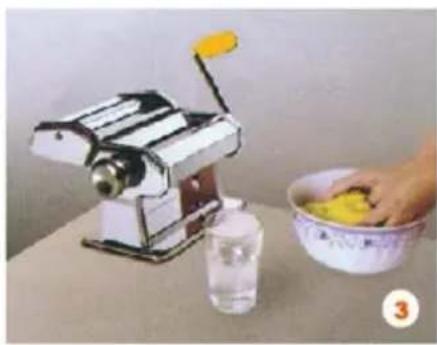

Fixate the machine to a table plate using the supplied screw clamp. Then, attach the crank handle into the slot (see fig. 1). Before using the machine for the first time, clean thoroughly with a clean cloth to get rid of any oil residues from the production process.

The best way to clean the casters is, by processing a small amount of dough. Repeat 2 - 3x, then dispose the dough.

Kneading and Cutting Noodles

(see Annex 1)

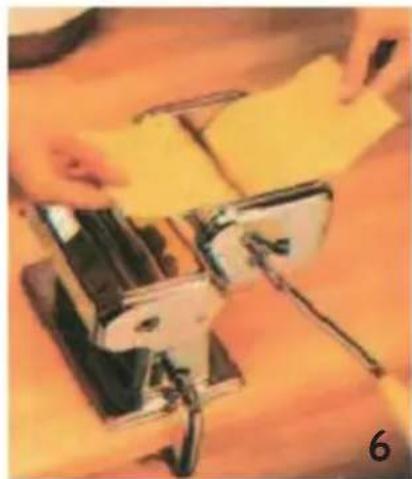

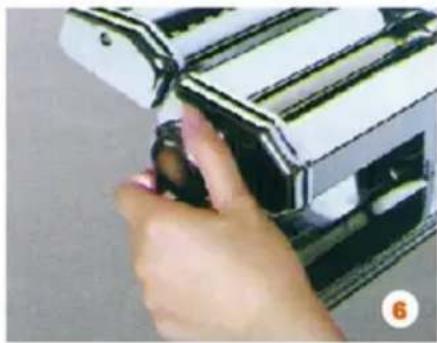

• First, set the casters in the default position by opening completely (ca. 3mm), see fig. 6.

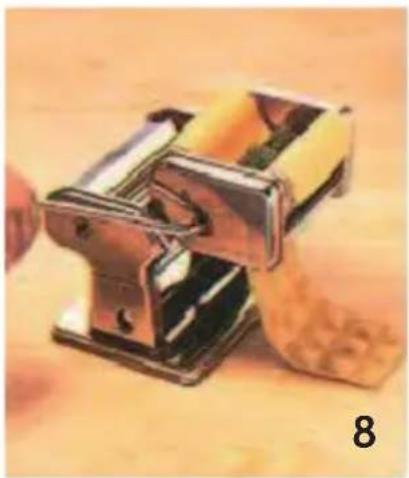

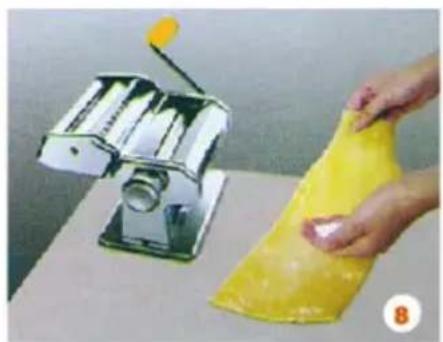

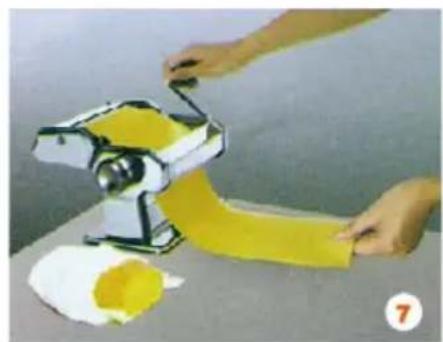

• Insert dough in between the casters and pull the crank (see fig. 7). Repeat this process about 5 to 6 times, by repeatedly inserting the dough, and - if needed - add some flour (see fig. 8).

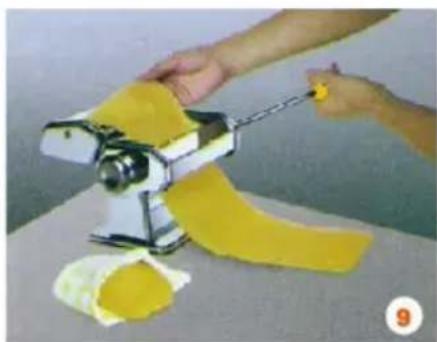

• As soon as the dough has taken the desired shape (the thickness stays the same), you can adjust the caster spacing (fig. 6, 9) and strip to the desired thickness.
• When the desired thickness is reached, cut the dough into pieces of the same length.

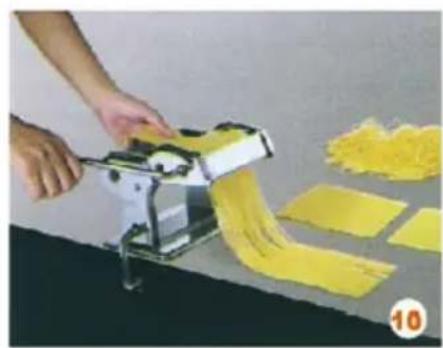

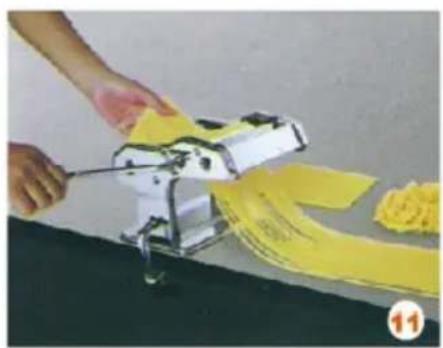

• Insert the crank into the opening for the casters. Rotate slowly while inserting the cut dough (fig. 10/11).

Remark 1:

If the casters do not cut the dough properly, it might be too soft, or too dry. Add water or flour, accordingly.

• After cutting the noodles, let them dry on a table or on a pasta dryer for at least one hour.

Attachment for Ravioli

(see Annex 2)

• Make sure the regulator is set to position 5, and your dough is not too dry.
• Put the dough pieces onto a damp cloth and use the cutter to cut pieces of about 50-70cm.
• Remove the standard attachment and replace with the ravioli attachment.

• Fold the dough and insert between the casters. Rotate the crank 1/4 revolution to fixate the pasta.
  • Take both ends, separate, and lay over the casters (one left, one right).

• Use a tea spoon to place the filling between the layers.

• Turn the crank carefully and repeat the process.
  • After filling the ravioli layers, let them dry for a while. After drying, the ravioli can easily be separated.

Cutting Tool /Pastabike

(see Annex 3)

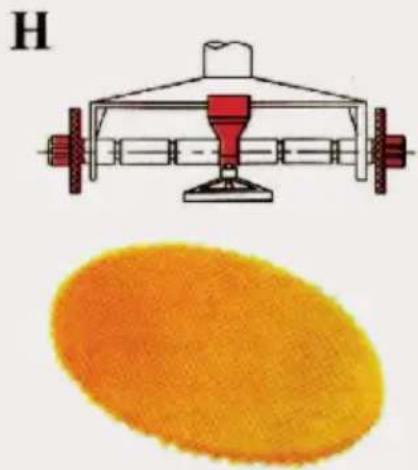

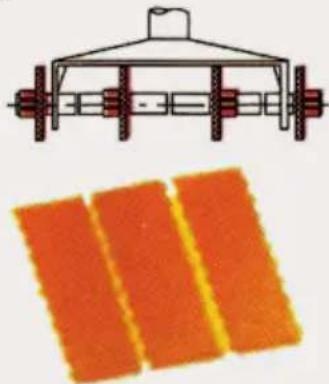

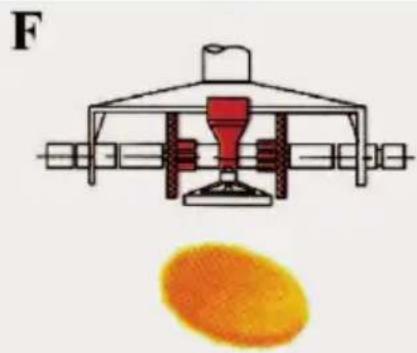

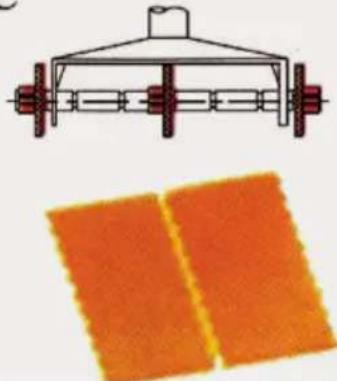

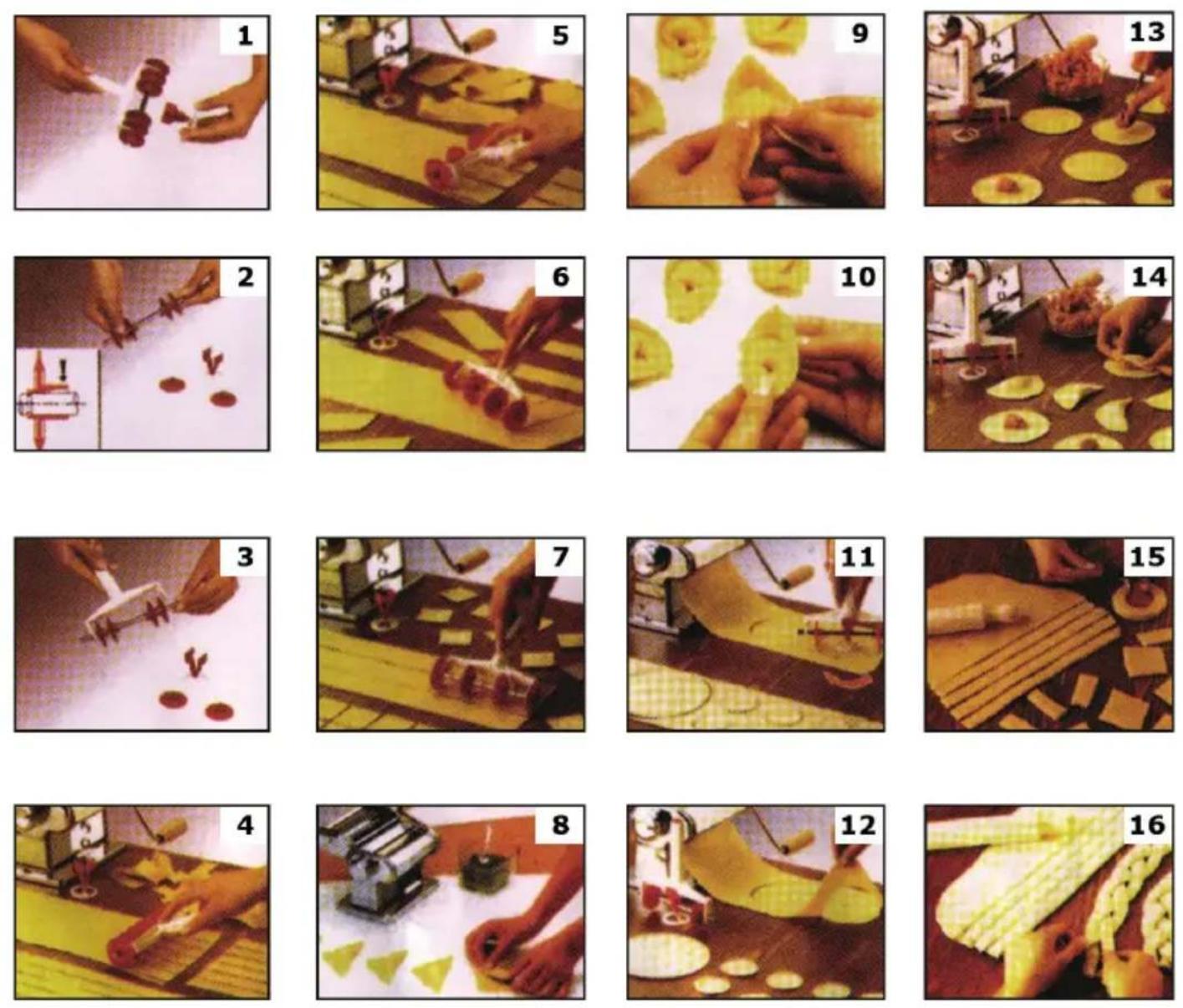

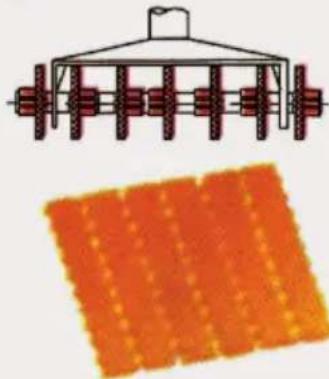

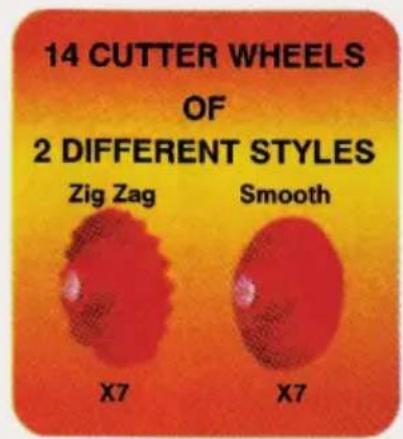

Preparation: First, remove the middle part (fig 1), then remove the outer parts (note the pins, see fig. 2). See the depiction for inspiration on possible shapes.

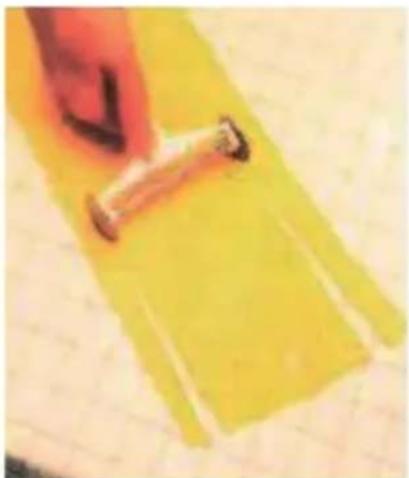

Agnolotti and Empanadas: After having cut the desired shapes, put the filling into the middle of the slice, fold together and press the edges together (see fig 13). You can also use the pastabike to generate all different kinds of shapes (see fig 15/16).

Tortellini: Same procedure as with Agnolotti und Empanadas, see fig. 8-10.

Maintenance

(see Annex. 1)

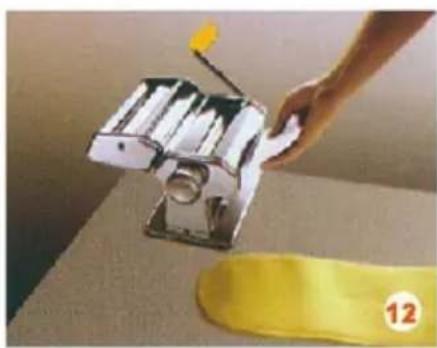

• During use, the casters should be cleaned with a cloth every now and then (fig 12).

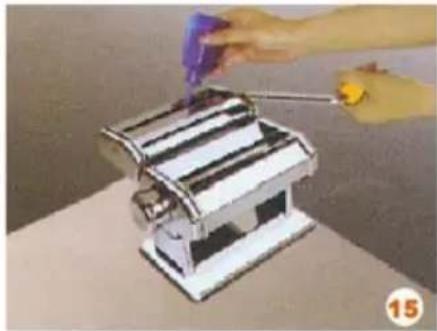

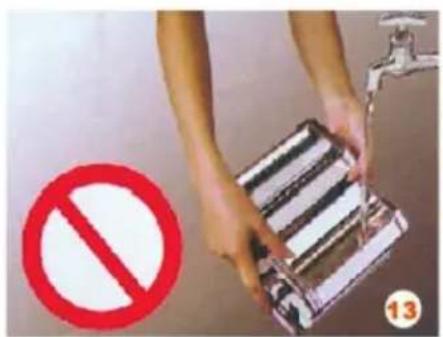

• The components are not dishwasher safe! They get blunt by heat and strong detergent. Use a brush, clear water, a cloth and edible oil for the casters instead.
• Do never insert any alien objects (knives, forks, clothes) or your fingers between the casters. Danger of damage to the pasta machine or your health.

Chère cliente, chère client,

Illustration of a mechanical device with a yellow oval component and a white housing, mounted on a stand (no text or symbols visible)

Hand pouring egg into a bowl of cracked eggs and flour, next to a metal French mill machine (no text or symbols visible)

Hand washing yellow food using a metal manual mixer with a water bottle nearby (no text or symbols visible)

Hand using a manual kitchen machine to spread yellow dough on a surface (no text or symbols visible)

Person using a kitchen machine to clean yellow food on a table (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Person using a yellow noodle on a kitchen machine, with cloth partially visible (no text or symbols)

Hand holding a yellow dough wrapper next to a vintage paper mill machine (no text or symbols visible)

Person using a yellow pasta machine to cut a piece of dough on a table (no text or symbols visible)

Person using a pasta machine to spread yellow pasta sheets on a cutting board (no text or symbols visible)

Person using a yellow robotic device to cut a yellow paper sheet (no text or symbols visible)

Hand holding a small mechanical device with a yellow belt, next to a yellow bandage (no text or symbols visible)

Hand using a tool to press or adjust a metal baking machine (no visible text or symbols)

Person using a hairdryer to cut a metal pasta machine (no text or symbols visible)

Annex 2

Illustration of a mechanical device with a lever and handle, set against an orange background (no text or symbols)

Hand holding a small metallic object over a yellow rectangular sheet, no visible text or symbols

Illustration of a mechanical device with a handle and lever, set against a warm-toned background (no text or symbols)

Illustration of a hand operating a mechanical device with a curved handle (no text or symbols visible)

Close-up of a robotic arm with a hand applying yellow material to the handle (no visible text or symbols)

Person using a lathe machine on a wooden surface, no visible text or symbols

Person using a lathe machine to cut a yellow food item, with a bowl of dark granular material nearby (no text or symbols visible)

Close-up of a metal kitchen grater with a wooden handle and a rolled dough ball, no visible text or symbols

Close-up of hands assembling yellow and green square tiles on a patterned surface (no text or symbols visible)

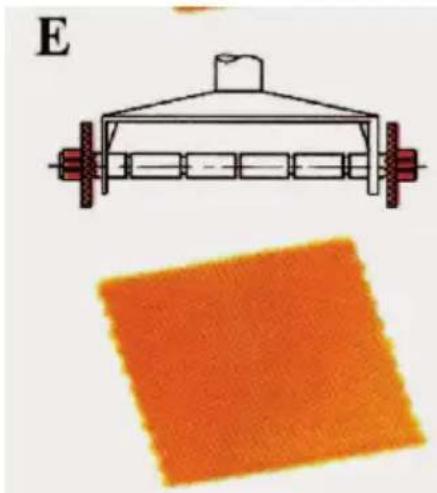

Annex 3

A

Diagram showing a mechanical device above a grid of red components and a gradient orange pattern below (no text or symbols)

B

Diagram of a vehicle chassis with three orange rectangular blocks below, no text or symbols present.

C

Diagram of a mechanical device with red components and two orange-colored rectangular blocks below (no text or symbols)

D

Diagram of a mechanical assembly with red components and an orange gradient square below (no text or symbols)

Diagram showing a mechanical component with red bolts and a square pattern below (no text or symbols)

Diagram of a mechanical device with a red component and a gradient-colored abstract shape below (no text or symbols)

Diagram of a laboratory apparatus with a red funnel and a corresponding color gradient oval (no text or symbols)

Top: a mechanical device with red components and a red funnel, bottom: a gradient-colored oval shape (no text or symbols)
