USER MANUAL RCD320 Auna

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Safety Instructions 10

Device overview 12

Radio 13

CD player 13

Disposal Considerations 14

Declaration of conformity 14

TECHNICAL DATA

Product code 10027419, 10027420
Power supply 220-240 V ~ 50/60 Hz

SAFETY INSTRUCTIONS

General Safety Instructions

CAUTION

Risk of injury! Do not listen to music at excessively high volumes as this may cause hearing damage.

Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
- Only place CDs in the CD compartment.
- Never open the unit cover and never attempt to carry out repairs to the unit yourself.
- Contact quali ed personnel for repairs. The device does not contain any user serviceable parts.
- Improper handling may damage the unit and invalidate the warranty.

Power connection

• Only use the power supply unit included in the scope of delivery. The use of any other power supply may invalidate the warranty and/or cause irreparable damage to the unit.
• Unplug the appliance during thunderstorms.
• Make sure that the unit has been switched off before unplugging it from the mains.
• If you are using a power strip or the plug as a disconnecting device, make sure that they are always easily accessible and ready for use.
• Never throw batteries into an open fire and never try to open their outer casing.
• Batteries are hazardous to health if swallowed and should therefore be stored out of the reach of small children.

Ventilation

• Do not block or cover the air vents, holes or openings of the appliance with objects such as rugs, cloths and the like, otherwise the functionality and/or ventilation cannot be guaranteed for safe use.
• The bottom of the unit may become warm if the unit is used for a long period of time. This is normal.

Location

• Make sure that the unit is placed on a fl at and stable surface.
• Place the unit no more than 1.4 metres from the nearest power socket. Make sure that the mains power cable and the speaker cables cannot become a trip hazard.
• Place the unit at least one metre away from other electrical equipment to avoid noise interference.
• Position the unit so that it is within range of external BT devices (for example, iPod/ iPhone/iPad/ Android devices/ computers, etc.). The maximum range (without obstacles) is 10 metres (33 feet).
• Make sure that the unit has enough space upwards so that the antenna can be properly aligned.
• Never place the appliance directly on antique or polished surfaces.

Notes on the laser

CAUTION

Risk of injury! Never touch or look into the optical lens in the CD compartment.

• This unit is a class 1 laser product
• Use of controls other than those specified in the instruction manual, or unauthorised modification of the unit, may result in harmful exposure to laser radiation.

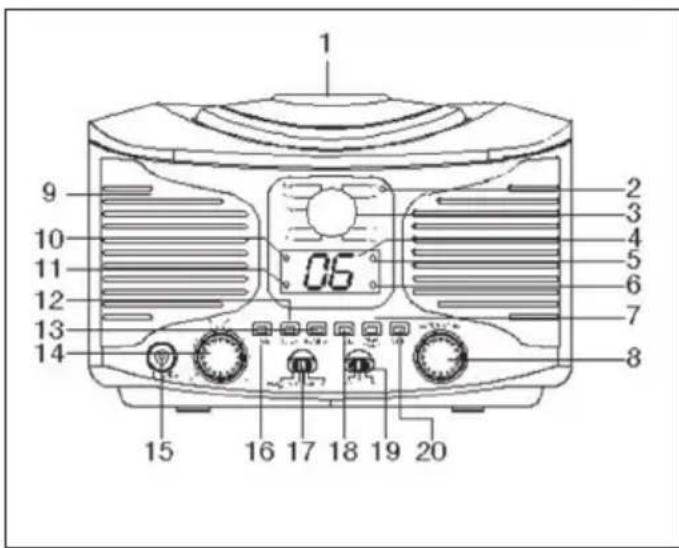

DEVICE OVERVIEW

1 CD compartment 12 Repeat button
2 Stereo display 13 Return button
3 Frequency band 14 Volume control
4 Display 15 AUX-IN
5 Power LED 16 Program button
6 Programme display 17 Function selection switch
7 Play / Pause / Stop 18 Next button
8 Frequency band controller 19 Tape switch
9 Integrated loudspeakers 20 Stop button

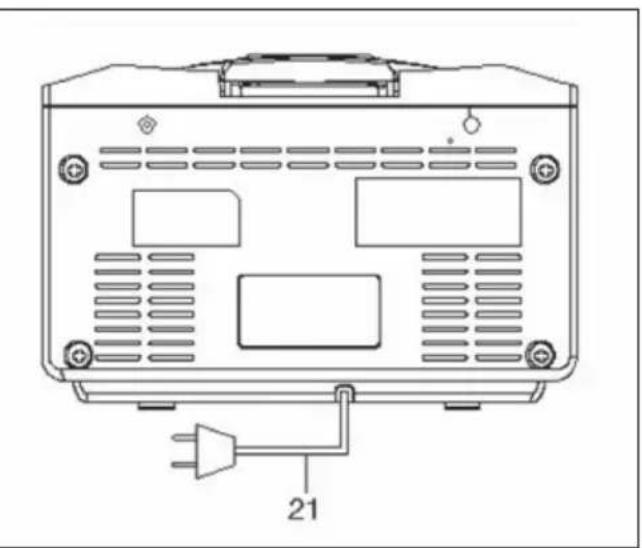

10 Playback LED 21 power cable
11 Repeat LED

RADIO

• Slide the function selection switch to the radio position.
• Set the band switch to the desired position (FM or FM stereo). We recommend setting the switch to
• Use the frequency band controller to select the desired radio channel.

CD PLAYER

• Slide the function selector switch to the CD position.
• The CD compartment can be opened as well as closed by pressing "Open/Close" on the lower right corner of the compartment.
• Play the CD with (T)stop with (20)and navigate with and (14)press briefly for next/previous track, press and hold for fast forward/backward).

Repeat function

Press the repeat button once to repeat the current track. Pressing Repeat twice switches to Repeat All mode (the entire CD is repeated). The repeat modes are indicated by the repeat LED (11) (flashing or continuously lit).

Programmed playback

• Press the programme button (16) while a CD is inserted but not playing. "01" for the first free memory location is displayed.
• Use the arrow keys and to select the desired track and then press the
  Programme button (16) to display the next free memory location.
• Repeat this procedure until the playlist matches your preferences.
• Press Play/Pause (7) to start the playlist.
• To exit the playlist and exit programme mode, press (0).

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

The complete manufacturer's declaration of conformity can be found at the following link: use.berlin/10027420
