USER MANUAL FT12JB Fenton

Black portable electronic device with colorful LED array and 'F' logo, no visible text or symbols on body

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI

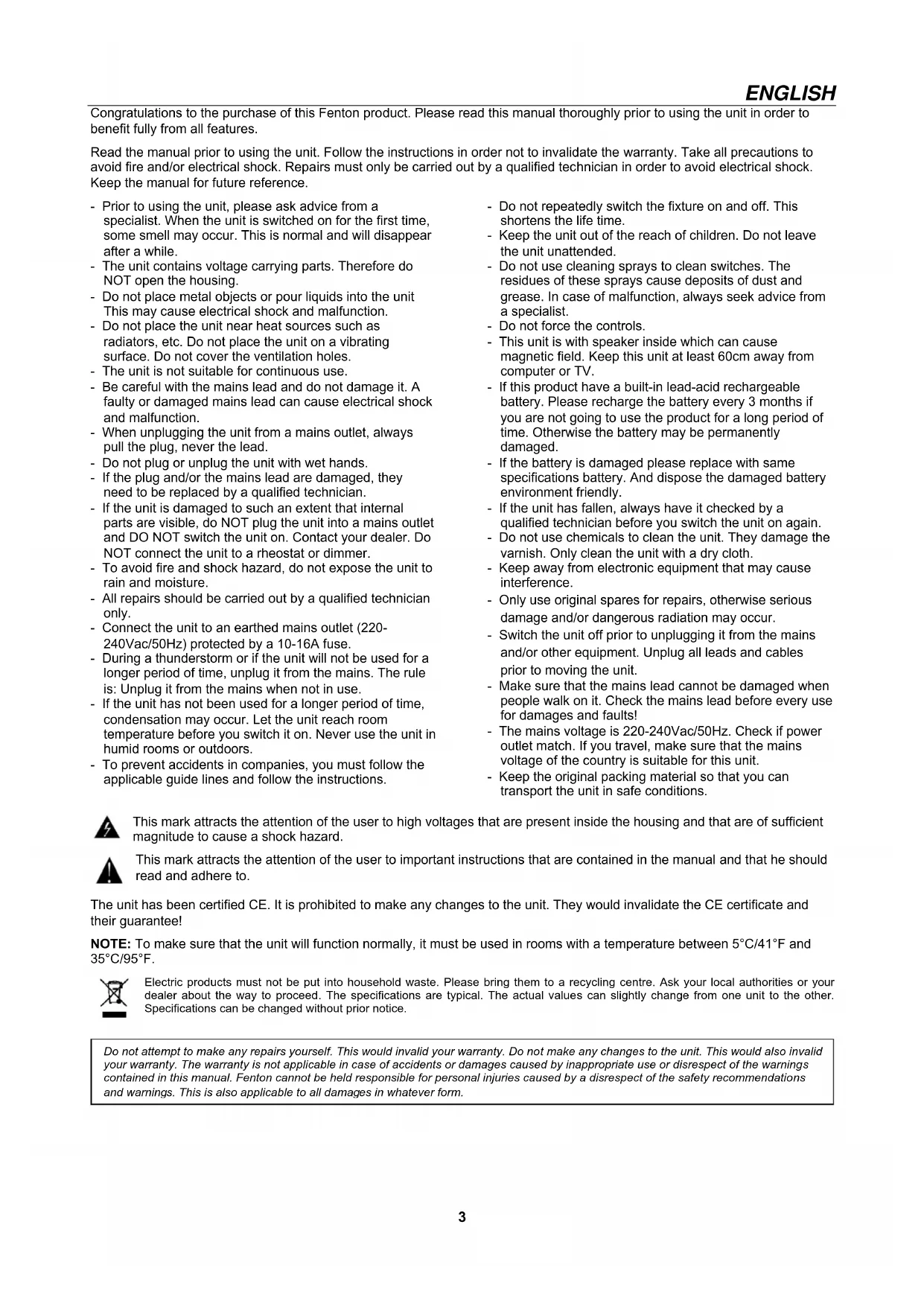

Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

OPERATIONS INSTRUCTIONS

Make sure the volume control is minimal. Plug one end of the AC cord provided into the AC input jack on rear side of the portable sound system. Then plug the other end of AC cord into AC power outlet. Turn on the unit using the main power switch.

Rechargeable Battery

This unit can be powered internally using the built-in rechargeable battery. When AC power is connected, CHARGE LED indicator will light red. The rechargeable battery is being charged. If FULL LED indicator light green, the battery is fully charged and ready to power the unit alone.

Turn off the power switch and disconnect the AC power. Turn the unit back "ON" and the rechargeable battery will power the unit alone.

Note: Turning off the unit power switch will allow the battery to be charged more quickly.

ATTENTION:

Before the device the first time is actuated, please charge the battery at least 12 hours and max. 72 hours!

Battery should be regularly charged. For optimal battery life the battery should be charged at least 1x per month.

Please note that if you do not load within 6 weeks, the battery becomes defective !!

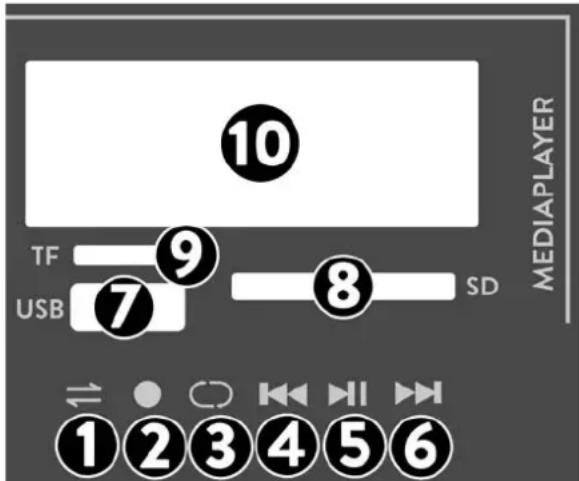

MEDIAPLAYER

1. MP3/AUX/BT-MODE

Press key to switch between MP3 player, Aux input or Bluetooth. Press and hold key to switch voice off/on.

2. RECORD

Press key for recording on USB/SD port.

3. REPEAT

Press key for repeating of single track or all tracks.

4. PREVIOUS TRACK / VOL-

Press key to select the previous track for playing. The volume will be reduced by pressing the key for longer than 3 seconds

5. PLAY/PAUSE

Press key to switch between pause or playing.

6. NEXT TRACK / VOL-

Press key to select the next track for playing. The volume will be increased by pressing the key for longer than 3 seconds.

7. SD PORT

Connect your SD/MMC card in this slot to play music with MP3 or WMA format.

8. USB PORT

Connect your USB devices to this slot to play music with MP3 or WMA format.

9. TF PORT

Connect your TF card in this slot to play music with MP3 or WMA format

10. LCD DISPLAY

Display show you some information as playback support, file name, elapsed time, total time, file number, total file number, file and playback mode.

10 MEDIAPLAYER TF 9 USB 7 8 SD ①②③④⑤⑥

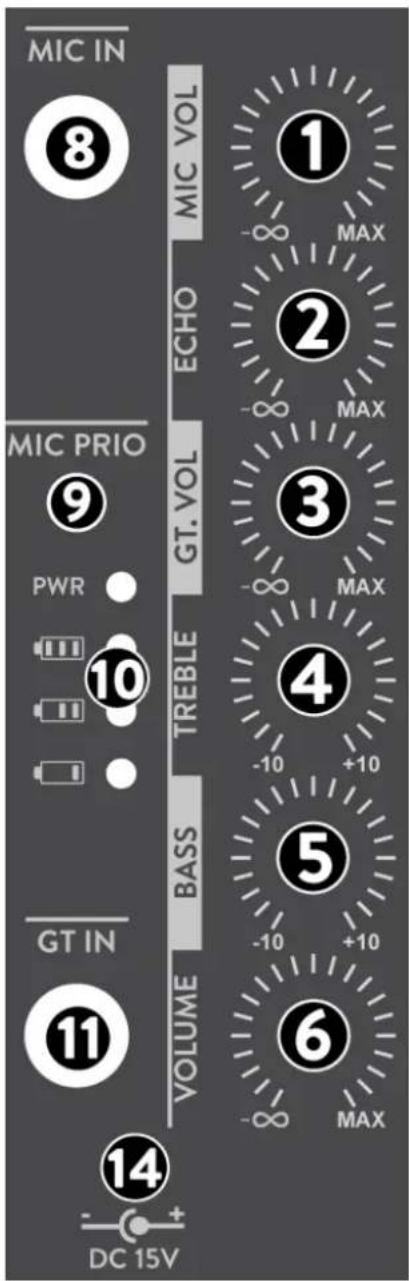

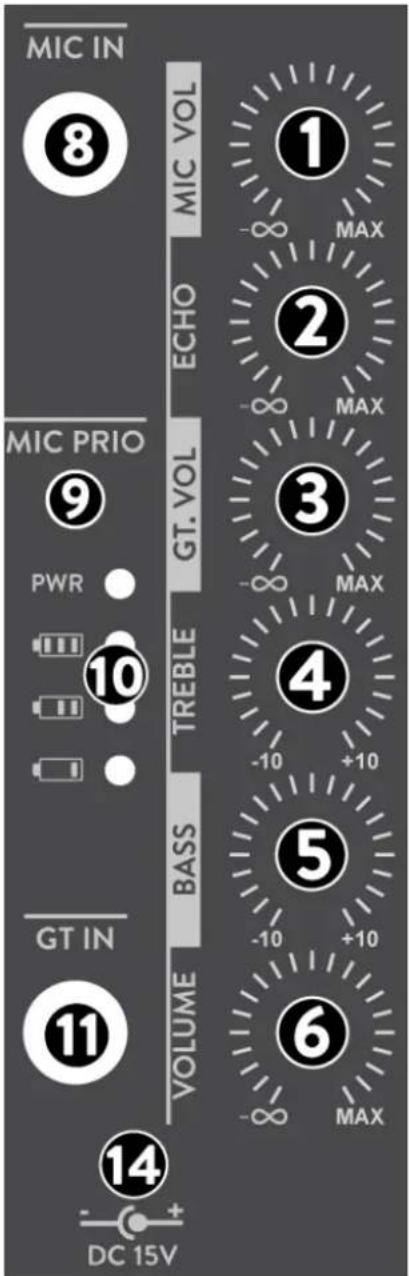

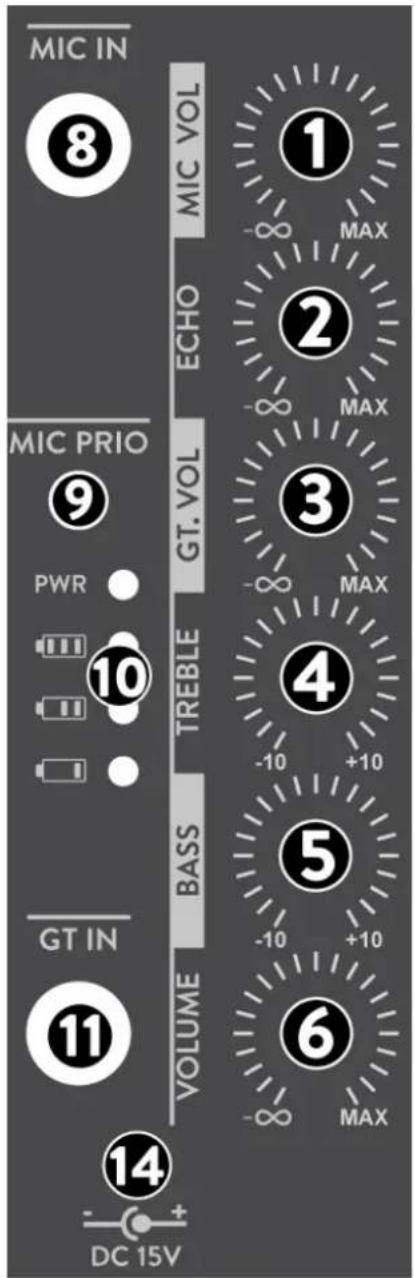

1. MICROPHONE VOLUME

Adjust the signal level of microphone.

1. ECHO CONTROL

Adjust the intensity of the echo effect.

1. GUITAR VOLUME

Adjust the signal level of guitar.

1. TREBLE

Adjust high tone control.

1. BASS

Adjust high low tone control.

1. VOLUME

Adjust the overall output level of the portable sound system.

1. AUX IN

RCA jack input for connecting audio units with line level output (e.g. mixer, CD player, tape recorder).

1. MICROPHONE INPUT

6.3mm 1/4" input jack for connecting a microphone.

1. MIC PRIORITY SWITCH

Microphone switch to give microphone input higher priority.

1. BATTERY INDICATOR

LED indicator for status of battery.

1. GUITAR INPUT

6.3mm ¼" input jack for connecting a guitar.

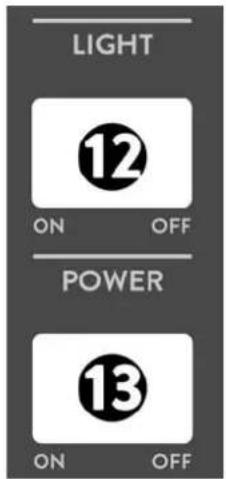

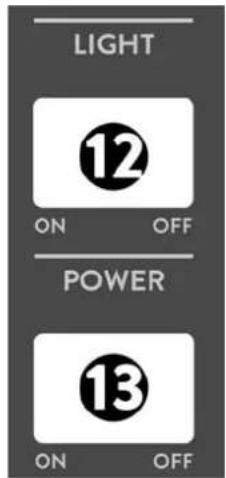

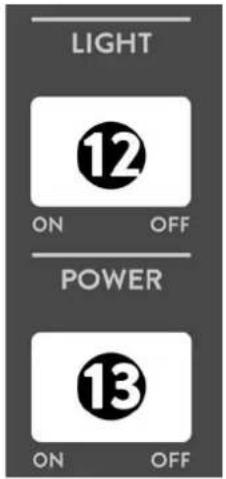

1. LIGHT SWITCH

Turn on the LED (frontside) and jellybal on the speaker on/off.

1. POWER SWITCH

Turn the power on/off

1. DC ADAPTER INPUT

Connect power adapter DC 15Volt.

AUX IN L R

LIGHT 12 ON OFF POWER 13 ON OFF

MIC IN 8 MIC VOL 1 MAX MIC PRIO 9 PWR ECHO 2 MAX GT. VOL 3 MAX TREBLE 4 -10 +10 BASS 5 -10 +10 6 MAX GT IN 11 VOLUME 14 DC 15V

AUX IN L R

LIGHT 12 ON OFF POWER 13 ON OFF

MIC IN 8 MIC VOL 1 MAX MIC PRIO 9 PWR GT. VOL ECHO 2 MAX 3 MAX TREBLE 4 -10 +10 BASS 5 -10 +10 6 MAX GT IN 11 VOLUME 14 DC 15V

AUX IN L R

LIGHT 12 ON OFF POWER 13 ON OFF

MIC IN 8 MIC VOL 1 MAX MIC PRIO 9 PWR GT. VOL ECHO 2 MAX 3 MAX TREBLE 4 -10 +10 BASS 5 -10 +10 VOLUME 6 MAX GT IN 11 DC 15V 14

AUX IN L R

LIGHT 12 ON OFF POWER 13 ON OFF

MIC IN 8 MIC VOL 1 MAX 2 ECHO 3 MAX MIC PRIO 9 GT. VOL 4 PWR 10 TREBLE 5 BASS -10 +10 -10 +10 GT IN 11 VOLUME 6 MAX 14 DC 15V

AUX IN L R

LIGHT 12 ON OFF POWER 13 ON OFF

MIC IN 8 MIC VOL 1 MAX MIC PRIO 9 PWR GT. VOL ECHO 2 MAX 3 MAX TREBLE 4 -10 +10 BASS 5 -10 +10 6 MAX GT IN 11 VOLUME 14 DC 15V

AUX IN L R

LIGHT 12 ON OFF POWER 13 ON OFF

MIC IN 8 MIC VOL 1 MAX MIC PRIO 9 PWR ECHO 2 MAX GT. VOL 3 MAX TREBLE 4 -10 +10 BASS 5 -10 +10 VOLUME 6 MAX GT IN 11 DC 15V 14

TECHNICAL SPECIFICATION / TECHNISCHE SPECIFICATIE / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / SPÉCIFICATIONS TECHNIQUES / SPECYFIKACJA TECHNICZNA

Rated voltage : AC 240V / 50Hz

Output power : 700Watt

Woofer : 12"

Tweeter : 1"

Wireless Mic. : UHF 863.2MHz

Battery : 2.2Ah Lead Acid battery

Dimensions : 380 x 320 x 620mm

Weight : 8.5kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Blue glossy sphere with a stylized white 't' logo (no text or symbols)

tronios

Sound & Light

CE Declaration of Conformity

Manufacturer:

Tronios

B.V.

I hereby declare that the product meets the requirements stated in Directives 2014/35/EU and 2014/30/EU and conforms to the above mentioned Declarations.

Almelo,

30-11-2017

Name : M. Velders

Signature :

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2017 by Tronios The Netherlands
