DIOBELLB02 - Doorbells DIO - Free user manual and instructions

Brand	DIO
Model	DIOBELLB02
Product type	Connected doorbell with camera
Dimensions (doorbell)	65 x 125 x 35 mm
Doorbell power	4 AA batteries (not included)
Chime power	2 AA batteries (not included)
Lens type	1/2.9" CMOS, 2 megapixels
Viewing angle	140°
Audio	Two-way
Connectivity	Wi-Fi 2.4 GHz, WPA-PSK/WPA2-PSK
Protocols	TCP/IP, HTTP, DHCP, DNS, RTSP
Security	AES128 encryption
Protection rating	IP54
Operating temperature (doorbell)	-20°C to 50°C
Operating temperature (chime)	0°C to 35°C
Radio frequency (chime)	433.92 MHz
Standby power consumption (chime)	≤ 600 µA
Main functions	Camera, two-way audio, motion detection, smartphone alerts
App	DiO one (iOS/Android)
Maintenance	Clean with a soft, dry cloth

Frequently Asked Questions - DIOBELLB02 DIO

How to install the DIOBELLB02 doorbell?

Attach the battery cover to the wall using the provided screws, insert 4 AA batteries into the doorbell, attach the doorbell to the cover, place the protective cap and use the fixing key.

How to connect the doorbell to the DiO one app?

Download the DiO one app, connect your smartphone to the 2.4 GHz Wi-Fi network, create an account and follow the steps in the app to add the doorbell in access point mode.

What to do if the doorbell does not connect to Wi-Fi?

Make sure the Wi-Fi is on 2.4 GHz and the password is correct. If necessary, reset the doorbell by holding the reset button for 5 seconds until a sound, then try adding it again.

How to reset the doorbell?

Hold the reset button for 5 seconds. The doorbell emits a sound when the operation is complete.

What type of batteries to use?

Use 4 AA batteries for the doorbell and 2 AA batteries for the chime. Batteries are not included.

The chime does not ring, what to do?

Check that the chime's batteries are correctly inserted and that the doorbell is paired. To pair, insert the chime's batteries and press the doorbell button within 120 seconds.

How to add multiple doorbells in the app?

Repeat step 4 of the setup for each additional doorbell. Follow the on-screen instructions to add them one by one.

What is the range of the chime?

The range is not specified, but the chime uses a radio frequency of 433.92 MHz, typically up to 100 meters in open field.

The camera is not working, what to do?

Check that the doorbell is powered by the batteries and that the LED indicator is solid blue (connected). If the red light blinks slowly, it is waiting for setup. Reset if necessary.

How to clean the doorbell?

Use a soft, dry cloth to clean the exterior. Avoid chemical or abrasive products.

USER MANUAL DIOBELLB02 DIO

1. Registering your warranty

To register your warranty, fill in the online form at www.chacon.com/ warranty

2. Description of the product

Doorbell

Micro

LED indicator

Button

DiOBELL-B01

Lens

Micro

LED indicator

Button

DiOBELL-BO2

Reset button

Note

In order to reset the device, press and hold the reset button for 5 seconds.

The doorbell rings when the process is complete.

DiOBELL-B01 + B02

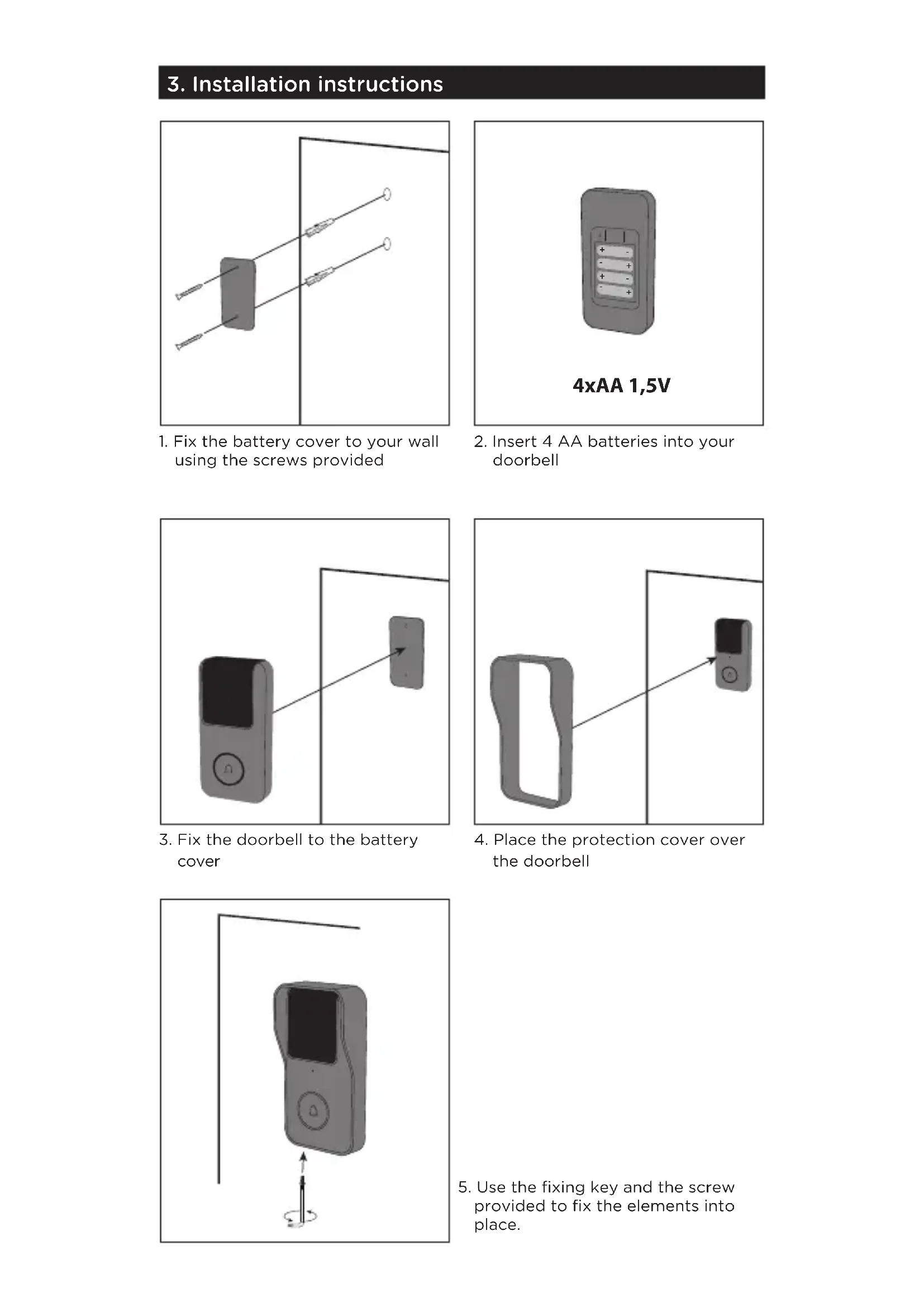

3. Installation instructions

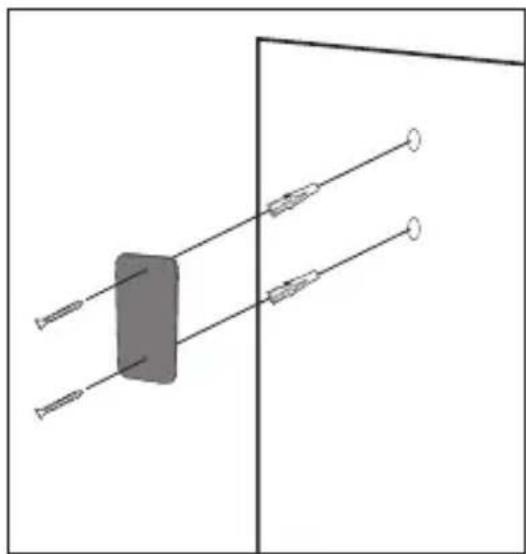

1. Fix the battery cover to your wall using the screws provided

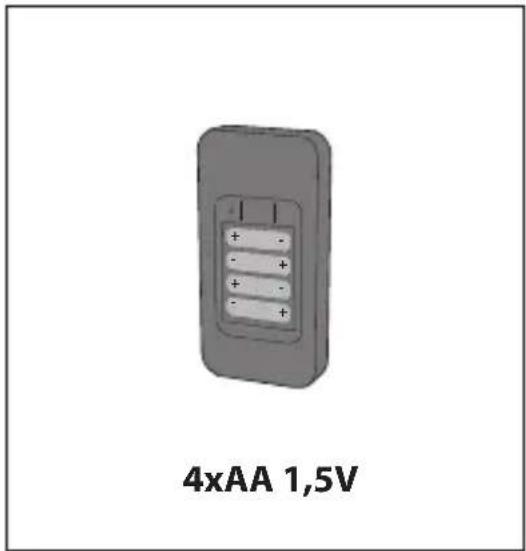

2. Insert 4 AA batteries into your doorbell

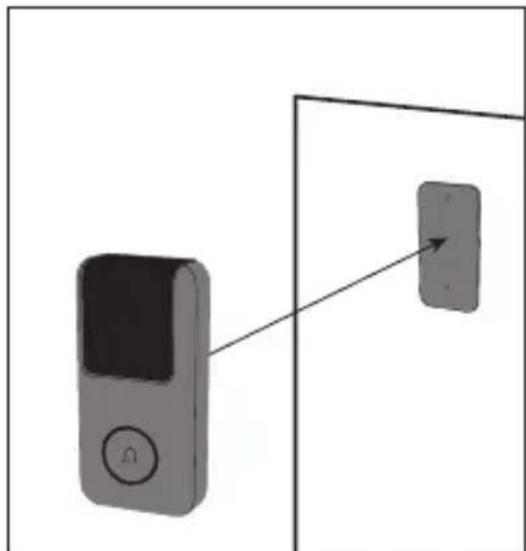

3. Fix the doorbell to the battery cover

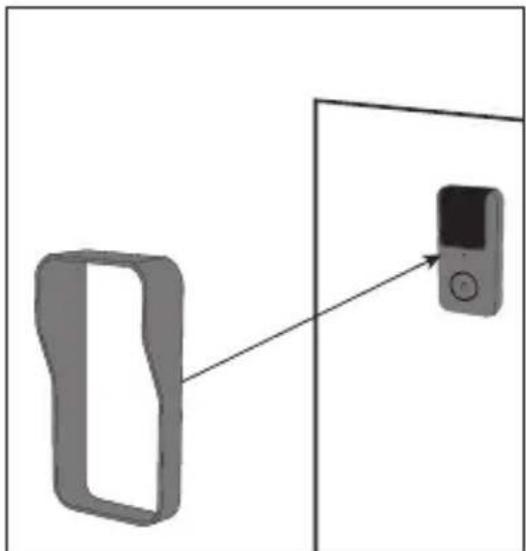

4. Place the protection cover over the doorbell

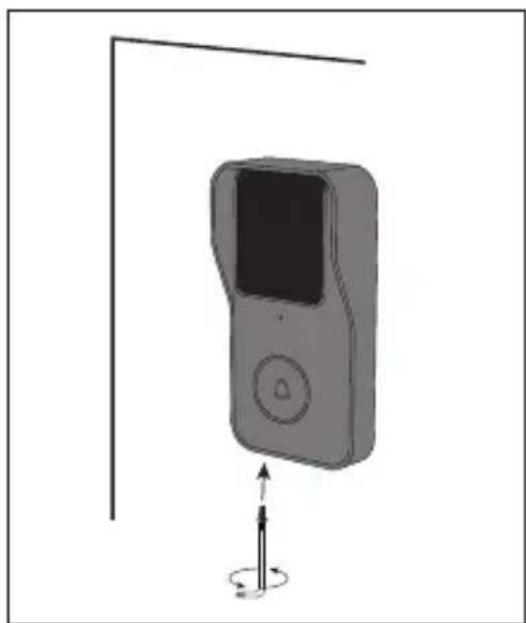

5. Use the fixing key and the screw provided to fix the elements into place.

Note

In order to reset the device, press and hold the reset button for 5 seconds.

The doorbell rings when the process is complete.

Flashing red light (slow) Waiting for	configuration
Flashing red light (fast) Searching for WiFi	WiFi
Constant blue light Camera connected to WiFi	to WiFi
Flashing blue light Access point mode

4. Configuring the doorbell

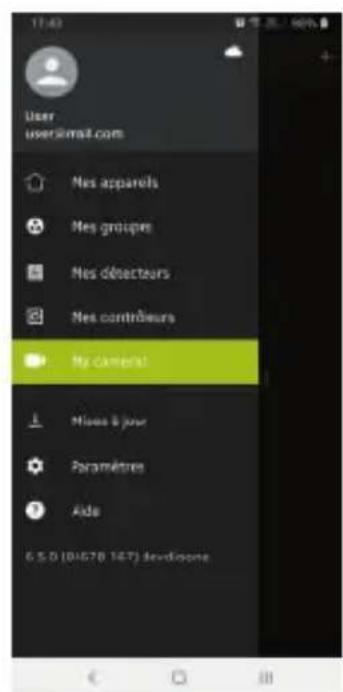

A. Adding the doorbell in the app

Step 1 Connect your smartphone to the WiFi network

Step 2 Download the DiO one app from the Apple Store or the Android Play Store, depending on your device.

Step 3 Run the DiO one app and register when you use it for the first time.

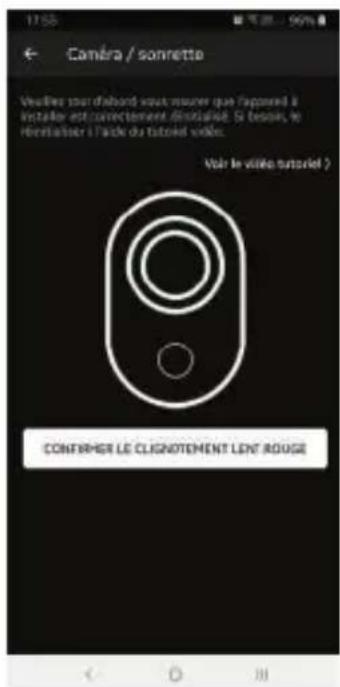

Step 4 Follow the steps described in the app to add your doorbell.

Note: Only Wi-Fi access point mode is available for the DIOBELL-B01, please follow the on-screen instructions for pairing.

Note

• If you have multiple doorbells, please repeat step 4 to add them one by one.
• To change the WiFi network, restore the camera's factory settings and follow step 4 to add the doorbell.

For more detailed information, you can download the user manual from www.chacon.com

B. Pairing the chime

Step 1 Insert two AA batteries into the chime
Step 2 Press the button on your doorbell within 120 seconds

5. General Conditions of Sale and Use

Specifications

Wired doorbell
Lens type 1 / 2.9” CMOS
Resolution 2 megapixels
Lens: 2.4 mm
View angle 140°
Bandwidth 16 Kbps ~ 2 Mbps
Aperture 1 / 25 ~ 1 / 100,000 per second
Audio Two-way
Minimum luminosity 0.01 Lux@F1.2
WiFi encryption WPA-PSK/WPA2-PSK
Security AES128
Operating temperature -20°C~50°C
Power supply	4 AA batteries
Protocols	TCP/IP, HTTP, DHCP, DNS, RTSP
Size (mm)	65 x 125 x 35
Protection rating	IP54
Wireless chime
Radio frequency	433.92 MHz
Power supply	2 AA batteries
Consumption in standby mode	≤ 600 uA
Operating temperature 0°C~35°C

6. Support

www.chacon.com/support
