USER MANUAL DIOCAMRI01 DIO

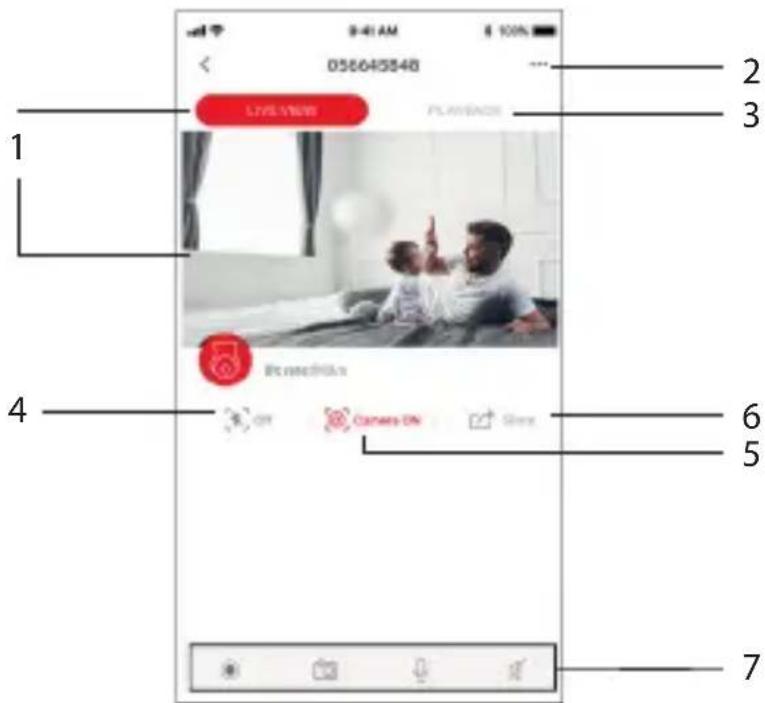

3NL Camera-interface

Register the guarantee To register your guarantee, fill out the online form on www.getDiO.com/warranty4

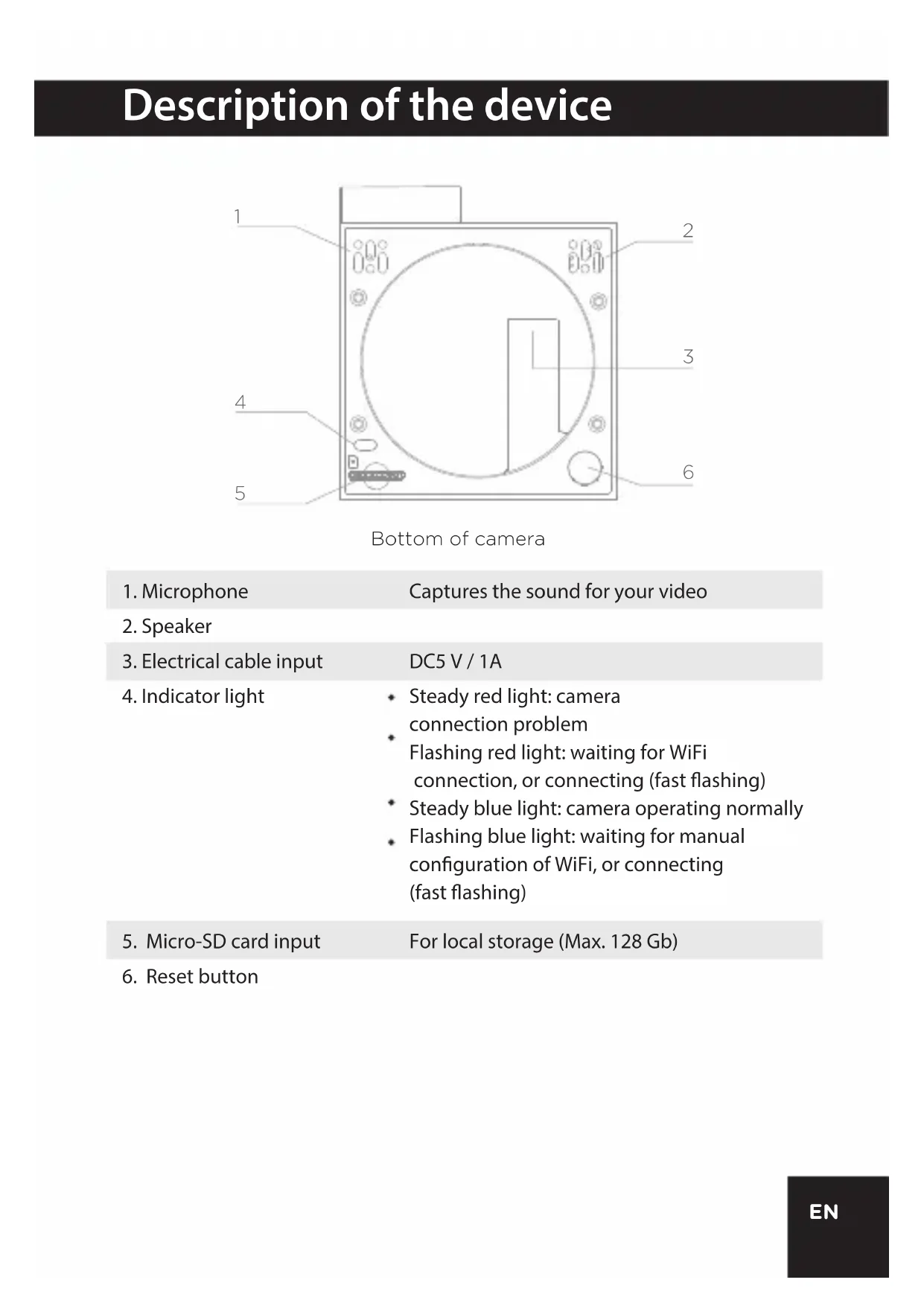

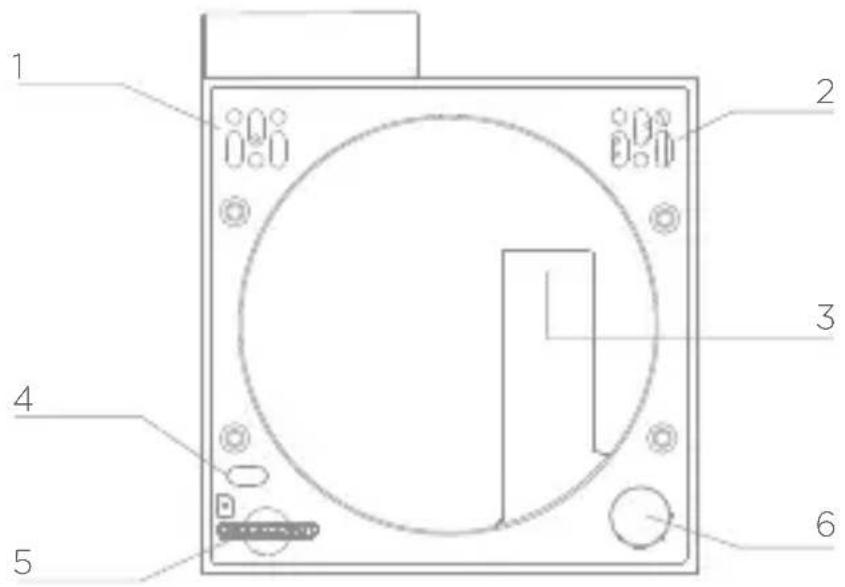

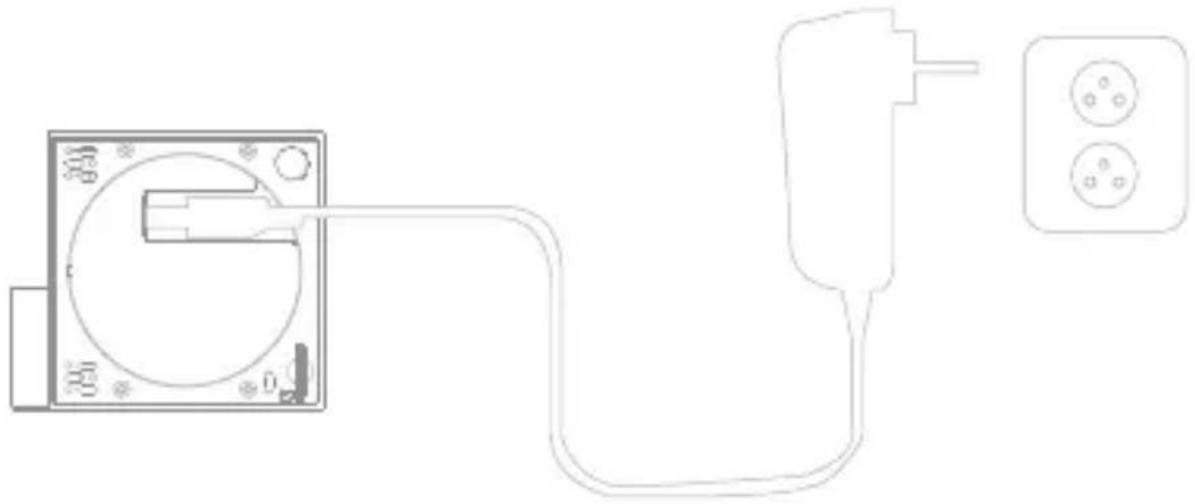

Captures the sound for your video DC5 V / 1A Steady red light: camera connection problem Flashing red light: waiting for WiFi connection, or connecting (fast ashing) Steady blue light: camera operating normally Flashing blue light: waiting for manual conguration of WiFi, or connecting (fast ashing) For local storage (Max. 128 Gb) Description of the device EN1 Connect the camera to the mains, making sure to push the cable home. The red indicator light starts to ash. After a few seconds, you will hear a beep. This indicates that the camera can be connected to WiFi via your smartphone or tablet. 2 Download the free DiOCam Plus application and create your account.

1. Connecting the camera

3 Follow the instructions in the application to connect the camera to WiFi. Make sure your WiFi network is available. Add the camera to the application by clicking to the “+”, choose the device to add and the select the way to proceed (Scan QR code or smart conguration). Note: - This camera only supports 2.4GHz WI-FI network (doesn’t work with 5GHz) - Make sure that the smartphone is well connected to the right Wi-Fi network. When you have to register the SSID, make sure you put the same Wi-Fi network and the right password. - A camera can only be added to one account. If the camera has been already added, it cannot be added on another account.1 Remove the protective tab from the lens. 2 If you position the camera horizontally, we recommend you use the double-sided sticker provided. 3 If you install the camera on a vertical surface or the ceiling, secure it using the mount provided. Optional: Apply the protective lm around the upper corners of the camera to prevent damage.

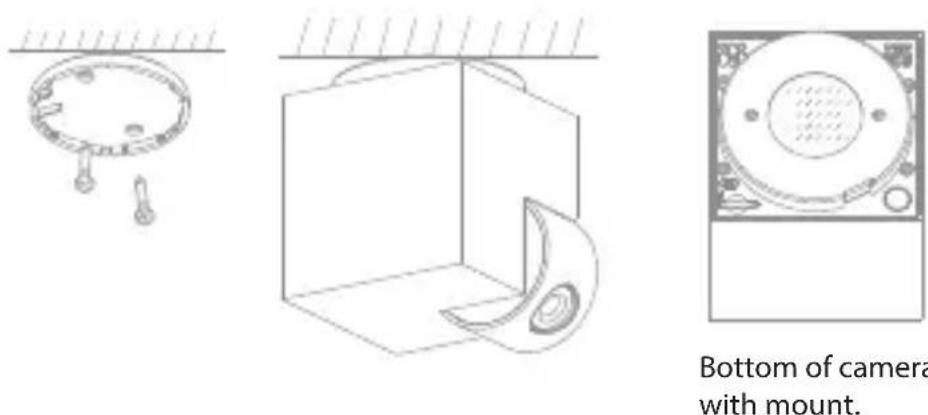

2. Installing the camera

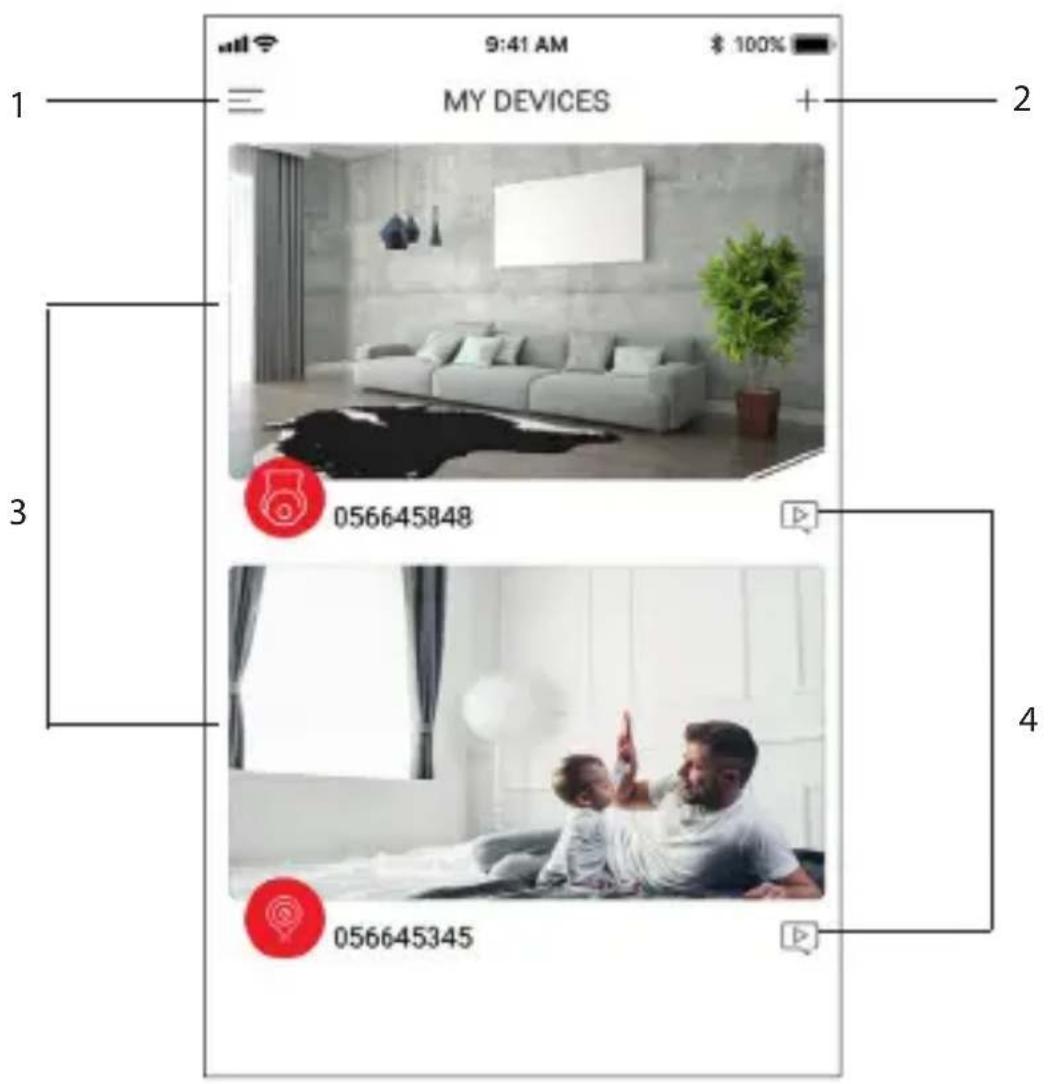

Bottom of camera with mount. 12343. Use

4. Access the images saved when motion or sound is detected (only if enabled)

Rotate camera: slide nger up, down, left, or right on the live view.

To record your videos, you need to instal a micro-SD card in the camera. You have then the option to record continuously or only in case of motion or sound detection. To do this, go into the settings menu.

4. Motion detection on/o

5. Sleep mode on/program/o

Enable Sleep mode to prevent the camera from recording. Private mode can be enabled manually whenever you wish, either by setting a time or via Locate mode, which puts the camera in Sleep mode automatically when you are at home.

To share the camera with someone else, the other person must rst create their own account in the DiOCam Plus app. You must then add them as a friend. For security reasons, guest accounts can only view (live and in playback) and receive detection alerts.

7. Manual functions:

- Save current video (saved on your smartphone) - Take a photo from the live video (saved on your smartphone) - Speak - Listen

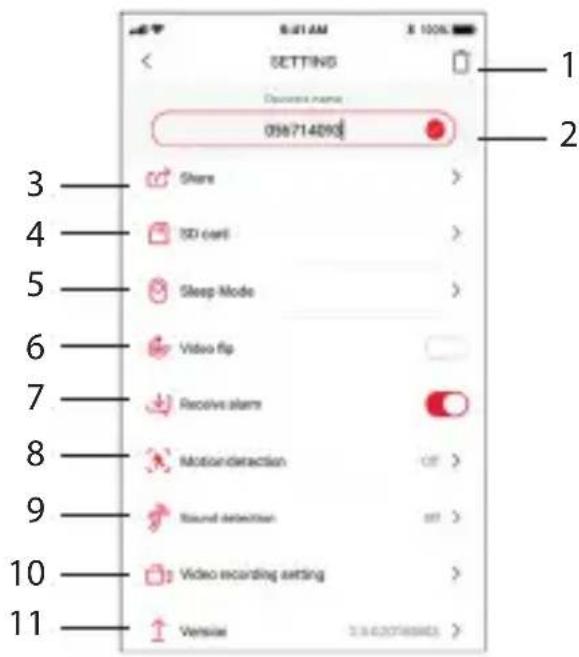

1. Uninstall camera from account

To share the camera with someone else, the other person must rst create their own account in the DiOCam Plus app. You must then add them as a friend.

4. Format installed micro SD card

5. Sleep mode on/program/o

Enable Sleep mode to prevent the camera from recording. Private mode can be enabled manually, either by setting a time or via Locate mode, which puts the camera in Sleep mode automatically when you are at home.

6. Flip the video image 180° if the camera is installed upside down.

7. Detection push notications on/o

To receive push notications, you must enable "DiOCam Plus" notications in your smartphone settings.

8. Motion detection on/o/sensitivity adjustment (low, medium, or high)

9. Sound detection on/o/sensitivity adjustment

10. Recording options

To record video only in case of motion or sound detection, for 1, 3, or 5 minutes.

11. Camera software version

If an update is available, a small red dot appears beside the version. Camera settings menu

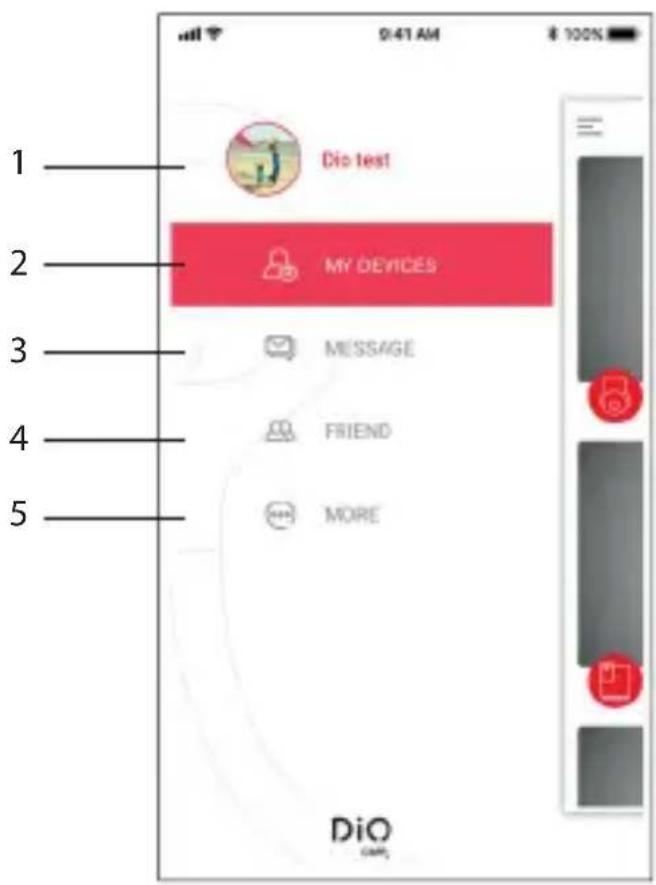

1. Manage your account. Lets you change your prole picture, nickname,

or password, and log out.

2. My devices: to go back to the preview screen.

3. Messages: view your alerts (motion and sound detection) and friend requests.

4. Friends: invite a new friend (they must have created a DiOCam Plus account),

manage your device sharing, and/or delete a friend.

5. Options: lets you mute notications, browse your saved photos and videos

manually, and send us your comments.

To restore the camera's factory settings, press the camera's reset button and hold for ve seconds.

Warning: If you wish to perform a complete reset (for a new owner),

please delete the camera from your account in the application rst, and then perform a reset.

5. Technical characteristics

• Vidéo - HD 1080p (1920x1080) / 25 fps - Rotation: vertical -75° to 75° / horizontal 0 to 350° - CMOS 1/3‘’ sensor - Adjustable motion detection (low, medium, high, or o) - Night vision up to 10 m with infrared lter - Digital zoom x4

• Audio: Built-in speaker and microphone

• Compatible with WiFi 802.11b /g /n - WPA /WPA2- Personal

• Frequency: WiFi 2.4 GHz

• Max. power = 44 mW EIRP

• USB adaptor: 5V / 1A

• Operating temperature: -20°C to 50°C

• Dimensions / weight: 58x64x68 mm / 180 g

6. Complete your installation
