USER MANUAL Rockstar LightShow Auna

www.auna.multimedia.com

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 13

Safety Instructions 14

Scope of Supply 15

Getting Started 16

Disposal Considerations 20

Declaration of Conformity 20

TECHNICAL DATA

Item number 10034074
Power supply 5 V 2000 mA
RMS power 3 W
Supported file formats MP3
Connections USB 2.0

SAFETY INSTRUCTIONS

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions.

• Do not use this apparatus near water.
  Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the Point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in anyway, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Make sure there is enough free space around the product for ventilation.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not use this unit in wet or damp conditions.
• Always disconnect the unit from the mains power supply before cleaning. Clean the appliance with a soft, damp, lint free cloth. Do not use abrasives or harsh cleaners.

SCOPE OF SUPPLY

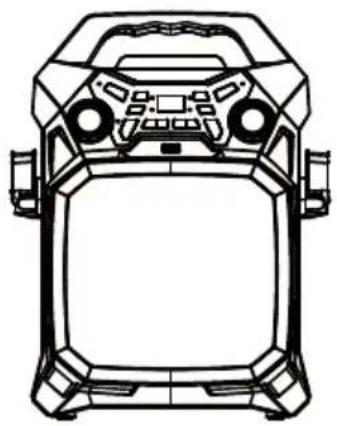

Karaoke machine

1 dynamic microphone

USB power supply cable

Instruction manual

GETTING STARTED

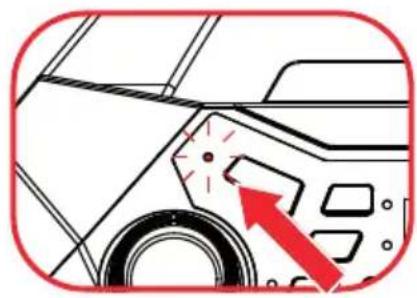

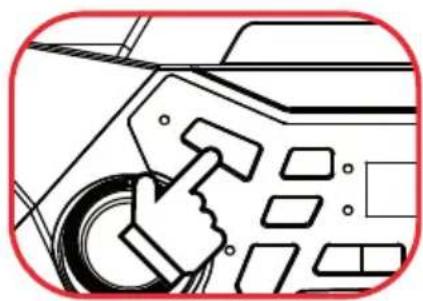

Turn on the power

Press the Power Button to turn ON/ OFF the unit.

Power LED indicator will Light Up/Off.

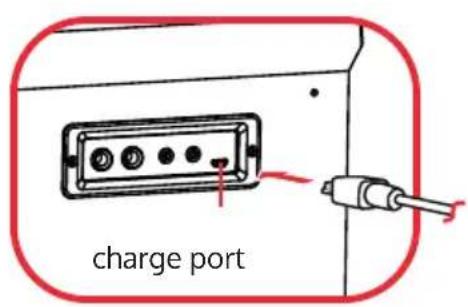

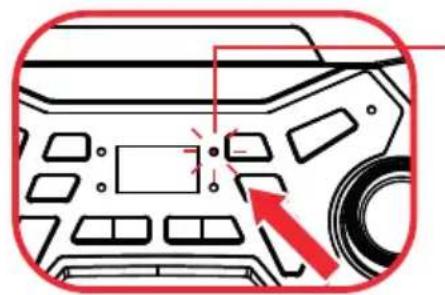

USB charging

Charge indicator: Appliance must be charged.

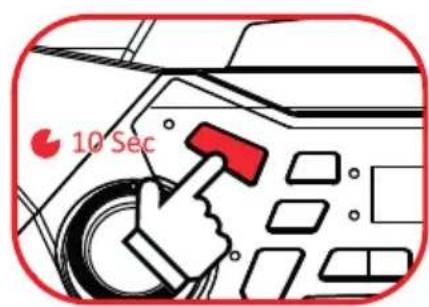

Reset

Press and hold the POWER button for 10 sec. to reset the unit.

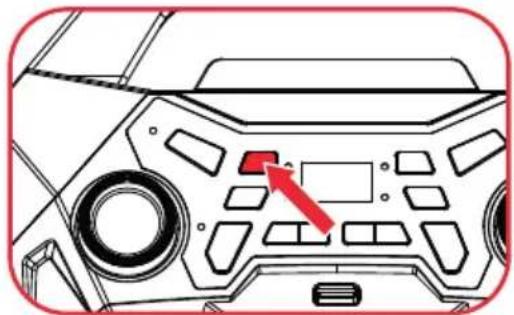

MODE button

With each press of the MODE button you switch between the modes BT, USB, and AUX IN.

Selection via MODE button

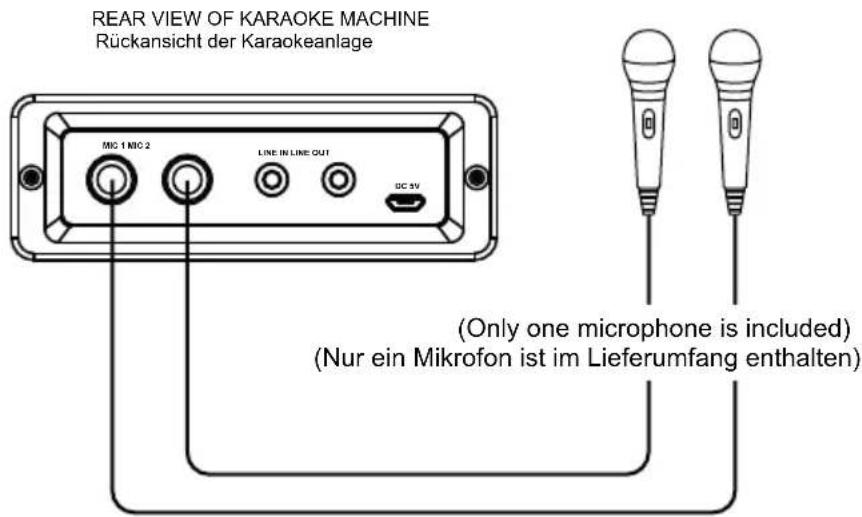

Using the microphone (there is 1 microphone in the package)

microphone volume master volume

Selection via MODE button

BT playback

1. Pairing: Connect your external mobile to the BT device "Auna Rockstar".
2. Playback: Start and stop to play back on your mobile device.

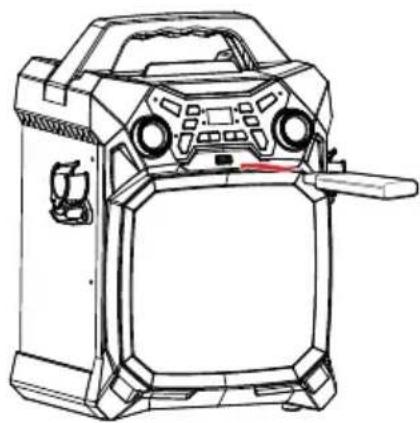

USB playback

Selection via MODE button

Insert USB stick

Key Function
PLAY/PAUSE	Start and pause playback
|▶►|	Skip backward / skip forward
10+	plus 10 tracks
FOLDER	Press and hold for 2 seconds to jump to the fist song of the next folder.
REPEAT	Press key repeatedly to skip through the following modes:
Repeat 1	Repeat single track
Repeat Folder	Repeat folder
Light up	Light on
Light off	Light off

Recording on the USB storage device

1. Select BT mode or AUX IN mode.
2. Insert a USB stick into the port.
3. Start playback and/or pick up the microphone.
4. Start recording by pressing the RECORD button.
5. Sing into the microphone if you wish.
6. To stop recording, press the RECORD button again.

To play back the recordings switch to USB mode. Select the track with the keys and press the play key.

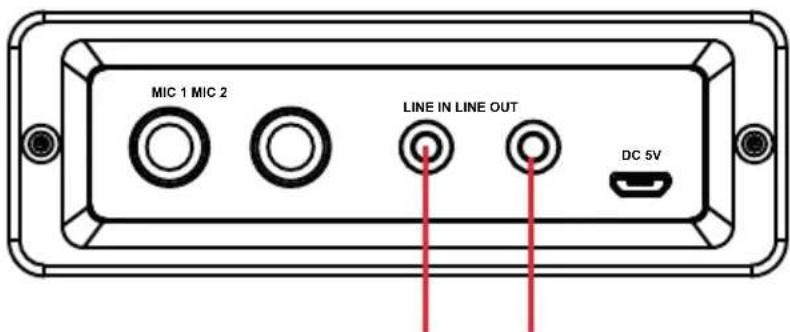

LINE connection

Rear view
Line in Line out

Light modes

Press the button LIGHT ON/OFF several times to switch through the following modes: EQ and Lightshow ---> Lightshow only ---> Light off

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Rockstar LightShow is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10034074

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Rockstar LightShow is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10034074
