USER MANUAL Touchless Klarstein

TOUCHLESS | CLEANSMAN | CLEANTON

Sensor-Mülleimer

SensorTrashBin

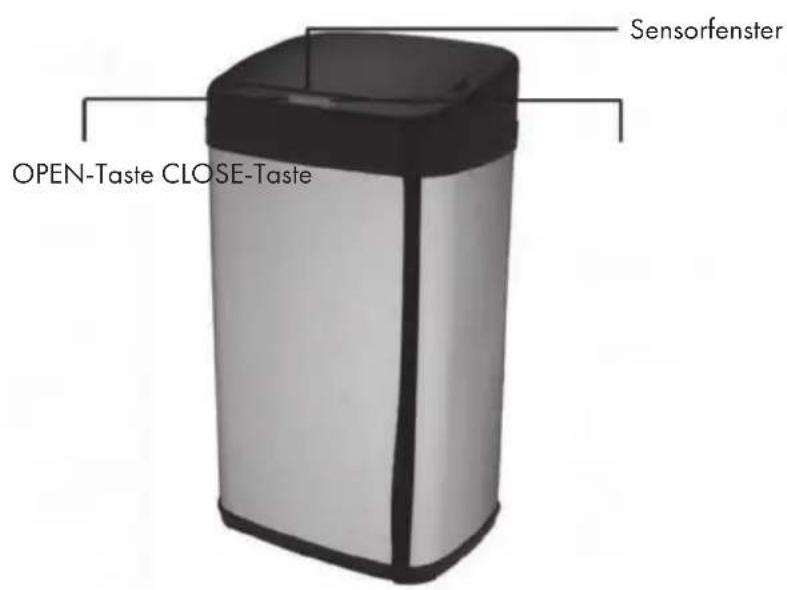

GERÄTEÜBERSICHT (CLEANSMAN|CLEANTON)

BEDIENUNG

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 12

Device Overview (Touchless) 12

operation 13

Device Overview (Cleansman|Cleanton) 14

Operation 14

Hints on Disposal 15

Manufacturer & Importer (UK) 15

TECHNICAL DATA

Item number 10034128
Power supply 6 AA Batterien
Capacity 72 L
Dimensions (L x W x H) 42 cm x 31,5 cm x 82.5 cm

Item number 10034	131 10034132	10034133 1003	4134
Colour chrome chromo	me black black
Capacity	30 L	50 L	30 L	50 L
Power supply	4 AA Batterien

Item number	10034135	10034136
Colour	chrome	black
Capacity	50 L
Power supply	4 AA Batterien

SAFETY INSTRUCTIONS

• Do not clean the trash bin with water, as electronic components are contained in the product. Only clean the trash bin with a slightly damp sponge or cloth.
• Do not place the device in direct sunlight, otherwise the sensor may not react.
• Do not force the lid during opening.
  Disassembly, repair and modification of the product are prohibited.
• When the battery is empty, always replace all batteries at once.
• Do not place any objects on the lid of the trash bin.

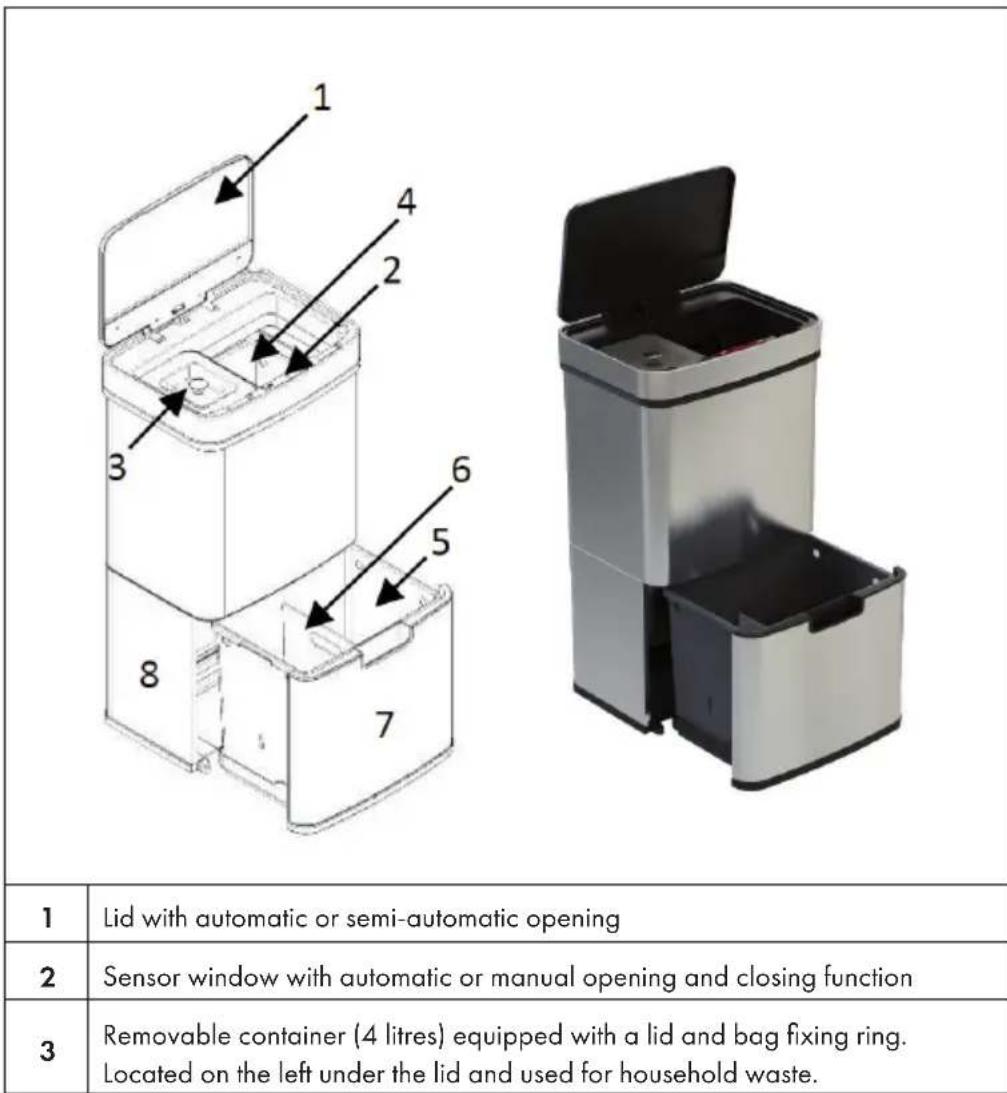

DEVICE OVERVIEW (TOUCHLESS)

4	Removable container (40 litres). Located on the right under the lid.
5	Removable container (25 litres) with access via drawer.
6	Removable partition wall. Can be used either above or below.
7	Housing
8	Drawer on wheels.

OPERATION

• Open the battery cover on the bottom of the cover and insert 6 AA batteries. Then close the battery cover.
• Turn on the power switch located on the back of the cover.
• If you want to throw the garbage away, move your hand about 15cm over the lid and it will open. The lid closes automatically after 5 seconds. The cover remains open as long as your hand or an object (bin liner) is in the sensor area.
• If you want the lid to remain open, press the OPEN button on the sensor window. Press the CLOSE button to close the cover again. The automatic opening will then be active again.
• Pull out the bottom drawer to place recycling waste. The top bin is used for nonrecyclable household waste.
  We recommend the use of 50 litre bin liners.

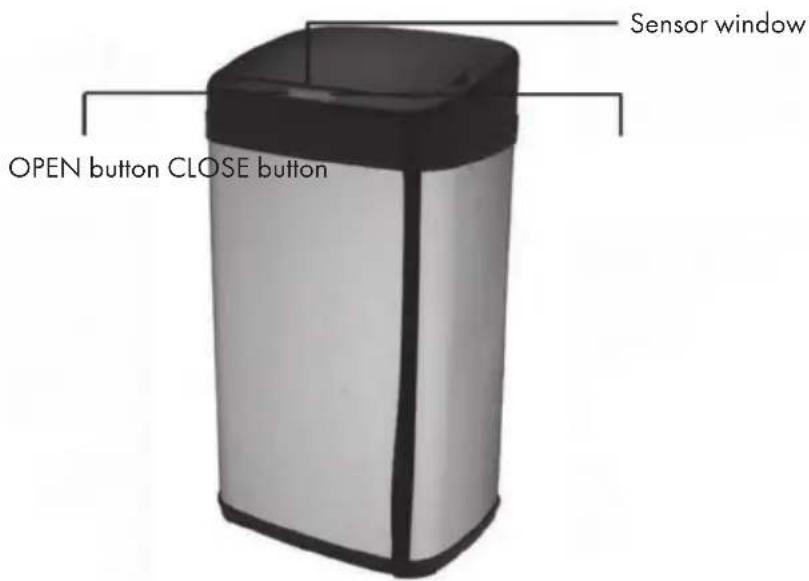

DEVICE OVERVIEW (CLEANSMAN|CLEANTON)

OPERATION

• Open the battery cover on the bottom of the cover and insert 4 AA batteries. Then close the battery cover.
• Turn on the power switch located on the back of the cover. The power light will illuminate for 3 seconds.
• If you want to throw the garbage away, move your hand about 15 - 25cm over the lid and it will open. The lid closes automatically after 5 seconds. The cover remains open as long as your hand or an object (bin liner) is in the sensor area.
• If you want the lid to remain open, press the OPEN button on the sensor window. Press the CLOSE button to close the cover again. The automatic opening will then be active again.
• As long as the trash can is in standby mode, the operating light flashes red every 3 seconds. When the lid is open, the operating light illuminates green. When the cover closes, the operating lamp lights red. If you have pressed the OPEN button, the operating light flashes every 3 seconds.

Note: If the operating light flashes yellow, the batteries are nearly empty. If you open the bin 20 times a day, the batteries will last about 3 months.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Cher client, chere clientele,

APERÇU DES APPAREILS (CLEANSMAN|CLEANTON)

Fenêtre du capteur

UTILISATION

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

Estimado cliente:

m = 311 ;

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile cliente,

PRODUTTORE IMPORTATORE (UK)

Produtlore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germania.

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

KLARSTEIN
